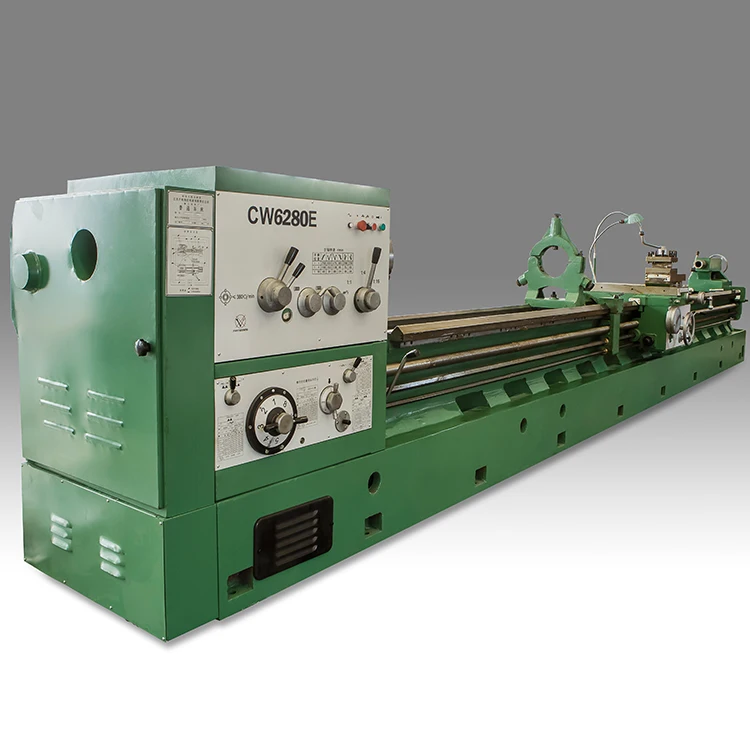

Spindle Bore Manual Engine Lathe Machine CW6280E Heavy Duty Turning Machine For Sell Horizontal Heavy Duty Universal Metal Lathe
- Category: >>>
- Supplier: ChinaSourcing E&T Co. Ltd.
Share on (1600848480520):
Product Overview
Description
Product Description
Specification
MODEL | CW6280E | |||||
CAPACITIES | ||||||
Max.swing over bed | 800mm | |||||
Max.swing over cross slide | 485mm | |||||
Center distance | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000mm | |||||
Max.swing over gap | 1000mm | |||||
Valid length of gap | 300m | |||||
Bed width | 550mm | |||||
Max weight of workpiece | 3T | |||||
HEAD-STOCK | ||||||
Spindle hole | 105mm or 130mm (optional) | |||||
Spindle nose | D-11 | |||||
Spindle taper | 1:20 | |||||
Spindle speeds(Number) | 14-750RPM(18 STEPS) | |||||
GEAR BOX-THREADS & FEEDS | ||||||
Metric threads range(kinds) | 1-240mm(54 kinds) | |||||
Inch threads rangs(Kinds) | 28-1 inch(36 kinds) | |||||
Moudle threads range(kinds) | 0.5-60 DP(27 kinds) | |||||
Diametral threads range(kinds) | 30-1 t.p.i.(27 kinds) | |||||
Longtudinal feeds range(kinds) | 0.048-24.3mm/r (72 kinds) | |||||
Cross feed range(kinds) | 0.024-12.15mm/r (72 kinds) | |||||
Rapid feed:Long./Cross | 4/2m/min | |||||
Leadscrew size:Diameter/Pitch | T48mm/12mm or T55mm/12mm (more than 5m lathe selection) | |||||
CARRIAGE | ||||||
Cross slide travel | 420mm | |||||
Compound rest travel | 200mm | |||||
Size of tool shank | 32*32mm | |||||
TAILSTOCK | ||||||
Spindle diameter | 100mm | |||||
Spindle taper | MORSE #6 | |||||
Spindle travel | 240mm | |||||
MOTOR | ||||||
Main drive motor | 11kw | |||||
Coolant pump motor | 0.09kw | |||||
Rapid feed motor | 1.1kw | |||||
KGNIT | ||||||
Genter distance:(1500mm) | 4500kg | |||||
WEIGHT FLOOR SPACE(L*W*H) | ||||||
Genter distance: （1500mm） | 3452*1326*1390 | |||||
Packing & Delivery
Company & Brand
Established in 2003, ChinaSourcing E&T Co.,Ltd. has always been devoting to global sourcing of mechanical products. Our mission is to provide professional one-stop sourcing service and create added value for customers, and to build a strategic platform between the foreign customers and Chinese suppliers.
We have supplied more than 100 customers with hundreds of thousands of kinds of products, including components, assemblies, full machines, machine tools, automation products and etc.
Nowadays our business also involves in industrial investment and import & agency sales of agricultural machinery.
In 2005, we organized ChinaSourcing Alliance, which gathers more than 50 manufacturers involved in a wide range of industries. Connecting all the members as one, we provide Overall Solution for our customers. In 2021, the annual output of ChinaSourcing Alliance reached up to 30 billion RMB.
Every member of ChinaSourcing Alliance was selected after strict screening and represents the highest level of Chinese machinery manufacturing. And all the members have obtained CE certification.

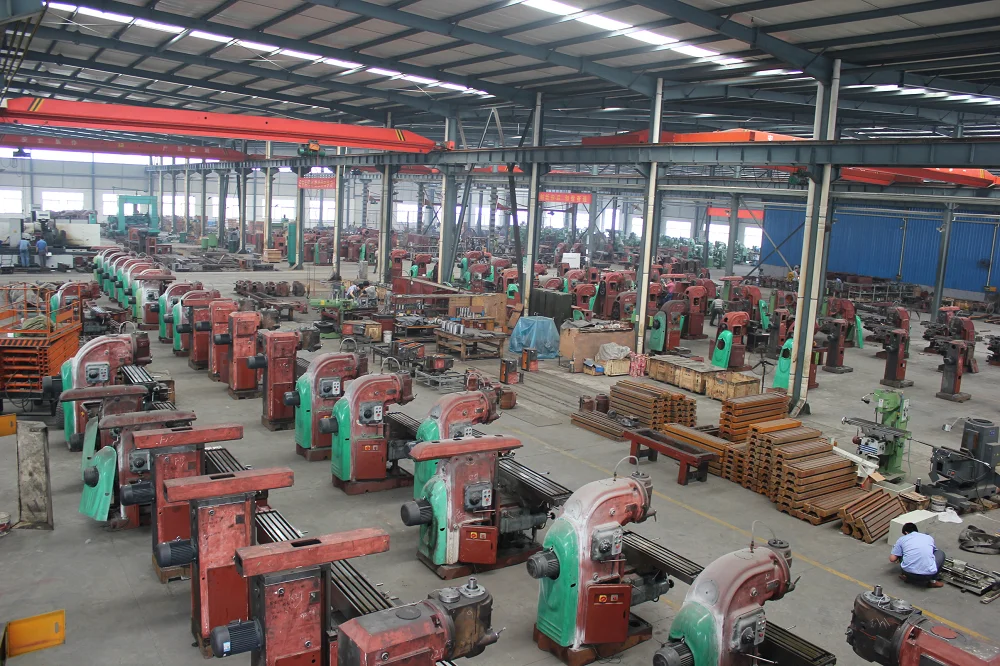

In ChinaSourcing Alliance, there are more than 10 professional machine tool manufacturers, of which we decided to integrate the product lines and the production capacity to provide the customers with the most reliable products and the most varied choice, and this is how our self-owned machine tool brand CSAL came out.
