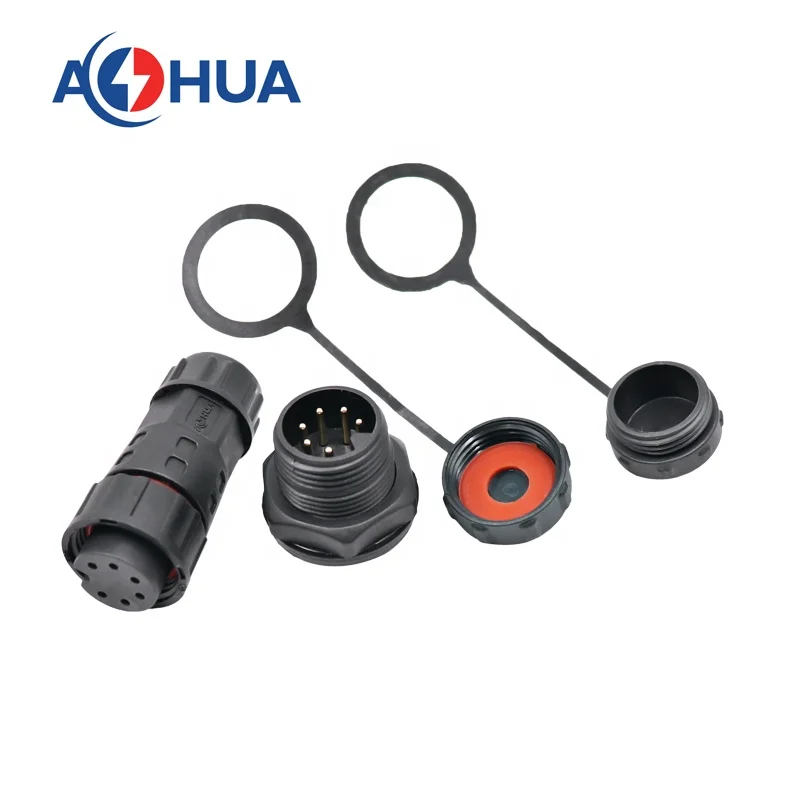

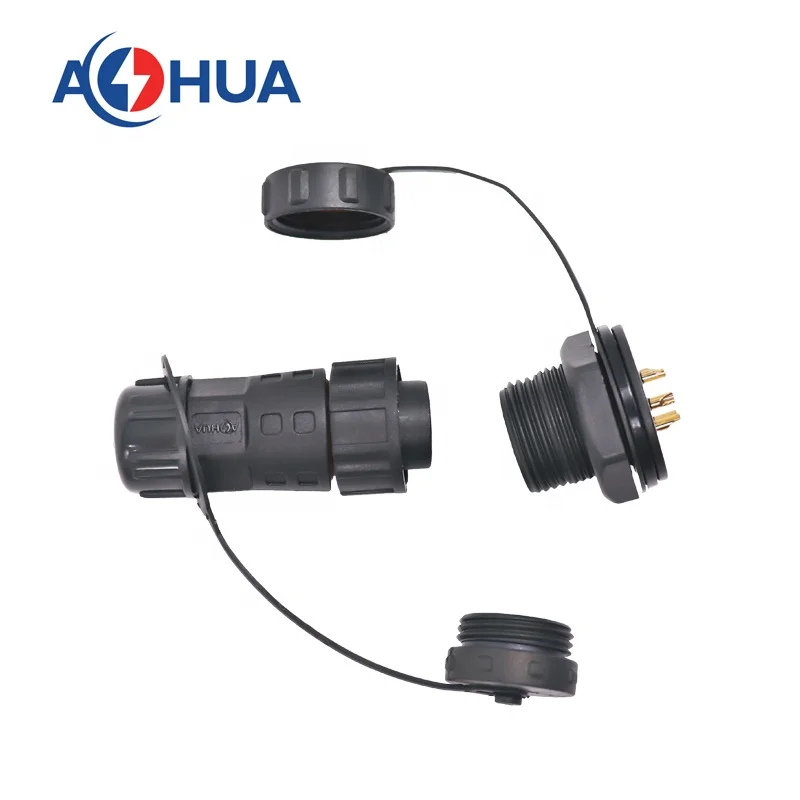

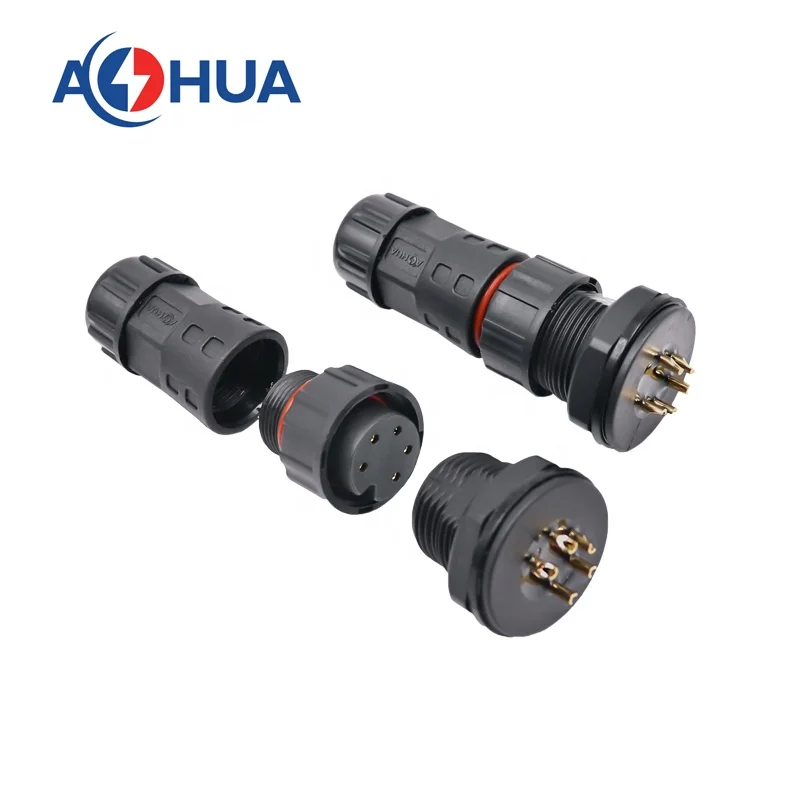

Nylon PA66 M20 5 Pin LED Power Cable Solder Type IP67/IP68 Waterproof Connector
- Category: >>>
- Supplier: Shenzhen Aohua Electric Corporation Limited
Share on (1600848520844):
Product Overview
Description
Product Description
M20 Solder Type 2 Pin Male Front Panel Mount And Mating Female Connector
Items | Pins | Part Number | Wire Gauge | Cable OD |
M12 | 2 | AH-M12-0502FMF/MFZ01112 | ≤1.0mm² | 2.6mm-7.5mm |
M16 | 2 | AH-M16-1002FMF/MFZ01112 | ≤1.0mm² | 2.6mm-7.5mm |
M20 | 2 | AH-M20-1502FMF/MFZ01112 | ≤1.5mm² | 5.5mm-10mm |
M25 | 2 | AH-M25-2502FMF/MFZ01122 | ≤2.5mm² | 6mm-12mm |
Contact Numbers | 2 |
Voltage Rating | 300V |
Current Rating | 15A |
Wire Gauge | ≤1.5mm² |
Cable OD | 5.5mm-10mm |
Mechanical Life | 3000 mating cycles |
Operating Rating | -40ºC-+105ºC |
Waterproof Level | IP67/IP68 |
Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
Cable OD | Seal Ring |
2.6mm-7.5mm | 9*9*3.6/4.1/5.5/6.5/7.5mm |
5.5mm-10mm | 13*9*6.5/7.5/8.5/9.5/10mm |
6mm-12mm | 15.6*13*7/9/10/11/12/13mm |
Related Product
Our Advantages
Advantages:

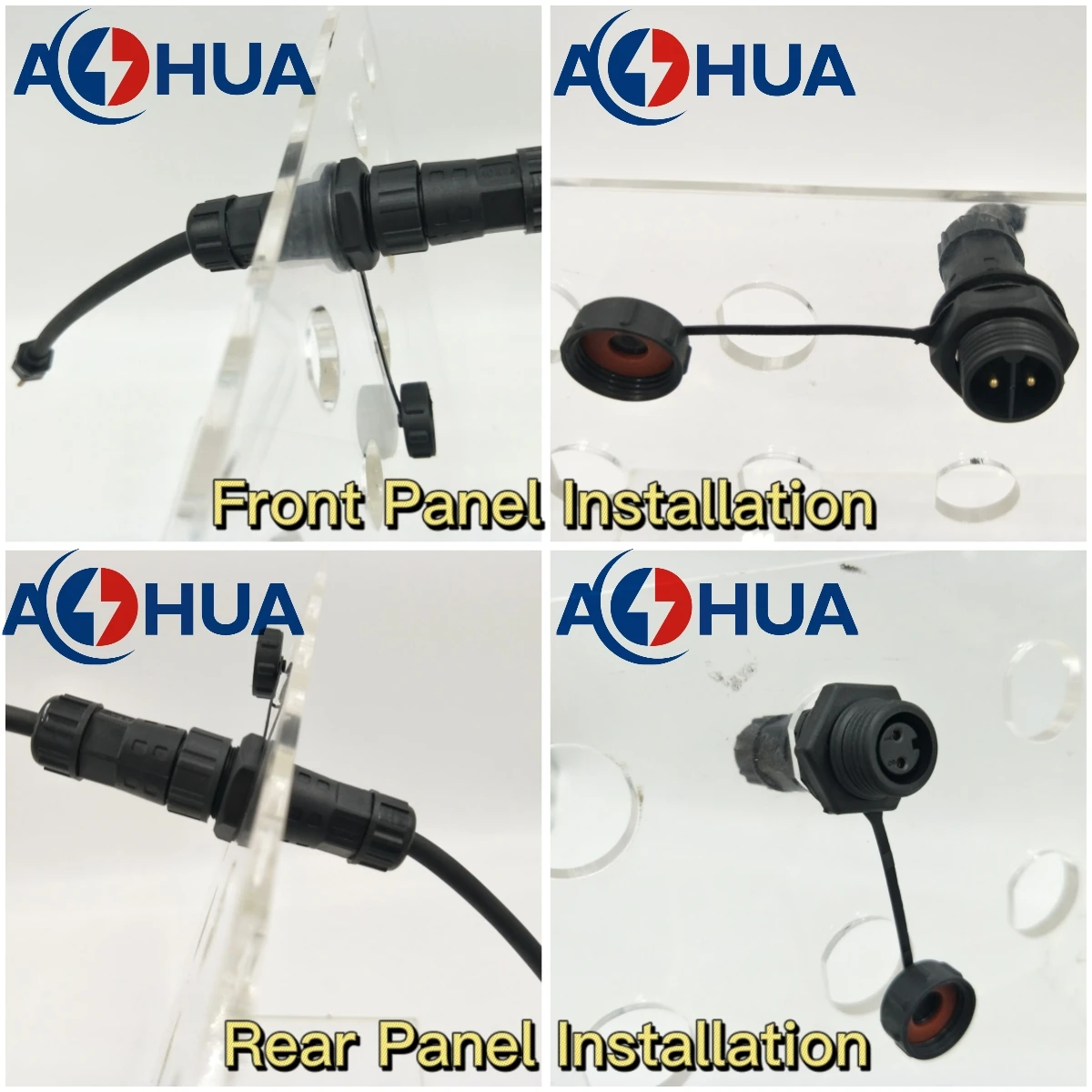

1.Nylon PA66,wire to front male mount,solder & screw fixing type.
2. Male to female, assemble easily;2, 3, 4, 5,6,7,8 pin for choices,2,3 pin passed UL,CE,RoHS,TUV certificate.
3. Easy Install: The installation process is very simple.

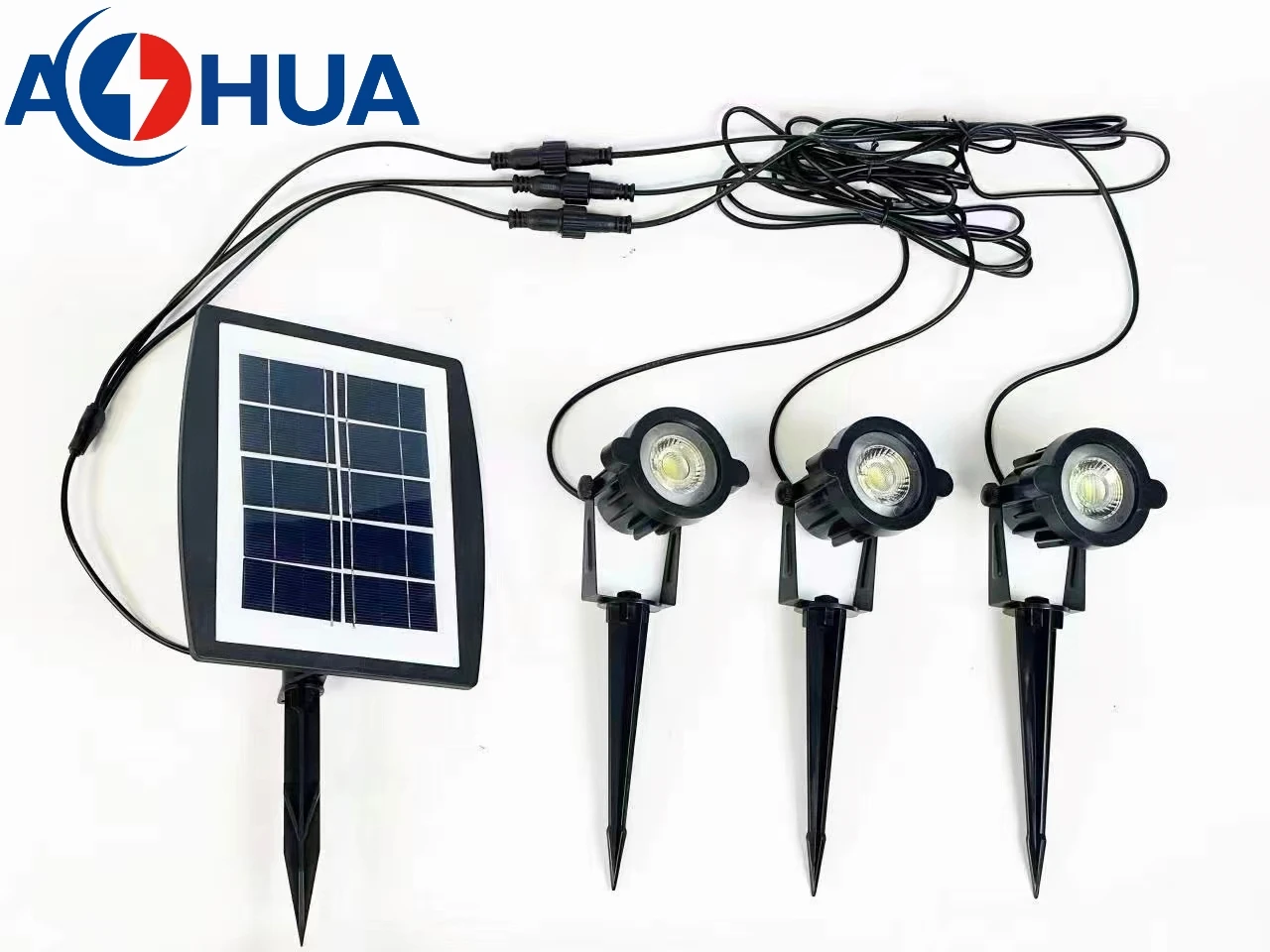

4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
2. Male to female, assemble easily;2, 3, 4, 5,6,7,8 pin for choices,2,3 pin passed UL,CE,RoHS,TUV certificate.
3. Easy Install: The installation process is very simple.
4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |
Distributor Connector | M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.
Details Pictures

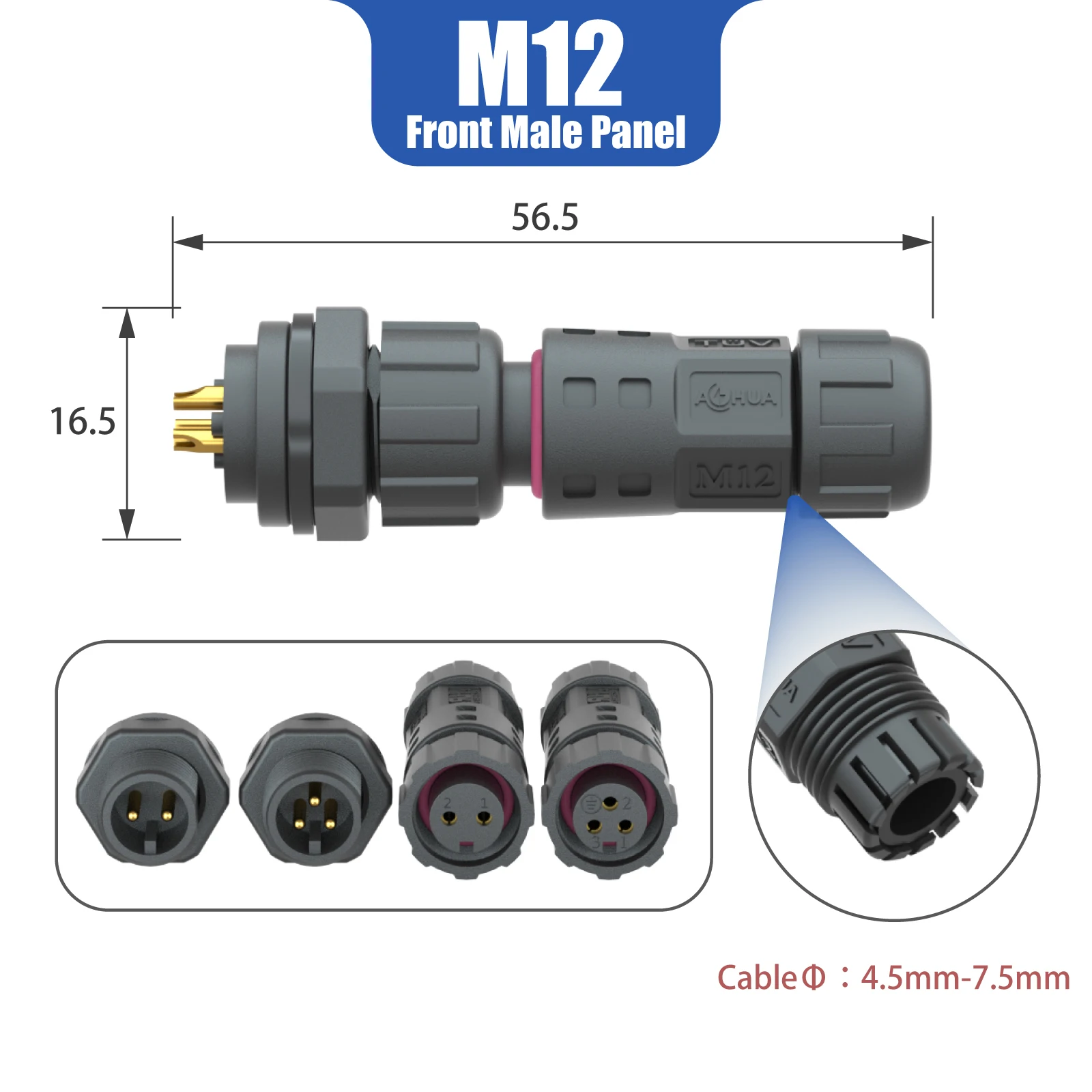

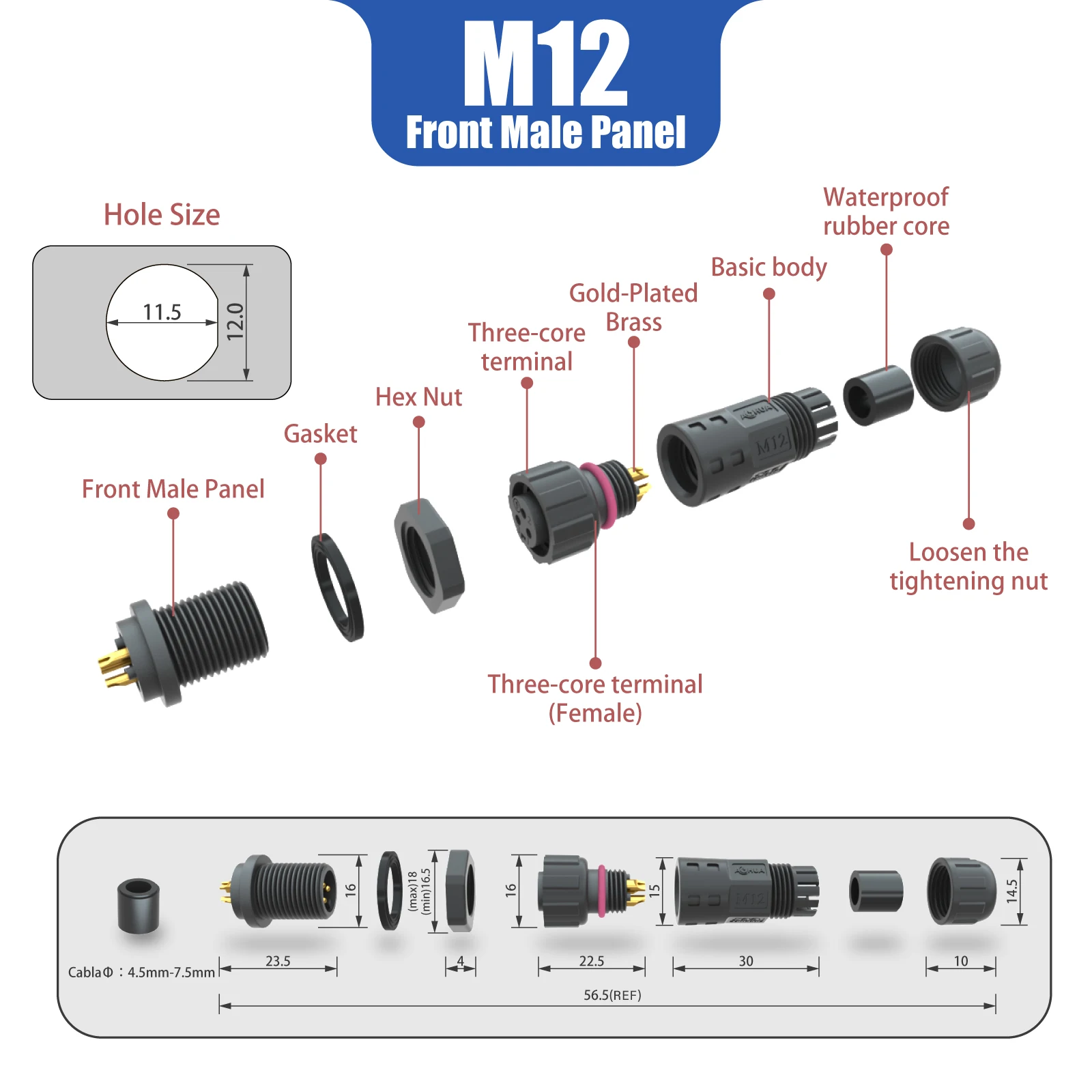

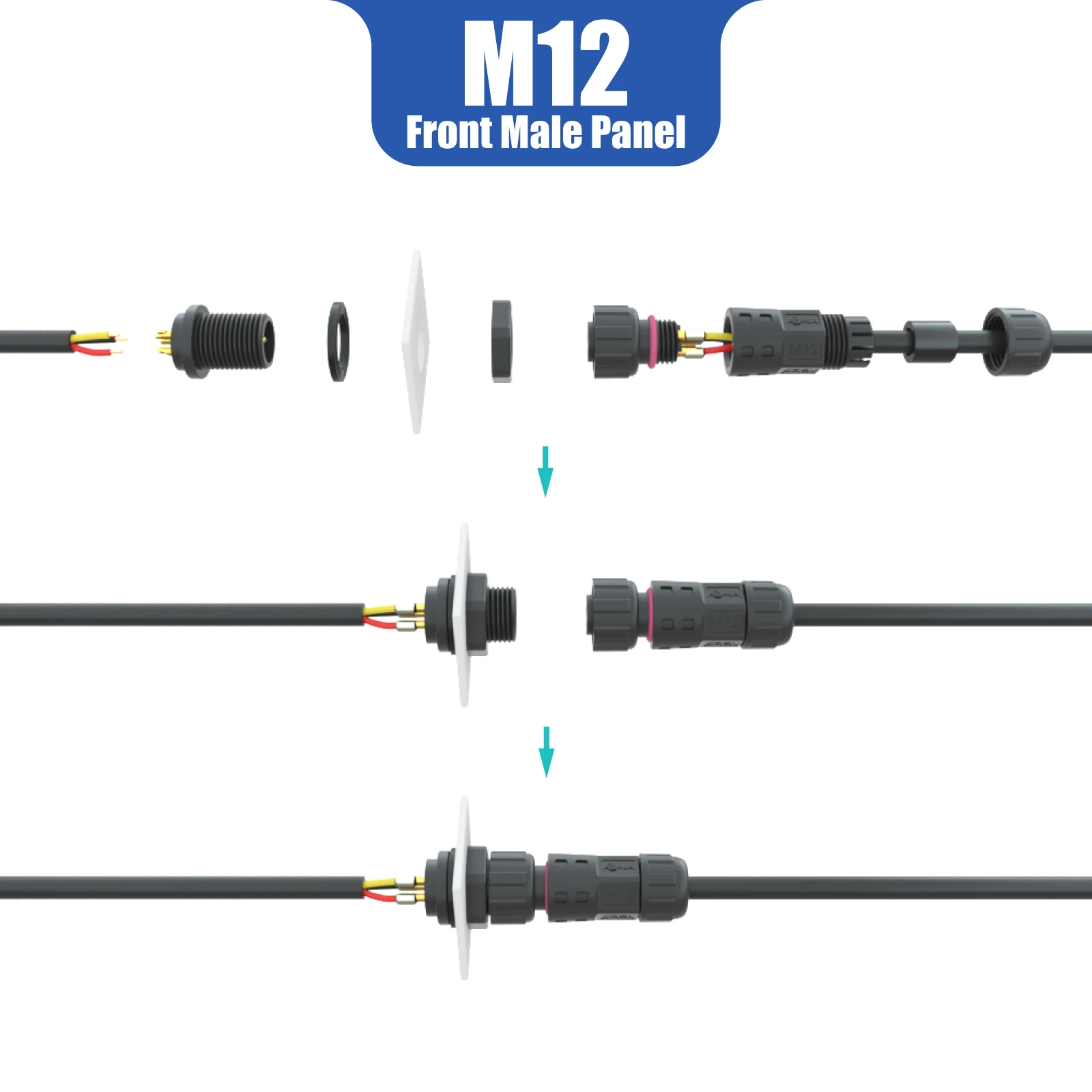

2 Pin M12 Front Male Panel

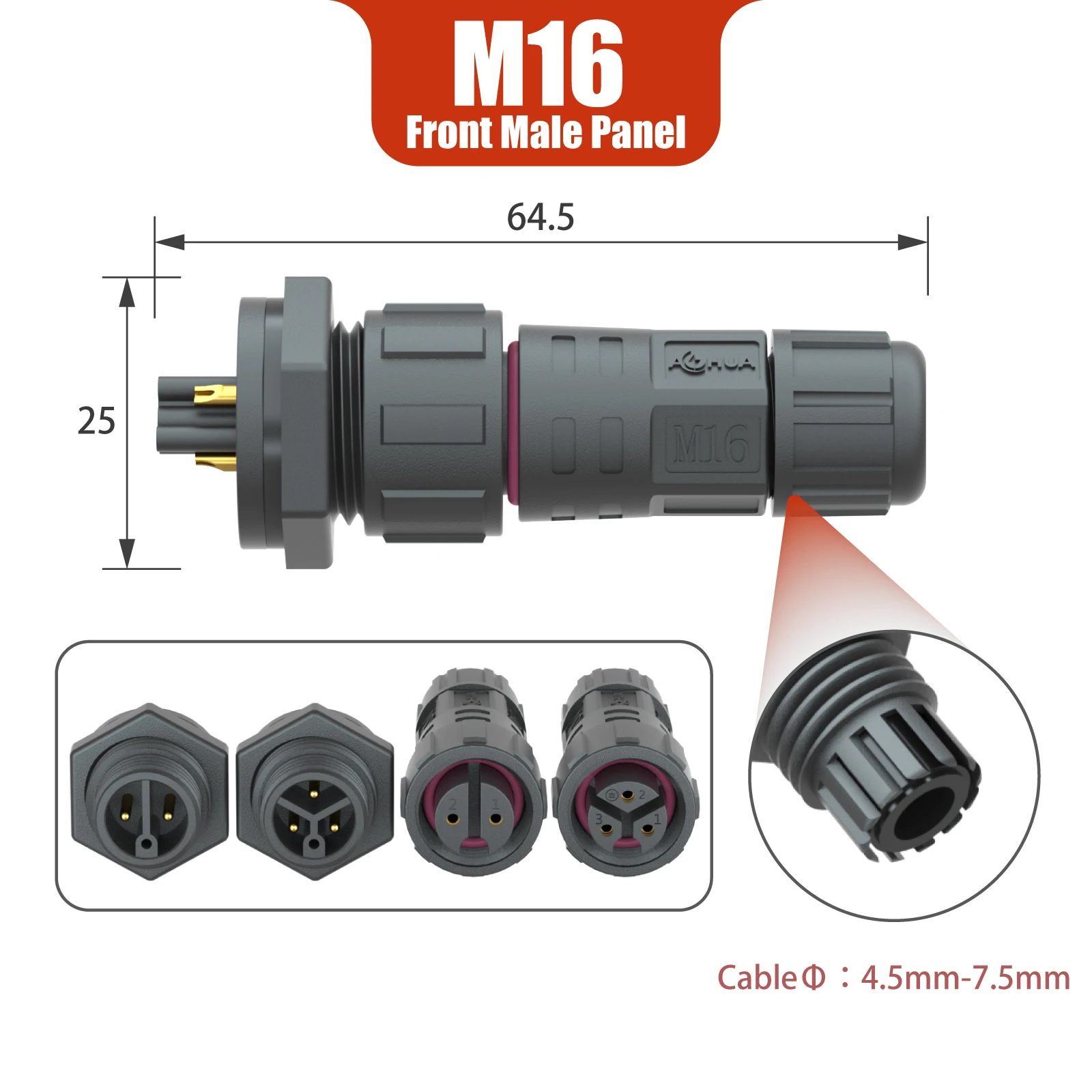

2 Pin M16 Front Male Panel

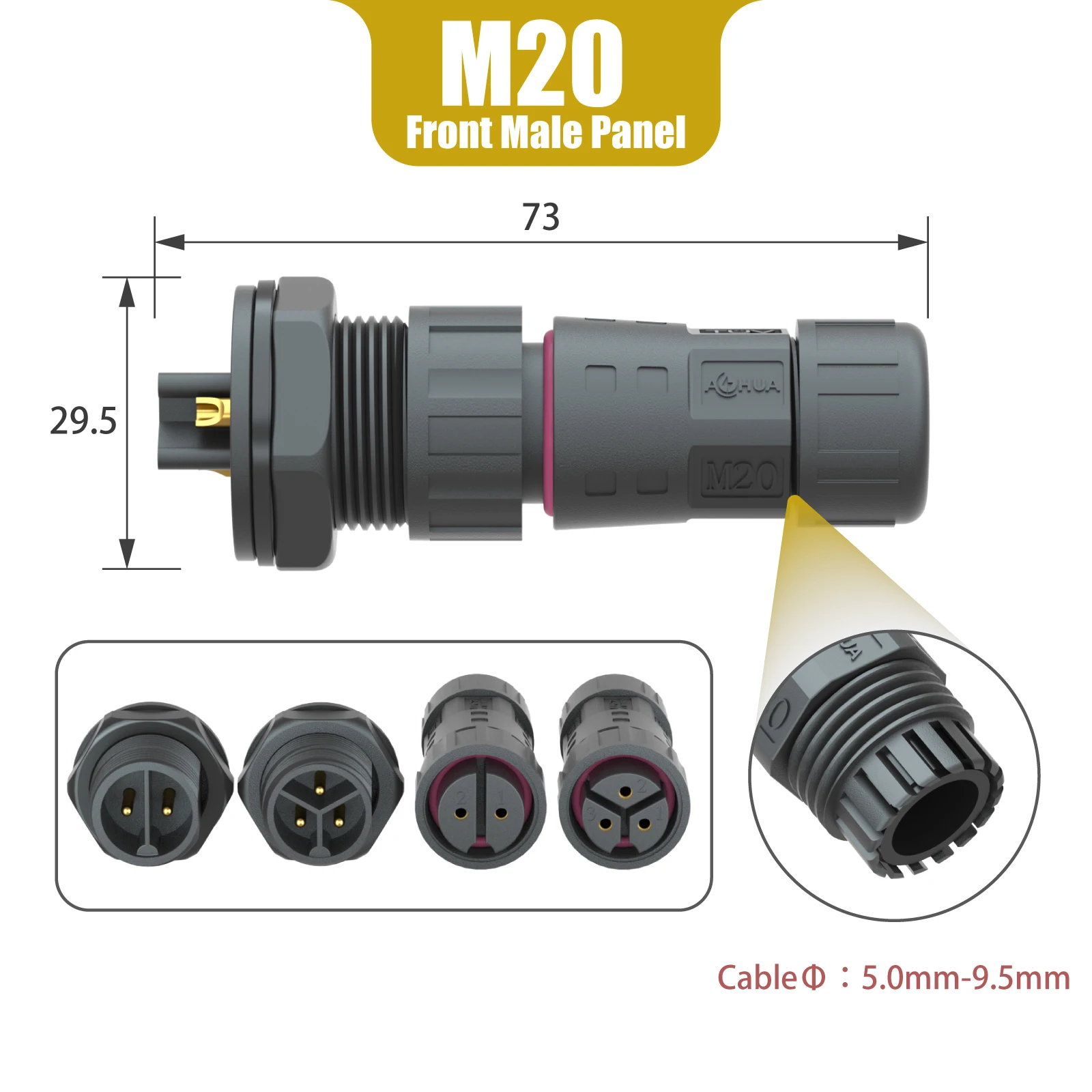

2 Pin M20 Front Male Panel

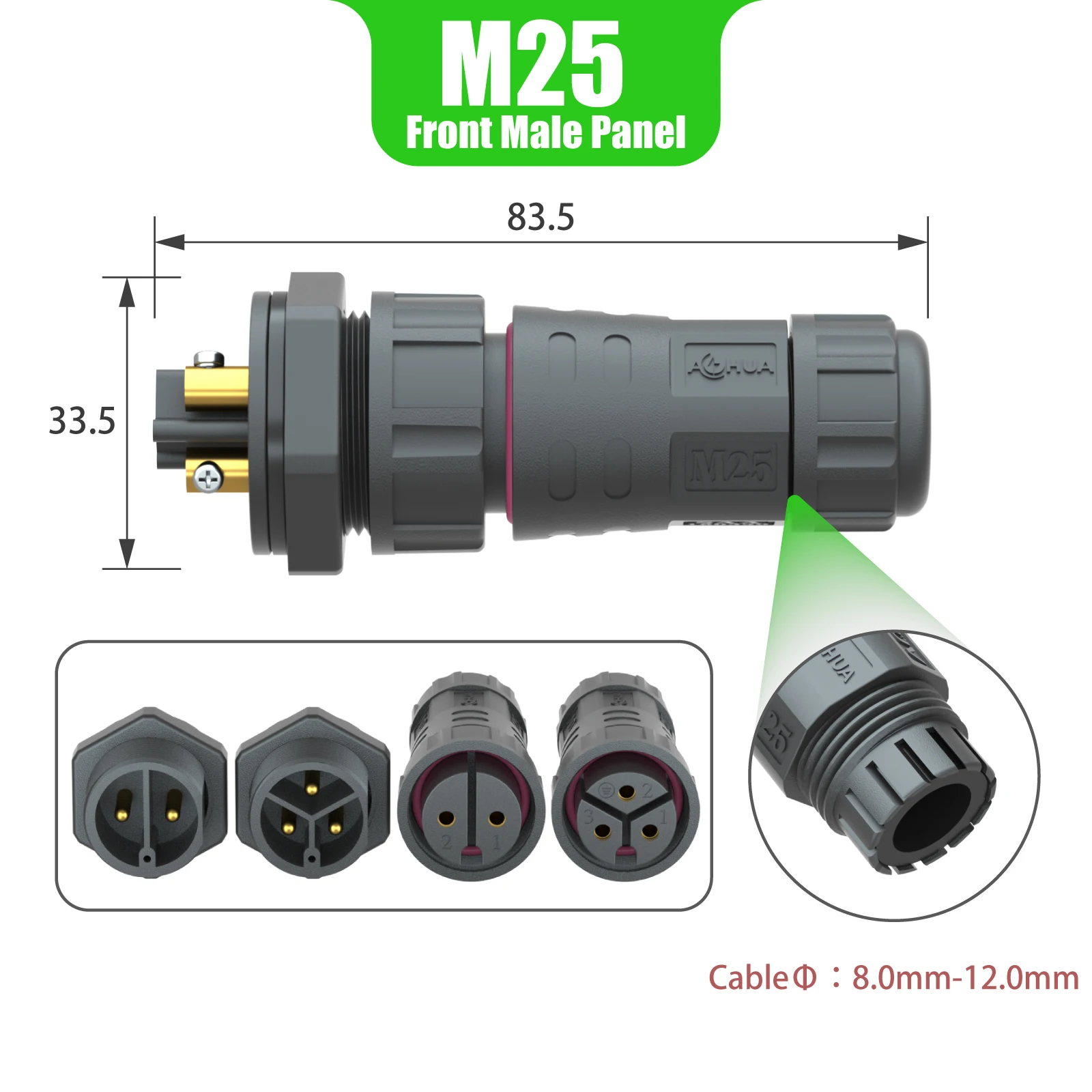

2 Pin M25 Front Male Panel
Packaging & Shipping
Quantity(sets) | 1 - 500 | 501 - 1500 | >1500 | ||
Lead Time(days) | To be negotiated | ||||
Shipment | Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight | ||||
Company Profile
Certifications
FAQ
1. What is the packing ?
A: Well , we pack it in neutral brown cartons. Also your packing requirement is considered.
2.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.Can you off er samples ?
A: We can supply the sample if we have ready parts in stock, but you need to bear the courier cost.
6.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
7.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
8.What type waterproof connector do you have?
A:We have 13 series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We focus on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
A: Well , we pack it in neutral brown cartons. Also your packing requirement is considered.
2.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.Can you off er samples ?
A: We can supply the sample if we have ready parts in stock, but you need to bear the courier cost.
6.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
7.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
8.What type waterproof connector do you have?
A:We have 13 series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We focus on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
