Manufacture 20kg 50kg Multifunction Rice Sugar Powder Feed Dog Food Pellet Packing Machine

Product Overview

Description

Quantitative packaging scale, weighing filling machine, open mouth bag packing machine, semi automatic bagging machine

Our packaging machines are widely used in feed, fertilizer, grain, chemical industry, building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc, and bag top closed by sewing or heat sealing

Non weighing bucket packing scales capacity 120-180bags/hour

Single weighing bucket packing scales capacity 240-480bags/hour

Double weighing bucket packing scales capacity 500-800bags/hour

The granular materials(gravity feeder) packaging machine technical parameter:

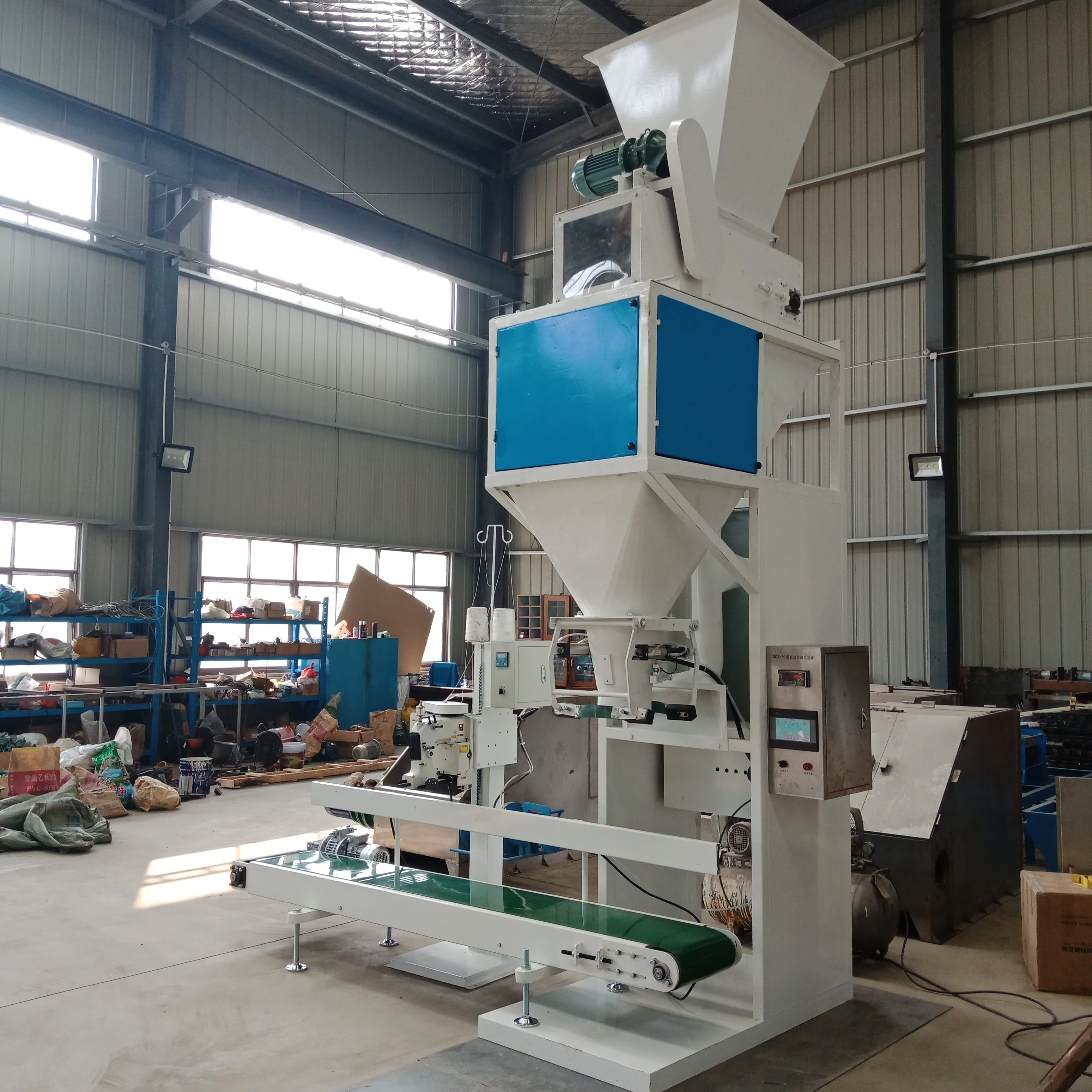

SEMI AUTOMATIC PACKING MACHINE
1,Gravity feeder packing machine, this type packing machine suit for packing different granule materials such as animal feed, fertilizer,urea,DAP,grains, rice, beans, wheat, dry sand, PE, PP plastic etc
Item	DCS-50Z/W	DCS-50Z/D	DCS-50Z/S
Application materials	each type small size granule mateials
Weighing range	10-70kg/bag or customized	5-70kg/bag or customized	5-70kg/bag or customized
Scale interval	10g
Feeding type	gravity feeder with Three-stroke cylinder

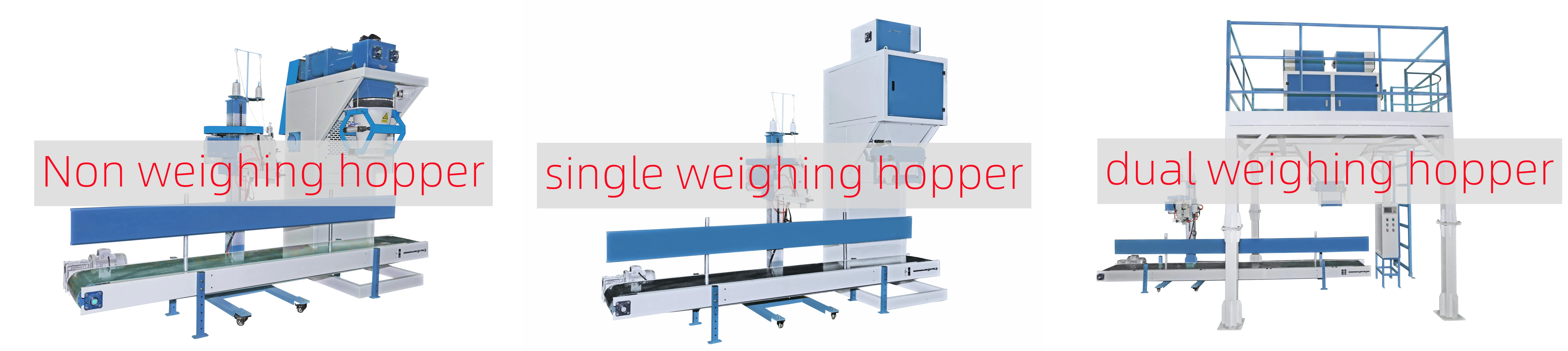

Weighing hopper	non-weighing hopper	single weighing hopper	dual weighing hopper
Precision	±50g
Capacity	3-5bag/min	6-8bags/min	8-15bags/min
Control	color touch scren HMI, Chinse-English interface
Air source	0.5-0.8Mpa
Dimensiion(L*W*Hmm)	3000*1100*2100mm	3000*1100*3100mm	4000*1200*3600mm
Power	1.1kw	1.1kw	1.1kw
Voltage	single/three phase AC220V/AC380V/50HZ
Working environment	(-20℃~50℃)
Relative humidity	≤90%RH
Machine materials	product contact parts SS304/full Q235 carbon steel with anti-rust painting



Feature:

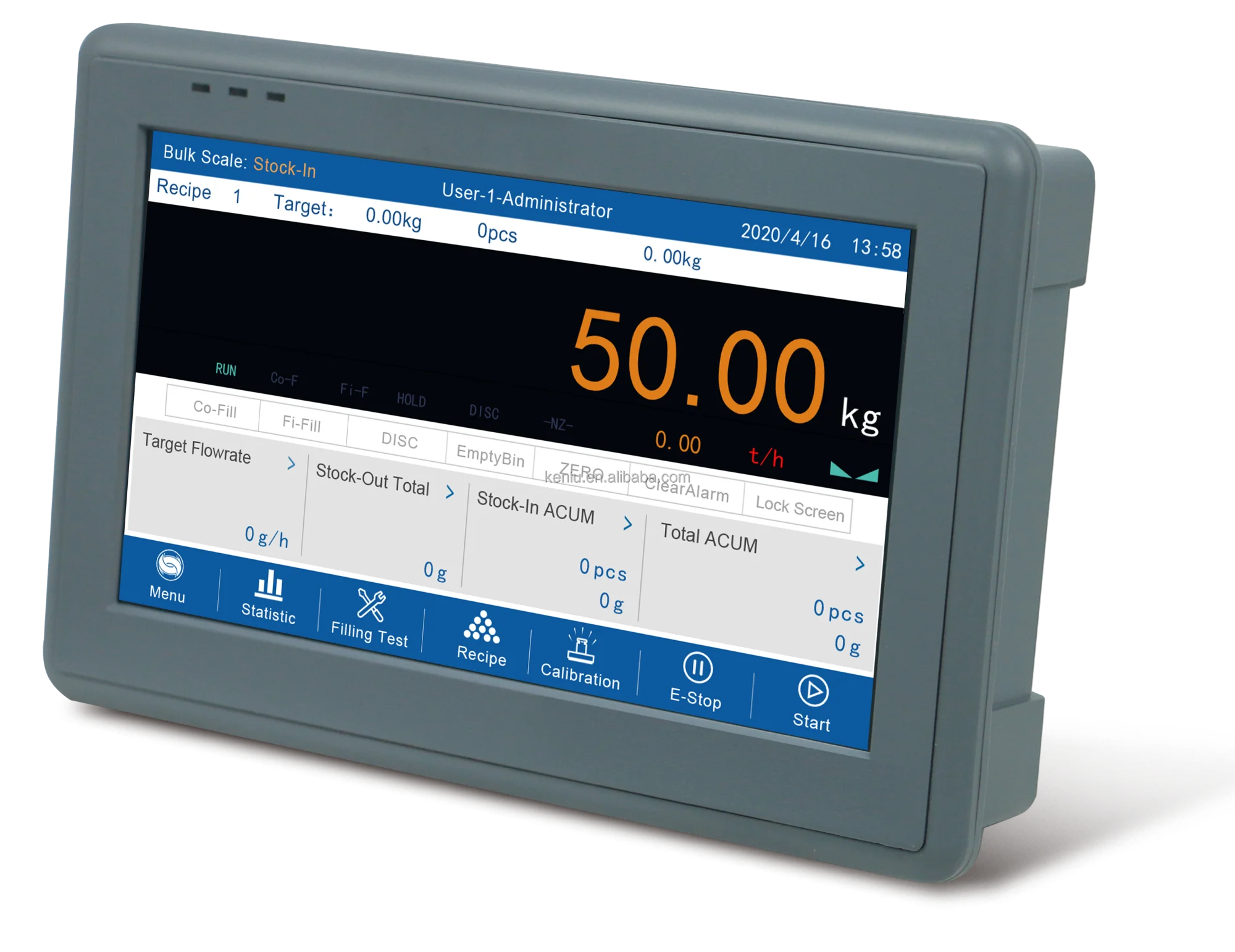

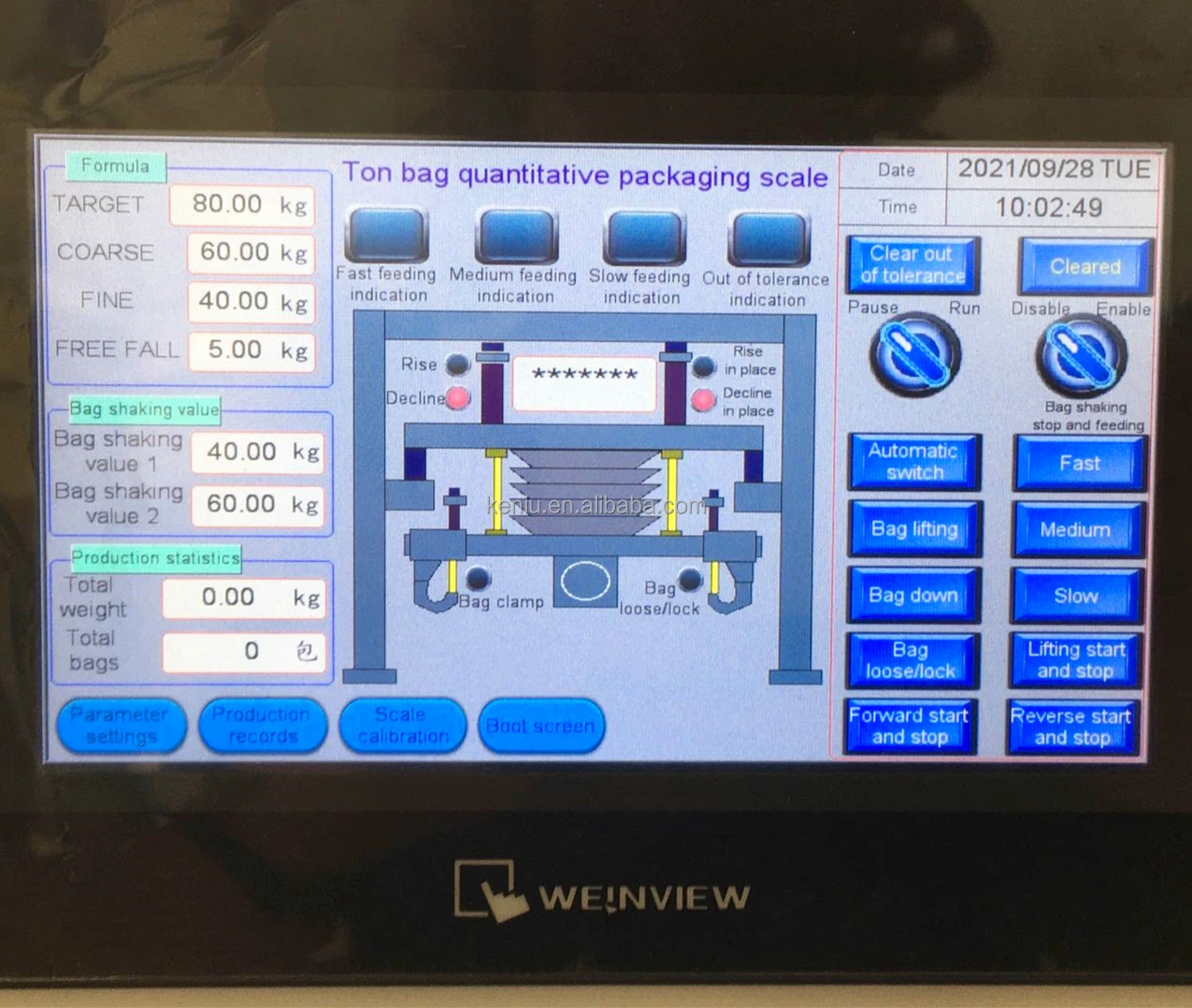

1, The bagging machine adopt integrated instrument, color touch screen operation interface, automatic measurement, automatic weight calibration, packaging process display and monitoring functions, more simple and convenient operation

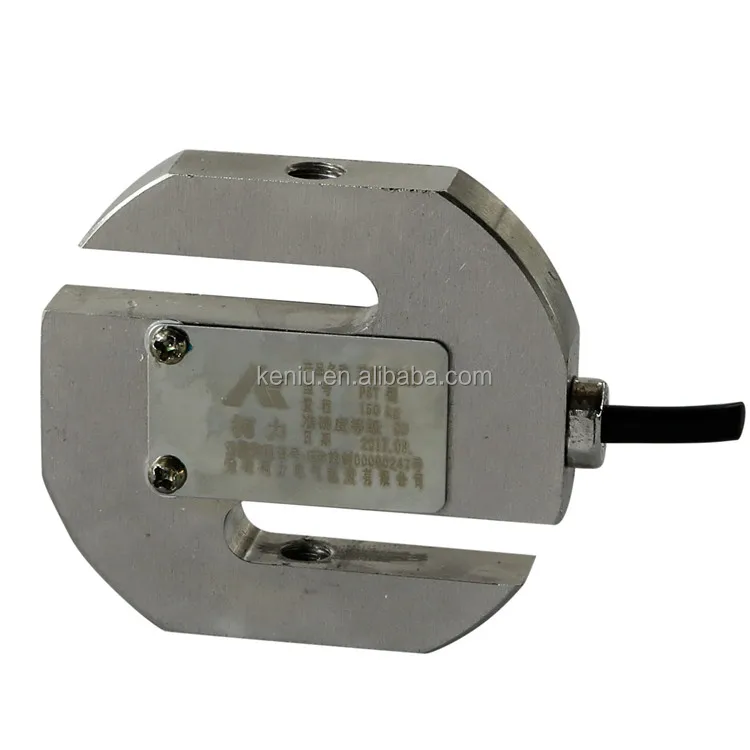

2, The packing machine use of Mettler Toledo/Keli/AVIC load cell (weighing sensor), high precision, fast speed.

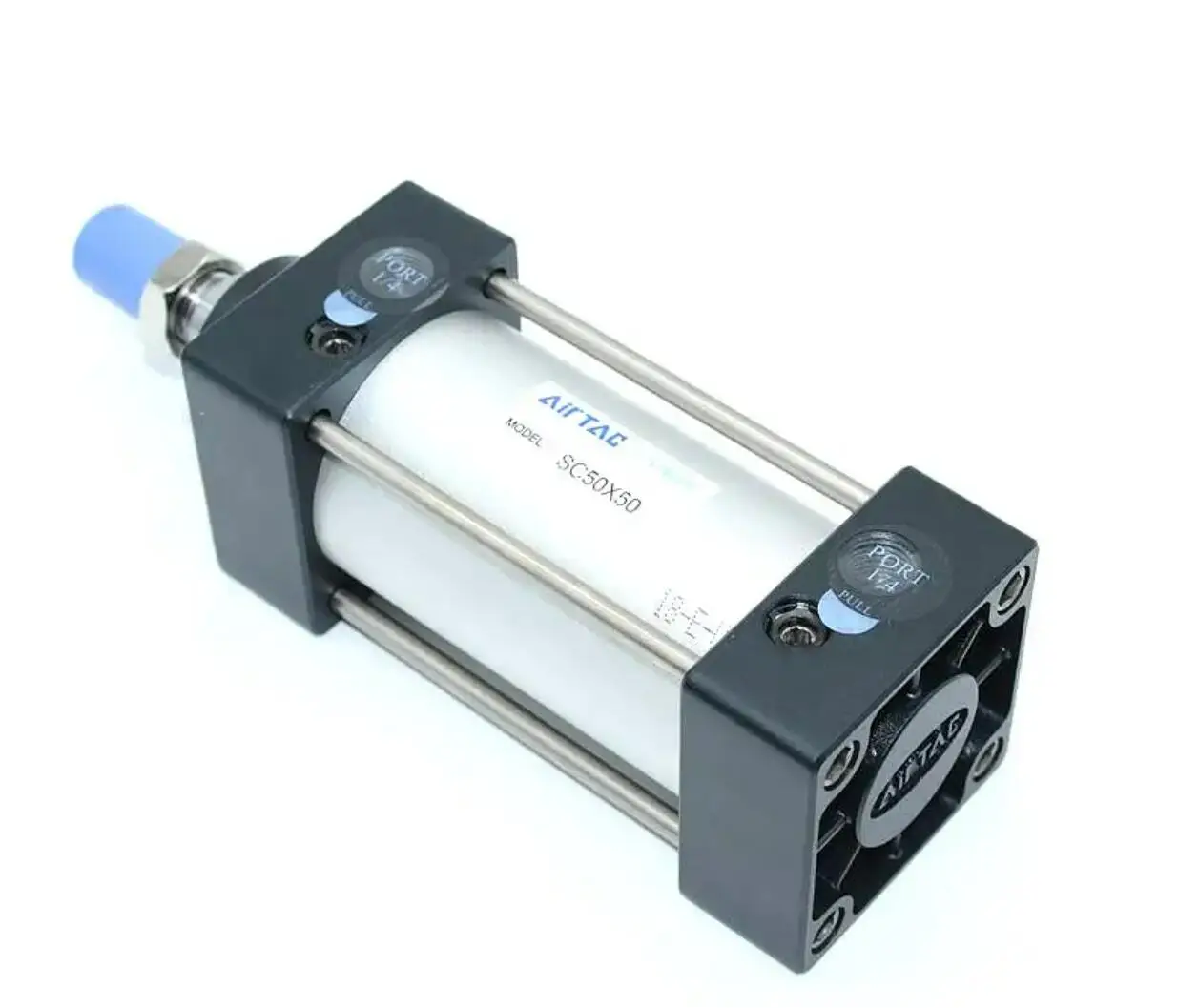

3. The packaging unit parts are made of well-known brands such as AirTAC air cylinders and solenoid valves, electrical components of Schneider/Omron brand, etc., with strong stability and longer service life

4, The packing machine is equipped with automatic sewing machine head/heat sealing machine, sealing more quickly and tidy.

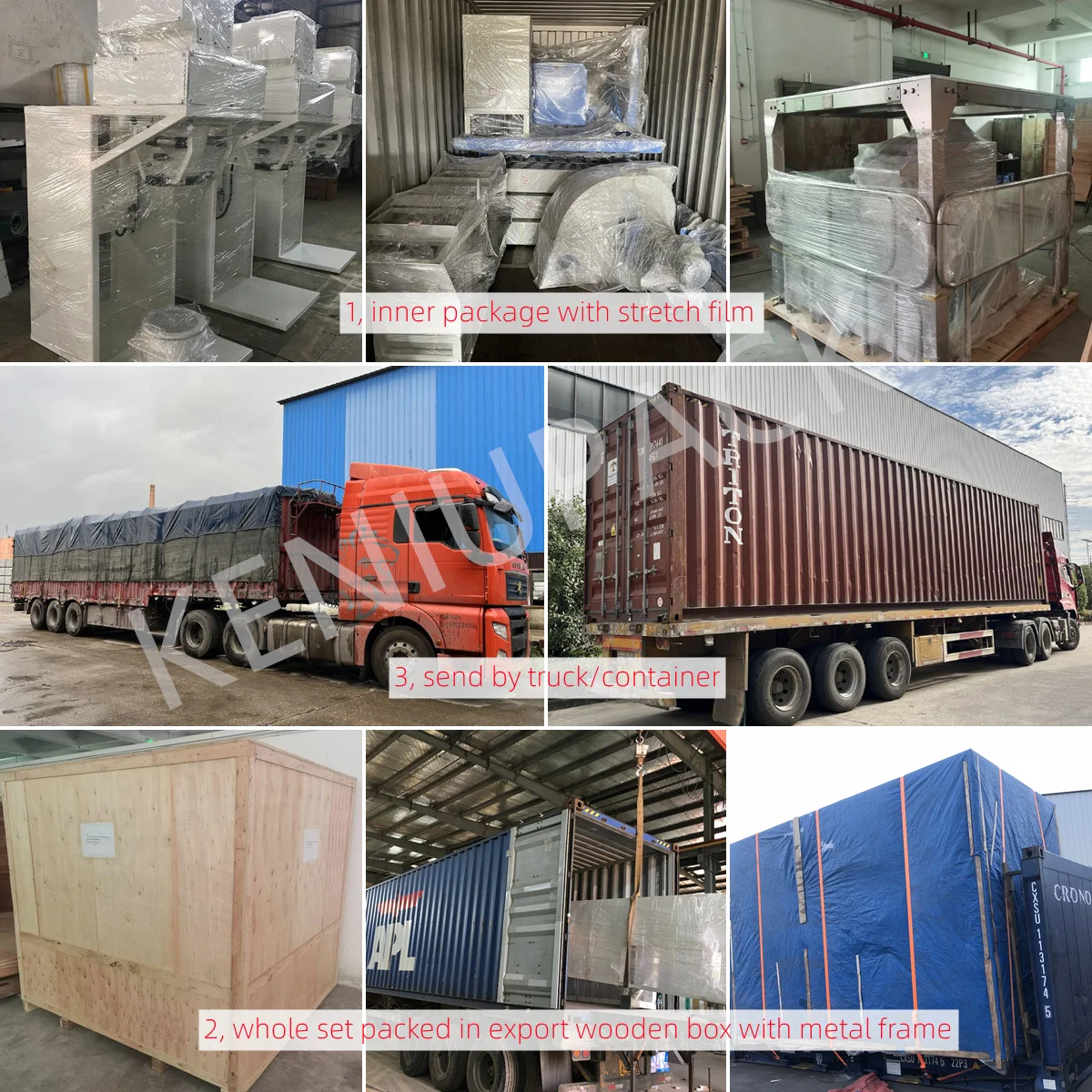

The packaging machine equipment will be installed and debugged in the factory before being sent to you, and then the whole set packing machine will be packed into a large export wooden box and then into the container. There is no need for much installation when you receive the equipment

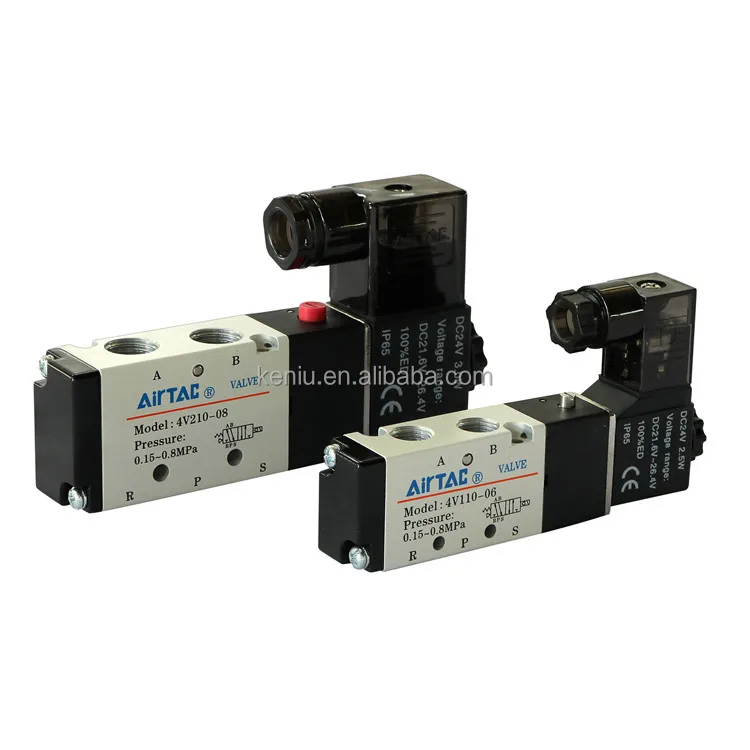

Integrated instrument, touch screen interface, automatic measurement, automatic calibration scale, weighing process monitoring, production data display and storage, easy to operate	The packing machine adopts AirTAC cylinder and solenoid valve, running smoothly, clamping the bag tighter, not easy to drop the bag, strong stability, long service life

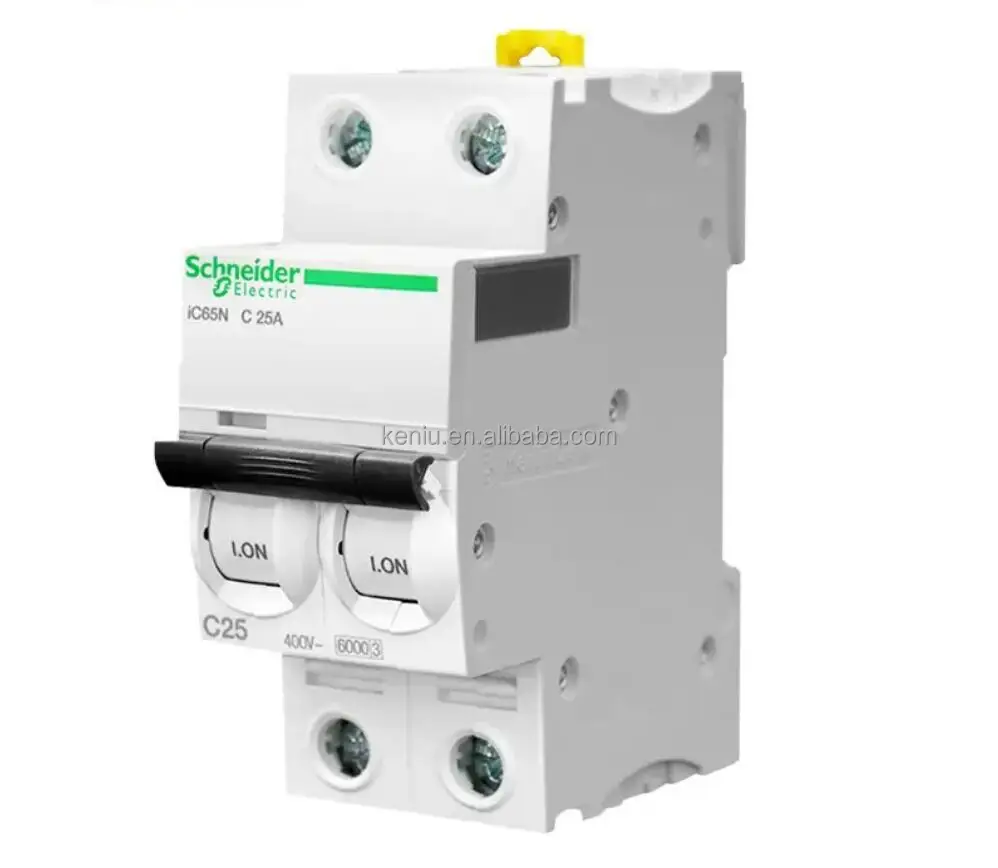

The packing machine use of Mettler Toledo/Keli/AVIC load cell (weighing sensor), high precision, fast speed.	Packaging machine adopts Schneider /CHINT/Omron brand electrical components, more safe, more stable, longer service life

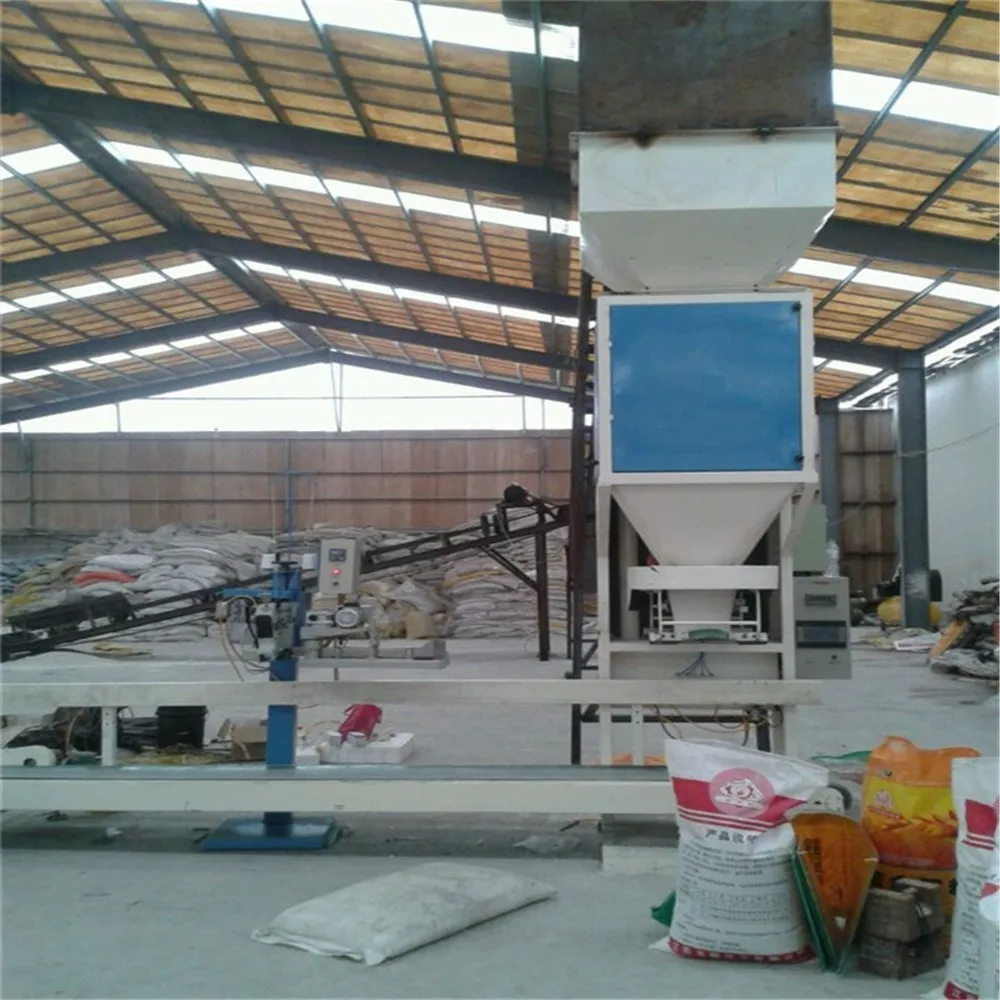

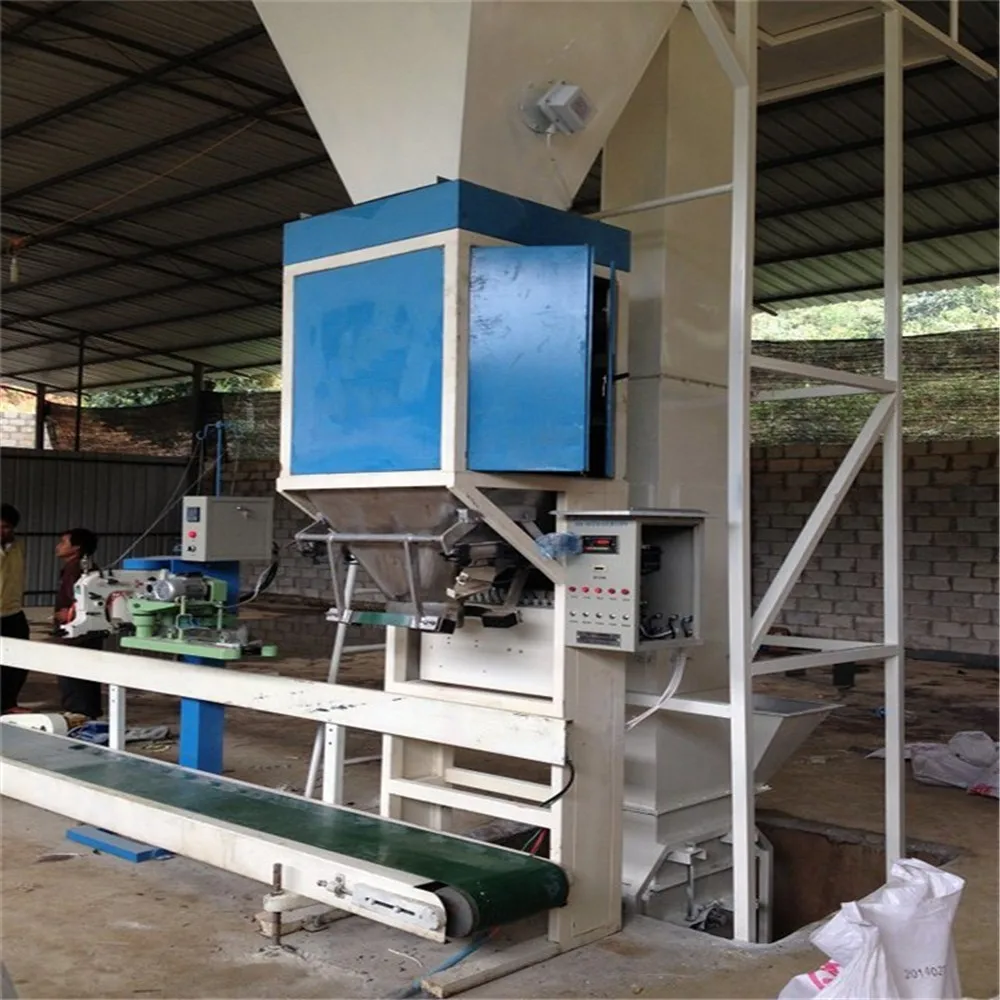

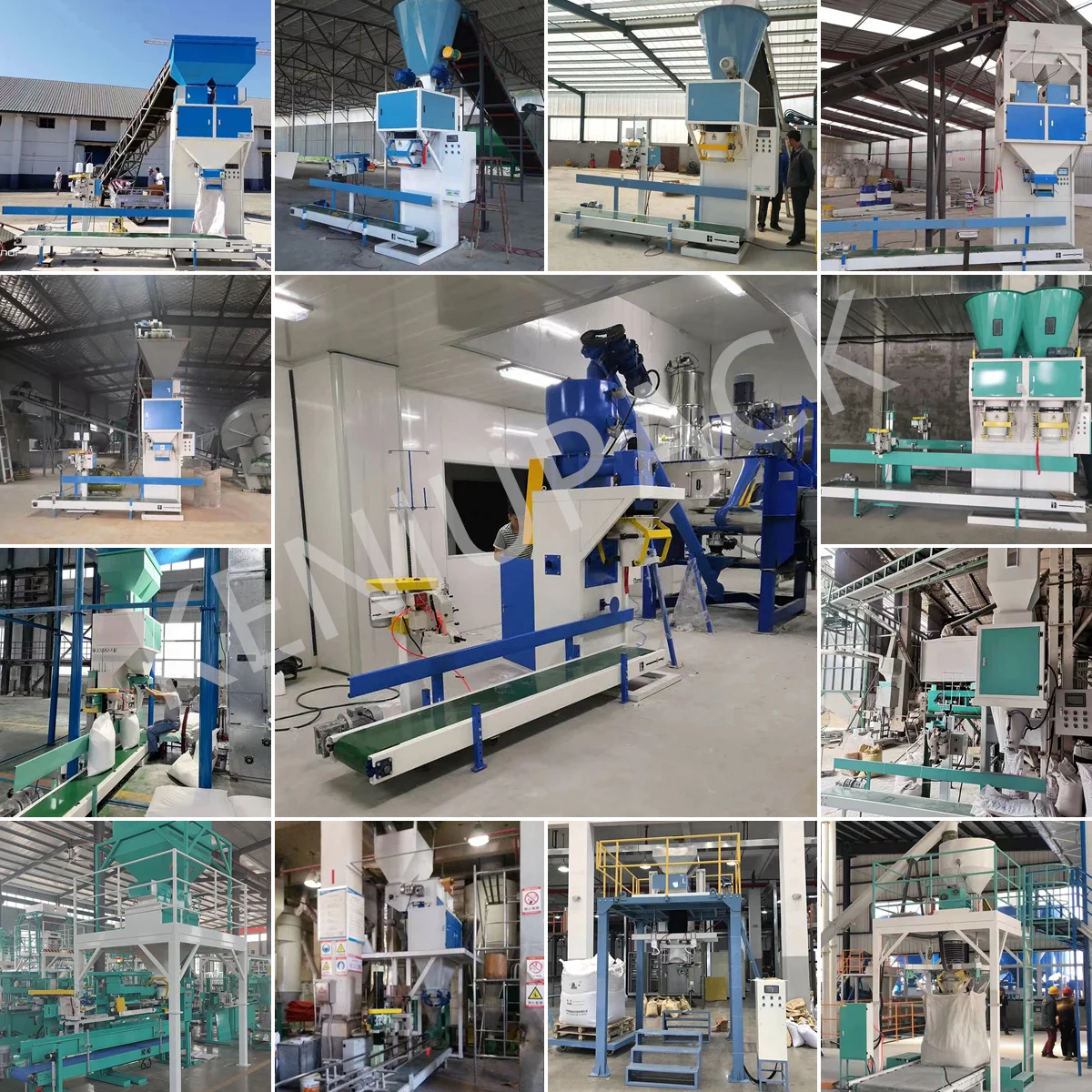

Packing bagging machine successful cases:

Depending on the industry, we can customize the equipment for you and provide complete packaging solutions from drawing design to installation and after-sales service

"WE STILL HAVE MORE MODELS/NEW DESIGN"

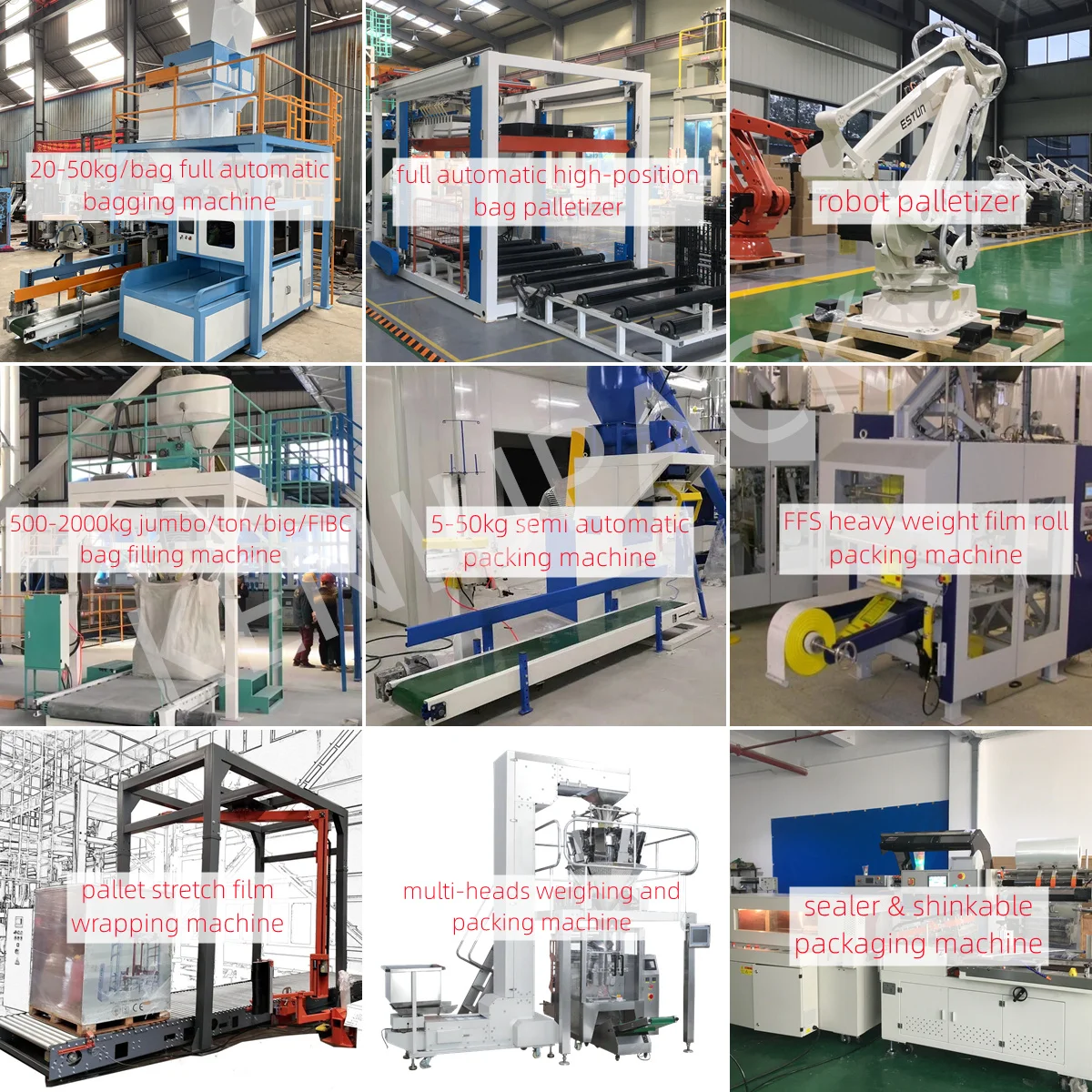

We can provide you one-stop packaging machinery, such as 5-10kg semi-automatic open mouth bag packaging machine, fully automatic packaging machine, automatic high-postion stacking machine, fully automatic robot palletizer, ton/jumbo/big bag packaging machine, sewing machine, heat sealing machine, sachet packaging machine, FFS heavy weight roll film packaging machine, stretch film wrapping machine, multi-lane liquid packaging machine, sealer & shrinkable packaging machine, automatic carton sealer, automatic strapping machine etc matching equipment.

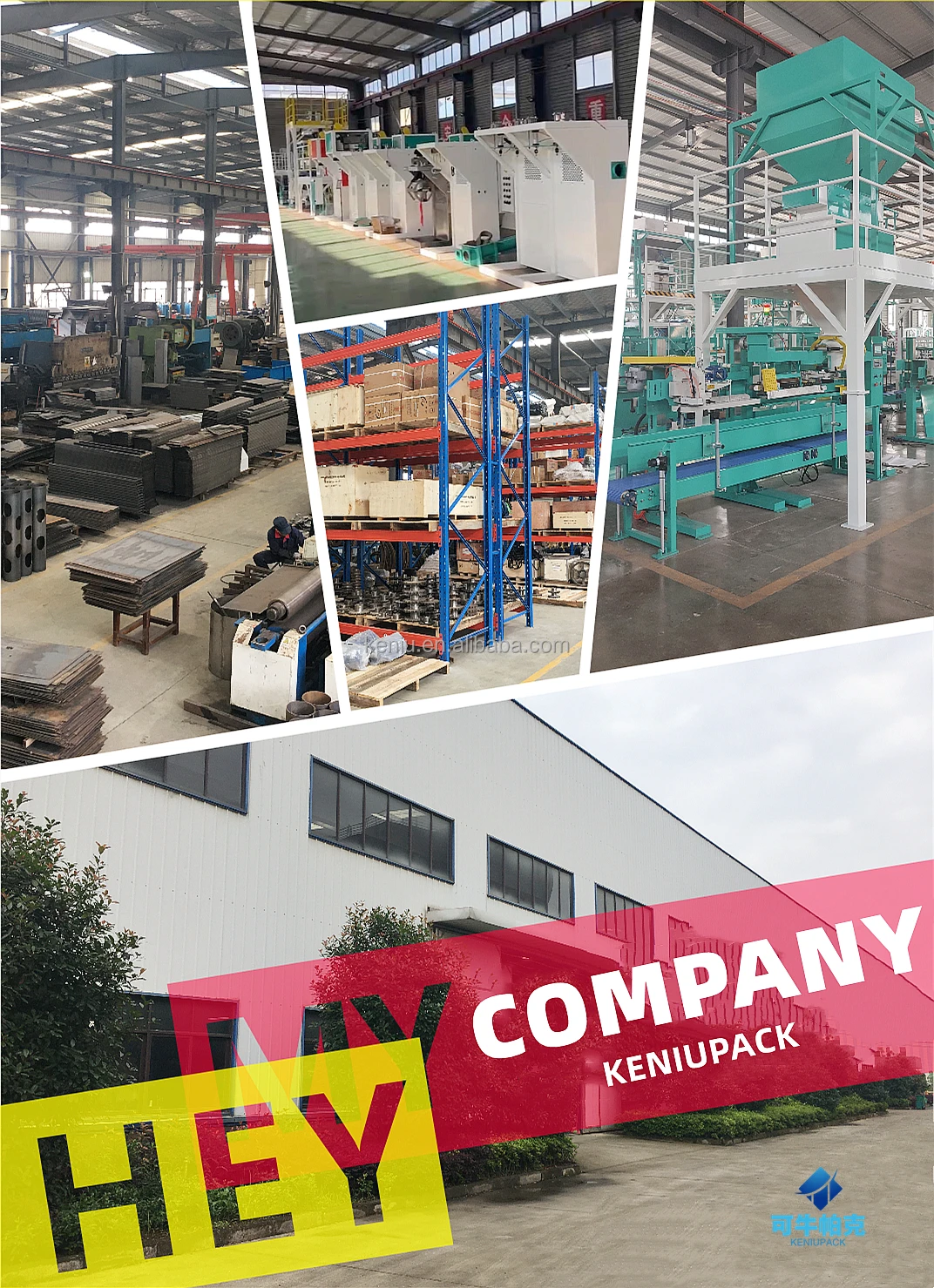

 Jiangxi Keniu Machinery Co., Ltd. has been focusing on the production, research and development and sales of packaging machinery for 15 years. We can provide you with one-stop packaging solutions, from drawing design to production to after-sales installation and debugging. Our products have been sold to more than 80 overseas countries and regions, to provide customers with convenient packaging equipment, and widely accepted and praised by customers. Our sales/after sales team will 24hours online, if you have any questions about packaging, please feel free to contact us.



 Q: Can your packing machine be customized according to our requirements?

Answer: Yes, of course. We can make customized production according to your requirements, such as color, configuration, logo and so on.



Q: Can you provide after-sales service for installation?

Answer: Yes. Packaging equipment before sent to you will installation and commissioning in our factory to make sure that all components work stable, then the whole device packed in the wooden case/container, when you received the equipment do not need a lot of installation and debugging, at the same time, we will provide the corresponding image/video/manual and online phone call if you have any questions.

If you need to send engineers to the local installation, commissioning and training staff, we can also provide.



Q: What is the production time of your packing machine

Answer: The production time of the standard packaging machine is about 15-20 days. Please confirm with us the specific production time.



Q: How long is the warranty on your packing machine?

A: We will provide a one-year warranty. If there is any problem with the equipment during the warranty period, we will provide free replacement. If the warranty is exceeded, the damaged spare parts will be provided to you at the cost price. At the same time, our packaging machine adopts brand components such as Schneider, AirTAC, etc., more stable and long life time, so please do not worry about the quality, you can trust us.
