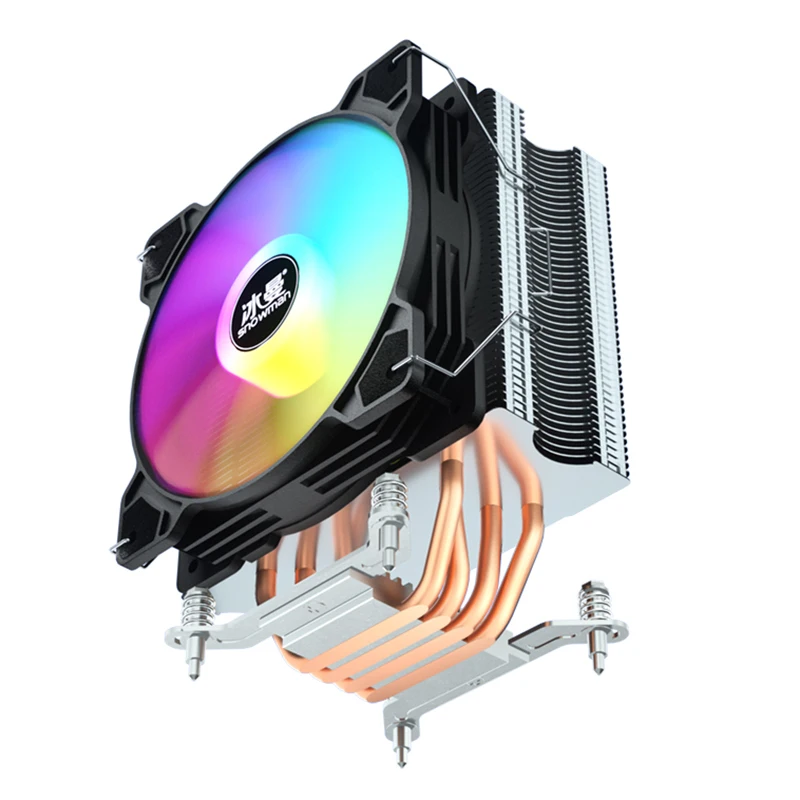

SNOWMAN Popular ARGB 4 Heat Pipes cpu cooler PWM 4 Pin PC cooler Intel AMD LGA 1700 115X AM5 AM4 CPU Cooling Fan
- Category: >>>
- Supplier: Dongguan Bingman Electronic Technology Co. Ltd.
Share on (1600848592425):
Product Overview
Description
Products Description
Product Parameters
SPECIFICATIONS | ||||||||
Brand Name: SNOWMAN
Model Number: MT4-LS-ARGB-4P-1Fan
Compatible CPU: Intel and AMD
Product size: 128（L）*100（W）*154（H）mm
Heatsink Material: Copper & Aluminum
Product weight:750g

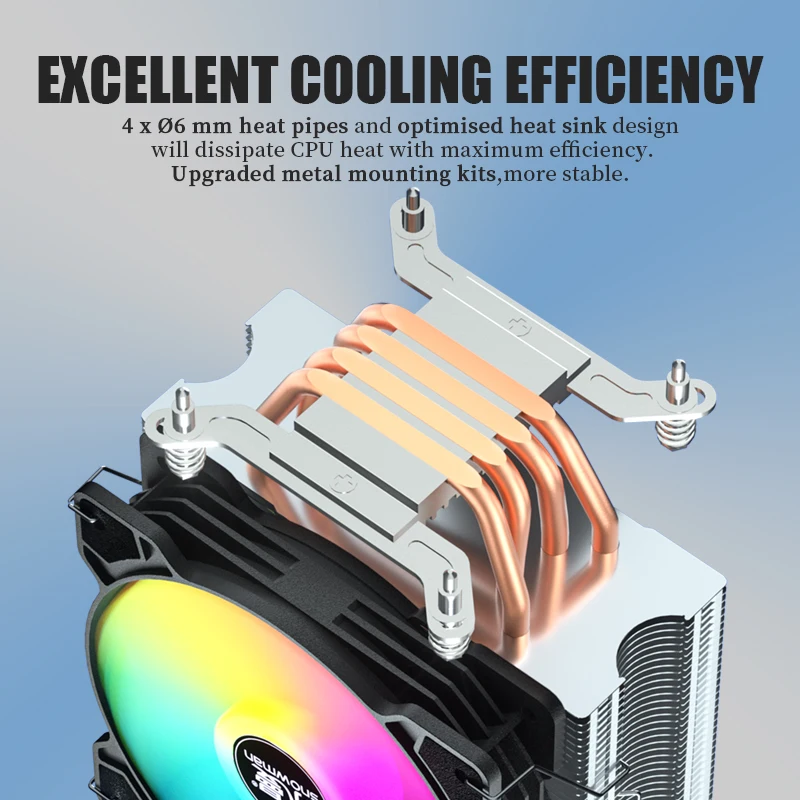

Type: 4 Heatpipe
TDP: 180W
Fan Size: 120x120x25mm
Fan Speed: 800-1500RPM±10%
Bearing: hydraulic bearing
Voltage: 12V DC
Fan Power Interface: 4 Pin PWM
Current: 0.23A±10%
Power: 2-4W
Air Volume: 72CFM(MAX)
Noise: 18-29dBA±10%
Life: 50000 hrs
Product features: with a new metal combination buckle. Compatible with 99% of motherboard slots on the market. No need to worry about installation compatibility.

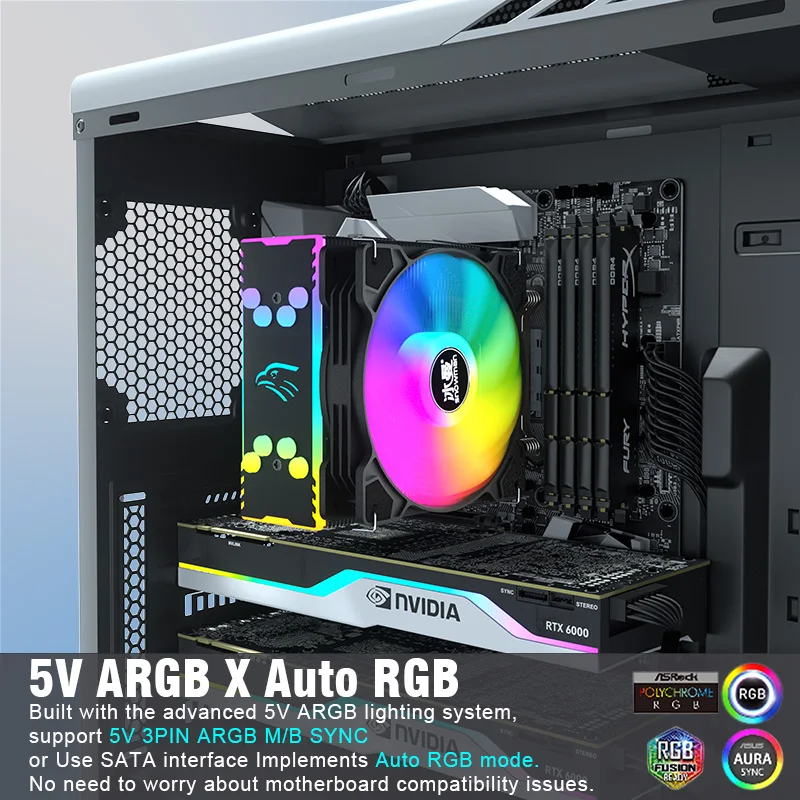

ARGB 5V 3Pin X Auto RGB：Built with the advanced 5V ARGB lighting system。
1、ARGB 5V 3Pin connector：Synchronizable RGB lighting via motherboard, Sync ready with all 5V 3PIN motherboard including Gigabytes, Asus, MSI and so on.
2、Auto RGB SATAconnector：If the motherboard does not support ARGB 5V 3Pin connector. Auto RGB mode can be realized by connecting the SATA interface. No need to worry about motherboard compatibility issues.
Power interface:Motherboard 4Pin PWM+5V-3Pin+SATA
Product features: This product is equipped with a high-pressure spiral fan. More powerful air volume output. Suitable for gamers who use computers intensively.
For Intel Socket: LGA 1800/1700/1200/1150/1151/1155/1156/1366（i3/i5/i7/i9）
Install the buckle：Intel Fastener + Backplane
Warning: LGA 775 is not supported.
For AMD Socket: AM5/AM4//AM3/AM3+AM2/AM2+/FM2/FM1（Ryzen3/Ryzen5/Ryzen7/Ryzen9/Athlon/Phenom）
Install the buckle：AMD Fastener
For AMD, please keep the original threaded backplane of the motherboard for screw installation.
If you need to support LGA2011, please contact us to replace the fastener.（LGA2011 Socket: LGA2011/2066/E5/X79/X99）

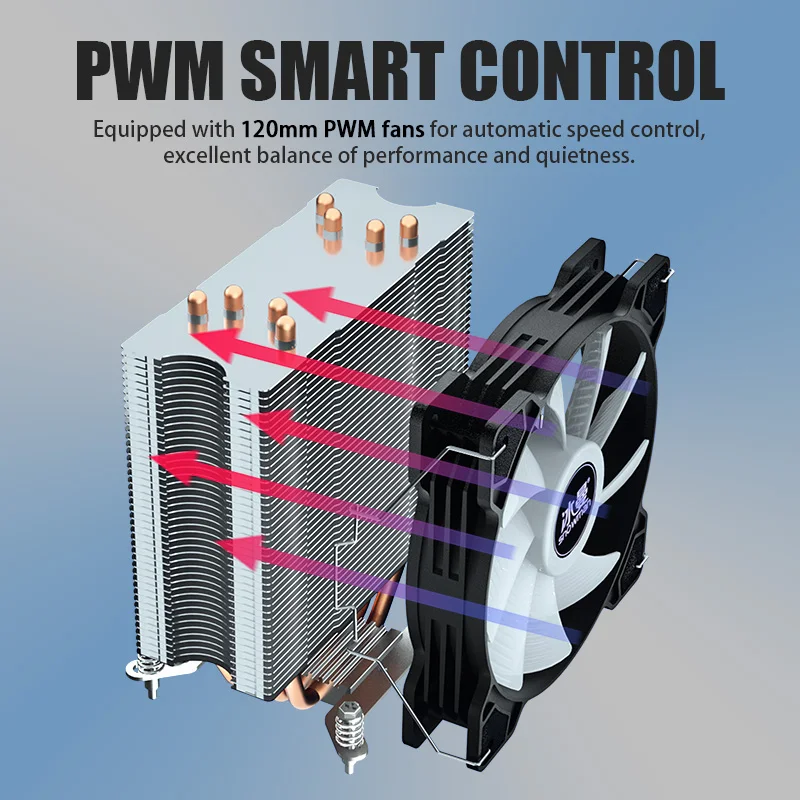

4Pin PWM function introduction: The fan can be automatically controlled by the motherboard to adjust the fan speed in time according to the computer temperature. Support automatic speed regulation. Accelerate heat dissipation at high temperatures. Decelerate operation at low temperature. Slow down the wear of fan bearings.
Package Contents:
CPU Cooler * 1
Installation Kit * 1
Instructions * 1
thermal grease * 1
Model Number: MT4-LS-ARGB-4P-1Fan
Compatible CPU: Intel and AMD
Product size: 128（L）*100（W）*154（H）mm
Heatsink Material: Copper & Aluminum
Product weight:750g
Type: 4 Heatpipe
TDP: 180W
Fan Size: 120x120x25mm
Fan Speed: 800-1500RPM±10%
Bearing: hydraulic bearing
Voltage: 12V DC
Fan Power Interface: 4 Pin PWM
Current: 0.23A±10%
Power: 2-4W
Air Volume: 72CFM(MAX)
Noise: 18-29dBA±10%
Life: 50000 hrs
Product features: with a new metal combination buckle. Compatible with 99% of motherboard slots on the market. No need to worry about installation compatibility.
ARGB 5V 3Pin X Auto RGB：Built with the advanced 5V ARGB lighting system。
1、ARGB 5V 3Pin connector：Synchronizable RGB lighting via motherboard, Sync ready with all 5V 3PIN motherboard including Gigabytes, Asus, MSI and so on.
2、Auto RGB SATAconnector：If the motherboard does not support ARGB 5V 3Pin connector. Auto RGB mode can be realized by connecting the SATA interface. No need to worry about motherboard compatibility issues.
Power interface:Motherboard 4Pin PWM+5V-3Pin+SATA
Product features: This product is equipped with a high-pressure spiral fan. More powerful air volume output. Suitable for gamers who use computers intensively.
For Intel Socket: LGA 1800/1700/1200/1150/1151/1155/1156/1366（i3/i5/i7/i9）
Install the buckle：Intel Fastener + Backplane
Warning: LGA 775 is not supported.
For AMD Socket: AM5/AM4//AM3/AM3+AM2/AM2+/FM2/FM1（Ryzen3/Ryzen5/Ryzen7/Ryzen9/Athlon/Phenom）
Install the buckle：AMD Fastener
For AMD, please keep the original threaded backplane of the motherboard for screw installation.
If you need to support LGA2011, please contact us to replace the fastener.（LGA2011 Socket: LGA2011/2066/E5/X79/X99）
4Pin PWM function introduction: The fan can be automatically controlled by the motherboard to adjust the fan speed in time according to the computer temperature. Support automatic speed regulation. Accelerate heat dissipation at high temperatures. Decelerate operation at low temperature. Slow down the wear of fan bearings.
Package Contents:
CPU Cooler * 1
Installation Kit * 1
Instructions * 1
thermal grease * 1
Certifications
Our Super Factory
Packing & Shipping
Factory Introduction
Dongguan Bingman Electronic Technology Co., Ltd. is an innovative radiator manufacturing company from Guangdong, China.Own independent brand "SNOWMAN" ,which has been committed to the R&D and manufacture of cooling systems for 10 years .
The products are mainly used in computer radiators, CPU air-cooler radiators, AIO liquid radiators, PC Fans, LED
radiators,communication equipment, servers, medical equipment and other fields. Products are exported to more than 40 countries in Europe,the United States, Russia, Brazil, Australia, India, Thailand, etc.
At present, Our company have CNC punching machines, CNC, CNC milling machines, grinding machines, automatic feeding machines,drilling and tapping machines. There are more than 30 sets of processing equipment such as CNC leveling machines. From product design and development, mold making, aluminum extrusion, welding process, hardware processing, surface treatment, assembly line assembly to finished product shipment, a complete production process has been formed.
The company has a professional R&D design team and advanced testing equipment. Including PC tester, thermal resistance tester,noise tester, wind speed tester and other testing equipment. Provide customers with a full range of services including design,proofing, and testing.
Our factory can produce 10,000 pieces of radiators and 30,000 pieces of computer fans every day and can provide OEM&ODM services for customers, and always adhere to the concept of customer first. We look forward to providing excellent services to more customers.
The products are mainly used in computer radiators, CPU air-cooler radiators, AIO liquid radiators, PC Fans, LED
radiators,communication equipment, servers, medical equipment and other fields. Products are exported to more than 40 countries in Europe,the United States, Russia, Brazil, Australia, India, Thailand, etc.
At present, Our company have CNC punching machines, CNC, CNC milling machines, grinding machines, automatic feeding machines,drilling and tapping machines. There are more than 30 sets of processing equipment such as CNC leveling machines. From product design and development, mold making, aluminum extrusion, welding process, hardware processing, surface treatment, assembly line assembly to finished product shipment, a complete production process has been formed.
The company has a professional R&D design team and advanced testing equipment. Including PC tester, thermal resistance tester,noise tester, wind speed tester and other testing equipment. Provide customers with a full range of services including design,proofing, and testing.
Our factory can produce 10,000 pieces of radiators and 30,000 pieces of computer fans every day and can provide OEM&ODM services for customers, and always adhere to the concept of customer first. We look forward to providing excellent services to more customers.
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
