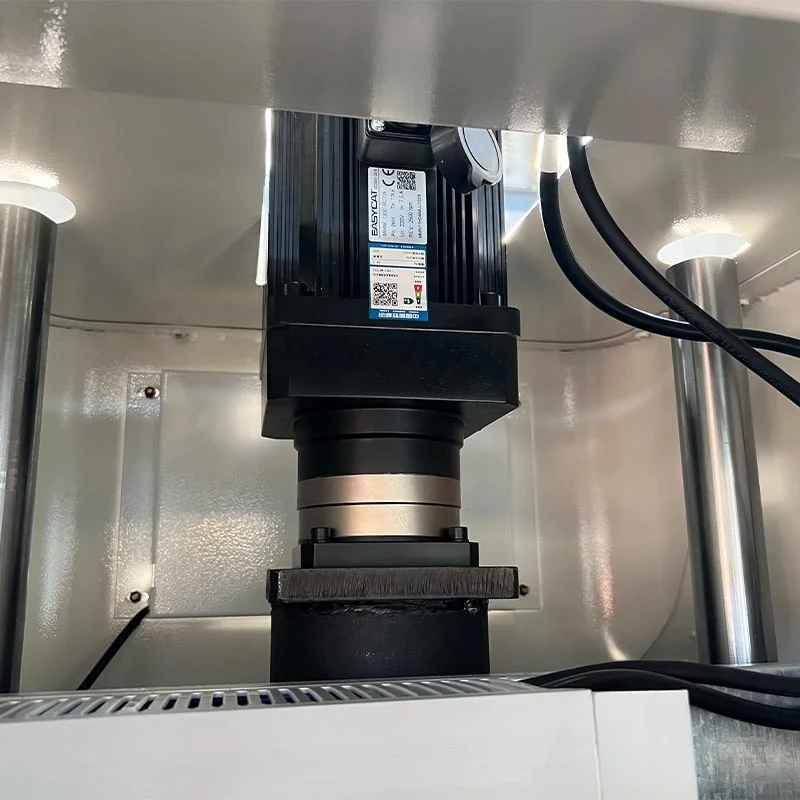

full servo electric press brake servo press brake machine small mini press brake
- Category: >>>
- Supplier: Maanshan Blma Technology Co. Ltd.
Share on (1600848613836):
Product Overview
Description

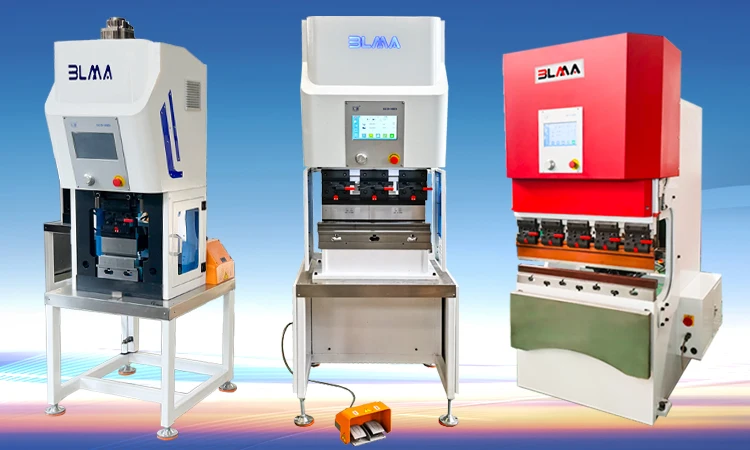

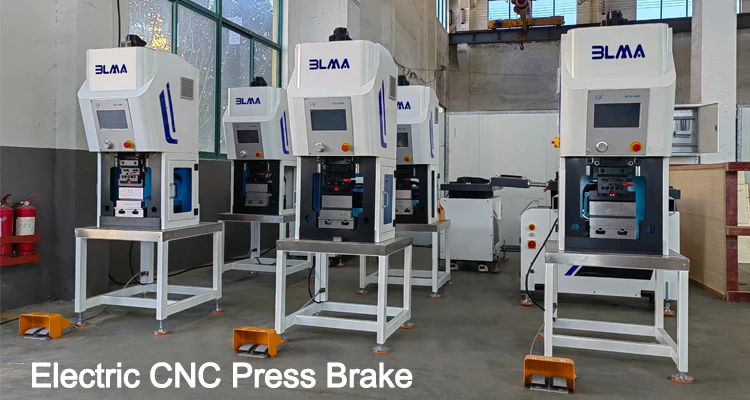

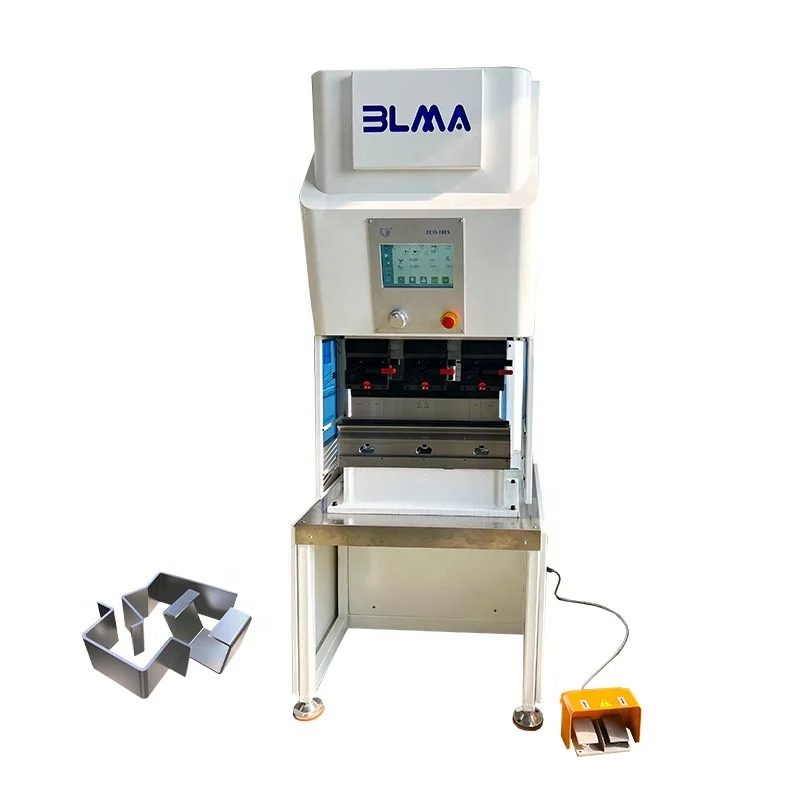

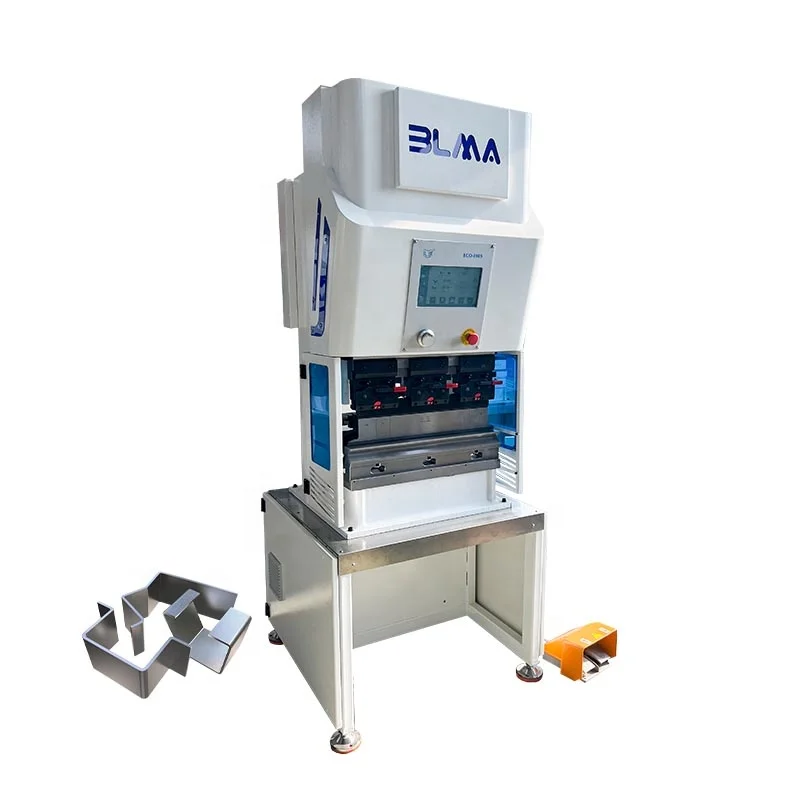

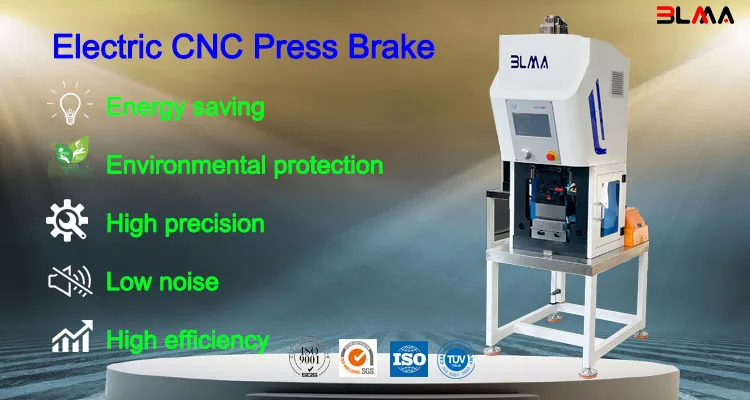

CNC Fully Electric Press Brake
Product Description
Main feature:
1. Y Axis adopts grating scale or magnetic grating feedback full-closed loop control mode, precise positioning control, repeated positioning;
2. Intelligent tool load monitoring ensures tool safety;
3. Accuracy reaches ±3μm!

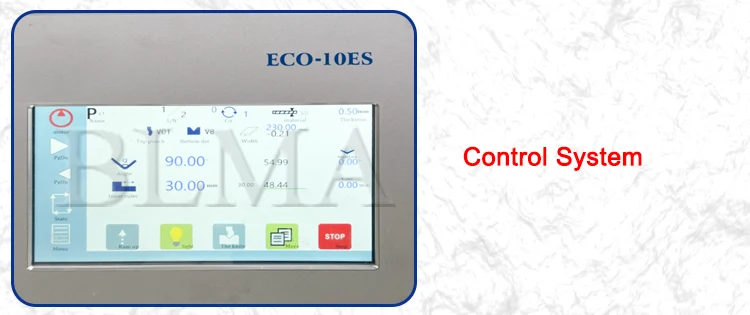

4. Five-wire touch screen, high reliability and service life of more than 10 million times, the operation process is simple and fast;

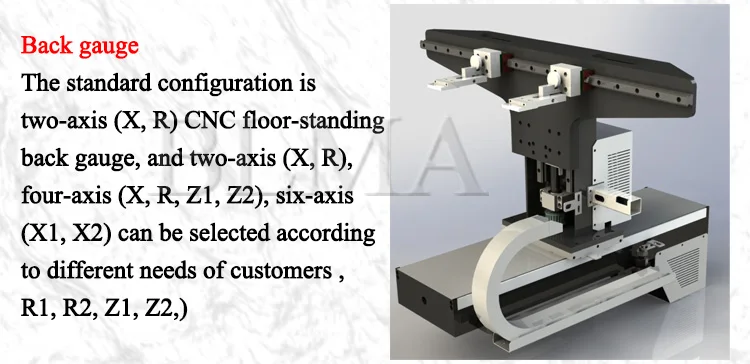

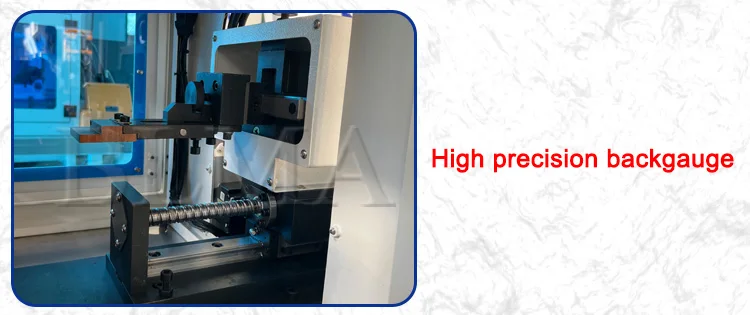

5. Automatic calculation function of bending pressure, alarm prompt when the pressure exceeds the limit range; The amount of plastic deformation, the position of the back gauge is directly calculated according to the neutral layer;
6. The angle intelligent compensation function: according to the sheet metal process parameters such as sheet metal material characteristics, die size, material thickness, bending angle, etc., combined with the CNC control system angle calculation model, any sheet metal
7. Only one trial bending is required, and it can be automatically corrected according to the angle deviation, and then it can be officially produced;
8. Continuous arc bending function;

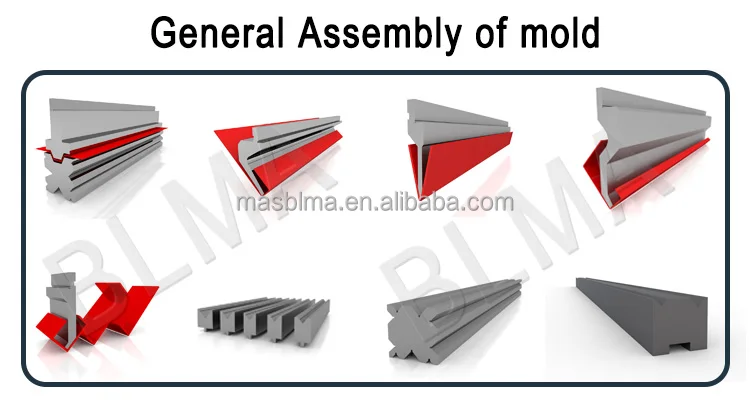

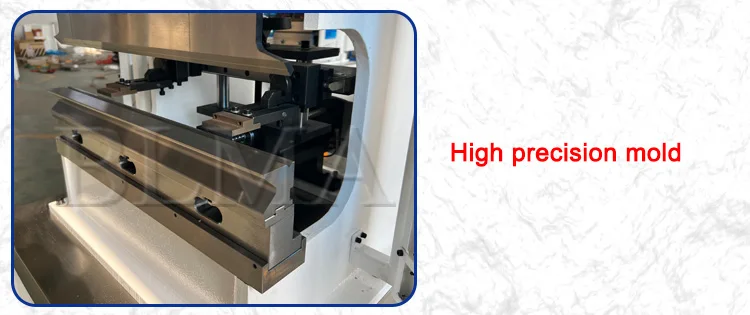

9. Mold parameter library: establish a mold parameter library for customers, which is convenient for customers to quickly call parameters for sheet metal folding bend.
2. Intelligent tool load monitoring ensures tool safety;
3. Accuracy reaches ±3μm!
4. Five-wire touch screen, high reliability and service life of more than 10 million times, the operation process is simple and fast;
5. Automatic calculation function of bending pressure, alarm prompt when the pressure exceeds the limit range; The amount of plastic deformation, the position of the back gauge is directly calculated according to the neutral layer;
6. The angle intelligent compensation function: according to the sheet metal process parameters such as sheet metal material characteristics, die size, material thickness, bending angle, etc., combined with the CNC control system angle calculation model, any sheet metal
7. Only one trial bending is required, and it can be automatically corrected according to the angle deviation, and then it can be officially produced;
8. Continuous arc bending function;
9. Mold parameter library: establish a mold parameter library for customers, which is convenient for customers to quickly call parameters for sheet metal folding bend.
Product Paramenters
Model | Nominal Pressure（KN） | Table length（mm） | Uprights distance (mm) | Throat depth (mm) | Stroke (mm) | Back gauge stroke（mm） | Open height (mm) | Main Power (KW) | Size（mm） |
40T1300 | 400 | 1300 | 1070 | 300 | 150 | 500 | 430 | 7.5*2 | 1800*1500*2200 |
30T1250 | 300 | 1250 | 1050 | 300 | 150 | 500 | 430 | 5.5*2 | 1800*1500*2200 |
18T800 | 180 | 800 | 770 | 200 | 120 | 250 | 420 | 6.5*1 | 950*1000*2100 |
12T600 | 120 | 600 | 450 | 200 | 120 | 200 | 420 | 5.5*1 | 750*750*1980 |
6T400 | 60 | 400 | 370 | 160 | 120 | 200 | 420 | 3*1 | 750*750*1980 |
3T230 | 30 | 200 | 300 | 150 | 120 | 150 | 420 | 2*1 | 750*750*1980 |
Details Images
