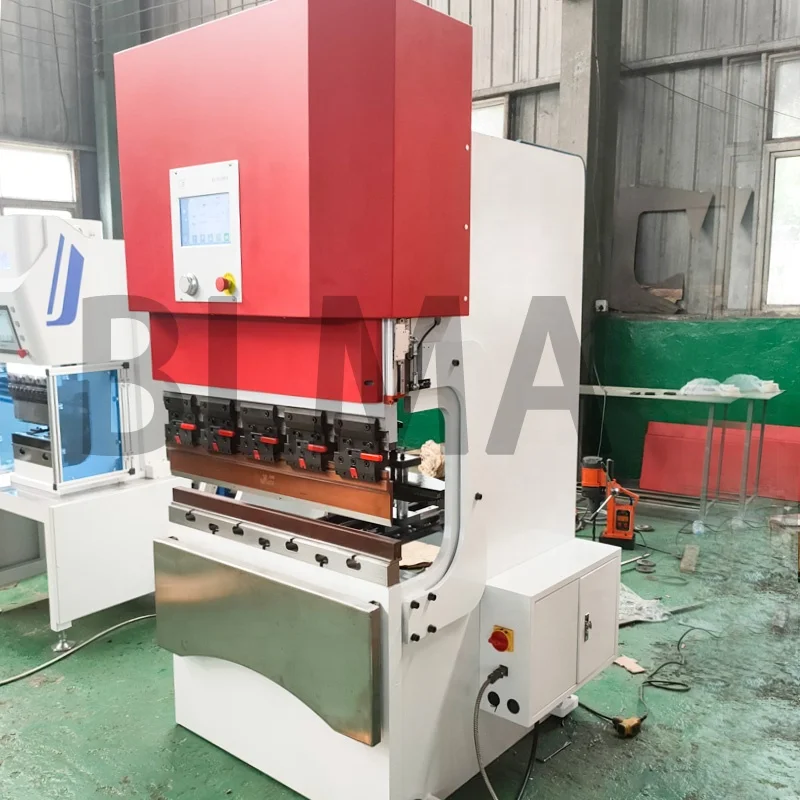

BLMA 3T230 Press Brake Pure Electric Small Mini Bending Machine Best Price
- Category: >>>
- Supplier: Nanjing Blma Machinery Co. Ltd.
Share on (1600848628779):
Product Overview
Description
Product Overview
Machine features:
1. This machine needs not hydraulic oil, and adopts electric cylinder to drive itself, so that avoid the pollution of hydraulic
oil and oil temperature for the machine accuracy effect, etc.

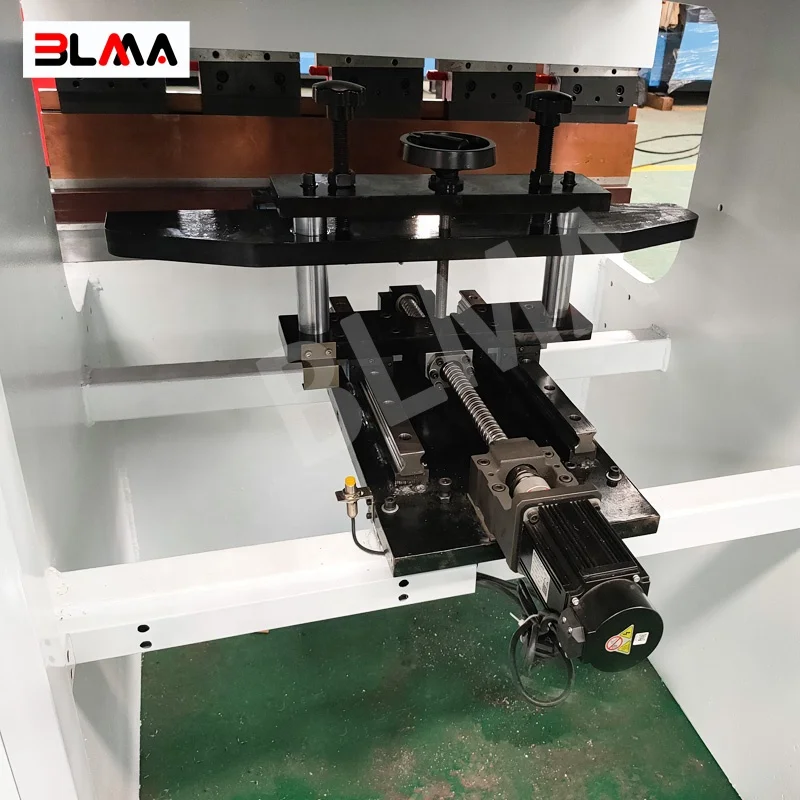

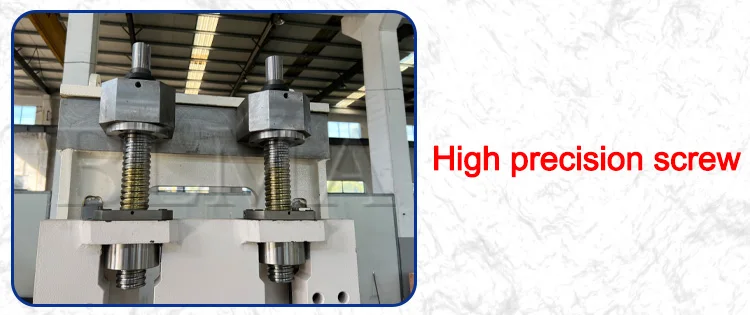

2. Electric cylinder adopts heavy-duty and high-precision ball screw, with long life.

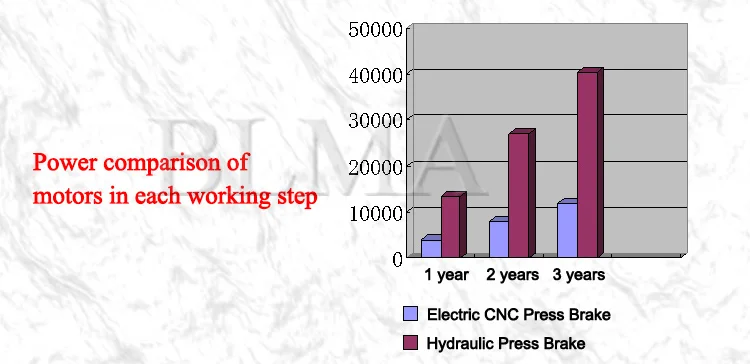

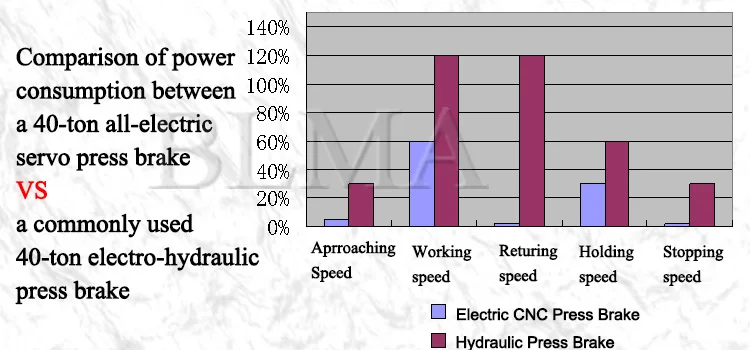

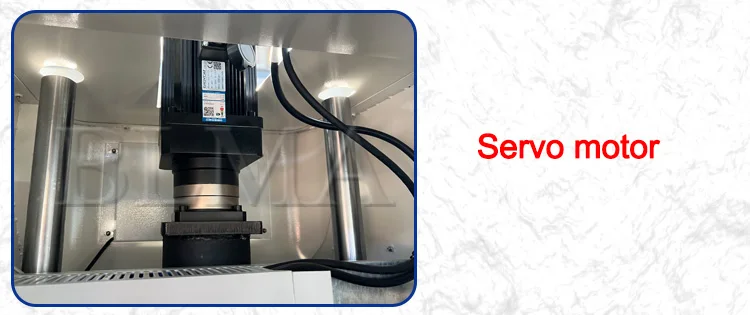

3. When bending, the servo motor drives the cylinder. The servo motor consumes very little power when going down and going back,
so the equipment is very energy-saving. Compared with the same series of hydraulic press brake, the energy saving is more than
50%.

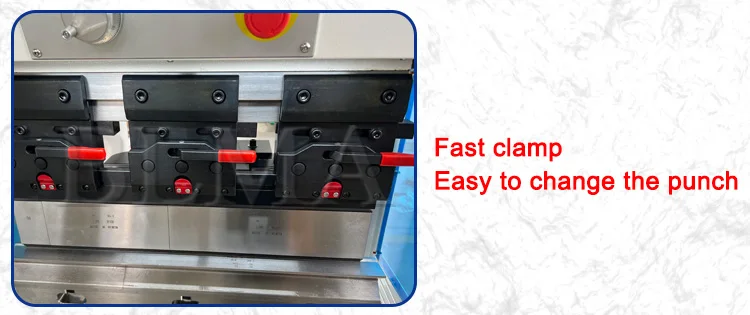

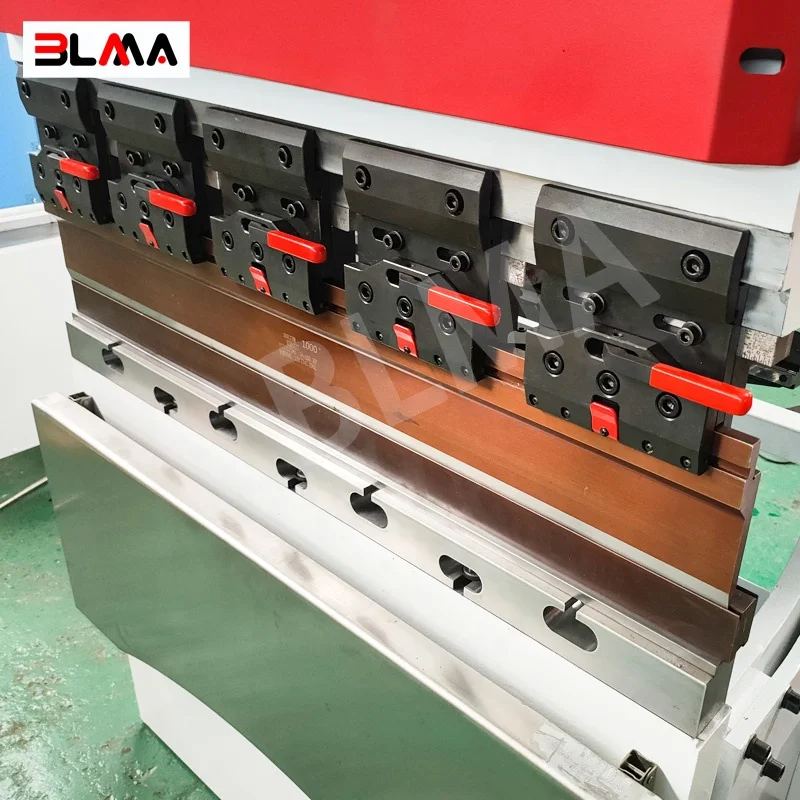

4. If the upper punch length is below 500mm, adopts self-made quick release. If above 500mm, adopts double-sides quick release.
oil and oil temperature for the machine accuracy effect, etc.
2. Electric cylinder adopts heavy-duty and high-precision ball screw, with long life.
3. When bending, the servo motor drives the cylinder. The servo motor consumes very little power when going down and going back,
so the equipment is very energy-saving. Compared with the same series of hydraulic press brake, the energy saving is more than
50%.
4. If the upper punch length is below 500mm, adopts self-made quick release. If above 500mm, adopts double-sides quick release.
PRODUCT SPECIFICATIONS
Model | Nominal Pressure（KN） | Table length (mm) | Uprights distance (mm) | Throat depth (mm) | Stroke (mm) | Back gauge stroke (mm) | Open height (mm) | Main Power (KW) | Weight(KG) |
40T1300 | 400 | 1300 | 1070 | 300 | 150 | 500 | 430 | 7.5*2 | 3500 |
30T1250 | 300 | 1250 | 1050 | 300 | 150 | 500 | 430 | 5.5*2 | 3100 |
18T800 | 180 | 800 | 770 | 200 | 120 | 250 | 420 | 6.5*1 | 1500 |
12T600 | 120 | 600 | 450 | 200 | 120 | 200 | 420 | 5.5*1 | 760 |
6T400 | 60 | 400 | 370 | 160 | 120 | 200 | 420 | 3*1 | 560 |
3T230 | 30 | 200 | 300 | 150 | 120 | 150 | 420 | 2*1 | 320 |
