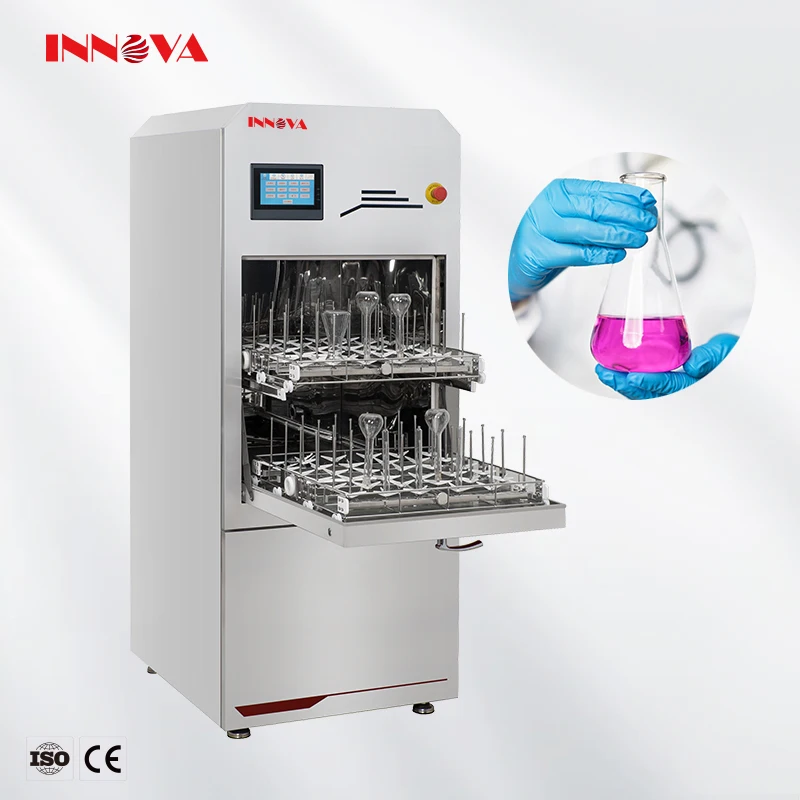

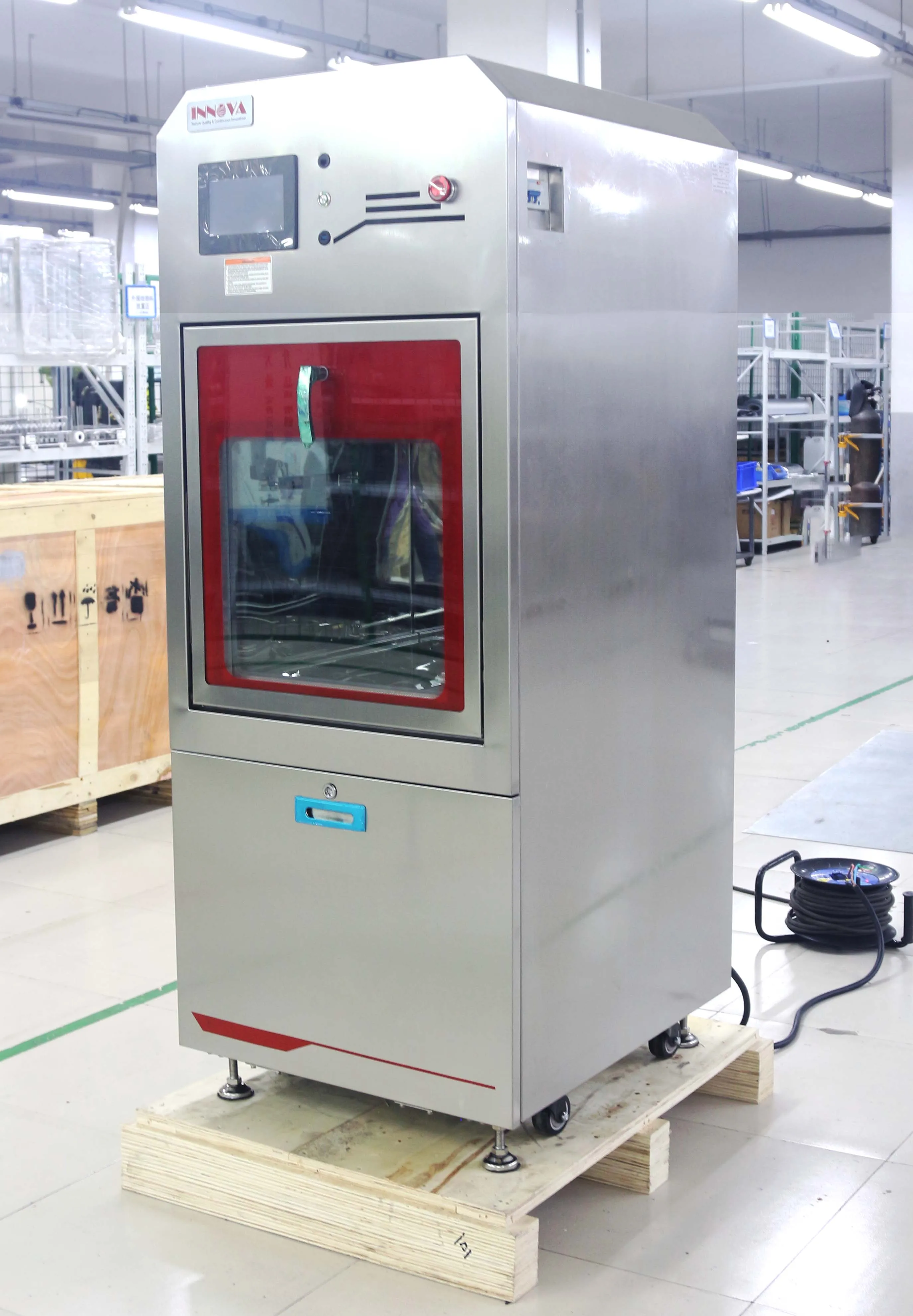

Automatic laboratory 320L bottle washer laboratory wash machine for glass tubes

MODEL

Capacity(L)

Voltage(V/Hz)

220V~240V
50~60Hz

220V~240V
50~60Hz

380V
50~60Hz

220V~240V
50~60Hz

380V
50~60Hz

220V~240V
50~60Hz

380V
50~60Hz

Washer Load Level

1

2

3

2

Water Wash Power(KW)

0.4

0.75

1.5

1.5

Water Heater Power( KW)

5

5

15

5

15

5

15

Dry Power(KW)

3

3.6

3.6

3

MAX. Power(KW)

6

6

16

7

17

7

17

Water Consumption/Cycle(L)

15

15

15

25

Tank internal temperature (℃)

0~99

0~99

0~99

0~99

Noise(dBa)

<50

<55

<55

<60

Water Supply Pressure (Mpa)

0.3~1.0

Chamber Dimension (W*D*H,mm)

600*629*539

600*629*754

600*629*915

688*700*703

Exterior Dimension
(W*D*H,mm)

980*740*870

693*790*1825

693*790*1985

1110*900*2165

How does the washing machine work？

This is a fully automatic glassware cleaning equipment that can automatically feed water, wash, drain and dry.
The automatic glassware washing machine uses high temperature and high-pressure water to spray and wash the inner and outer
surfaces of the utensils, and also supports the addition of special cleaning fluids to rinse, decompose and peel off the dirt
inside and outside the utensils, and dry the utensils with hot air after cleaning.

What can the washing machine wash?

All laboratory glassware and plastic containers, physical and chemical and microbiological utensils can be cleaned; animal and
vegetable oils and fats for food testing, transformer oil for power petrochemicals, etc. can be cleaned;

Does the washing machine have a drying function?

All models have drying function, except the small freeze dryer INOGW-80. The washing machine of 120~320 series adopts hot air
drying, that is, after heating the filtered clean air, it is blown to the utensils through the cleaning pipeline, and the utensils
are taken away by the hot air. Residual water on the inner and outer surfaces; hot air will also be filtered and discharged
through the double spray cooling system behind the washing machine to ensure that the indoor temperature and humidity will not be
affected.

What is the drying temperature？

120°C ， with HEPA air filter

How to choose a model good for me?

The model selection of the washing machine is mainly determined according to the type, specification and quantity of the utensils
in your test, and will also be configured according to your actual needs.
The conventional 200 and 220 models are the most popular. If your cleaning volume is relatively small, you can consider the 120
configuration;
If the drying requirements are not high or the budget is not high, then the 200A or 60 models are more suitable.

which model do you recommend

The model selection of the washing machine is mainly determined according to the type, specification and quantity of the utensils
in your test, and will also be configured according to your actual needs.
The conventional 200 and 220 models are the most popular. If your cleaning volume is relatively small, you can consider the 120
configuration;
If the drying requirements are not high or the budget is not high, then the 200A or 60 models are more suitable.

How to verify the cleaning effect

Detection of spray coverage, including visual inspection, PH value of residual water in the sample, conductivity, TOC, etc., as
well as gas phase, liquid phase and other methods;
By detecting the substances remaining on the utensils after cleaning, ensure that the cleaning effect is up to standard.

Is there anything that cannot be cleaned?

For the cases where the brushes cannot be cleaned thoroughly, such as dry burning and dry substances on the utensils, the cleaning
machine cannot guarantee the effect, but in such cases, the cleaning effect can be achieved by combining immersion and ultrasonic
in the laboratory.

Does the washing machine need pure water for the whole process?

The Innova Glassware Washer is a fully automatic washing machine capable of connecting both tap water and pure water. Usually, tap
water is used in the cleaning process, and pure water is used in the rinsing process, which saves pure water and ensures the
cleaning effect.
The inlet water of tap water and pure water can be set through the control system, and it will enter automatically after setting,
without manual switching.

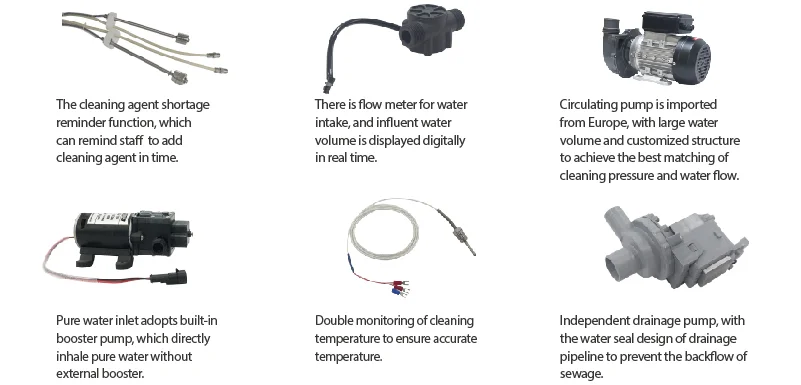

Does the washing machine have requirements for the inlet water pressure?

The requirement for the tap water pressure of the Innova glassware cleaning machine is the normal water pressure of the tap water
pipeline; there is no requirement for the water pressure of the pure water, because the cleaning machine has a built-in pure water
booster pump, which can automatically absorb water from the pure water bucket without boosting.

Does your washing machine consume a lot of water?

The Innova glassware cleaning machine adopts step-by-step cleaning. After a certain amount of water enters the cabin, the water is
circulated to the utensils under the action of the circulating pump. The effect also reduces water consumption. Generally, a
washing machine consumes 18~20L of water in one cycle, and the whole work requires 3~4 washing cycles.

how long time will it need?

A working process of the Innova glassware washing machine takes about 1 to 1.5 hours. The main reason is that the washing machine
needs hot water at a certain temperature to flush the utensils to ensure the efficacy and cleaning effect of the cleaning
solution, so the cleaning time is mainly spent on heating the water supply. The cleaning machine also adds a configuration that
shortens the heating time, such as 380V15KW heating, and the regular work can reduce the cleaning machine time by about 20
minutes.

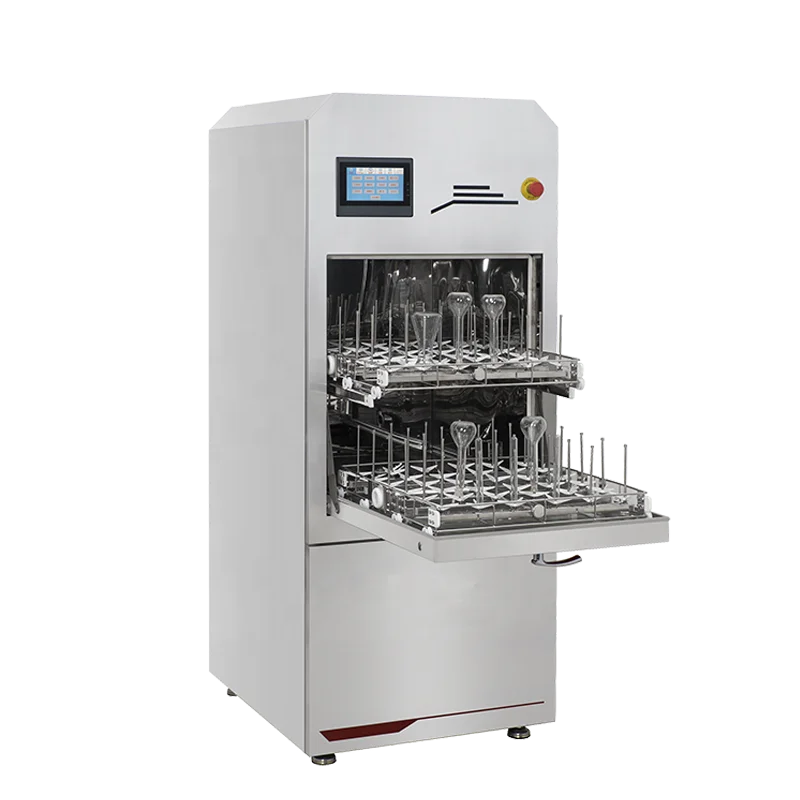

Do you wash the machine basket with central water intake?

The Innova glassware washing machine basket adopts the water distribution method of side water inlet and central water
distribution. The water flow is introduced from the side to the center of the cleaning basket and then cleaned by water
separation. On the one hand, it ensures the uniformity of water distribution. The water spraying height and force in each position
are consistent to ensure consistent cleaning effect of the utensils; on the other hand, the cleaning space is more effectively
used, and the cleaning position in the middle is not occupied, and the rear utensils are not blocked. The cleaning basket can be
exchanged up and down, The lower basket can be used separately for better convenience.

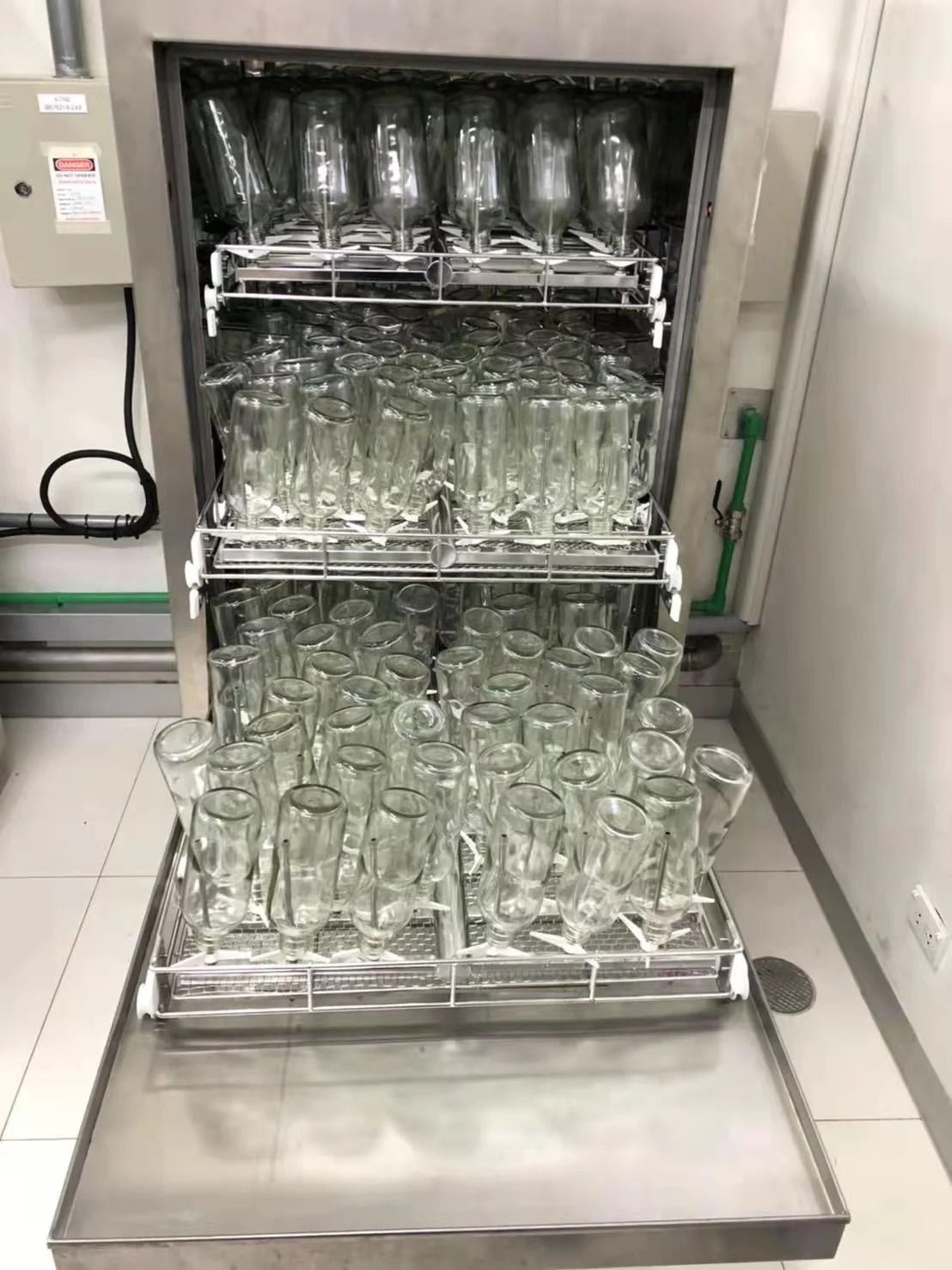

What is the cleaning capacity of your washing machine?

Innova glassware washing machine has the largest cleaning volume among the same type of washing machine. The cleaning volume of
the washing machine is mainly related to the size of the utensils. You can refer to the following points:
100ml volumetric flask, INNOVA can clean 60 volumetric flasks, other manufacturers 42~50 volumetric flasks;
50ml volumetric flask, INNOVA can clean 120 volumetric flasks, other manufacturers 64 to 80 volumetric flasks;
For test tubes and liquid phase bottles, INNOVA cleans up to 260 test tubes and liquid phase bottles, and most of the others are
230 test tubes and liquid phase bottles.

what kind of cleaning fluid are you

Innova recommends the use of RBS cleaning solution, which is imported from Belgium and has a good cleaning effect. The cleaning
solution is usually alkaline washed first, and then acid neutralized. The organic or inorganic substances are decomposed and
stripped under the action of strong alkali to achieve a good cleaning effect.

Does your washing machine have a frequency conversion function?

Innova glassware washing machine has the patent proof of automatic adjustment of washing pressure, which can realize the function
of frequency conversion

Can the washing basket of your washing machine be customized?

The cleaning baskets currently displayed by INNOVA basically cover most of the specifications and types of utensils for routine
laboratory cleaning. Generally, the selection of existing cleaning baskets is sufficient for use, and the baskets also have
certain compatibility. If it is really a special utensil and you also want to clean it, you can customize the basket, but the
customization of the basket takes time.

Does your cleaning machine have a solution for instantly judging cleaning results?

The Innova glassware washing machine can be equipped with a conductivity monitoring system, which can verify the cleaning effect
in real time
