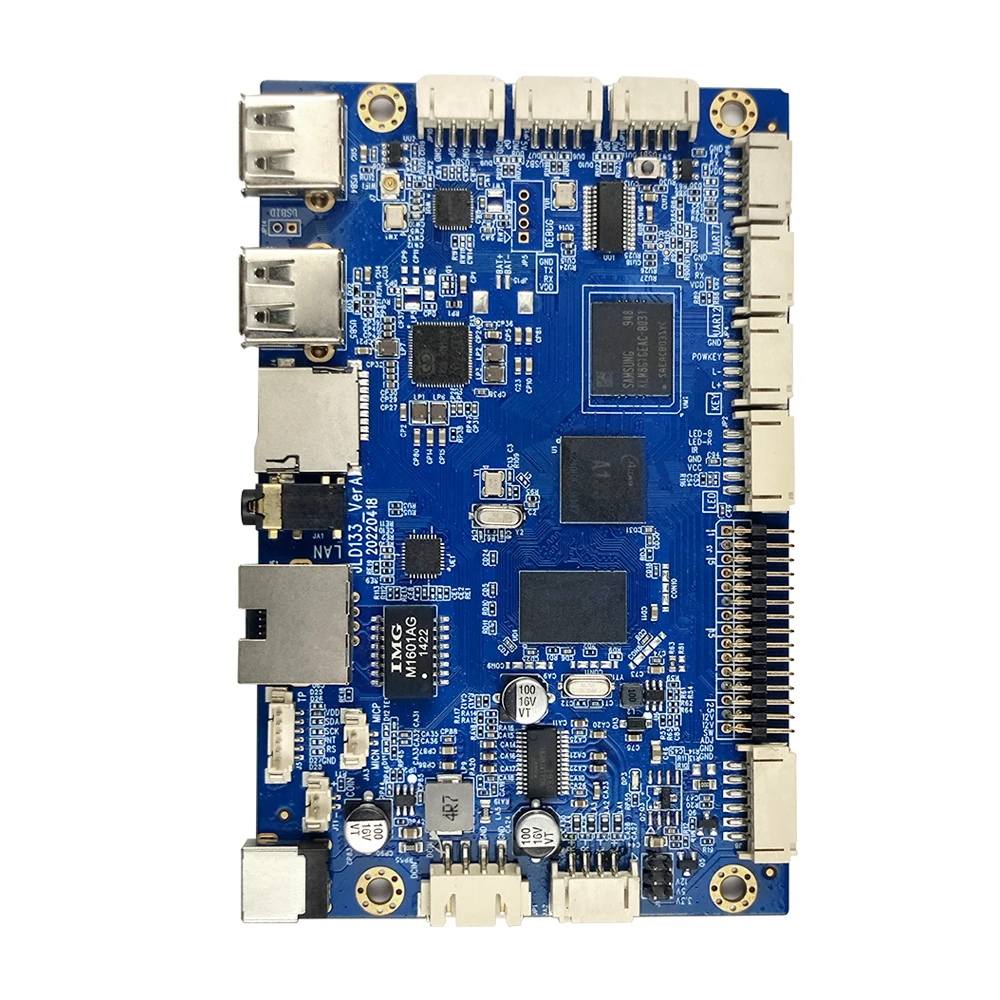

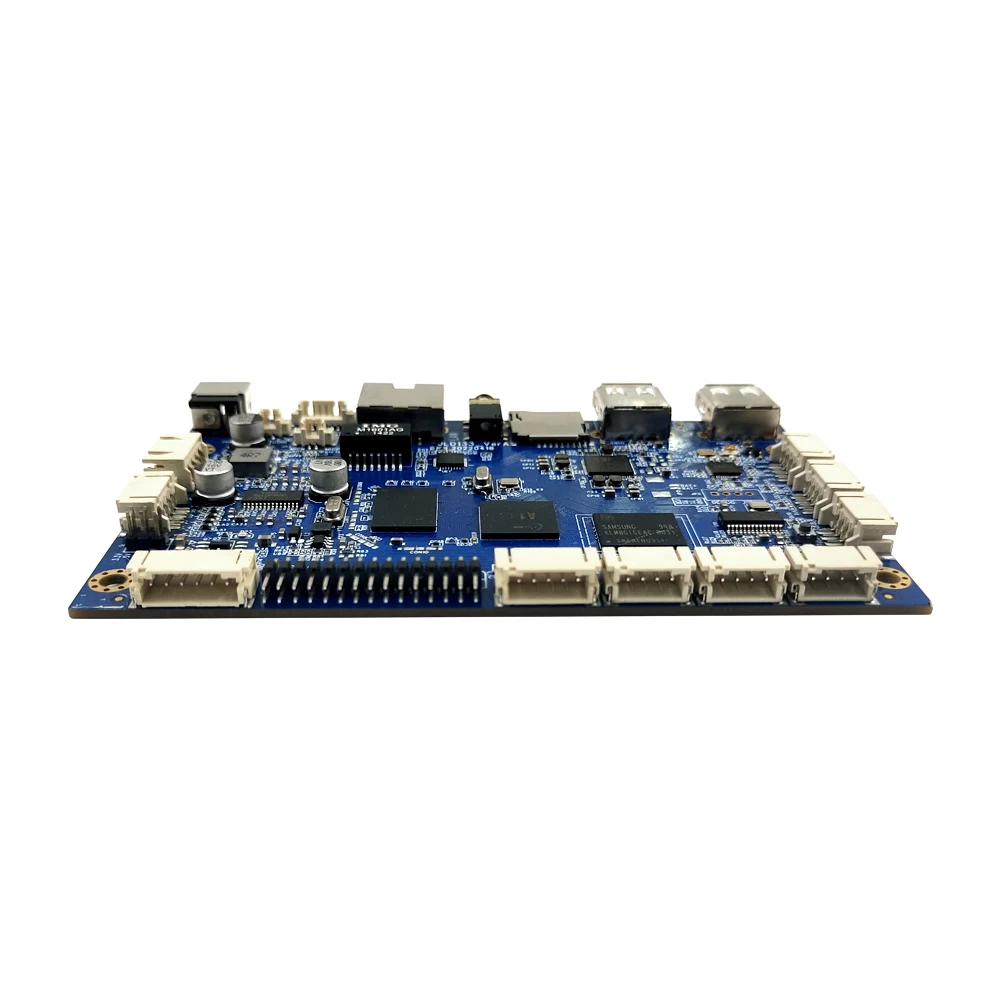

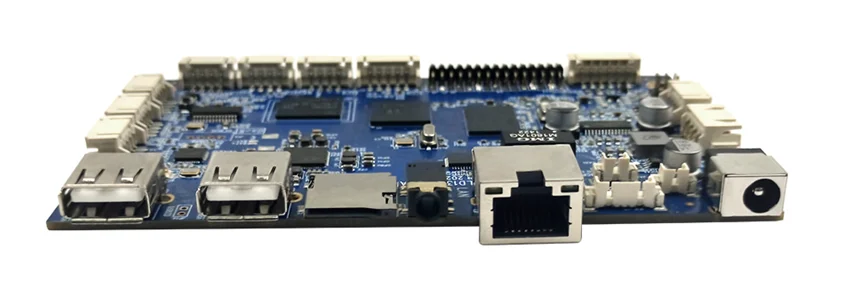

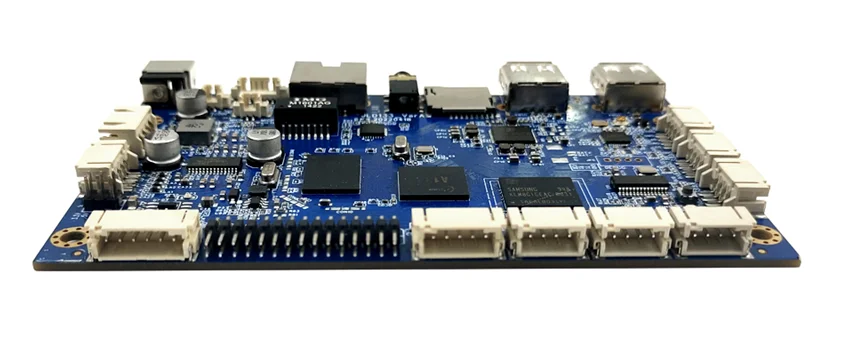

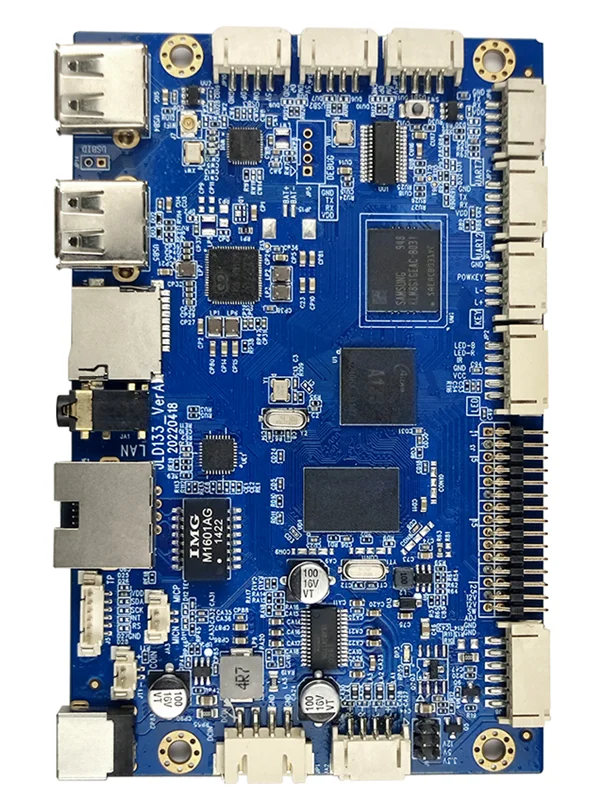

Hot Sale Control Board Allwinner A133 Multimedia Player Interactive Motherboard LVDS Arm Android Main Board
- Category: >>>
- Supplier: Shenzhen JLD Technology Co. Ltd.
Share on (1600848714922):
Product Overview
Description
JLD-A13 Allwinner A133 Quad Core ARM Cortex-A53 Android10 LP-DDR4 1GB/2GB Android Smart Board Control Driver Board
Product Description
CPU | Allwinner A133 CPU: quad core ARM Cortex-A53,1.6GHz GPU: IMG PowerVR GE8300 |
System | Android10 |
Memory | RAM: LP-DDR4 1GB/2GB(default1GB) ROM: EMMC 8GB/16GB/32GB(default8GB) |
Video Decoding | H.265 4K@30fps, H.264 4K@30fps, VP9 720P@30fps, MJPEG 4K@15fps |

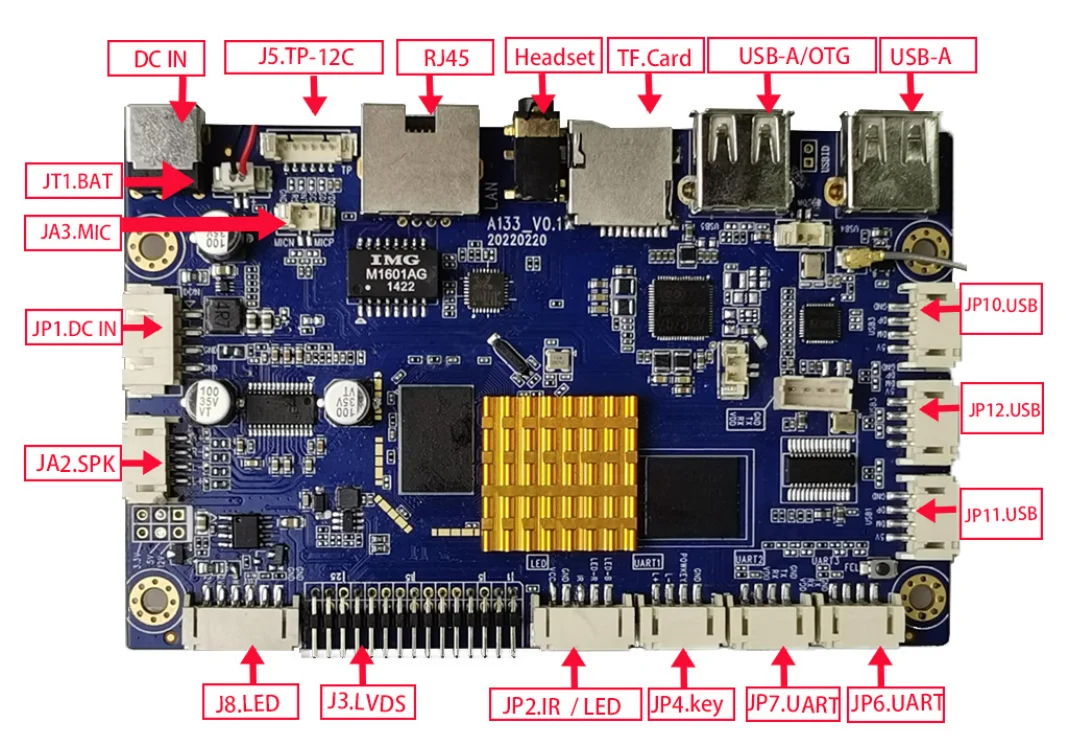

Supported LCD Display
| MIPI interface,highest support 1920*1200@60fps |
Double channel LVDS interface,highest support 1920*1200@60fps,+3.3V/+5V/+12Vpower supply for option | |
Touch Panel | Support I2C interface and USB port |
Ethernet | RJ45,10/100M adaptive |
WIFI | 802.11b/g/n,highest speed 150Mbps |
BT | BT4.2 |
USB
| Outside USB2.0*2 |
Inner side USB2.0*3 | |
Headphone Jack | 3.5mm four segment,support MIC input |
Speaker Interface | Dual sound channel 2*8W@8Ω |
MIC | Inbuilt MIC port+headphone MIC |
TF Socket | Support |
UART | Two,TTL/RS232 for option |
RTC Colck | Support |
IR Control Receive | Support |
Status Indicator | Double color |
Key | Power,volume+,volume- |
Power Input | 12V/3A(5.5*2.1 DC socket or 4P2.54 connector) |
The A-13 motherboard is a smart display driver motherboard designed based on Allwinner A133 SOC main control chip. The main control includes quad-core ARM Cortex-A53 CPU and IMG PowerVR GE8300 GPU, onboard LP-DDR4 and EMMC memory, and customized Android10 operating system , to ensure the speed and smoothness of various applications. By reserving conventional peripheral interfaces and realizing ultra-thin and ultra-small design, and with a dedicated background management information release system, digital signage functions in various scenarios can be realized.
This product has some features:
l Rich interface, ultra-thin design
l Support 4K video decoding.
l Support dual channel LVDS or MIPI display.
l Low power consumption design
l Dedicated background management information release system
Certification
Features:
Multiple interactive mode interfaces: infrared remote control, USB mouse.
A variety of network interfaces: Ethernet, 4G, wireless Wifi.
Multi-channel USB interface, serial output.
Support video playback with HD output.
Strong anti-electromagnetic interference and electromagnetic compatibility.
Multiple interactive mode interfaces: infrared remote control, USB mouse.
A variety of network interfaces: Ethernet, 4G, wireless Wifi.
Multi-channel USB interface, serial output.
Support video playback with HD output.
Strong anti-electromagnetic interference and electromagnetic compatibility.
