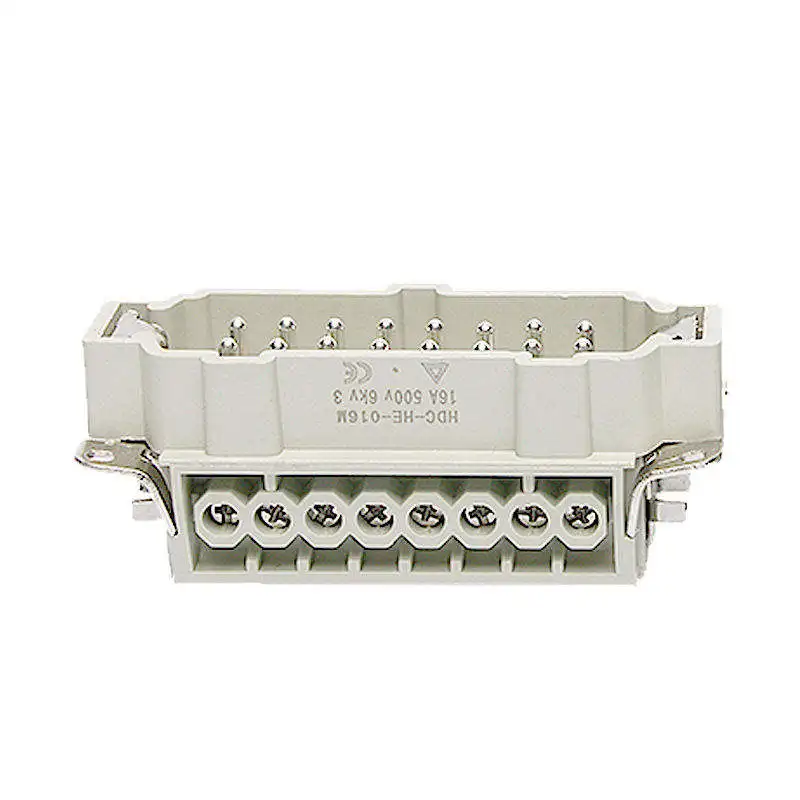

WZUMER 16A Heavy Duty Connector Contacts 16 Pin Male Female Inserts For HDC
WZUMER 16A Heavy Duty Connector Contacts 16 Pin Male Female Inserts For HDC
WZUMER 16A Heavy Duty Connector Contacts 16 Pin Male Female Inserts For HDC

WZUMER 16A Heavy Duty Connector Contacts 16 Pin Male Female Inserts For HDC

Share on (1600848732271):


Price:$0.50 - $2.50

Quantity:


Product Overview

Description







Details Images






Products Description



Technical Characteristics:


Number of Contacts
16
Electrical Data Acc.to
DIN EN60664 EN61984
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6KV
Pollution Degree
3
Flammability Acc.to (UL94)
V0
Insulation Resistance
≥10 10Ω
Material
Polycarbonate
Limiting Temperature
-40℃~+125℃
Mechanical Working Life
≥500
Rated Voltage Acc.To UL/CSA
600V



Contacts:


Material
Copper Alloy
Surface
Hard-silver,Hard Gold Plated
Contact Resistance
≤1mΩ
Crimp Teminal
- mm2
0.14-4.00mm2
-AWG
26-12
Screw Teminal
-Wire Gauge
-AWG
-Hexagonal Driver
-Stripping Length

0.14-2.5mm2
26-14
SW 5
7.0mm
Tightening Torque
0.5Nm
