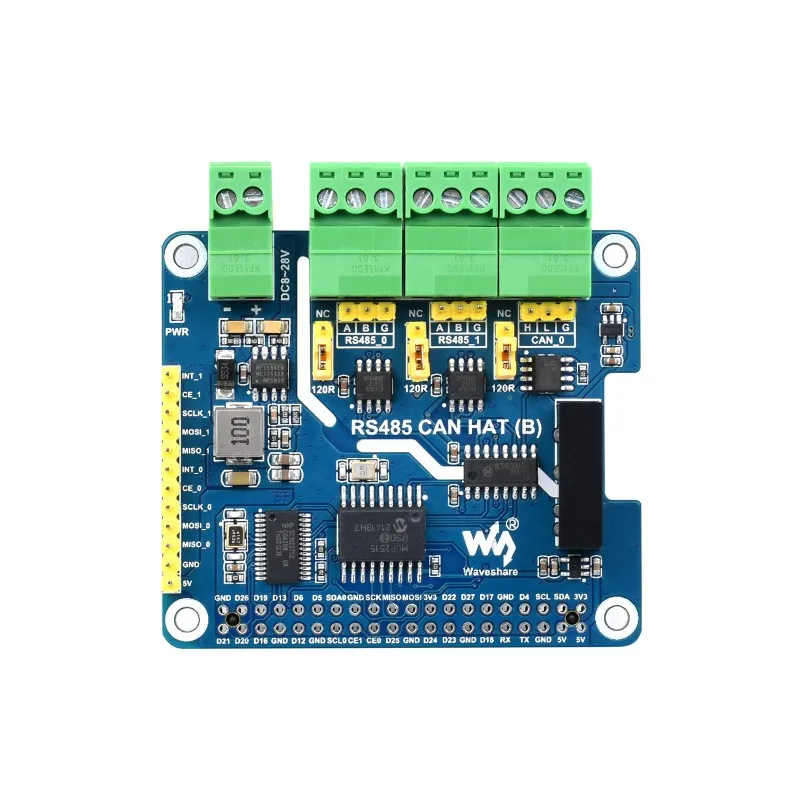

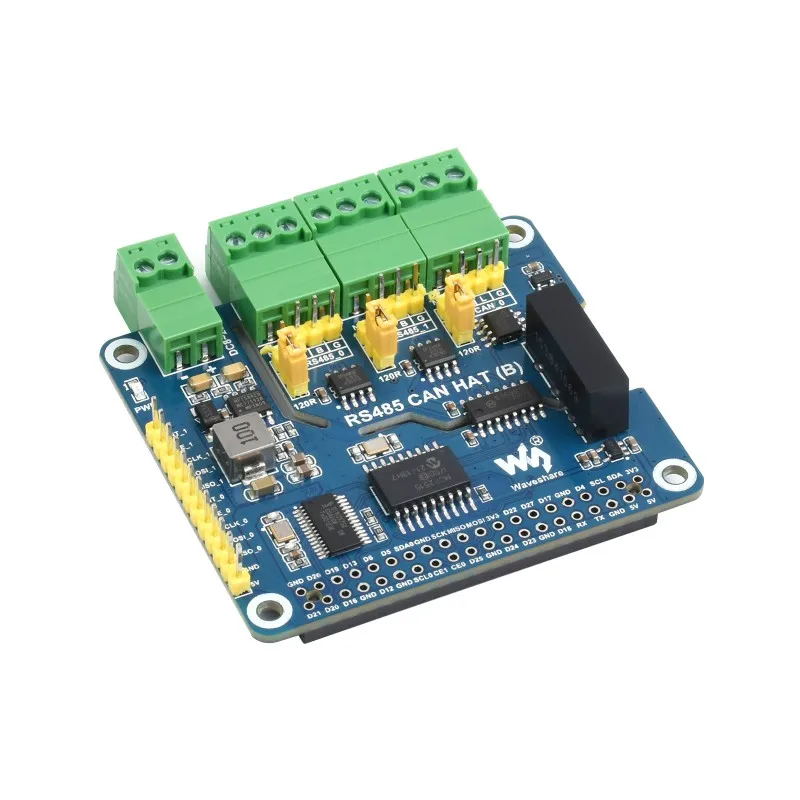

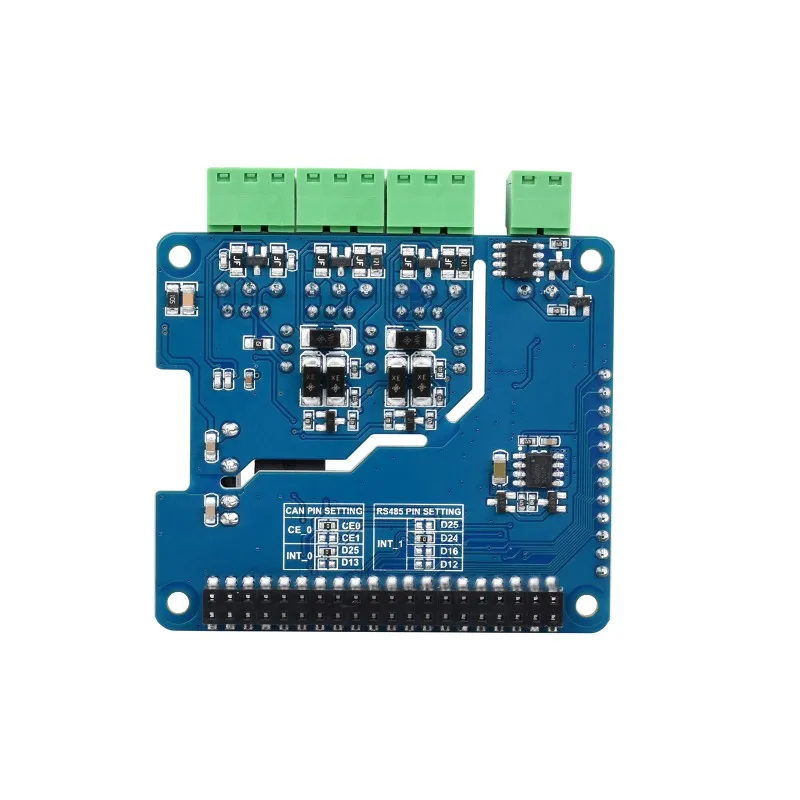

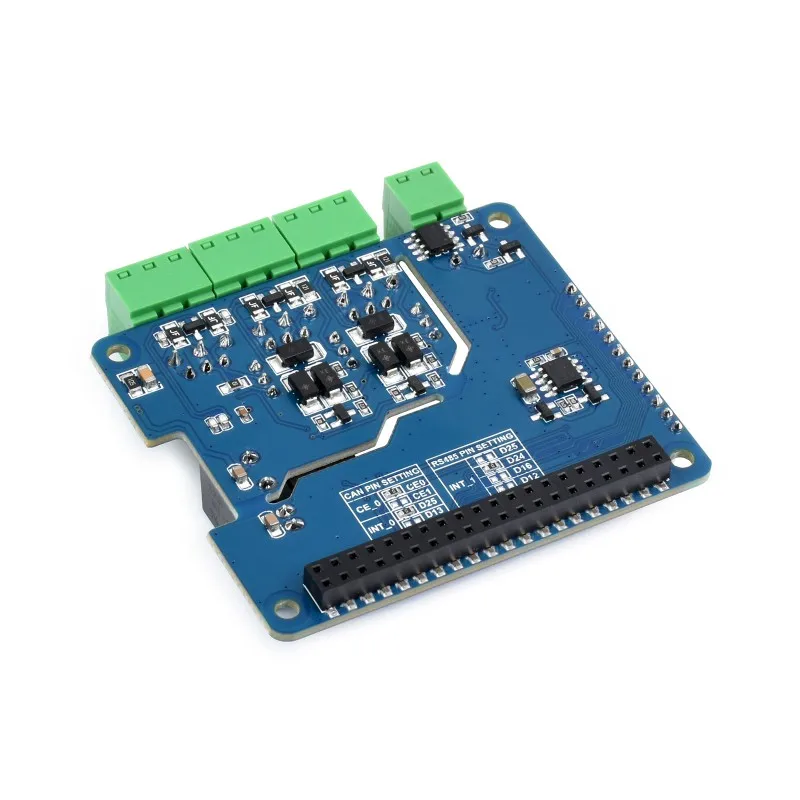

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2 Ch RS485 and 1 Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2 Ch RS485 and 1 Ch CAN, Multi Protections

Share on (1600848751320):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


EXPANDED INTERFACE
2-Ch RS485 + 1-Ch CAN
COMMUNICATION INTERFACE
SPI
CAN CONTROLLER
MCP2515
CAN TRANSCEIVER
SIT65HVD230DR/SN65HVD23D
CAN BAUD RATE
≦1Mbps
UART EXPANSION CHIP
SC16IS752
RS485 TRANSCEIVER
SP3485
RS485 BAUD RATE
300~921600 bps
POWER SUPPLY
External power supply terminal OR Raspberry Pi
EXTERNAL POWER SUPPLY RANGE
DC 8~28V
OPERATING VOLTAGE
3.3V
DIMENSIONS
65 × 56.5 mm
