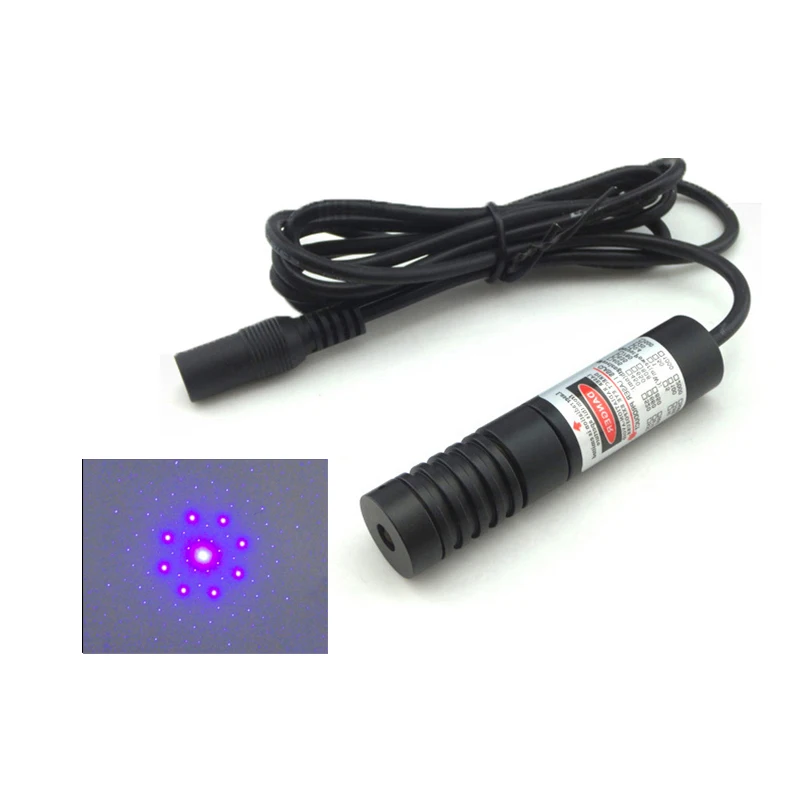

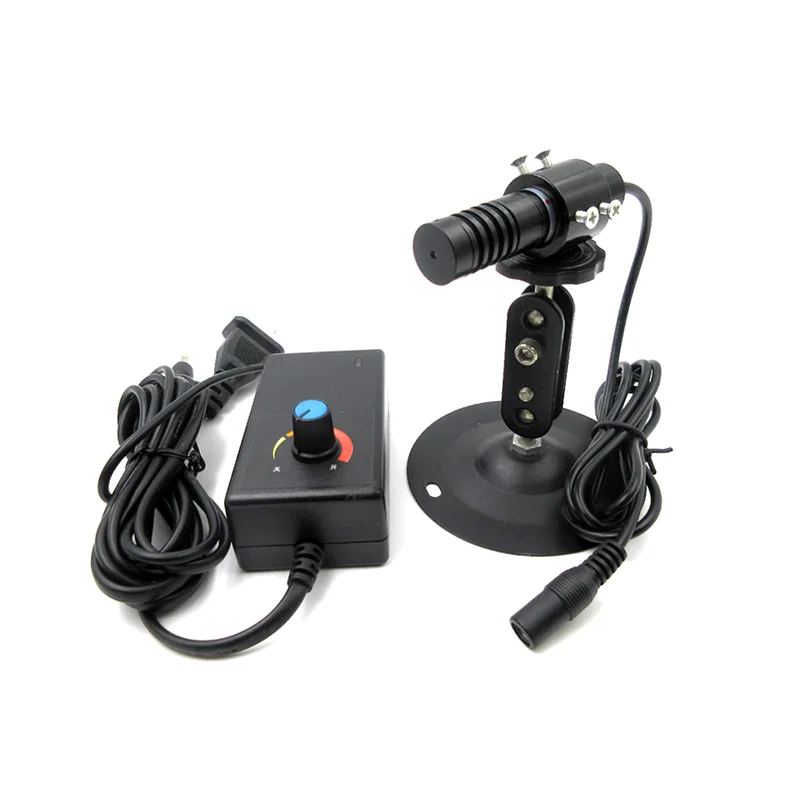

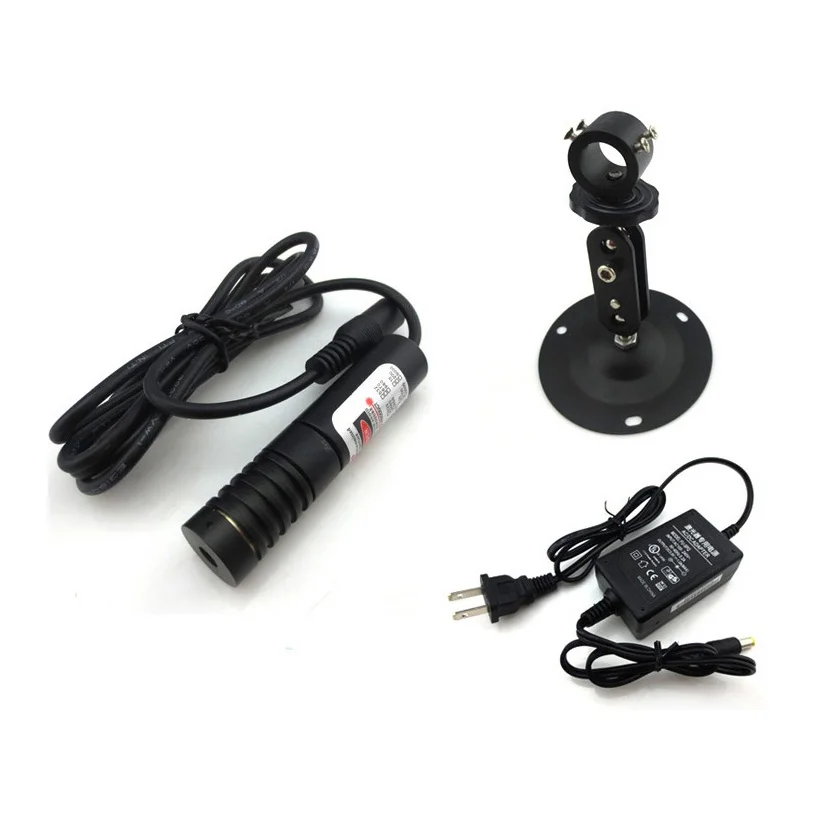

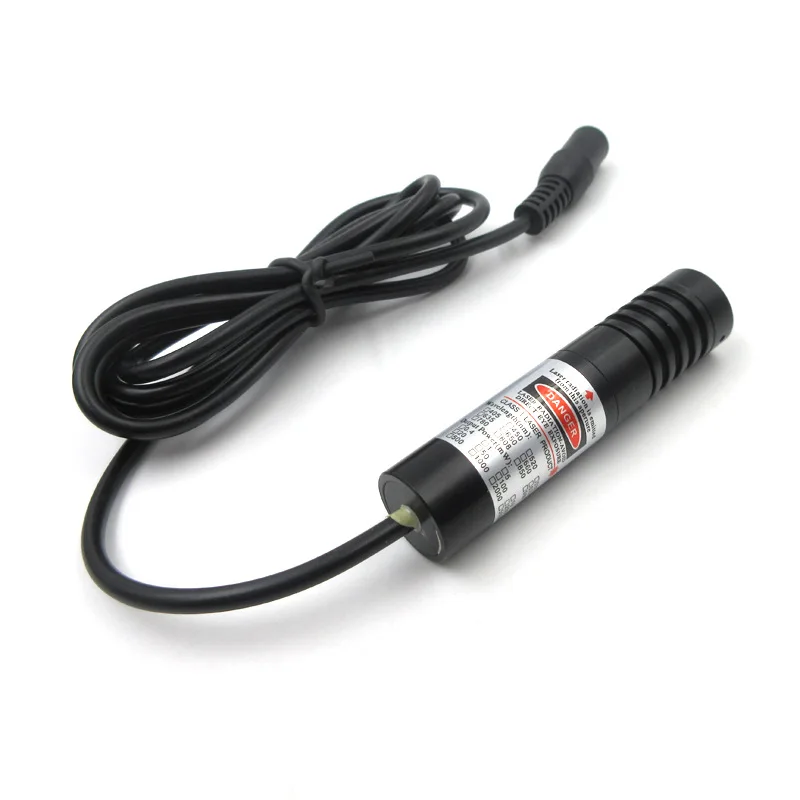

8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern
8 Point Circle Blue Laser Dot Module With Center Dot Pattern

8 Point Circle Blue Laser Dot Module With Center Dot Pattern

Share on (1600848808019):


Price:

Quantity:


Product Overview

Description





Specification


Wavelength
Output Power
Voltage(V)
Electric Current

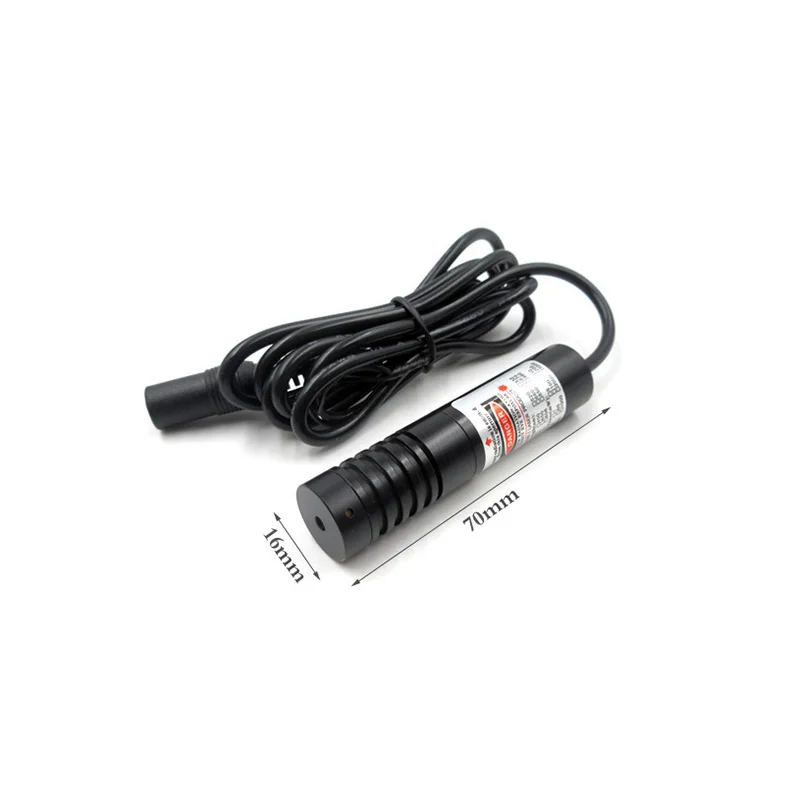

Size
450nm
100mw
DC 2.8-5.2V
<500mA
16x70mm


Products Description


Lens Degree 0.77°-8.25° Optional
0.77° The diameter of the circle at 3 meters is 40 mm
1.48° The diameter of the circle at 3 meters is 75 mm
2° The diameter of the circle at 1 meter is 36mm
2.04° The diameter of the circle at 3 meters is 110 mm
2.86° The diameter of the circle at 3 meters is 150 mm
3.5° The diameter of the circle at 1 meter is 63mm
3.63° The diameter of the circle at 3 meters is 190 mm
4.1° The diameter of the circle at 3 meters is 215 mm
5° The diameter of the circle at 3 meters is 262 mm
5.8° 3 meters circle diameter is 295mm
5.82° The diameter of the circle at 3 meters is 300 mm
6° The diameter of the circle at 3 meters is 314 mm
7° The diameter of the circle at 1 meter is 125mm
8.25° The diameter of the circle at 3 meters is 435 mm






Wavelength, Output Power, Voltage and Size Customizable




We offer professional service, the housing size, power, wavelength, drive circuit, divergence, beam shape, beam size and the wire length of the laser module can be customized!




DOE Laser Module is compact and lightweight and can be built with various wavelength and output power laser diode and parameter lens.
