Sunbright Ultrasound Echo Machine Hospital Medical Ultrasound Instruments 12.1 Inch Digital Ultrasound
- Category: >>>
- Supplier: Shanghai Sunbright Industrial Co. Ltd.
Share on (1600849282937):
Product Overview
Description
Product Description

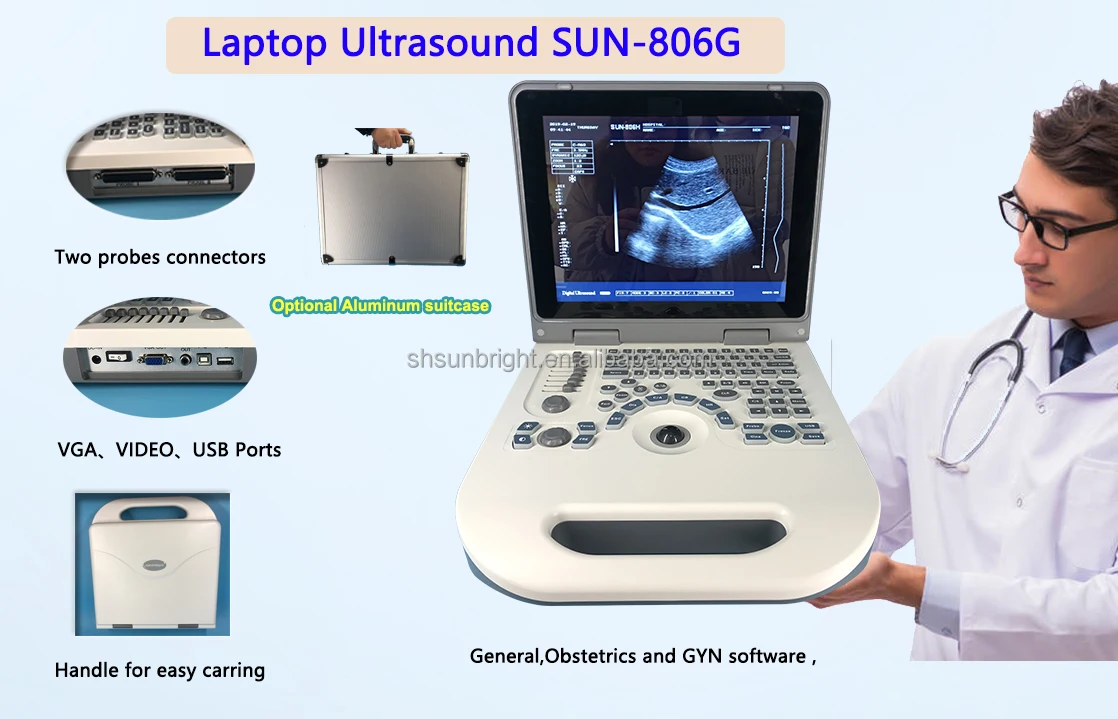

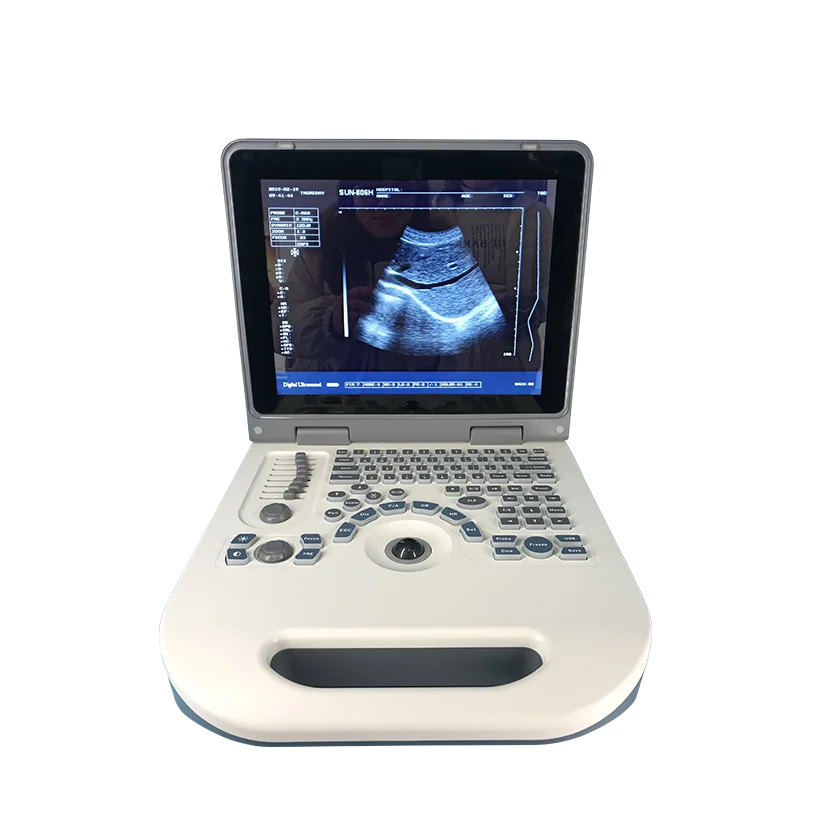

hospital professional Portable sunbright 12" screen obstetrics Gynecology Ultrasound Scanner
Fast description:
1. Color 12.1' LED monitor with high resolution, USB port;
2. Light weight of 2.5kgs, and Laptop design;
3. Built-in battery can drive the main unit to work for more than 3 hours;
4. General, OB/GYN, cardiology, urinary, small organs, and so on
5. VGA Outpout,AV Outpout,working station, connect with computer, external monitor and HP printer directly
Main Specifications
Scanning mode | electronic scanning |
Display modes | T35R60GB convex array probe: B, B/B, 4B, B+M, M; T50R20GB type micro convex probe: B, B/B, B+M, M; T65R13GB type cavity probe: only B; T75L40GB type linear array probe: only B; |
Image multiplying factor | T35R60GB convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0; ×0.8, ×2.0 (display penetration depth); T65R13GB type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5. |
M type | M type scanning has eight kinds of speed can be selected; M mode or B+M mode :When the heart rate of more than 100, measurement error will increase |
Zoom | Local x 2.0 magnification rate |
Dynamic range | 0~120dB adjustable |
Frequency | T35R60GBconvex array probe real-timescan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; T65R13GB type cavity probe/ T75L40GB type linear array probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion. |
Focus position | Sending: 1, 2, 3 and 4-segments dynamic electronic focusing; when 1,2-segments focus, the focus can be moved. Receiving: receive real-time dynamic focus by focus |
Measuring function | Distance, Circumference/Area (method of ellipse, method of loci), Volume, Heart rate, Gestational Weeks (BPD, GS, CRL, FL, HC,AC), Expected date of confinement and Fetus weight, etc. |
Annotation function | Hospital name, Patient's name, Age and Gender; 64 body marks (with probe's position); Full-screen character annotation; Real-time clock display; |
Puncture guide | 3.5MHz convex array probe can display puncture guide line in B mode. |
Gain control | 8 segments TGC and overall gain can be adjusted respectively. |
Image polarity | left and right flip, black and white flip, up and down flip. |
Permanent storage | ≧128 images. |
Image playback | series playback or check one by one |
Image processing | γ correction, Frame correlation, Point correlation, Line correlation, Digital filtering, Digital Edge Enhancement and Pseudo Color Processing, etc. |
USB interface | Only for U disk storage image, image format is BMP. |
Output interface | SVGA video output offers connection to SVGA color display; workstation, etc. PAL video output offers connection to PAL display, video image recorder and image. |

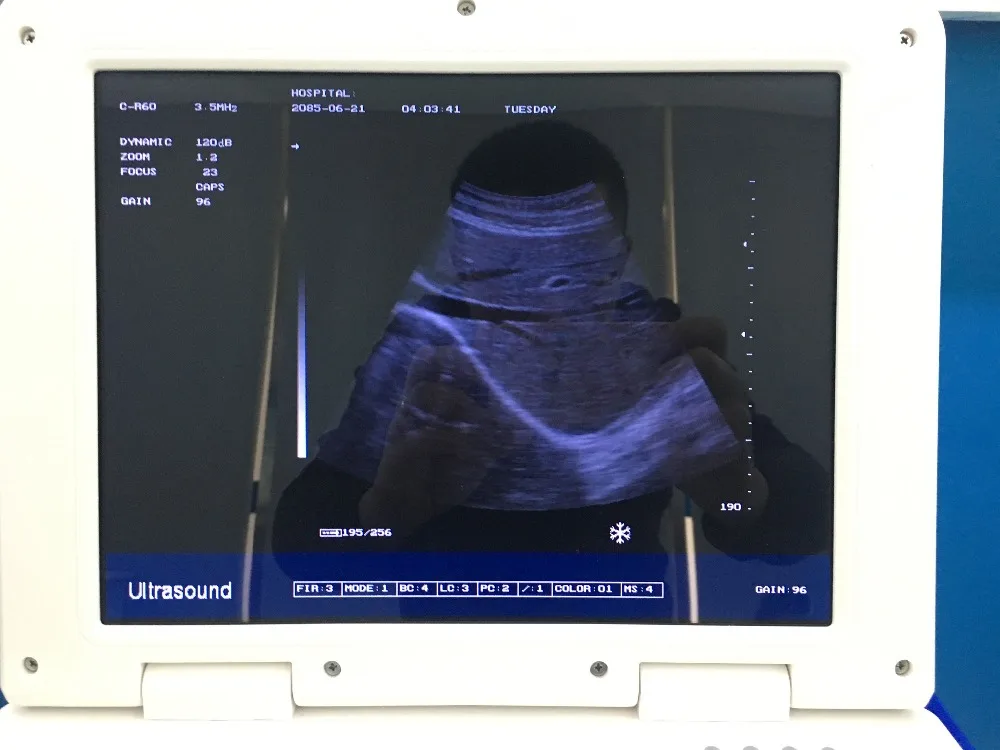

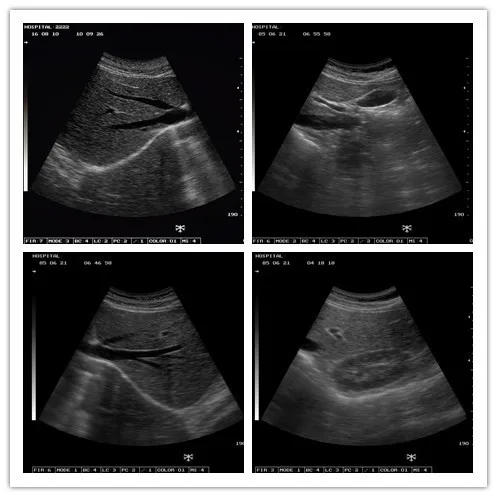

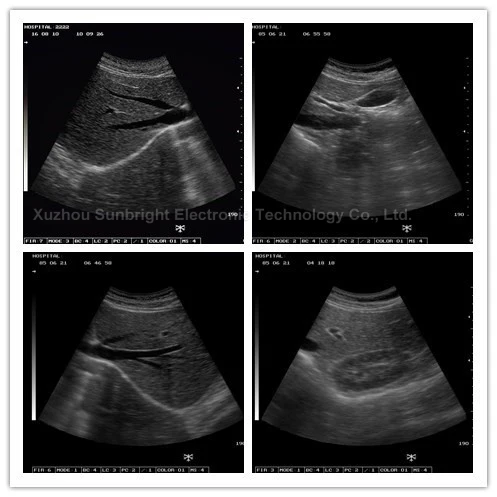

Scanning images

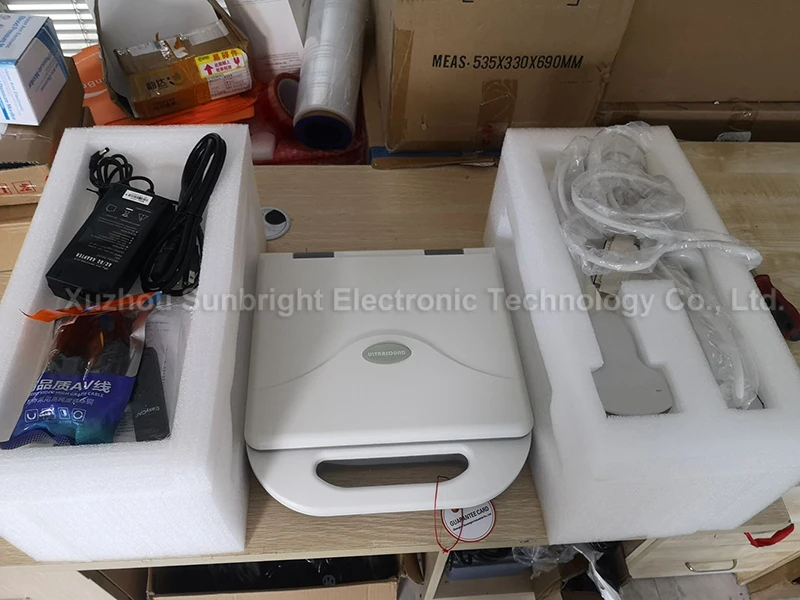

Packing
Standard Configuration:

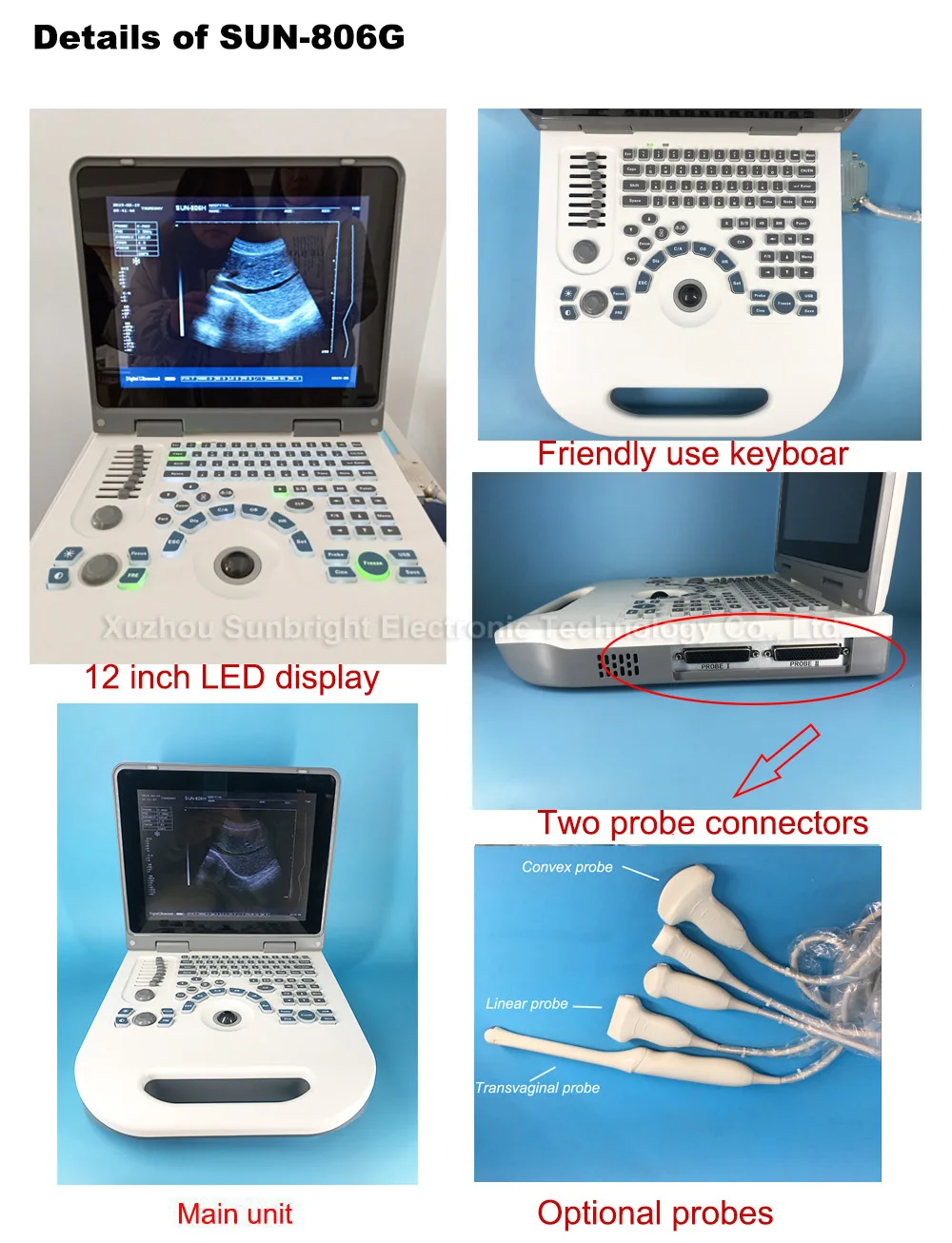

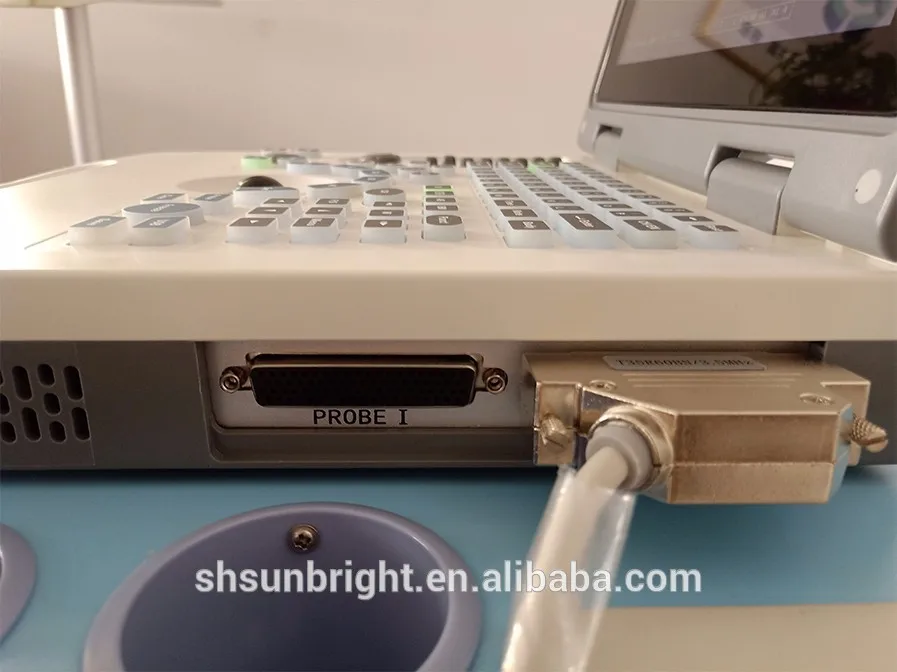

1. Main unit of 806G + 2 probe connectors
2. T35R60GB convex array probe
3. Battery Adaptor
4. Power Line
