Portable Handheld Blue tooth Vet Multipara 6 multi parameter Animal Dog Health Ce Veterinary Multiparameter Monitor
- Category: >>>
- Supplier: Nanchang Usmiley Medical Device Co. Ltd.Nanchang Ltd.
Share on (1600849284872):
Product Overview
Description
Product Description
Multi parameters for collocation optional
1. NIBP+SPO2+TEMP2. NIBP+TEMP
3. SPO2+TEMP
4. SPO2+ETCO2
5. SPO2+ETCO2+NIBP
5. SPO2+ETCO2+NIBP
Veterinary Pet Instrument Animal Equipment Monitor
* Application: Veterinary, pet, animals
* Screen: 3.5 inch
* OEM: Acceptable
* Multi-language optional: Spanish, English, etc.
* Blue rubber case optional.
* Screen: 3.5 inch
* OEM: Acceptable
* Multi-language optional: Spanish, English, etc.
* Blue rubber case optional.
Features
* Low perfusion reach 0.5%,perfect anti-motion
* Provide Pl(perfusion index 0.05%-20%)
* Suitable all kinds of animals
* 3.5 inch TFT color screen
* Provide Pl(perfusion index 0.05%-20%)
* Suitable all kinds of animals
* 3.5 inch TFT color screen
* Support 100 ID users
* Two measurement mode: spot, monitor
* NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude-Adjust) algorithm and SAFD(Self-Adaptive-Fast-Deflation)
algorithm
* Two measurement mode: spot, monitor
* NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude-Adjust) algorithm and SAFD(Self-Adaptive-Fast-Deflation)
algorithm
* Data storage function: support data review,data trend and chart
* Monitor mode: support continuous record for 48 hours
* Spot mode: 100 user ID, each use can storage 200 sets data
* Support audio and visual alarm can set low and high limit values
* Lithium ion battery inside
* Spot mode: 100 user ID, each use can storage 200 sets data
* Support audio and visual alarm can set low and high limit values
* Lithium ion battery inside
* Optional charging dock
* Can choose ECG\\ETCO2\\SPO2\\NIBP\\TEMP
* Blood pressure rate, Oxygen saturation, Pulse rate, Pulse intensity,Temperature for collocation optional
Specification
Screen | 3.5”TFT | ||
Indicator | Alarm light,power light | ||
Alarm | Sensor off,low power etc | ||
Animal | Small or big | ||
Resolution | 320*480 | ||
Waveform | SPO2 and wavevalue | ||
Alarm type | Audio and visual | ||
NIBP | Support big or small animals | ||
NIBP measurement range | Big Animal： SYS: 40-270mmHg; MEAN:20-230mmHg; DIA:10-210mmHg | ||
Small Animal: SYS: 40-270mmHg; MEAN:20-230mmHg; DIA:10-210mmHg | |||
Static pressure range | 0-300mmHg | ||
NIBP measurement accuracy | ±3mmHg | ||
Over pressure protection | software:300mmHg | ||
hardware:320-330mmhg | |||
CO2 | Measurement range: | ETCO2:0-150mmHg(0-19.7%)(0-20kPa) | |
RR:3-150BPM | |||
CO2 Accuracy Range | ETCO2 Range | Accuracy Range | |
0-40mmHg | ±2mmHg | ||
41-70mmHg | ±5% of reading | ||
71-100mmHg | ±8% of reading | ||
100-150mmHg | ±10% of reading | ||
RR Accuracy | ±1BPM | ||
Resolution | ETCO2:0.1mmHg | ||
RR:1BPM | |||
Setting compensation parameters | Pressure range: 450-850mmHg | ||
Oxygen range:0-100% | |||
Equilibrium gas:N2O,He | |||
SPO2 | Measurement range | SpO2:0-100% | |
PR:0-300bpm | |||
Perfusion Index:0.05%-20% | |||
Accuracy range | SpO2:70%-100% | ||
PR:30-254bpm | |||
Perfusion Index:0.05%-20% | |||
Accuracy | SpO2:±2(70%-100%) Motion:±3 | ||
PR:+3bpm Motion:±5bpm | |||
TEMP | Measurement range | 25-45℃ | |
Resolution | 0.1℃ | ||
Accuracy | 0.1℃ | ||
Power supply: | Lithium ion battery | ||
Operation time: | 8 hours for normal opeartion | ||
TEMP | operation:0-45℃; storage:-25-65 | ||
Humidity | Operation:15%to 90% noncondensing | ||
Storage: 0% to 95% noncondensing | |||
Altitude | Up to 5000 meters | ||
Dimension | 146mm*67mm*30mm | ||
Weight | 250g | ||

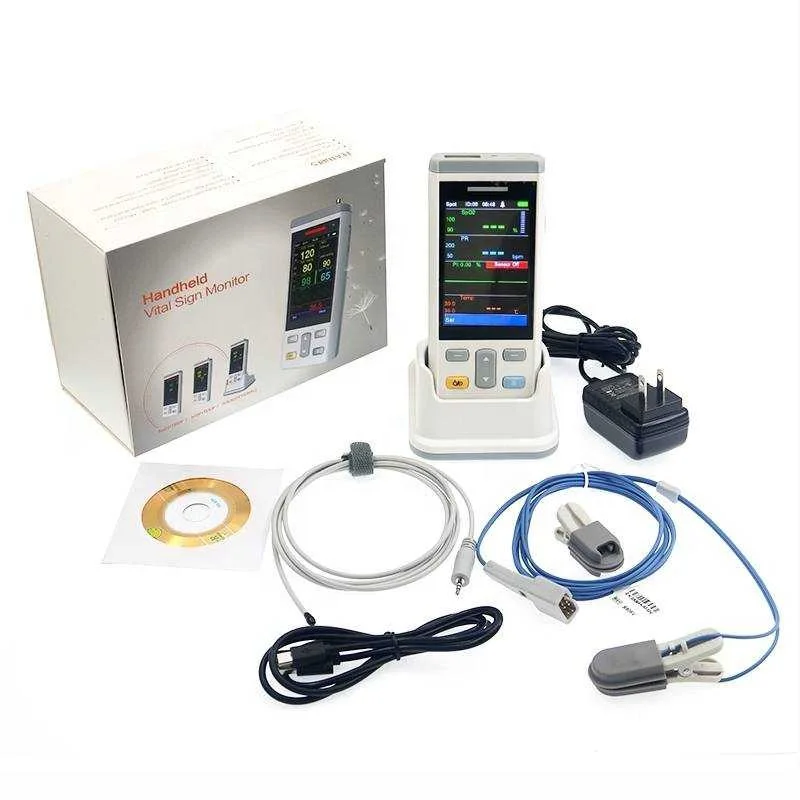

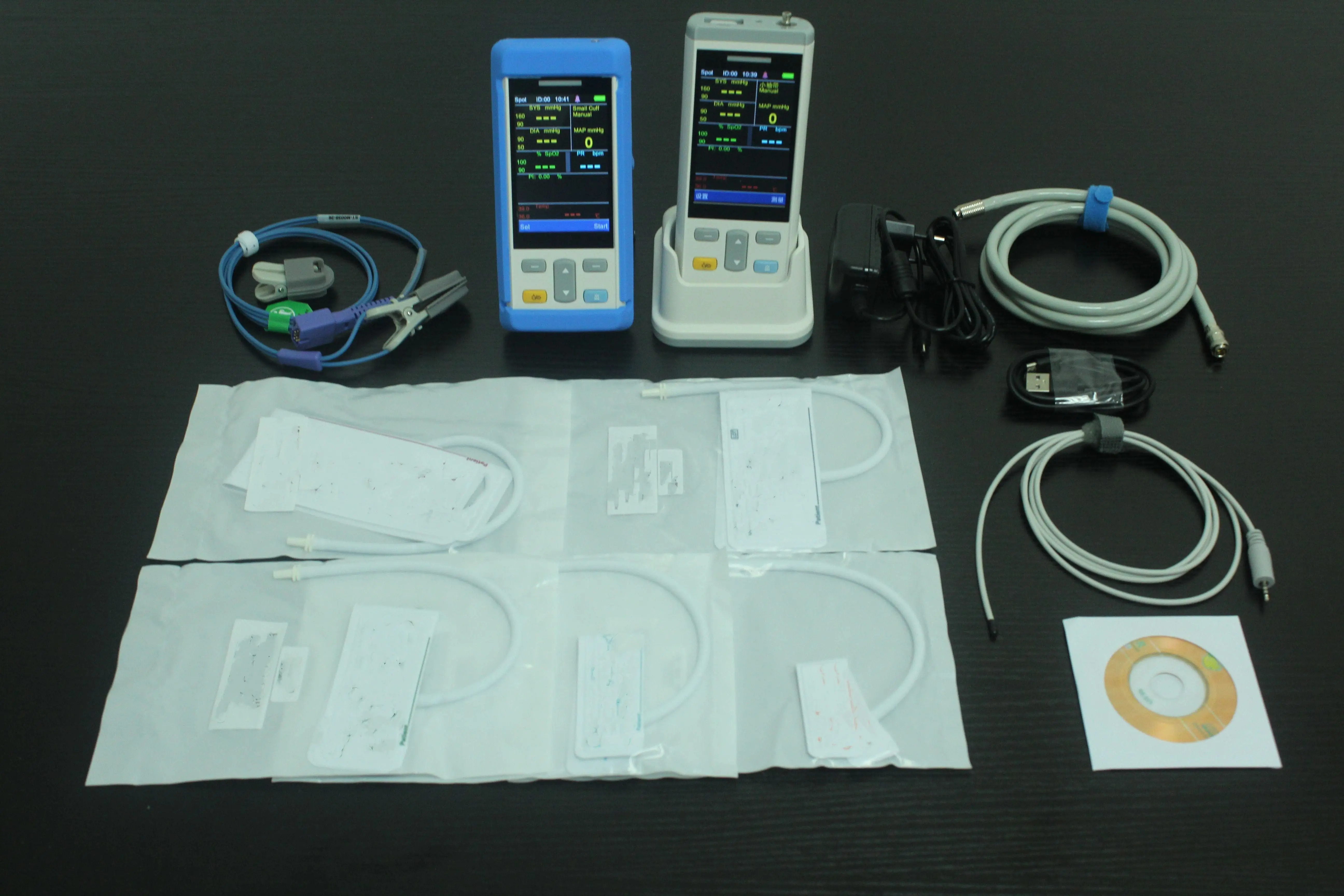

Product packaging

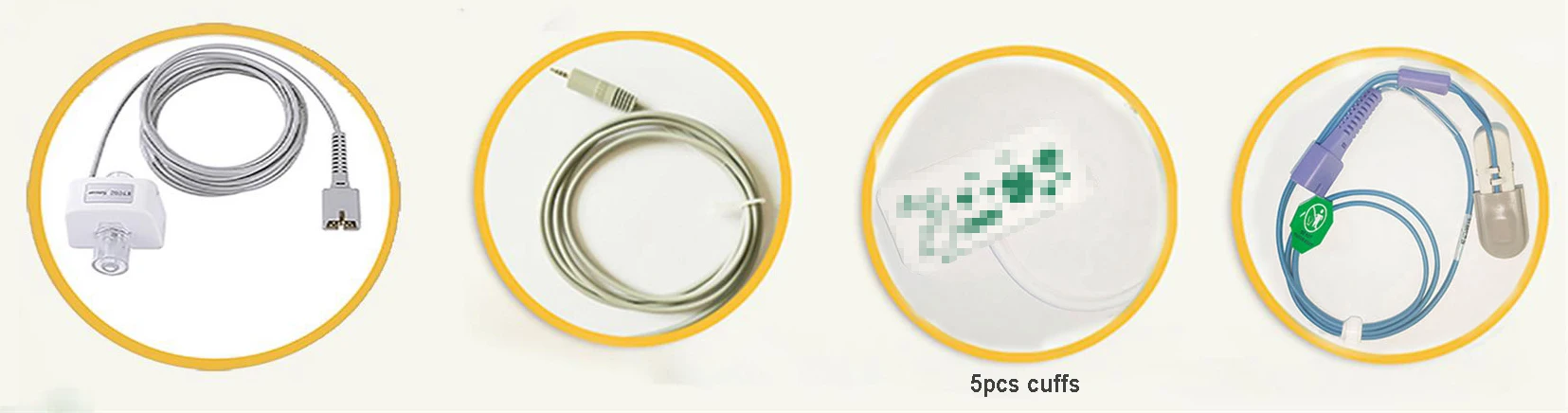

Accessories of handheld vital sign monitor for vet)
1 : NIBP cuff * 5pcs ( 5 different sizes )
2 : SPO2 sensor * 1pc ( one big clip, one small clip )
3 : Cavity temperature probe * 1pc
4 : Blood pressure extension tube * 1pc
5 : Base with charging function * 1pc
6 : Power Adapter * 1pc
1 : NIBP cuff * 5pcs ( 5 different sizes )
2 : SPO2 sensor * 1pc ( one big clip, one small clip )
3 : Cavity temperature probe * 1pc
4 : Blood pressure extension tube * 1pc
5 : Base with charging function * 1pc
6 : Power Adapter * 1pc
7: Optional blue rubber case
Company Profile
FAQ
Q01: What is your MOQ?
A01: Our MOQ for the sample is 1 piece. We suggest customers to buy a sample to test our quality firstly, and the MOQ for bulk order is 100pcs.
Q02: How can we guarantee quality?
A02: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q03: What is production time?
A03: Sample order: Within one week; Bulk order: About 35 days.
Q04: How to ship?
A04: We can ship by air such as DHL, UPS, FedEx or TNT(5~7 days), by sea or by air(25~30 days).
Q05: What payment methods do you accept?
A05: We can accept T/T, L/C, PayPal, MoneyGram, Western Union, Credit card, Alibaba Trade Assurance.
Q06: Do you offer guarantee for the products?
A06: Yes, we offer 1 year warranty for our product.
Q07: Do we offer ODM/OEM service?
A07: Yes, we have a professional R&D team with many experienced designers and engineers, and we have around 120 skilled workers at our manufacturing base. That’s why we can offer our customer better ODM/OEM services.
A01: Our MOQ for the sample is 1 piece. We suggest customers to buy a sample to test our quality firstly, and the MOQ for bulk order is 100pcs.
Q02: How can we guarantee quality?
A02: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q03: What is production time?
A03: Sample order: Within one week; Bulk order: About 35 days.
Q04: How to ship?
A04: We can ship by air such as DHL, UPS, FedEx or TNT(5~7 days), by sea or by air(25~30 days).
Q05: What payment methods do you accept?
A05: We can accept T/T, L/C, PayPal, MoneyGram, Western Union, Credit card, Alibaba Trade Assurance.
Q06: Do you offer guarantee for the products?
A06: Yes, we offer 1 year warranty for our product.
Q07: Do we offer ODM/OEM service?
A07: Yes, we have a professional R&D team with many experienced designers and engineers, and we have around 120 skilled workers at our manufacturing base. That’s why we can offer our customer better ODM/OEM services.
Q08: Will you have any other questions?
A08: If so, please feel free to contact us by email sandy@usmiley.cn or Wechat/Whatsapp 86-18170955539, we will be online at anytime.
