medical waste incinerator corpse cremation furnace machine human body incinerator
- Category: >>>
- Supplier: Shandong Ceres Import And Export Trading Co. Ltd.
Share on (1600849320987):
Product Overview
Description
Product Description
Product Application
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time necessary to complete the cremation to less than half an hours.

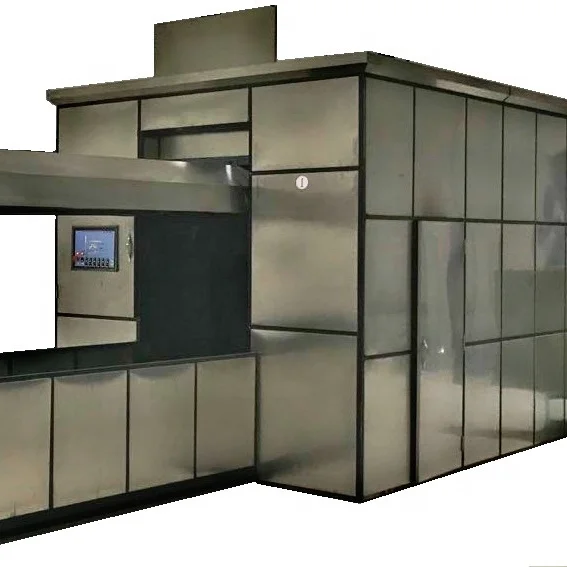

Model Name | Top Quality Corpse Cremator For Crematorium |
Model Number | KRSC3000-61 |
Material | Stainless and Refractory |
Style | Eropean style |
Type | Including burning systerm and cold systerm |
Control Systerm | Japan Mitsubishi PLC and LCD touch screen or touch switches |
Overall Dimensions | 12000*2360*2700mm |
Transport Creeper Trolley Size | 3800*830*800mm |
Temp of Primary Combustion Chamber | 700-900 cent degree |
Hearth Burning Pressure | -5 to -10Pa |
Total Power | 20kw |
Total Weight of Cremator | 19T |
Total Weight of Carrier | 1.2T |
Ground Space | 9-10m² |
Average Fuel Consumption | 3-7kg/case |
Average Time | 20~35min/case |
Exhaust of Harmful Substances | In conformity with ISO14001 |
Package Details | One unit of cremation machine load 1*40HQ container, around 27 Ton Totally |
Delivery | 25 to 60 days after deposit |
Payment | 40%TT in advance,60%TT before shipping |
Main Features
During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
As the corpse is placed in a casket or paper container , the container burns down.
Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
Our crematories machine have fourth afterburner to help burn the body completely.
Our cremators adapt the latest combustion technology, four times burning technology ensure the emissions purified.
First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300℃), most smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special construction of the secondary burning chamber.
Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if temperature under 700℃,otherwise above 700℃the high temperature gas and smoke burn itself matched with the suitable amount of oxygen.
Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally before injection into the atmosphere.
Furnace material of high grade ash picker
(1) Refractory material
The top cover of the furnace is made of prefabricated high aluminum refractory bricks. The furnace is made of new high-strength erosion resistant aluminum carbonized silicon composite material, which can ensure the fast temperature rise in the furnace, the short time of the cremation remains and the small oil consumption. All refractory bricks and cement used for the furnace body are of high quality, cold and hot resistance, high compressive strength, fast heat absorption, good heat preservation, corrosion resistance, high stability, wear resistance, long service life, and will not automatically loosen and fall off after a long period of high temperature, with a temperature resistance of 1400 degrees.
(2) Thermal insulation material
It adopts high-quality aluminum silicate fiber felt board, calcium silicate board and diatomite insulation brick, with
high-quality heat conduction, making the surface temperature of furnace body about 20 ℃ , good insulation performance, long service life, furnace temperature drop of about 40 ℃ in 24 hours after shutdown.
(3) Decorative materials
It adopts 0.8-1.0mm high-quality stainless steel plate, beautiful and generous, strong three-dimensional sense, corrosion resistance, convenient disassembly, maintenance and never deformation.
(4) Bone scaffold
High quality profiles and plates are adopted, which are durable and never deformed.
(5) Main combustion chamber
After the body enters the main combustion chamber, it is ignited by the burner and incinerated here.
(6) Flue gas combustion chamber
Burning the flue gas, making the flue gas stay longer in the furnace, making the toxic and harmful substances burn more fully, so as to achieve the effect of environmental protection.
(7) Main furnace masonry
During masonry, the mortar is full of the joint surface between the brick and the brick, and the mortar joint is less than 3mm.
The top cover of the furnace is made of prefabricated high aluminum refractory bricks. The furnace is made of new high-strength erosion resistant aluminum carbonized silicon composite material, which can ensure the fast temperature rise in the furnace, the short time of the cremation remains and the small oil consumption. All refractory bricks and cement used for the furnace body are of high quality, cold and hot resistance, high compressive strength, fast heat absorption, good heat preservation, corrosion resistance, high stability, wear resistance, long service life, and will not automatically loosen and fall off after a long period of high temperature, with a temperature resistance of 1400 degrees.
(2) Thermal insulation material
It adopts high-quality aluminum silicate fiber felt board, calcium silicate board and diatomite insulation brick, with
high-quality heat conduction, making the surface temperature of furnace body about 20 ℃ , good insulation performance, long service life, furnace temperature drop of about 40 ℃ in 24 hours after shutdown.
(3) Decorative materials
It adopts 0.8-1.0mm high-quality stainless steel plate, beautiful and generous, strong three-dimensional sense, corrosion resistance, convenient disassembly, maintenance and never deformation.
(4) Bone scaffold
High quality profiles and plates are adopted, which are durable and never deformed.
(5) Main combustion chamber
After the body enters the main combustion chamber, it is ignited by the burner and incinerated here.
(6) Flue gas combustion chamber
Burning the flue gas, making the flue gas stay longer in the furnace, making the toxic and harmful substances burn more fully, so as to achieve the effect of environmental protection.
(7) Main furnace masonry
During masonry, the mortar is full of the joint surface between the brick and the brick, and the mortar joint is less than 3mm.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | (L) * (W) * (H) | |
Weight | customized | |
Packaging Details | The normal package for part is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 12300 (L) * 2360 (W) * 2890 (H) | |
Weight | 28T | |
Packaging Details | The normal package is plastic film(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.other package is also okay | |
