ZETIN Zirconia Sintering Furnace Dental for Zirconia Teeth Dental Furnace
- Category: >>>
- Supplier: Zhengzhou Zetin Electromechanical Equipment Co. Ltd.
Share on (1600849340203):
Product Overview
Description
Product Overview
Fast Sinter | 2 hour (including heating, heat hold, and cooling),80units |
Conventional sinter | 3 layers of crucible, 150units |
Max.Temperature | 1730℃ |
Temperature control accuracy | ±1℃ |
Touch Screen | 7 "TFT |
Max power consumption | 3KW |
Power Supply | 220V 50/60HZ Or 110V 50/60HZ |
Heating element | High purity heater specially for dentistry |
Capacity | Ø110mm×120mm |
Conventional sintering program | No.1 |
Rapid sintering program | No.2 |
Cleaning program | No.40 |
Program | 40 programs can be stored ,with power-off memory function |
Size (L*W*H) | 450× 500× 850 mm3 |
Net weight | 85 KG |

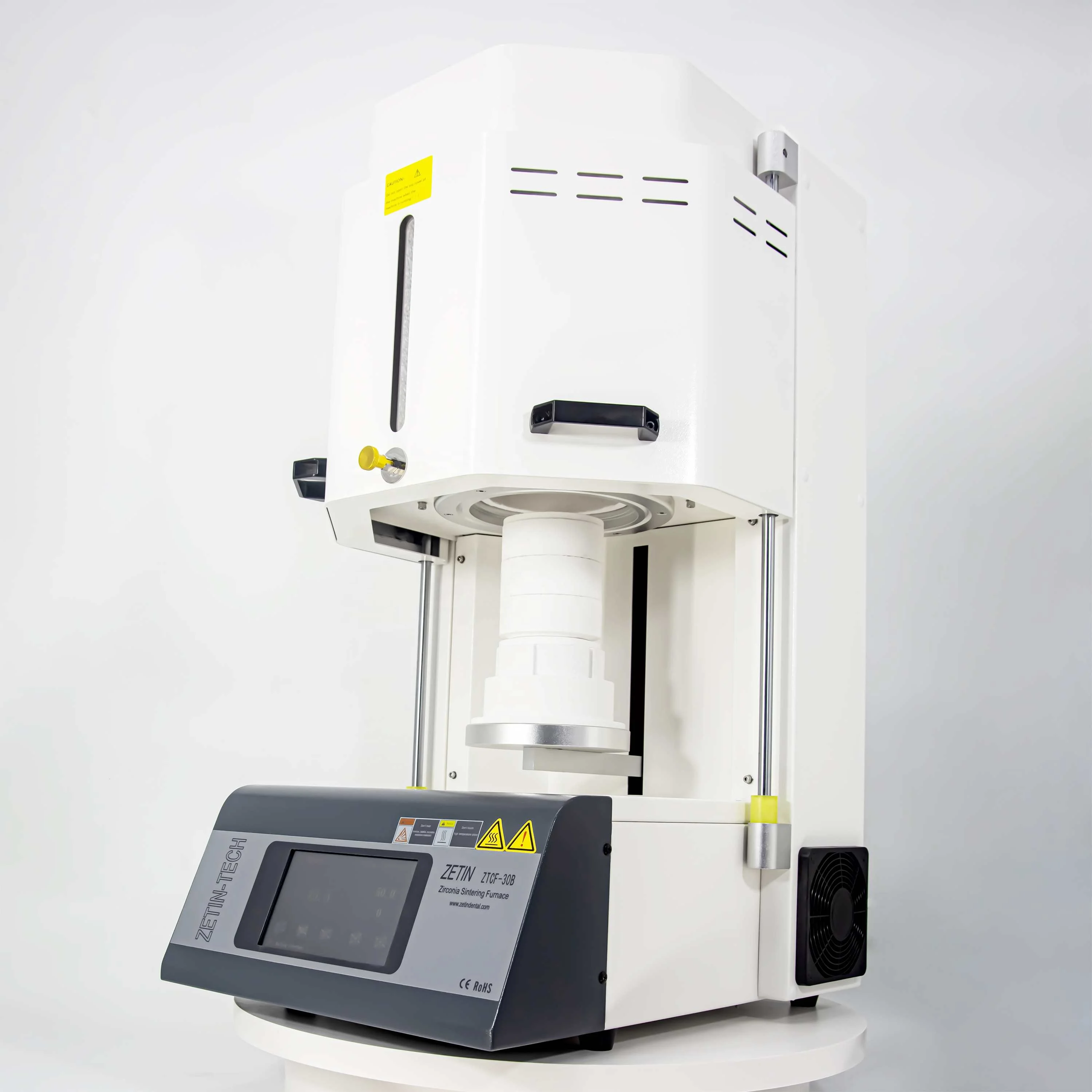

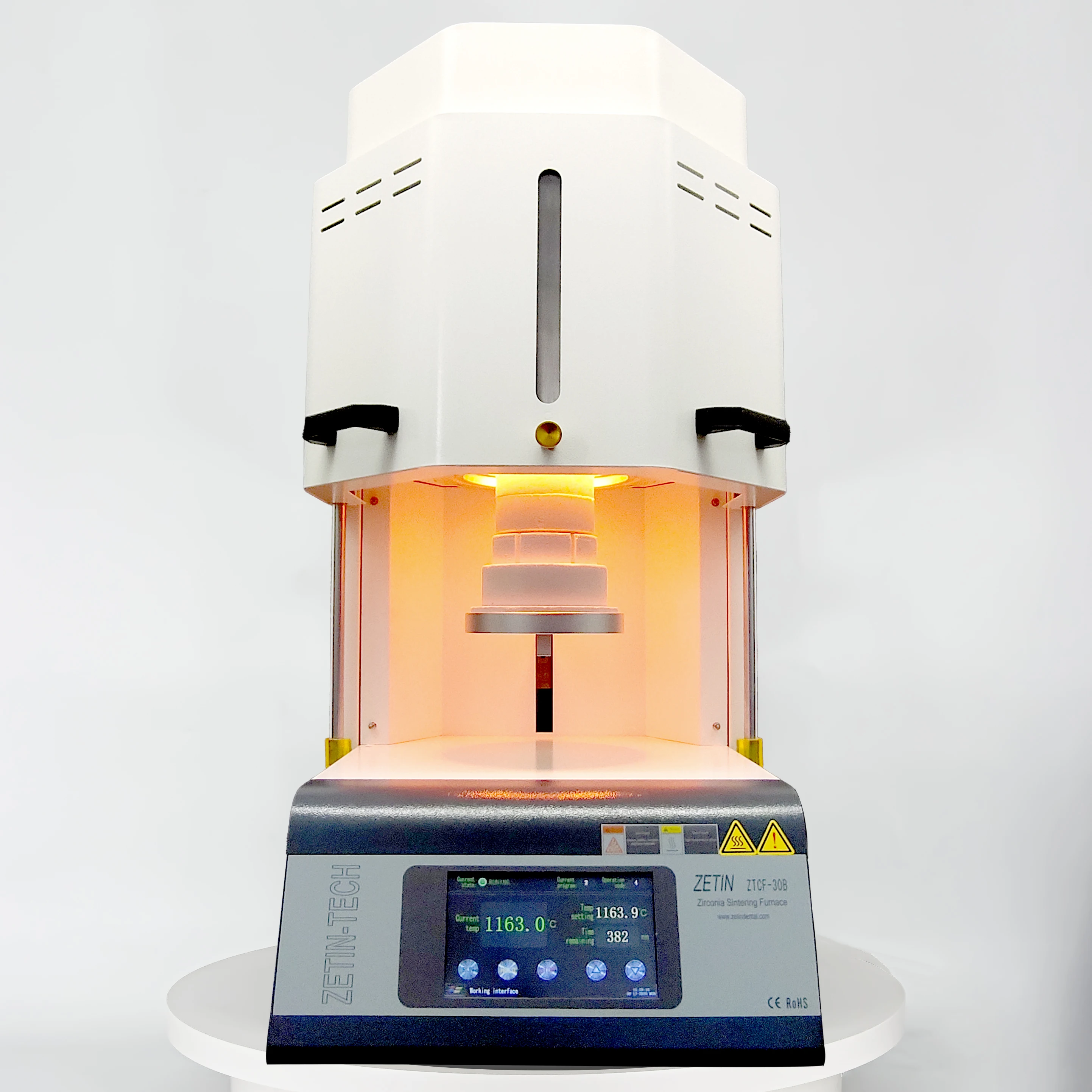

ZETIN ZTCF-30B PLUS
Zetin 30B Plus is an integrated speed and regular sintering program in one.
The sinter speed of the speed sintering program is 5 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.
The sinter speed of the speed sintering program is 5 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.
Our Advantages
1. The fast sintering program takes only 65 mins(including heating, keep warm, cooling);
2. In the regularprogram, you can stack 3 layers of crucibles and sintering up to 150 units teeth;

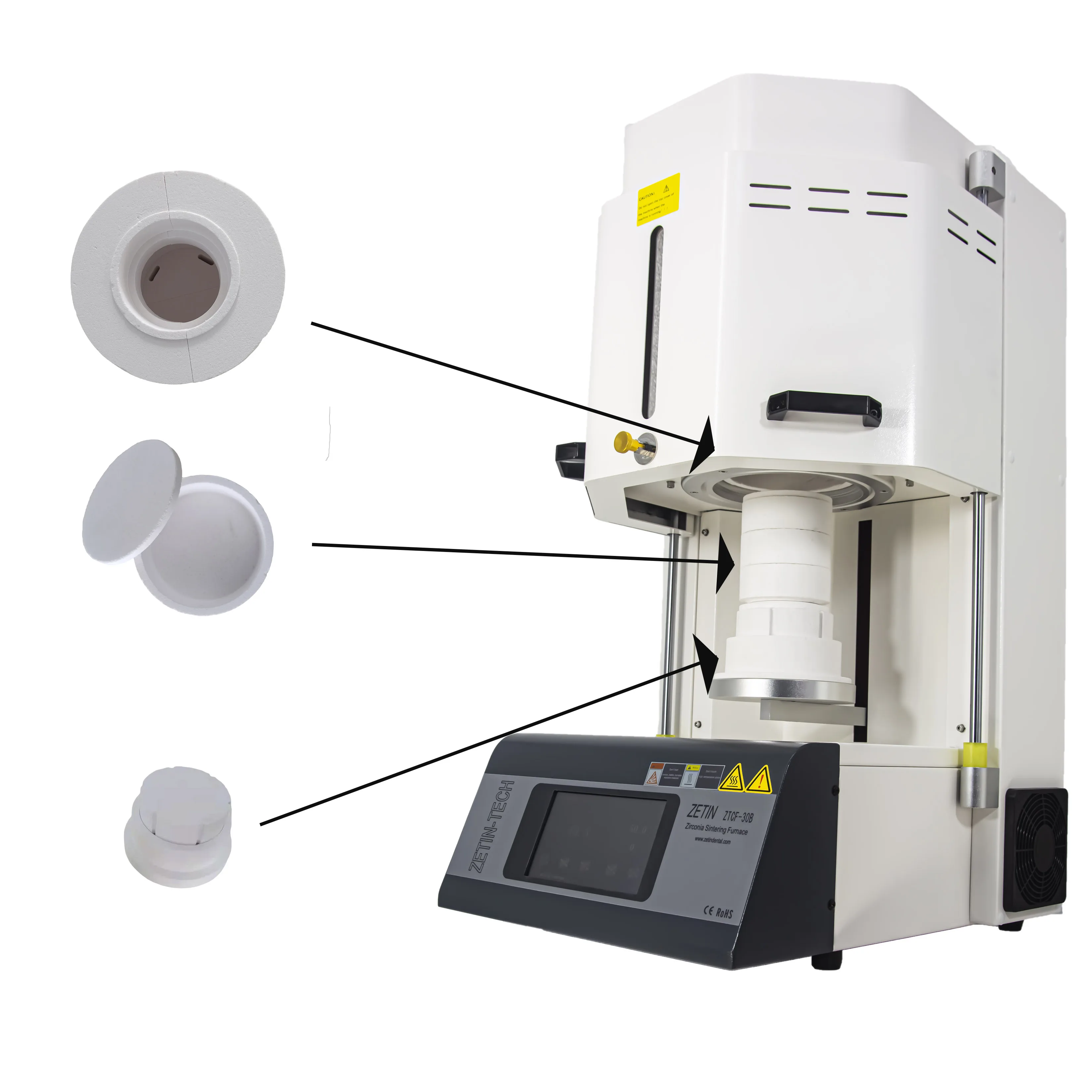

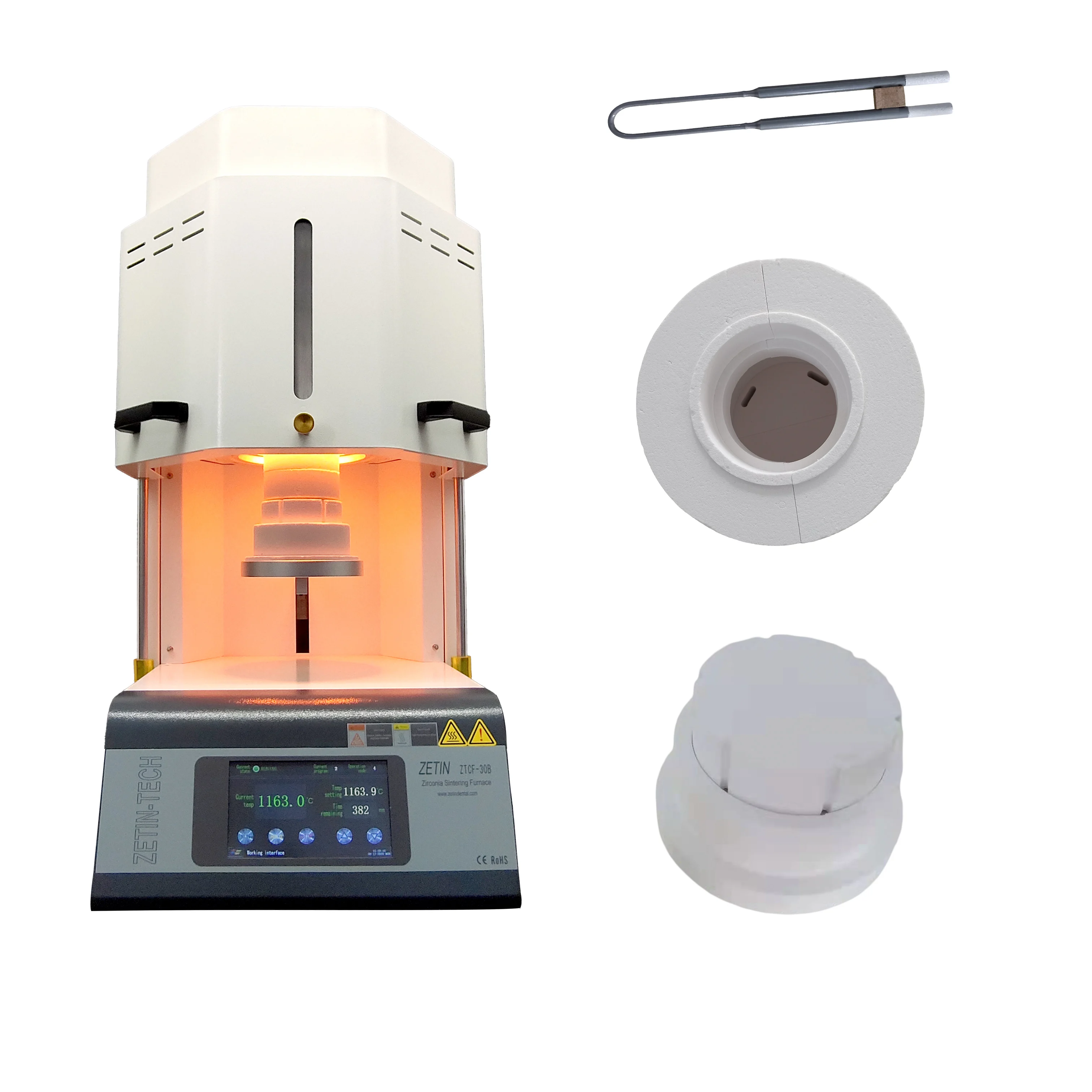

3. High-purity and pollution-free dental silicon molybdenum rods;
4. PID intelligent temperature control system accurately controls the temperature, the temperature error within ±1℃;
5. Total can store 40 programs;
6. 7-inch color touch screen, display all parameters, easy to modify parameters;
7. Green environmentalthermal insulation materials with excellent performance makes the temperature more stable.;
8. Memory function, when the power off and on again, it can automatically start from the beginning of stagewhere the power off.
2. In the regularprogram, you can stack 3 layers of crucibles and sintering up to 150 units teeth;
3. High-purity and pollution-free dental silicon molybdenum rods;
4. PID intelligent temperature control system accurately controls the temperature, the temperature error within ±1℃;
5. Total can store 40 programs;
6. 7-inch color touch screen, display all parameters, easy to modify parameters;
7. Green environmentalthermal insulation materials with excellent performance makes the temperature more stable.;
8. Memory function, when the power off and on again, it can automatically start from the beginning of stagewhere the power off.
Specification
Model | Tmax | Inner dimensions in mm | Volume | Maximum | Outer dimensions in mm1 | Connected | ||||||||||||
ZTCF-30B | °C | Ø | in L | units | W | D | H | load kW | ||||||||||
PLUS | 1730 | 110 | 120 | 2 | 80 | 450 | 500 | 850 | 3 | |||||||||
*These furnaces are available for main voltage of 220 V 50/60H or 110 V 50/60HZ | ||||||||||||||||||
Packaging & Shipping
Company Profile
SALES AND SERVICE NETWORK
Recommend Products
ZTCF-30B FAST
Zetin chairside fast sintering furnace is exquisitely designed and convenient for use on small occasions, such as offices and dentist studios. Its sintering speed is 8 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has a good sealing performance.
Maximize the efficiency of the dental clinic.
Maximize the efficiency of the dental clinic.
ZTCF-20B
The temperature control of Zetin Porcelain Furnace is accurate, the internal temperature of the furnace is even, the automatic lifting tray design has good sealing performance, and it is equipped with a low-noise oil-free vacuum pump. Zetin Porcelain
Furnace is suitable for all kinds of porcelain powder on the market, such as IVOCLAR, VITA, NORITAKE, etc.
Furnace is suitable for all kinds of porcelain powder on the market, such as IVOCLAR, VITA, NORITAKE, etc.
ZTCF-30B mini
The Zetin box-type sintering furnace adopts a classic door-opening design, with precise temperature control, uniform internal temperature in the chamber of the furnace, and good sealing performance.
FAQ
Q:Are you a factory?
A:Yes. Zetin is a factory and it integrates design,manufactures and sales for several years.Q:What about the delivery time？
A:Generally,the order will be deliveried within 15 days after receiving the payment or based,and also have to depend on the
quantity and production schedule.
Q:Which shipment is available?
A:Ses,train,air,truck and express(DHL TNT EMS Fedex UPS) ect...Accroding to the situation and the requires.
Q:What about the warranty period?
A:The warranty period is 1 year.
