Product Overview
Description
Product Description
Processor element | CPU | Intel® Celeron® J1900 |
Frequency | 2.00GHz | |
Secondary cache | 2MB | |
Internal storage | 1 x SO-DIMM, DDR3L 1333, Maximum support 8 GB | |
Memory | 1 x 2.5" SATA Bay, 1 x mSATA Bay 1 x mSATA Bay | |
Network (LAN) | 1 x 10/100/1000 Mbps Ethernet | |

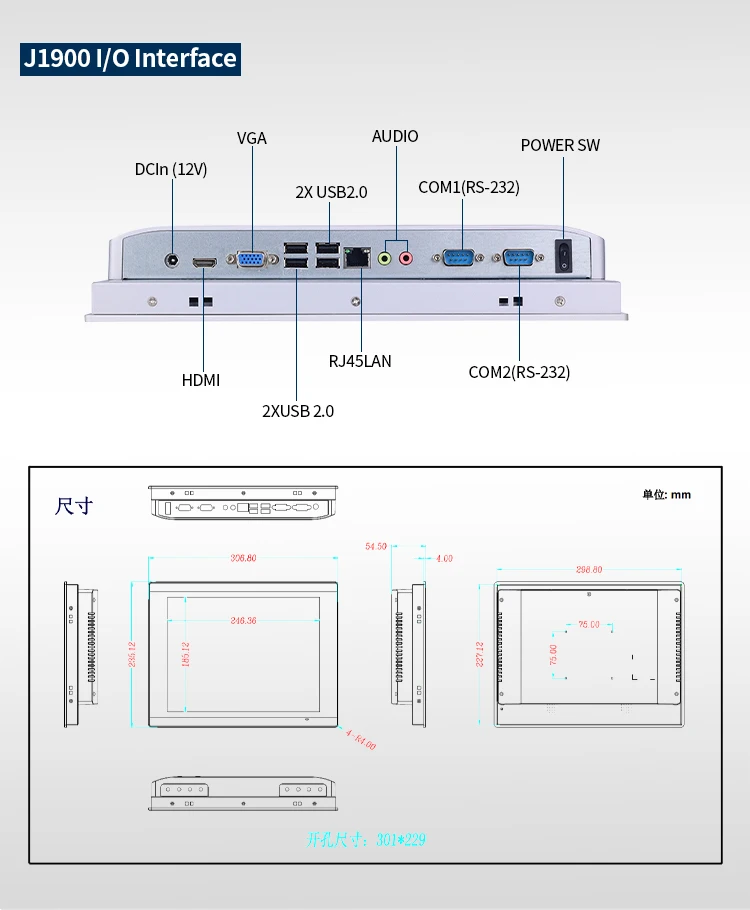

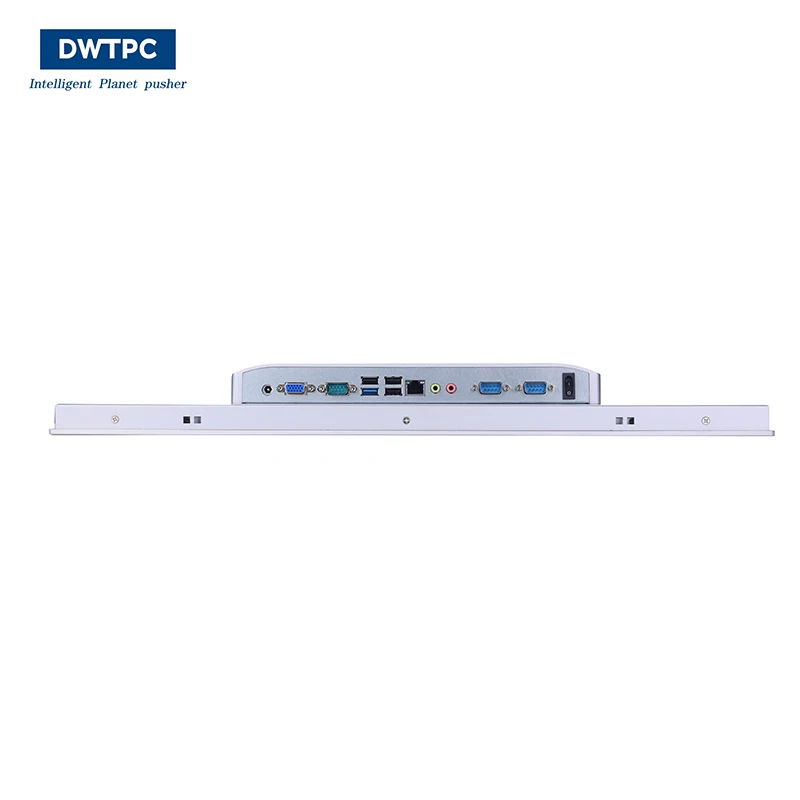

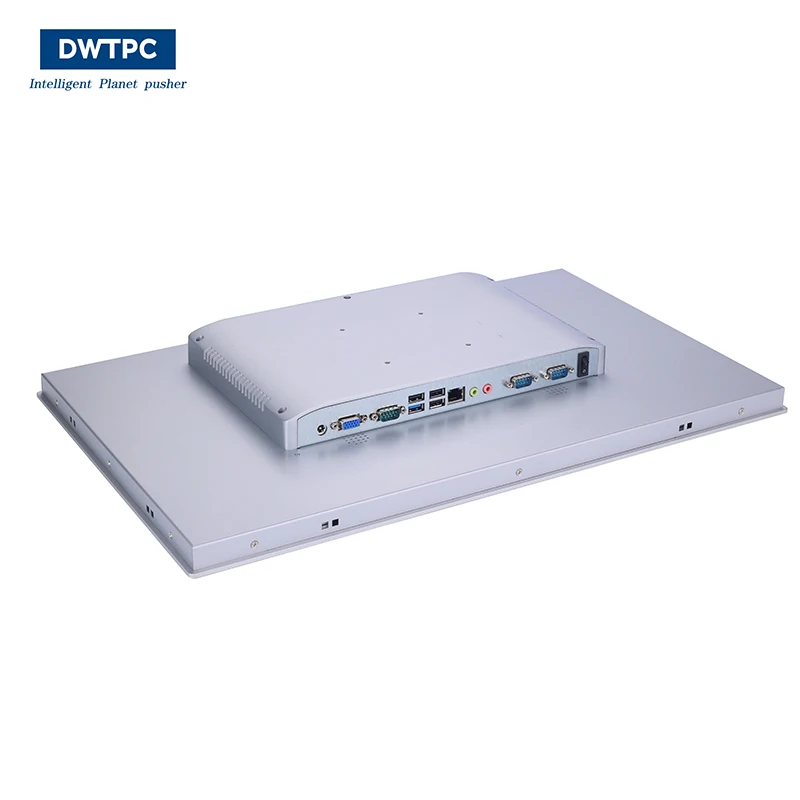

I/O interface | 3 x RS232 5 x USB 2.0, 1 x USB 3.0 | |
Expand | 1 x full-scale Mini PCIe slot | |
Watchdog timer | 255 class | |
physical characteristics | Size | 306.8 x 235.12 x 54.5 mm |
Weight | 3.1 Kg | |
Operating system (OS) | Operating system (OS) | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit Windows 10 32bit&64bit/WES7/Linux |
Power power consumption | Input voltage | 12 Vdc |
Power dissipation | 20W | |
LCD show | Display type | 12.1" TFT LCD (LED be in a poor light) |
Max. Resolution | 1024 x 768 | |
Angle of view | 80 (Left), 80 (Right), 80 (Up), 80 (Down) | |
Luminance(cd/m2) | 350 | |
Contrast ratio | 1000 | |
Backlight life | 30,000 hour (Min.) | |
touch screen | Type | High temperature five-line resistance touch screen |
Light transmittance | 80±5% at 550 nm wavelength | |
Controller | USB interface | |
Durability (Touch times) | ≥3500Ten thousand times | |
Environment | Working temperature | 0 ~ 50°C with SSD 0 ~ 40°C with HDD |
Storage temperature | -20 ~ 60°C | |
Relative humidity | 10 ~ 95% @ 40°C (Non-condensation) | |
EMC | CCC | |
Safe | CCC | |
Front panel protection | IP65 Standard |
characteristic

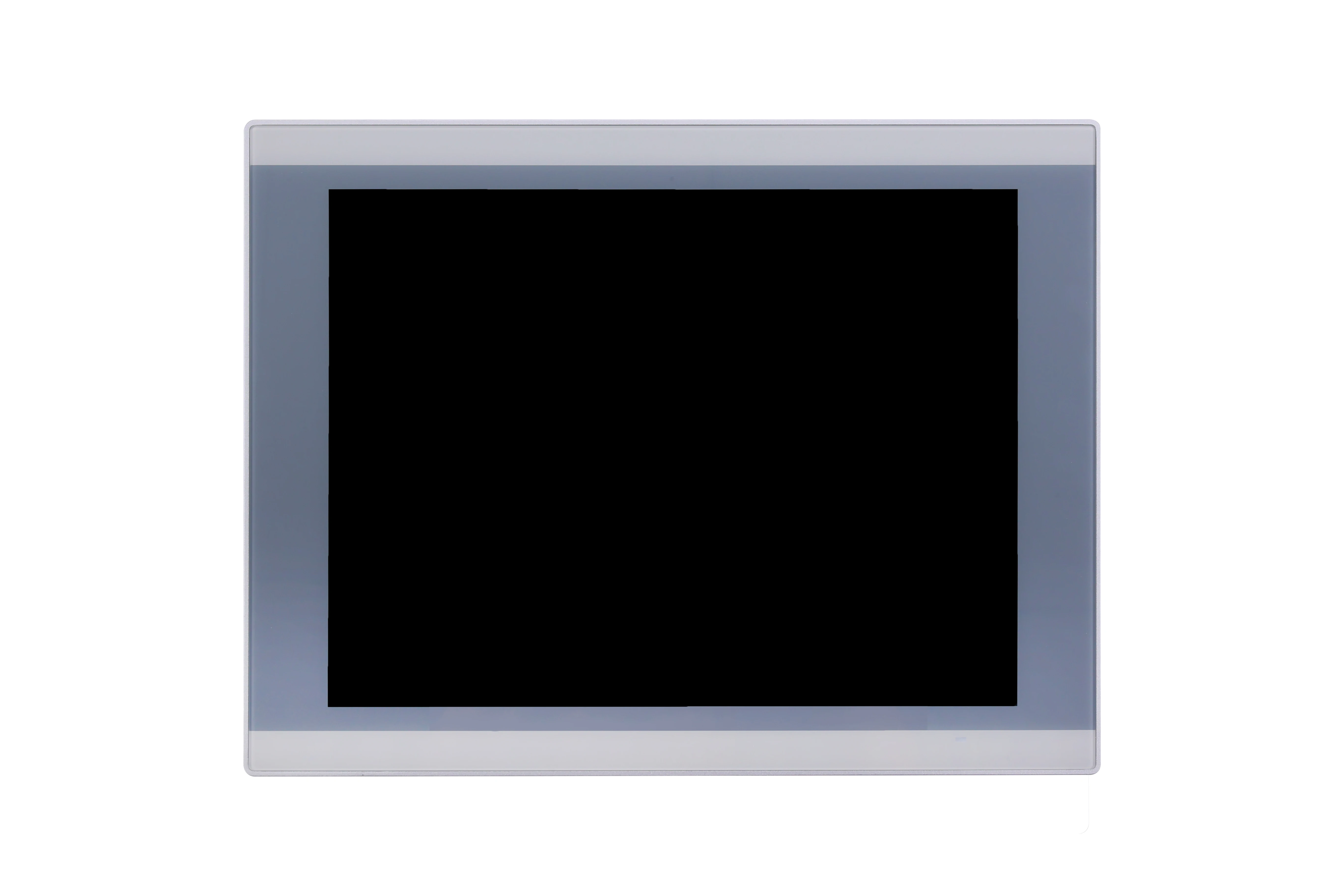

12.1" TFT LED panel
High temperature five-wire Capacitive touch screen
Optional Intel® Celeron® or Core processor
Aluminum alloy shell, compact fanless design
Front panel protection class IP65
Supports full-size Mini PCIe expansion
Supports USB 3.0
Support for Windows Embedded and LINUX

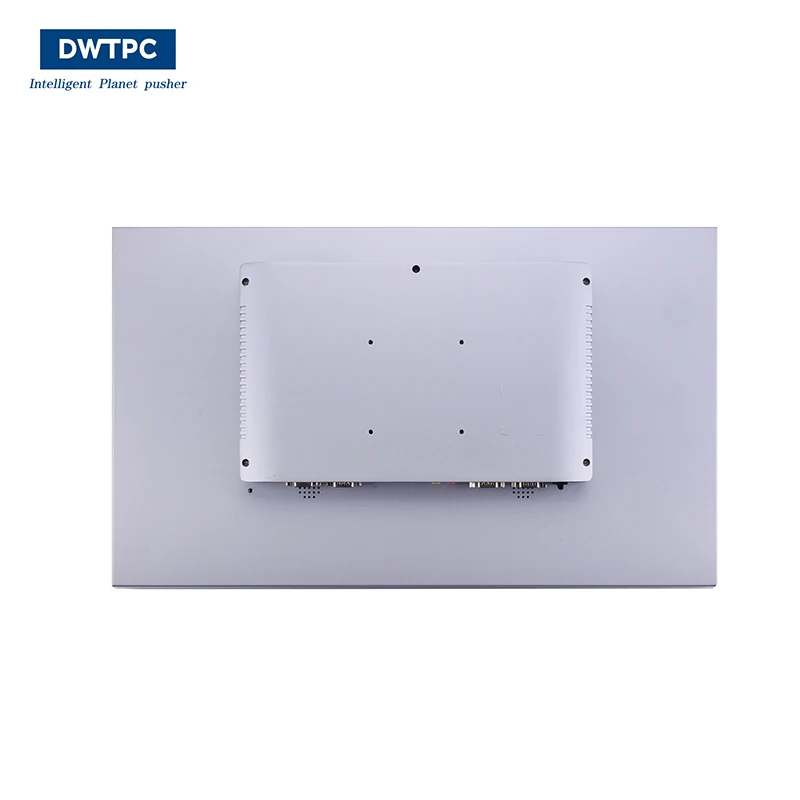

Support VESA 75

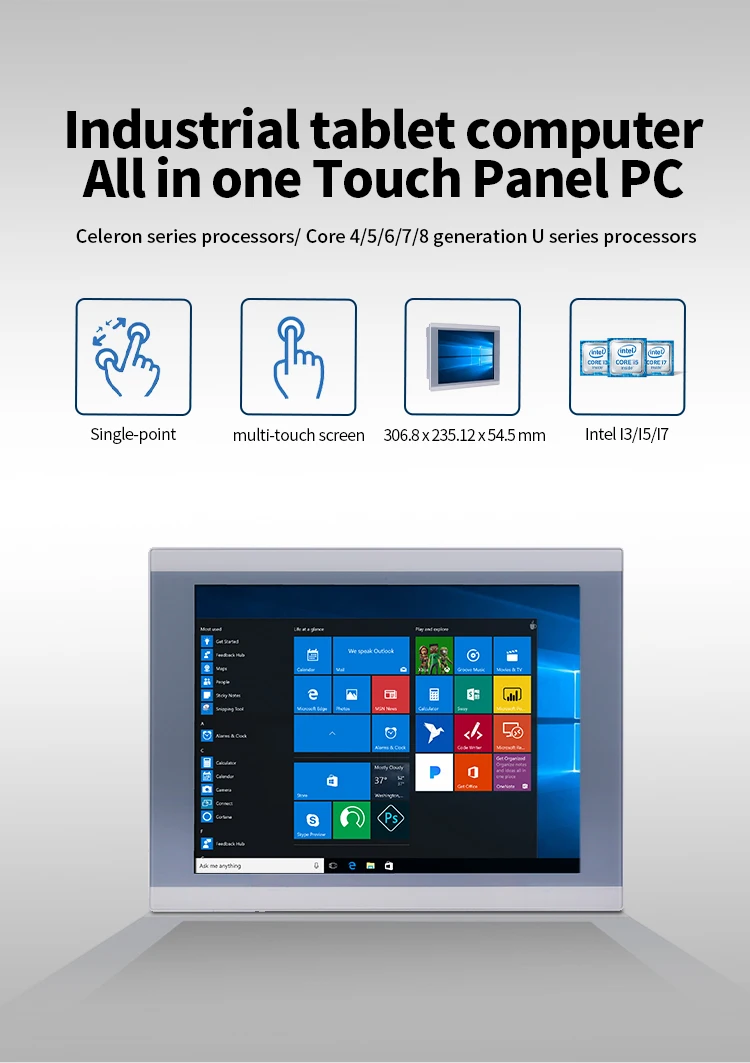

Details Images
This product is a cost-effective LCD industrial panel PC with a choice of Intel® Celeron® or Core processors, and a compact embedded system that provides high-performance computing. High durability design, front panel protection level IP65, high temperature five-wire resistive touch screen, support a variety of interfaces to meet various industrial applications.

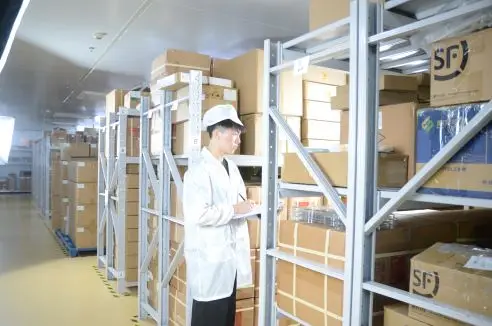

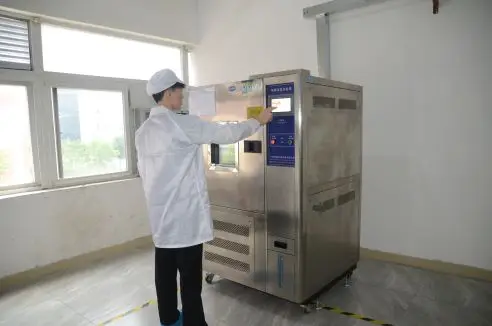

Company Introduction
