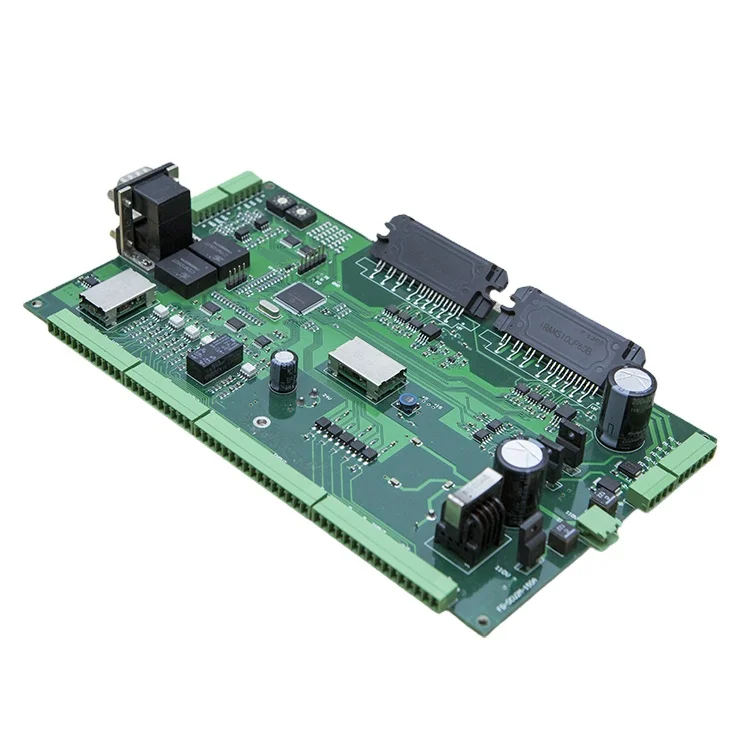

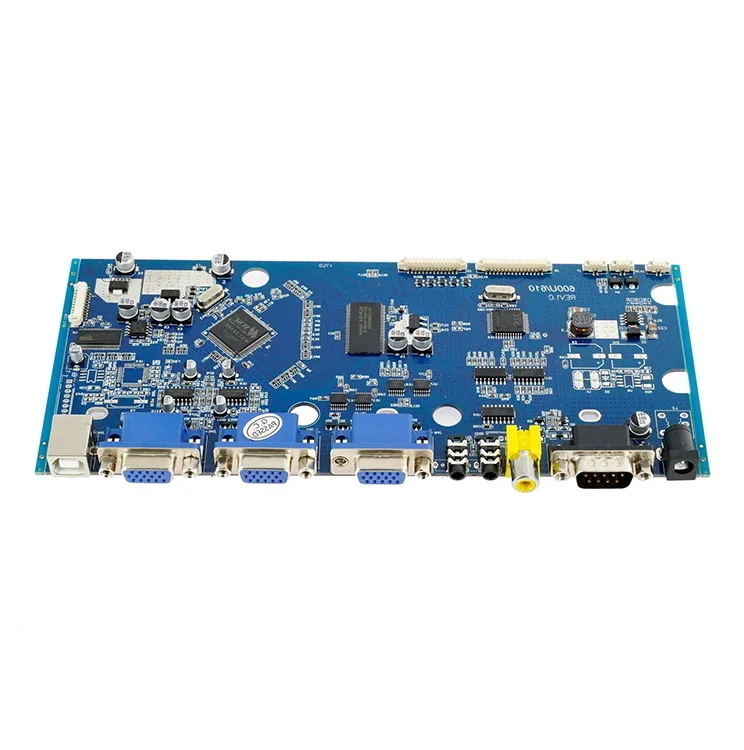

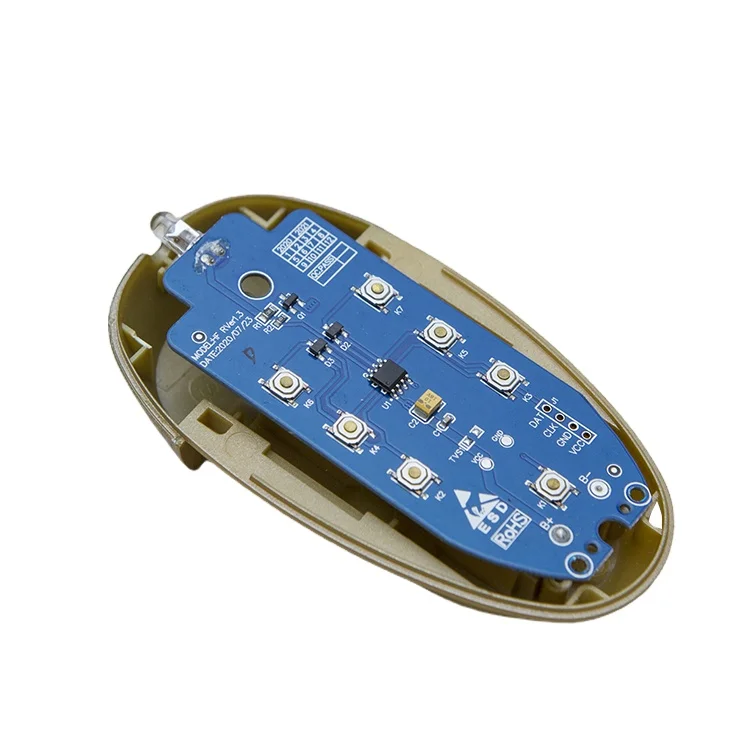

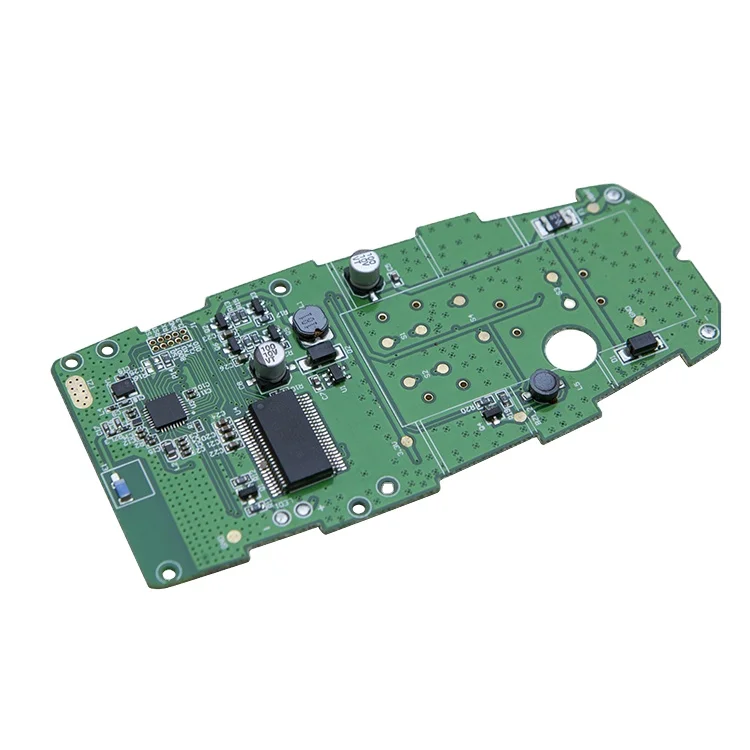

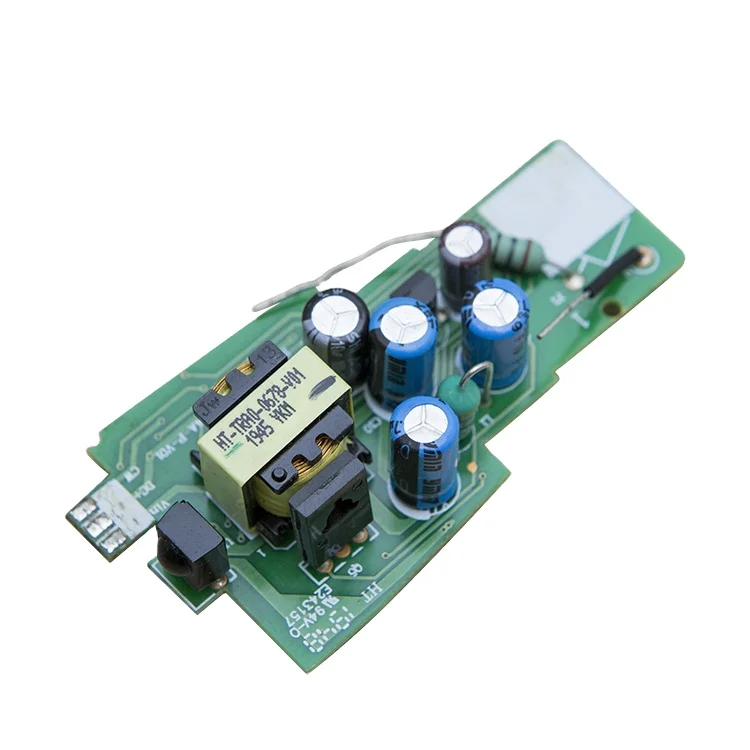

Custom PCBA Electronic Multi layer Pointed Circuit Professional PCB Assembly Manufacture Controller Compatible Board PCBA
- Category: >>>
- Supplier: Shenzhen Jingxin Electronic Technology Co. Ltd.
Share on (1600849469233):
Product Overview
Description
Product Description
Specification: | ||||||||
PCB layers: | 1-24layers | |||||||
PCB certificate: | RoHS Directive-Compliant | |||||||
PCB materials: | CEM1, CEM3, Teflon, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free | |||||||
PCB max. board size: | 620mm*1100mm | |||||||
PCB Thickness: | 1.6 ±0.1mm | |||||||
Out Layer Copper Thickness: | 0.5-5oz | |||||||
Inner Layer Copper Thickness: | 0.5-4oz | |||||||
PCB max. board thickness: | 6.0mm | |||||||
Minimum Hole Size: | 0.20mm | |||||||
Minimum Line Width/Space: | 3/3mil | |||||||
Min. S/M Pitch: | 0.1mm(4mil) | |||||||
Plate Thickness and Aperture Ratio : | 30:1 | |||||||
Minimum Hole Copper: | 20µm | |||||||
PCB surface finished: | HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver | |||||||
PCB solder mask: | Black, white, yellow | |||||||
Legend: | White | |||||||
Hole Dia. Tolerance(PTH): | ±0.075mm(3mil) | |||||||
Hole dia. Tolerance(NPTH): | ±0.05mm (2mil) | |||||||
Hole Position Deviation: | ±0.05mm (2mil) | |||||||
Outline Tolerance: | ±0.05mm (2mil) | |||||||
E-test: | 100%, AOI, X-RAY, Flying probe | |||||||
Inspection Standard: | IPC-A-610CCLASSII | |||||||
Outgoing Reports: | Final Inspection, E-test, Solderability Test, Micro Section and More | |||||||
Certificates: | UL (E503048),ISO9001/ISO14001/IATF16949 | |||||||
PCB Assembly OEM Service | ||||||||
Electronic Components Material Purchasing | ||||||||
Bare PCB Fabrication | ||||||||
PCB Assembly Service: (SMT, BGA, DIP) | ||||||||
PCBA test: AOI, In-Circuit Test (ICT), Functioal Test (FCT) | ||||||||
Cable, Wire-harness Assembly, Sheet Metal, Electrical Cabinet Assembly Service | ||||||||
Conformal Coating Service | ||||||||
Prototyping and Mass Production | ||||||||
PCBA ODM service | ||||||||
PCB Layout, PCBA Design According To Your Idea | ||||||||
PCBA Copy/Clone | ||||||||
Digital Circuit Design/Analog Circuit Design/ lRF Design /Embedded Software Design | ||||||||
Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming | ||||||||
Embedded User Interface Design / lSystem Hardware Design | ||||||||
Specification
Material | FR4, high TG, halogen-free, high frequency | ||||||
Surface treatment | HASL/Immersion gold/Immersion silver/Immersion tin | ||||||
Certificate | ISO9001/ISO14001/IATF16949 | ||||||
PCB solder mask | White, Black, Yellow, Green, Red, Blue | ||||||
Service | One-stop Turnkey | ||||||
Application | Automotive Electronics Device/Smart Home Appliances/industrial control/New storage energy/5G telecommunication etc., | ||||||
Testing Service | AOI, X-Ray, Function Test | ||||||
Maximum board size | 640mm*1100mm | ||||||
Board Thickness | 0.2mm-7.0mm | ||||||
PCB silkscreen color | Black, white, yellow | ||||||
Packing & Delivery
Packing and shipment:
Common packaging:
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Shipping:
1.Confirming your shipping address is correct before delivery
2.Orders processed timely after the payment verification
3.Professional package. No worry about goods breakage.
4.Service transit time is upon different carrier, may vary particularly during holiday.
Company Profile
Shenzhen Jingxin Electronic Technology Co.,Ltd. Built since 2002, is a almost 20 years professional company dedicating to PCB&PCBA industry.

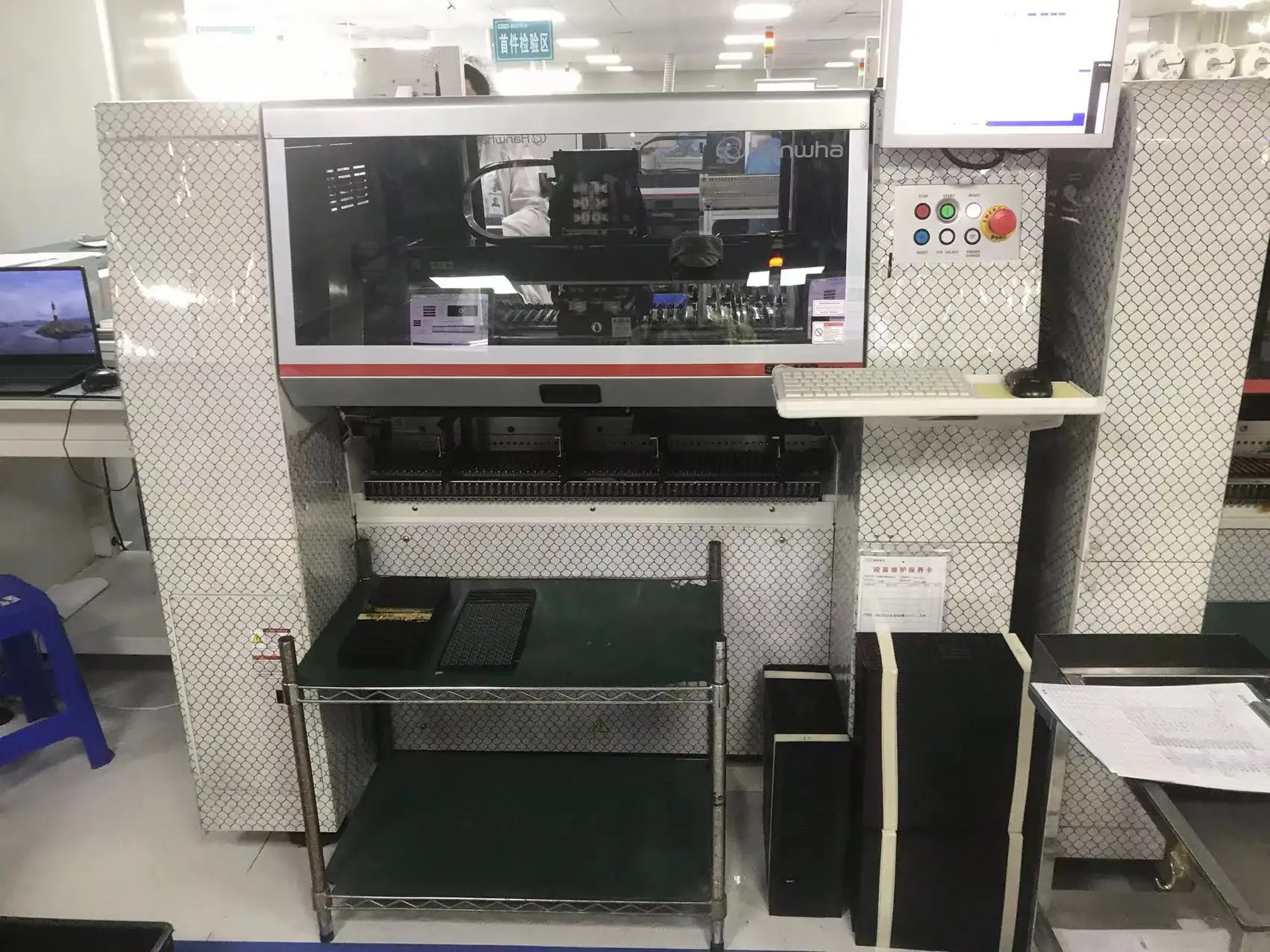

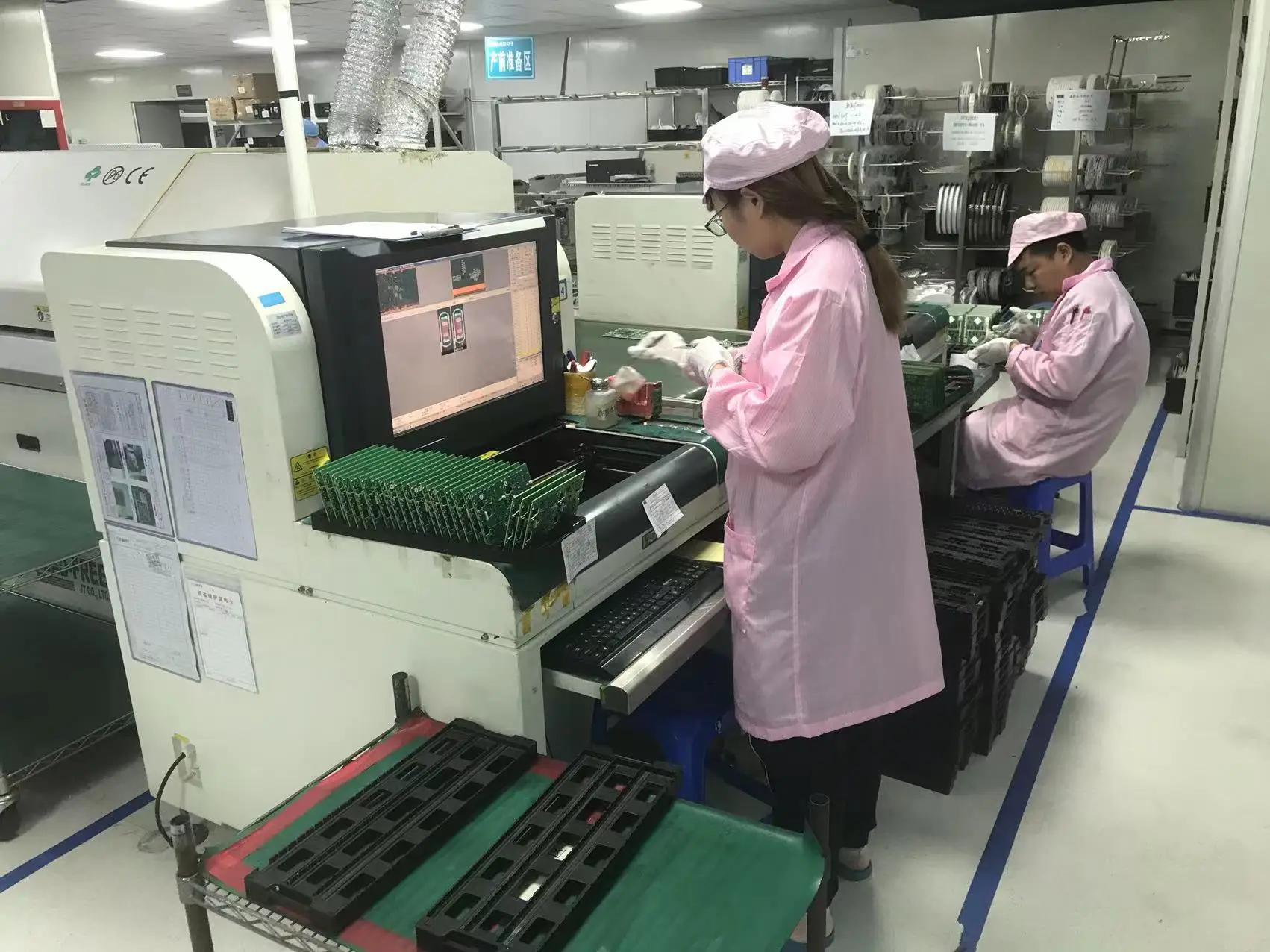

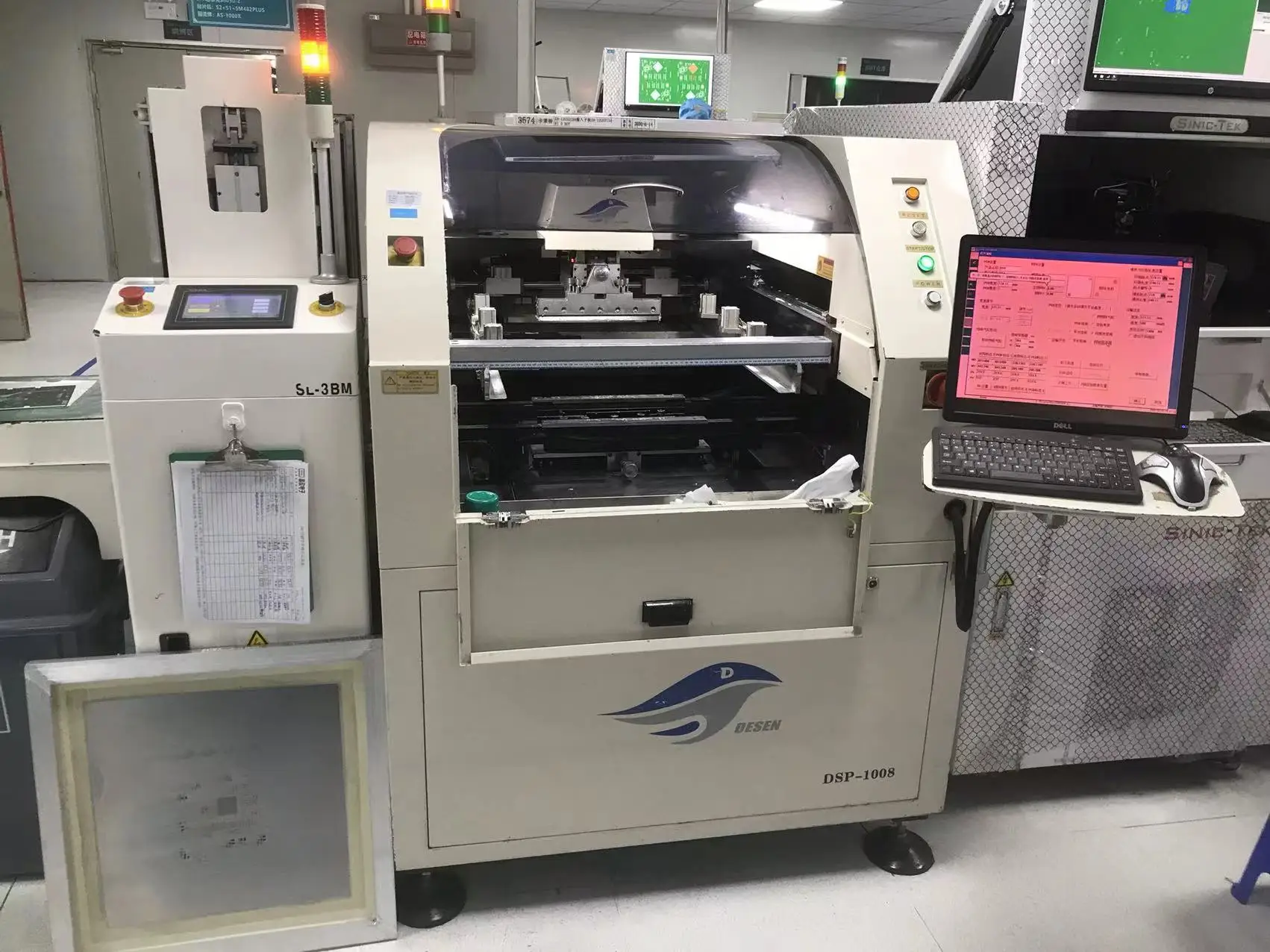

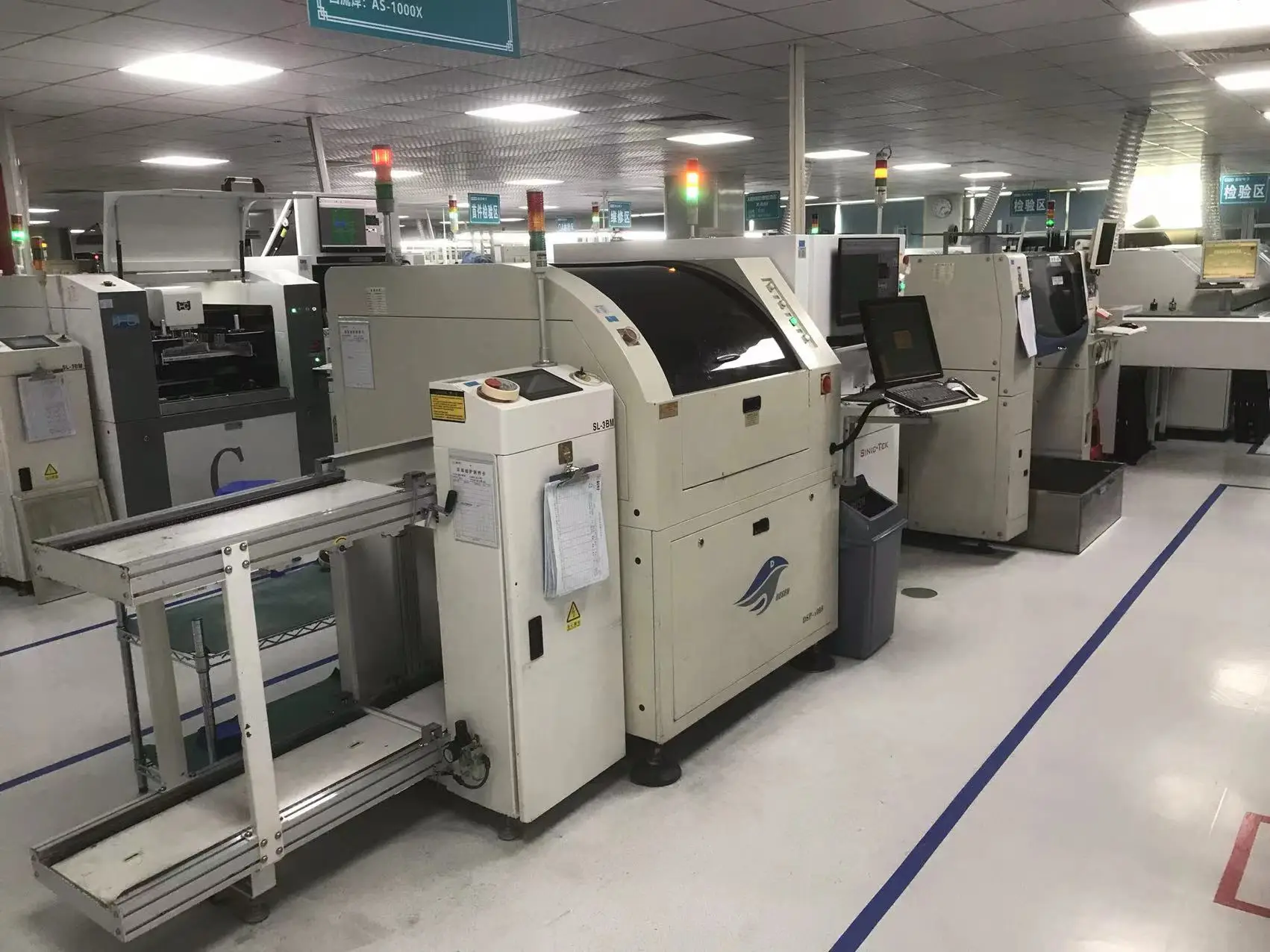

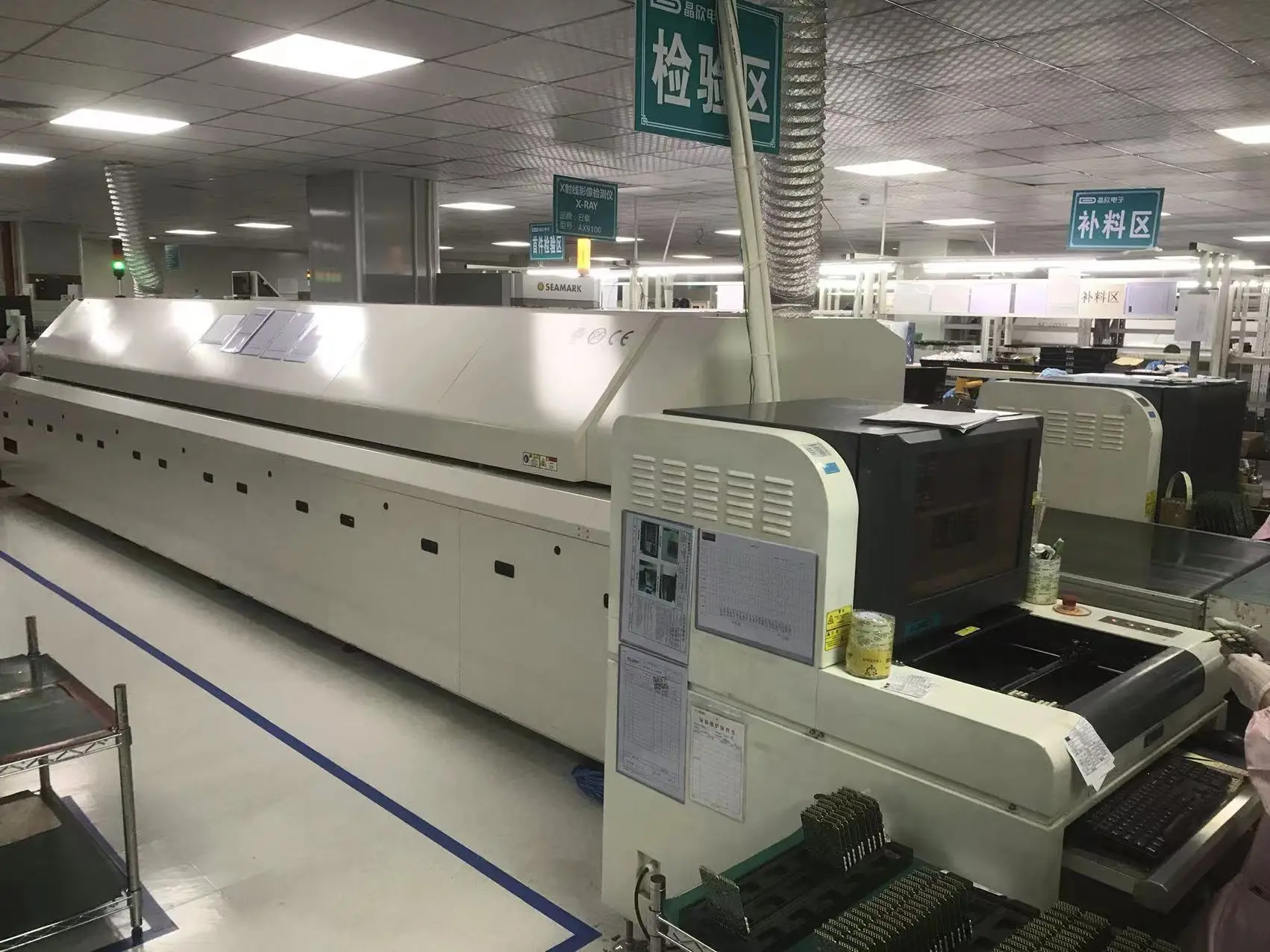

Our factory located in Shenzhen, and have dust-free workshop which cover an area of over than 10000m², almost 550 employees, more than 30 production lines include SMT、DIP、automatic welding、aging test and assembly. We have equipments of over 50 SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI), 12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB dispenser, laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testing procedures, our products carry out the quality system standard strictly. With end to end one-stop manufacturing solution, the company has become a benchmarking enterprise in the industry, and has been earning industry praises and good reputation from domestic and international customers depending on rigorous, techniques, good quality, fast delivery and excellent service.
Our factory located in Shenzhen, and have dust-free workshop which cover an area of over than 10000m², almost 550 employees, more than 30 production lines include SMT、DIP、automatic welding、aging test and assembly. We have equipments of over 50 SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI), 12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB dispenser, laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testing procedures, our products carry out the quality system standard strictly. With end to end one-stop manufacturing solution, the company has become a benchmarking enterprise in the industry, and has been earning industry praises and good reputation from domestic and international customers depending on rigorous, techniques, good quality, fast delivery and excellent service.
Exhibition
Product Application
Certifications
FAQ
1.What is needed for quotation
A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
2. What file formats do you accept for production
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
3. Are my files safe
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.
4. MOQ
A: There is no MOQ. We are able to handle Small as well as large volume production with flexibility.
5.Shipping cost
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
6. Do you accept process materials supplied by clients
A Yes, we can provide component source, and we also accept component from client.
7. how can we guarantee quality
Always a pre-production sample before mass production;
Always final Inspection before shipment;
8. why should you buy from us not from other suppliers
Jingxin Electronic is a professional enterprise dedicating to PCB and PCBA manufacturing for 20 years, providing one stop
professional OEM/ODM electronic manufacturing services for customers in various fields around the world.
A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
2. What file formats do you accept for production
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
3. Are my files safe
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.
4. MOQ
A: There is no MOQ. We are able to handle Small as well as large volume production with flexibility.
5.Shipping cost
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
6. Do you accept process materials supplied by clients
A Yes, we can provide component source, and we also accept component from client.
7. how can we guarantee quality
Always a pre-production sample before mass production;
Always final Inspection before shipment;
8. why should you buy from us not from other suppliers
Jingxin Electronic is a professional enterprise dedicating to PCB and PCBA manufacturing for 20 years, providing one stop
professional OEM/ODM electronic manufacturing services for customers in various fields around the world.
