36V 48V 13Ah 18Ah Ebike Lithium Battery Electric Bicycle Battery Pack For Bafang Tongsheng Motor 750W 1000W
- Category: >>>
- Supplier: Wallen Power Technology Co. Ltd.
Share on (1600849533397):
Product Overview
Description
Recommend Products
Product Description
Battery | Parameters | 36V 15Ah 25A BMS | 36V 18Ah 25A BMS | 48V 13Ah 30A BMS |
Model | YM04B | YM04B | YM04B | |
Size | 390*75*110mm | 390*75*110mm | 390*75*110mm | |
Applicable Motor | 36V 200W~750W | 36V 200W~750W | 48V 200W~1000W | |
Configuration | 10S*6P(60pcs cell) | 10S*7P(70pcs cell) | 13S*5P(56pcs cell) | |
ltem Weight | ≈4KGS | ≈4.5KGS | ≈4.3KGS | |
Energy | 540Wh | 648Wh | 624Wh | |
Cell | 18650 G25 2500mah Cell | 18650 G25 2500mah Cell | 18650 G25 2500mah Cell | |
Discharge Connector | Anderson | Anderson | Anderson | |
Charge | Charger | 42V 2A | 42V 3A | 54.6V 2A |
Standard charge Current | 2A | 3A | 2A | |
Maximum continuous charge current | 5A | 5A | 5A | |
Charger Input | AC 100~240V | AC 100~240V | AC 100~240V | |
Charge Cut-off Voltage | 42V | 42V | 54.6V | |
BMS | Max Continuous Discharge current | 25A | 25A | 30A |
Peak Discharge Current | 75A | 75A | 90A | |
Discharge Cut-off Voltage | 28V | 28V | 36.4V | |
Function | USB | No | No | No |
Lock | Yes | Yes | Yes | |
Power Switch | Yes | Yes | Yes | |
Power Level Display | Yes | Yes | Yes |
Product Feature：
* Long life 1000+ cycles, Quality Grade A cell, Riding time longer.
* With LED battery indicator, power switch, safety lock, cell balance, 4-pin discharge port and other functions.
* Easy Installation. Battery come with mounting plate, easy to install and disassemble.
* Fully automatic built in battery protection system. Prevent the battery from overcharging, overdischarging, and short circuit.
* With LED battery indicator, power switch, safety lock, cell balance, 4-pin discharge port and other functions.
* Easy Installation. Battery come with mounting plate, easy to install and disassemble.
* Fully automatic built in battery protection system. Prevent the battery from overcharging, overdischarging, and short circuit.
* No voltage sag - faster cranking for motors and higher voltage for continuous consistent power.
* Lithium Battery - Lightweight- up to 70% lighter than lead.
* Dry Battery - no toxic lead or acid. Green ROHS compliant - No Lead.
* Lithium Battery - Lightweight- up to 70% lighter than lead.
* Dry Battery - no toxic lead or acid. Green ROHS compliant - No Lead.
* Used for e-bike,electric tool, grass cutter, scooter, electric vehicle and other power equipments.
Note:
1.USA Warehouse Delivery (Tax free): We'll try our best to ship them out within 24 hours.Shipping by Fedex/UPS/USPS, Shipping time is 2-5 working days after delivery. (Note: Weekends or holidays may be delayed!)
2.Alaska/Hawaii, APO/FPO, US Protectorates, PO Box, Puerto Rico may not be able to reach these areas due to logistics. Please place orders with caution. If you need to place an order, please contact us for additional remote shipping charges. Thank you !
3.Our batteries are suitable for most electric bicycles, except Bosch, SHIMANO, Yamaha and Panasonic.If you cannot confirm the battery, please contact us.
Specification

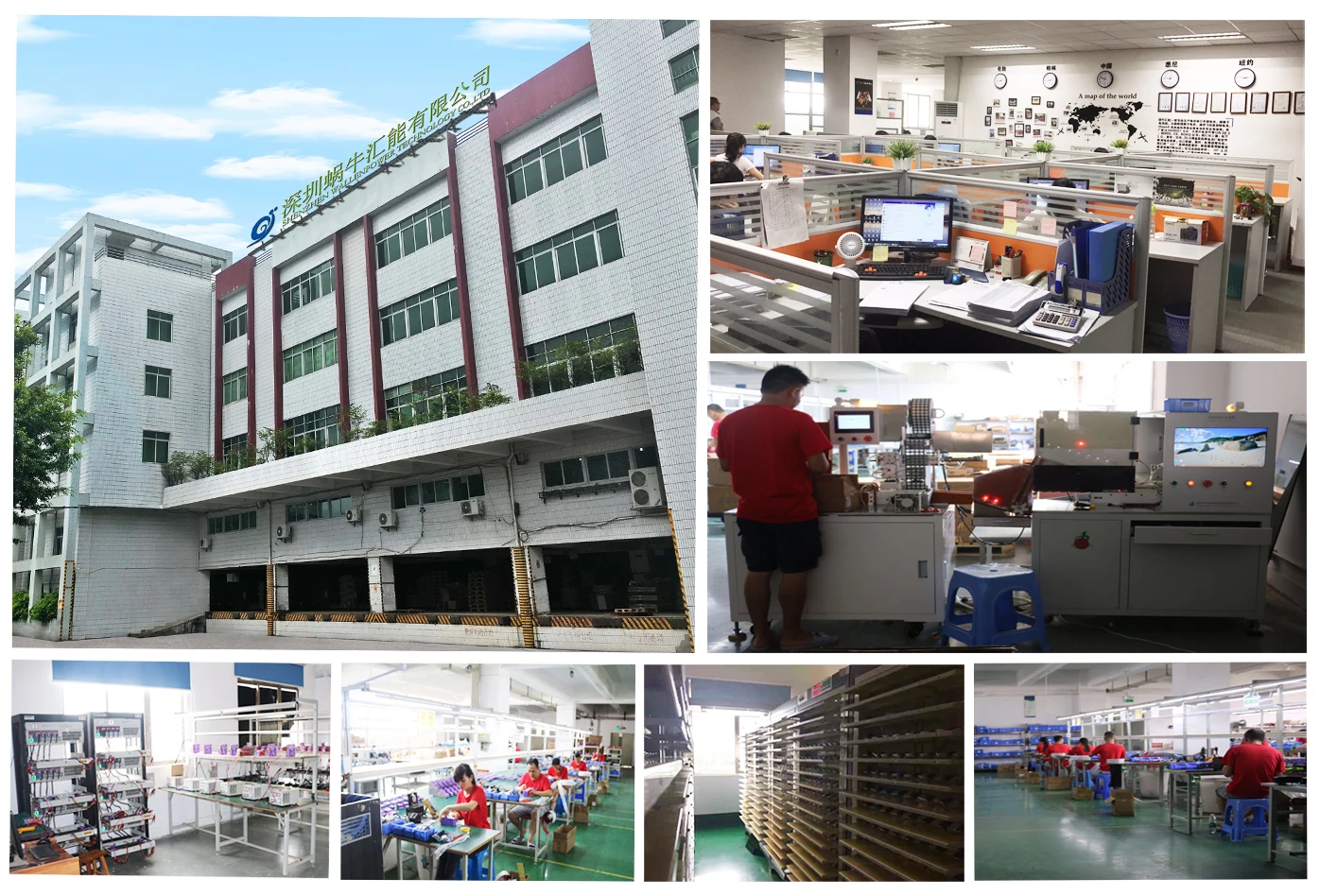

Company Profile
We are a professional manufacturer on Lithium ion over 9 years.We are focus on lithium ion battery for e-bike\\power tool\\solar power etc.

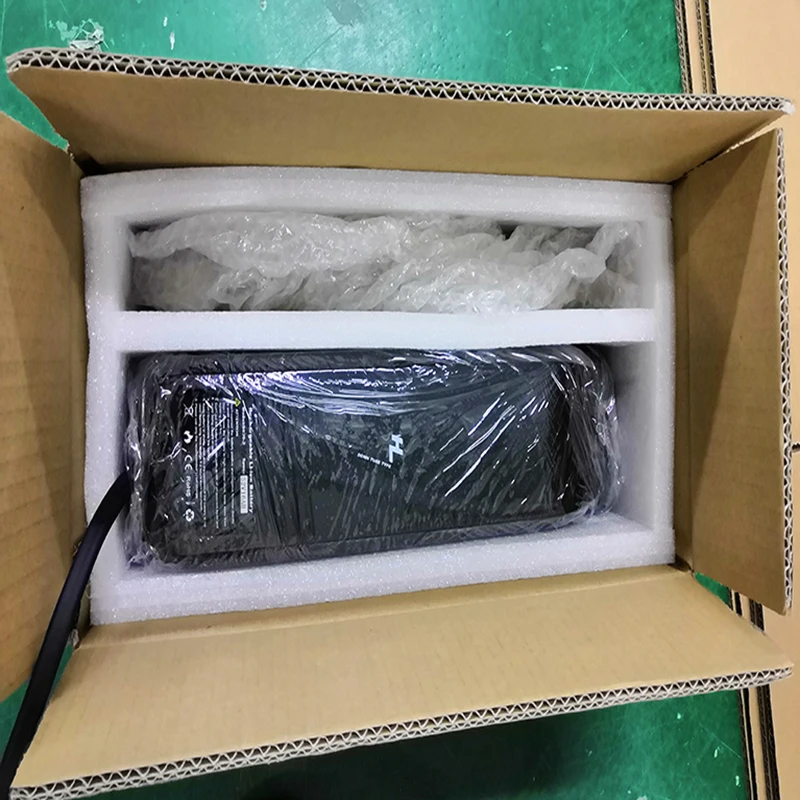

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
Safety Function:
Lithium ion is high quality imported electric core and equipped with a BMS protective plate, have overcharge, over discharge, over current and short circuit protection function ensure the long life expectancy. In case suffer from collision or extrusion, which will shorten battery life. We suggest to put PVC Lithium Battery in a case or a package bag to extend its normal using time.
Delivery Details:
* Within 2-3 days after receiving payment(based on actual quantity)
* DHL/FedEx/UPS fast express
* Air Shipping/ Sea Shipping. All accepted.
* Tracking NO. will be sent to you after delivery, and we will track the goods for you until you receive all of them.
* DHL/FedEx/UPS fast express
* Air Shipping/ Sea Shipping. All accepted.
* Tracking NO. will be sent to you after delivery, and we will track the goods for you until you receive all of them.
Advantages:
1. Small size and light weight.
1. Small size and light weight.
2. 12 months warranty.
3. Green product.
4. Provide customization：customize size, customize voltage, customize capacity.
5. Ensure the consistency and the extension of battery pack life.
6. Stable discharge voltage performance,good rate performance,excellent cycle life perfect safety performance.
7. Eco-friendly and environmentally friendly.
Why Choose Us

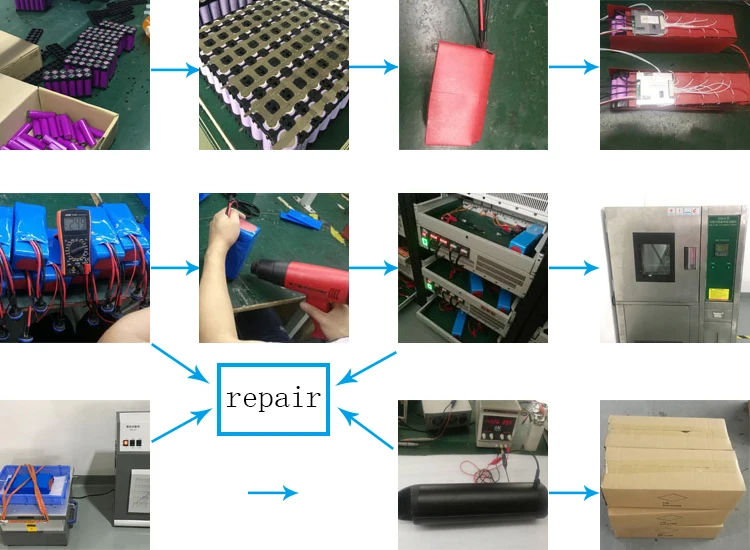

1. All of products are 100% tested in the process and passed by strict test before shipping. Safe packing & Fast Delivery.
1. All of products are 100% tested in the process and passed by strict test before shipping. Safe packing & Fast Delivery.
2. Real manufacture with our own factory located in Shenzhen, Guangdong, China.
3. Capacity and size could be customized, Individual Li-ion battery can be assembled in parallel or series into stacks as required by customers.
4. Professional quality pre-sales,after-sales service.
5. Fastest delivery speed after customers place the order.
6. We have established warehouse & battery service center in the USA, Germany, UK and Canada.
6. We have established warehouse & battery service center in the USA, Germany, UK and Canada.
FAQ
1. Do you offer free shipping for the order?
We have warehouse in the USA, UK, Canada and Germany. If the battery we have in warehouses then we will offer free shipping for your order to the local address. And you can receive it within 2-5 days.
2. Is a metal case available for purchase? I would like to use a metal case for ease of use and heat sink features.
Yes,We supply metal case. Each battery has different price for the metal case.If you are interested, please contact us on Alibaba or e-mail us: sales12@wallenpower.com
3.Will this battery increase speed on my ebike?
This battery can not only increase speed on your ebike but also very suitable for E-bike DIY build.
4. Is this battery water resistant?
IP65 Grade waterproof function. Which means you can riding while in small rains, but can not stay in rains for too long.
5. If I needed customized battery pack size, could you produce?
Yes,we have B2B trade customer, too. They need to buy the customised battery. Please tell us the battery size, BMS, and the bike motor watt, we will provide professional guidance for you.
We have warehouse in the USA, UK, Canada and Germany. If the battery we have in warehouses then we will offer free shipping for your order to the local address. And you can receive it within 2-5 days.
2. Is a metal case available for purchase? I would like to use a metal case for ease of use and heat sink features.
Yes,We supply metal case. Each battery has different price for the metal case.If you are interested, please contact us on Alibaba or e-mail us: sales12@wallenpower.com
3.Will this battery increase speed on my ebike?
This battery can not only increase speed on your ebike but also very suitable for E-bike DIY build.
4. Is this battery water resistant?
IP65 Grade waterproof function. Which means you can riding while in small rains, but can not stay in rains for too long.
5. If I needed customized battery pack size, could you produce?
Yes,we have B2B trade customer, too. They need to buy the customised battery. Please tell us the battery size, BMS, and the bike motor watt, we will provide professional guidance for you.
