Product Overview

Description

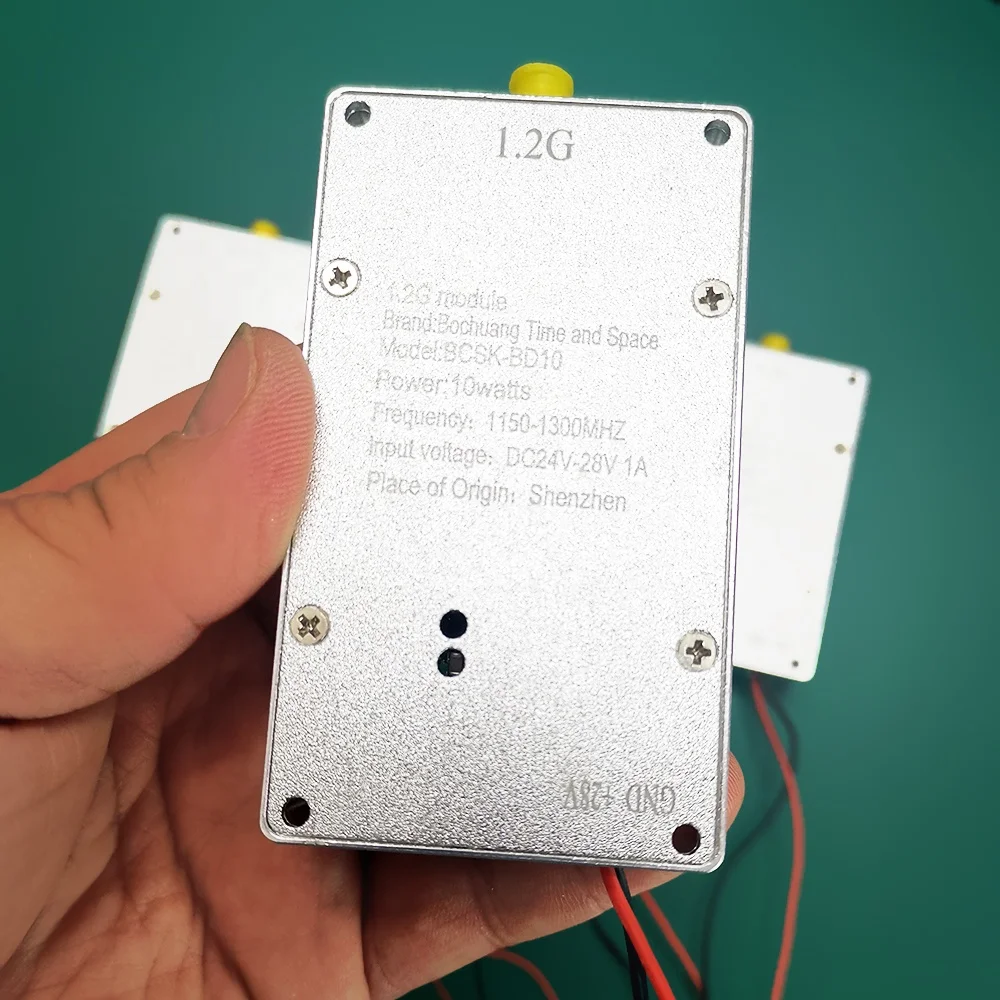

1.2G high-power RF power amplifier module enhances drone countermeasures performance and makes the equipment more stable!

Warm tip: All our products do not include heat sink and antenna, the heat sink on the pictureof the module needs to be purchased separately.

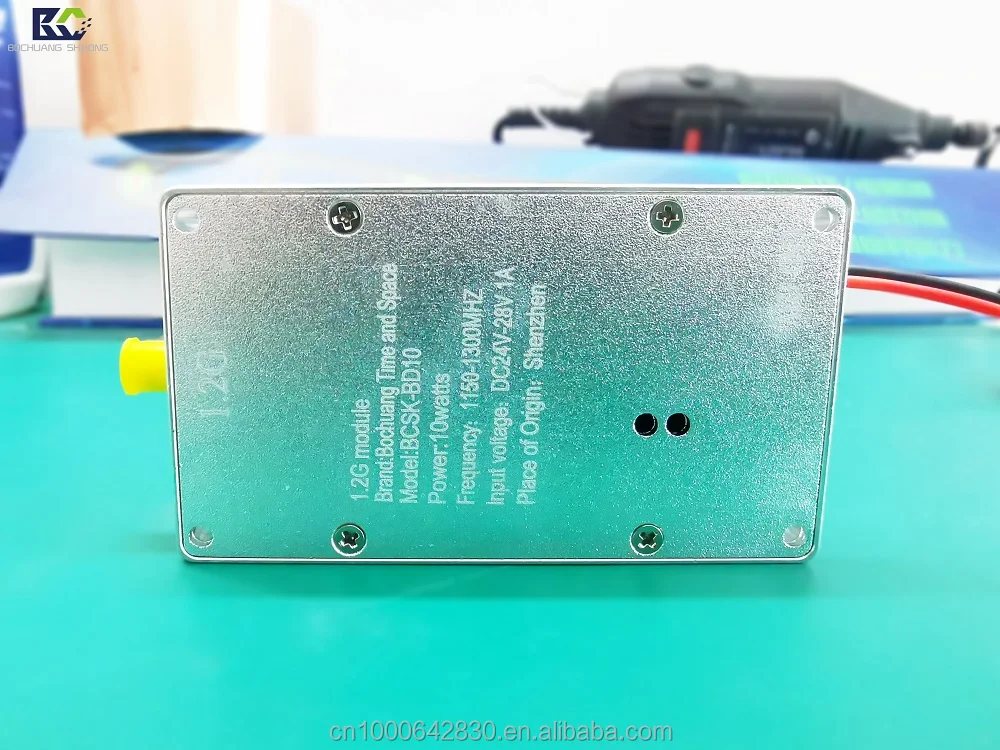

Brand	Bochuang Spacetime
model	BCSK-BD10
power	10W(10W-100W selectable)
Transmission frequency	1160MHZ-1280MHZ
Working voltage and current	DC24V-28V-1A (different power, different current)

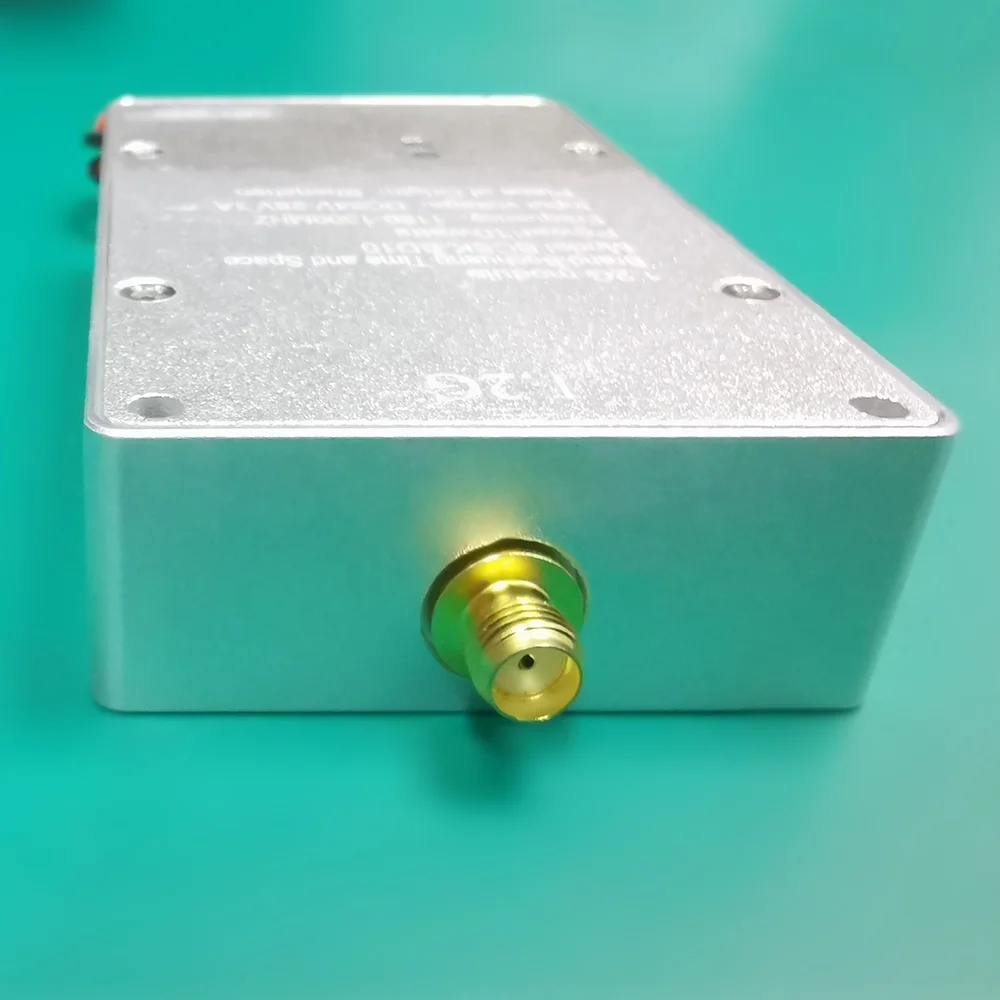

output connector	SMA (female)
Connector impedance	50Ω

The drone jammer RF power amplifier module is suitable for applications in the



following locations:



1. Military security field: Jamming and shooting down enemy drones to ensure the safety



of our army.



2. Public safety: To ensure public safety in illegal drone flight scenarios, such as prisons,



government buildings, airports, nuclear power plants, and other places.



3. Special fields: such as professional photography, television and film shooting,



geographic exploration, etc., can interfere with drones and reduce the impact of



interference signals on other equipment.



4. Consumer level market: The interference problems that arise during the popularization



of drone flights can be promoted for products that target personal drones for



interference.



5. Industrial field: In industrial scenarios such as petroleum refining and metal smelting,



drone jammers can prevent risks brought by drones.



Precautions for using RF power amplifier modules:

Before the module can be powered on, the SMA must be connected to the antenna or load before it can be powered on, otherwise it may burn out the module.

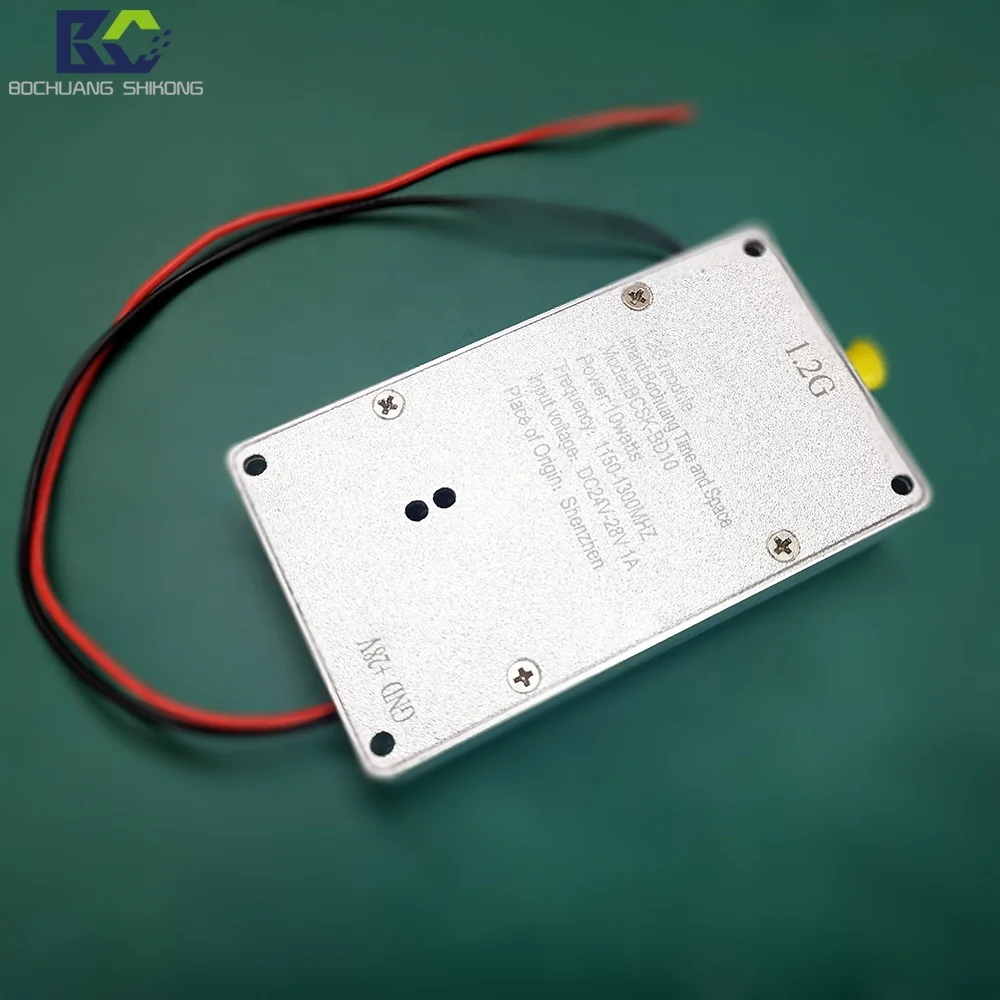

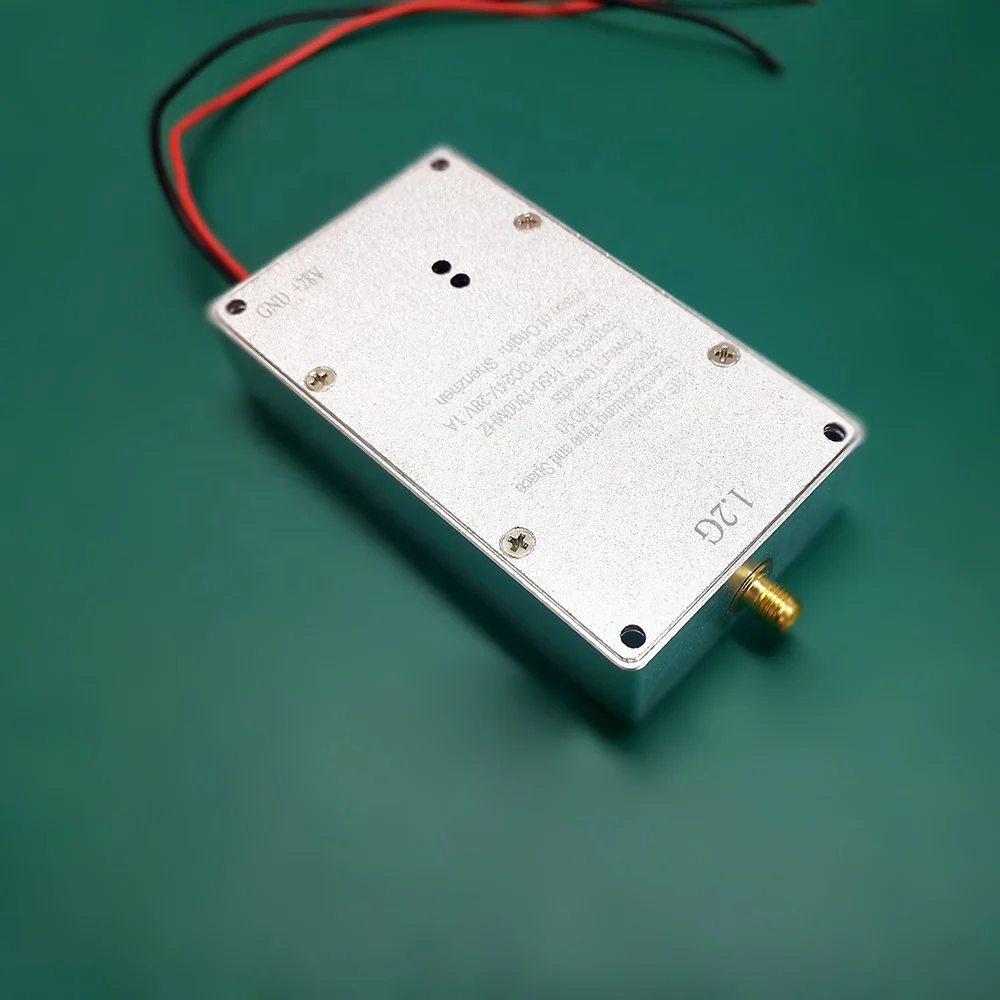

2. The red wire is the positive pole of the power supply, and the black wire is the negative pole of the power supply. The yellow line can also be used in conjunction with the red line, and the red and black lines cannot be reversed, otherwise the module will be burned out.

3. The module must operate within the marked voltage range. In general, the power supply is DC24-28V and cannot exceed this safe voltage range, otherwise the module will burn out and the current will vary depending on the power.

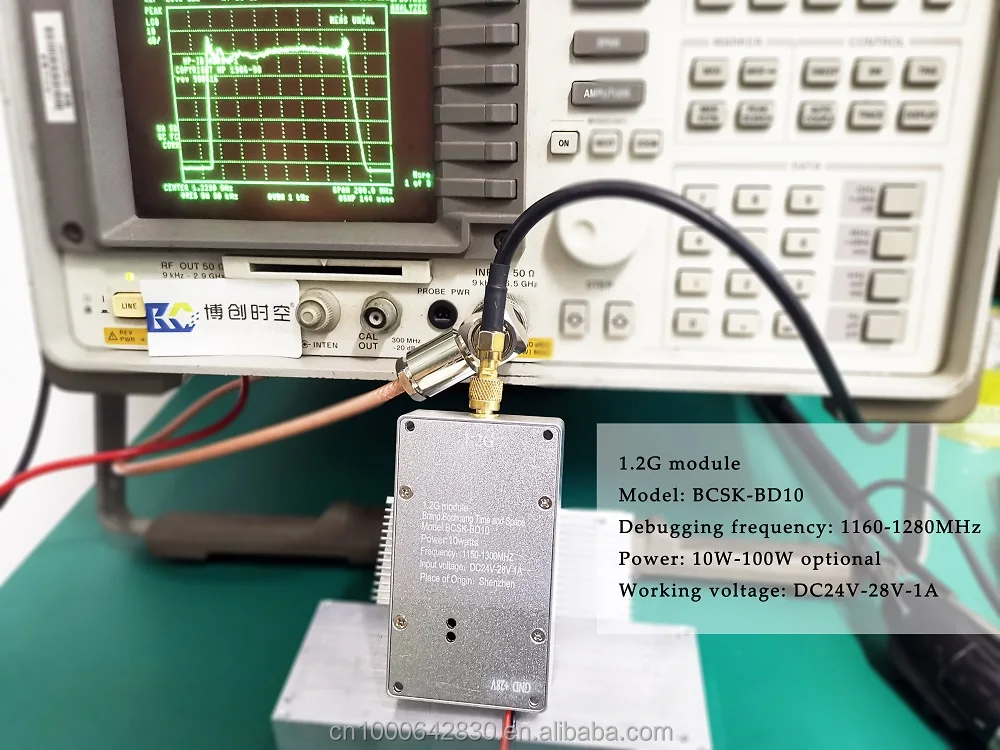

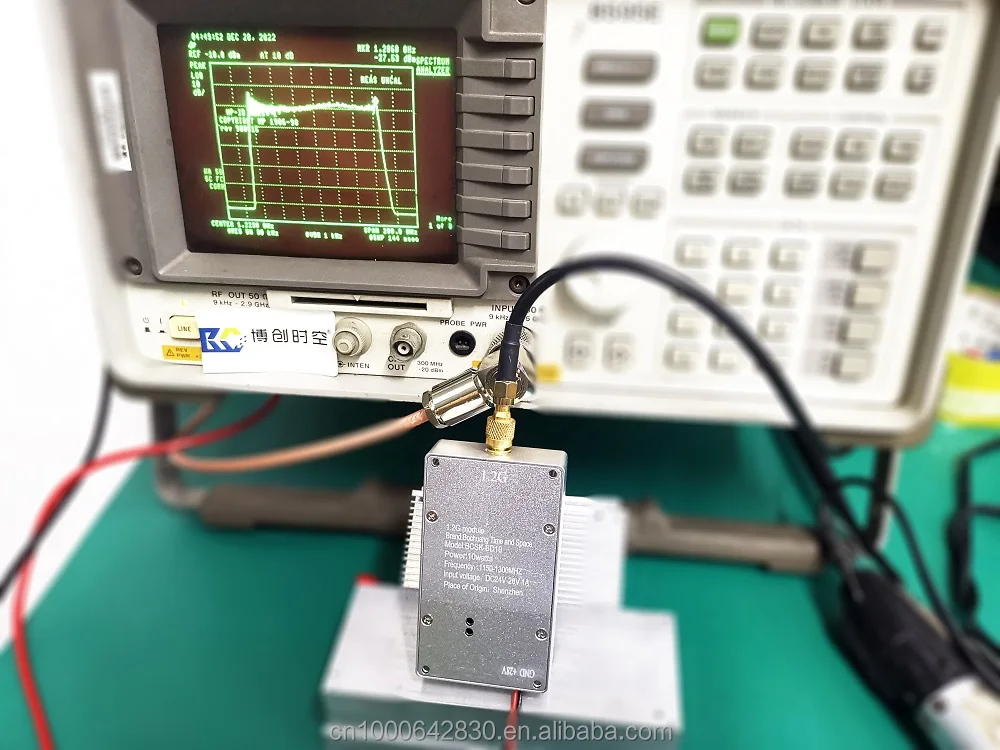

4. Before leaving the factory, the Bochuang Spacetime RF power module will undergo precise frequency modulation based on the current mainstream models in the market. After receiving the module, there is no need to debug it again. Our nominal frequency is within a wide range, and there may be errors in the actual frequency. We debugged it based on the current market drone usage frequency. If you feel that the bandwidth is insufficient, you can contact customer service to help you adjust a wider frequency. If there is no professional equipment for debugging, it will affect its use.

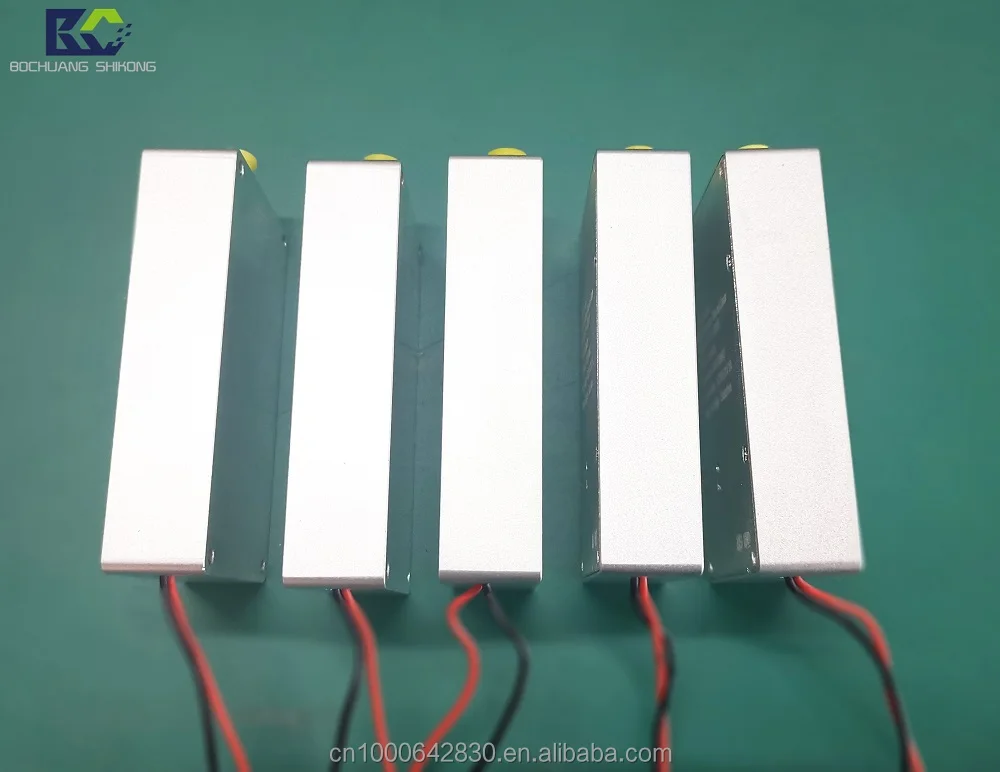

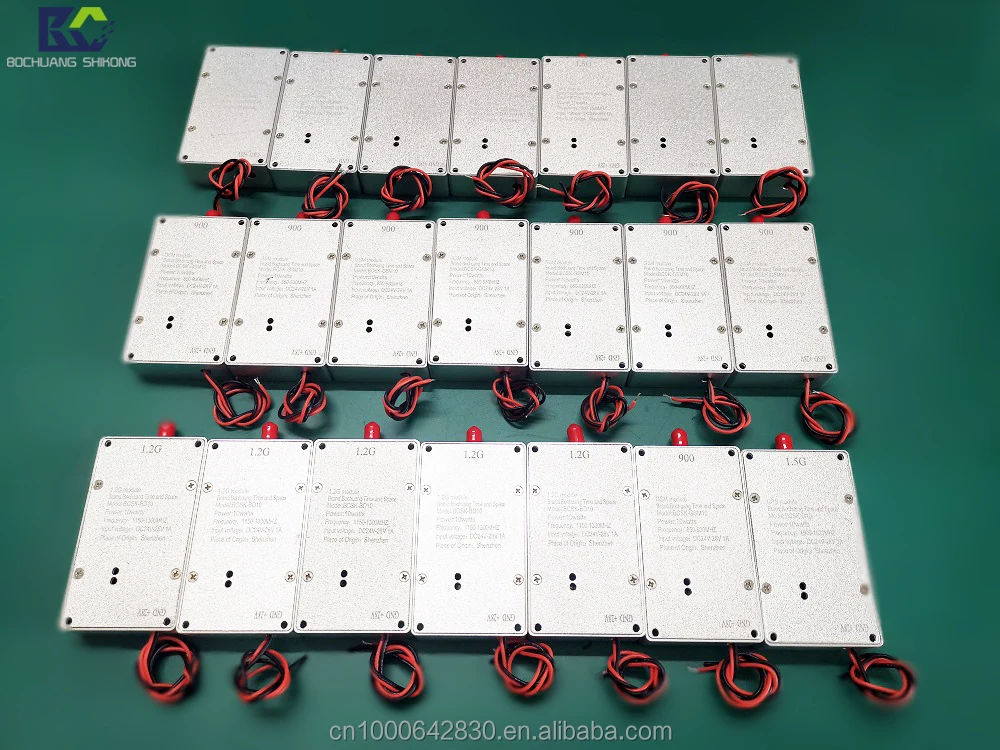

5. The cavity style you see is related to the frequency and power, and is not a fixed style. Based on the current purchase of crystal tube cavities, there are changes. Currently, we have three different cavities. If you have any objections, you can contact customer service to confirm the style before purchasing. However, the appearance is different, and the performance is very stable. You can rest assured to purchase.
