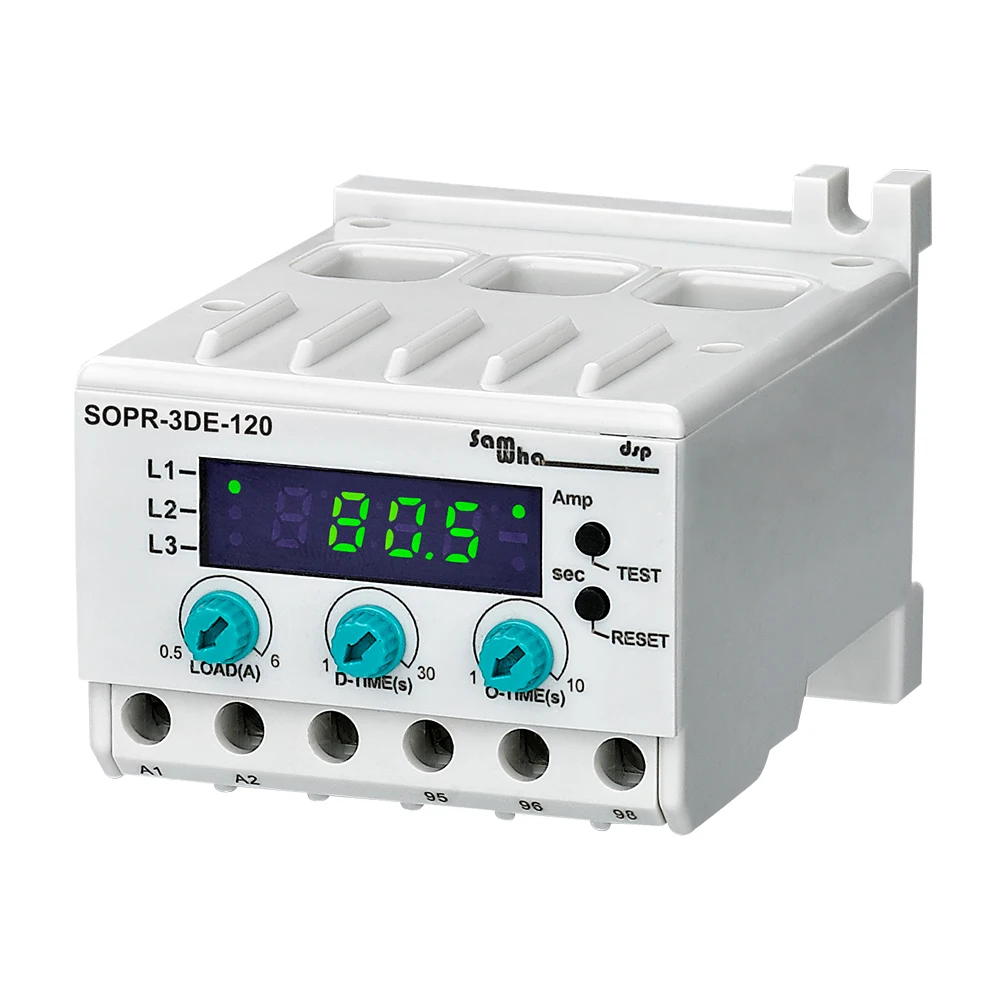

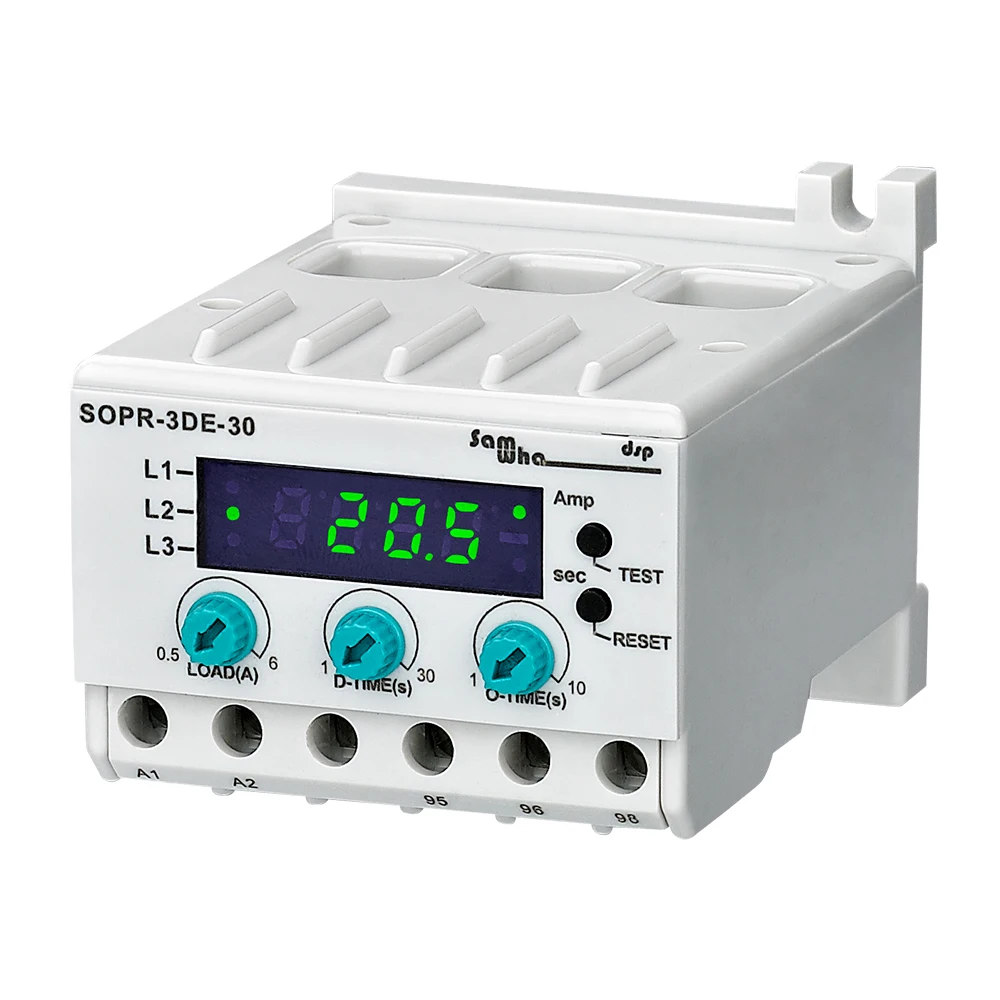

SAMWHA DSP EOCR SOPR 3DE 60 60A Digital Over Current Protection Relay Electric Motor Overload and Phase Loss
- Category: >>>
- Supplier: Zhejiang Hannuo Electric Co. Ltd.
Share on (1600849920719):
Product Overview
Description
Product Description
Features
■ Compact Design
■ Overload / Phase Loss / Motor protection
■ Accurately display the working current through the front panel LED display
■ When trip occurs, the cause is displayed on the LED window
■ Convenient application
■ Optional contact output [fail-safe (N)/non-fail-safe (R)]: simplify the adjustment of the contact state
■ Easy installation due to both Din Rail and Panel Mounting
■ Overload / Phase Loss / Motor protection
■ Accurately display the working current through the front panel LED display
■ When trip occurs, the cause is displayed on the LED window
■ Convenient application
■ Optional contact output [fail-safe (N)/non-fail-safe (R)]: simplify the adjustment of the contact state
■ Easy installation due to both Din Rail and Panel Mounting
Used for
- Low Voltage Induced Electromotor (600V Level) Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion | |||||||||||||||
Protective Item | Operating (Trip) Time | ||||||||||||||
Over-Current | O-TIME | ||||||||||||||
Set
D-Time: Set two to three seconds longer than the motor starting time.
O-Time: Over-current run time. Set less than the motor's endurance time with over-current.
LOAD: Set over 110% of the motor started current or under 120% of its operating current.
O-Time: Over-current run time. Set less than the motor's endurance time with over-current.
LOAD: Set over 110% of the motor started current or under 120% of its operating current.
Relay Condition
When Powered: 95(COM) and 96(NC)is open circuit,95(COM)and 98(NO) is short circuit.
When Tripped: 95(COM) and 96(NC) is short circuit, 95(COM)and 98(NO) is open circuit.
When Powered: 95(COM) and 96(NC)is open circuit,95(COM)and 98(NO) is short circuit.
When Tripped: 95(COM) and 96(NC) is short circuit, 95(COM)and 98(NO) is open circuit.

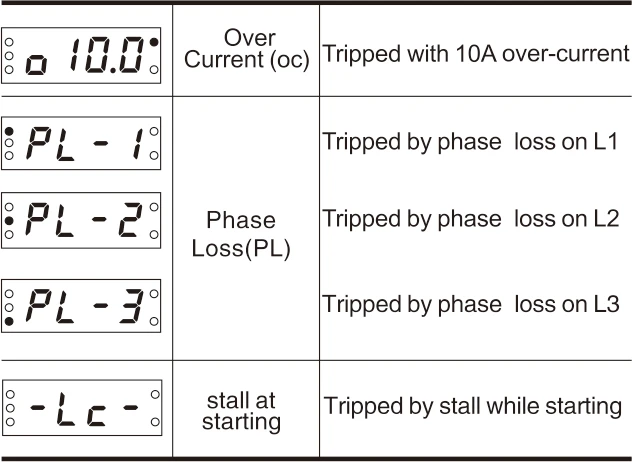

Trip Cause Indication

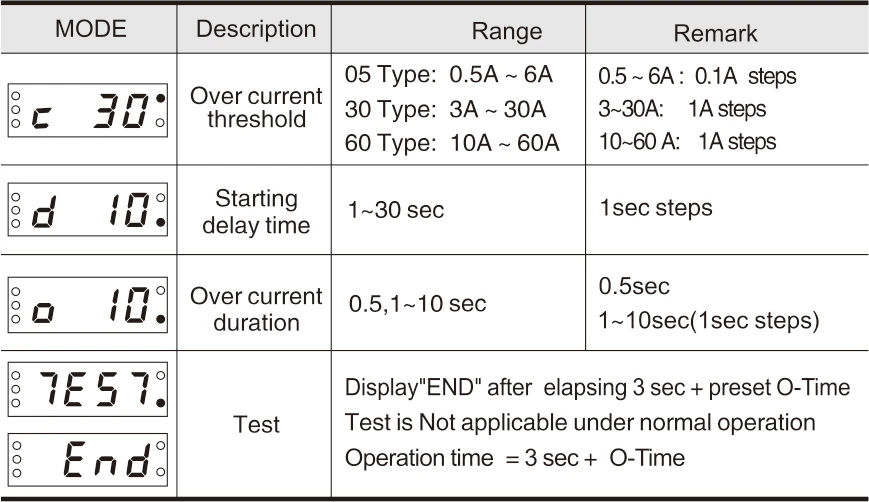

Configuration Menu
Specifications | ||
Current Range | Type05) 1-6A | |
Type30) 5-30A | ||
Type60) 5-60A | ||
Type120) 10-120A | ||
Operating Voltage(Un) | 1 type 24. 24VAC/DC 2 type 220. 90-260VAC | |
Operating Frequency | 50/60Hz | |
Operating Power | <2W | |
Operating Temperature | -20℃·····+55℃ | |
Waiting(T) | D-Time 1-30s | |
Waiting(t) | O-Time 1-10s | |
Asymmetry Set | %±1 | |
Contact | 5A 250VAC Resistive Load | |
Mounting | 35mm Din Rail (D) or Panel (P) | |

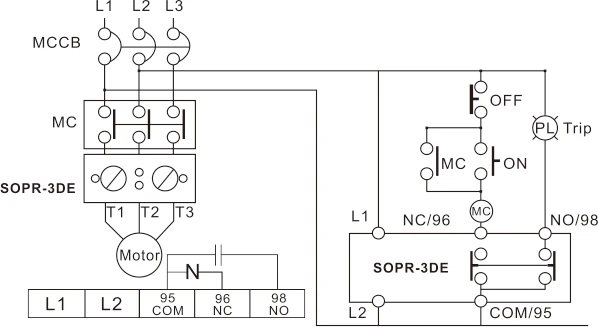

Connection Diagram

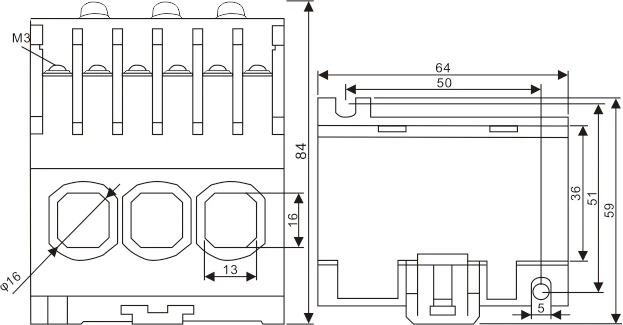

Dimensions
Related Products
Company Information

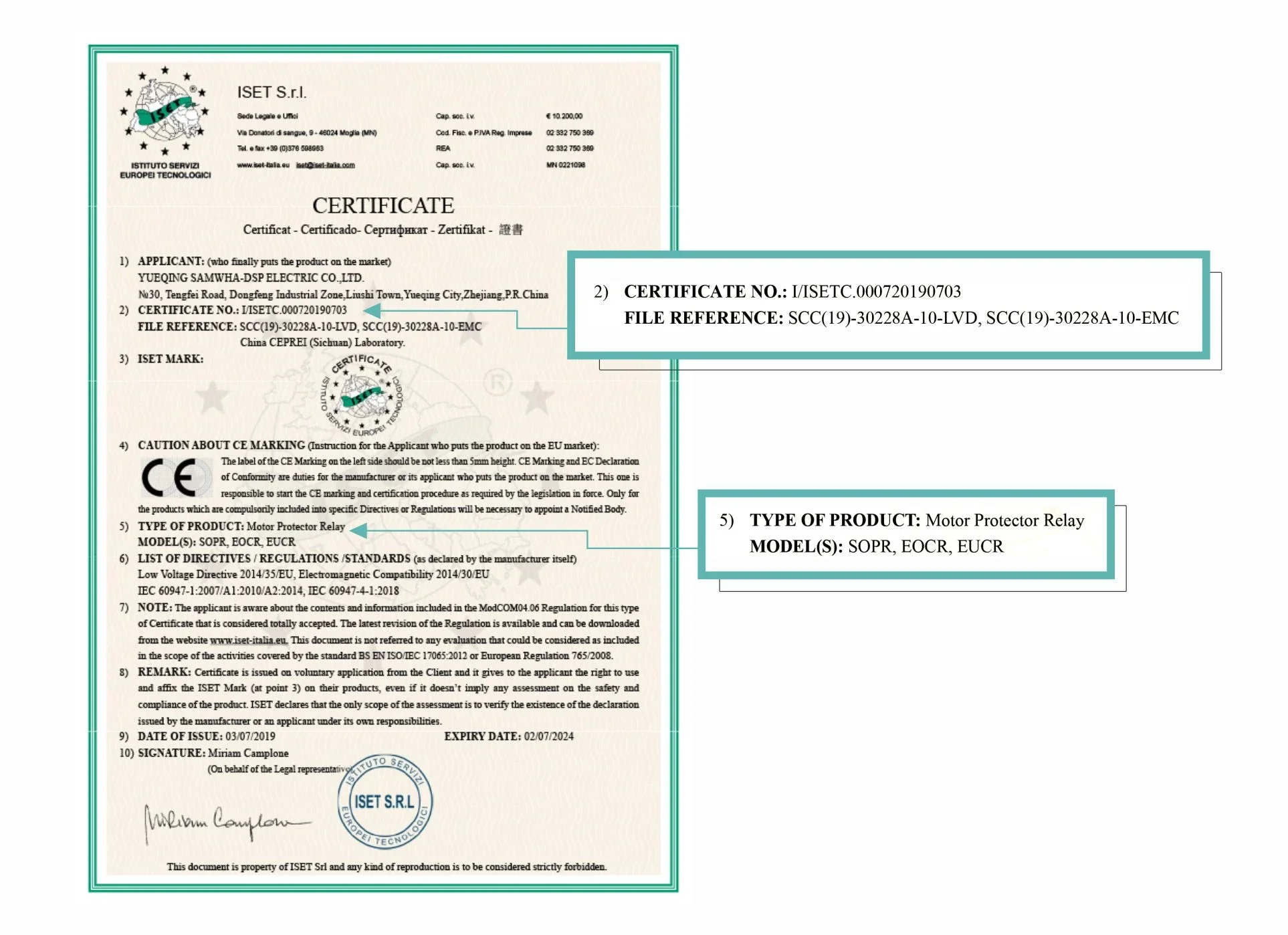

Certifications
