Product Overview
Description

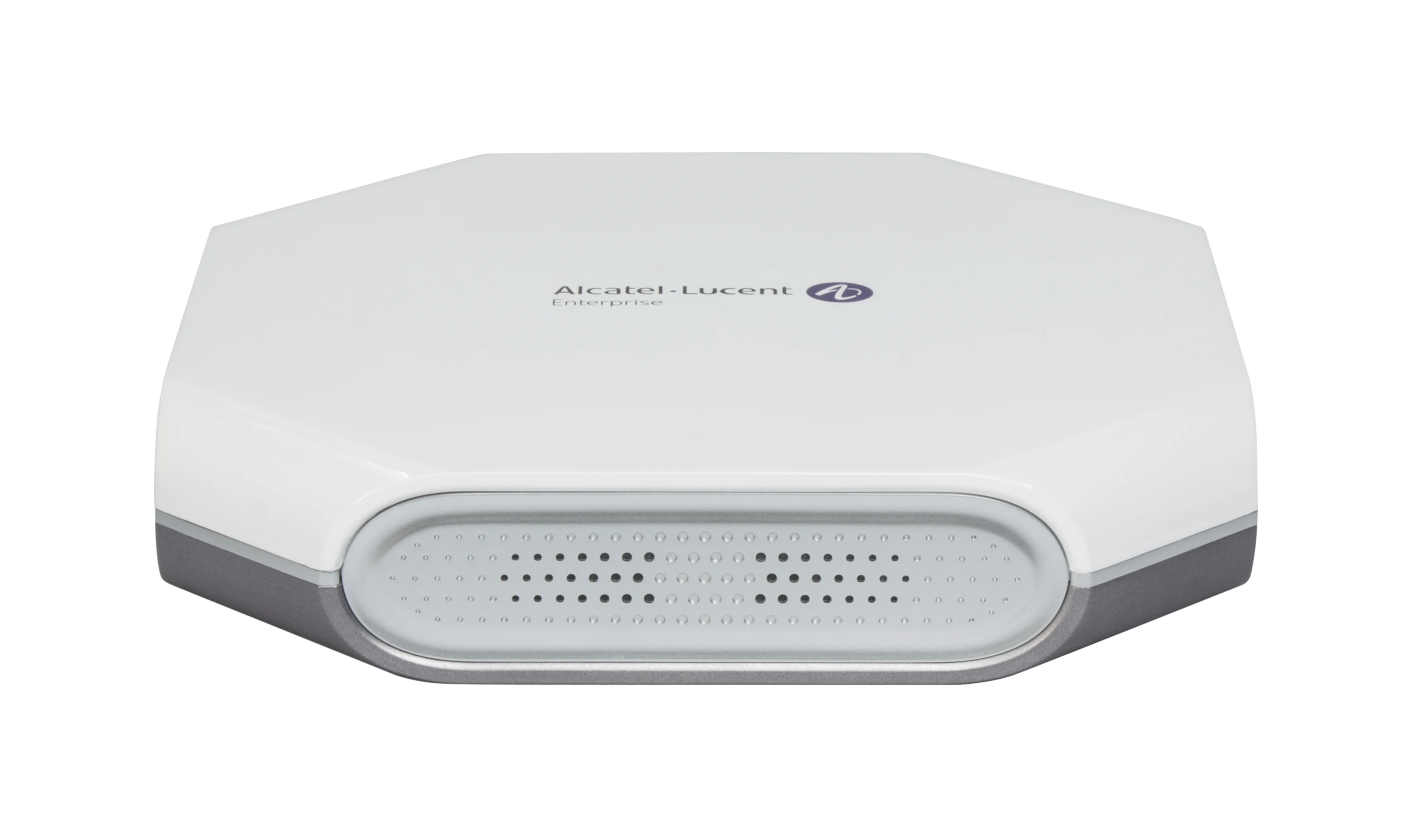

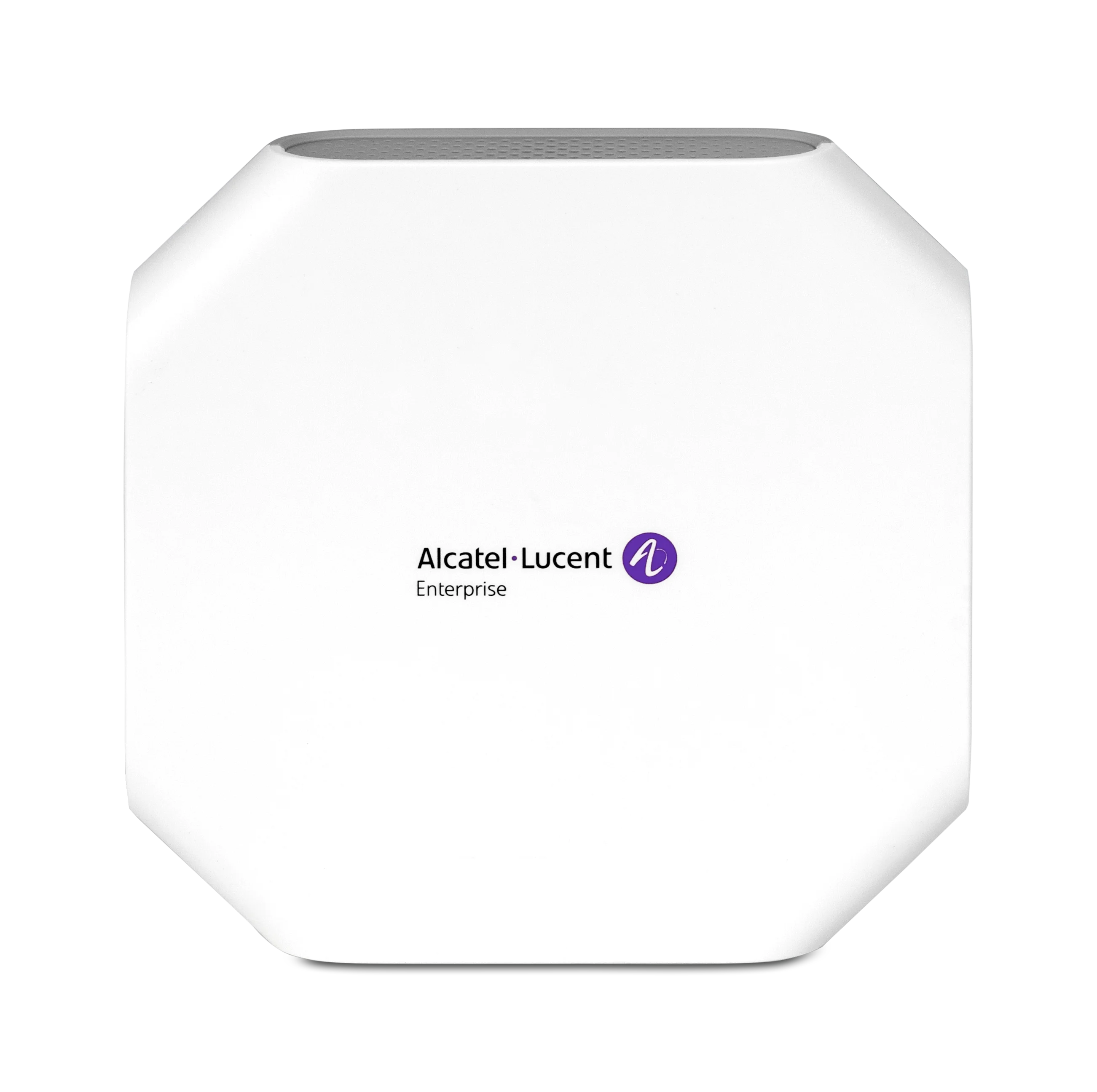

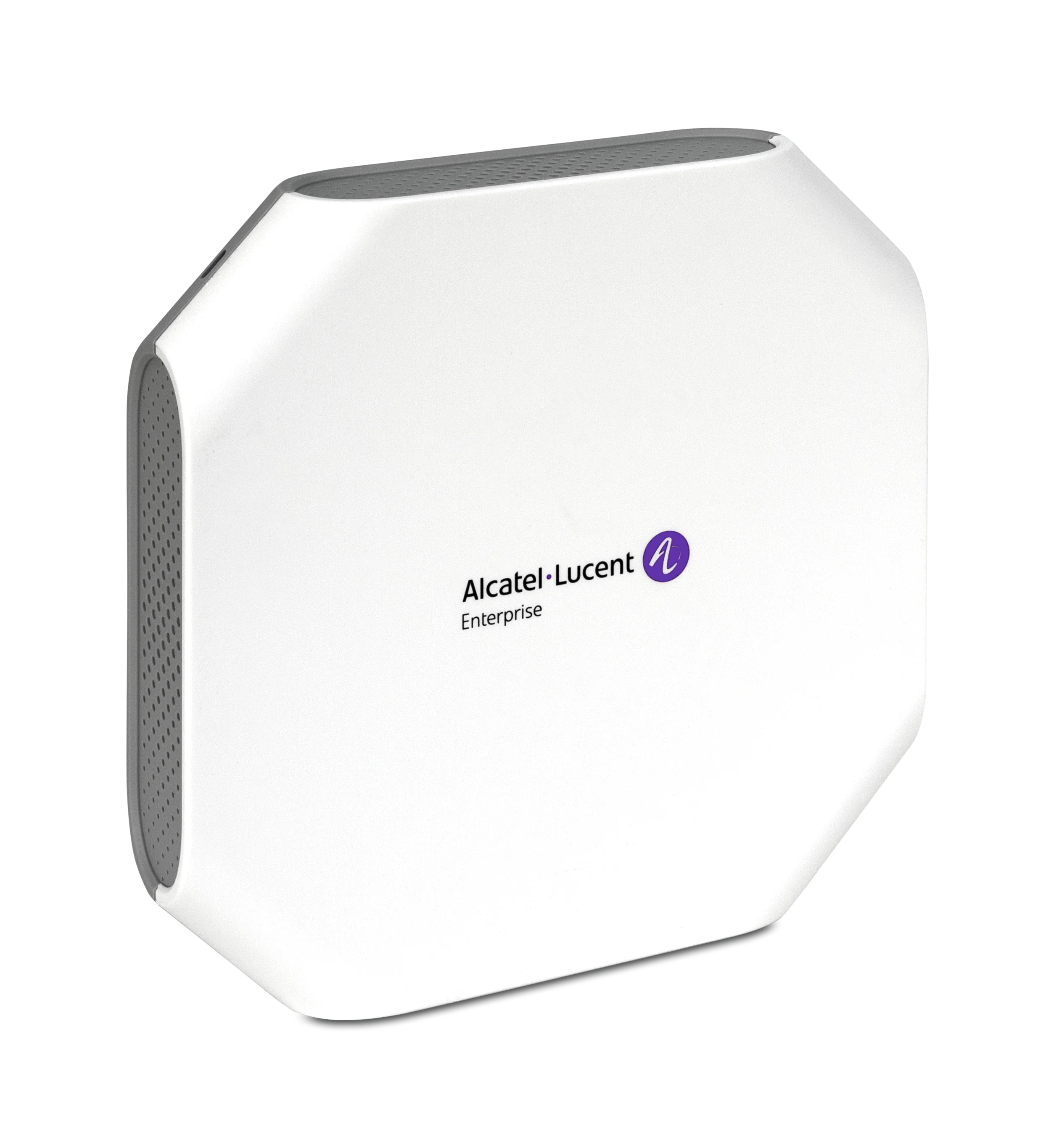

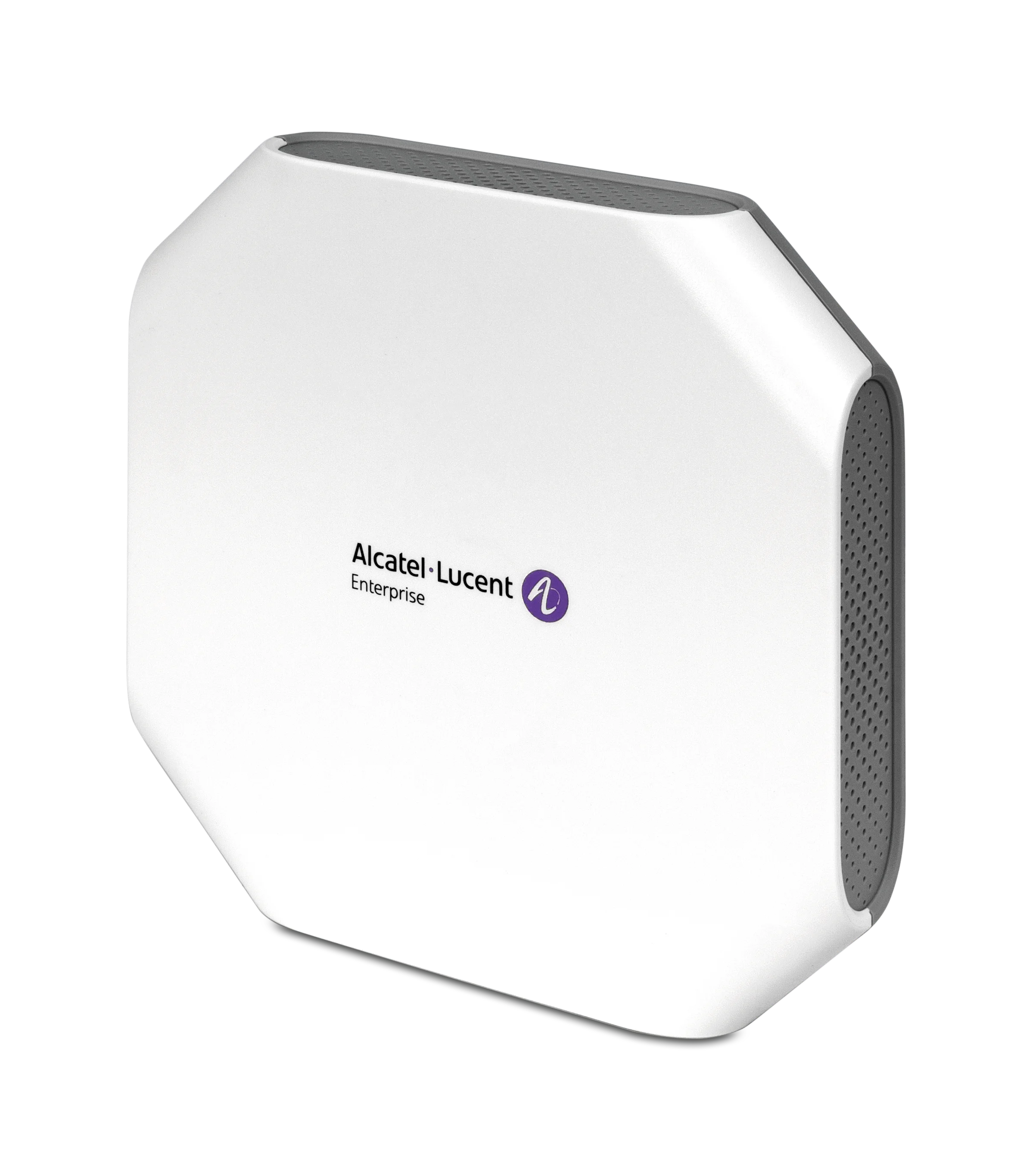

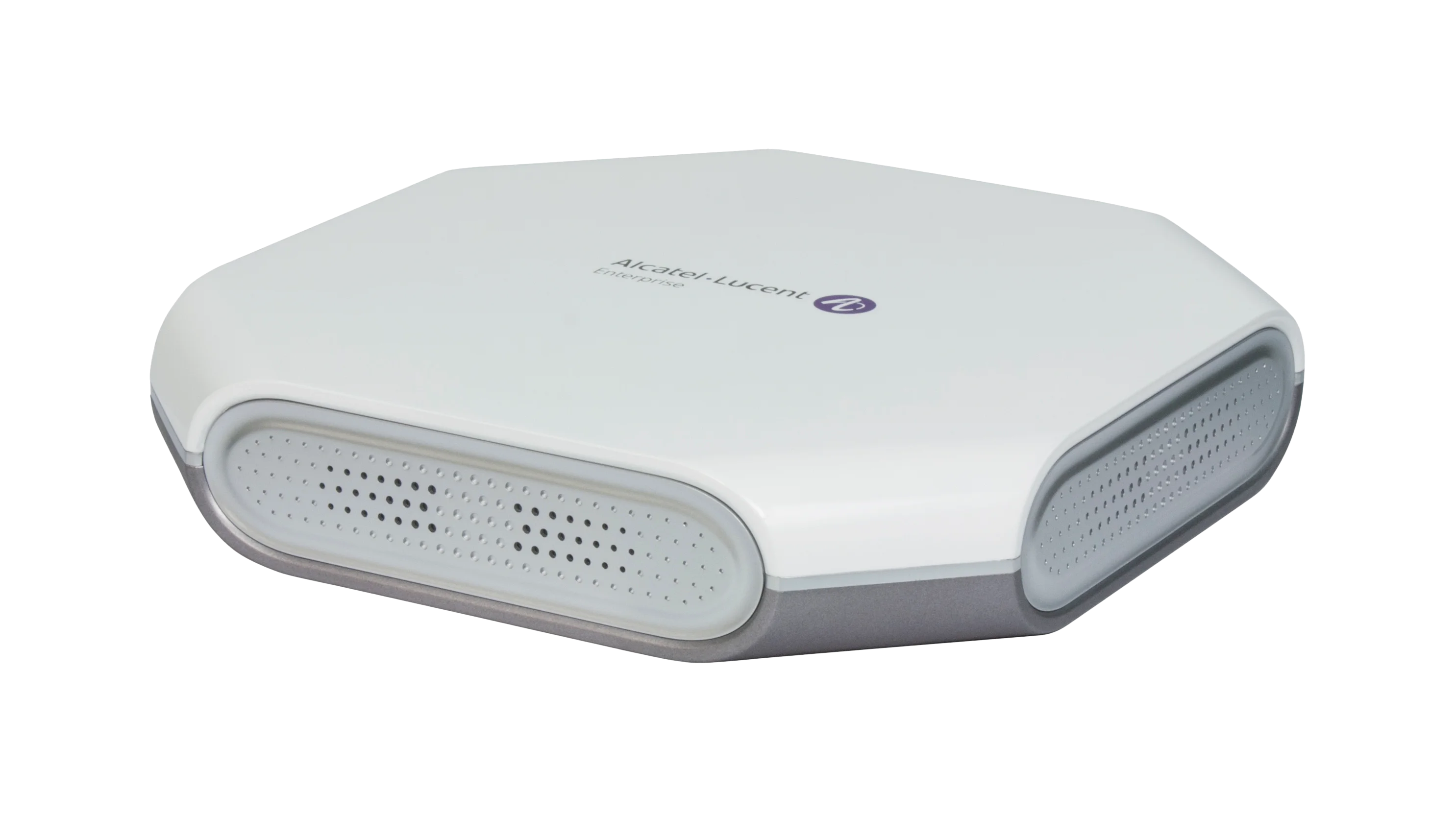

Alcatel-Lucent OmniAccess Stellar AP1201
Indoor IoT Ready 802.11ac Wave 2 wireless access point
Product Description
Multifunctional Alcatel-Lucent OmniAccess® StellarAP1201 access point is an entry range, affordable, 802.11ac Wave 2 AP for small and large business deployments. The OmniAccess Stellar AP1201 indoor Wi-Fi access point provides high throughput and a seamless user experience.
The efficient 802.11ac AP1201 access point supports a maximum concurrent data rate of 1.2 Gb/s (867 Mb/s in 5 GHz and 400 Mb/s in 2.4 GHz), 80 MHz channels (VHT80), multi-user MIMO (MU-MIMO) and two spatial streams (2SS) per radio. It provides simultaneous multicast data transmission to multiple devices, maximizing data throughput and improving network efficiency. Featuring enhanced WLAN technology with RF Radio Dynamic Adjustment, a distributed control Wi-Fi architecture, secure network admission control with unified access, built in application intelligence and analytics, making it ideal for enterprises of all sizes demanding a simple, secure and scalable wireless solution. OmniAccess Stellar AP1201 has integrated support for BLE5.0/Zigbee/Thread, making it ideal for broad scope of IoT end-points and applications.
OmniVista 2500 managed deployment
The AP1201 AP can be managed by Alcatel-Lucent OmniVista® 2500 on premise Network Management System. The access points are managed as one or more access point (AP) groups (a logical grouping of one or more access points). The OmniVista 2500 next generation management suite embeds a visionary controller-less architecture, providing user friendly workflows for unified access together with an integrated unified policy authentication manager (UPAM) which helps define authentication strategy and policy enforcement for employees, guest management and BYOD devices. The AP1201 has built-in DPI technology providing realtime Application Monitoring and enforcement. The network administrator can obtain a comprehensive view of applications running in the network and apply adequate control to optimize the performance of the network for business critical applications. OmniVista 2500 provides advanced options for RF management, WIDS/WIPS for intrusion detection and prevention, and a heat map for WLAN site planning.
Plug and Play: Secure Web managed (HTTPS) cluster deployment
The AP1201 by default operates in a cluster architecture to provide simplified plug-and-play deployment. The access point cluster is an autonomous system that consists of a group of OmniAccess Stellar APs and a virtual controller, which is a selected access point, for cluster management. One AP cluster supports up to 64 APs. The access point cluster architecture ensures simplified and quick deployment. Once the first AP is configured using the configuration wizard, the remaining APs in the network will come up automatically with an updated configuration. This ensures the whole network is up and functional within a few minutes. The AP1201 also supports secure zero-touch provisioning with Alcatel- Lucent OXO Connect R2, a mechanism by which all access points in a cluster will obtain bootstrap data securely from an on-premise OXO Connect.
Integrated guest management
The AP1201 supports role based management access to the AP cluster which includes Admin, Viewer and GuestOperator access. GuestOperator access simplifies guest account creation and management, and can be used by any non-IT person such as a front desk worker or receptionist. The AP1201 access point also support a built-in customizable captive portal which enables customers to offer unique guest access.
RF management Radio
Radio Dynamic Adjustment (RDA) technology automatically assigns channels and power settings, provides DFS/ TPC, and ensures that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance wireless LANs. The OmniAccess Stellar AP1201 AP can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection.
Simultaneous BLE beacon and BLE Gateway functionality
The AP1201 has built-in BLE that can act in either BLE beacon mode and BLE gateway mode or both modes simultaneously. This enables a single infrastructure to be used for asset tracking as well as for other LocationBased Services like smart-phone based Way-Finding, Geo-Notification etc. Employing a single infrastructure simplifies the solution deployment and reduces the cost of a total location services solution.
Ordering information
| Item | Description |
| OAW-AP1201-RW | Indoor Entry range Enterprise 802.11ac MU-MIMO AP, Dual-Radio, 11n 2x2:2 + 11ac 2x2:2, 1x GbE, BLE radio, 1x Console, and integrated antennas. Unrestricted Regulatory Domain. These products should be cons |
| OAW-AP-MNT-B | OmniAccess indoor mounting kit, for AP1X01, AP122X, AP123X, Type B1(9/16”) and B2(15/16”) for T-shaped ceiling rail mounting. Standard configuration in the product packaging. Optional for customer ordering |
Warranty
OmniAccess Stellar Access Points come with Hardware Limited Lifetime Warranty (HLLW)
Packaging & Shipping
Packaging:All products are sealed in Alcaltel-Lucent Original box.
Shipping:Express delivery by DHL,FedEx,TNT,UPS,ARAMEX
