Product Overview
Description

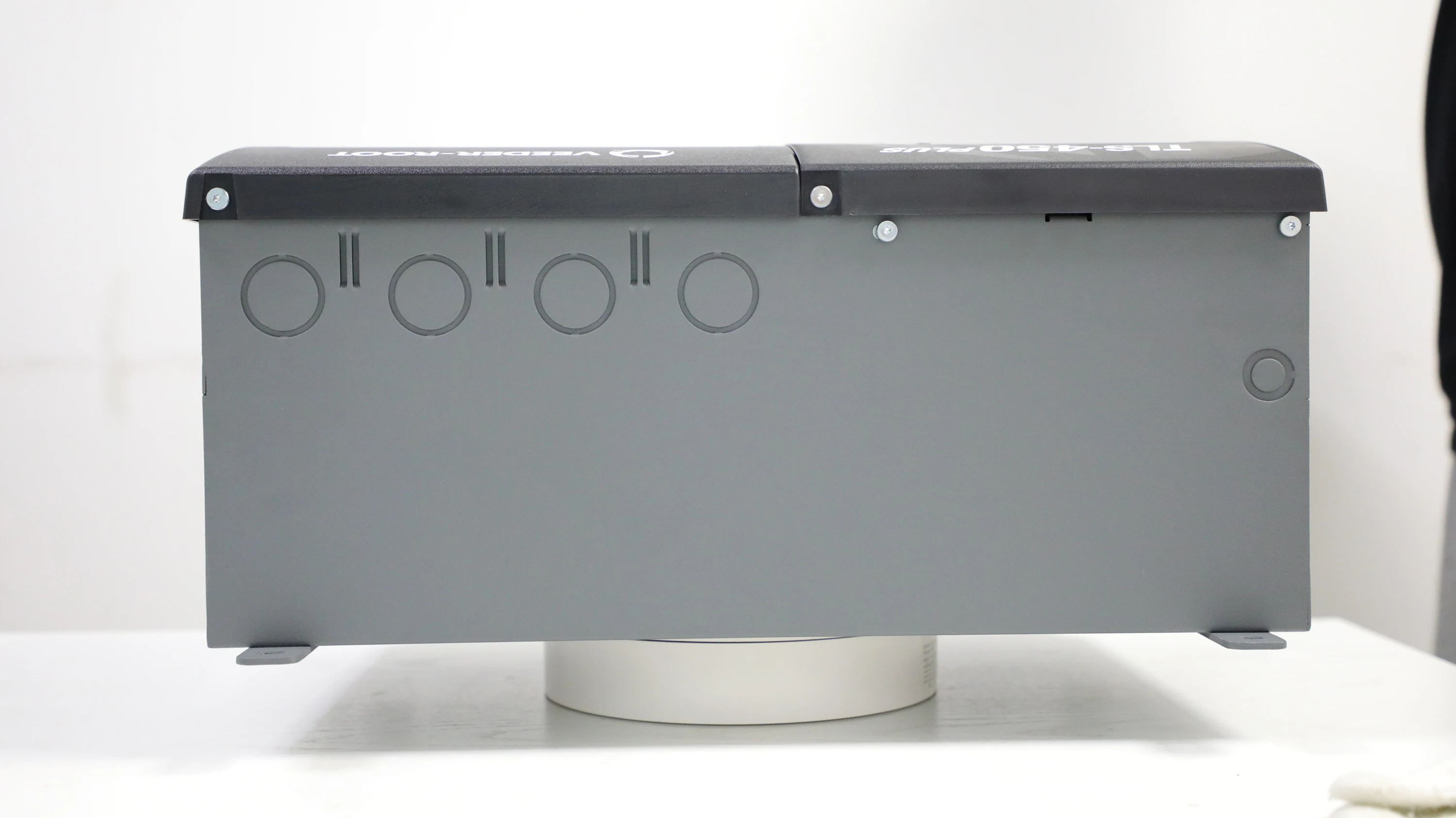

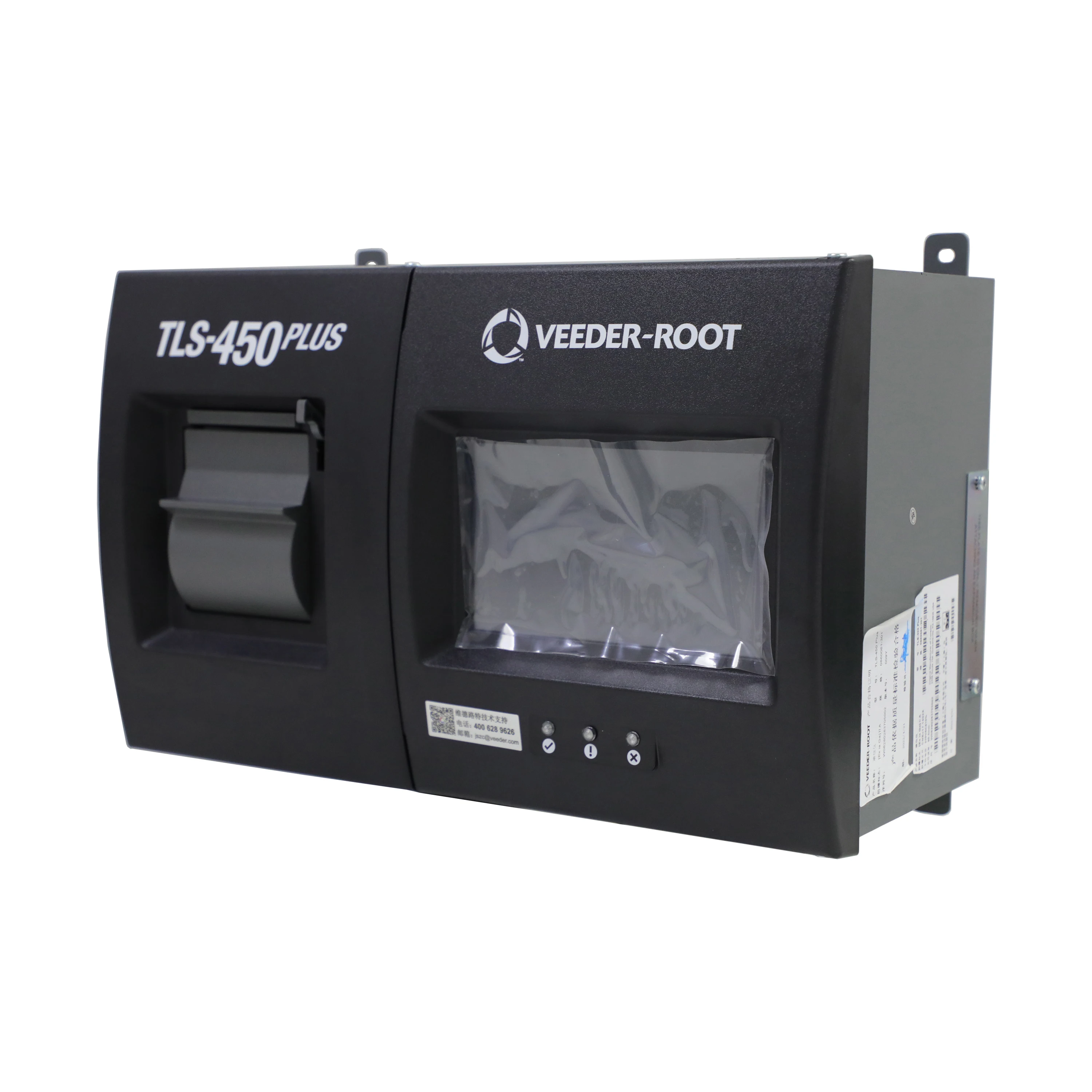

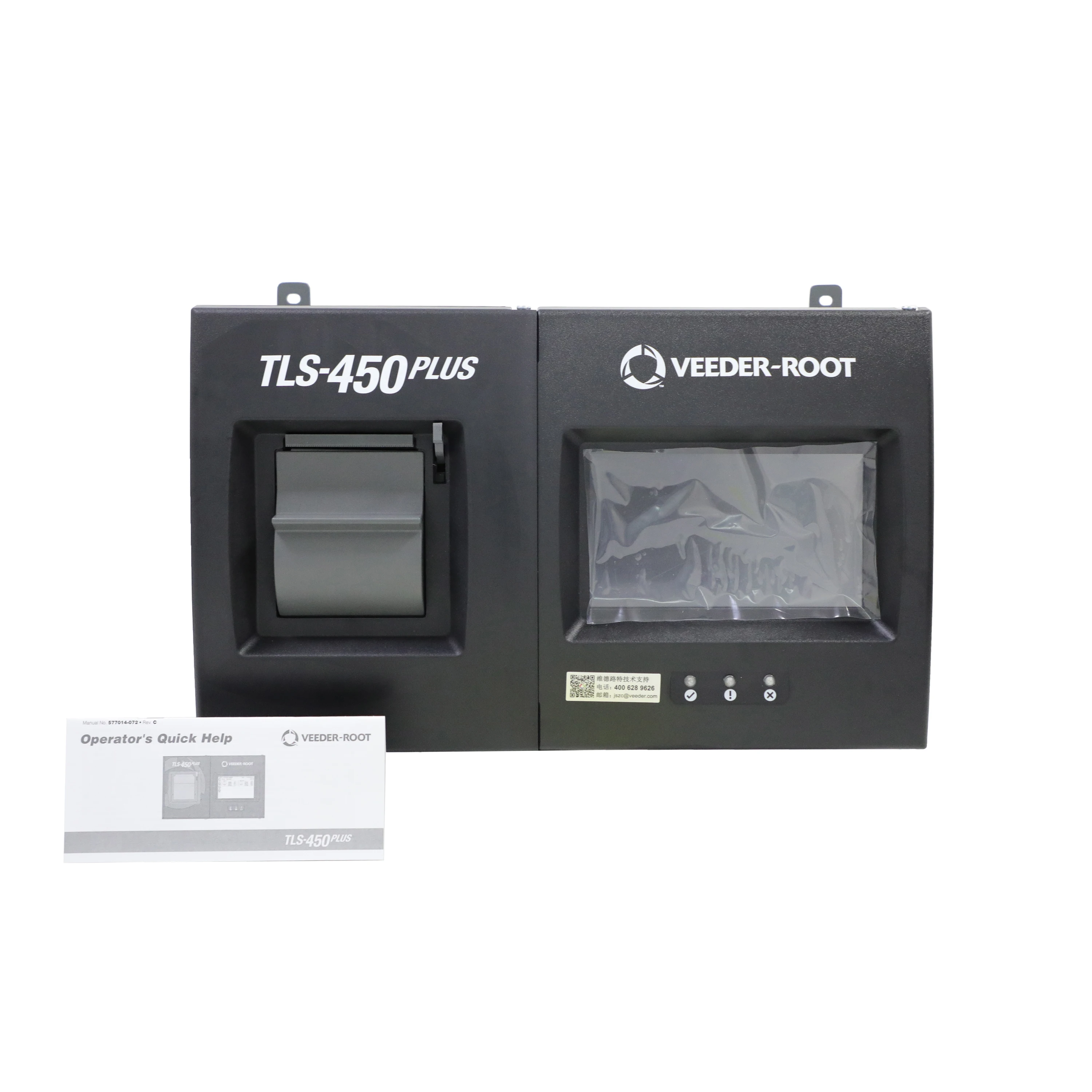

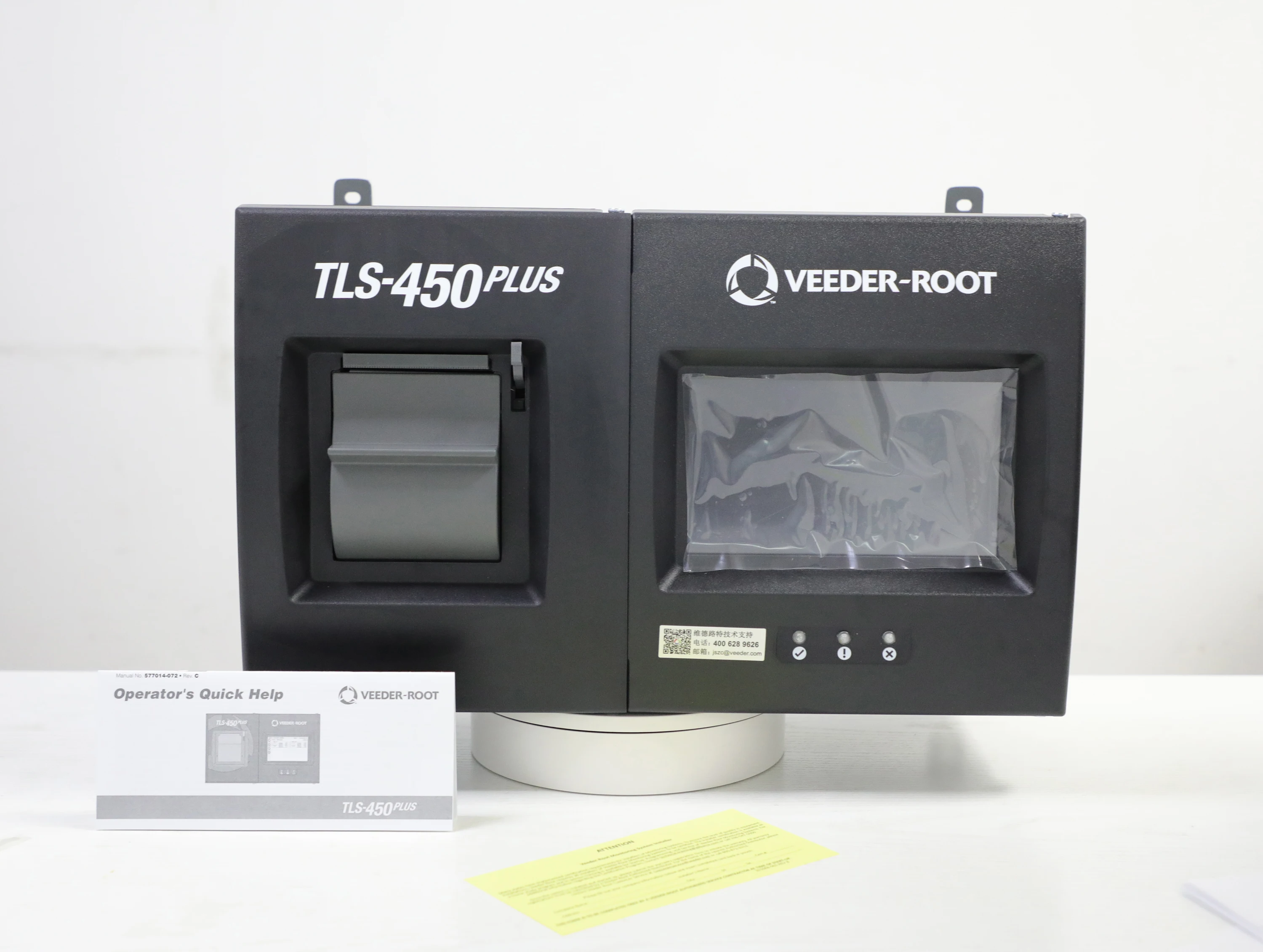

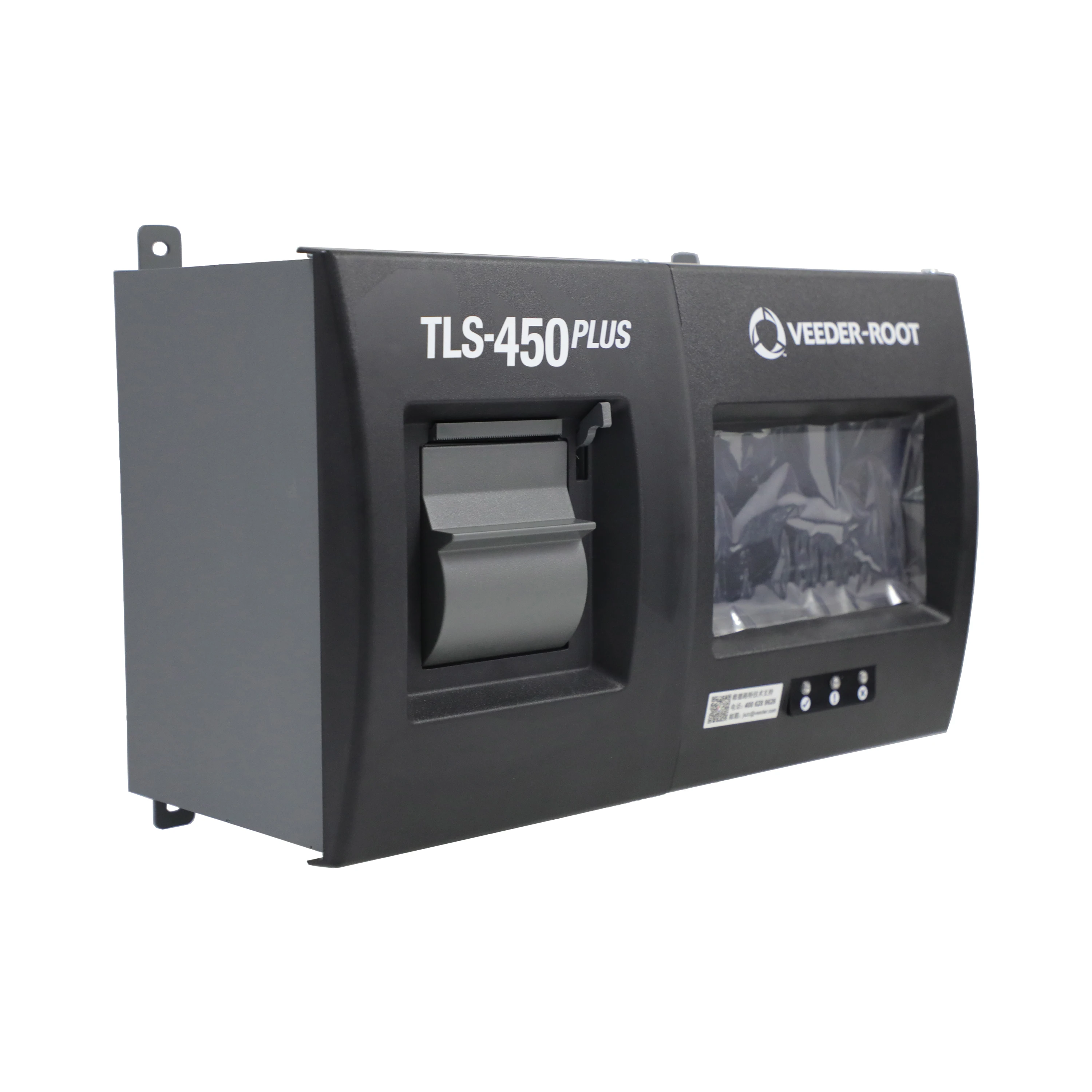

Veeder-Root TLS450 Automatic Tank Gauging ATG Magnetostrictive Liquid Oil Level Display and Connecting Function for Fuel Tank
Details Images

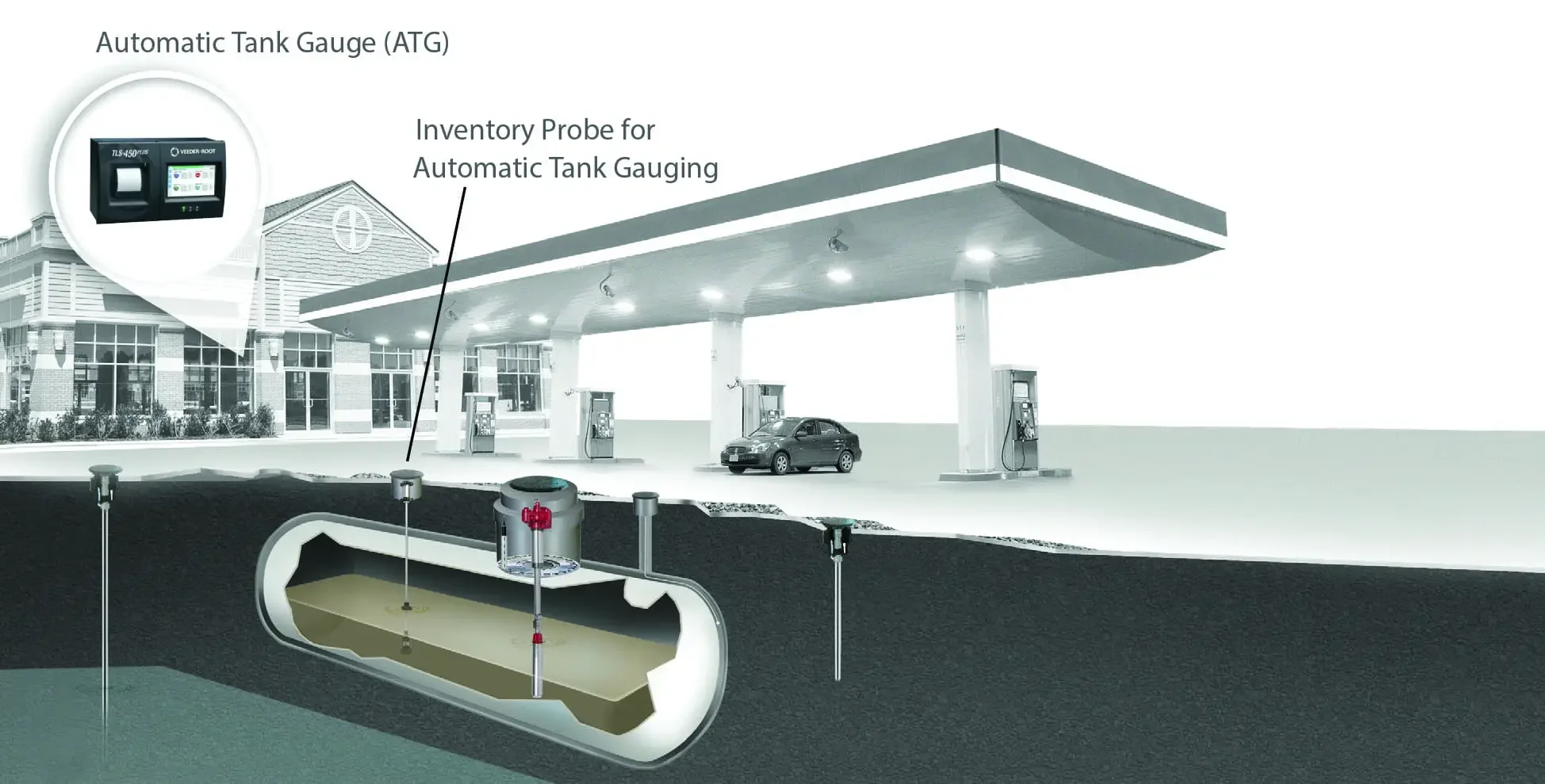

The Fuel Management System to Grow Your
Business On
With an easy to understand navigation, streamlined inventory and compliance reporting, and powerful business analytics, the
TLS-450PLUS Automatic Tank Gauge (ATG) is a powerful tool that allows you to run fueling operations at peak efficiency. And, with frequent releases of operating software for the TLS-450PLUS tank gauge you can be assured that data is secure and software features are routinely updated and enhanced.
The Hub of Your Compliance Program
Keeping compliant is vital to ensuring you’re not cutting into profits with costly fines or fees. The TLS-450PLUS Automatic Tank
Gauge is designed to help you meet those requirements and maintain compliance records so you’re not tied down with red tape. With
the availability to connect to a multitude of sensors, and features like Continuous Statistical Leak Detection or Electronic Line
Leak Detection, the TLS-450PLUS fuel management system is flexible to suit the best compliance methods for your business.
Gauge is designed to help you meet those requirements and maintain compliance records so you’re not tied down with red tape. With
the availability to connect to a multitude of sensors, and features like Continuous Statistical Leak Detection or Electronic Line
Leak Detection, the TLS-450PLUS fuel management system is flexible to suit the best compliance methods for your business.
TLS-450PLUS ATG Features
Intuitive User Access
* Customized home screen and favorites options enable easy access to commonly used screens
* Workflow Wizard for easy step by step configuration
* PLUS-size 8” color WVGA LCD display provides simple touch screen navigation
* Built-in help functionality for troubleshooting
* Customized alarm settings, automated reporting, and Email notifications
* Workflow Wizard for easy step by step configuration
* PLUS-size 8” color WVGA LCD display provides simple touch screen navigation
* Built-in help functionality for troubleshooting
* Customized alarm settings, automated reporting, and Email notifications
Enhanced Business Analytics and Performance
* Business Inventory Reconciliation (BIR) improves business decisions by combining meter transaction sales with AccuChart 3.0
Tank Calibration to better understand the site variance
* Timed Sudden Loss Detection monitors unexpected changes in inventory, exposing possible issues including theft during quiet
periods
* Standard configuration allowing for up to 64 inputs, expandable to 256
* Unmatched performance with 5x processing speed, 8x memory and 2x data storage than the previous generation Automatic Tank Gauge
* Built-in data logging enables approved data transfer for wet stock management
* Unmatched performance with 5x processing speed, 8x memory and 2x data storage than the previous generation Automatic Tank Gauge
* Built-in data logging enables approved data transfer for wet stock management
Worry-Free Regulatory Compliance
* The largest volume available today for extended line leak detection, supporting ever-growing fuel site locations.
* Third-party evaluated and certified leak detection systems by the National Work Group of Leak Detection Evaluators (NWGLDE),
providing independent support of product effectiveness.
* Third-party evaluated and certified leak detection systems by the National Work Group of Leak Detection Evaluators (NWGLDE),
providing independent support of product effectiveness.
* Streamlined reports allow quick and easy data access while eliminating manual recording errors.
* Smart data back-up prevents data loss during system maintenance and during power outages.
* Smart data back-up prevents data loss during system maintenance and during power outages.

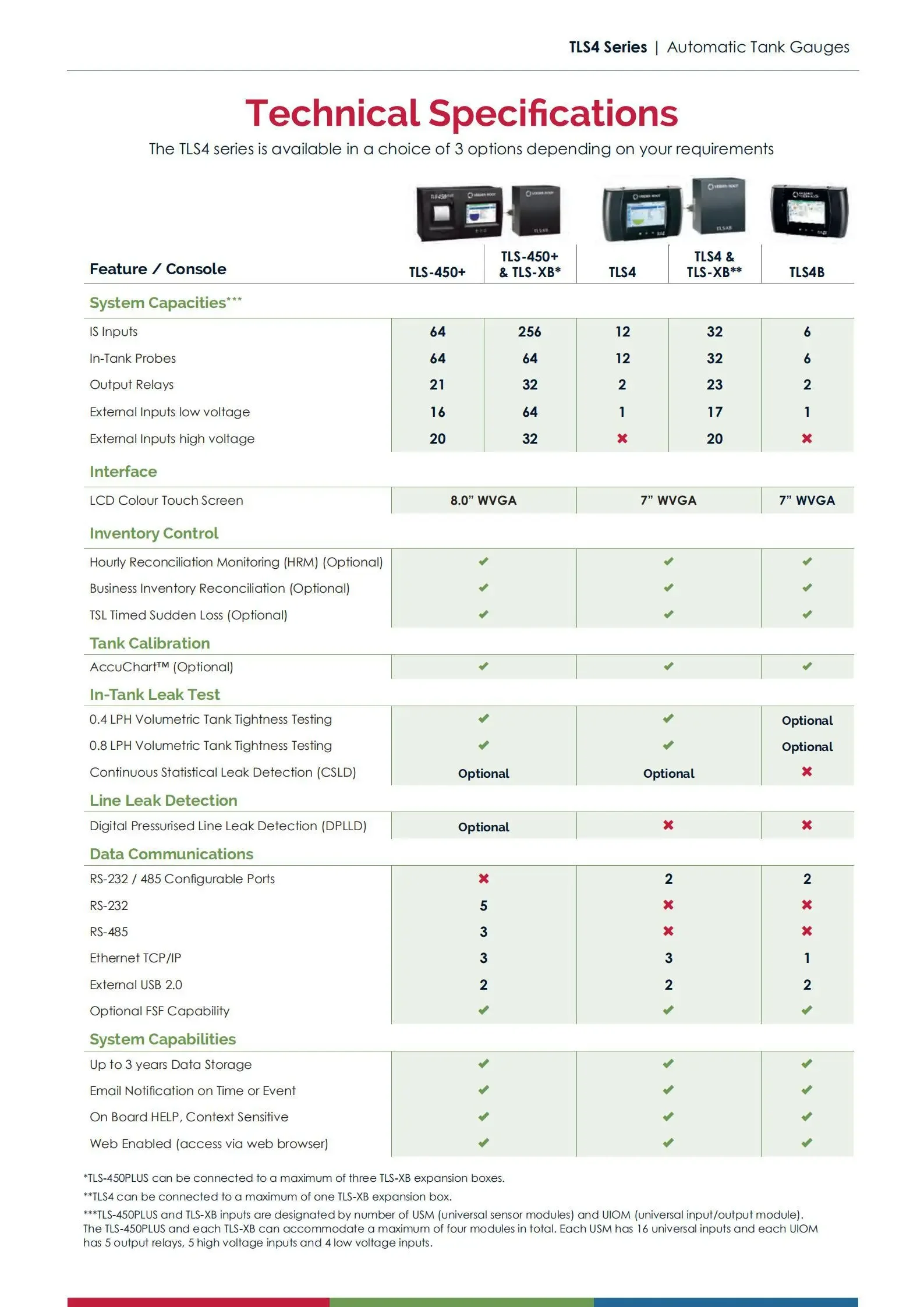

Specification
Number of Tanks Monitored | 64 | ||||||
Number of Tanks Monitored with Business Inventory Reconciliation | 32 | ||||||
Sensor Inputs | 99 of any one type | ||||||
Line Leak Testing | 16 lines | ||||||
High Voltage Outputs | 32 | ||||||
High Voltage Inputs | 32 | ||||||
Low Voltage Inputs | 16 | ||||||
Touch Screen Display | 8” Color WVGA LCD | ||||||
Printer | Thermal | ||||||
Connectivity | * Ethernet * RS-232 * RS-485 * USB * SiteFax * EDIM | ||||||
Available Modules | * Universal Sensor Module * Universal Input / Output Module * 10 Amp Relay Controller Module * MDIM / LVDIM | ||||||
Storage Temperature Range | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | ||||||
Operating Temperature Range | +32 ° F to 104 ° F (0 ° C to 40 ° C) | ||||||
Dimensions | 18.4 x 11 x 8.8 | ||||||
Approvals | * UL, cUL * ATEX * IECEx * Third party certification of leak detection capabilities | ||||||
