Three-phase industrial dry type transformer


QSG/SG three-phase dry type isolation transformer is a new generation energy-saving power transformer developed by our factory based on international similar products and combined with China’s national conditions, from 300VA to 1600KVA, in line with international and national standards such as IEC439 and GB5226. The winding adopts the method of winding out the hole row. The transformer is vacuum-impregnated, so that the insulation grade of the transformer reaches F class or H class, and the product performance reaches the advanced level at home and abroad. QSG/SG series three phase dry type isolation transformer is widely used in circuits with AC 50Hz to 60Hz and voltage below 2000V. all can be specially customized as per different requirements of the end users.

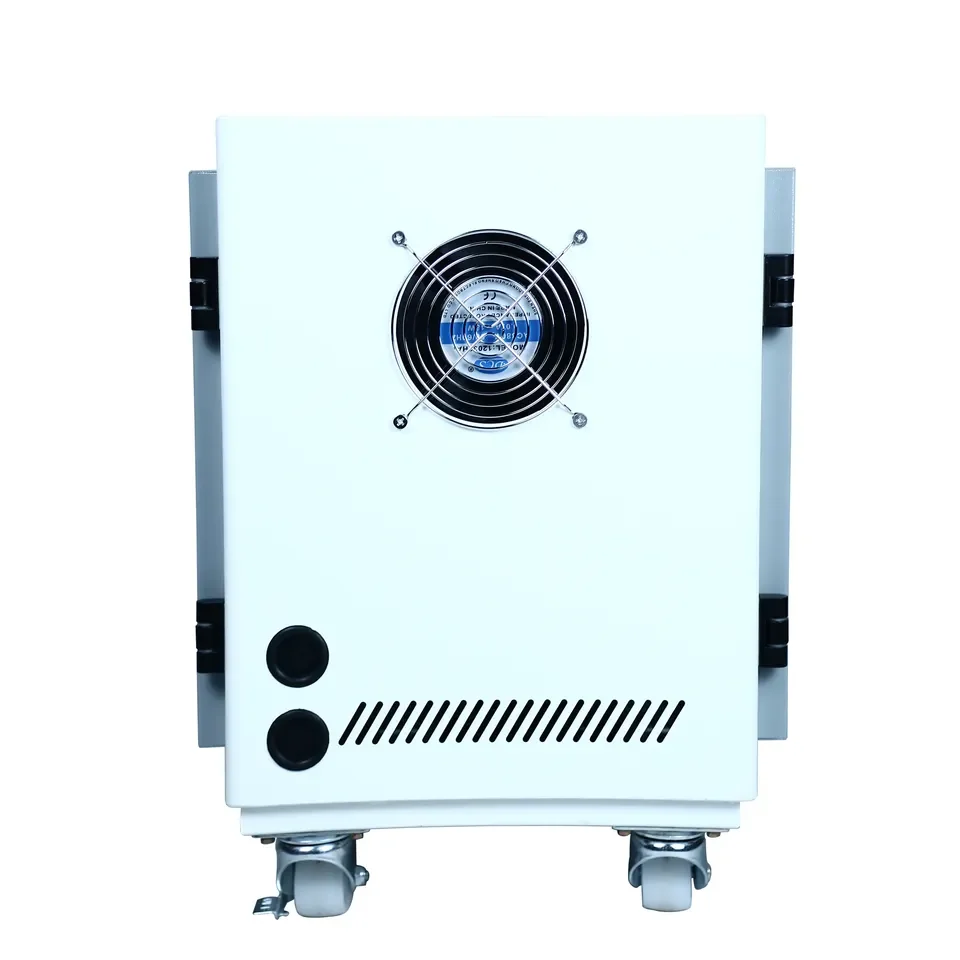

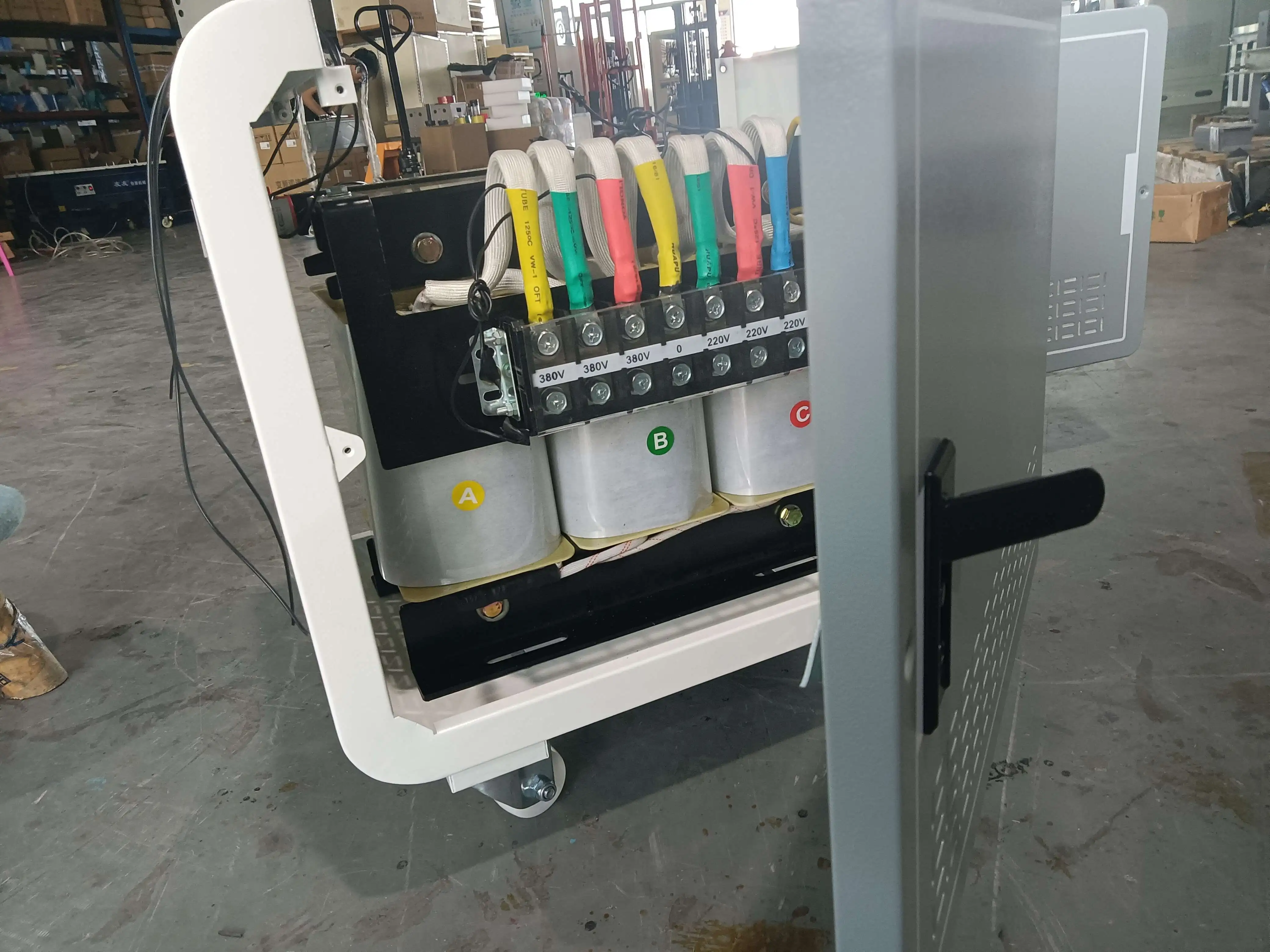

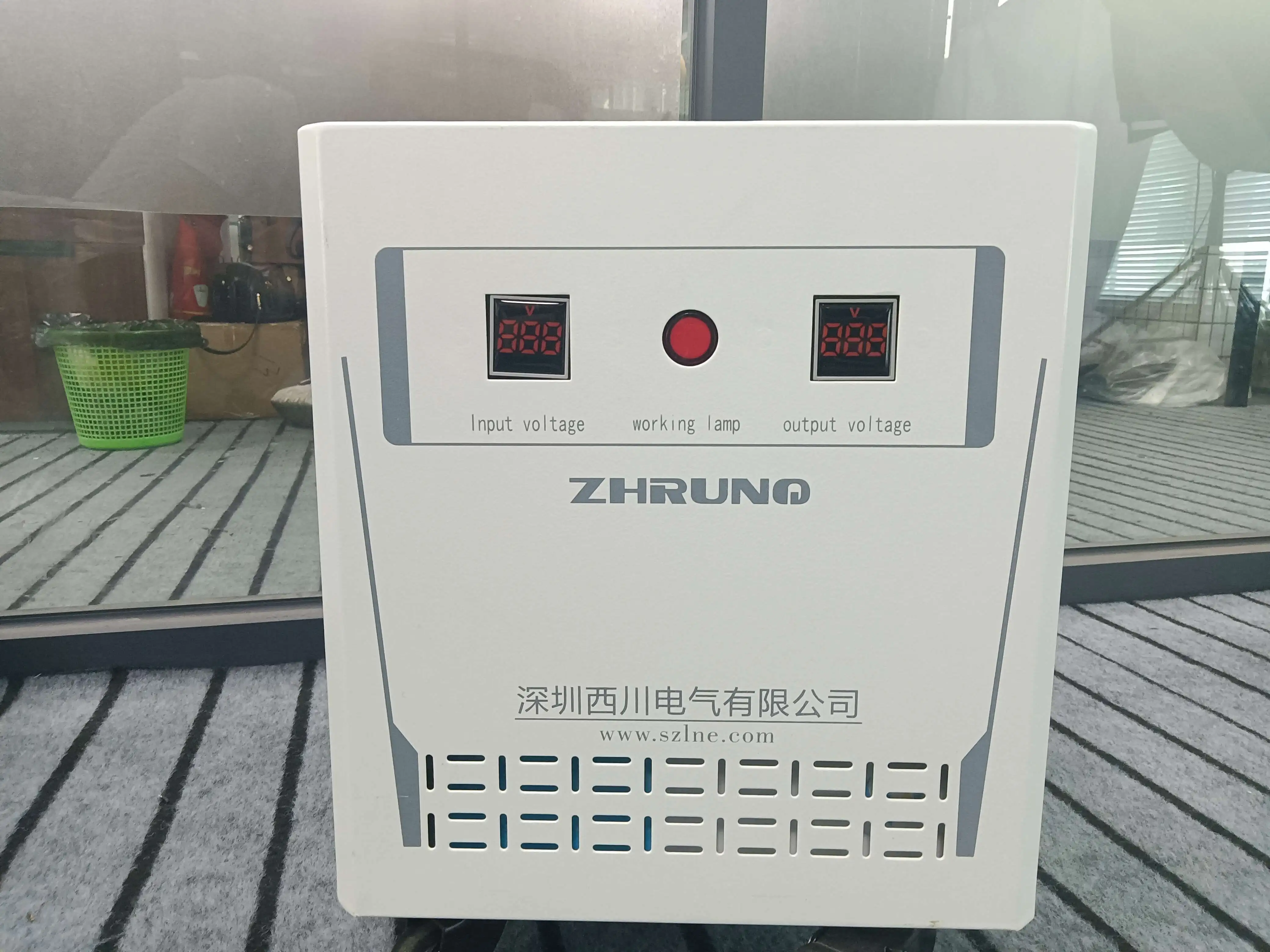

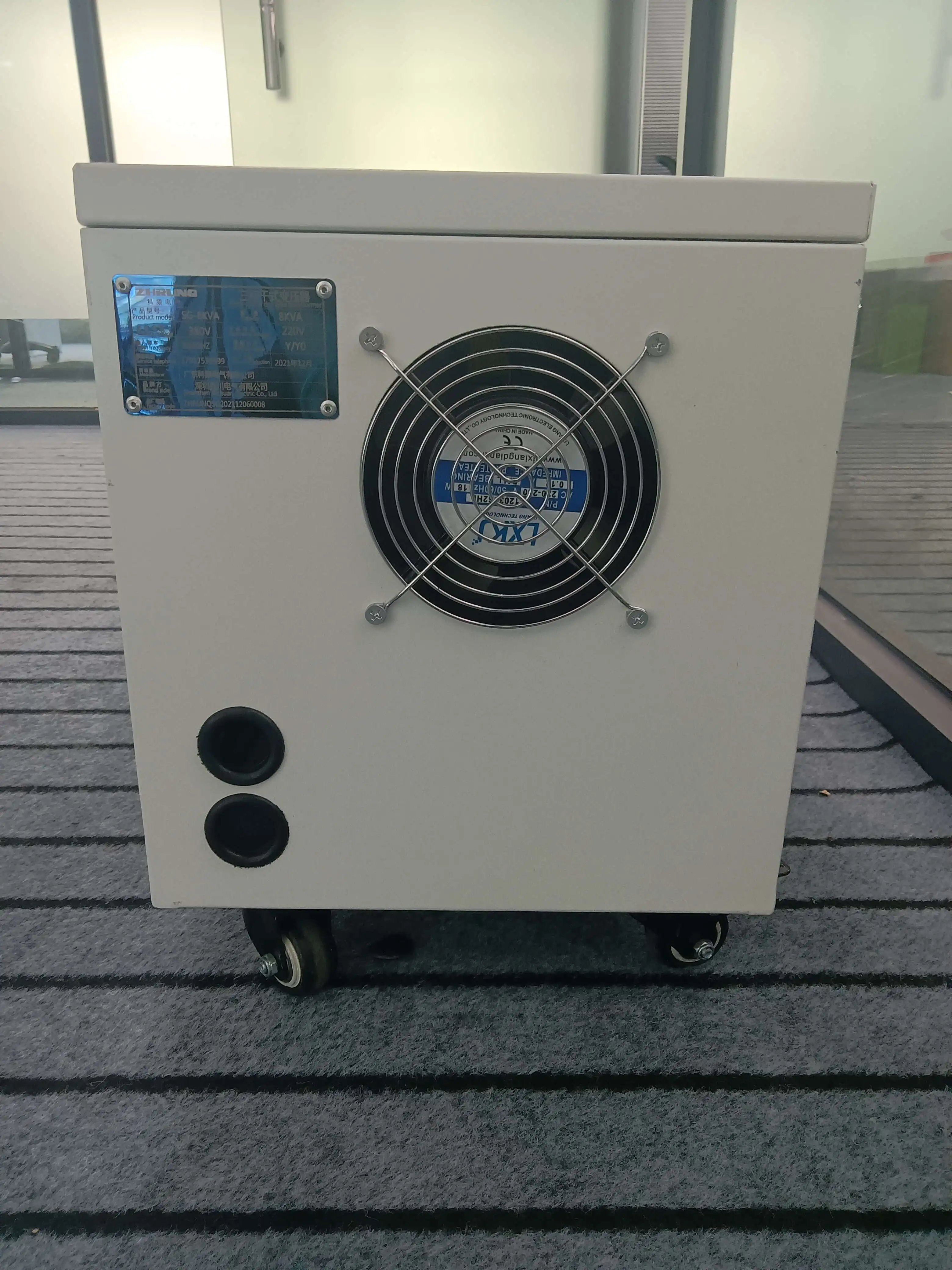

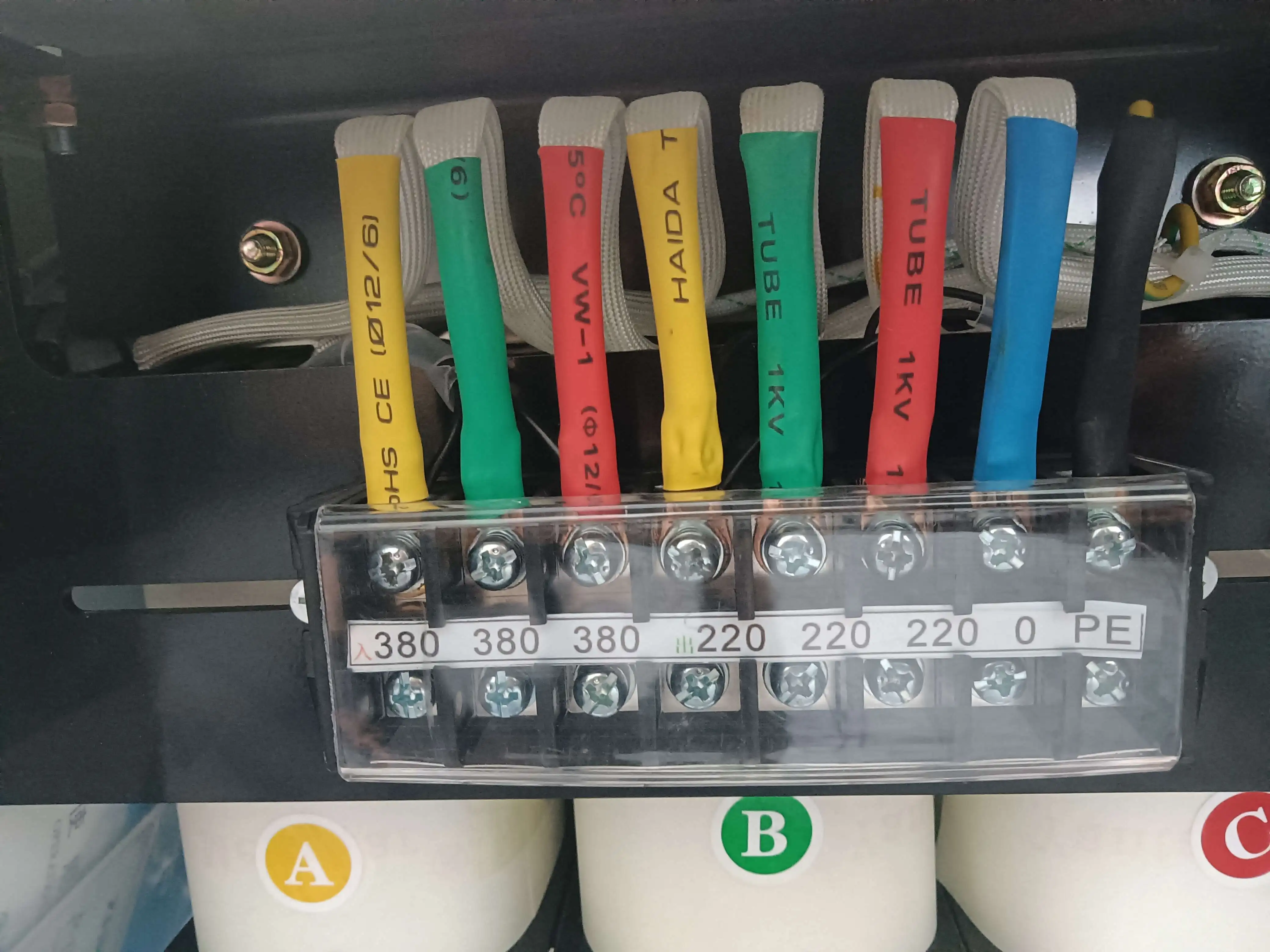

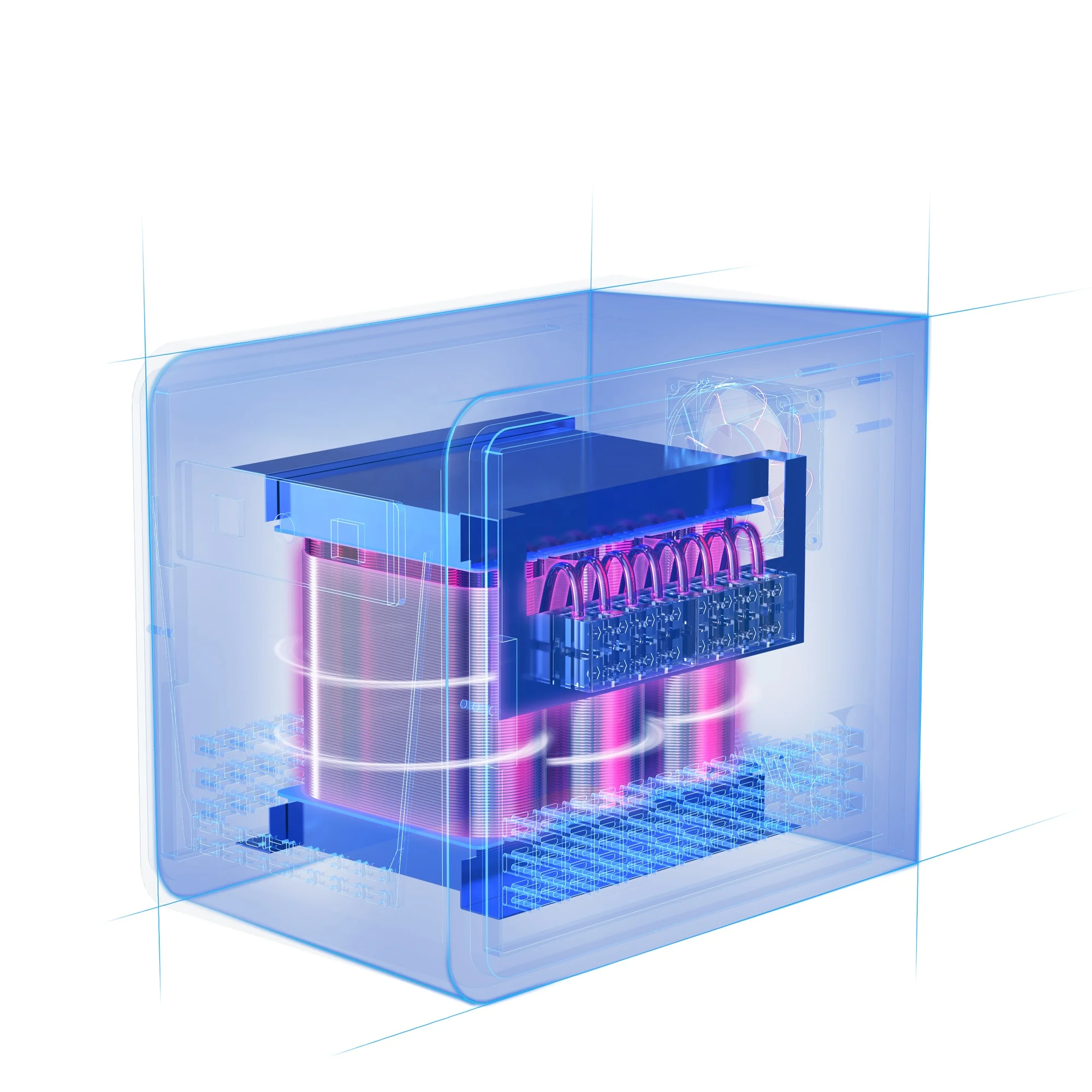

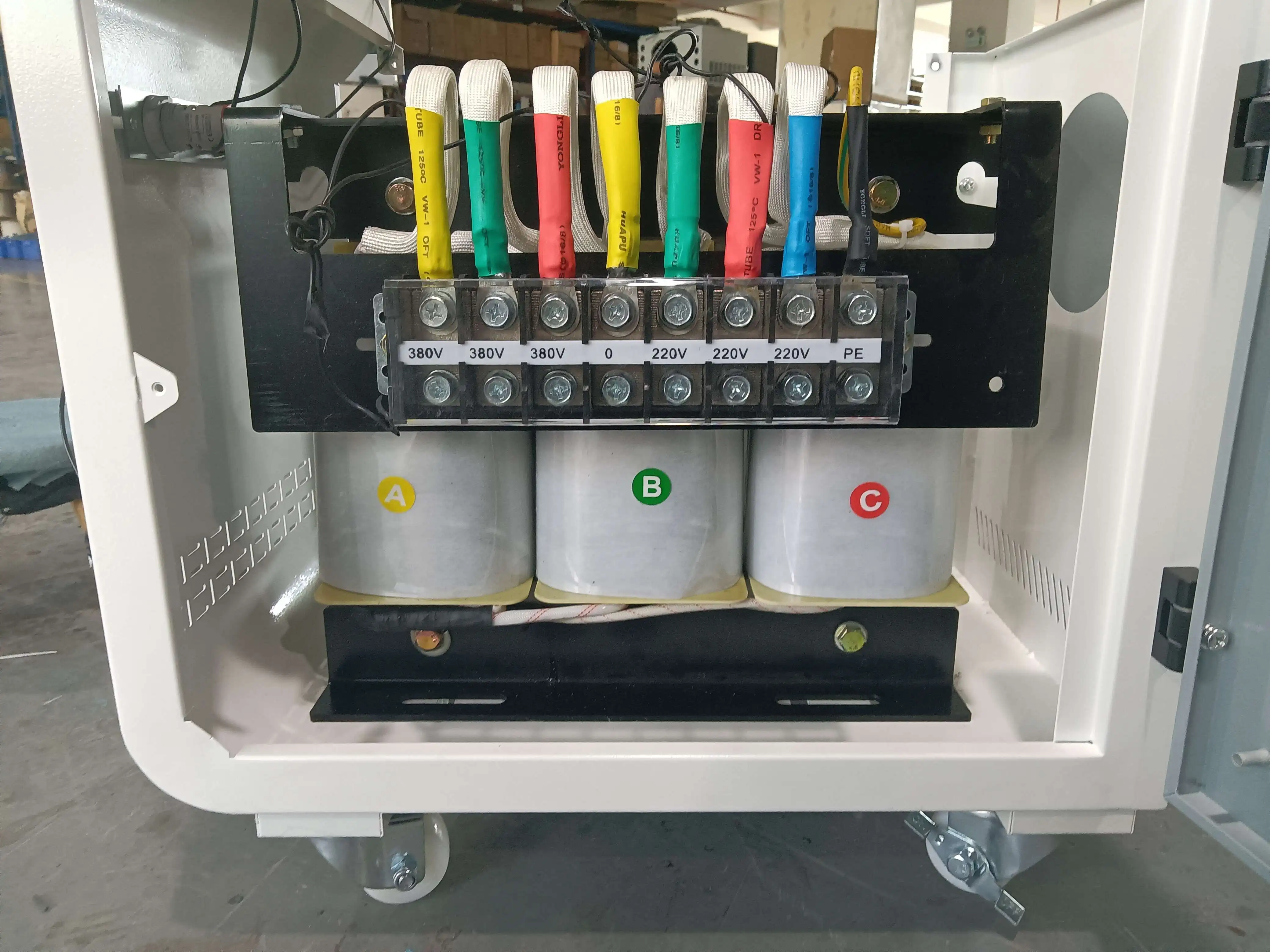

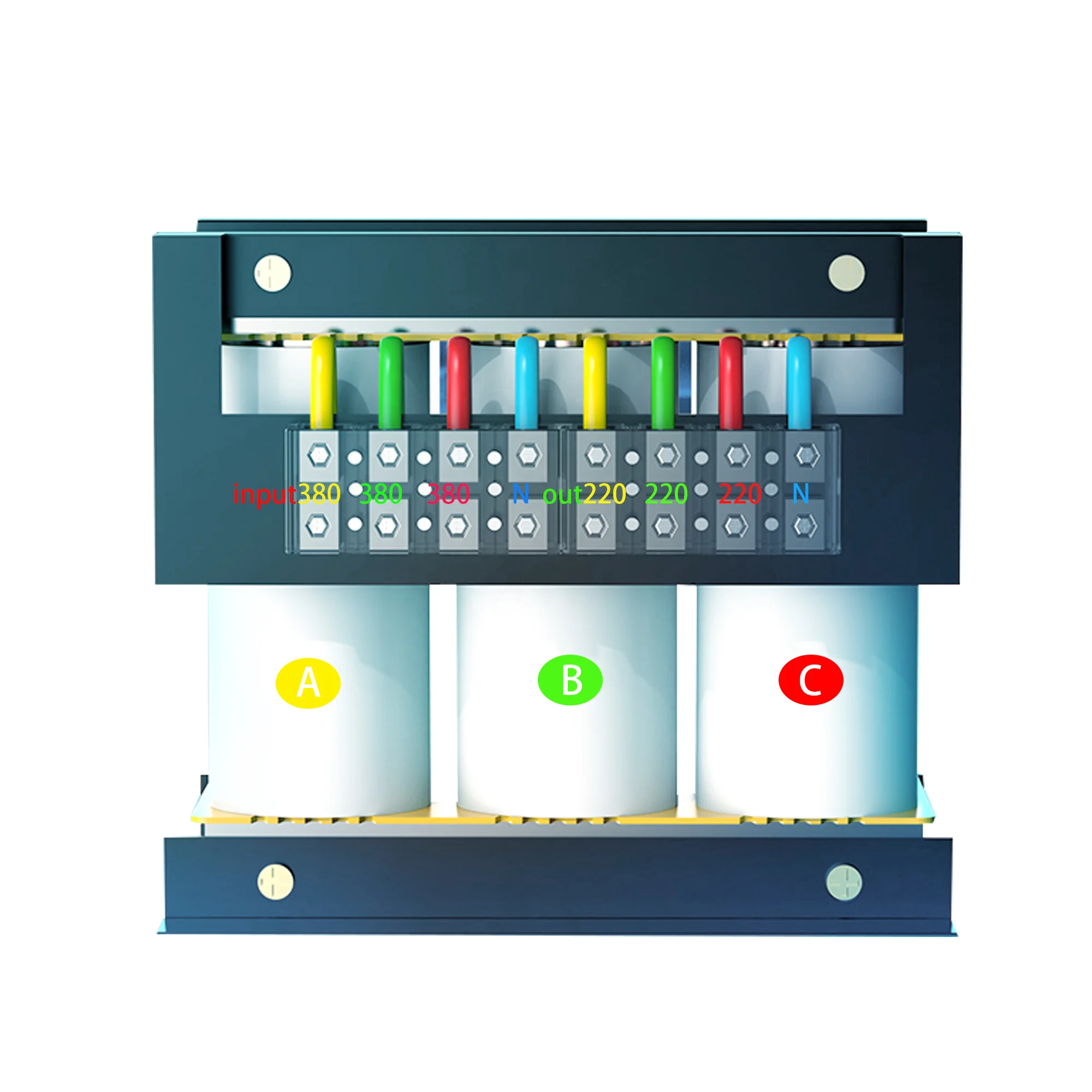

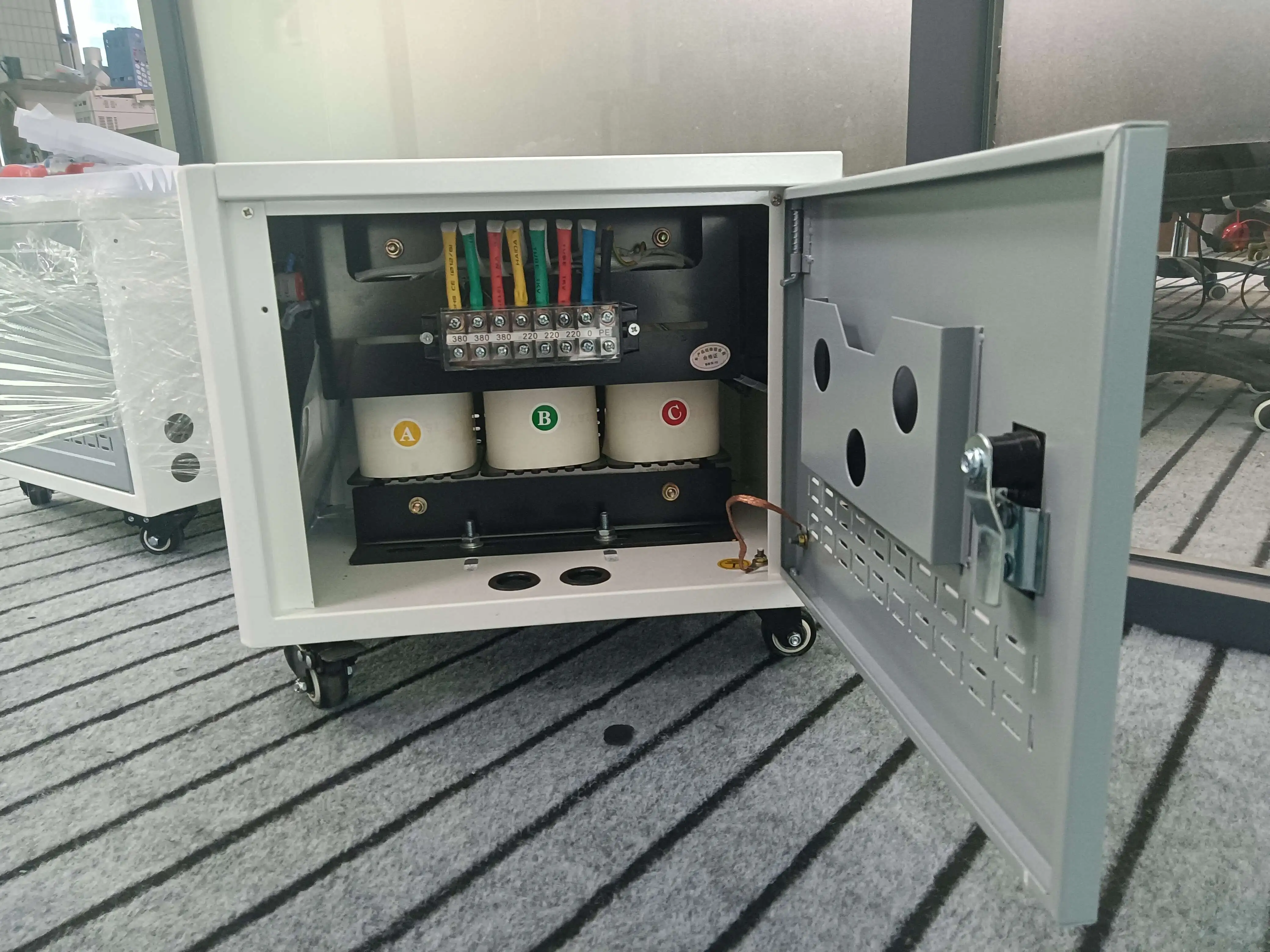

30kva 3 phase voltage transformer detail pictures:








Main technical parameters
Capacity
single phase 1K-500kVA
input voltag
single phase220V/Three-phase380V
Three-phase 3K-1500kVA
Customize it to your needs
Connection group
Y/△ Any combination
output voltage
Customize it to your needs
Efficiency
N98%
Frequency
50/60HZ
Cooling mode
Natural cooling or temperature controlled forced air cooling
noise
W60dB （excluding forced air cooling system）
Insulation resistance
N5M
temperature rise
W75C
Electrical strength
2500VAC/lmin
Ambient temperature
-20 ~ +40C 93% humidity
Insulation
class B
Overload capacity
1.2 Rated load for 2 hours




SG/SBK-Model specifications (380V-220V/200V)


Nominal capacity(KVA)
The input voltage(V)
The output voltage(V)
Rated output current flow(A)
Reference dimensions
(Actual subject)
10
380V
220/200
26
29
450*450*500
15
380V
220/200
39
43
500*450*550
20
380V
220/200
52
58
550*500*650
30
380V
220/200
78
86
550*500*600
40
380V
220/200
105
115
550*550*700
50
380V
220/200
131
144
600*550*700
60
380V
220/200
157
173
600*550*750
80
380V
220/200
209
231
600*550*750
100
380V
220/200
262
289
650*600*900
125
380V
220/200
238
361
700*600*960
150
380V
220/200
393
433
800*600*900
180
380V
220/200
472
520
900*700*950
200
380V
220/200
524
578
900*800*1000
250
380V
220/200
656
723
1000*800*1150
300
 380V
220/200
787
866
1100*800*1100
350
380V
220/200
918
1010
1100*800*1200
400
380V
220/200
1049
1155
1300*800*1300
500
380V
220/200
1312
1443
1200*800*1200
600
380V
220/200
1576
1734
1300*800*1300
800
380V
220/200
2100
2309
1400*1000*1600
1000
380V
220/200
2624
2887
1400*1000*1600

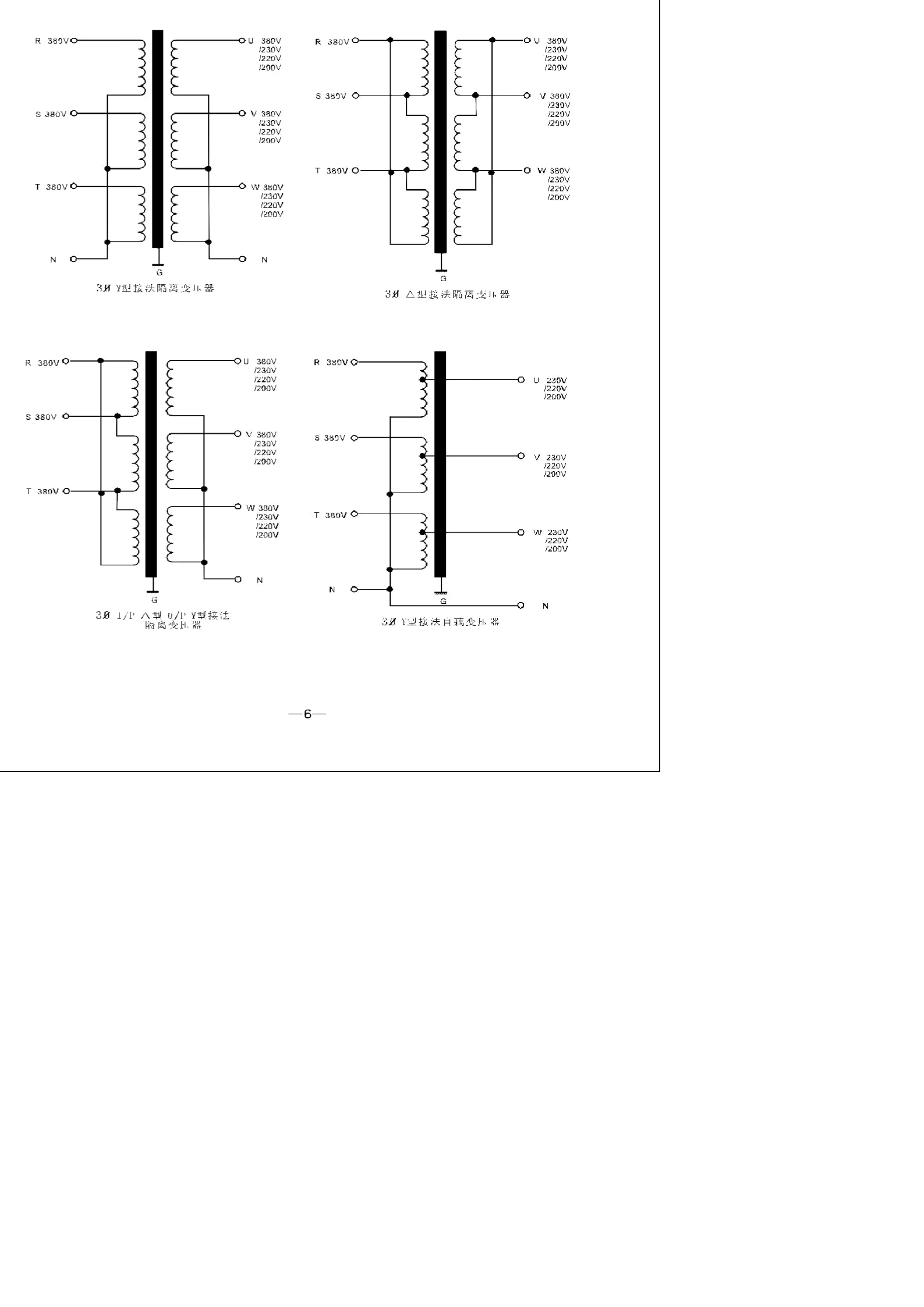

Wiring diagram principle




3 Y- type connection isolation transformer
3 △-Type v connection isolation transformer




3 I/P △ O/P Y-Type v connection isolation transformer
3 Y-type connection autotransformer


3 phase transformer product mix




※Auto-transformer consists of cylindrical winding and laminated core.The iron core is made of Taiwan high-quality silicon steel silicon steel plate stacking, full-oblique seams. Winding using the whole row denomination winding method. After twice vacuum pressure dipping, and 110 ℃ high temperature baking for 4 hours, the insulation of the transformer can achieve grade F or H-class. Full load temperature would not exceed 65 ℃. Finally, three is almost no noise and vibration phenomenon.
※Voltage conversion functions(eg:delta/Yo or Yo/ delta connection) Filter anti-interference function(eg:Can remove three times harmonics) .With the function of heat resistance,moisture resistance,stability,chemical compatibility, low temperature resistance,radio resistance and non-toxic environmental protection, etc.
