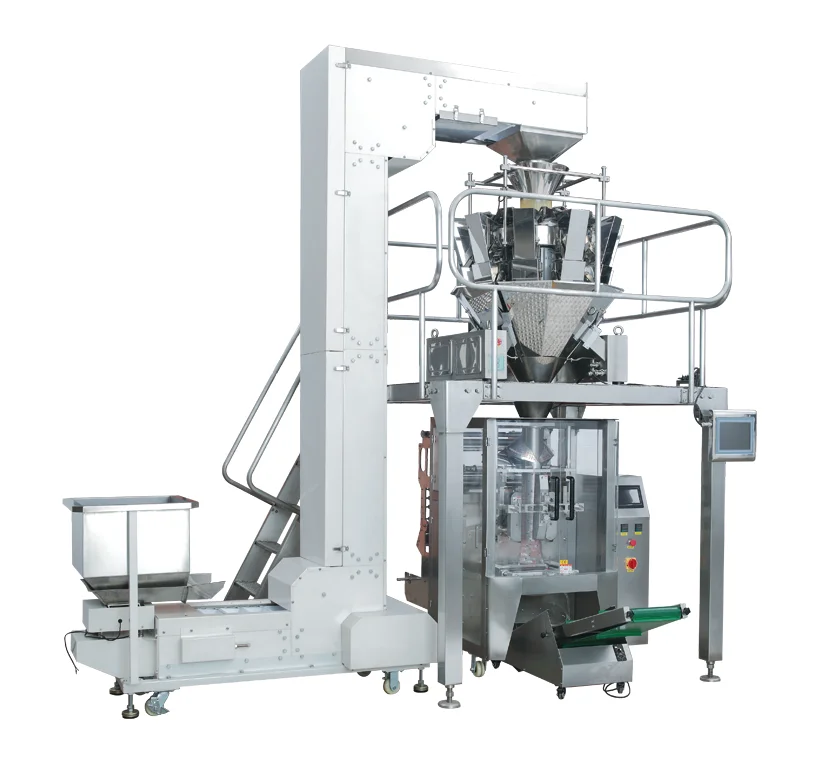

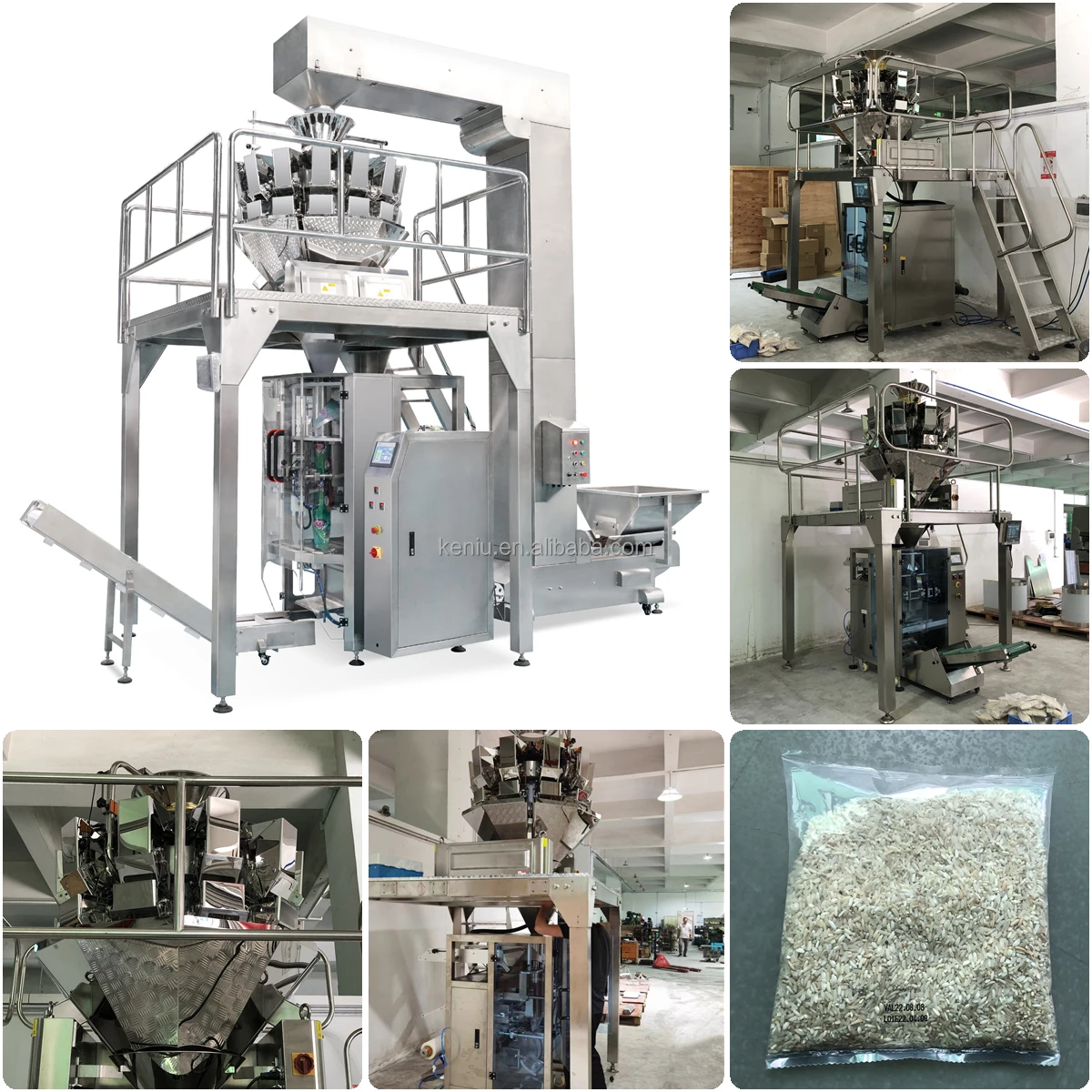

Automatic Weighing Waterproof 250g Scallop Frozen Seafood Dried Shrimp Fish Packing Machine

Product Overview

Description

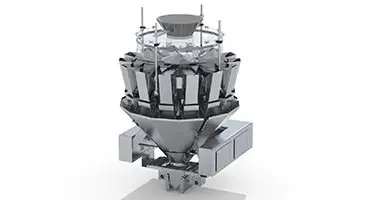

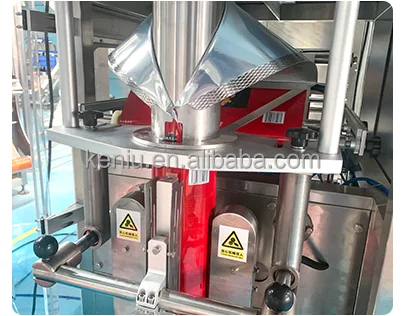

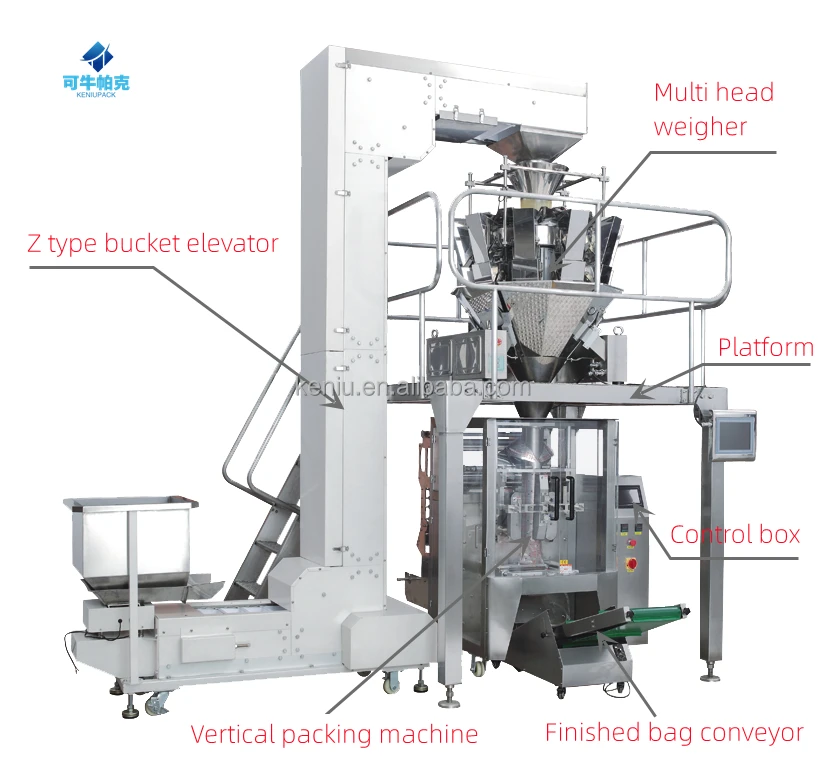

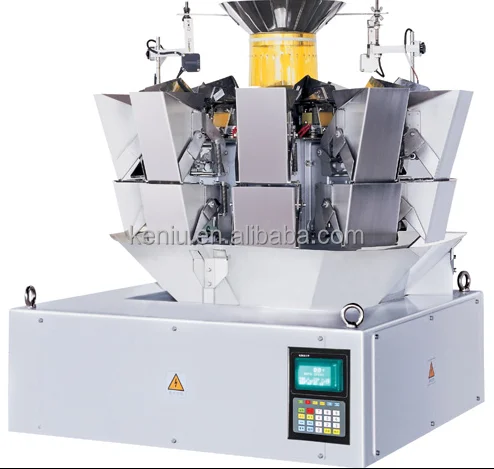

Multi head weigher After the materials are transported to the multi head weigher, the materials are sorted and weighed	Bag making device Make bags according to the set size of the packaging bag

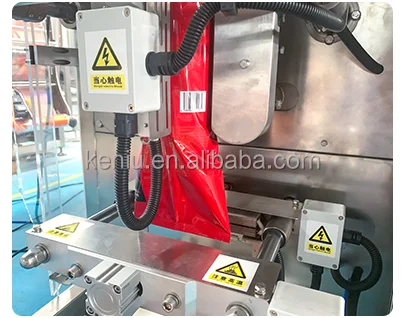

Bags sealing & cutting After packaging, sealing, cut and separate the finished product	Finished product conveyor The packaged products are transported out through the conveyor



Techincal paramter:

Model	KN-320/B	KN-420/B	KN-520/B	KN-620/B	KN-730/B	KN-420/T	KN-420/V

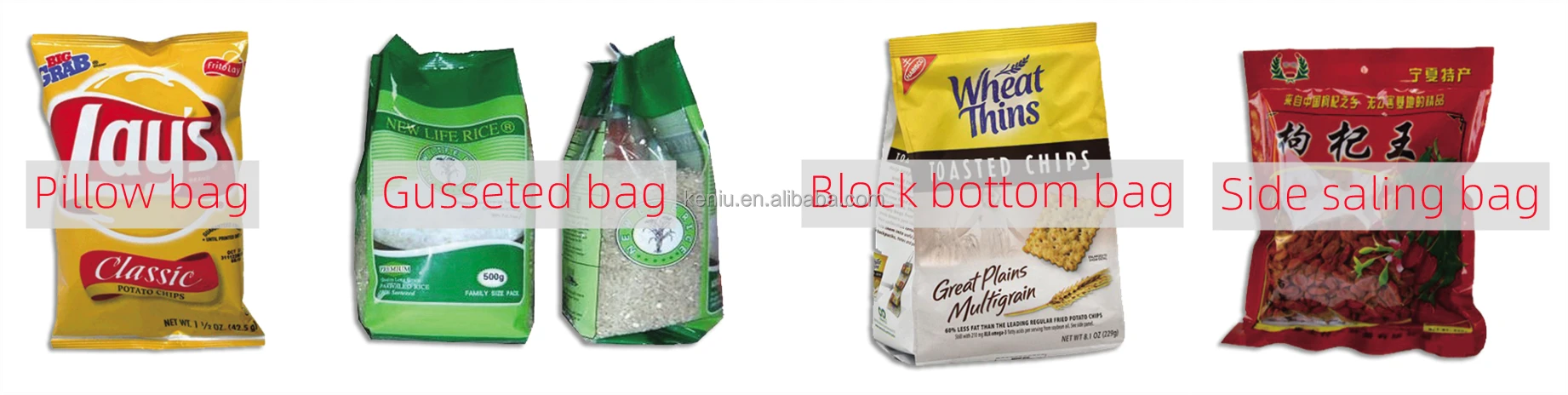

Sealing type	Pillow bag/ Gusseted bag					Block bottom	4 side seal
Volume	Max 500ml	Max 1000ml	Max 2000ml	Max 3000ml	Max 5000ml	Max 1000ml	Max 1000ml
Bag size (mm)	L:50-230 W:50-150	L:50-300 W:60-200	L:80-350 W:100-250	L:100-400 W:80-300	L:100-450 W:80-350	L:50-280 W:60-210 D:30-70	L:50-280 W:60-210
Speed: BPM	65bag/min	60bag/min	50bag/min	45bag/min	40bag/min	35bag/min	30bag/min
Film width	320mm	420mm	520mm	620mm	730mm	420mm	420mm
Film thickness (mm)	0.06-0.1	0.06-0.1	0.06-0.1	0.06-0.1	0.06-0.1	0.06-0.1	0.06-0.1
Power	2.0kw	2.2kw	2.5kw	4.0kw	4.5kw	2.2kw	3.5kw
Air source	0.8Mpa, 400L/min			0.8Mpa, 600L/min		0.8Mpa, 500L/min
Mac size	120*90*130	130*110*160	170*120*180	160*120*200	170*130*220	130*110*180	130*110*160
Weight	300kg	450kg	650kg	800kg	900kg	700kg	500kg
Weigher	1. Multi head weigher  2, Screw weigher  3. Pump

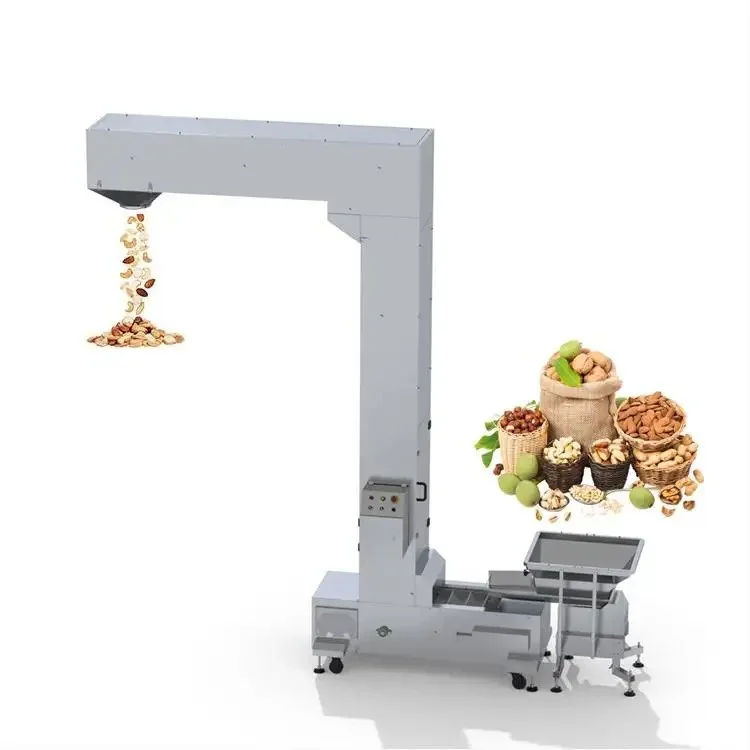

Loading	Z type bucket elevator, Screw elevator, Vacuum feeder, Liquid feeding pump

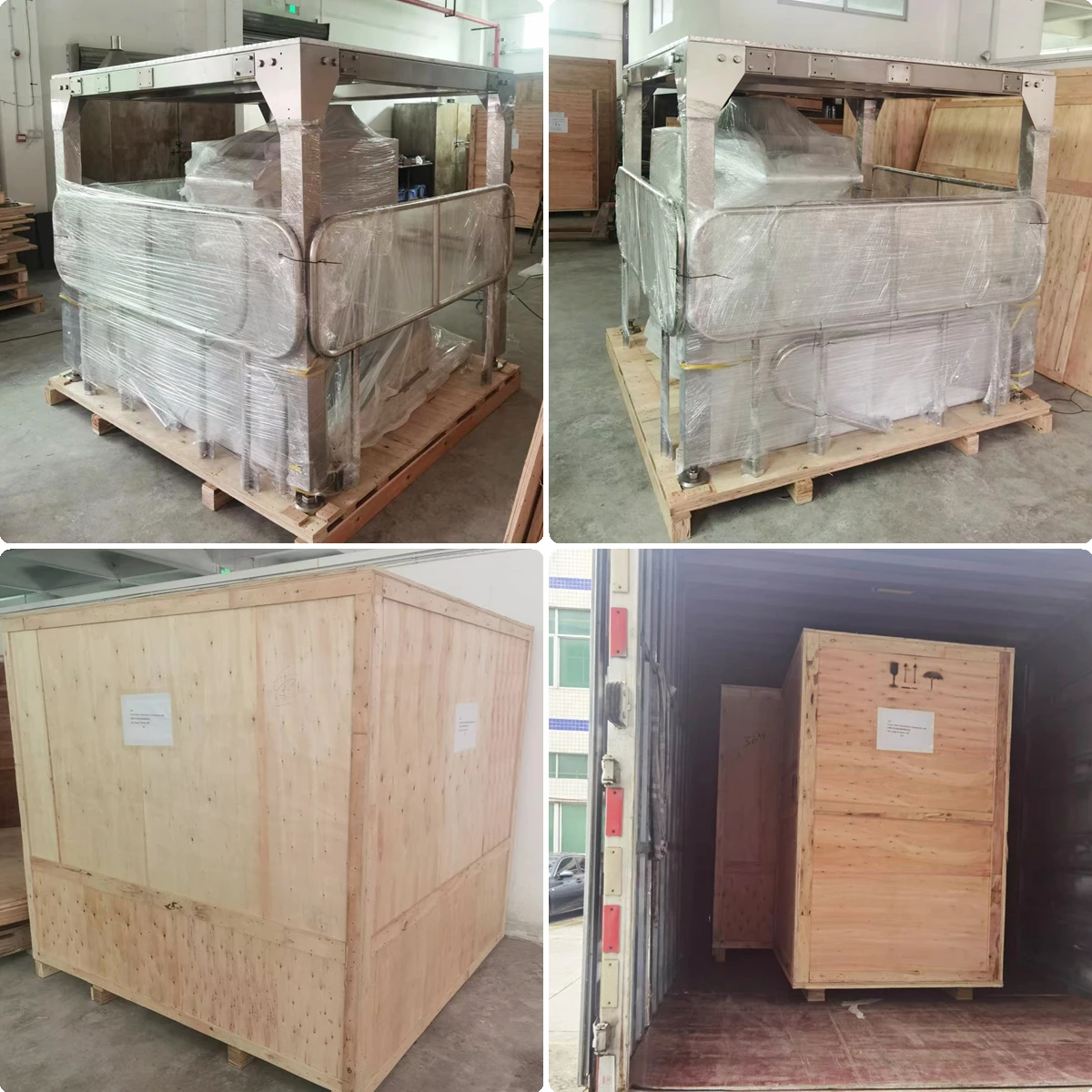

The packaging machine equipment will be installed and debugged in the factory before being sent to you, and then the whole set packing machine will be packed into a large export wooden box and then into the container. There is no need for much installation when you receive the equipment



1, Divide Machine Into Modules
2, Wrap Modules With Plastic Film
3, Packing Modules Into Plywood Cases
4, Mark Shipping Mark In The Cases
If Any Special Requirements, We Will Pack It As Requested

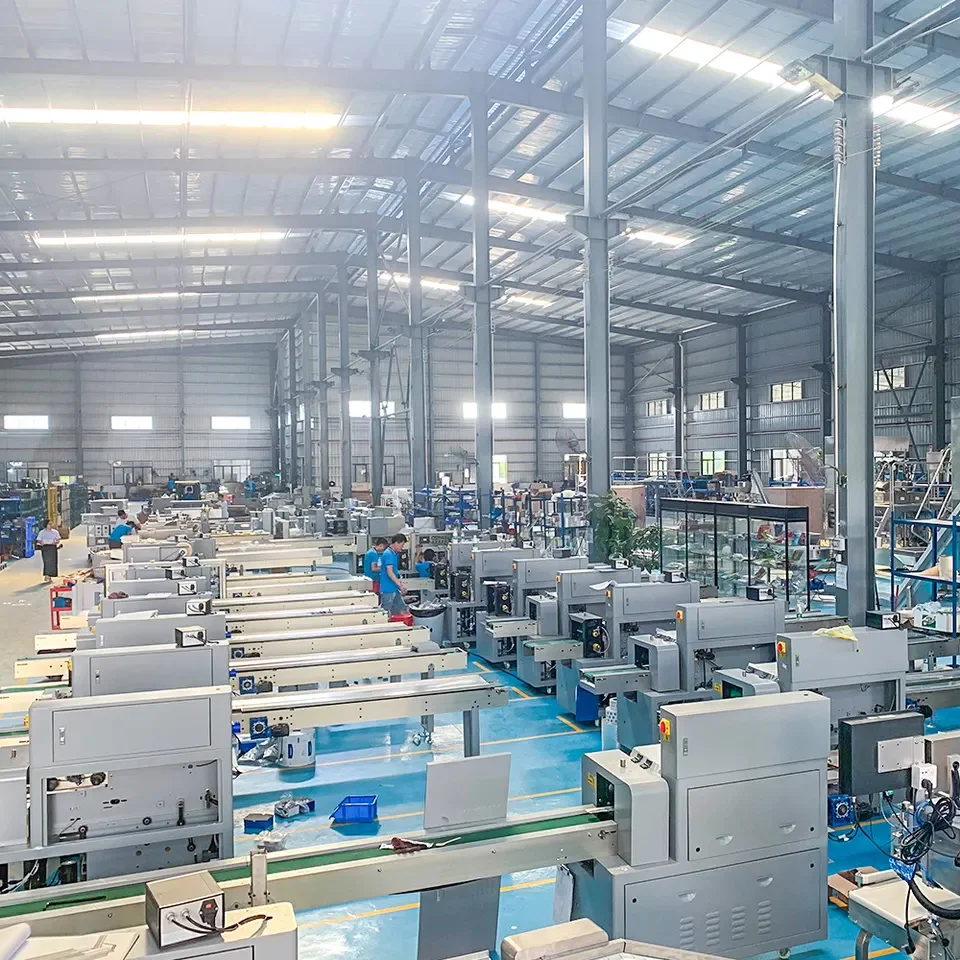

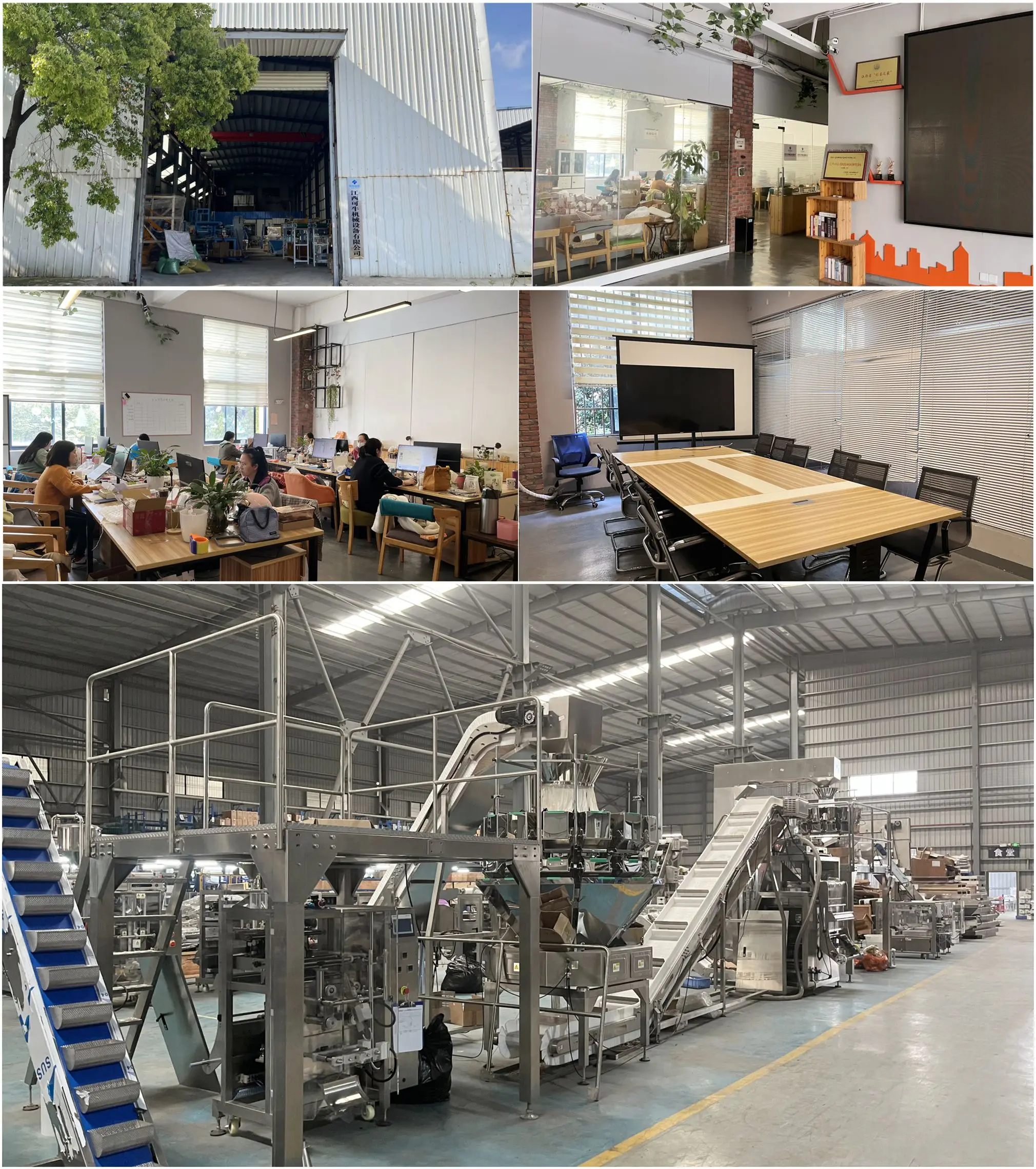

Jiangxi Keniu Machinery Co., Ltd. has been focusing on the production, research and development and sales of packaging machinery for 15 years. We can provide you with one-stop packaging solutions, from drawing design to production to after-sales installation and debugging. Our products have been sold to more than 80 overseas countries and regions, to provide customers with convenient packaging equipment, and widely accepted and praised by customers. Our sales/after sales team will 24hours online, if you have any questions about packaging, please feel free to contact us.





1. Q: Can you provide after-sale service?
A: Of course, manual/installation video/online video instruction will provided,and we have engineers available to service machinery overseas.

2. Q: Can you have our logo or company name to be appeared on your machine?
A: Yes.



3. Q: What’s the information should I let you know if I want to get a full quotation?
A: Bag type, size, weight of material, type of material, thickness, printing, colors, quantity.

4. Q.Are you a real factory?
A:Yes,of course.We have years’ experience in making packing machines. So We can give you the most competitive price.And welcome
to visit our factory.

5. Why choose us?
-OEM Experiences above 15 Years In packaging Industry.
-Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality.
-Have stable supply chain which can gurante our product quality and prompt delivery.
-Trial Order small quantity for retail and wholesale are accepted.
-Fully equipped with advanced machines and Experience workers.
-Become Alibaba Assessment Supplier and Passed BV&TUV Factory Audit .
-Sincere Service!(Effective pre-sale communication+Good after sale service)
