2024 Off Road Buggy 200cc Dune Buggy Go Karts for Adults
- Category: >>>
- Supplier: Shanghai Lannmarker Vehicle & Accessories Co. Ltd.
Share on (1600850898451):
Product Overview
Description

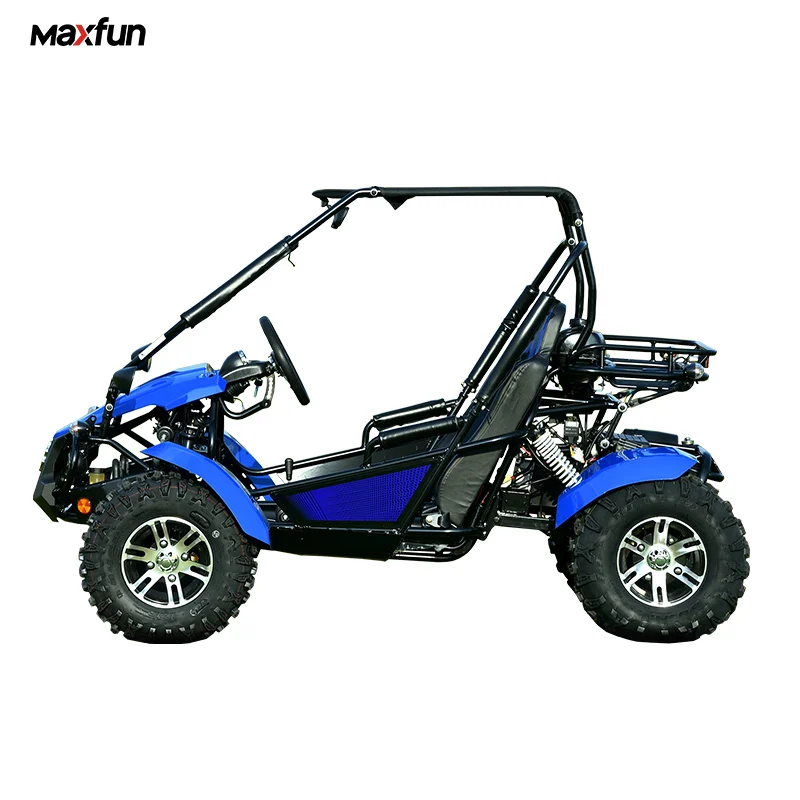

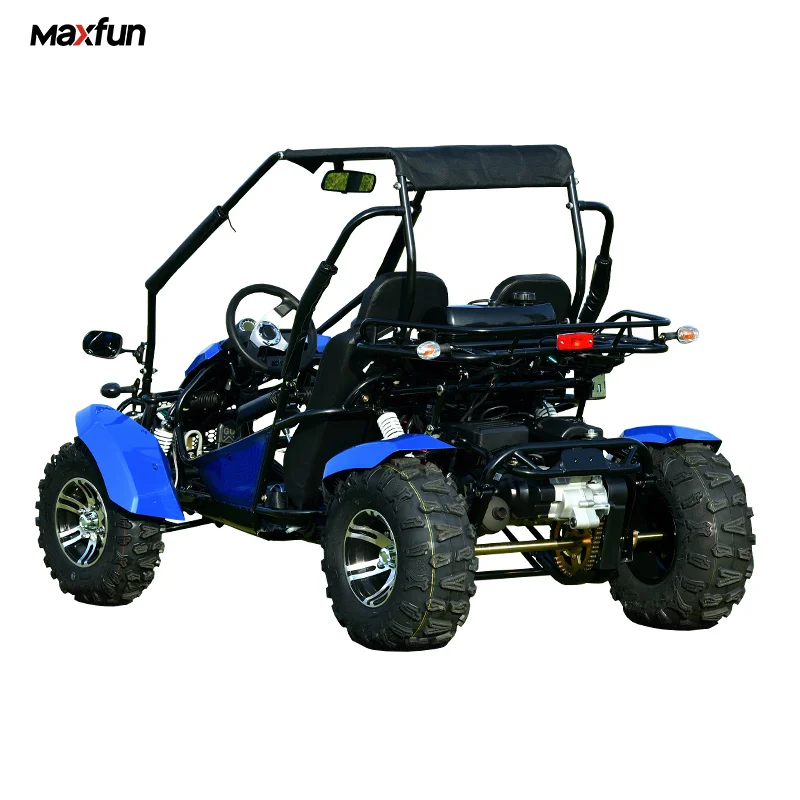

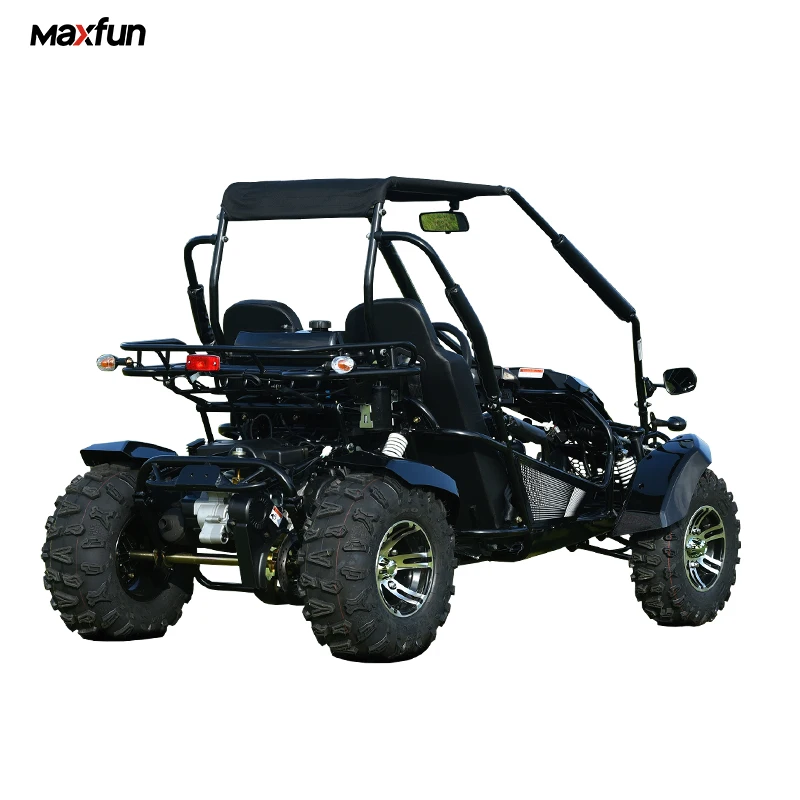

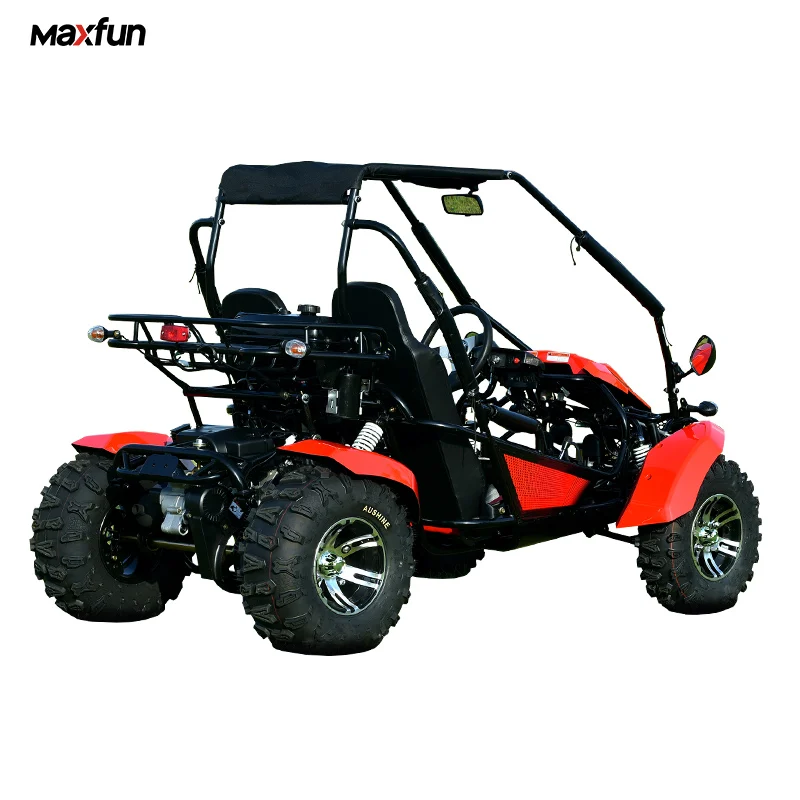

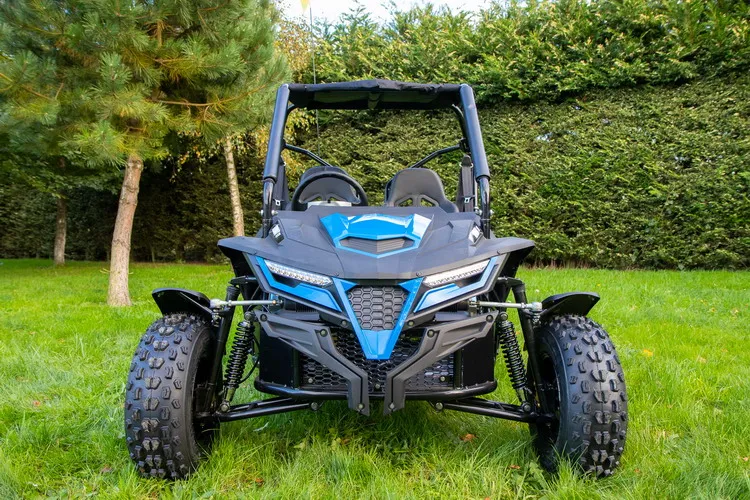

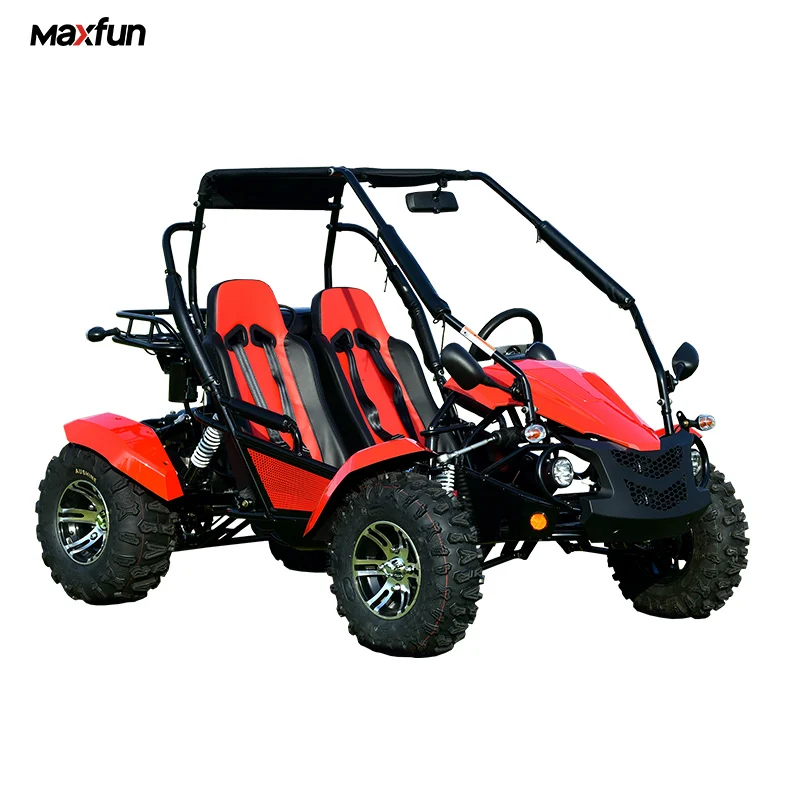

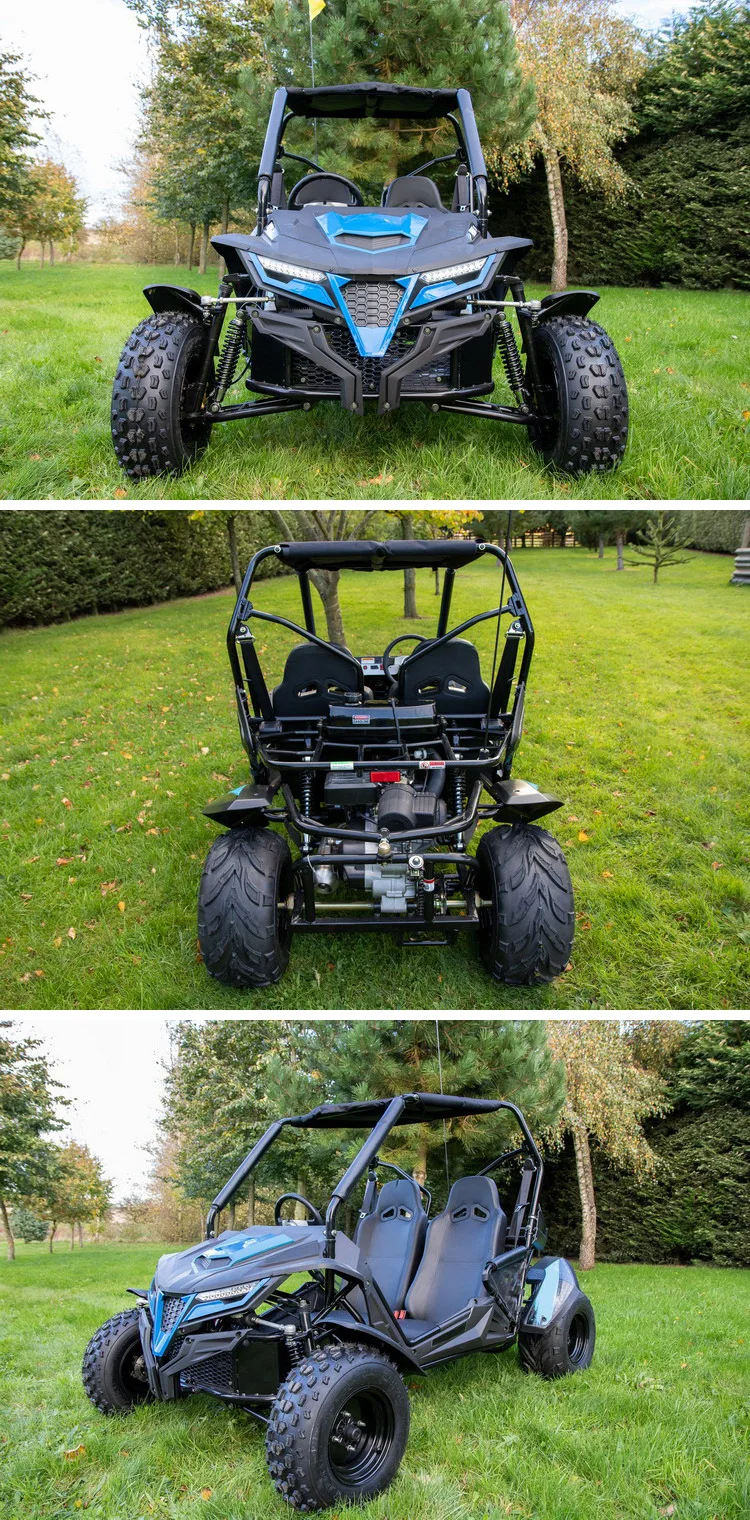

Go Kart ZIMO 168.9cc Junior Off Road Buggy K5
ZIMO Go karts are the global patented products, both appearance and structural inverntion patent. Unique stylish vehicle
design,special safe structural design make driving experience more exciting and safer. With reverse as standard, engines
technology is mature and reliable, parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely,throw slide, never roll over. Could drive through river, crossing with water 20cm deep in it and run it over.
design,special safe structural design make driving experience more exciting and safer. With reverse as standard, engines
technology is mature and reliable, parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely,throw slide, never roll over. Could drive through river, crossing with water 20cm deep in it and run it over.
Model | K3 | K5 | ||
Dimension (mm) | L x W x H | 1950x1290x1430 | 2340x1400x1480 | |
Package Size | 2000x1150x660 | 2300x1200x660 | ||
Height to Seat | 400 | 470 | ||
Min. Ground Clearance | 100 | 150 | ||
Wheelbase | 1450 | 1800 | ||
Pedal to Seat Back | 820-960 | 920-1060 | ||
Type | JF210, 4-stroke, single cylinder, air cooled | 161QMK-A, 4-stroke,single cylinder,air cooled | ||
Displacement (cc) | 208 | 168.9 | ||
Output Max. Power (Kw) | 5.5KW /3600RPM (7.48HP) | 7.6KW@7500 RPM | ||
Max. Torque | 11.2NM /2800RPM | 11N.m@5000 RPM | ||
Bore x Stroke (mm) | 70 x 54 | 2.40 x 2.28 inches (61x57.8mm) | ||
Climbing ability | 15° | 12° | ||
Ignition | TCI | CDI | ||
Starting system | Electric start or Pull start | Electric start | ||
Battery | YTX12-BS 12V10AH | YTX12-BS 12V10AH | ||
Gasoline Tank Capacity (L) | 3.6 | 8.516 | ||
Carburetor Item | P19 | PD24J | ||
Max speed (km/h) | 45 | 50 | ||
Clutch | Exernal automatic CTV | Inside automatic CTV | ||
Gears | D-R | D-N-R | ||
Brakes, F / R | Hydraulic disk brake | Hydraulic disk brake | ||
Tires, F / R | 18x7-8 / 18x7-8 | 22x7-10 / 22x10-10 | ||
Suspension, F / R | Dual A-arm / Thru-shaft with dual shocks and dual A-arm | Dual A-arm / Thru-shaft with dual shocks and dual A-arm | ||
Max load | 182kg (400LBS) | 227kg (500LBS) | ||
Gross / Net Weight (kg) | 202 / 182 | 295 / 240 | ||
