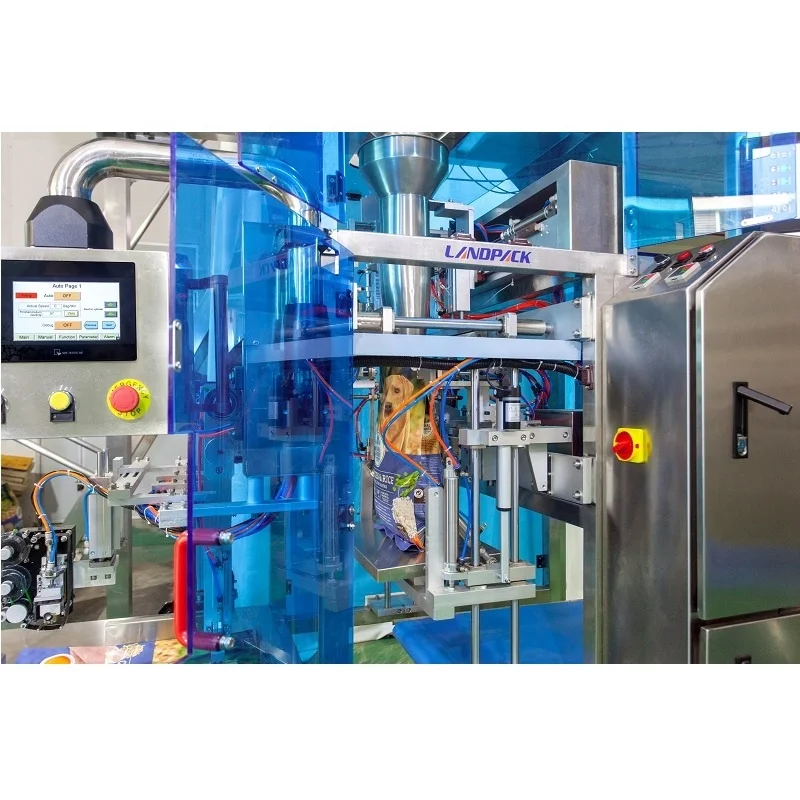

China Manufacturer Automatic Bean Seed Food Pouch Weighing Packaging Packing Machine
- Category: >>>
- Supplier: Foshan Land Packaging Machinery Co. Ltd.
Share on (1600850940658):
Product Overview
Description
China Manufacturer Automatic Bean Seed Food Pouch Weighing Packaging Packing Machine
Recommend Products
Contact us
Company Profie
Features
7kg/bag pet food Premade bag packing machine
1. Mini doypack machine with compact design to pack heavy capacity.
2. Bag giving station with date printer.
3. Zipper opener device.

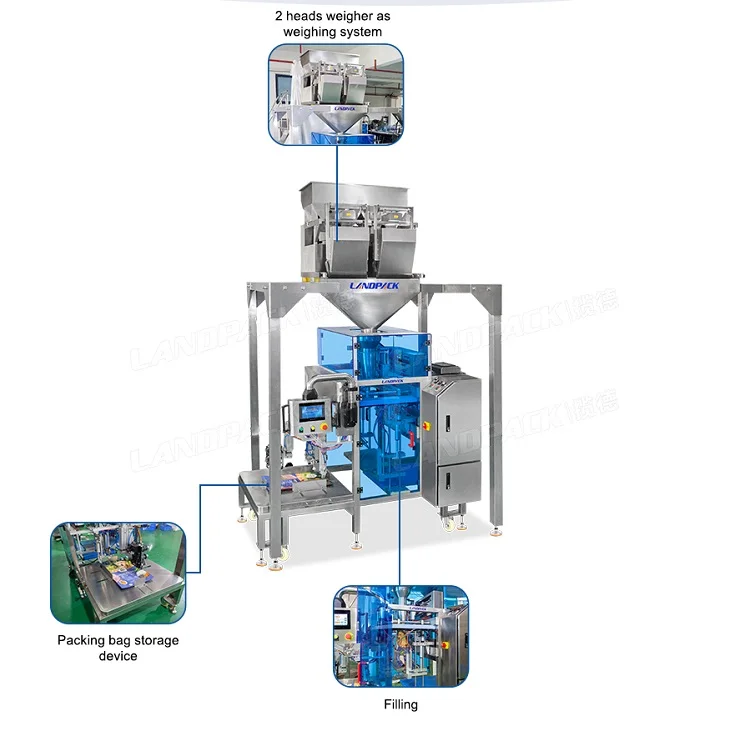

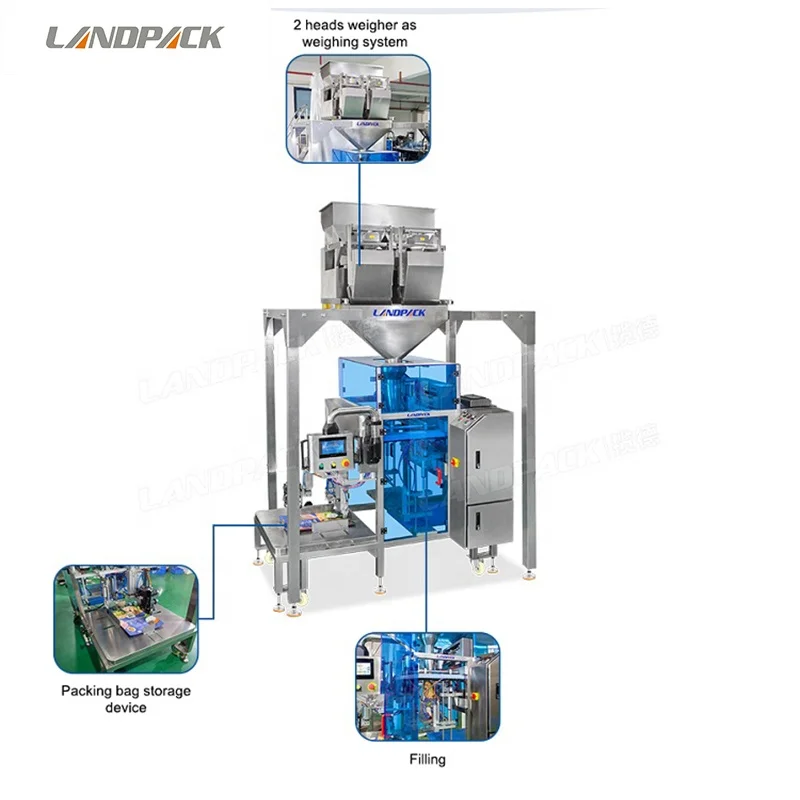

4. 2 heads weigher as weighing system.
5. Packing speed: 5-6 bags/minutes for 7kg/bag.
Work Flow:
1）Bag giving station with date printer.
2）Open the bag.
3) Fill the products.
4) Seal the bag.
1. Mini doypack machine with compact design to pack heavy capacity.
2. Bag giving station with date printer.
3. Zipper opener device.
4. 2 heads weigher as weighing system.
5. Packing speed: 5-6 bags/minutes for 7kg/bag.
Work Flow:
1）Bag giving station with date printer.
2）Open the bag.
3) Fill the products.
4) Seal the bag.
Application
Suitable for conventional granular zipper bags, standing bags, pre-made bags packing such as spices, biscuits, beans, oats, candy, coffee beans, chocolate, pet food, potato chips, popcorn, dried fruits, etc.
Product Paramenters
Specification
Model | LG1-600AS |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
Bag Type | 3 Side Seal Bag, Stand-up Bag |
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
Size Range | 80mm≤W≤300mm 100mm≤L≤430mm |
Speed | 0~15bags/min |
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) |
Sealing Width | 10mm (5--20mm can be customized) |
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
Air Pressure | 0.65Mpa |
Air Consumption | 0.3m³/min (Standard machine, no additional function) |
Body Dimension | 1770*600*1360mm |
Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
Basic Configurations:
Touch Screen | China Kinco 7 inches corlor touch screen | |
Languages | Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages); | |
PLC | Japan Panasonic | |
Cylinder | Taiwai Airtac (Can be upgraded to Japan SMC) | |
Vacuum Generator | China Airbest (Can be upgraded to Vacuum Pump); | |
Vacuum Component | Japan SMC; | |
Modular Control System For Vacuum Pressure | Japan SMC; | |
Modular Control System For Temperature: | China YUDIAN; | |
Electrical Component | Schneider / Omron; | |
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum; | ||
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L). | ||

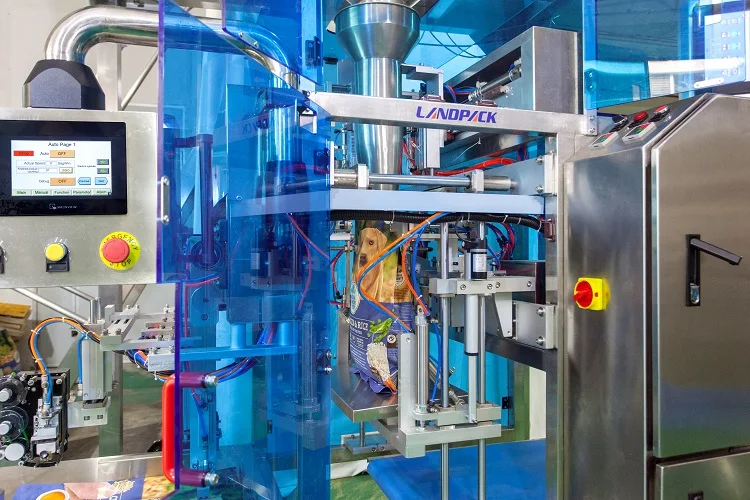

Details Images
