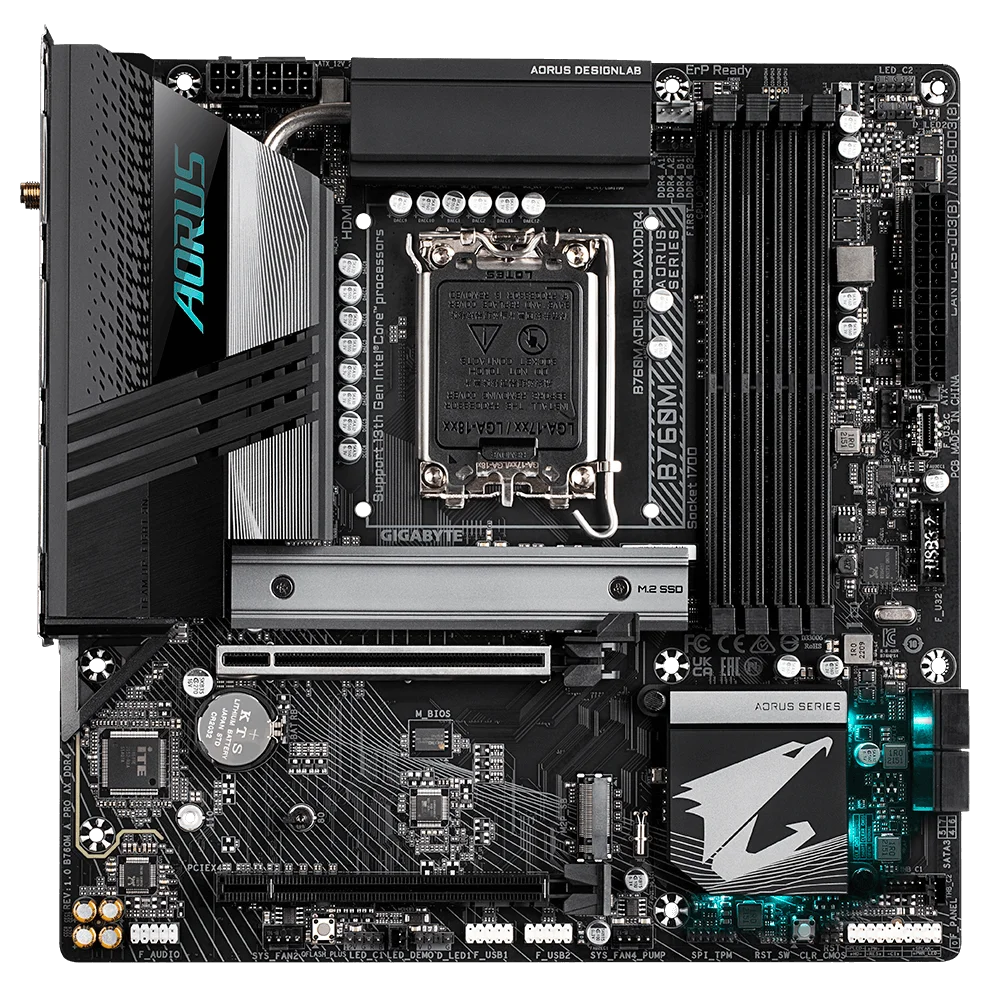

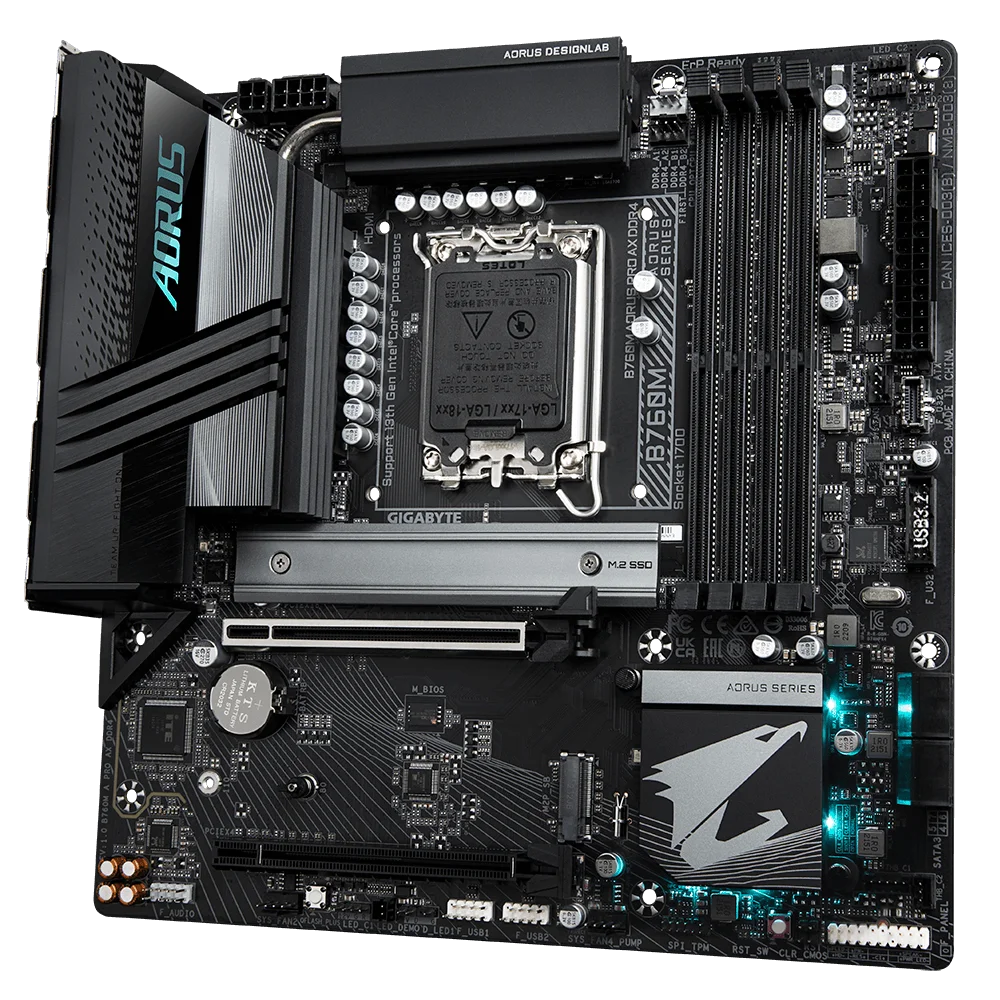

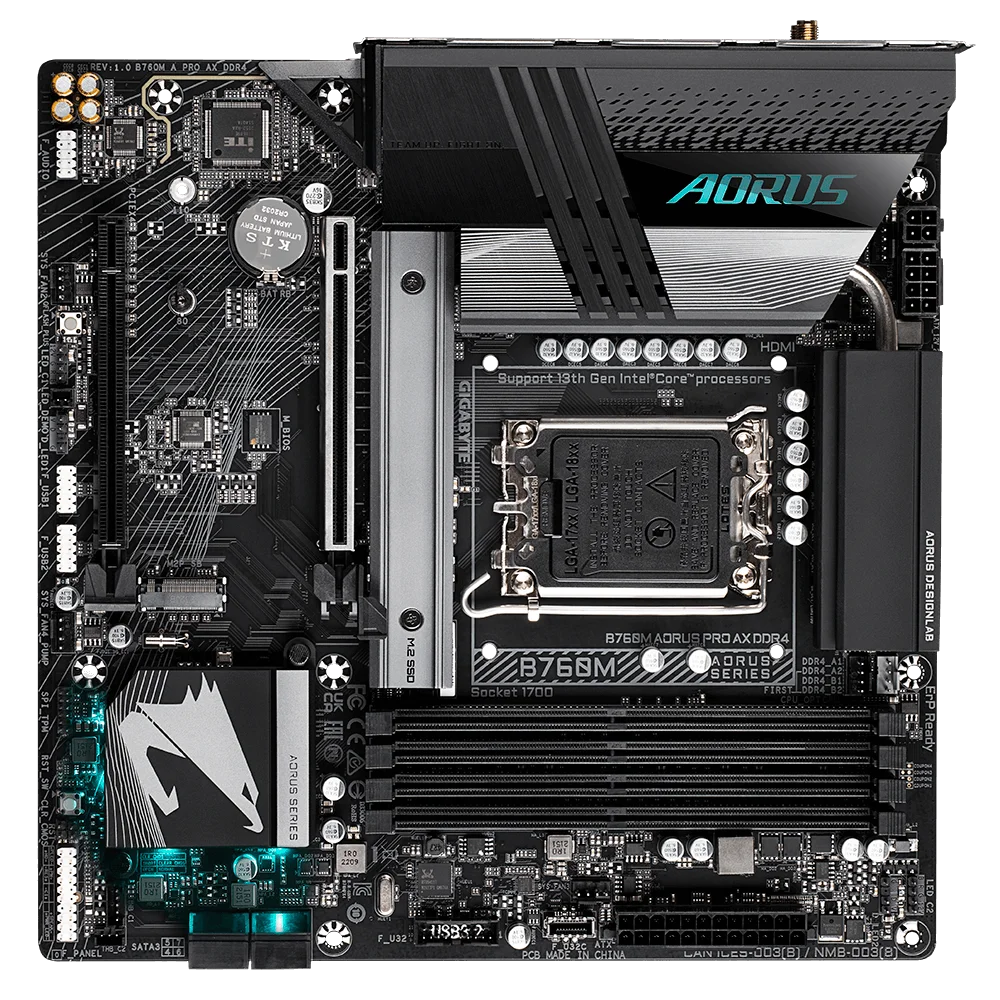

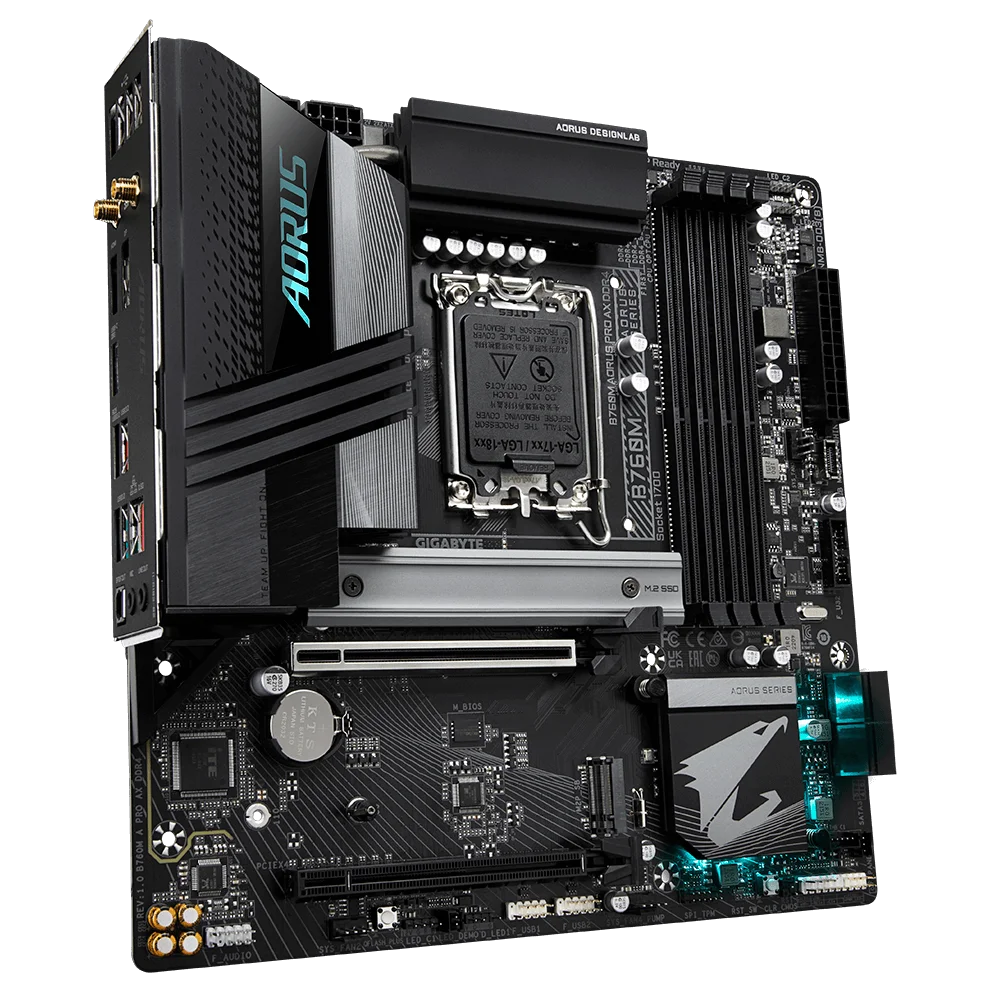

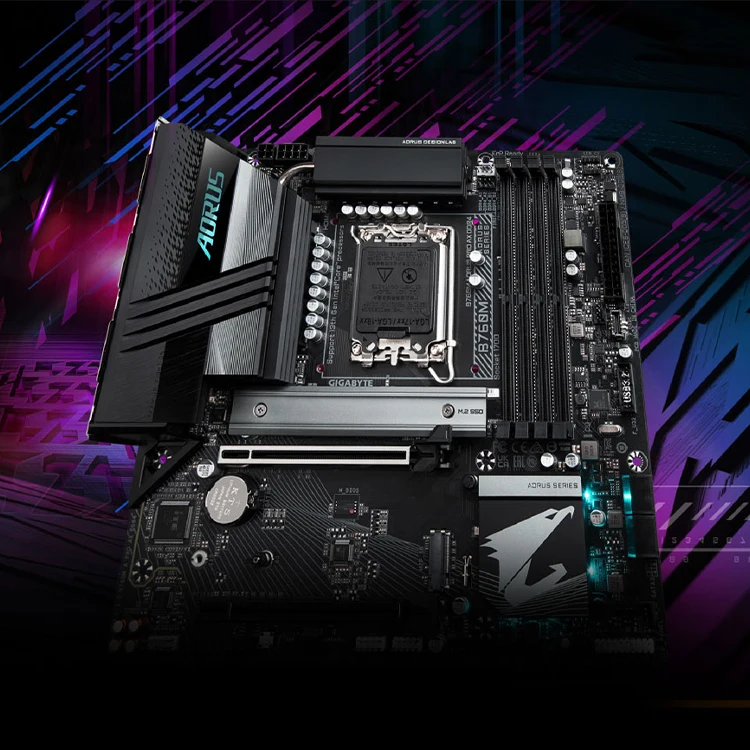

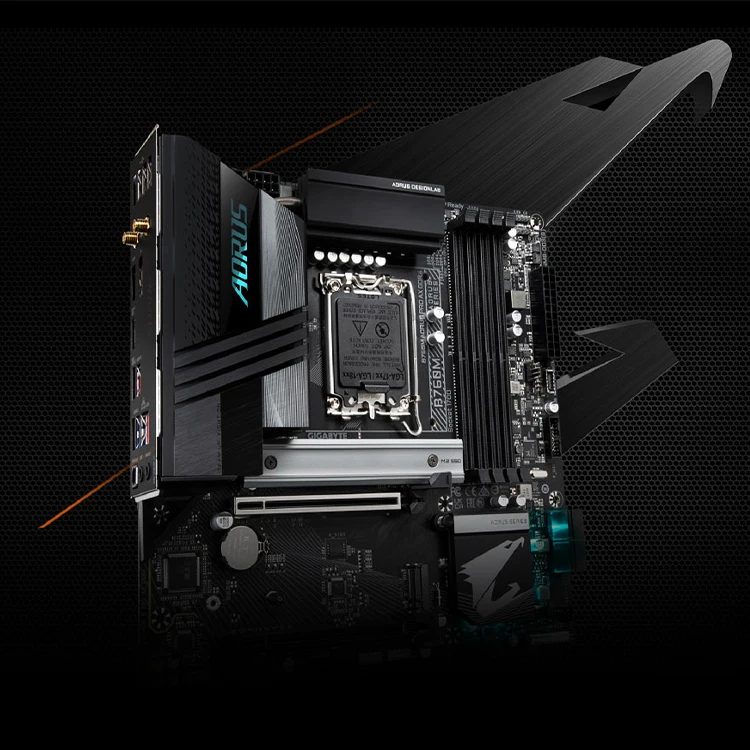

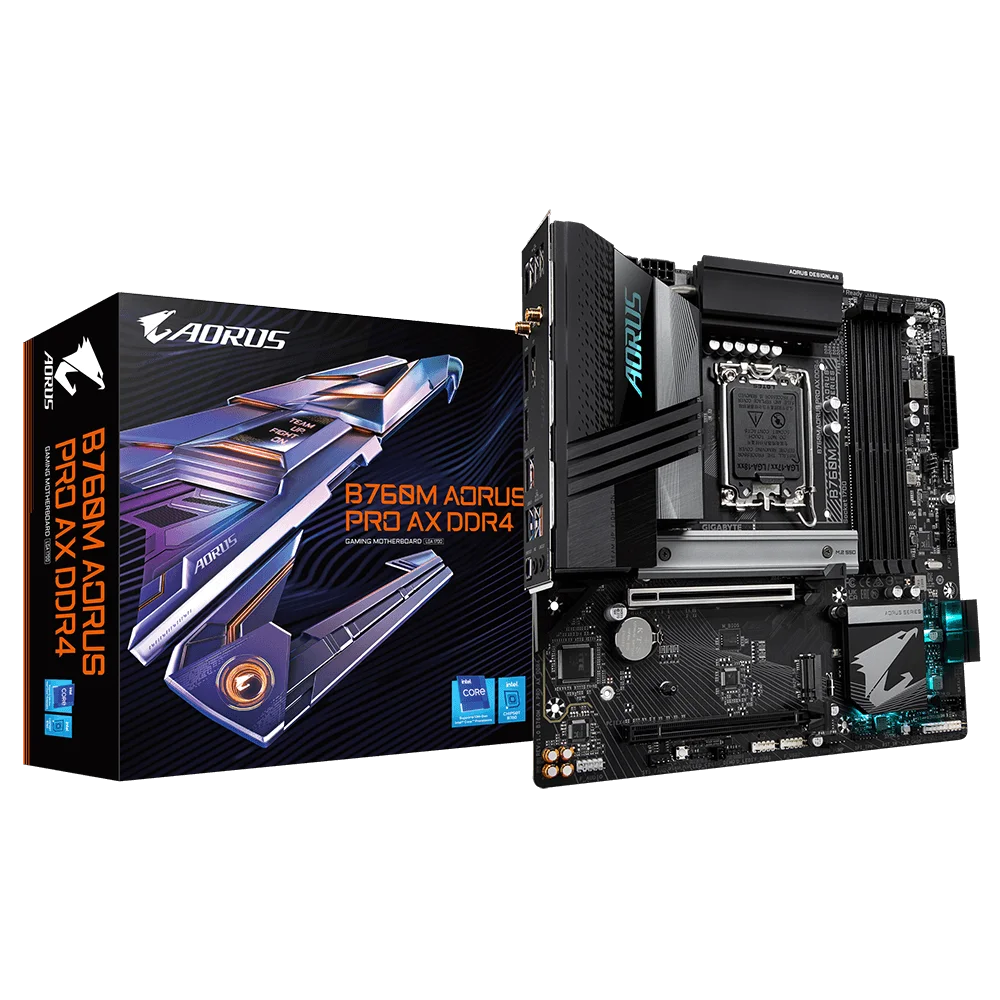

GIGABYTE B760M AORUS PRO AX DDR4 Motherboard with 4 x SATA 6Gb/s Connectors support Intel 13th/12th Gen Series CPU 12700K/12700F

Product Overview

Description



GIGABYTE B760M AORUS PRO AX DDR4 Motherboard with 4 x SATA 6Gb/s Connectors support Intel 13th/12th Gen Series CPU 12700K/12700F



Key Feature

•







  ·




  · Intel^® Socket LGA 1700:Support 13th and 12th Gen Series Processors




  · Unparalleled Performance:Twin 14*+1+1 Phases Digital VRM Solution




  · Dual Channel DDR4:4*DIMMs with XMP Memory Module Support




  · Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors

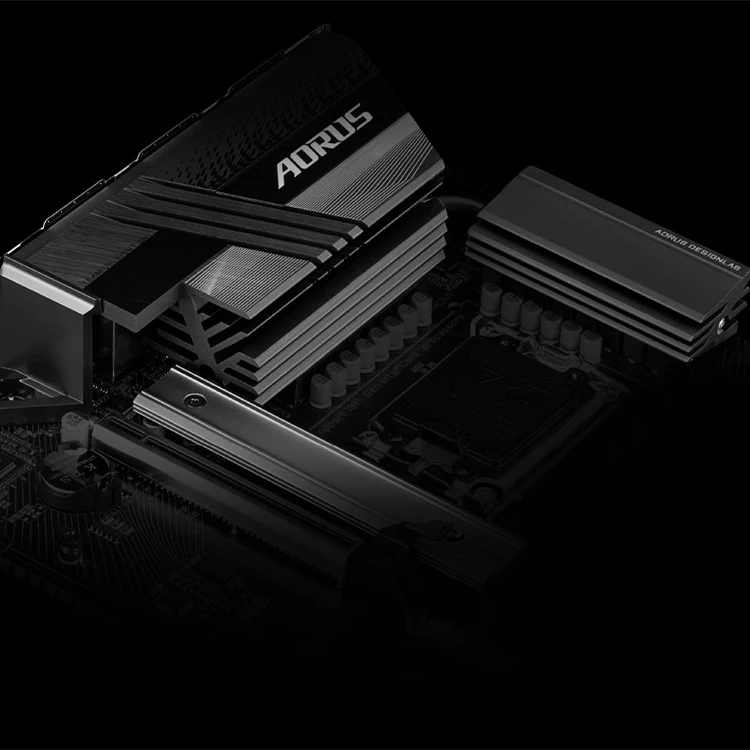

  · Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance




  · EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design




  · Fast Networks: 2.5GbE LAN & Intel^® Wi-Fi 6E 802.11ax




  · Extended Connectivity:Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s, DP, HD MI




  · Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP




  · Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card









  · CPU




  1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*




  2. L3 cache varies with CPU




  * Please refer to "CPU Support List" for more information.




  · Chipset




  3. Intel^® B760 Express Chipset




  · Memory




  4. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules




  5. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory




  6. Dual channel memory architecture




  7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)




  8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules




  9. Support for Extreme Memory Profile (XMP) memory modules




  (Please refer "Memory Support List" for more information.)




  · Onboard Graphics




  Integrated Graphics Processor-Intel^® HD Graphics support:




  10. 1 x HD MI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HD MI 2.0 version and HDCP 2.3.




  11. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3




  (Graphics specifications may vary depending on CPU support.)




  · Audio




  12. Realtek^® Audio CODEC




  13. High Definition Audio




  14. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.




  15. Support for S/PDIF Out




  · LAN




  16. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

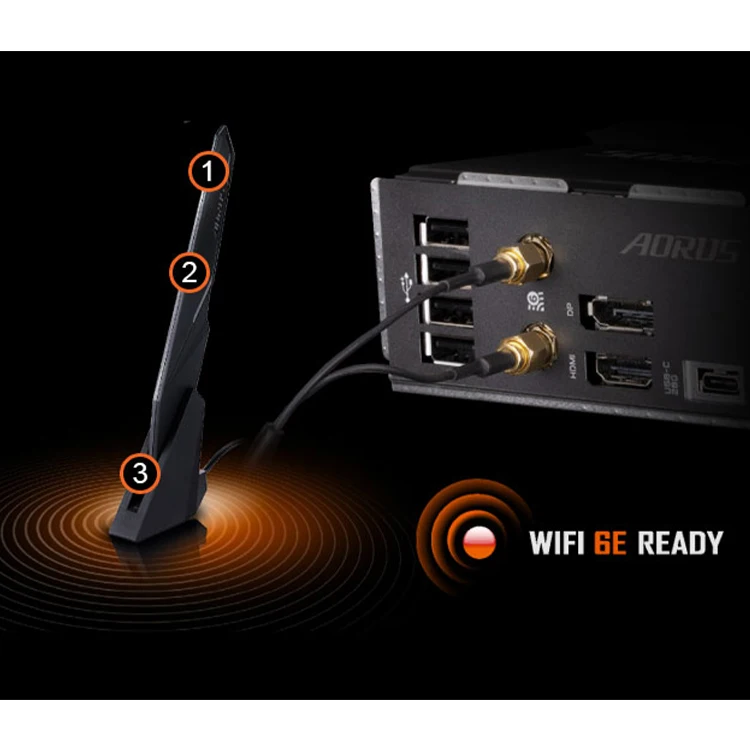

  · Wireless Communication module




  Intel^® Wi-Fi 6E AX211




  17. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands




  18. BLUETOOTH 5.3




  19. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate




  (Actual data rate may vary depending on environment and equipment.)




  · Expansion Slots




  CPU:




  20. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.




  Chipset:




  21. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)




  · Storage Interface




  CPU:




  22. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)




  Chipset:




  23. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)




  24. 4 x SATA 6Gb/s connectors




  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices




  · USB




  Chipset:




  25. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support




  26. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header




  27. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel




  28. 1 x USB 3.2 Gen 1 port on the back panel




  29. 4 x USB 2.0/1.1 ports available through the internal USB headers




  Chipset+USB 3.2 Gen 1 Hub:




  30. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)




  Chipset+USB 2.0 Hub:




  31. 4 x USB 2.0/1.1 ports on the back panel




  · Internal I/O Connectors




  32. 1 x 24-pin ATX main power connector




  33. 1 x 8-pin ATX 12V power connector




  34. 1 x 4-pin ATX 12V power connector




  35. 1 x CPU fan header




  36. 1 x CPU fan/water cooling pump header




  37. 3 x system fan headers




  38. 1 x system fan/water cooling pump header




  39. 2 x addressable LED strip headers




  40. 2 x RGB LED strip headers




  41. 2 x M.2 Socket 3 connectors




  42. 4 x SATA 6Gb/s connectors




  43. 1 x front panel header




  44. 1 x front panel audio header




  45. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support




  46. 1 x USB 3.2 Gen 1 header




  47. 2 x USB 2.0/1.1 headers




  48. 2 x Thunderbolt™ add-in card connectors




  49. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)




  50. 1 x reset button




  51. 1 x Q-Flash Plus button




  52. 1 x reset jumper




  53. 1 x Clear CMOS jumper

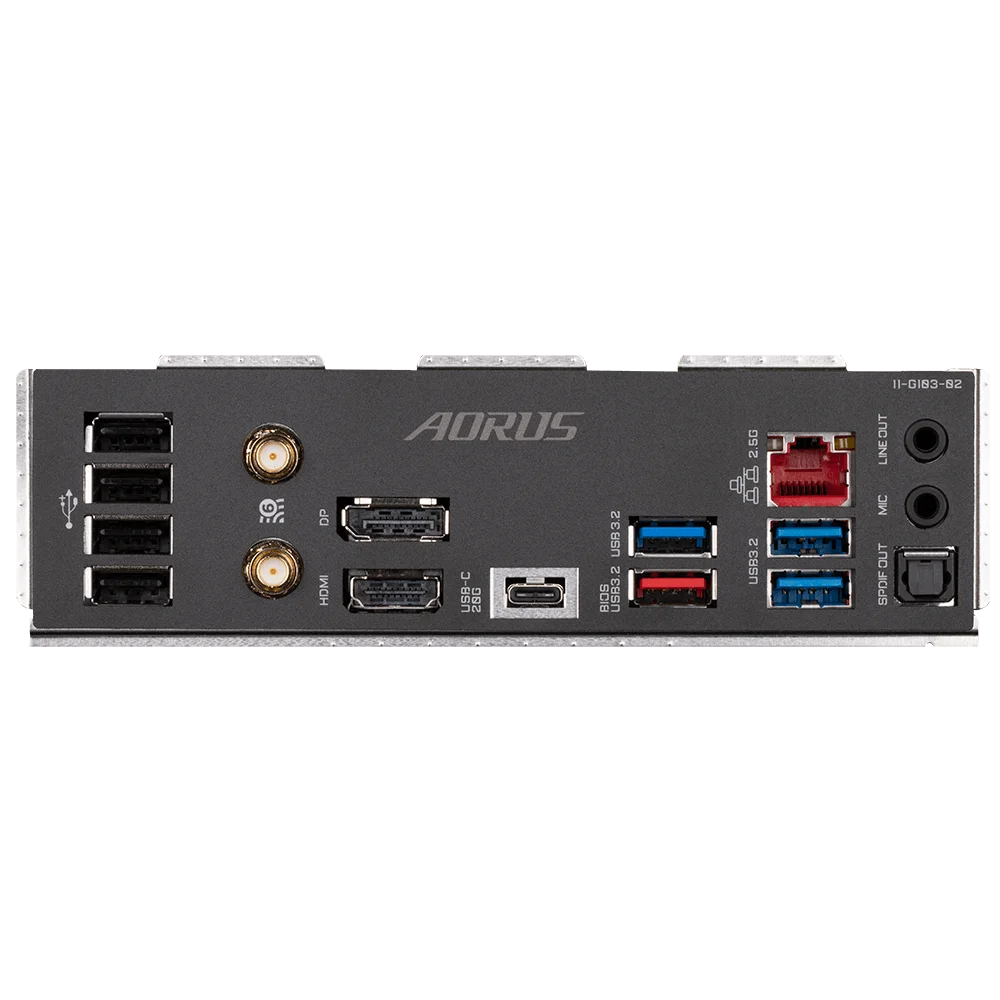

  · Back Panel Connectors




  54. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support




  55. 1 x USB 3.2 Gen 2 Type-A port (red)




  56. 3 x USB 3.2 Gen 1 ports




  57. 4 x USB 2.0/1.1 ports




  58. 2 x SMA antenna connectors (2T2R)




  59. 1 x HD MI port




  60. 1 x DisplayPort




  61. 1 x RJ-45 port




  62. 1 x optical S/PDIF Out connector




  63. 2 x audio jacks




  · I/O Controller




  64. iTE^® I/O Controller Chip




  · H/W Monitoring




  65. Voltage detection




  66. Temperature detection




  67. Fan speed detection




  68. Water cooling flow rate detection




  69. Fan fail warning




  70. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.




  · BIOS




  71. 1 x 256 Mbit flash




  72. Use of licensed AMI UEFI BIOS




  73. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




  · Unique Features




  74. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.




  75. Support for Q-Flash




  76. Support for Q-Flash Plus




  · Bundled Software




  77. Norton^® Internet Security (OEM version)




  78. LAN bandwidth management software




  · Operating System




  79. Support for Windows 11 64-bit




  80. Support for Windows 10 64-bit




  · Form Factor




  81. Micro ATX Form Factor; 24.4cm x 24.4cm
