Kaishan KJ212 hydraulic tunneling underground drilling jumbo tunnelling drilling rig
- Category: Other Construction Machinery >>>
- Supplier: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Kaishan KJ212 High quality jumbo top hammer underground drilling machine/underground drilling rig/underground drilling equipment
Product Application

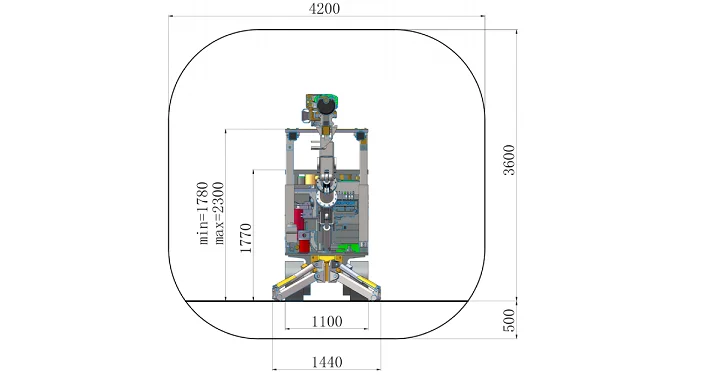

KJ212 Kaishan High quality jumbo top hammer underground drilling machine/underground drilling rig/underground drilling equipment is suitable for small and medium-hard rock mining section roadway excavation work, roadway 15m2 (width 4.2m × height 3.6m), in this section meet the construction requirements at any angle and position.

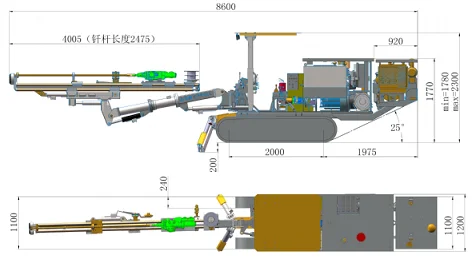

SPECIFICATIONS FOR KJ212 TUNNEL BORING MACHINE | ||||
Dimension and Weight | Length (Running) | 11160mm | ||
Width (Running) | 2000mm | |||
Height (Running) | 1465/1985mm | |||
Weight | About 11000 kg | |||
Walking Speed, Horizontal | 10 Km/h | |||
Grade ability | 20° | |||
Protection | Noise level | <100 dB(A) | ||
Adjustable safety canopy | POPS +ROPS | |||
Drilling System | Drifter | 1×HC50/R38,HC95SA,HC95LM/R38 | ||
Weight | 112KG | |||
Percussion power | 13kW,20KW.24KW | |||
Percussion Flow | 105L/min,95-118L/min,100-120L/min | |||
Percussion power | 130bar,165-200bar,180bar | |||
Rotation pressure | 150bar,210bar,210bar | |||
Frequency | 62 Hz | |||
Rotation torque | 325Nm,597Nm,764Nm | |||
Hole Dia. | 32-76mm, 42-102mm,42-102mm | |||
Drilling depth | 1600mm | |||
Drill arm | K22 | |||
Rod Size | R38-H35-R32 | |||
Electric Hydraulic Power Station | Motor Power | 45Kw ,55KW,75KWAC Three Phase | ||
Percussion+feed+boom | Variable piston pump | |||
Rotation | Gear pump | |||
Filtration | 10μ | |||
Hydr. tank | 240L | |||
Hydr. oil cooler | Water Cooler | |||
Voltage | 380V | |||
Frequency | 50Hz | |||
Cable type | 3×35+3G6+2×1.5/100M,3×50+3G6+2×1.5/80M, | |||
Water and air System | Compressor | 1×JN4 Screw type | ||
Output | 0.5m3/min | |||
Pressure | 6-8bar | |||
Hole bottom blowing slag | yes | |||
Shank lubricate | Oil mist | |||
Shank lub.Air consumption | 0.3m3/min | |||
Shank lub. oil consumption | 180-250g/h | |||
Flushing pump | 1×CR3 | |||
Power | 1.5kW | |||
Output | 3m3/h | |||
Under Carriage | Model | CYTJ45C-6 | ||
Diesel Engine | Cummin S QSB3.9-C80-31 | |||
60KW | ||||
Work steady state mode car | Front leg vehicle stability | |||
Vehicle stability assist | Hydraulic winch | |||

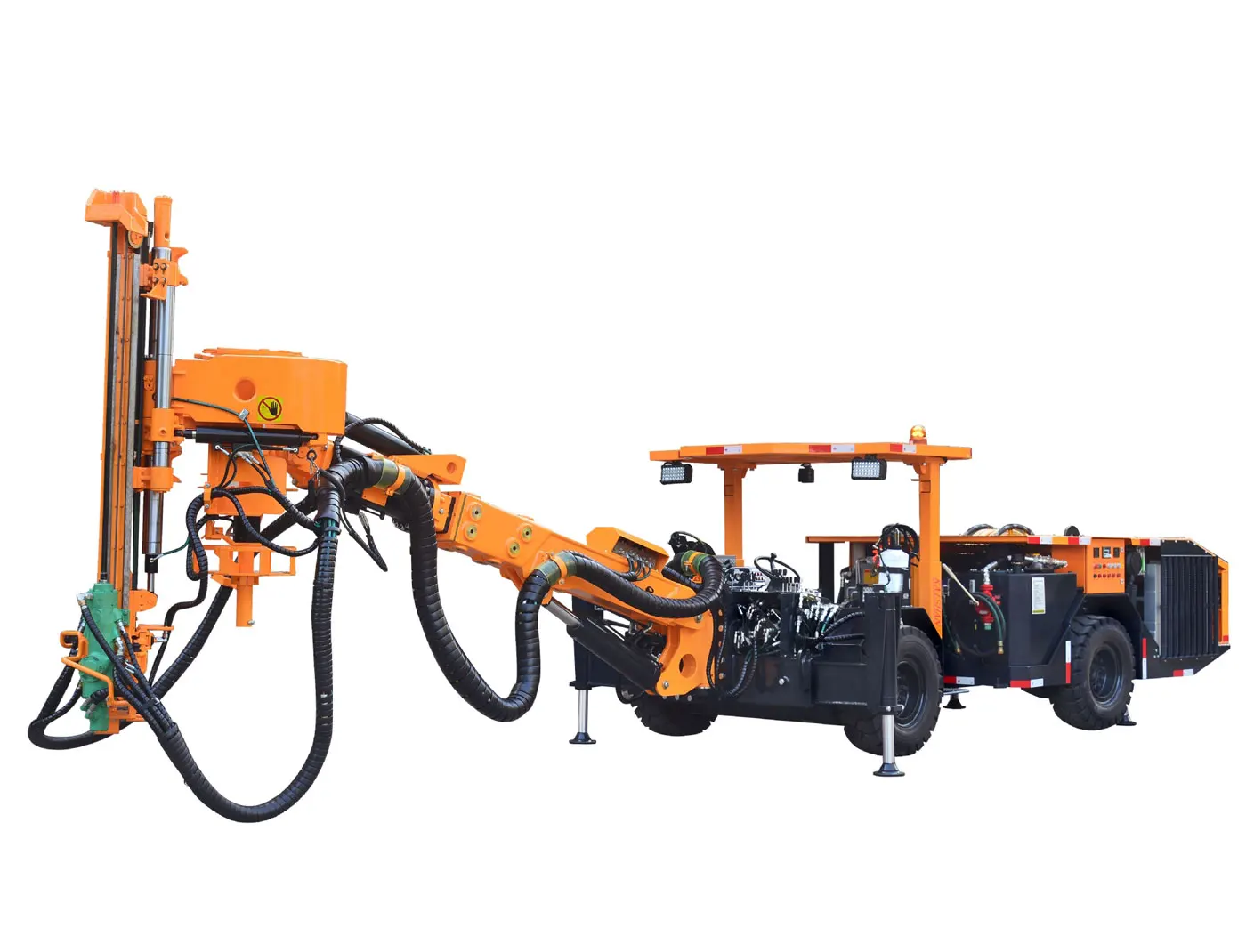

Kaishan High quality jumbo top hammer underground drilling machine/underground drilling rig/underground drilling equipment
Main Features
1) Tunel boring Drill with a cage, perform vehicle stability while drilling through the vehicle front leg work to ensure stable operation and reliable.
2) Tunnel Drilling vehicle hydraulic system with perfect protection devices. After drilling is completed drilling machine automatically stop, anti-jamming protection device, low oil, high oil temperature, filter clogging and other fault alarm protection device.
3) Each of the control buttons and control valve centralized installation, easy to operate.
4) Tunneling Rock drill boom movements smooth, rotating flexible, accurate positioning drilling.
5) Vehicle reasonable layout, all maintenance parts are well protected, and easy maintenance.
6) High impact Tunnel drilling machine cascade optimized piston shock wave transmission efficiency, improve the drilling speed and reduces solder consumption and increasing the rate of well equipment.
7) A series of automatic feature helps the driver concentrate on safe, fast and accurate drilling.
8) Reliable universal boom section covering the best shape, advancing beam 360 ° flip allowing quick and easy to achieve drilling location.
9) Optional increased diesel power stations, convenience Drill transition; diesel power station is modular in design, easy assembly disassembly.
Detailed Images

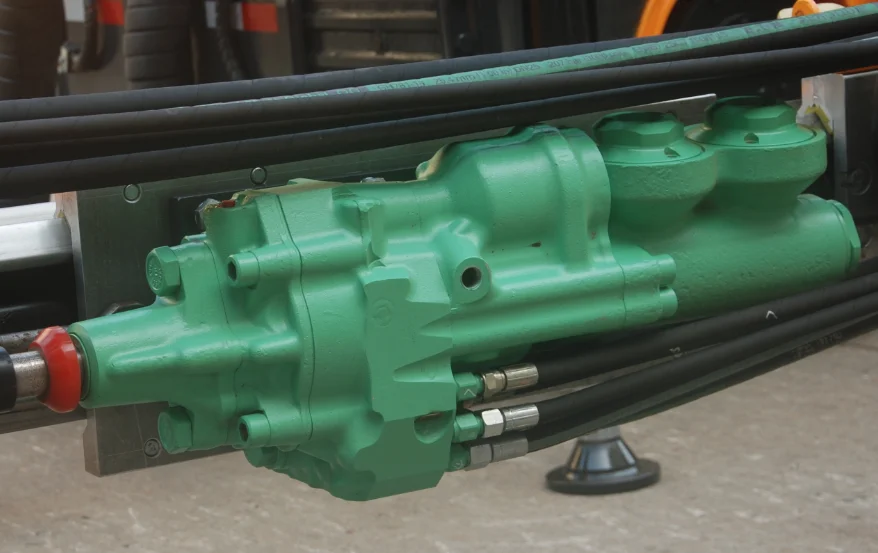

Drifter of High quality jumbo top hammer underground drilling machine/underground drilling rig/underground drilling equipment CYTJ45C
Name: Drifter
Model: 1×HC50/R38,HC95SA,HC95LM/R38
Original: France
Montabert Drifter are the results of years of experience in Hydraulic rock breaker and drifter design and manufacuring.

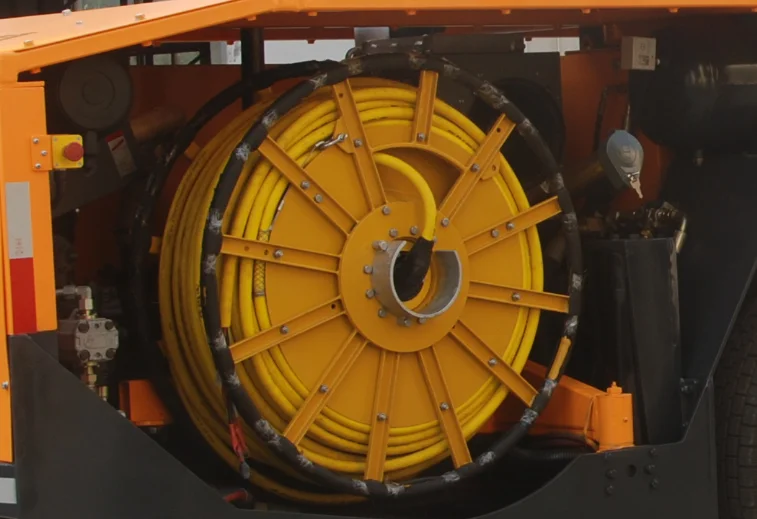

Cable Reel and Cable
Name: Cable and reels of tunnel boring machine
Brand: Cavotec
Original: Italy
Cavotec is a leading supplier of special flexible cables to general industry sectors. Their range extends from standard power cables to highly advanced power and signal flexible cables for specialised applications. On request, cables can also be supplied with Kevlar for high-stress installations.

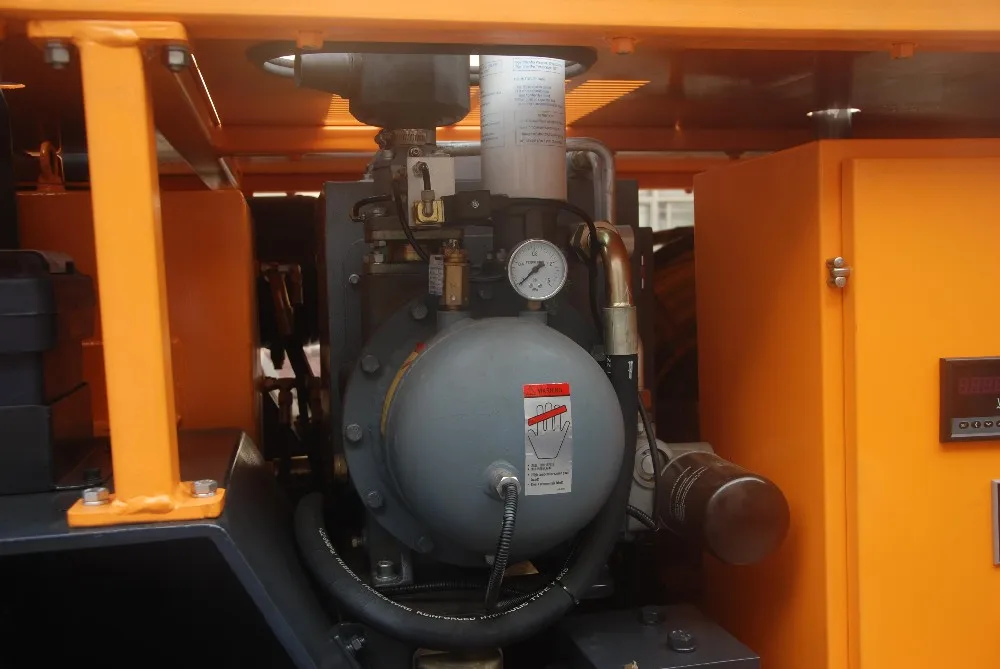

Screw Air Compressor of High quality jumbo top hammer underground drilling machine/underground drilling rig/underground drilling equipment
Name: Screw air compressor
Brand: KAISHAN
Original: China
Kaishan offers a wide selection of rotary screw compressors and reciprocating compressors. Both offerings incorporate the very latest technical advances and manufacturing processes.

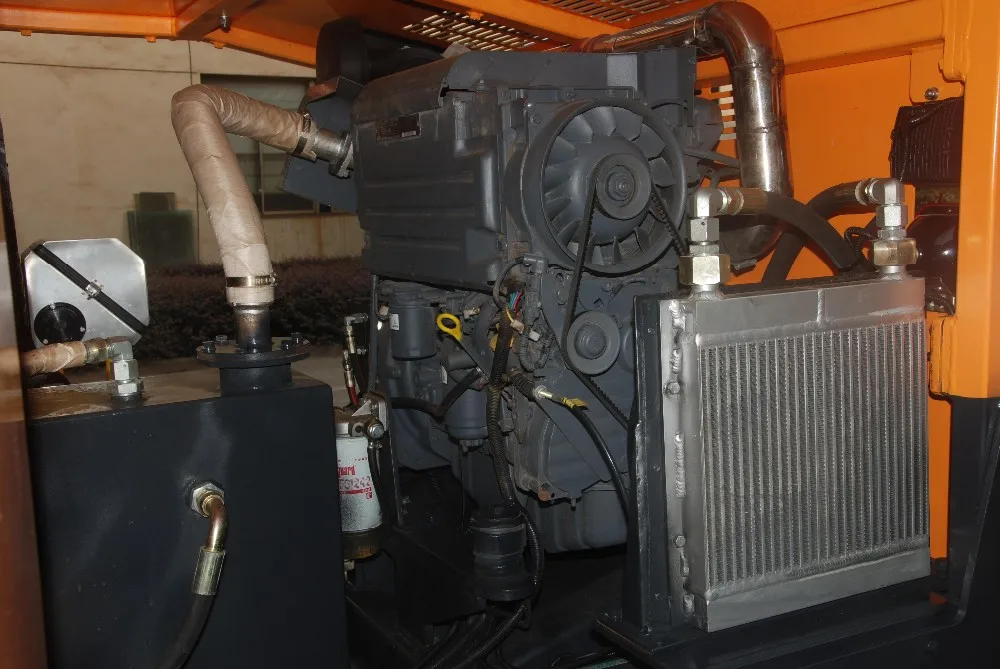

Spare parts for hydraulic top hammer jumbo drill rig and machine for underground Tunnel blasting hole
Name: Filters
Brand: KAISHAN
Original:China
Kaishan is able to guarantee the quality of the products by manufacturing over 85% of the components, taking our products from raw material to finished compressors.
Packing & Delivery
The hydraulic top hammer jumbo drill rig and machine for underground Tunnel blasting hole Packaging | ||
Size | 11150 (L) * 1600(W) * 1850/26350 (H) | |
Weight | 11 T | |
Packaging Details | The normal package is nude packing. The Tunnel Machine will be strengthened by steel wire rope and wood block. We will alos use pefilm for packing or pack it according to customers special request. | |
Drill Tools Packaging | ||
Size | 900 (L) * 400(W) * 400 (D) | |
Weight | 260kgs | |
Packaging Details | The normal package is wooden box and plastic box. We will use pe film for packing or pack it according to customers special request. | |
