  • GP 480 5C 5 Color Flexographic Printing Machine For Label Self Adhesive Paper
GP 480 5C 5 Color Flexographic Printing Machine For Label Self Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper
GP-480-5C 5-Color Flexographic Printing Machine For Label Self-Adhesive Paper

GP 480 5C 5 Color Flexographic Printing Machine For Label Self Adhesive Paper

Share on (1600851368942):


Price:$31,500.00

Quantity:


Product Overview

Description



Product Description




Specification


Model
GP480-5C
Printing speed
60m/min
Printing color
5colors
Max. Web width
480mm
Max. Printing width
460mm
Max. Unwinding diameter
800mm
Max. Rewinding diameter
600mm
Printing girth
250-580mm
Precision of registration
±0.10mm
Dimensions
3100*1400*2800(mm)
Machine weight
About 4000kg
Electrical brand
Item
Brand, Origin country
Unwinding Tension Contoller
Mitsubishi Japan
Rewinding Tension Controller
ZXTEC, China
Inverter
Schneider Germany
Breaker
Schneider Germany
Buttons
Schneider Germany
AC contactor
Schneider Germany


Station for  5 -color flexo printing machine:
NO:1
One mounting device.
NO:2
One anilox roller for each group (Specification is optional)
NO:3
Three sets printing rollers (3*5=15)
NO:4
Printing both sides at the same time (with turn bar)
NO:5
With the lamination station
NO:6
One unwinding tension controller (Mitsubishi Japan)
NO:7
One rewinding tension controller (Made in China)
NO:8
One rotary die cutting station
NO:9
Each station with IR dryer
NO:10
With auto web guiding


Optional acceccory machines and parts:
1.High precision plate mounting machine
2. Ultrasonic anilox cleaning machine
3. Core cutting machine
4. Roll loader
5. Operator lift to go up and down
6. Ceramic anilox roller
7. GPD-420 Flatbed die cutting machine
8. GPF-420 High speed slitting machine
9. GPFT-420 Full auto turret rewinding machine
10. Powder brake & clutch
11. Hydra jacks
12. Magnetic cylinder
     Solid cylinder
     Rotary sheeting cylinder
     Flexible die

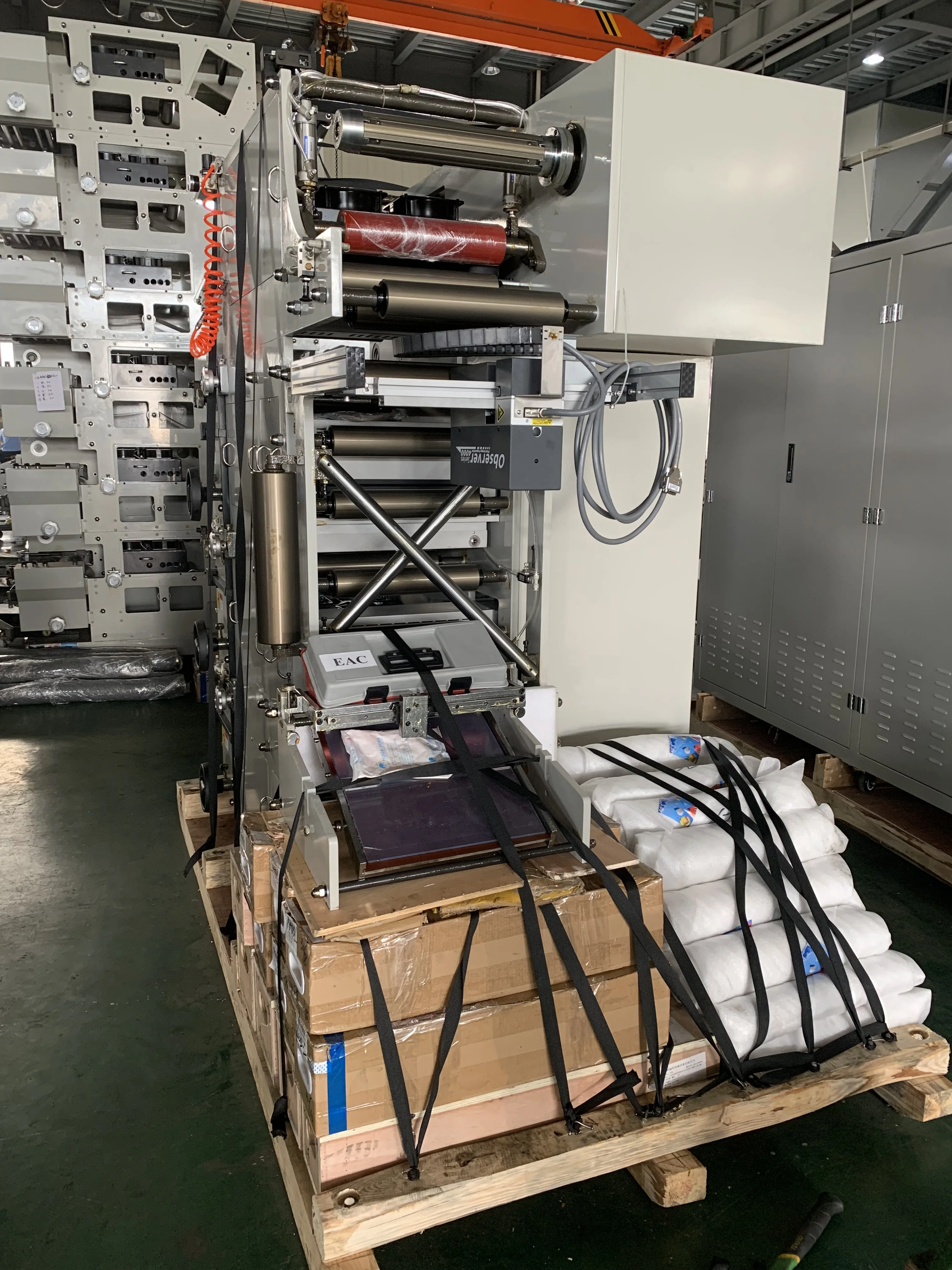

Packing & Delivery


fumigated wooden box




Company Profile






WENZHOU GOPRINTO MACHINERY CO.,LTD is a professiona large-scale manufacturer of printing machine, and auxiliary machines related to labels and spare parts service. We have continuously tried to improve product quality, challenge with advanced innovations. Our main products include printing machine, rotary/flatbed die cutting machine, slitting machine, finishing machine, paper bag making machine ect. Our parent company was established in year 2017, and we have many years of history in the label industry. We have already exported to America, Germany, Russia and 20 other countries and regions. Our company has always focused on research, development and innovation, We regards"reasonable prices, efficient production time and good after-sales service" as our soul tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2007,sell to North America(30.00%),Central America(20.00%),South America(10.00%),Western Europe(5.00%),Mid East(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Northern Europe(5.00%),Southeast Asia(5.00%),Eastern Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flexo printing machine,die cutting machine,slitting machine,fan folding machine,hot lamination machine

4. why should you buy from us not from other suppliers?
For before-order stage, our professional sales team could respond your inquiry within 5-10 minutes during working hours.For after-sale stage, our service team always keep close contact with you and always stand by at your service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
