Product Overview

Description

Ultrasound Positioning

Electromagnetic Source

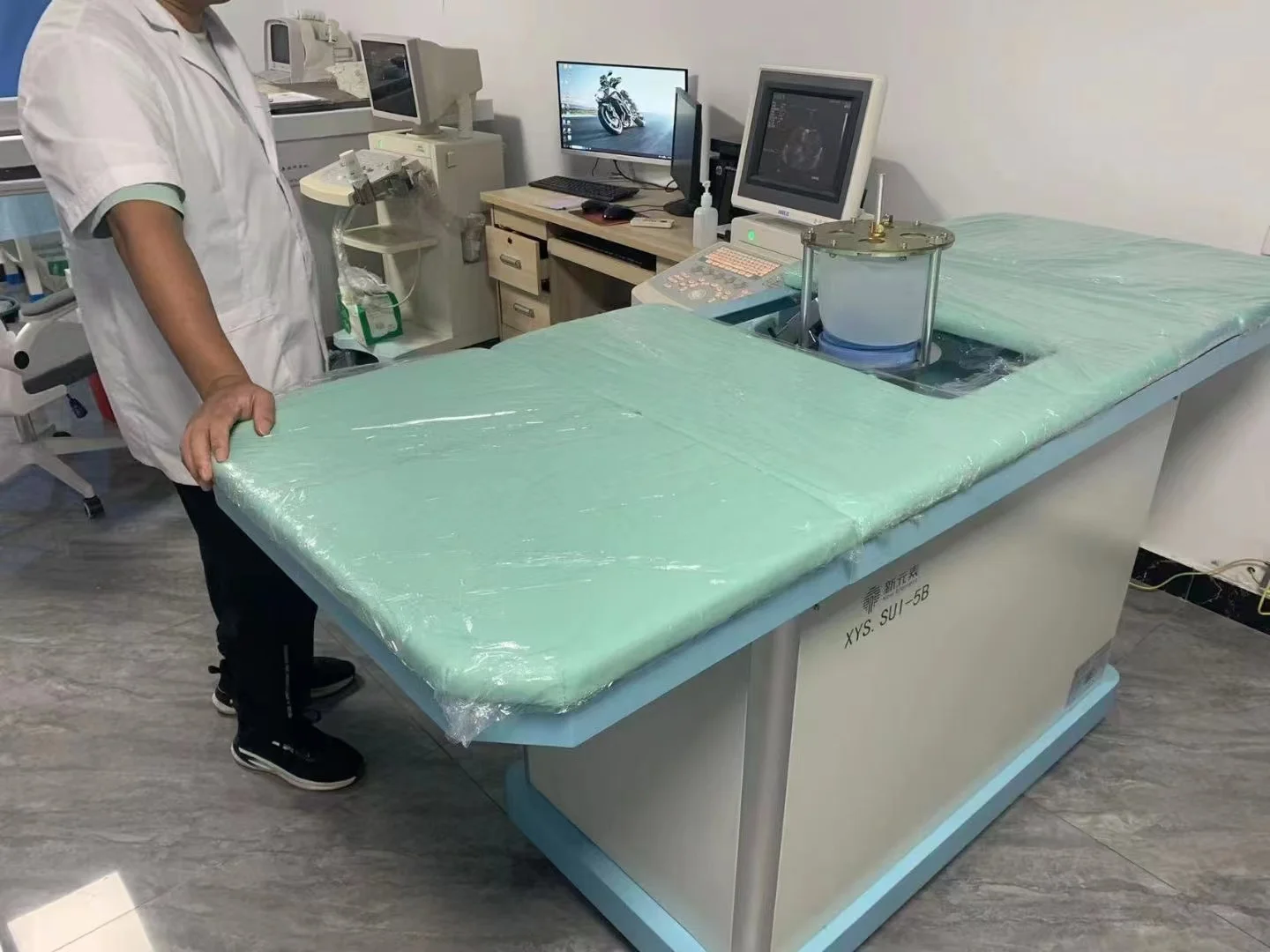

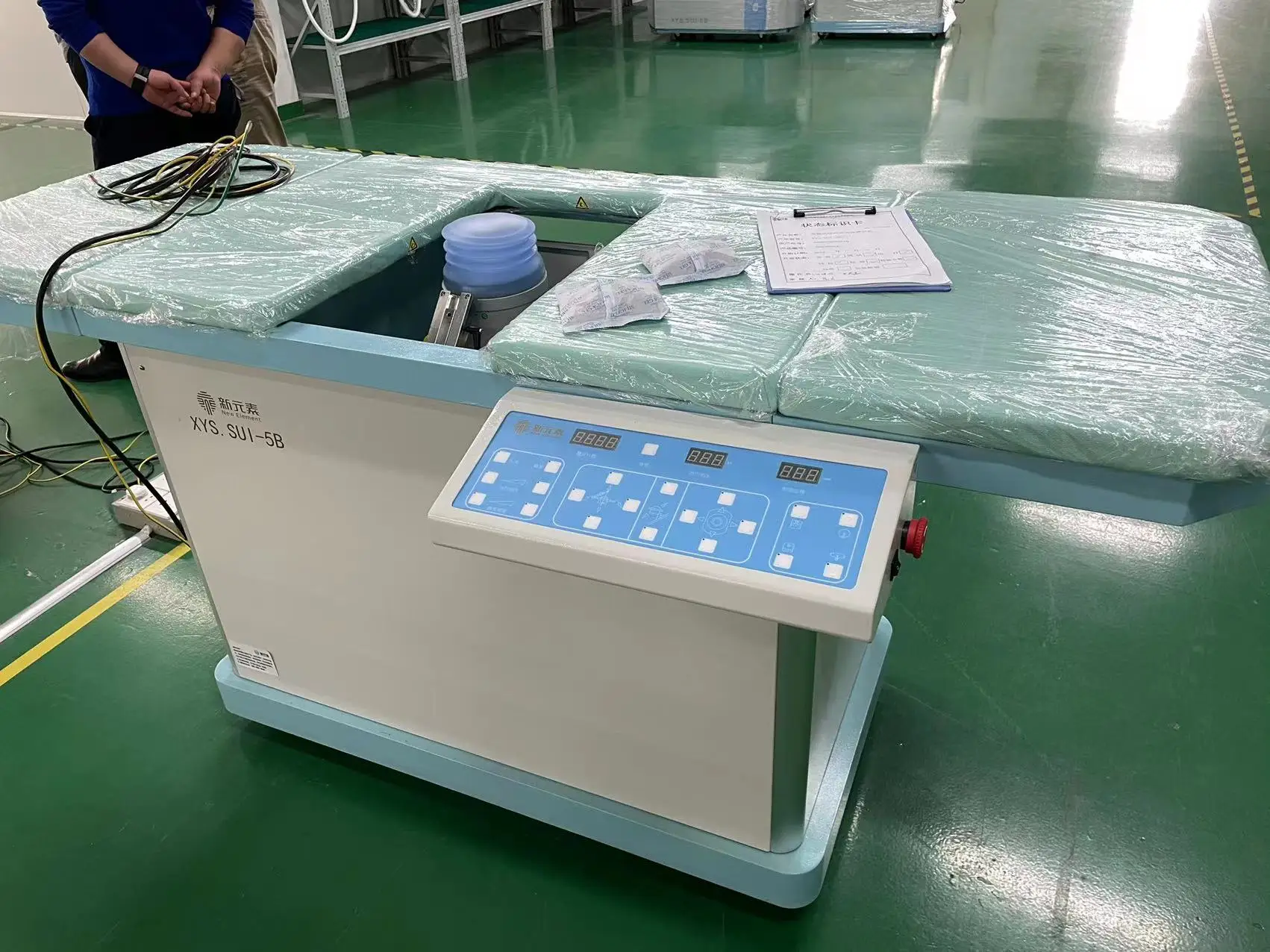

Extracorporeal Shock Wave Lithotripter

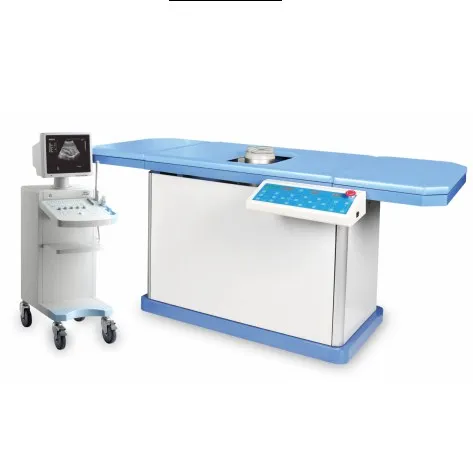

ESWL-5B



Product technical parameters

I .Device name: Electromagnetic extracorporeal shock wave lithotriptor

II .Positioning method: ultrasonic B.

III.Application: Efficient electromagnetic shock wave source, mainly for kidney stones, ureteral calculi and bladder stones

IV.Technical parameters:

(I)Mature shock wave generating device

1. The high-voltage discharge treatment voltage: 10-18KV

2. Focal shock wave peak pressure: 20 ~ 50MPa

3. Expansive sound pressure peak: ≤3.5Mpa

4. The shock wave pulse width: ≤1μs,

5. The shock waves pulse front edge: ≤0.5μs

6. shock Focus range: Radial ≤ ± 7mm; axial: -35mm ~ + 50mm

7. Treatment depth: ≥110mm

(II)Ultrasonic B location system:

1. Probe feed range: 0 ~ 50mm

2. Deviation of the actual focus and monitor positioning mark: ≤ 2mm

(III) Operating system

1.Bedside operating system

2.Continuous Trigger frequency range: 0.5-2Hz continuously adjustable

3. Trigger mode: manual, automatic

4. Pulse count range: 0-9999

5. Long-life touch button control

6. Advanced trigger discharge system, long life discharge switch

(IV) Motion parameters of the treatment bed and shock wave source

1.The treatment bed load: ≥135kg

2.Wave source Lateral movement:0~100mm

3.Wave source longitudinal motion: 0 ~ 100 mm

4.Wave source lifting motion: 0 ~ 120 mm

5.Wave source slope motion: 0 ~ 80 mm

6.Wave source flip motion:0 ~ 20°

(V) Power supply parameters

1. Power Phase: Single phase

2. Power supply voltage: AC 220V ± 10%

3. Power frequency: 50Hz ± 1Hz

4. Maximum power: 1000VA

V.Unique advantages

ARM Intelligent, integrated operating system

Wave source three-dimensional motion (Six directions)+ slope motion + flip motion (patent certificates)

Stable Mechanical motion system, low noise
