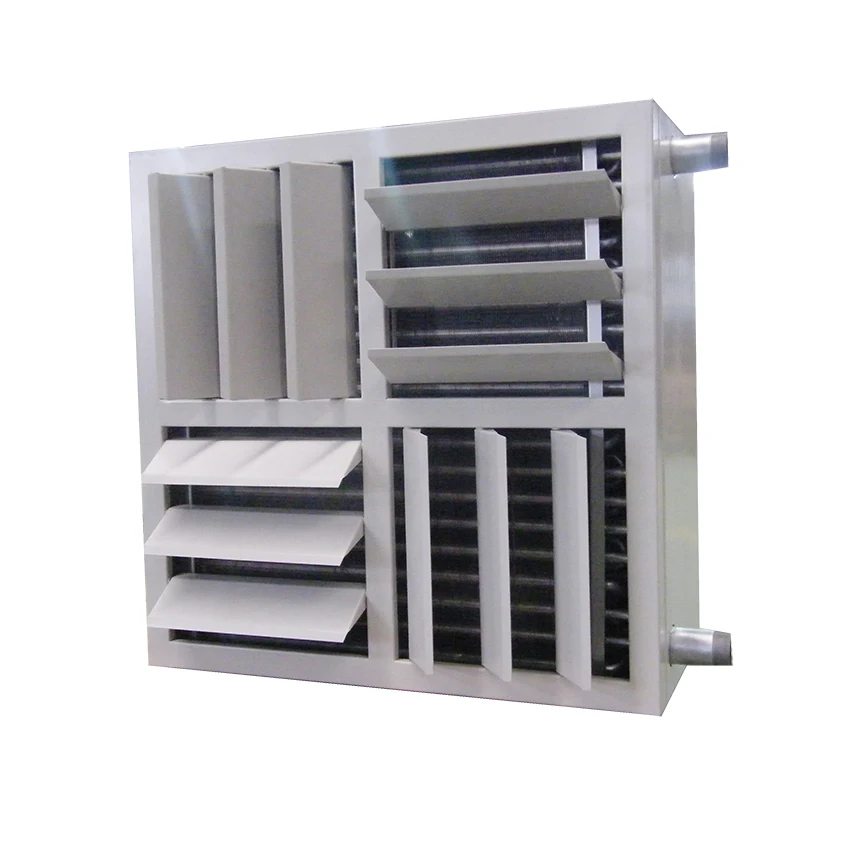

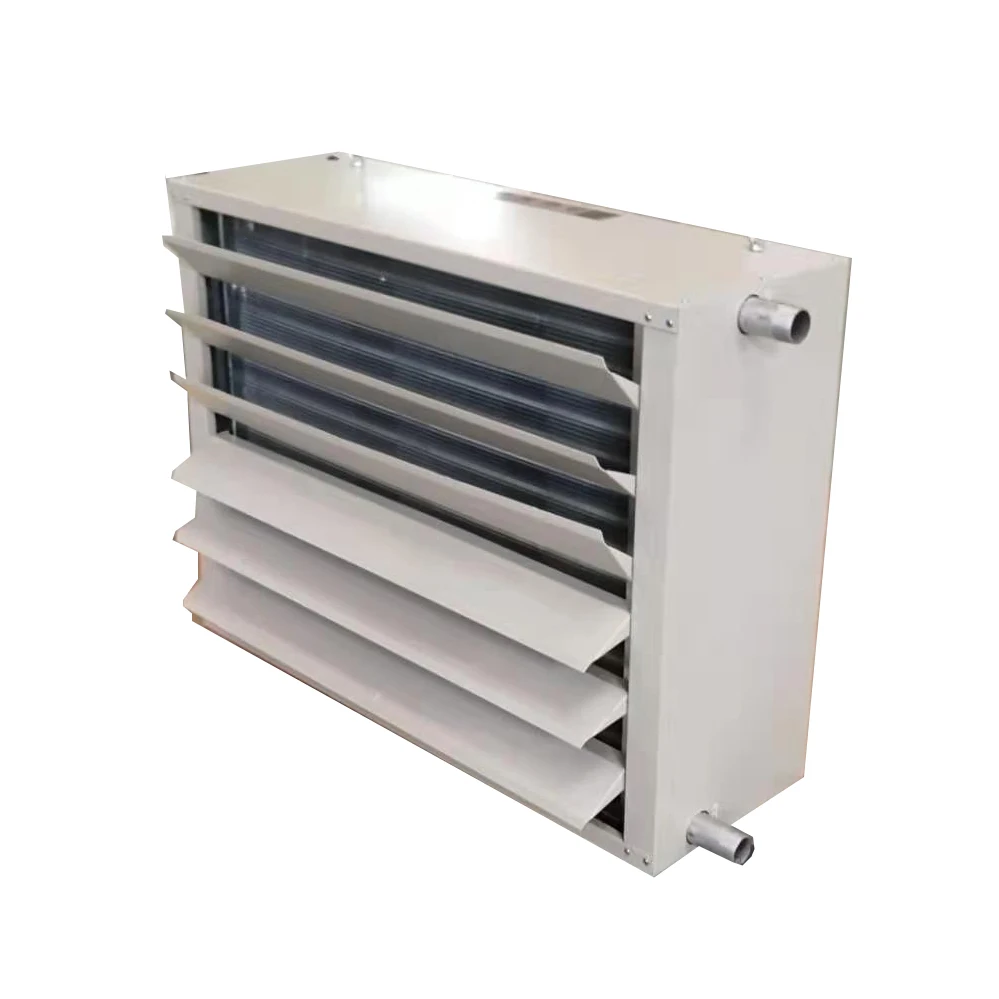

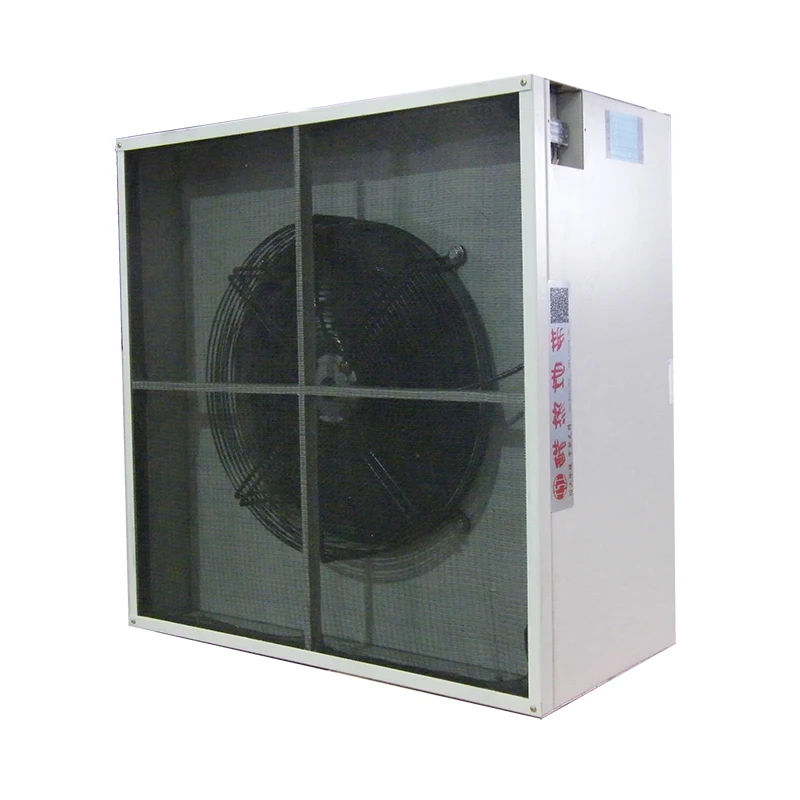

25kW 86000BTU Ceiling suspended steam warm air blower fan heater for heating for workshop industria warehouse mall Airport
- Category: >>>
- Supplier: Shenyang Qiaogong Cooling And Heating Technology Co. Ltd.
Share on (1600851756477):
Product Overview
Description
Product Description
It is installed in a space lower than 8 meters in height, ceiling suspended, adopt four- direction or two-direction louvered air outlets, the air outlets can be manually linked and adjustable, and the air supply direction can be controlled. It can realize the overall circulatiing heating, which is the best choice for energy-saving heating in relatively low spaces.The color of the unit can be specially customized, and the voltage of the motor can be customized 220V, 440V, 660V, etc. The common voltage is 380V～/50HZ. Explosion-proof models can also be customized.
Features
Heating medium：Steam
The series of unit heaters can be customized as explosion-proof products.
It can be installed in a space below 8 meters for circulating air supply and heating;
Model Description
DNF-20.5
DNF ---- Ceiling suspended unit heater
20.5-----The airflow rate is 2050m3/h
Heating medium：Steam
The series of unit heaters can be customized as explosion-proof products.
It can be installed in a space below 8 meters for circulating air supply and heating;
Model Description
DNF-20.5
DNF ---- Ceiling suspended unit heater
20.5-----The airflow rate is 2050m3/h
Q----------Steam
S----------Four-direction air supply
Installation

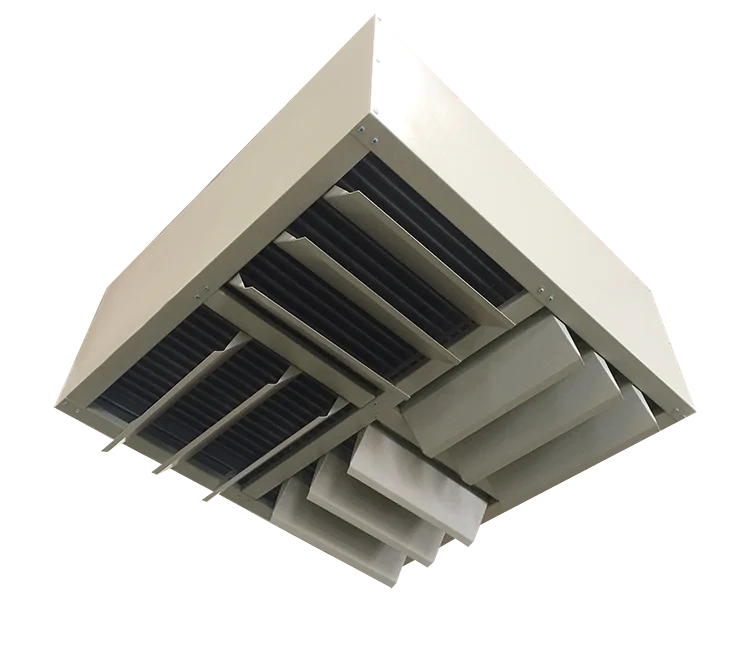

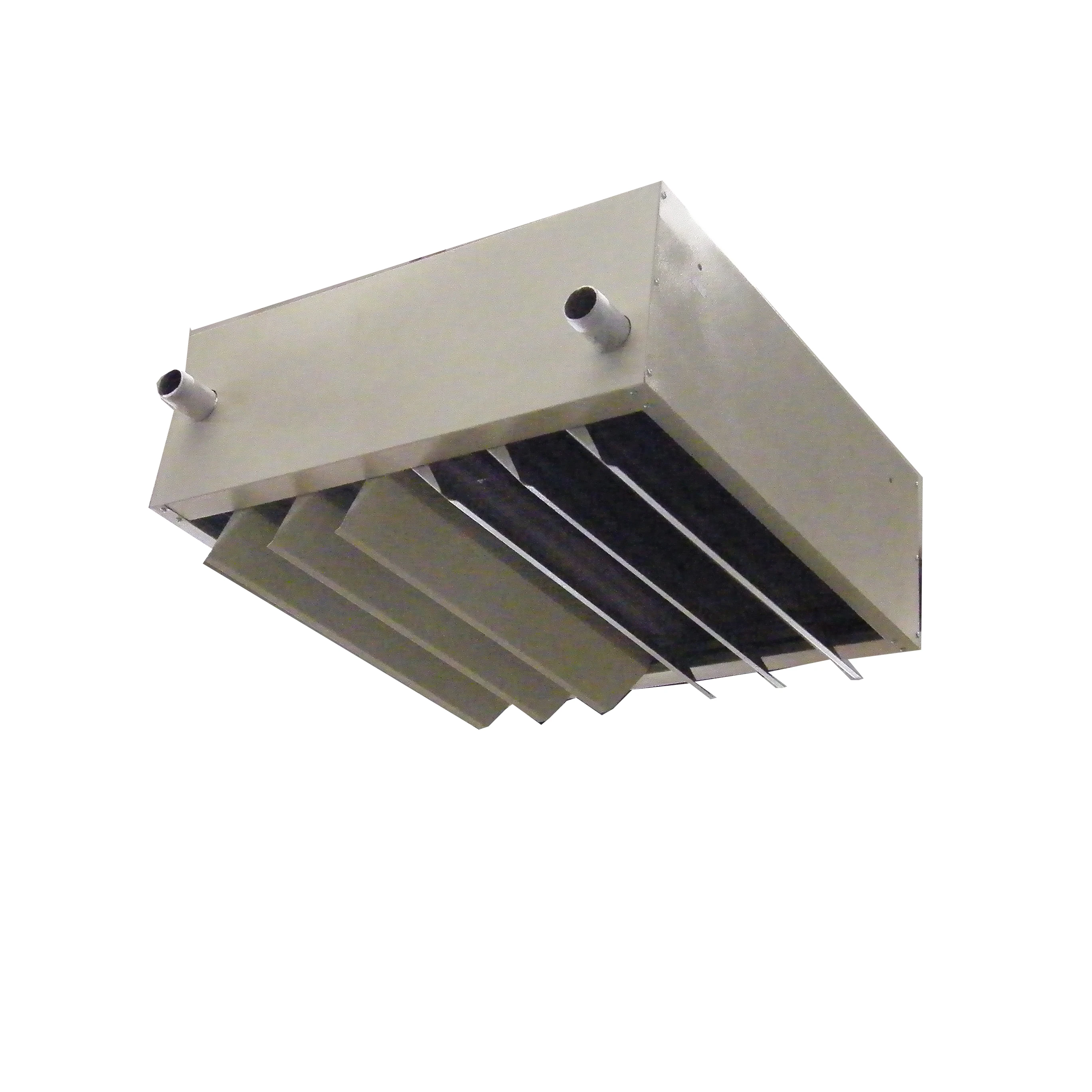

Ceiling suspended
Optional
* Two-speed fan
* Return air filter
* Temperature controller
* Intelligent network control system
Installation
Ceiling suspended
Optional
* Two-speed fan
* Return air filter
* Temperature controller
* Intelligent network control system
Specification
Model | DNF-20.5Q-S | DNF-27.1Q-S | DNF-44.3Q-S | DNF-59.6Q-S | DNF-65.8Q-S |
Heating capacity(kW) | 25.2 | 35.5 | 56.5 | 75.6 | 85 |
Noise level | III | III | IV | V | V |
Max.Mounting Height(m) | 5.2 | 5.5 | 6 | 6.3 | 7.5 |
Throw(m) | 5.7 | 6 | 6.5 | 6.8 | 7 |
Airflow rate(m3/h) | 2049 | 2714 | 4434 | 5963 | 6575 |
Outlet air velocity(m/s) | 3.34 | 4.46 | 3.98 | 2.95 | 3.25 |
Supply air temp.(℃) | 54 | 56 | 56 | 55 | 56 |
Condensing water volume(kg/h) | 40.4 | 57.2 | 90.7 | 121.1 | 136.1 |
Interface pipe diameter(DN) | 20 | 25 | 40 | 40 | 40 |
Power(W) | 75 | 100 | 200 | 260 | 310 |
RPM | 1400 | 900 | 900 | 900 | 900 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. Where is your company located? Are you a factory or a trading company?
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
