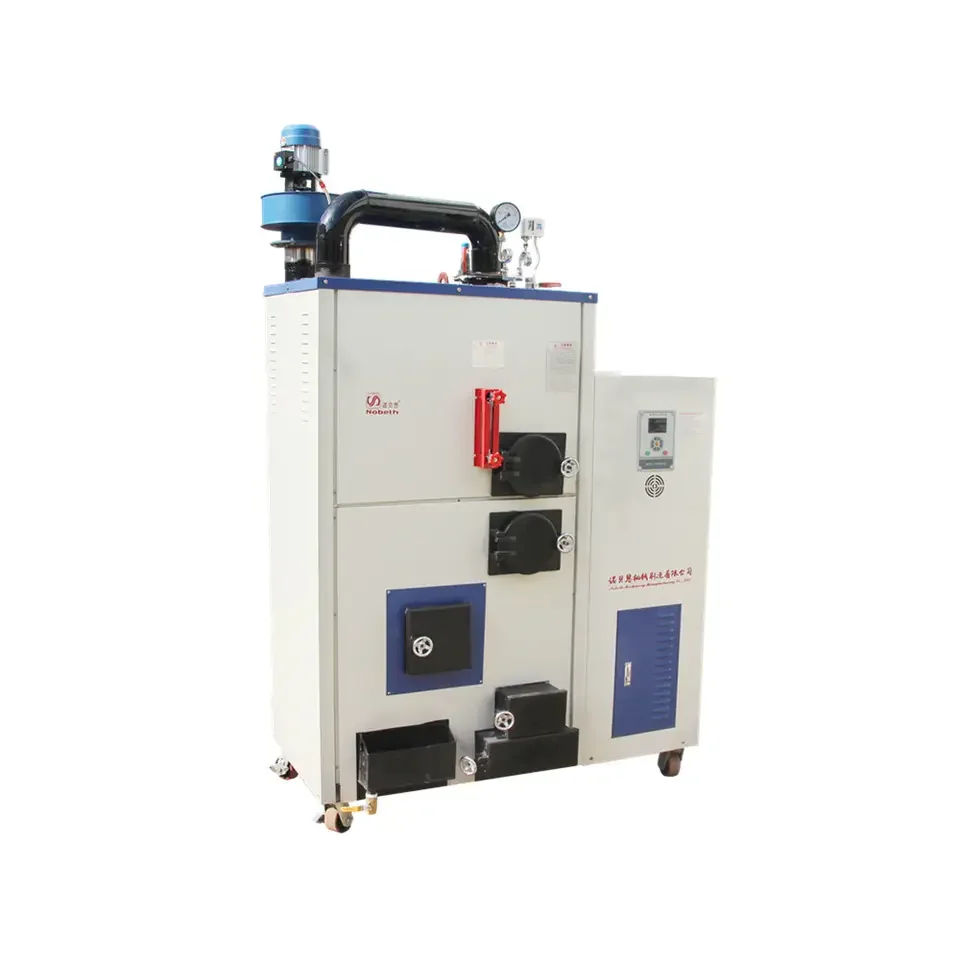

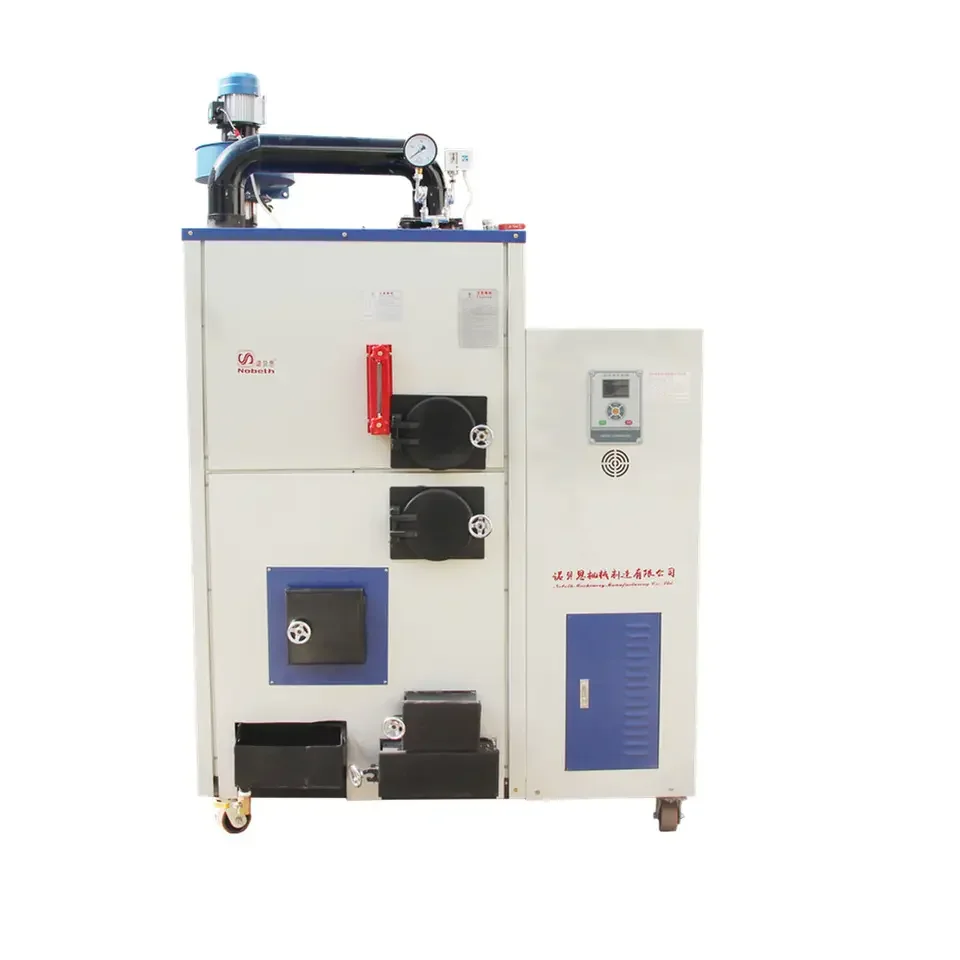

Factory Biomass Pellet Product Small Industrial Boiler Machine Mini Electric Steam Generator

Share on (1600851808071):


Price:$3,999.00

Quantity:


Product Overview

Description


Factory Biomass Pellet Product Small Industrial Boiler Machine Mini Electric Steam Generator











Product Description











NBS-Biomass Serials Steam Generator With Factory Price

Features of NBS-Biomass Steam Boiler series:
1. Automatical feeding with screw conveyer system, automatical heating.
2. High heating efficiency, no pollution, low emissions, save more than 50% energy.
3. All-in-one machine, intelligent, high efficiency, eco-friendly, no smoke, complete combustion.
4. Easily and simplely operating without professional boiler man or boiler room.

As we know, the security is most important, if no security, everything is empty, our Nobeth boiler factory focus on to research
the security system, through the hard work and the marking testing, we get the 5 security system:
1. Stop heating automatically when reaching the setting temperature
2. Stop heating automatically when reaching the setting pressure
3. The safety valve relief automatically when the pressure reached the setting pressure
4. Stop heating automatically when there is no water in the tank
5. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.




















































































Model


NBS-0.15-0.7


NBS-0.2-0.7


NBS-0.3-0.7


Rated Pressure


0.7


0.7


0.7


Rated Steam Capacity


150


200


300


Fuel Consumption


25


35


52


Dimensions


1000*1000*2600


1000*1000*2600


1000*1000*2600


Power Supply Voltage


220/380V


220/380V


220/380V


Fuel


biomass pellet


biomass pellet


biomass pellet


Dia of Inlet Pipe


DN8


DN8


DN8


Dia of Inlet Steam Pipe


DN15


DN15


DN15


Dia of Safty Valve


DN15


DN15


DN15


Dia of Blow Pipe


DN8


DN8


DN8


Weight


1800


2200


3300
