Agras Agricultural Spraying Drone Agriculture Accessories Gasoline Engine Generator D9000i spare parts Wholesale
- Category: >>>
- Supplier: Hubei Sense Intelligence Technology Co. Ltd.
Share on (1600851908346):
Product Overview
Description

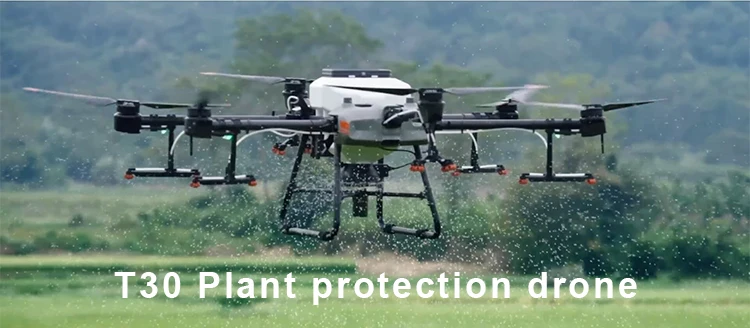

Aircraft parameters
Overall weight (excluding batteries) | 26.3 kg |
Maximum take-off weight | Maximum spraying take-off weight: 66.5 kg (near sea level) maximum seeding take-off weight: 78 kg (near sea level) |
Hovering accuracy (good GNSS signal) | D-rtk enabled: horizontal ± 10cm, vertical ± 10cm Disabled: horizontal ± 0.6m, vertical ± 0.3m (Radar function enabled: ± 0.1m) |
RTK/GNSS uses the frequency band | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5GNSS: GPS L1, GLONASS F1, Galileo E1 |
The power consumption of the largest | 13000 W |
Hover time | 20.5min (@29000 mAh & take-off weight 36.5 kg) 7.8min (@29000 mAh & take-off weight 66.5 kg) |
Maximum pitch Angle | 15 ° |
Maximum operational airspeed | 7 m/s |
Maximum flat flight speed | 10 m/s (good GNSS signal) |
Maximum wind speed | 8 m/s |
Maximum flight altitude | 4500m |
Recommended working environment humidity | < 93% |
Recommended operating temperature | 0 ℃ to 45 ℃ |
Products Description

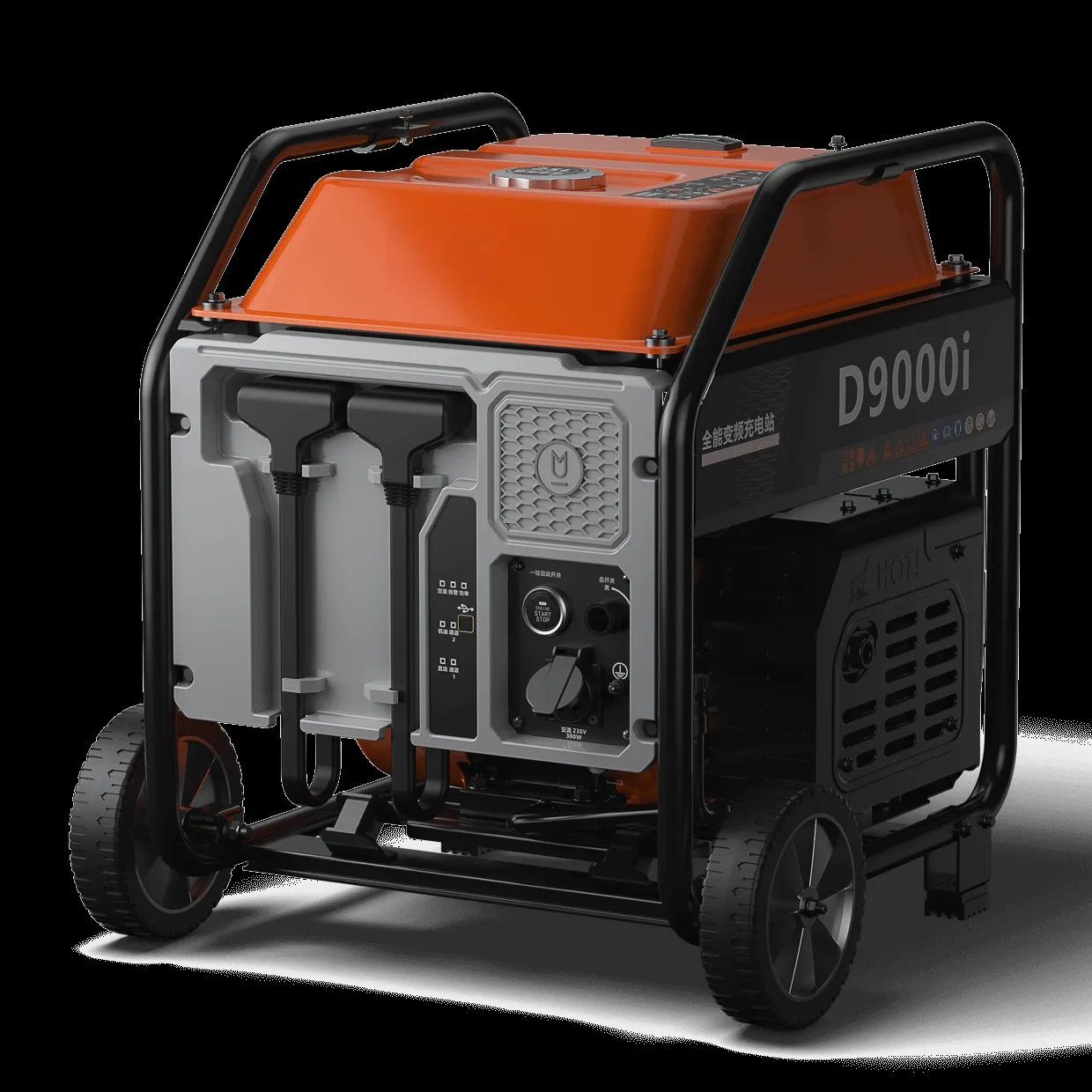

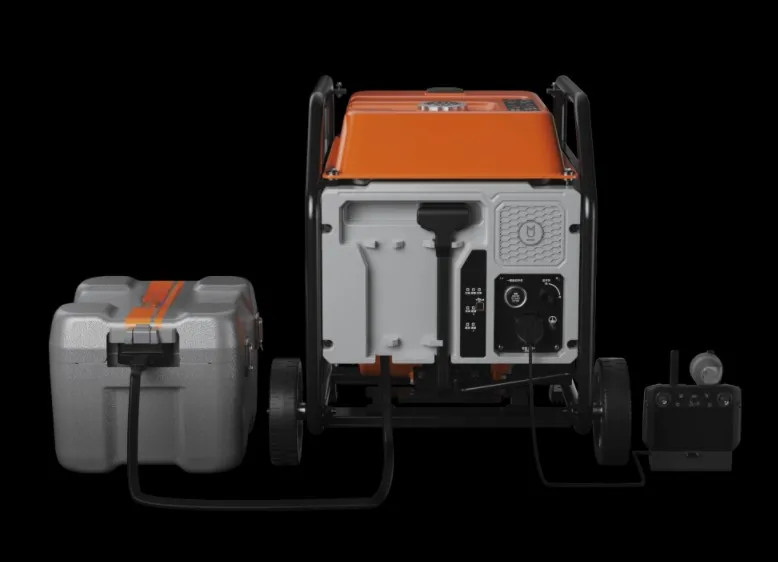

D9000i parameters

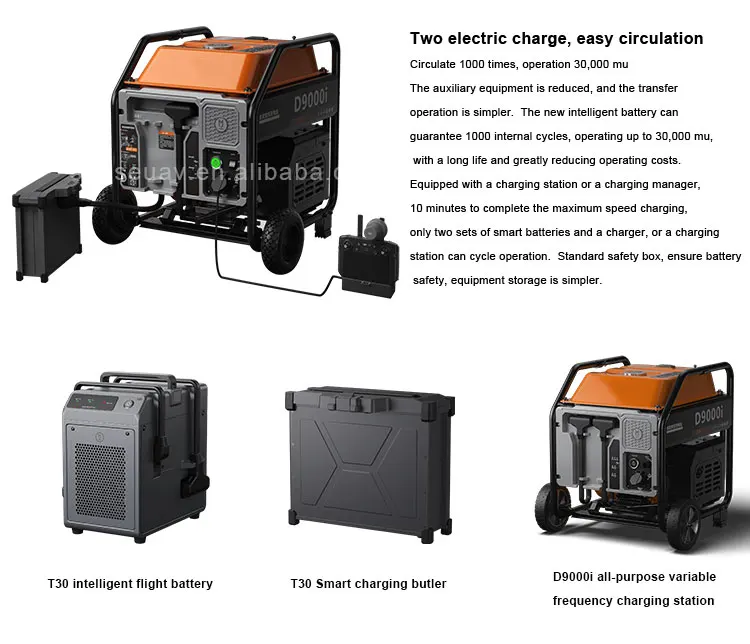

D9000i all-purpose variable frequency charging station | ||
Size | 610 * 520 * 625 mm | |
The weight of the | 65 kg | |
Output channel | 1. Dc charging output 2. 220V 300W auxiliary AC output | |
Dc output parameters | 40V-60 V120 A | |
Ac output parameter | 220/100 V (subject to shipping area) | |
Charging power | 7200W | |
Battery charge time | Charge one battery in 9-12 minutes (T30 battery) | |
Fuel tank capacity | 25 L | |
Start the way | Start with one button and start with hand | |
Charge ripple voltage | 200 mV | |
Maximum engine displacement | 420 CC | |
Maximum engine power | 9000 W | |
Engine rated speed | 3600 RPM | |
Fuel type | 92 # gasoline | |
Refer to the fuel consumption | 0.6L/each T30 smart battery * Charged from 30% to 95% | |
The oil type | SAE 10W-30 | |
Application Scenarios
