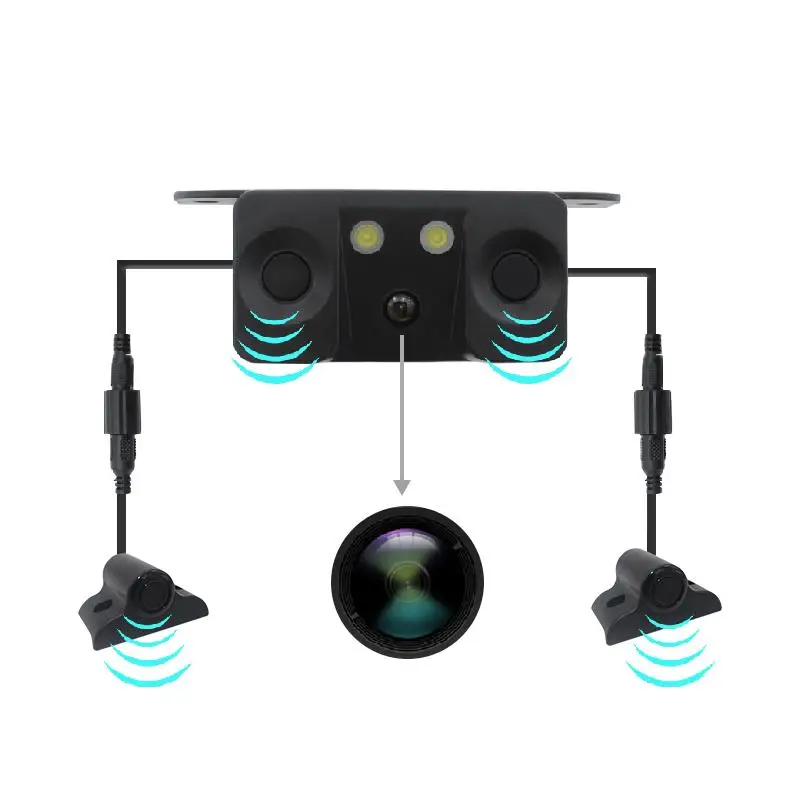

3 in 1 Truck visual reversing radar camera with 2 parking Sensors connected to navigation display no punch
- Category: >>>
- Supplier: Shenzhen Novel Electronics Limited
Share on (1600851908773):
Product Overview
Description
12-24V Rear View Camera And Sensor System
24v 3-in-1 Cmos Image Sensor Rear Camera Universal Back Camera Detector Radar

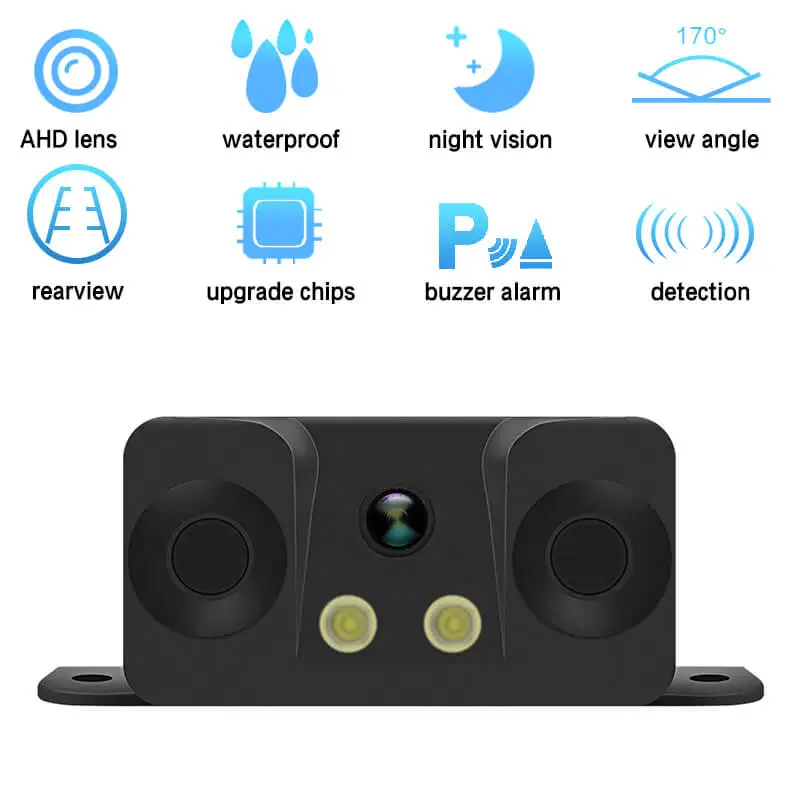

Product Feature of Rearview Camera With Radar Sensor
1,0.1lux Low illumination camera, night vision effect is outstanding
2,When a vehicle enters 2 meters distance obstacle, video radar system indicating the start of the obstacle distance, buzzer start alarm
3, Camera with dual probe ultrasonic, 3 in one Vehicle Radar Backup Camera Sensor Combo
4, When the car into reverse gear, reversing lamp lights up, automatic startup radar system.
5,Numeral and color LED display, Voice engaged or shut at your will
6,Your car can be protected from bumps and expensive collisions.
7,This parking sensor system helps take the risk out of reversing and parking.
Product Specifications of Parking Sensor Backup Camera Combo
Rated Voltage: DC 12V
Detect Distance: 0 - 2000mm
Display the distance and image of obstacles on the screen
Product name
| 3 in one truck rearview Backup Camera with radar
|
Image sensor | 1/3 CMOS PC3089 |
voltage | 12DCV—24DCV |
Rated voltage | 12DCV |
Power cost
| Max 1W
|
Total Pixels | 720*504 pixels |
Resolution | 700 TVL (Enhanced) |
Lens Angle
| 120 degree |
Mini illumination
| 0.1Lux |
Video output
| CVBS 1.0 Vpp / 75ohm |
Respond distance
| 0.3m—3.0m
|
Minimum detectable range | 0.2-0.3 meter
|
Maximum detectable range | 3 meter
|
Alarm distance
| 0m—2.0m |
Sensor diameter
| 14mm |
Sensor angle
| X,Y,60℃ |
work temperature
| -30℃---+80℃ |

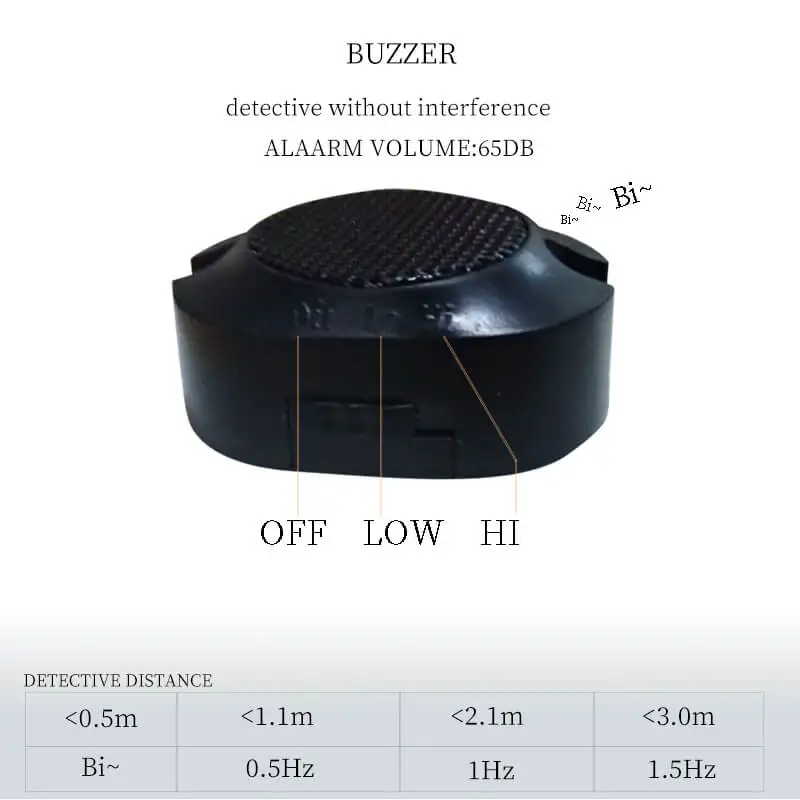

alarm volume
| 65dB |
Alarm frequency
| 1.6-2.0m:0.5 HZ(slowness);;1.1-1.5m :1 HZ(slowness);
0.6-1.0m:3 HZ(commonly); 0-0.4m :BI----- ; |
Camera Waterproof Grade
| IP68
|
Shell Material
| Plastic
|
Guiding Line | Yes
|
Video Type | PAL / NTSC
|
Alarm Type | Rear Side |

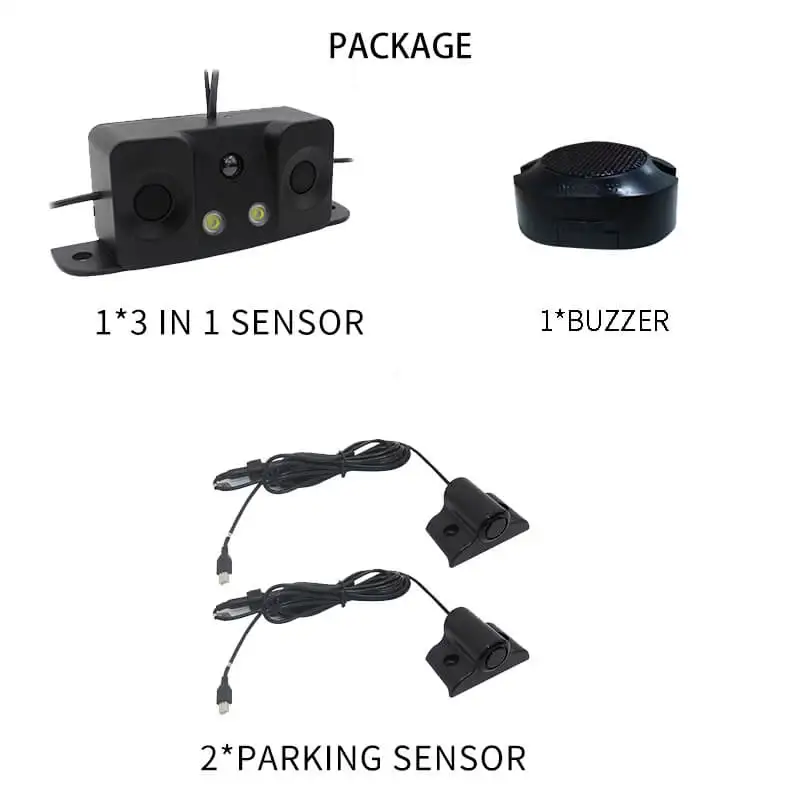

Package Included:
1 * Backup Camera With Parking Sensor 1pcs

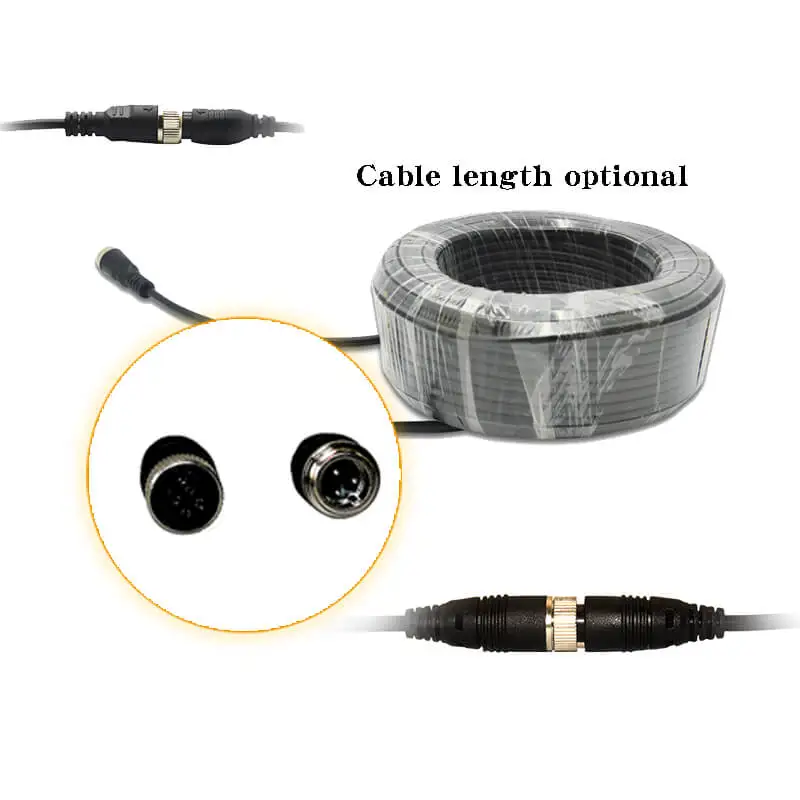

1 * 6000mm Video Line
1 * 1500mm Power Line
1 * Accessory
Package Size: 143 * 103 * 60mm / 5.63 * 4.06 * 2.36in
Package Weight: 200g / 7.05ounce
Product Application
1, 3 in 1 Parking Sensor Backup Camera Combo can work with any kinds of cars, SUV and commercial vehicle in worldwide
2, Rear View Camera with Backup Radar can work with Toyota, Honda, Benz, BMW,
Skoda, DAF, MAN, Scania, Iveco, GM, Ford and other famous brands cars
How to install aftermarket AHD Vehicle Camera in car or Truck?
aftermarket backup camera install/ installation
The first step is to first remove the power supply connection at the vehicle battery, and place the removed connection away from the electrode to prevent accidental connection of the power supply.

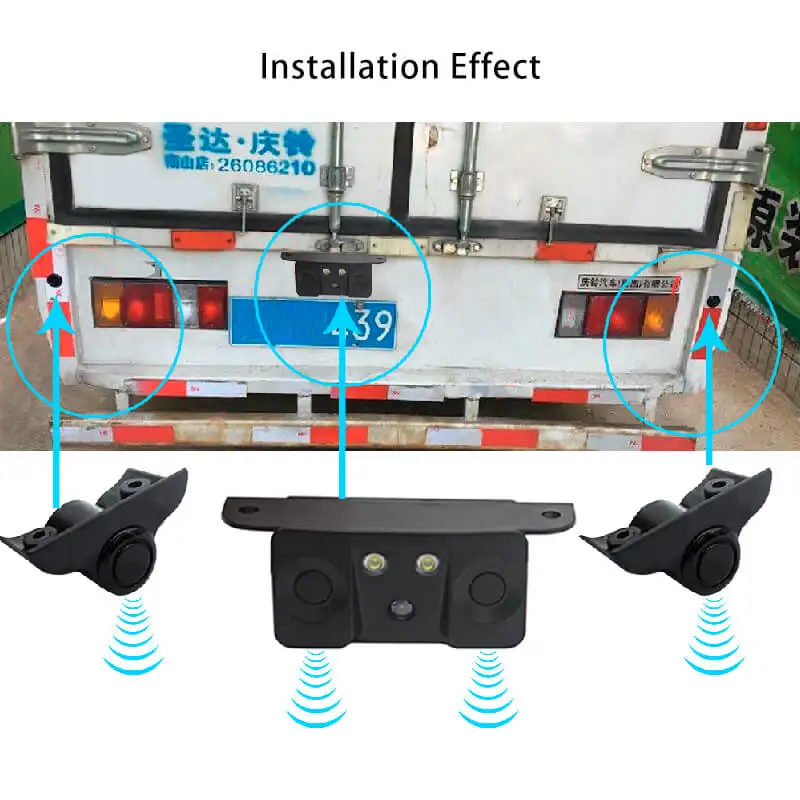

The second step is to determine the installation location of the car camera, generally divided into two types:

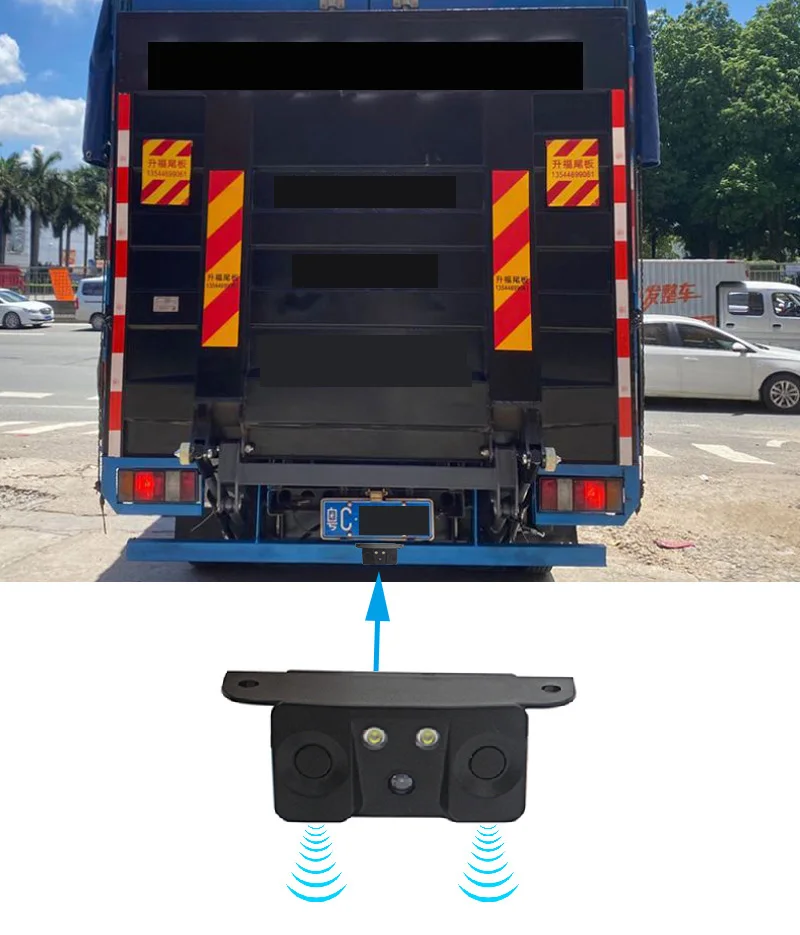

One is installed in the position of the license plate lamp on the license plate frame. This installation is relatively easy. For the special car, you only need to replace it with the original license plate lamp. You only need to use the small butterfly and other plug-ins provided in the camera accessories. Screw the camera to the position of the license plate light. Through the adjustment of the iron sheet or gasket in the accessories, the camera can achieve the best reversing angle of view. The line of the camera penetrates into the car through the gap of the license plate lamp, and is connected with the power supply of the reversing lamp and the video extension cable. This type of installation type of reversing camera is currently a more popular one, with a more concealed appearance and easier installation. The other is drilled installation, embedded inside the bumper, because the bumper is a plastic part, the camera wiring is relatively easy.

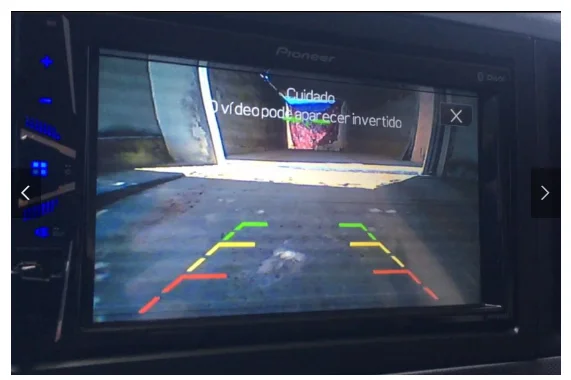

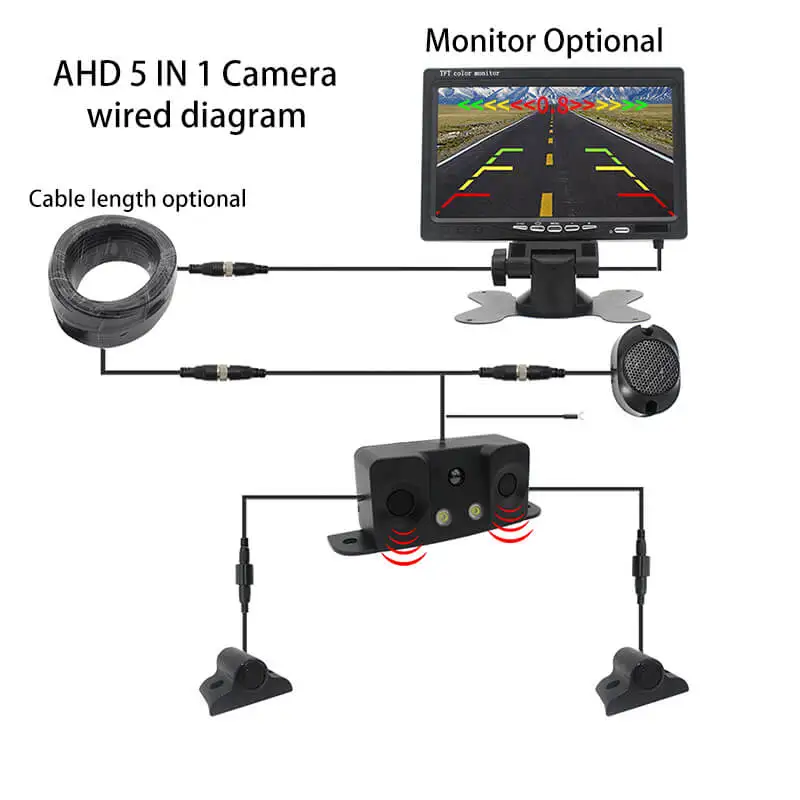

The Step 3: Connect the power cord of the camera to the power cord of the rear reversing light. Then connect the video cable of the camera to the video extension cable, and the other end of the video extension cable is connected to the AV input of the car monitor (car DVD&portable GPS navigation&car computer & car monitor). Finally restore the battery power supply, start the car, put the reverse gear, you can see the reverse image on the car monitor.
