Products Description

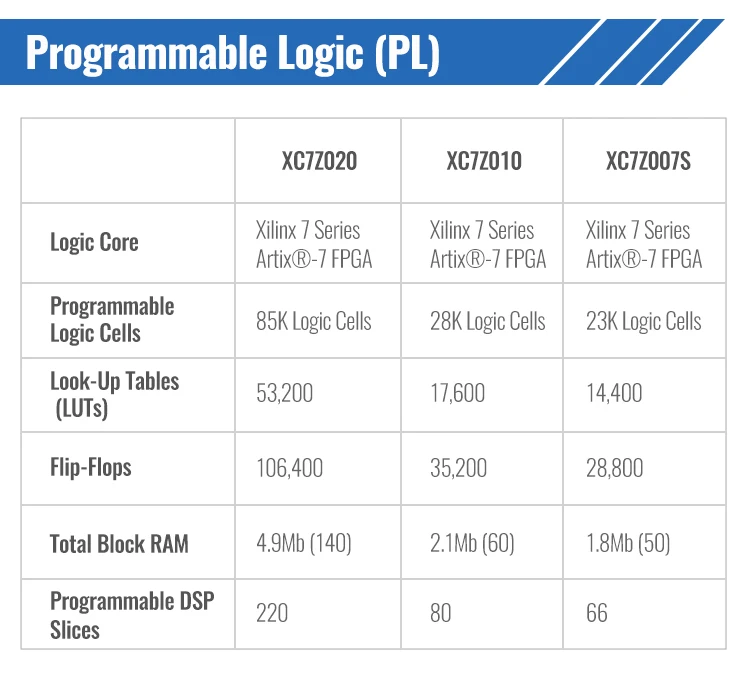

Embedded Instrument Module XILINX XC7Z010 XC7Z007 XC7Z020 FPGA develop board




SG2625-MU01PC-F FPGA CONTROLLER

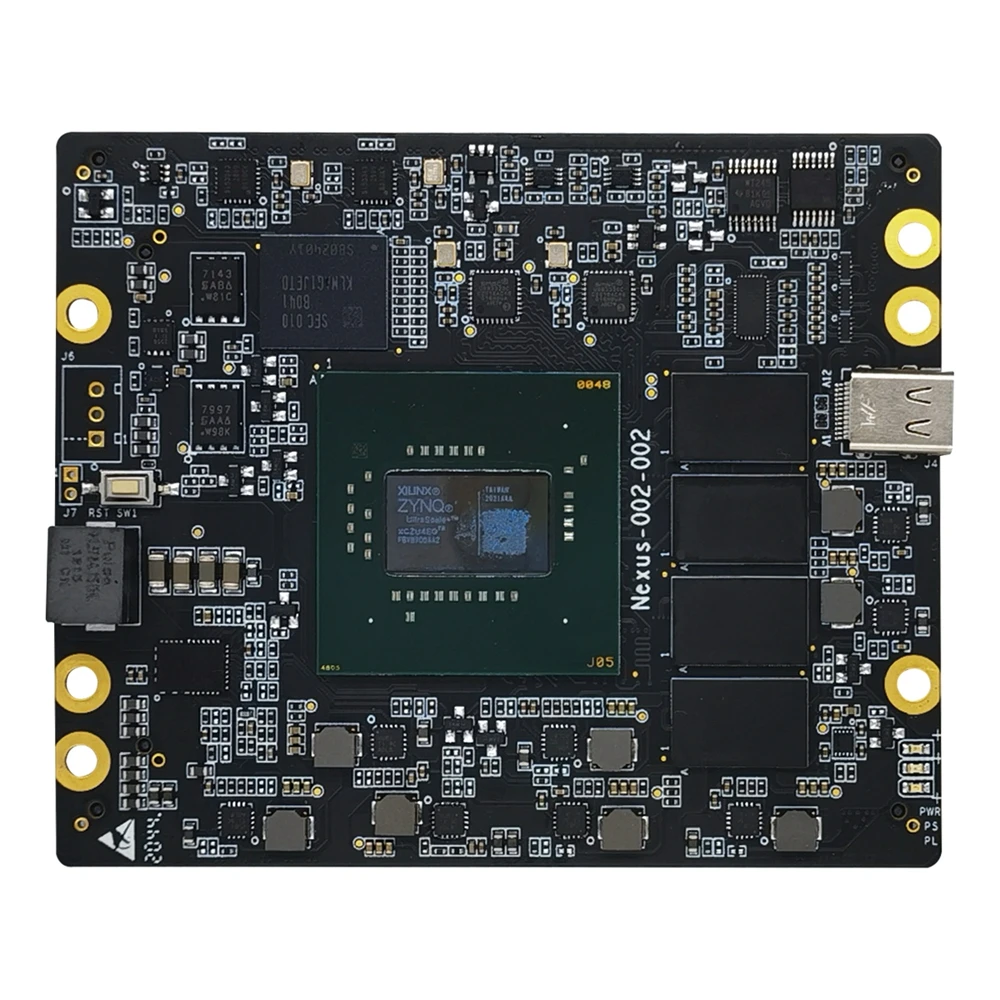

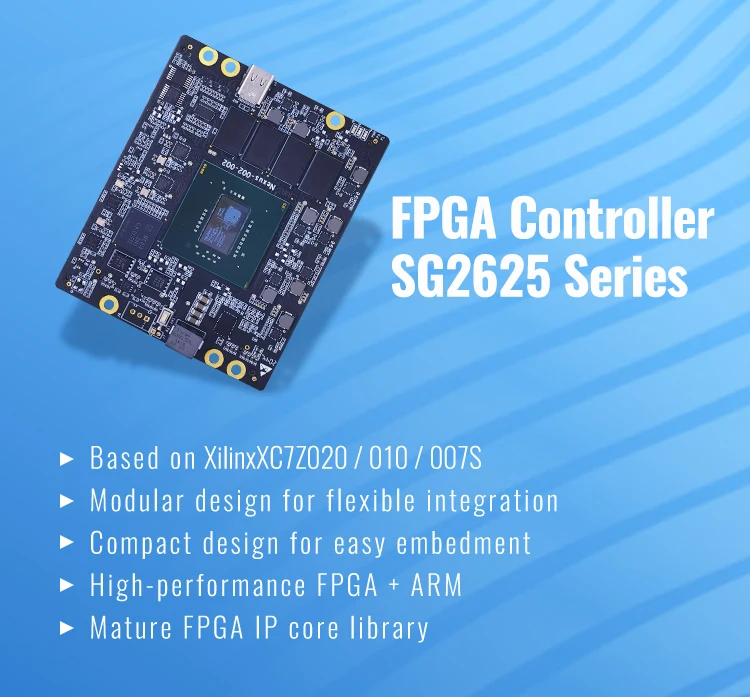

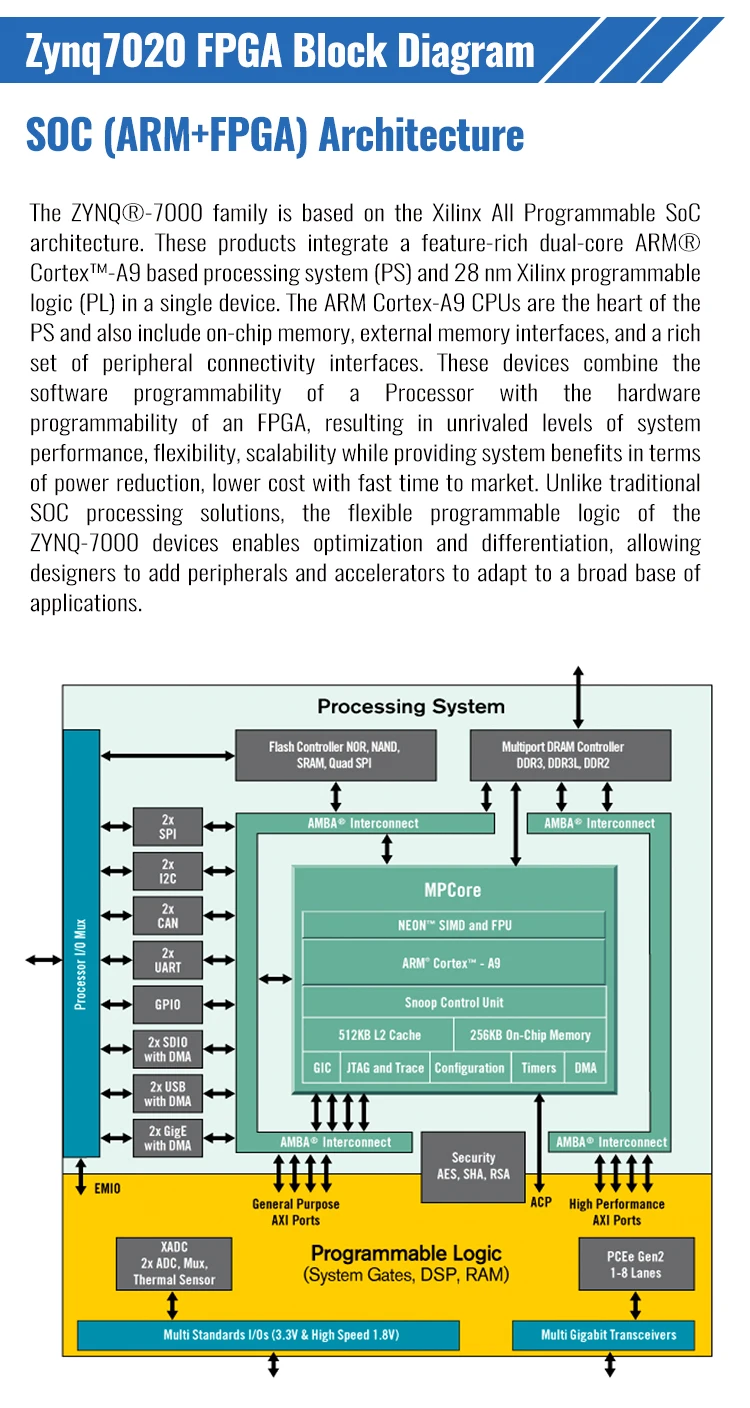

The SG2625 FPGA Module is an SOM (System on Module) based on Xilinx Zynq 7000 series FPGA（XC7Z020/7010/7007S）, featuring integrated dual-core ARM Cortex-A9 processor.

The SG2625 module has up to 1GB DDR3 SDRAM with x32 data bus width, 4GB eMMC, 16MB
quad SPI Flash, a Gigabit Ethernet PHY, an USB PHY and USB to UART on board.

It provides a large number of I/O signals for ARM peripherals and FPGA I/Os through two 0.8mm pitch 120-pin board-to-board connectors, which is ideal for your next embedded design.

SmartGiant also provides customization services to help customers free their hardware, logic, firmware, and software tasks, as well as ODM services from R&D, validation and mass production.



Product Specification


Product Name
FPGA Controller  SG2625-MU01PC-F
Power Supply Voltage
DC5V; <2A
Power Dissipation
<10W
CPU Clock
Up to 866MHz
DDR3 Clock

533MHz
RAM
Up to 1GByte
Flash
16M Byte（Q-SPI），4G Byte（eMMC）
Ethernet
10/100/1000M ,1 channel.
USB
USB 2.0 OTG, 1 channel.
Serial ports
115200 bps ,1 channel.
Digital I/O
 Bank500(ARM) 6pin（Can be configured SPI，IIC，SDIO，UART，CAN） 1.8V
Bank501(ARM) 6pin（Can be configured SPI，IIC，SDIO，UART，CAN） 3.3V
Bank13 (FPGA)25pin（12 LVDS pairs and 1 single-ended I/O）Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33. Bank13 is only
available in XC7Z020 (SG2625-MU01PC-F).
Bank34 (FPGA)50pin（24 LVDS pairs and 2 single-ended I/O）Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33
Bank35 (FPGA) 49Pin（24 LVDS pairs and 1 single-ended I/O）Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33
Clock Source Stability
±10 ppm @-40 ~ +105°C
Operating Environment
0 to 50°C / 0 % to 80 % R.H.

















Storage
Environment



-40 to 70°C / 0 % to 80 % R.H.
Dimensions
75mm×55mm

















Thickness




1.6mm
Interface
Two 120pin board-to-board connectors


Product Details
