Home solar energy storage 12 volt agm gel lead acid battery
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd
Share on (1600851961714):
Product Overview
Description
Relate Products
Products Description
Features:
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside
Specification
Item No. | AN-GEL-200AH | ||
Nominal Voltage | 12 V | ||
Capacity(25℃) | 10HR(10.8V) | 200 Ah | |
5HR(10.5V) | 175Ah | ||
1HR(9.60V) | 124Ah | ||

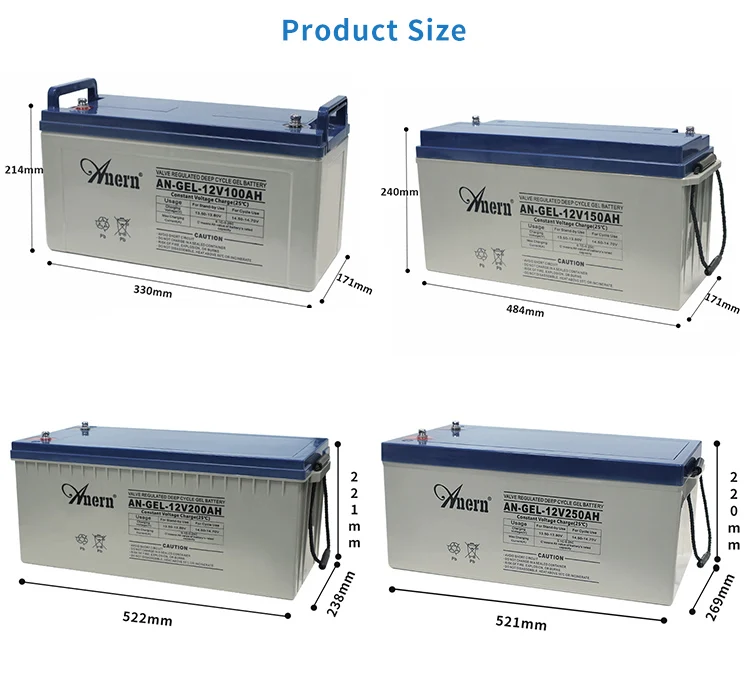

Dimension | Length | 522±2mm (20.6inch) | |
Width | 238±2mm (9.37inch) | ||
Height | 221±2mm (8.66inch) | ||
Total Height | F5: 238±2mm (9.37inch) | ||
T10: 221±2mm (8.70inch) | |||
Approx. Weight | 57.3kg±4% | ||
Terminal type | F5/T10 | ||
Internal resistance(Fully charged, 25℃) | Approx. 2.7mΩ | ||
Capacity affected by temperature (10HR) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-discharge(25℃) | 3 month | Remaining Capacity: 91% | |
6 month | Remaining Capacity: 82% | ||
12 month | Remaining Capacity: 65% | ||
Nominal operating temperature | 25℃±3℃(77℉±5℉) | ||
Operating temperature range | Discharge | -15℃～50℃(5℉～122℉) | |
Charge | -10℃～50℃(14℉～122℉) | ||
Storage | -20℃～50℃(-4℉～122℉) | ||
Float charging voltage(25℃) | 13.50 to 13.80VTemperature | ||
compensation:-18mV/℃ | |||
Cyclic charging voltage(25℃) | 14.40 to 14.70VTemperature | ||
compensation:-30mV/℃ | |||
Maximum charging current | 60A | ||
Terminal material | Copper | ||
Maximum discharge current | 1600A(5 sec.) | ||
Designed floating life(20℃) | 12 years | ||
Product Details

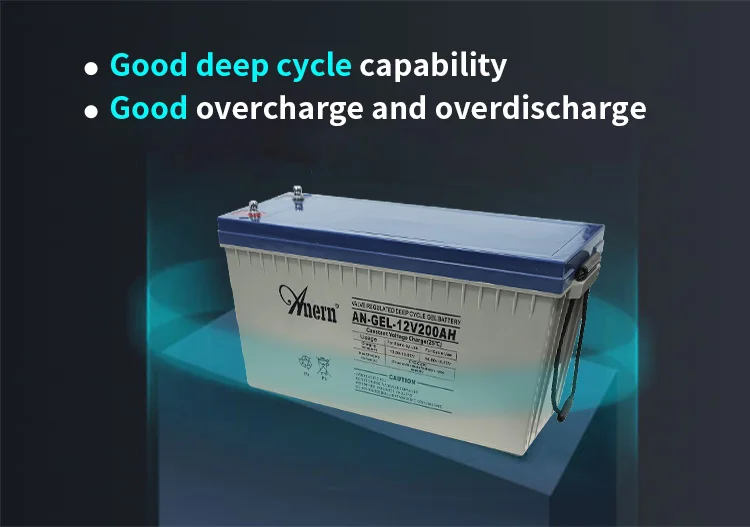

Good deep cycle capability, with good overcharge and over-discharge capabilities.

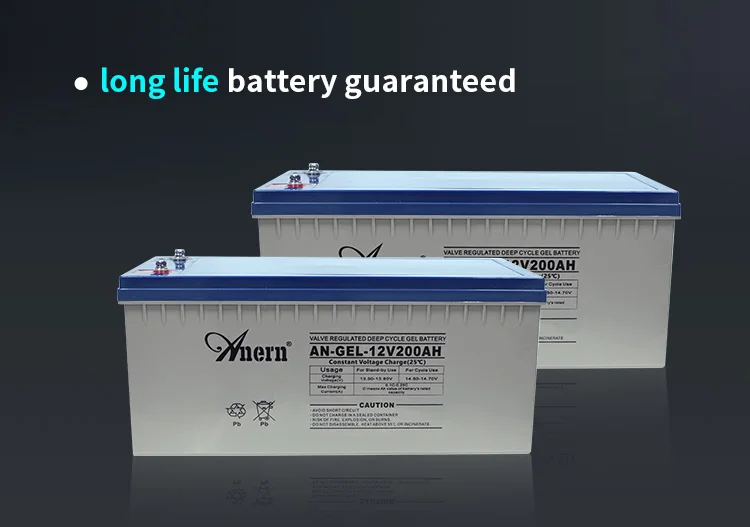

Long life, special process design, and long life battery guaranteed by a colloidal electrolyte.

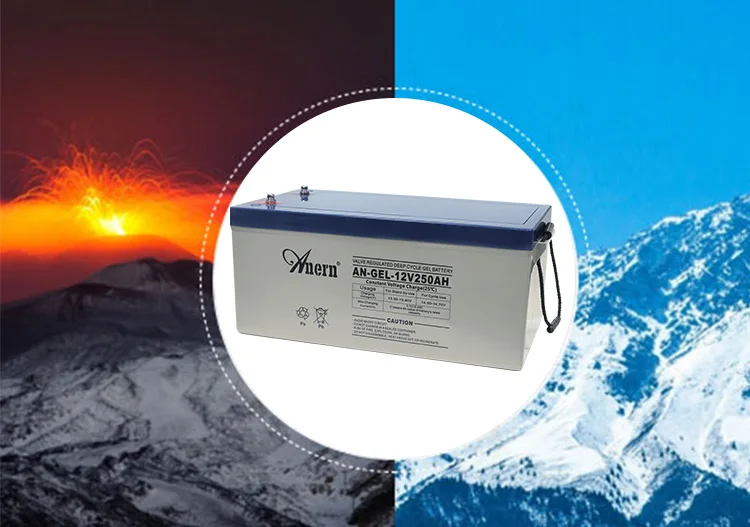

Suitable for different environmental requirements, such as batteries that can be used normally under different conditions such as high altitude, high temperature, and low temperature.

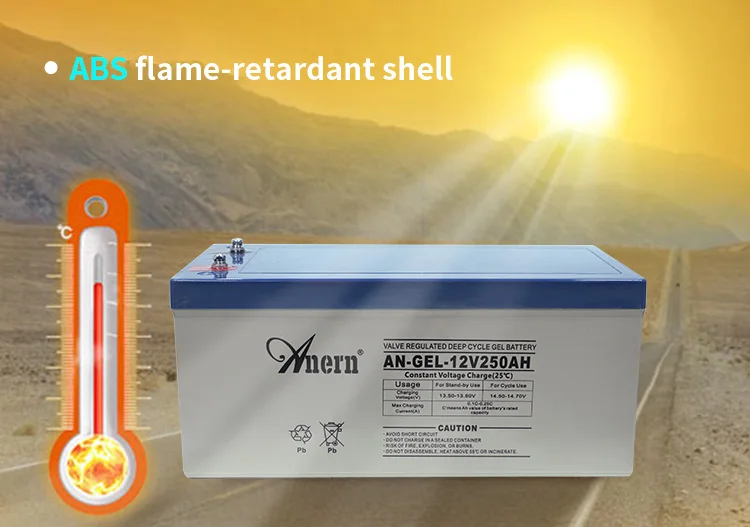

Adopt ABS flame-retardant shell, high mechanical strength, not easy to deform and leak, and strong safety performance.

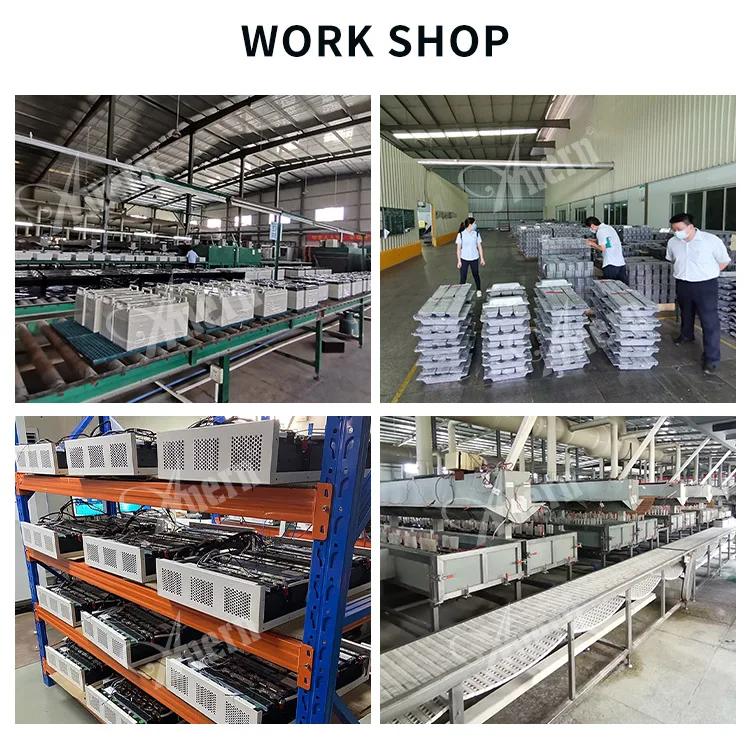

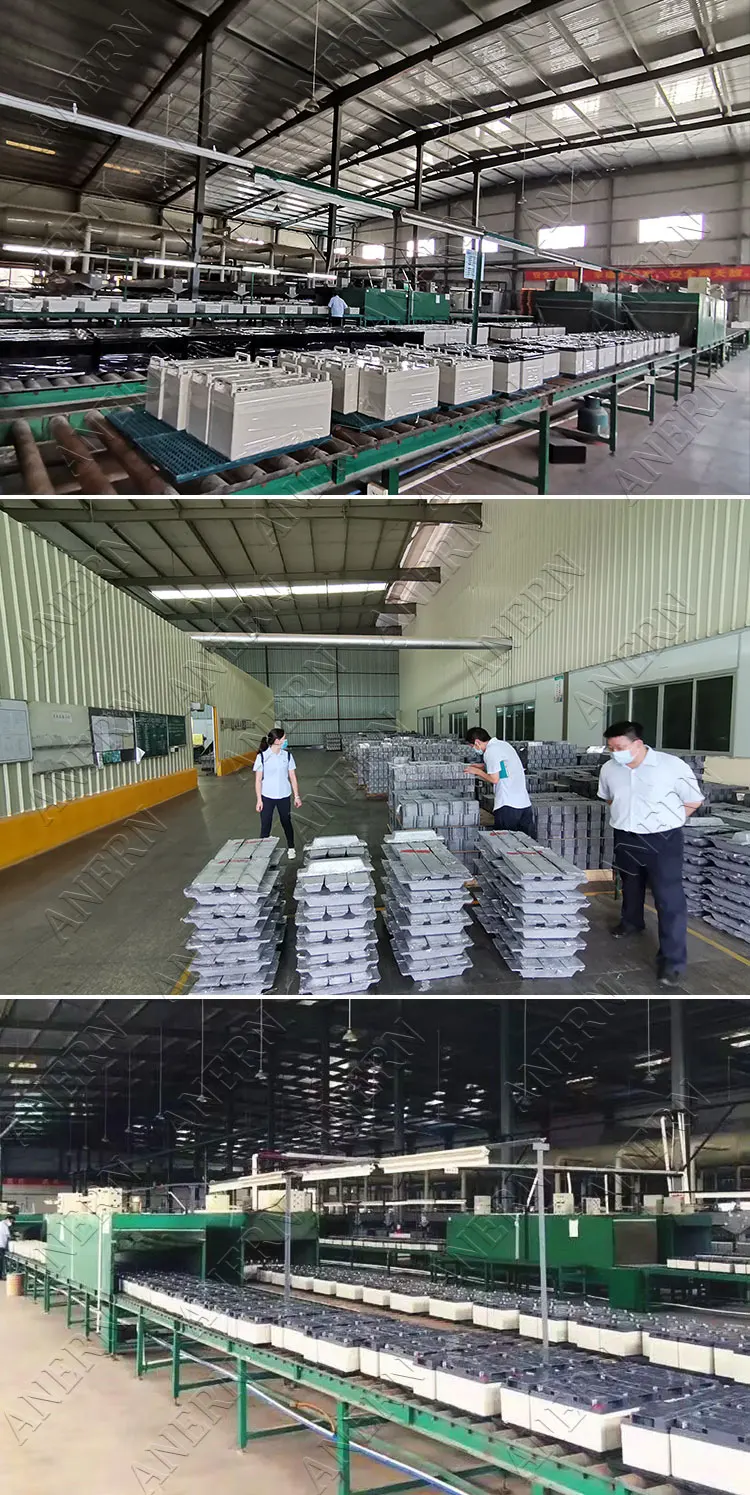

Anern Factory
We can offer OEM services as your specific requirements,provide a cost effective, energy efficient, and long term outdoor lighting solution.

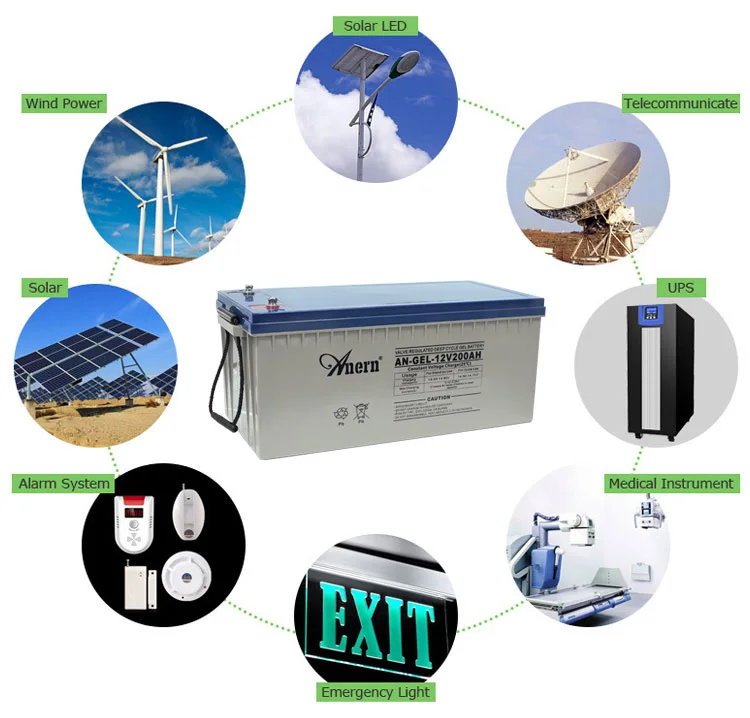

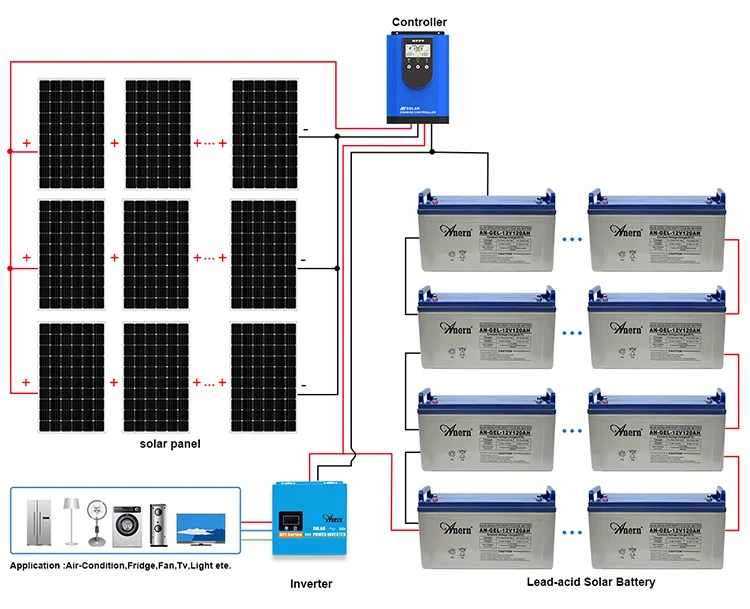

Application
Certifications
Company Information
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm, among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
