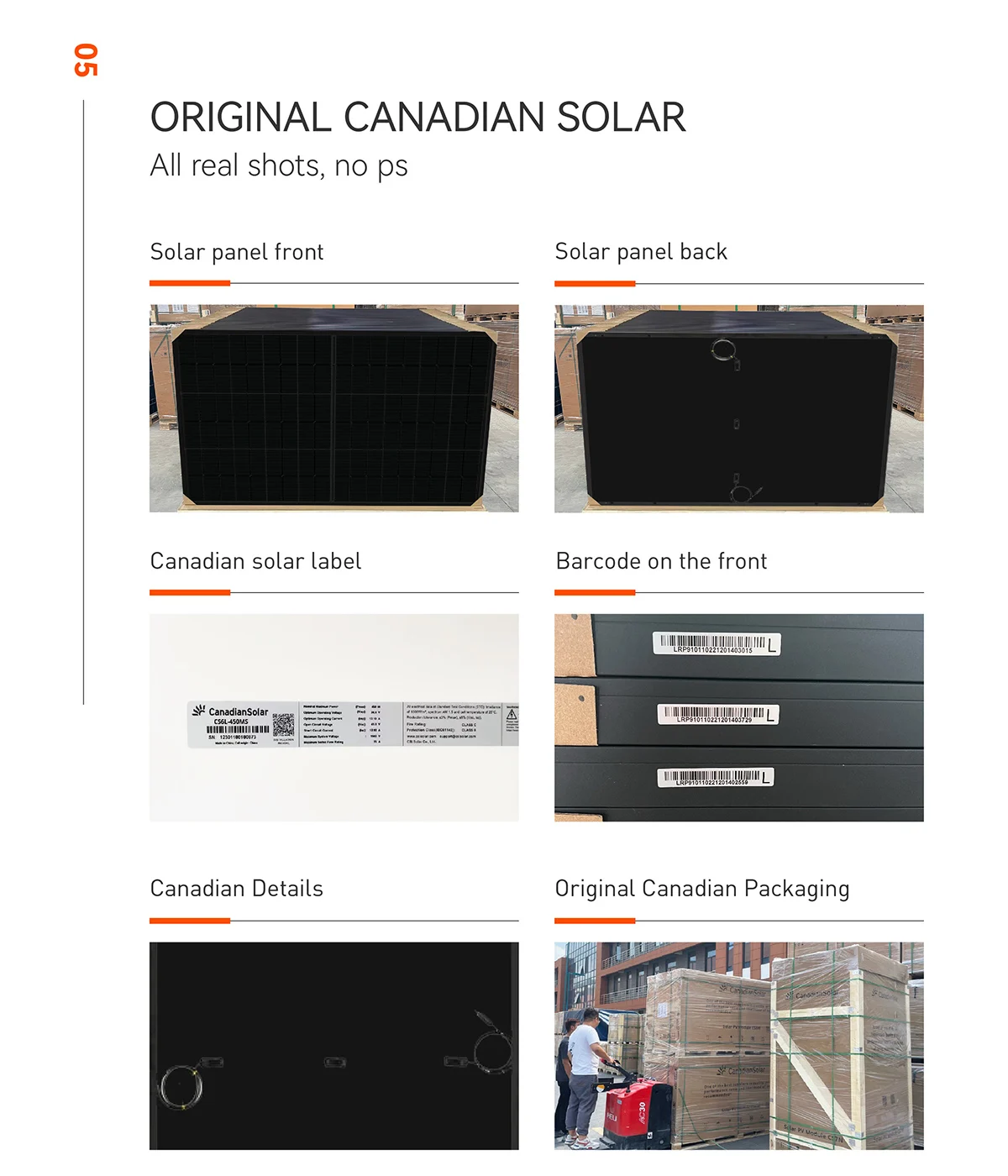

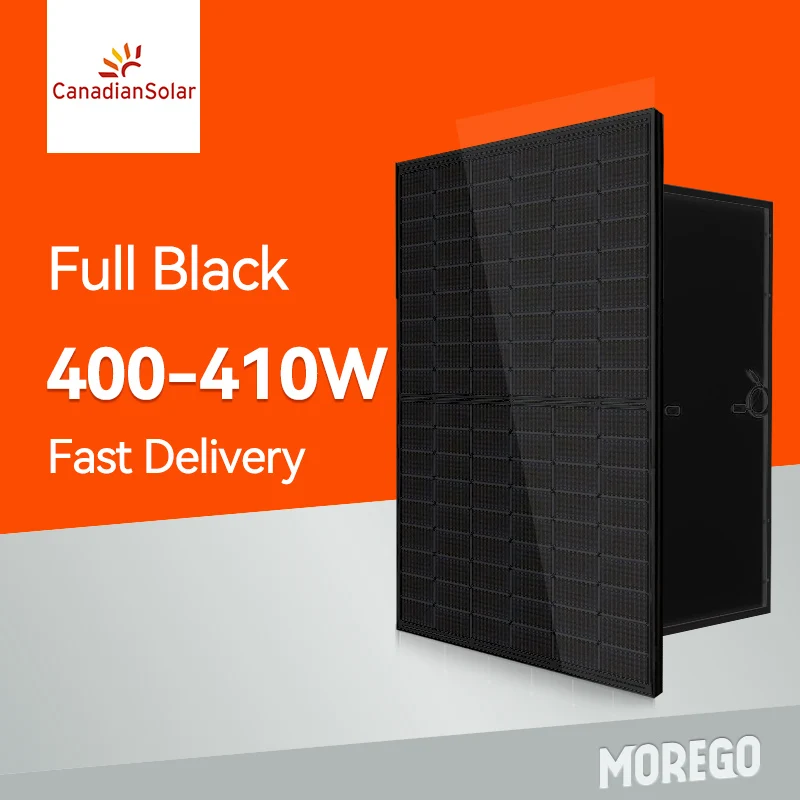

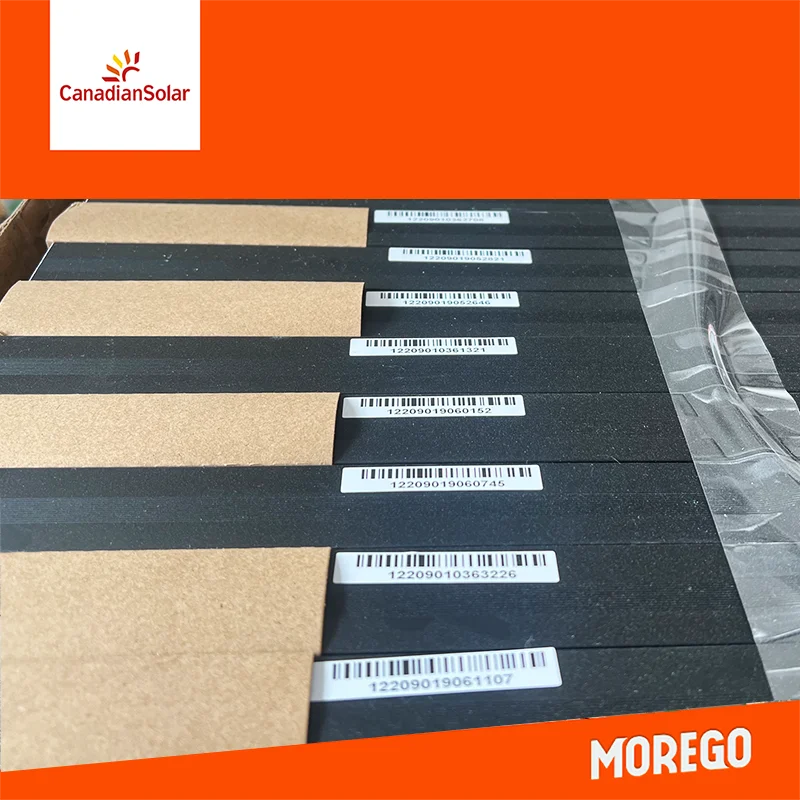

Canadian solar photovoltaic panels black frame and black back 400w 395W 405w 400 watt solar panel price in stock
- Category: >>>
- Supplier: Nanjing Moge New Energy Co. Ltd.
Share on (1600851997275):
Product Overview
Description
Parameter

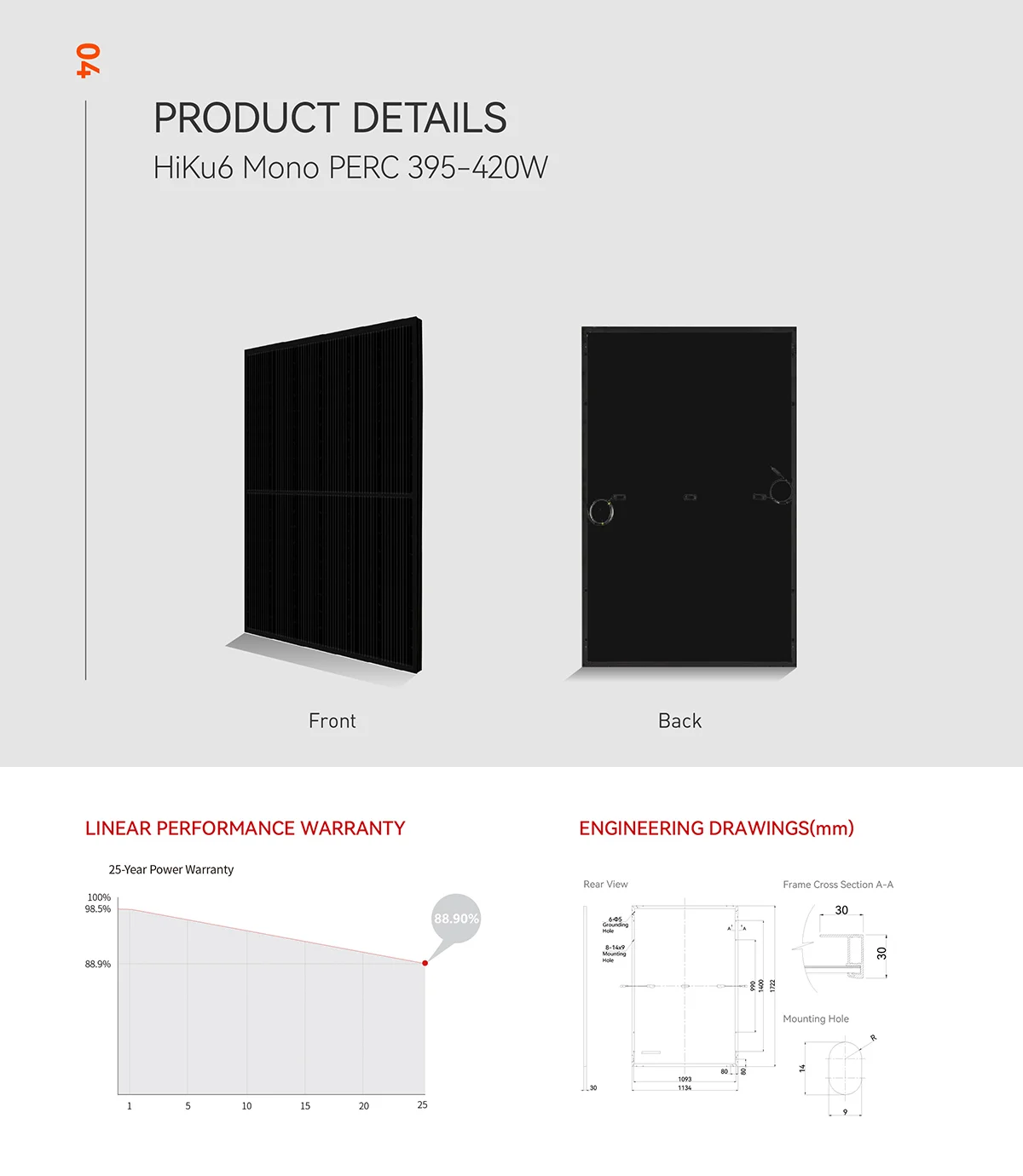

MECHANICAL SPECIFICATION | ||||||
Format | 1722 X1134 X30 mm | |||||
Weight | 21.3kg±5% | |||||
Cell | 108 monocrystalline half cell | |||||
Junction Box | IP68, 3 bypass diodes | |||||
Cable | 4 mm2 (IEC), 12 AWG (UL) | |||||
Connector | T6 or MC4 or MC4-EVO2 | |||||
ELECTRICAL DATA | STC* | ||||||||||
CS6R | 400MS | 405MS | 410MS | 415MS | 420MS | |||||
Nominal Max. Power (Pmax) | 400W | 405W | 410W | 415W | 420W | |||||
Opt. Operating Voltage (Vmp) | 30.8V | 31.0V | 31.2V | 31.4V | 31.6V | |||||
Opt. Operating Current (Imp) | 12.99A | 13.07A | 13.15A | 13.23A | 13.31A | |||||
Open Circuit Voltage (Voc) | 36.8V | 37.0V | 37.2V | 37.4V | 37.6V | |||||
Short Circuit Current (Isc) | 13.85A | 13.93A | 14.01A | 14.09A | 14.17A | |||||
Module Efficiency | 20.5% | 20.7% | 21.0% | 21.3% | 21.5% | |||||
Operating Temperature | -40°C ~ +85°C | |||||||||
Max. System Voltage | 1500V or 1000V | |||||||||
Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | |||||||||
Max. Series Fuse Rating | 25 A | |||||||||
Application Classification | Class A | |||||||||
Power Tolerance | 0 ~ + 10 W | |||||||||
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||||||||
