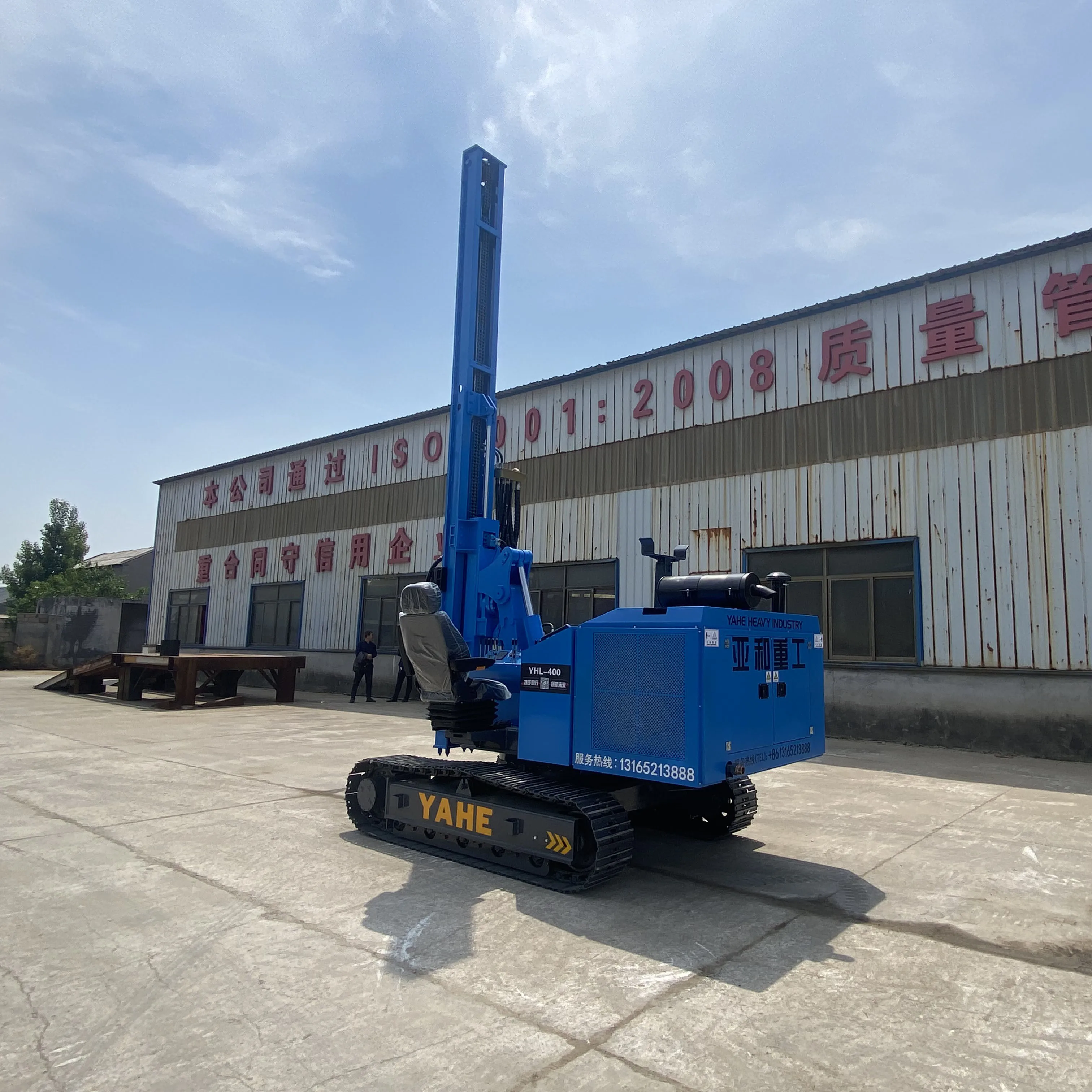

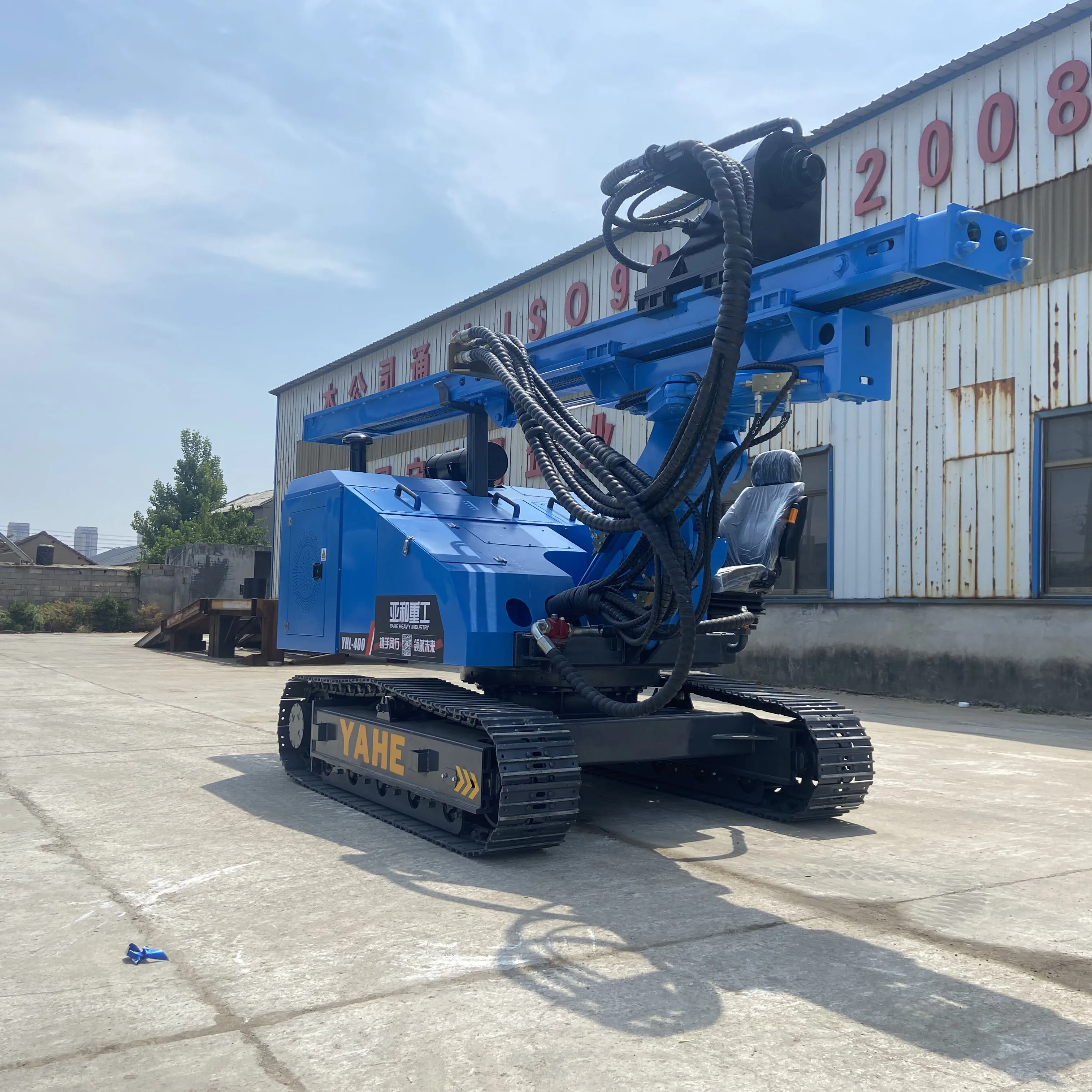

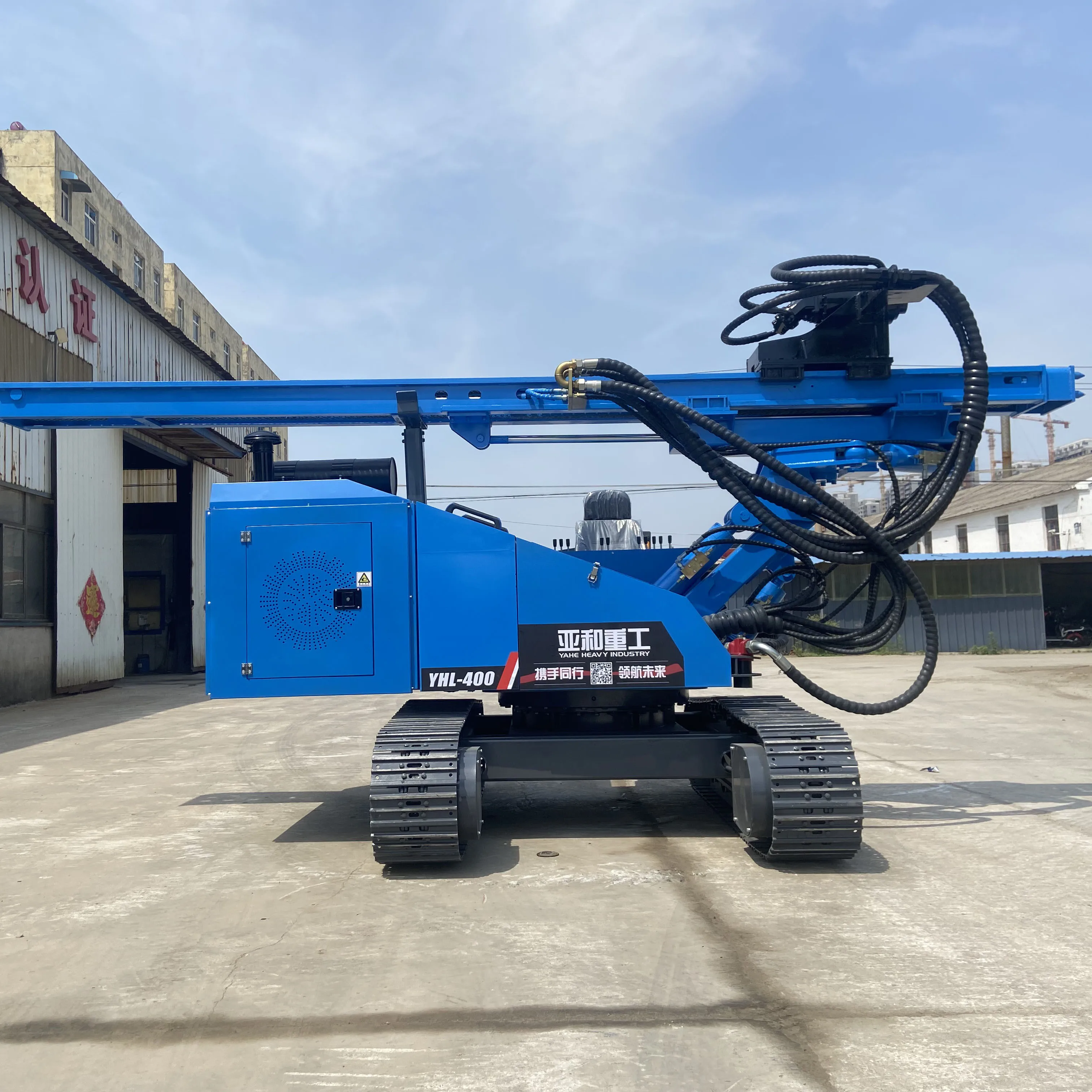

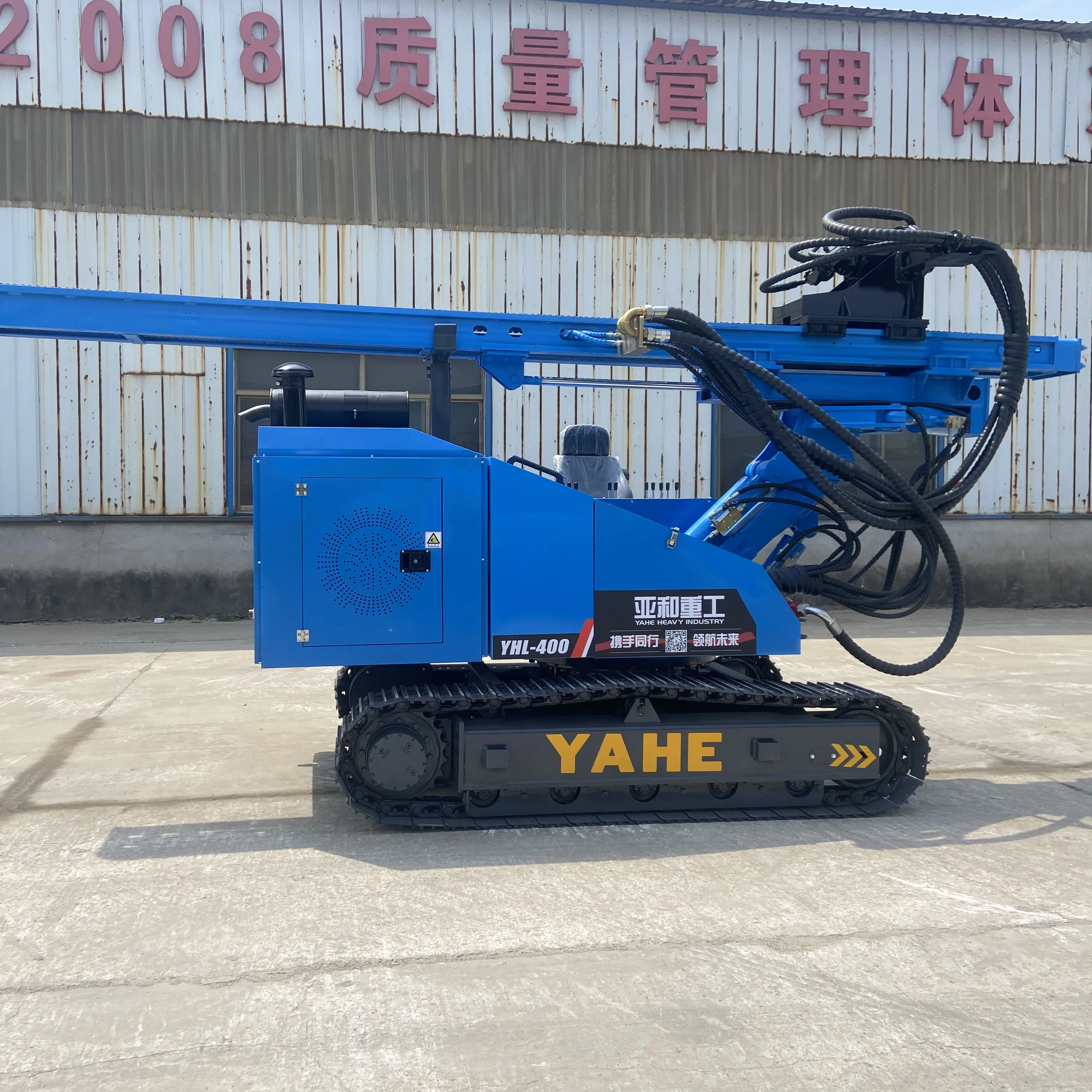

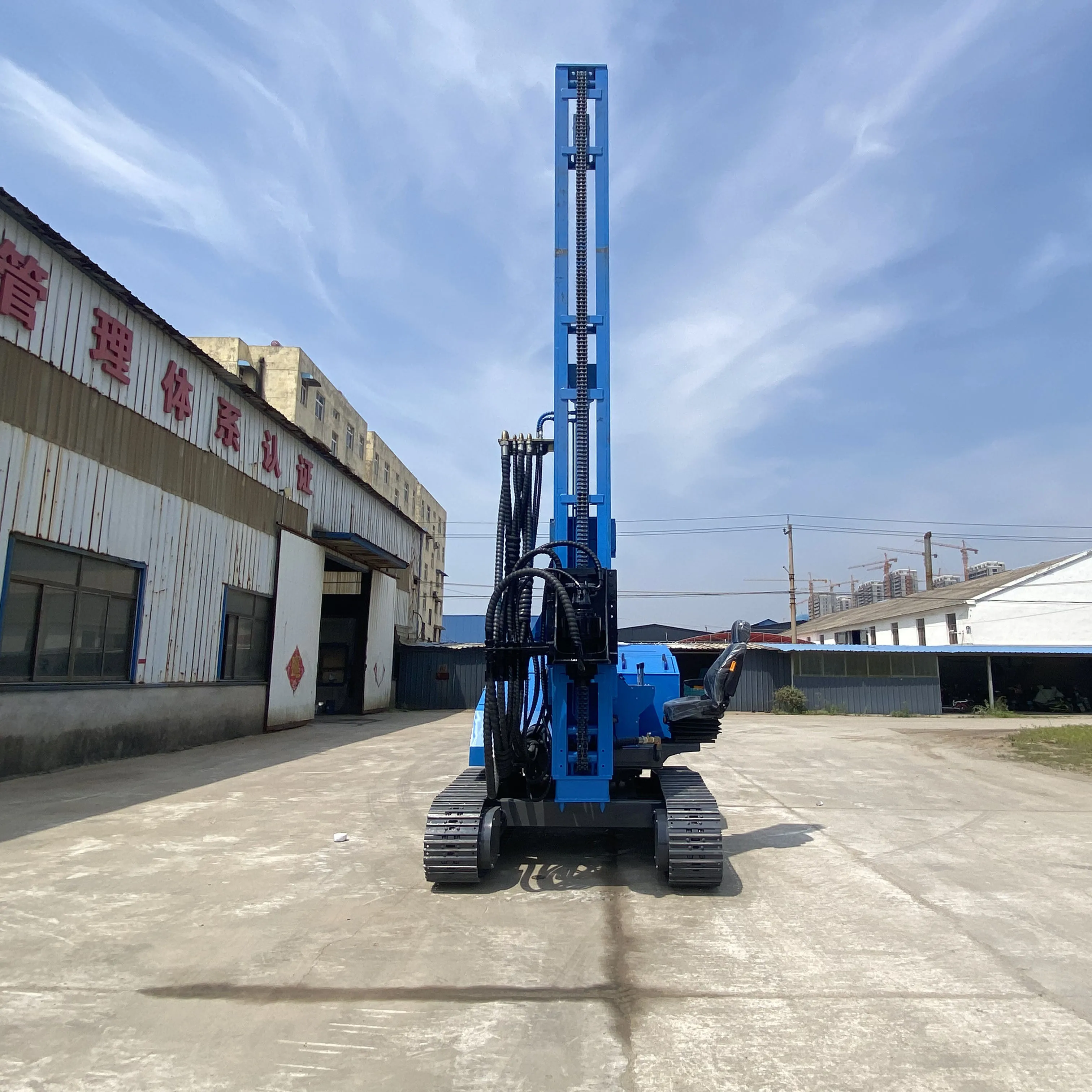

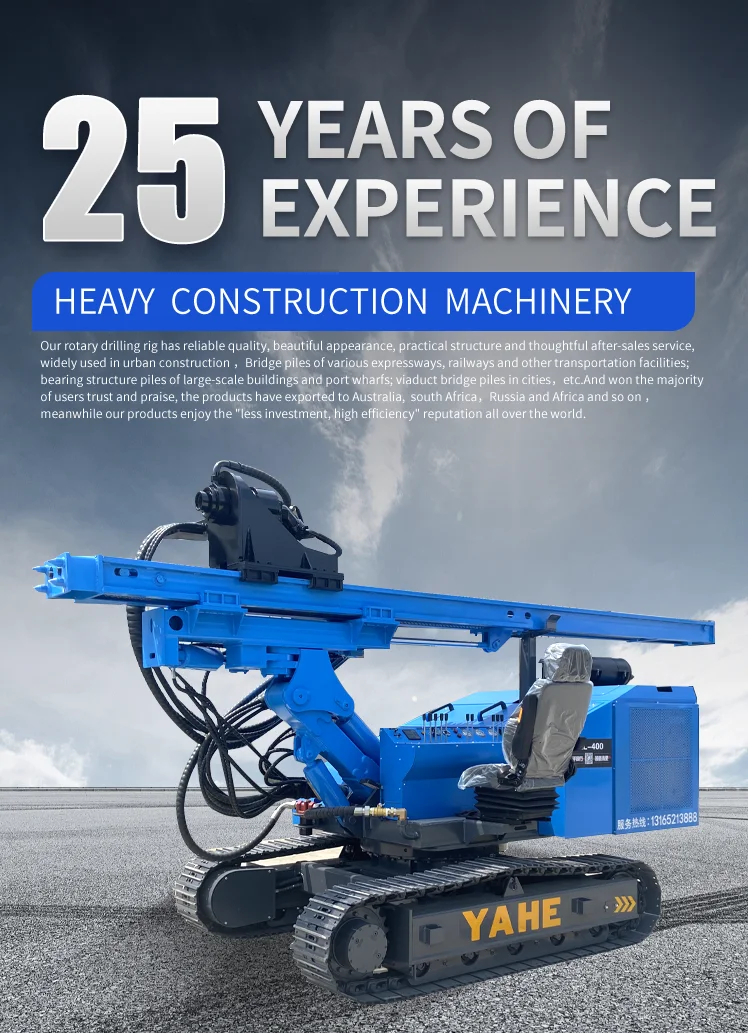

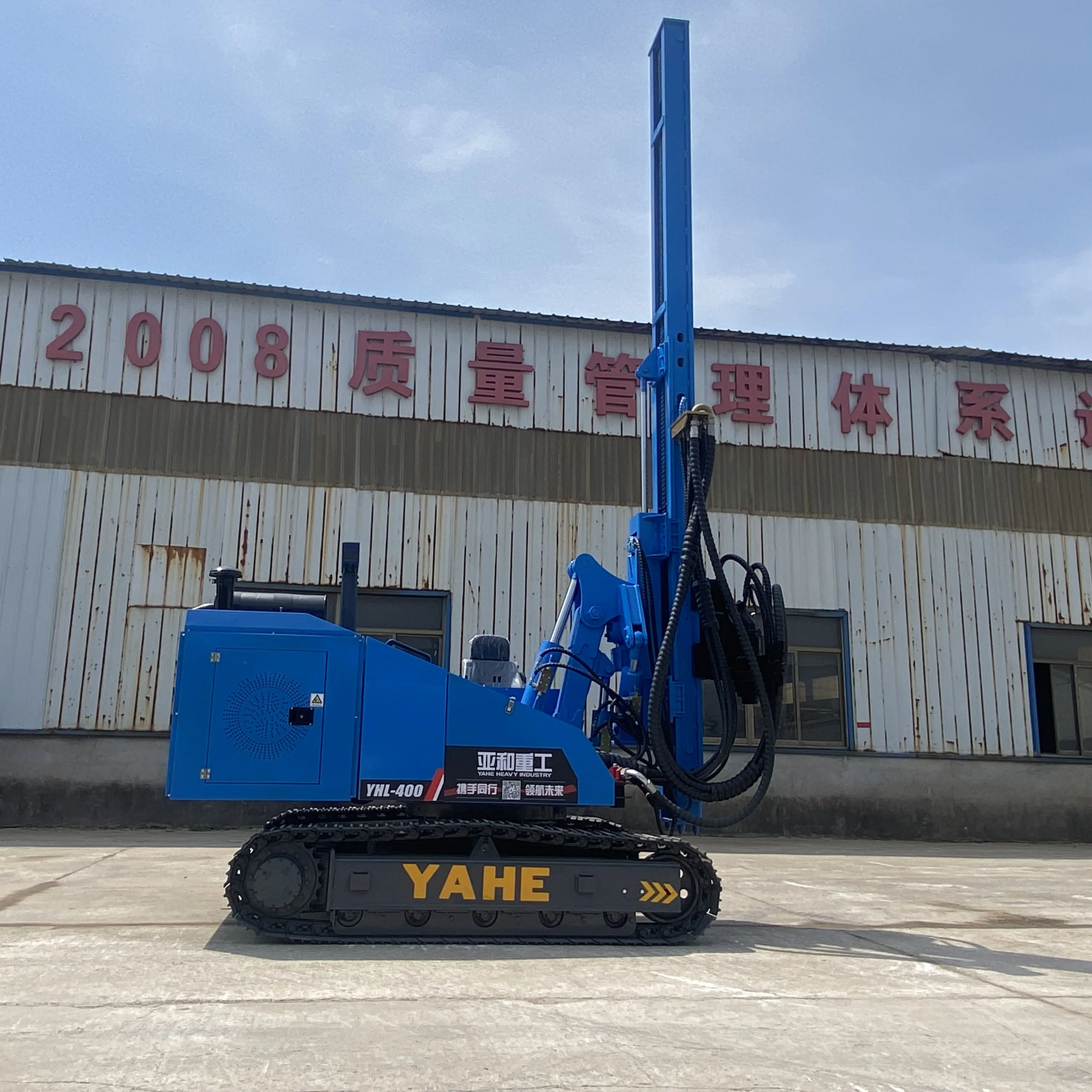

Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00
Electrical and hydraulic integration Rotary excavator Piling machinery sheet pile driver
- Category: >>>
- Supplier: Shandong Tenggong International Trade Co. Ltd.
Share on (1600852012254):
Product Overview
Description
Applicable scope
Widely used in pile construction in soft soil layers, such as foundations, harbors, bridges, reservoirs, power stations, and national defense projects, it is widely used in photovoltaic spiral pile rotation engineering, drilling engineering, geological exploration, construction engineering, engineering, and other projects.
1. Advanced hydraulic system, high-quality hydraulic components, and strict assembly process ensure the performance and durability of the hydraulic system, ensuring the working stability and mechanical durability of the pile driver.
2. Crawler chassis, with high strength and good stability, conforms to the design concept of industrial aesthetics, and the operator's workspace is more spacious.
3. It tends to be reasonable, and the wear-resistant parts are all treated with heat treatment, with rigorous processes to reduce deformation and complete testing equipment.
4. The operation of the pile driver is completed by one excavator operator, making it easy to learn.
5. It has good mobility and can be transported along with the excavator when transferring the construction site, without disassembly.
6. Different clamp nozzles can be replaced to meet the construction needs of various steel sheet piles, I-beams, Larsen piles, U-beams, cement piles, and wooden piles.
7. Short construction period, low noise, and no disturbance to residents.
Product Features
1. Advanced hydraulic system, high-quality hydraulic components, and strict assembly process ensure the performance and durability of the hydraulic system, ensuring the working stability and mechanical durability of the pile driver.
2. Crawler chassis, with high strength and good stability, conforms to the design concept of industrial aesthetics, and the operator's workspace is more spacious.
3. It tends to be reasonable, and the wear-resistant parts are all treated with heat treatment, with rigorous processes to reduce deformation and complete testing equipment.
4. The operation of the pile driver is completed by one excavator operator, making it easy to learn.
5. It has good mobility and can be transported along with the excavator when transferring the construction site, without disassembly.
6. Different clamp nozzles can be replaced to meet the construction needs of various steel sheet piles, I-beams, Larsen piles, U-beams, cement piles, and wooden piles.
7. Short construction period, low noise, and no disturbance to residents.
Product Paramenters
project | unit | value |
Size | mm | 4420*1920*4900-7900(working） |
4500-7500*1920*2800（transport） | ||
Hydraulic Hammer Model | mm | AR75/85/100（optional） |
Hydraulic Hammer flow | L/min | 50-110 |
Impact frequency | bmp | 350-800 |
drill rod diameter | mm | 75/85/100（optional） |
Maximum torque of walking motor | N·m | 11500 |
Maximum height of pile | mm | According to the slide |
Sliding guide rail bracket inclination angle | º | Left 5° right 5° |
Frame rotation angle | º | 360 |
Hydraulic system pressure | Mpa | 22 |
Gear pump displacement | ml/r | 40+40+25 |
Travel speed | KM/h | 3 |
Vehicle weight | t | 7.3 |
Engine power | kw | 85 |
Rated engine speed | （r/min） | 2600 |
Track shoe width | mm | 350 |
Single track | section | 42 |
Total displacement of walking motor | ml/r | 53 |
Rated pressure of walking motor | Mpa | 30 |
Travel motor reduction ratio | 1:54.4 |
Recommend Products
Working principle of photovoltaic pile driver
It is the use of vibration driven pile driving and pulling, especially suitable for short and medium-sized pile engineering such as municipal engineering, bridges, cofferdams, building foundations, as well as river embankments, railway foundation pit support, elevated foundation pit support, or bridge pier foundation pit support.
The solar photovoltaic pile driver utilizes its high-frequency vibration to vibrate the pile body at a high speed, transmitting the vertical vibration generated by the machinery to the pile body, causing changes in the soil structure around the pile due to vibration and reducing its strength. The soil around the pile body liquefies, reducing the frictional resistance between the pile side and the soil. Then, the pile is sunk into the soil using the downward pressure of the excavator, the solar photovoltaic pile driver, and the self weight of the pile body. When pulling out the pile, use the lifting force of the excavator to lift the pile while vibrating on one side. The excitation force required for the solar photovoltaic pile driver should be determined comprehensively based on the soil layer, soil quality, water content, and the type and structure of the pile on the site.
The solar photovoltaic pile driver utilizes its high-frequency vibration to vibrate the pile body at a high speed, transmitting the vertical vibration generated by the machinery to the pile body, causing changes in the soil structure around the pile due to vibration and reducing its strength. The soil around the pile body liquefies, reducing the frictional resistance between the pile side and the soil. Then, the pile is sunk into the soil using the downward pressure of the excavator, the solar photovoltaic pile driver, and the self weight of the pile body. When pulling out the pile, use the lifting force of the excavator to lift the pile while vibrating on one side. The excitation force required for the solar photovoltaic pile driver should be determined comprehensively based on the soil layer, soil quality, water content, and the type and structure of the pile on the site.

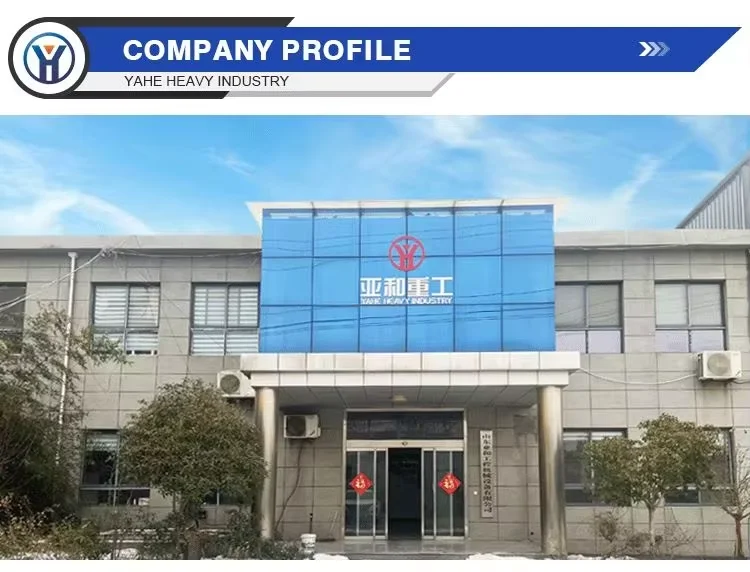

Company Profile
Shandong Tenggong International Trade Co., Ltd. is a modern professional manufacturer of heavy construction machinery.Representative piling machinery enterprise in Shandong. The company is located in Tengzhou, the hometown of Mozi in southern Shandong Provincecover-ing an area of 15,000 square meters and a building area of 6,000 square meters. lt is a company that integrates R&D, design, manufacturing, and sales of various rotary drilling rigs and other A modern enterprise of construction machinery.The products are widely used in the construction of bored piles for pile foundation projects such as highways, railways, bridges, water conservancy, electric power, airports,wharves, ports, urban and rural construction and high-rise buildings, and won the users trust and praise.
The company has independent import and export rights, has passed lSO:9001 quality manage-ment system certification, and has been recognized by global authorities such as CE certificat-ion and SGS international certification. Among domestic counterparts, it has achieved bulk export to South Africa,Australia, Russia, India and Africa. Waiting for more than 30 countries. And it has established long-term cooperative relations with Cummins, Rexroth , Kawasaki and other international parts suppliers. Our products enjoy the reputation of low investment, high efficiency and high cost performance.As a pioneer in the small and medium-sized piling machinery industry, we firmly believe that only advanced technology, reliable quality, and perfect service can hold customers.While promoting the upgrading of domestic industrial and civilian construction of pile foundations, we will make every effort to enhance the brand's reputation.
Welcome to visit our factory in China and look forward to establishing long-term business relationship.
The company has independent import and export rights, has passed lSO:9001 quality manage-ment system certification, and has been recognized by global authorities such as CE certificat-ion and SGS international certification. Among domestic counterparts, it has achieved bulk export to South Africa,Australia, Russia, India and Africa. Waiting for more than 30 countries. And it has established long-term cooperative relations with Cummins, Rexroth , Kawasaki and other international parts suppliers. Our products enjoy the reputation of low investment, high efficiency and high cost performance.As a pioneer in the small and medium-sized piling machinery industry, we firmly believe that only advanced technology, reliable quality, and perfect service can hold customers.While promoting the upgrading of domestic industrial and civilian construction of pile foundations, we will make every effort to enhance the brand's reputation.
Welcome to visit our factory in China and look forward to establishing long-term business relationship.
