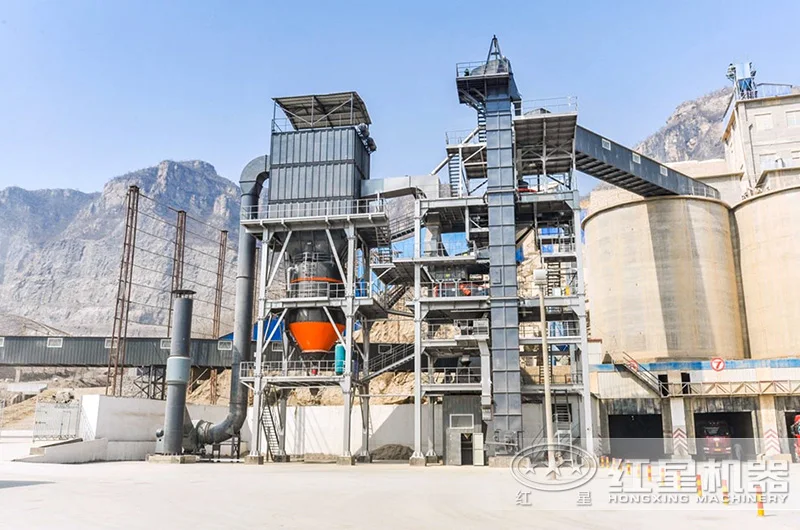

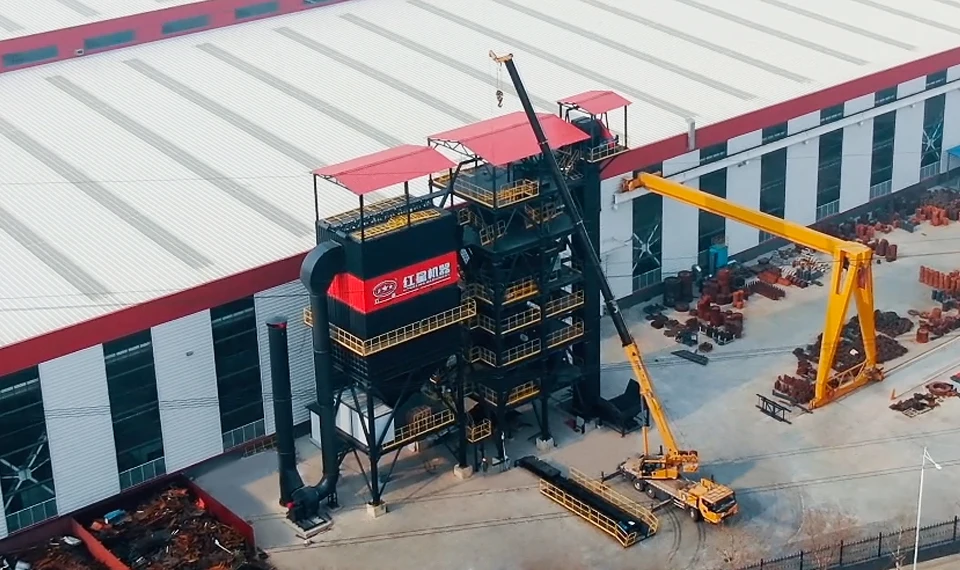

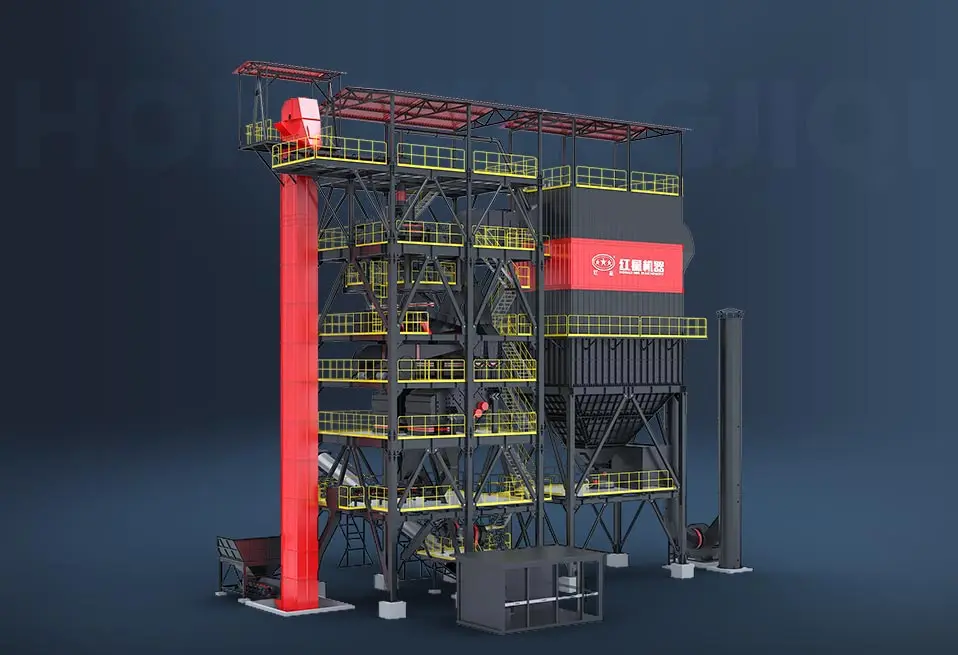

Direct Factory Supply Cheap Sand Brick Making Machine Sand Making Machine Price S7 510 Dry Sand And Gravel Making Tower
- Category: >>>
- Supplier: Henan Hongxing Mining Machinery Co. Ltd.Henan Ltd.
Share on (1600852018300):
Product Overview
Description
Equipment Introduction

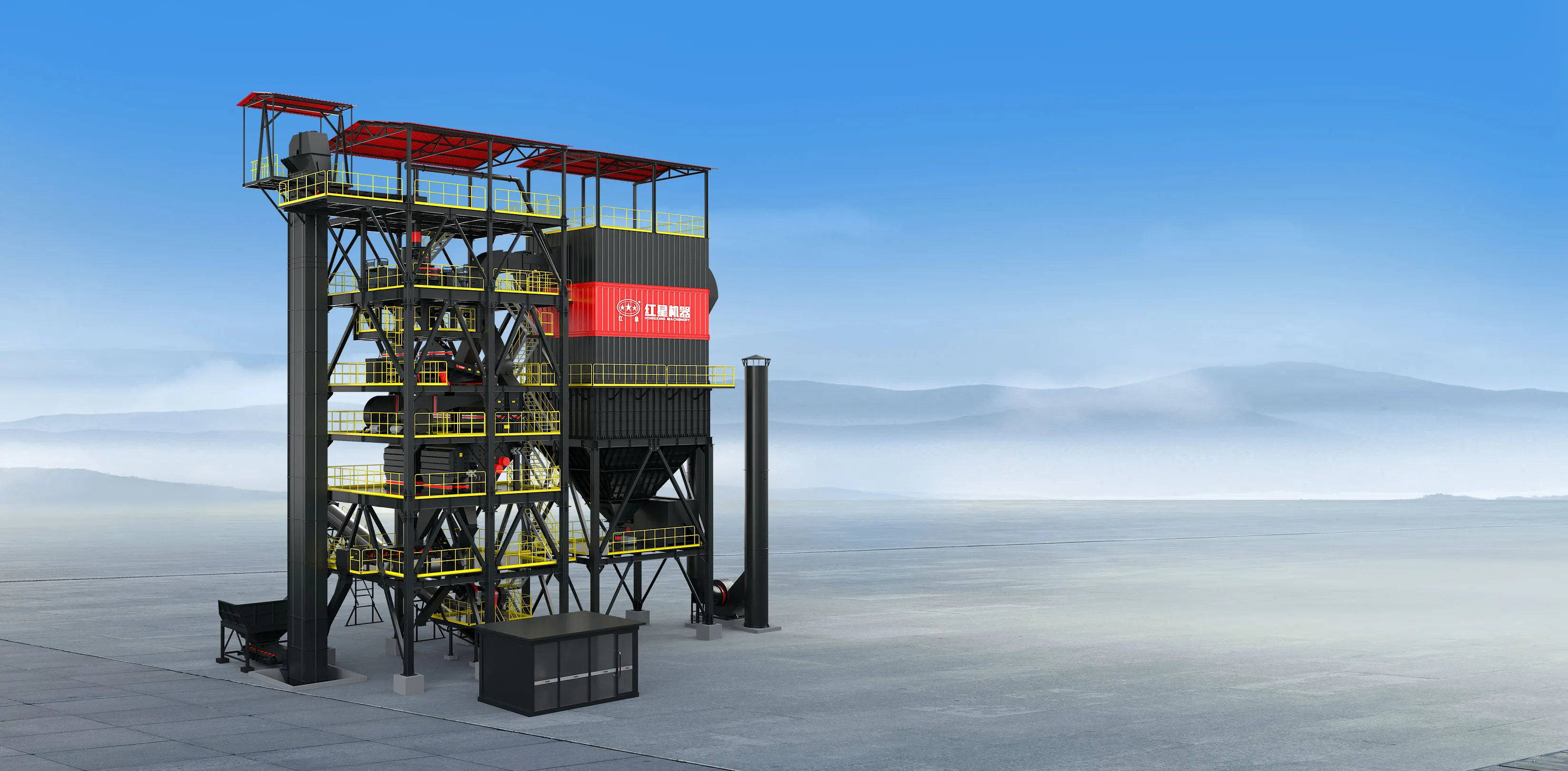

The S7 series tower type dry sand making system is based on our company's digestion and absorption of the international advanced dry sand making concept,in order to meet the high reliability and high performance requirements of customers such as high quality sand and gravel quarries, cement plant is, mixing plants,etc.The most advanced crushing,screening dust removal, powder selection and intelligent control technology, complete sets of equipment developed and produced.

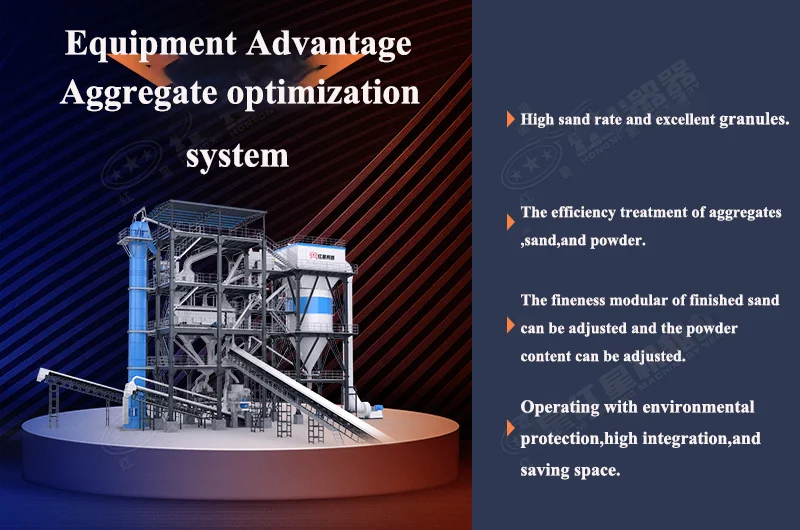

Equipment Advantage

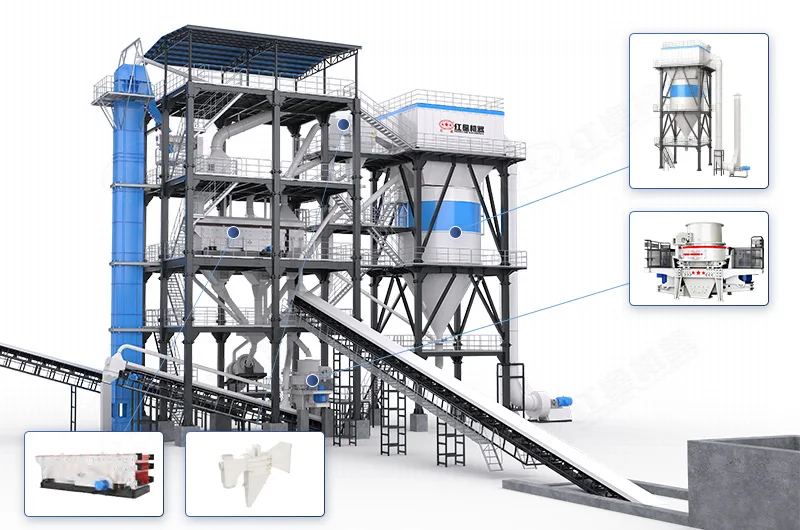

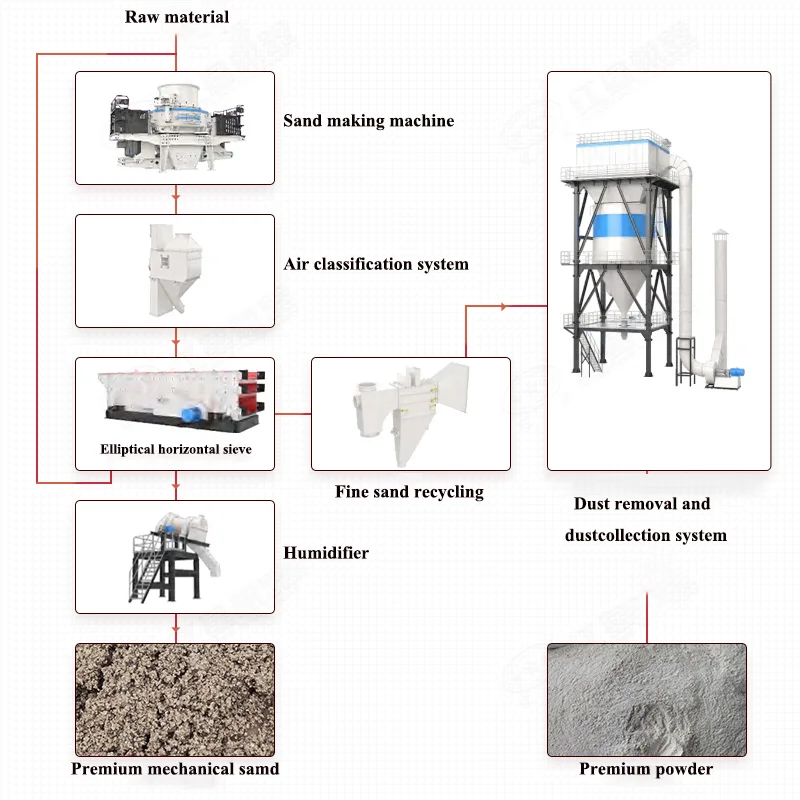

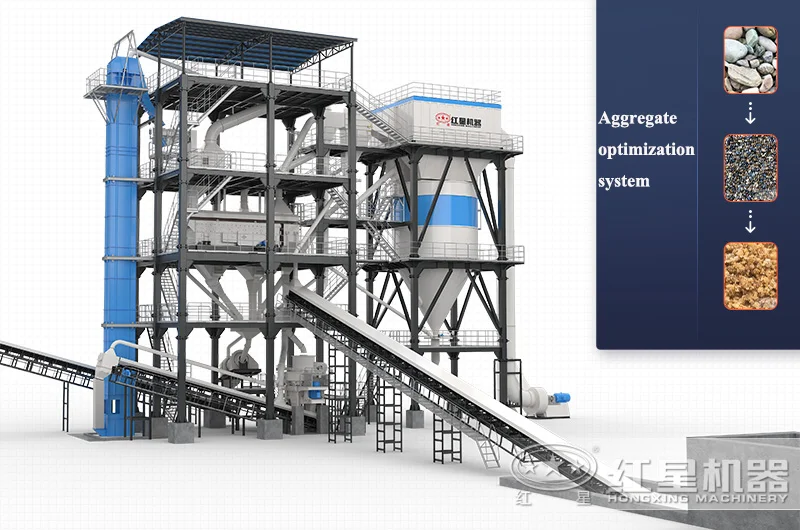

The sand making building, also known as the tower type sand making production line, mainly consists of six parts: feeding, sand shaping, finished product discharge, dust removal, stone powder storage, and electrical control; The sand making system is the core part of the entire production, in which raw materials are crushed, shaped, screened, graded, and humidity controlled. The processed raw materials undergo three optimization processes: high-frequency "stone striking" impact shaping by a tower type sand making machine, high-speed grinding, and waterfall grinding brush by a particle optimization machine. They are fully crushed and polished, and the sand particles are full and round, with uniform thickness and size. The sand fineness modulus can reach 2.5-3.2, and the powder content can be adjusted at will between 3-15%.
The tower type sand making machine adopts an environmentally friendly dry sand making process, producing high-quality machine sand. It can be widely used for supporting sand making in mixing stations, dry mixed mortar, cement product factories, aggregate mines, and large-scale construction projects, meeting the huge demand for high-quality sand in the market.
Technical Parameter
Model | Input size(mm) | Capacity(t/h) | Output of manufactured sand | Power(kw) | Overall dimension(L*W*H)(M) | ||
Sand making | Sand and gravel making | ||||||
S7M-310 | 0-30 | 100 | 300 | 3-15% | 620 | 30*8*24 | |
S7M-510 | 0-30 | 100 | 450 | 3-15% | 850 | 30*8*26 | |
S7M II-310 | 0-40 | -- | 300 | 3-15% | 670 | 30*11*24 | |
S7M II-510 | 0-40 | -- | 500 | 3-15% | 910 | 30*11*26 | |

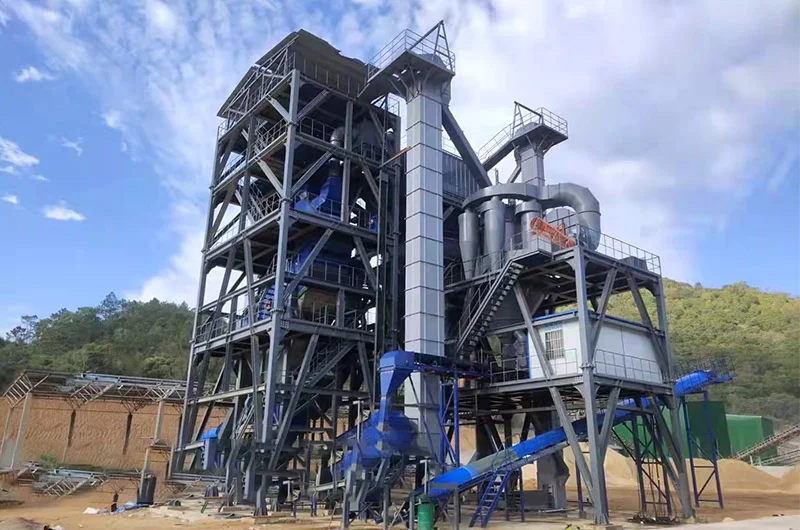

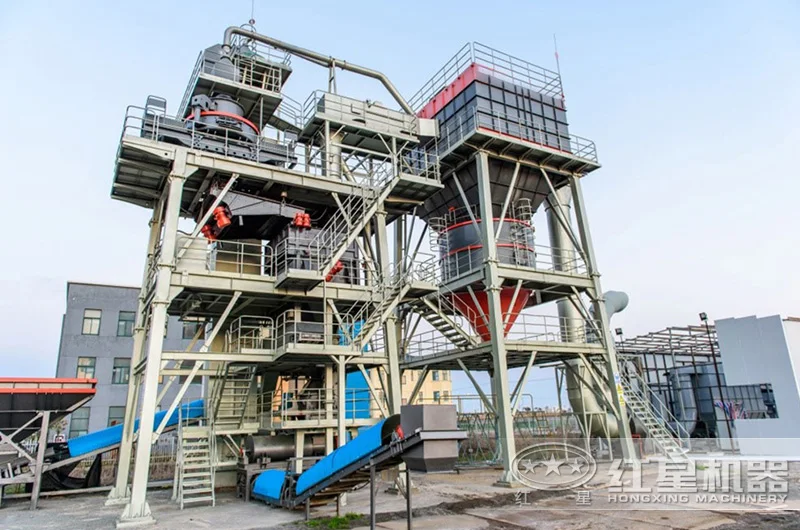

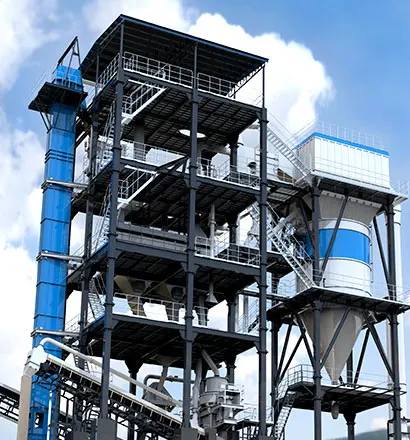

The Customer Site
About Us
Hongxing Group is a comprehensive large scale joint stock enterprise integrating scientific research, production, sales and after sales. Formerly known as the 55201 Machine Factory of the Chinese People's Liberation Army, it was a military enterprise and an important enterprise of "high-tech" scientific research and technology development in China at that time, with a strong technical background.The existing R&D,management, production and marketing staff of more than 2,300 people, four modern production bases covering an area of 350,000 square meters, is a national high tech enterprise and domestic high-e mining machine production and export base. The Group focuses on mining machine manufacturing, covering four series crushing sand making, screening and grinding, while providing customers with engineering design and EPC general contracting services, adhering to the "one enterprise, one policy" tailor-made ore processing solutions

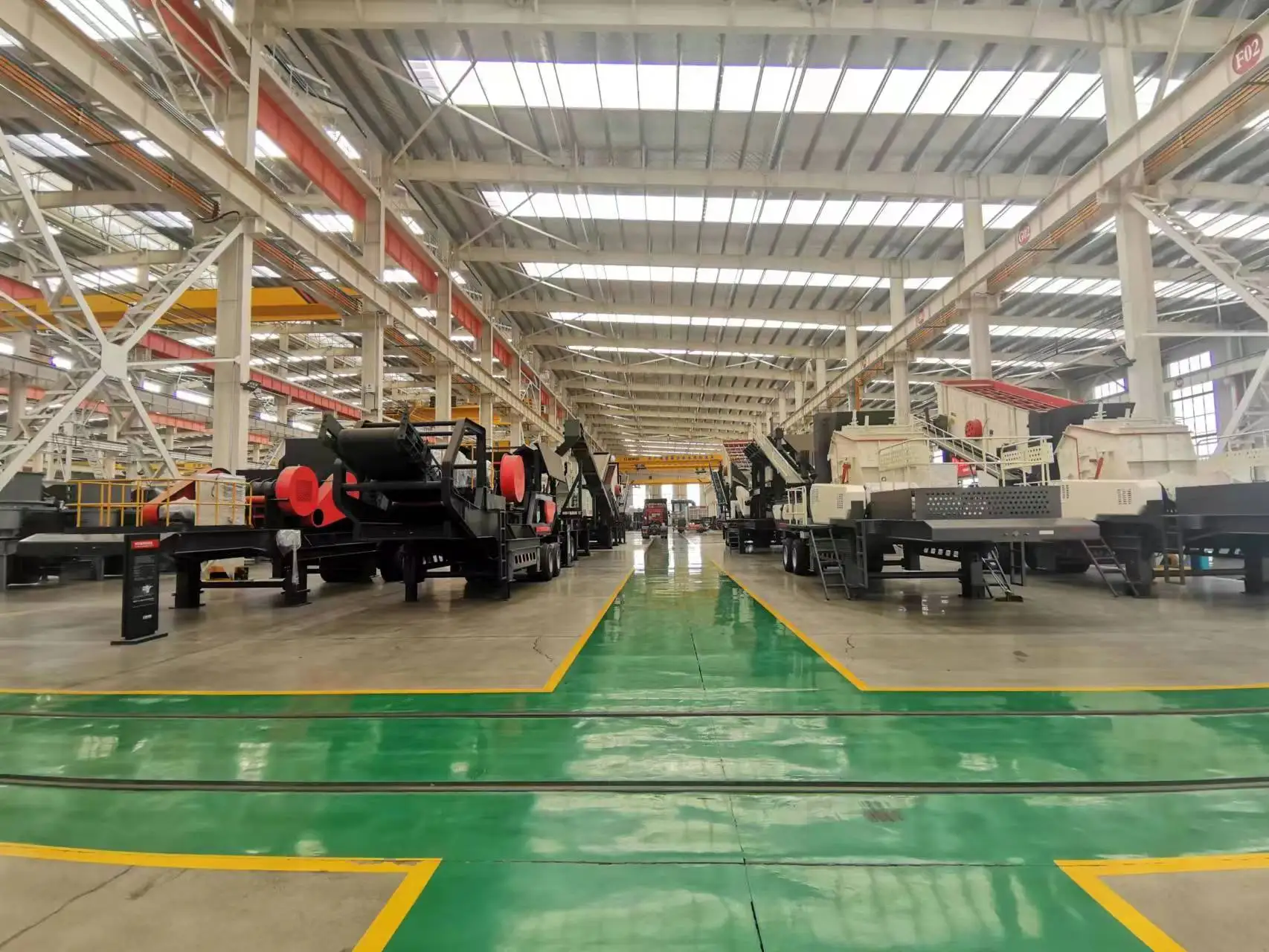

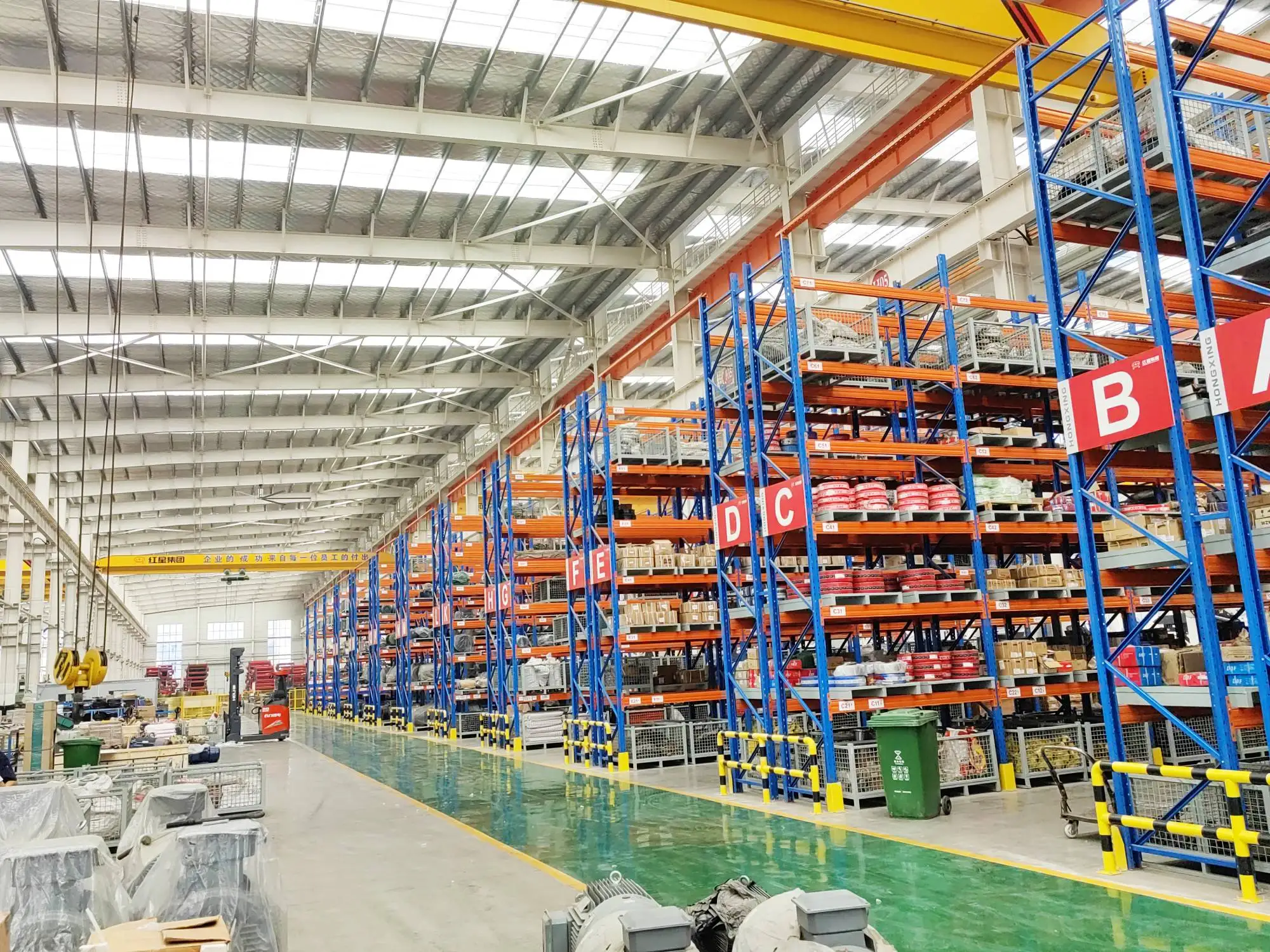

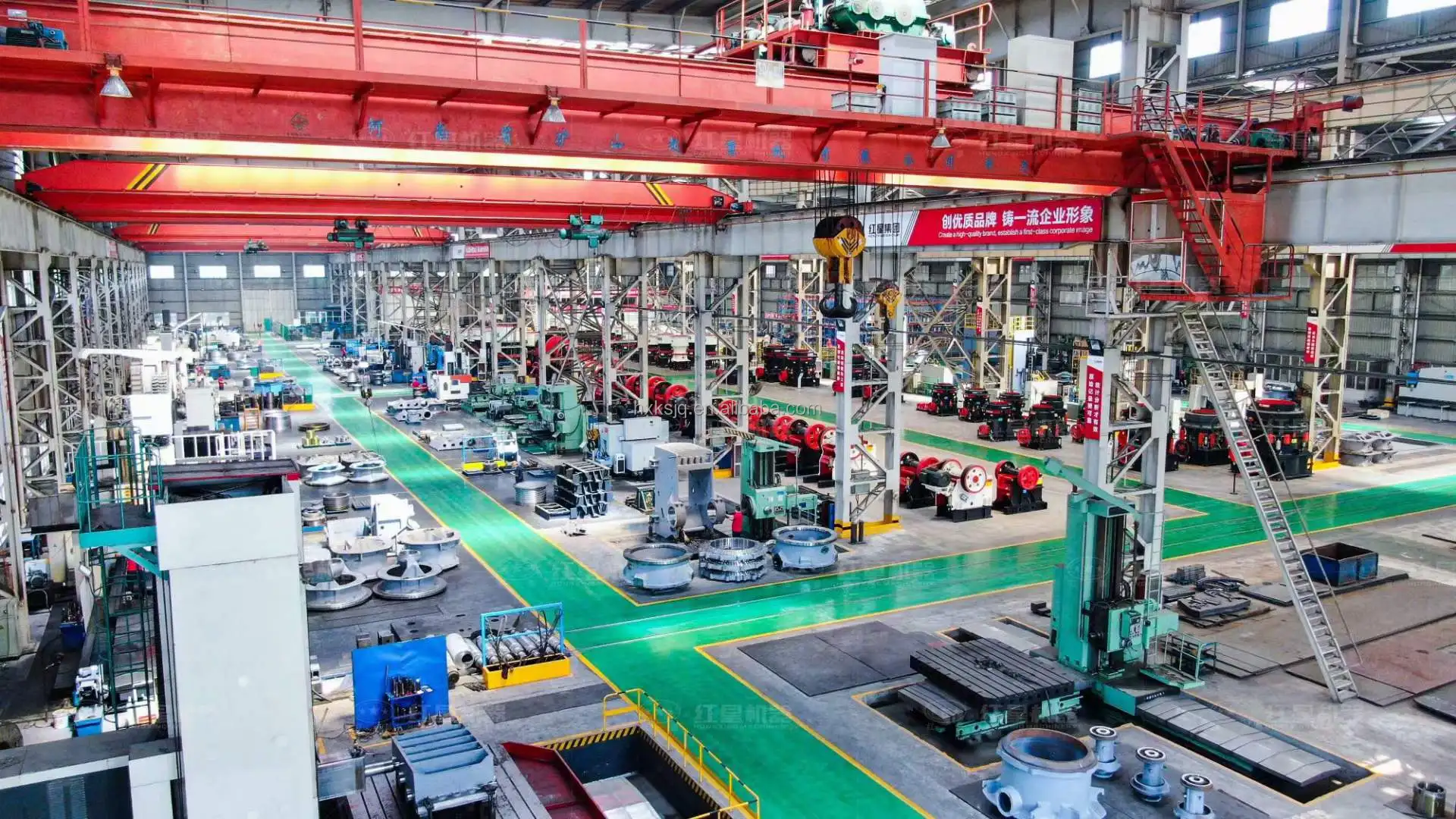

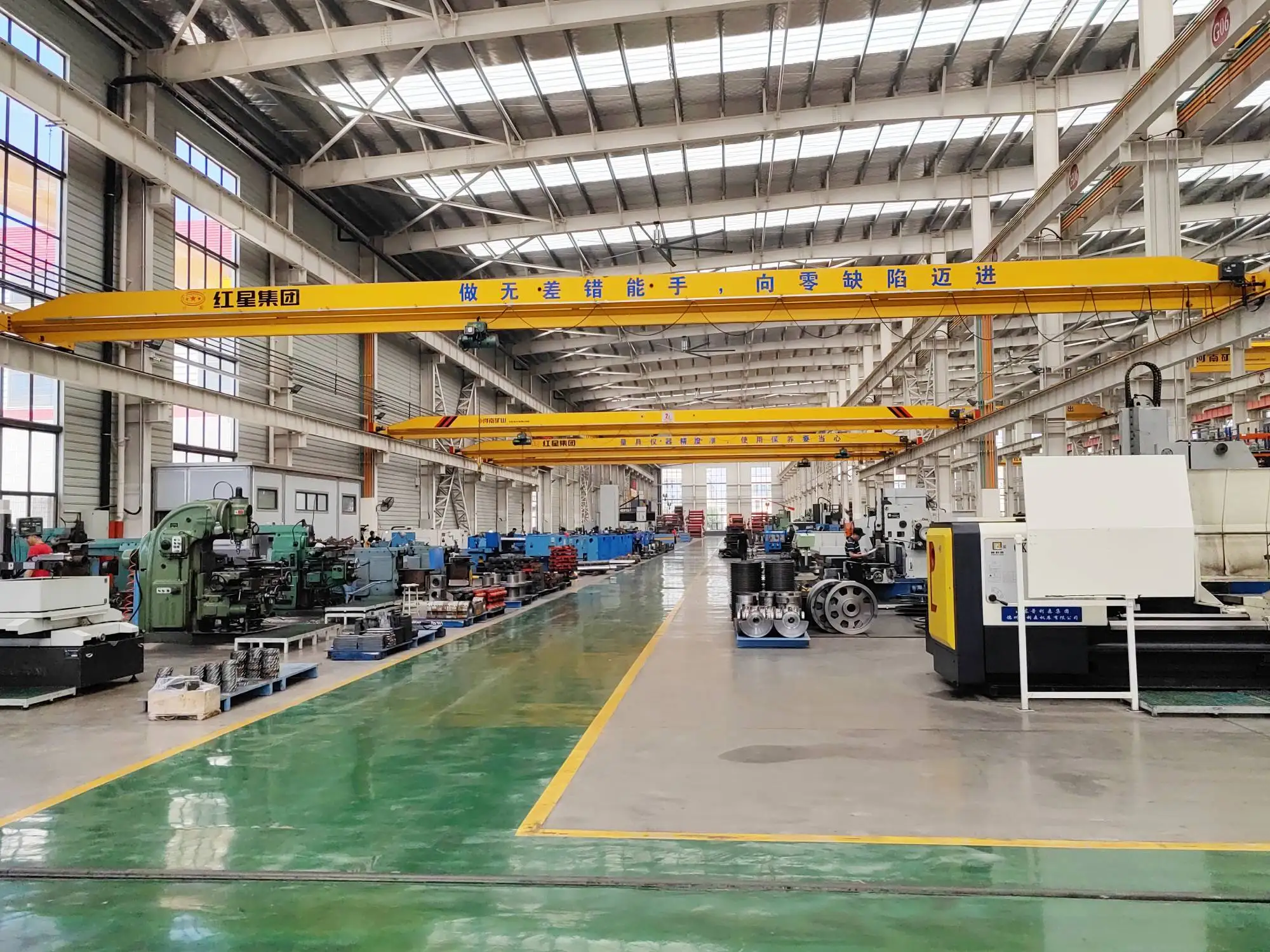

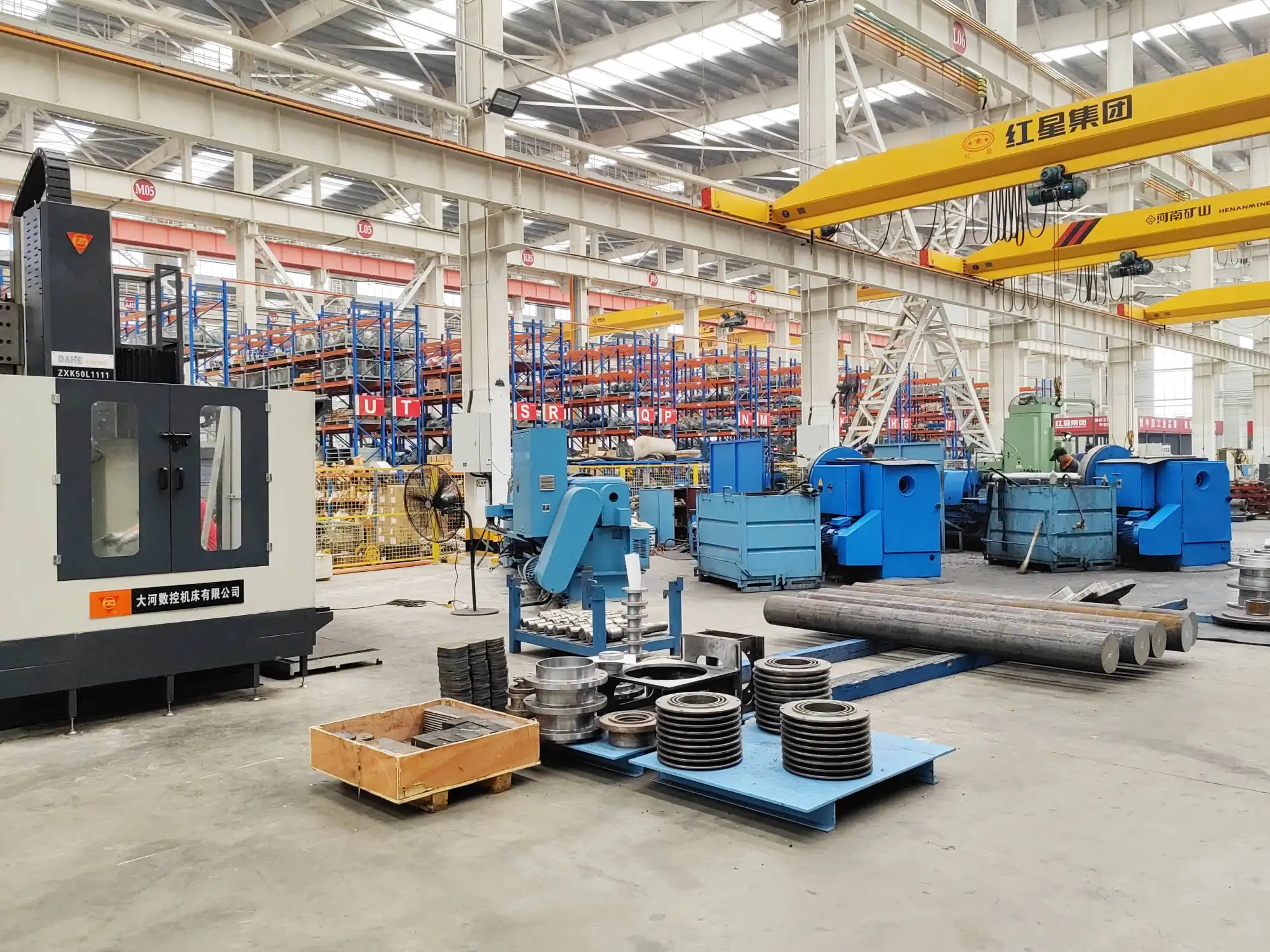

Four major production bases
For more than 40 years, the Group has never forgotten t he original intention of creating a Chinese industrial brand and creating a world class mining machine, always adhering to the mission of creating greater value for customers, continuously improving scientific research investment in the development of new products, optimizing and upgrading project solutions, and making unremitting efforts to improve the production and operation income of customers. Products have passed ISO9001, CE (European Union), GOST (Russia) and other international quality system certification. Forever first-class Hongxing Machinery provides services to tens of thousands of mining enterprises around the world and has been universally praised.

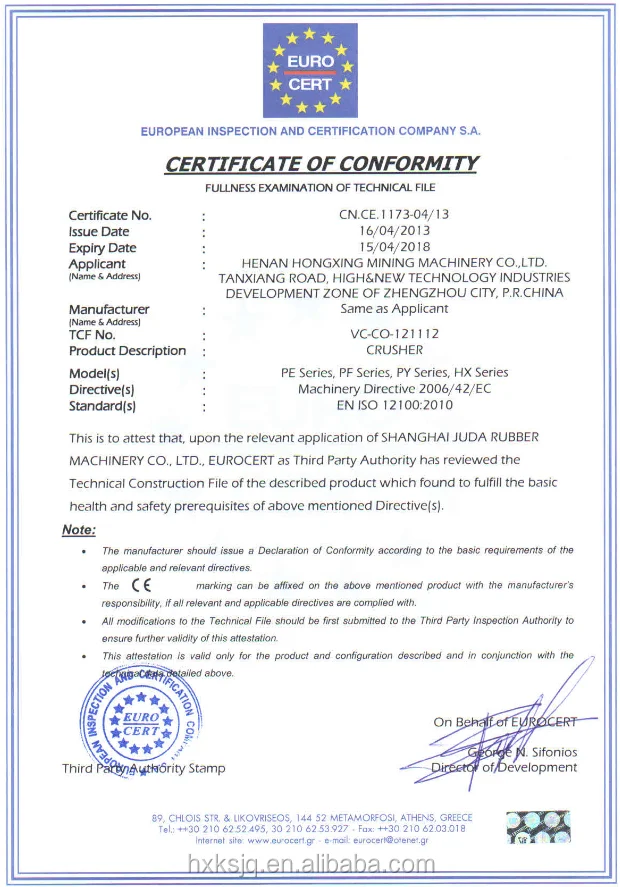

Customer Photos and Company Honor
