theoretical maximum specific gravity for asphalt Specific Gravity (rice Test) Equipment Vacuum Pycnometer

theoretical
maximum specific gravity for asphalt
Specific Gravity (Rice Test) Equipment Large-Capacity Vacuum Pycnometer Set

standard: AASHTO T209, AASHTO T283

The large capacity vacuum pycnometer is used in Rice testing to determine the specific gravity of bituminous mixes.
The large capacity vacuum pycnometer has a 10liter capacity and will accept an asphalt sample up to 6000 g with a
maximum aggregate size of 2 in. The vessel is constructed of lightweight polycarbonate. The transparent dome cover
permits easy observation of bubble release during testing.

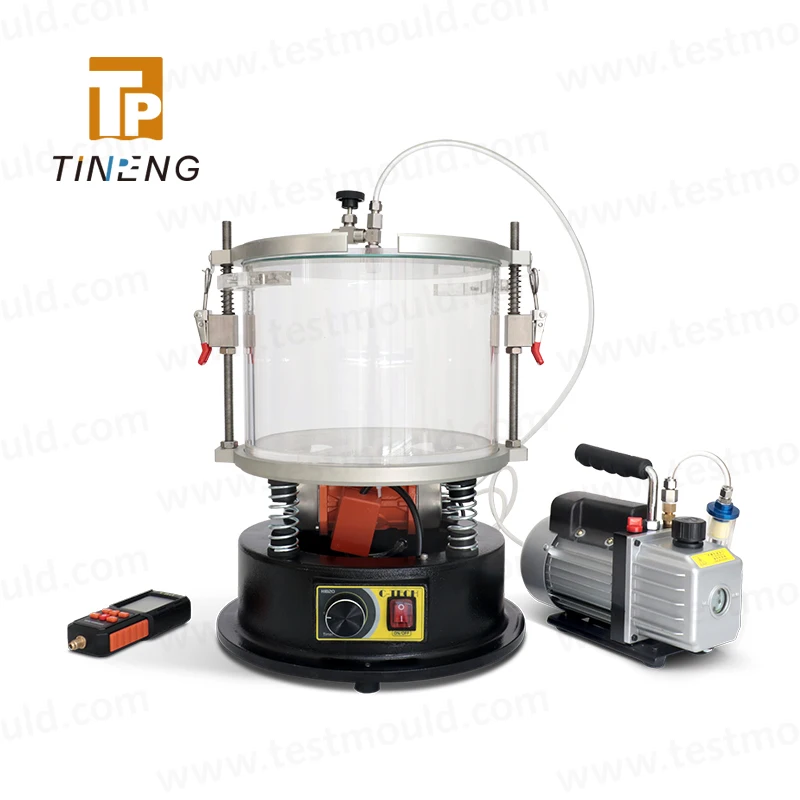

Large-Capacity Vacuum Pycnometer Set
Large-capacity unit, 10L (2.64 gal.), 6000g (13.2 lbs.) sample weight, with maximum aggregate size of 50mm (2in.). Set features domed transparent cover for easy observation of sample testing, perforated plastic shelf, which some States require; water inlet valve and 1/4" ID hose, vacuum hose and aspirator with 3/8" NPT fitting.

Flange OD is 10-3/4" (273mm); maximum clearance above plate is 7-3/4" (197mm).
Dimensions: 9-7/16" ID x 12-1/8" (240 ID x 311mm).

Packing list

Heavy-duty vibrating table keeps sample material loose for more reliable test results. Strong, rugged-duty vibrator and sturdy base have integral, heavy-duty on/off switches. Exclusive quick-release cam/lock fasteners allow quick placement and removal of canister. Shipping wt. 12lbs (5.4kg).
