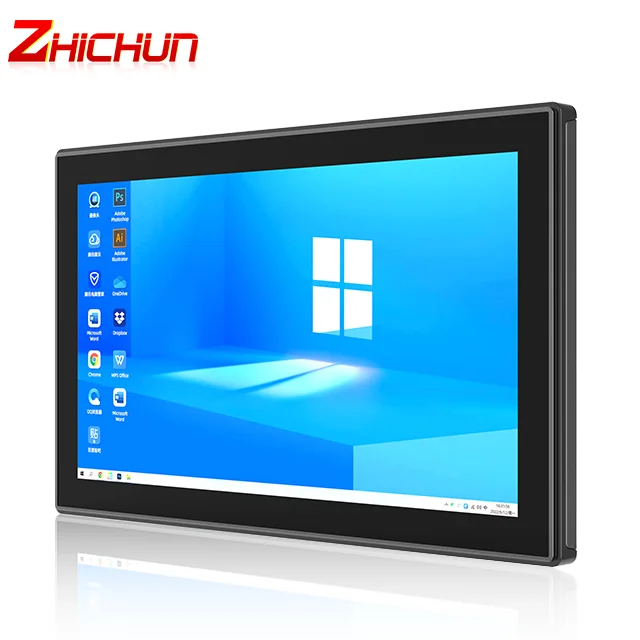

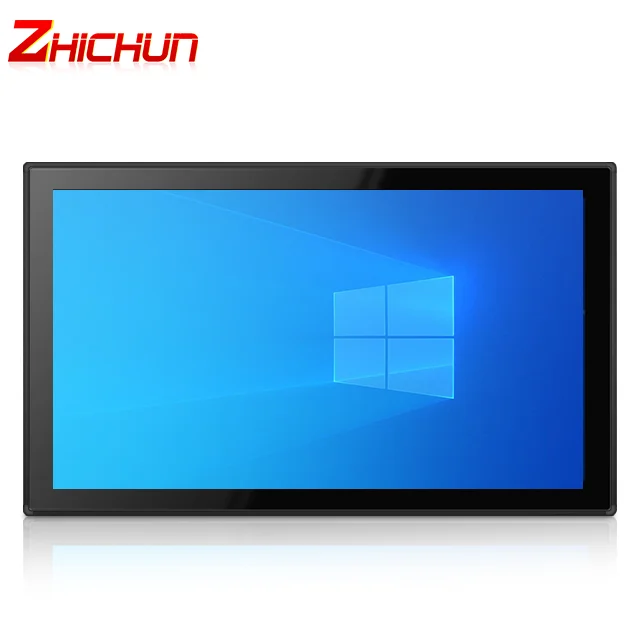

1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All In One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer
1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All-In-One control computer

1920*1080 FHD 13.3 inch LCD screen industrial embedded capacitive Touch Screen Panel PC All In One control computer

Share on (1600852067969):


Price:$279.00 - $289.00

Quantity:


Product Overview

Description



Waterproof Ip65 13.3 inch Embedded Capacitive Touch Screen Industrial Panel PC for Self Service Machine










Specification
Model: ZPC133-S112
Industrial computer
CPU
Intel® Celeron J1900, Dual Core, 2.0GHz, Fanless
CPU optional
Intel® Core, I5-4200U, Dual Core, 1.6GHz, Fanless
CPU optional
Intel® Core, I7-4500U, Dual Core, 1.8GHz, Fanless
CPU optional
Intel® Core, I5-6360U, Dual Core, 2.0GHz, Fanless
CPU optional
Intel® Core, I5-7267U, Dual Core, 3.1GHz, Fanless
CPU optional
Intel® Core, I7-7500U, Dual Core, 2.7GHz, Fanless
CPU optional
Intel® Core, I5-8250U, Quad Core, 1.6GHz, Fanless
CPU optional
Intel® Core, I7-8550U, Quad Core, 1.8GHz, Fanless
memory
4GB DDR3
storage
Optional 32GB, 64GB, 128GB, 256GB, 512G SSD/ 500GB, 1TB HDD
graphics
CPU integrated graphics
vocal
Realtek ALC662, High Definition Audio (HD), Line In, Line Out
network
1×Realtek RTL 8111E Gigabit Ethernet Controller

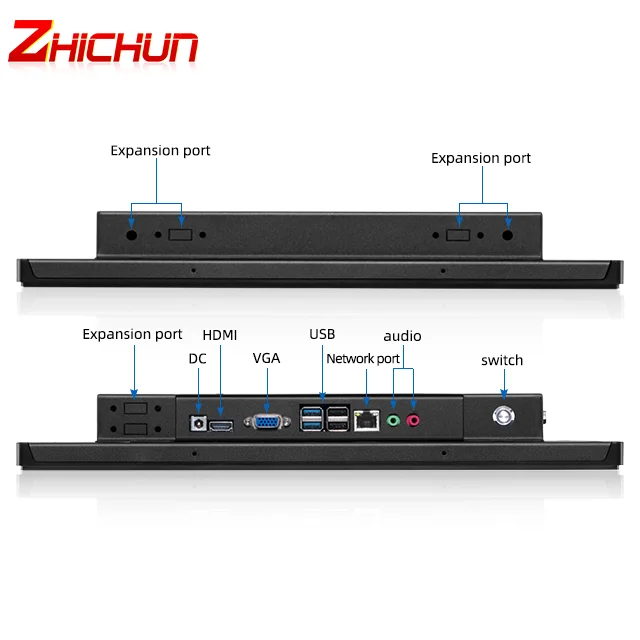

Input and output interface
3xUSB 2.0, 1xUSB 3.0, 1x Built-in USB SoftDog,
2x DB-9 COM1& COM2, RS232/422/485
Phoenix Terminal
1x HD/Audio Line Out/Power Button
Expansion slot
MINI-PCIE x 1, onboard SIM card slot, support 3G/4G module
MINI-PCIE x 1, support WIFI
operating system
Supports Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size
13.3"
Resolution
1366*768/1920*1080
aspect ratio
16:9
color support
16.7 million colors
Brightness (cd/m²)
300
Response time
5ms
Contrast ratio
1000:1
perspective
85°/85°/85°/85° (R/L/U/D)
touch panel
Touch screen type
Ten-point capacitive touch screen
touch interface
USB (RS232 optional)
touch response time
2 ms
Surface hardness
7H
career
>50 million times
touch option
(Capacitive touch optional)
power supply
External power supply
AC 100-240V
Operating Voltage
12V-5A
energy consumption
≤35W
shell
Material
sheet metal
color
silver edge/black edge

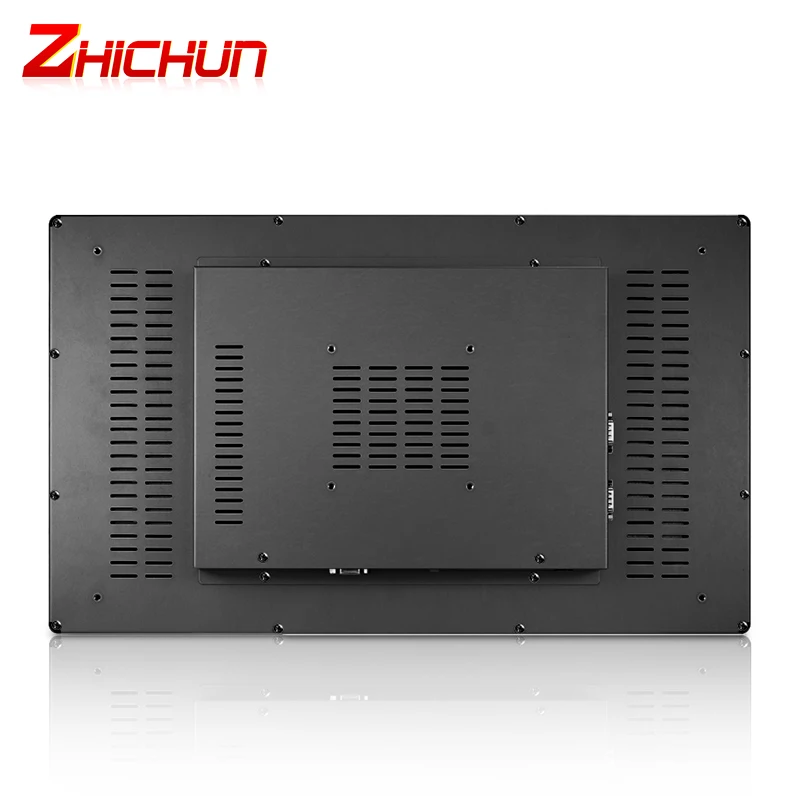

VESA installation
75x75mm
Operating environment
temperature range
Operation: -10 to 60°C, Storage: -30 to 70°C
Relative humidity
10%~90% @ 30° C, non-condensing
vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packaging Details
net weight
2.79kilograms
gross weight
6kg
Product Size
33.6x20.8x4.11cm
Package dimensions
50x49x14cm
Accessories
Monitor, embedded clip, wall bracket, power adapter, power cord, maintenance card, manual
other
install (option)
Flush Mounting Screws
Wall mount bracket (optional)
Desk Stand (Upgrade)
Warranty
1 year warranty
Certificate
CE, FCC, 3C
