Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine
- Category: >>>
- Supplier: Dongguan Songhu Plastic Machinery Corp.
Share on (1600852090302):
Product Overview
Description
Product Introduction
1. Machine Introduction Of Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine

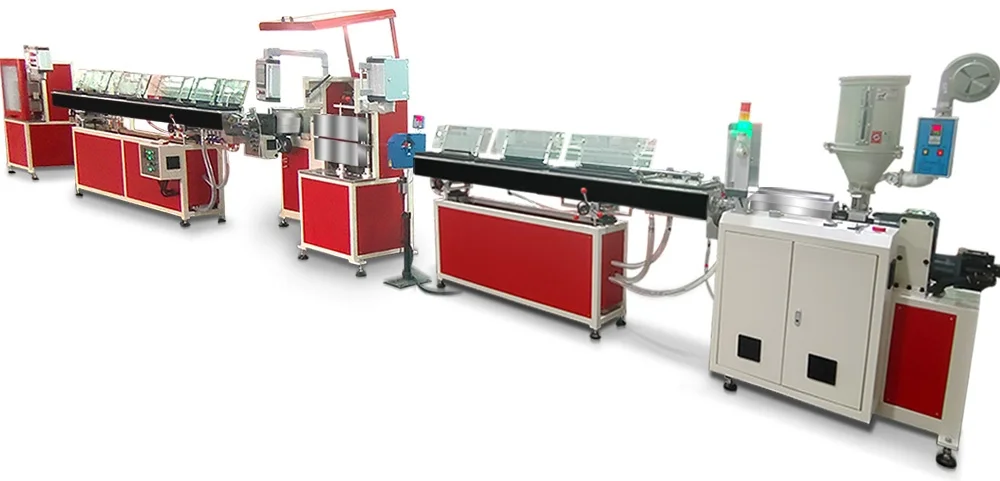

The Air water syringe tip production line is mainly used for the production of dental water syringe tips.
Songhu air water syringe tip production line adopts 2 sets of tube production lines, the first set of production line to make PC inner pipe, the second set of production line to make PVC outer pipe, and finally we can get PVC/PC double-layer tube.
Songhu air water syringe tip production line adopts 2 sets of tube production lines, the first set of production line to make PC inner pipe, the second set of production line to make PVC outer pipe, and finally we can get PVC/PC double-layer tube.

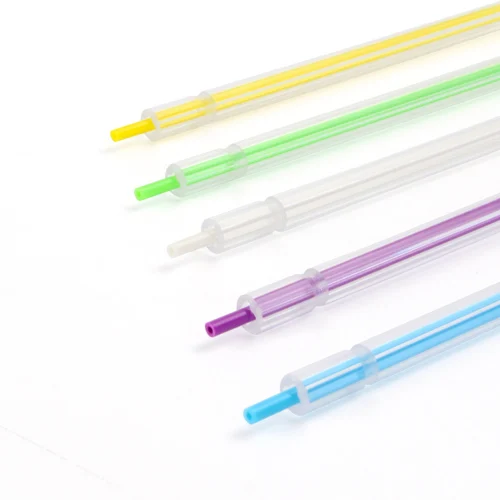

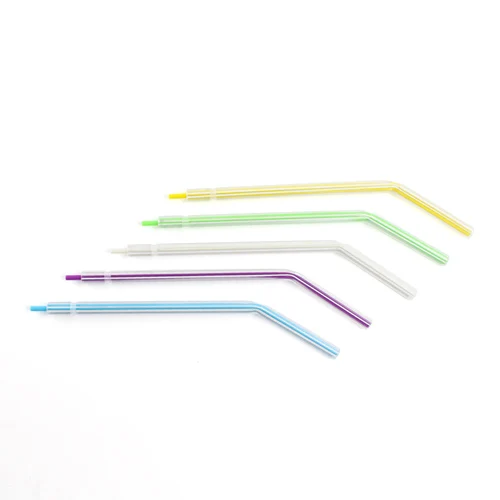

2. Introduction Of Air Water Syringe Tip
Tube Size: 3.8*0.8 mm
Used with spray gun to clean and dry the mouth and teeth during dental treatment.
3. Component Of Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine
Component Of Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine | ||||||
No. | Equipment Name | Quantity | Remark | |||
1 | PC-SHSJ25-26 Single Screw Extruder | 1 SET | Make PC inner tube | |||
2 | First Extruder Mould | 1 SET | S316H material | |||
3 | Vacuum Cooling Water Tank | 1 SET | SUS304 | |||
4 | Laser Diameter Measuring Instrument | 1 SET | XY biaxial angle measure | |||
5 | Drying Device | 1 SET | remove water | |||
6 | Belt Tractor | 1 SET | Synchronous belt high precision drive system | |||
7 | PVC-SHSJ35-28 Single Screw Extruder | 1 SET | Make PVC outer tube | |||
8 | PVC Coated Mould | 1 SET | S316H material | |||
9 | Automatic Circulation Heating And Cooling Water Tank | 1 SET | SUS304 | |||
10 | Laser Diameter Measuring Instrument | 1 SET | XY biaxial angle measure | |||
11 | Belt Tractor | 1 SET | Synchronous belt high precision drive system | |||
4. Main Technical Parameters Of Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine
Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine | ||||||
Voltage | 380V/50Hz | Control System | Siemens Touch Screen | |||
Screw Material | 38CrMoALA | Mould Material | S316H | |||
PC-SHSJ25-26 Single Screw Extruder | ||||||
Screw Diameter | 25mm | L/D | 26:1 | |||
Drive Motor | 3KW | Processing Material | PC | |||
PVC-SHSJ35-28 Single Screw Extruder | ||||||
Screw Diameter | 35mm | L/D | 28:1 | |||
Drive Motor | 7KW | Processing Material | PVC | |||
5. Machine Detail Of Factory Supply Accurate PVC PC Dental Syringe Tubing Making Machine

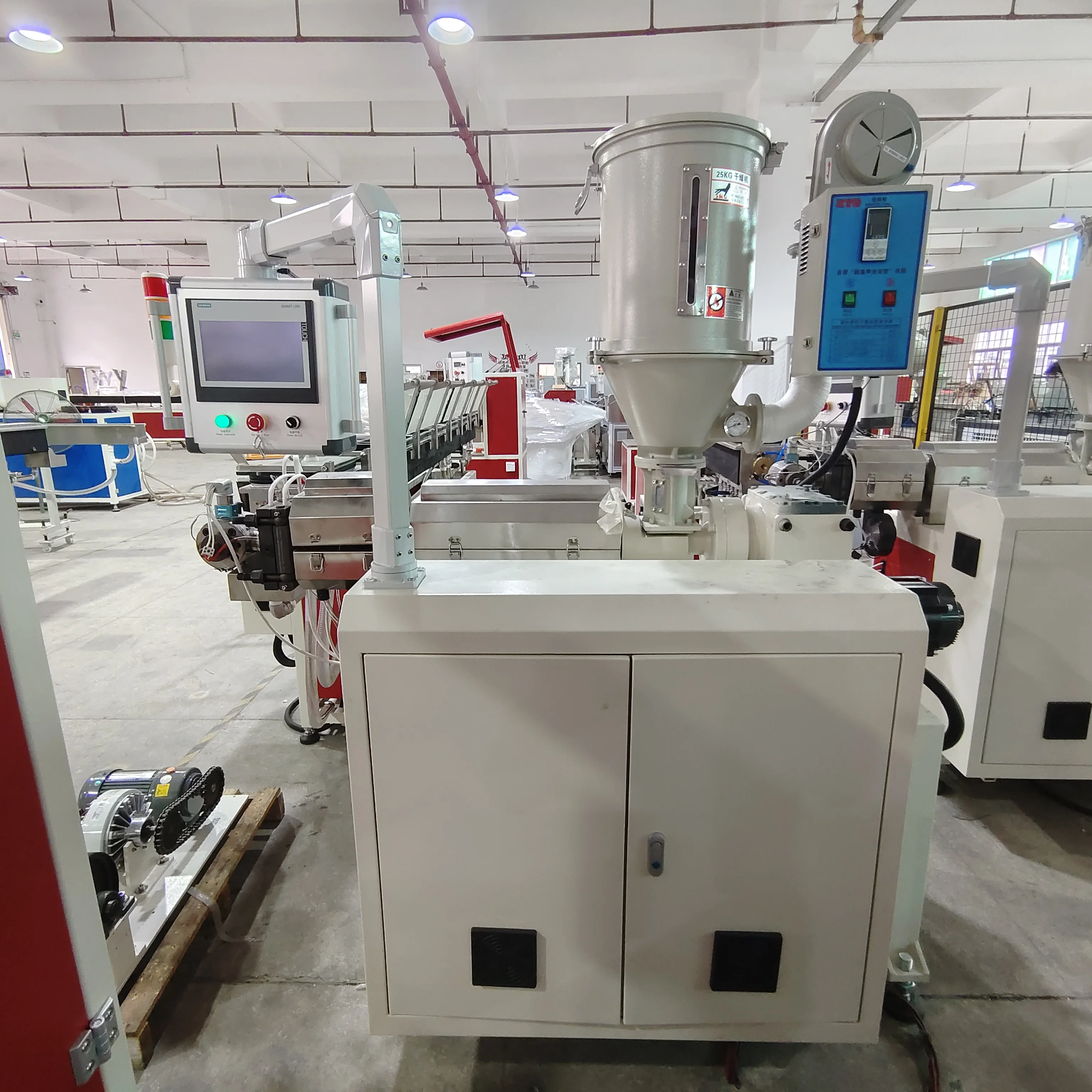

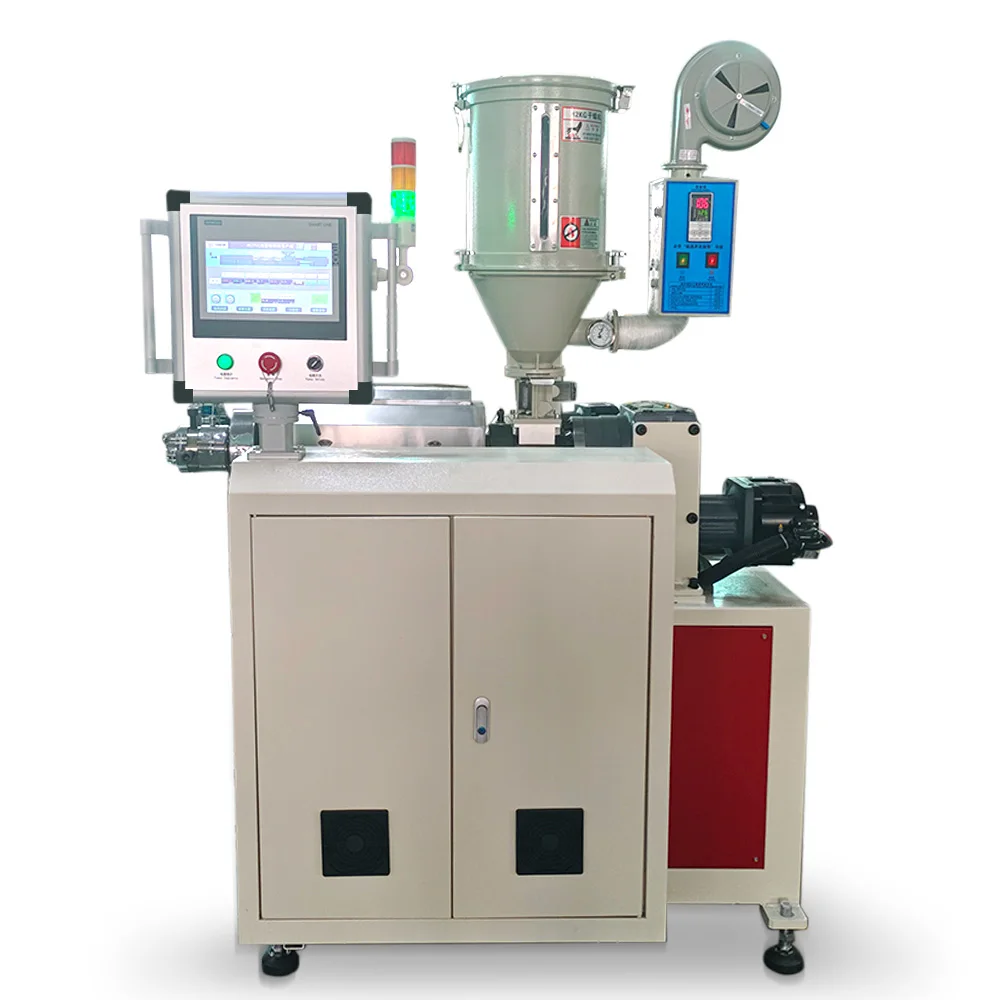

5.1 PC-SHSJ25-26 Single Screw Extruder
The extrusion production line adopts self-developed extruder PC-SHSJ25-26, which has the characteristics of high precision and high production capacity.
The screw and barrel are made of high-strength alloy steel 38CrMoAlA, and its surfaces are treated with nitriding and polishing. The thickness of the nitriding layer reaches 0.4-0.7 mm, and the surface hardness reaches HV850-940.
The screw is specially designed for PC material to ensure the plasticizing effect of the raw material, and ensure the uniform wall thickness and high gloss.
Screw Diameter: 25mm
Screw L/D: 26:1

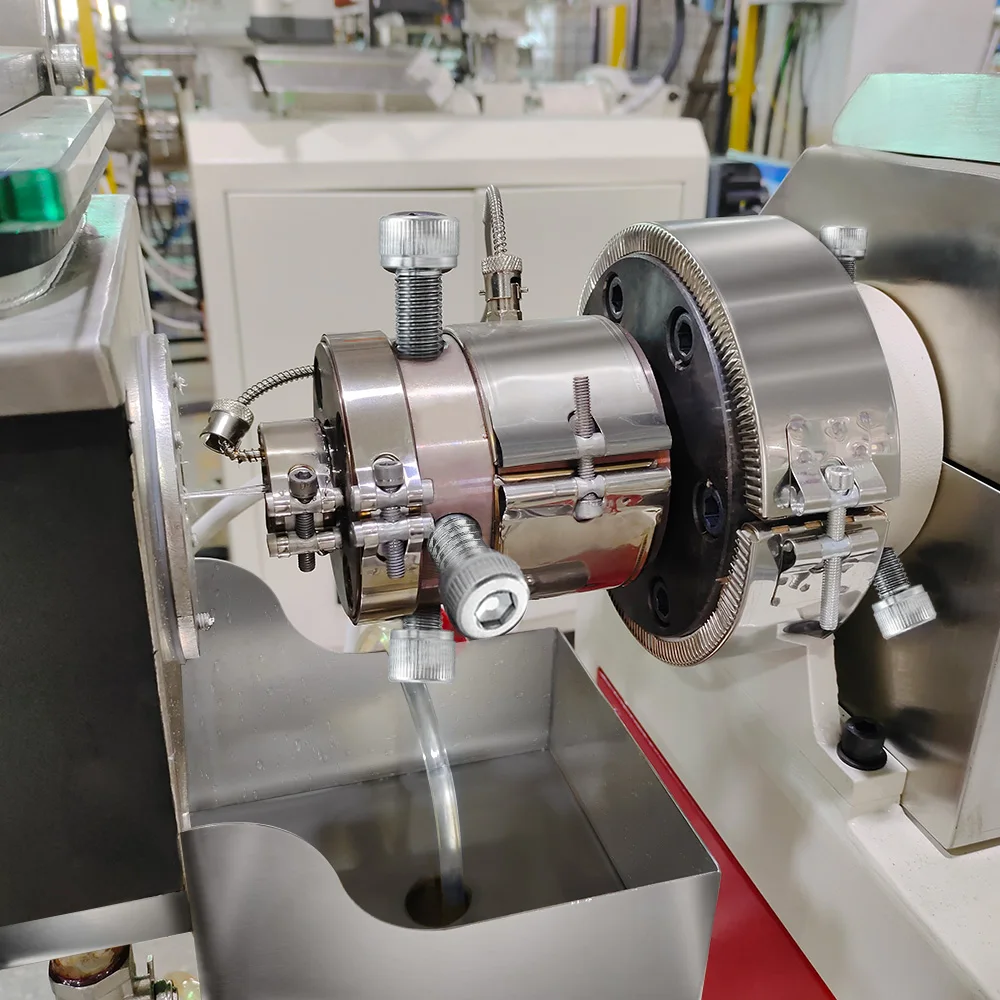

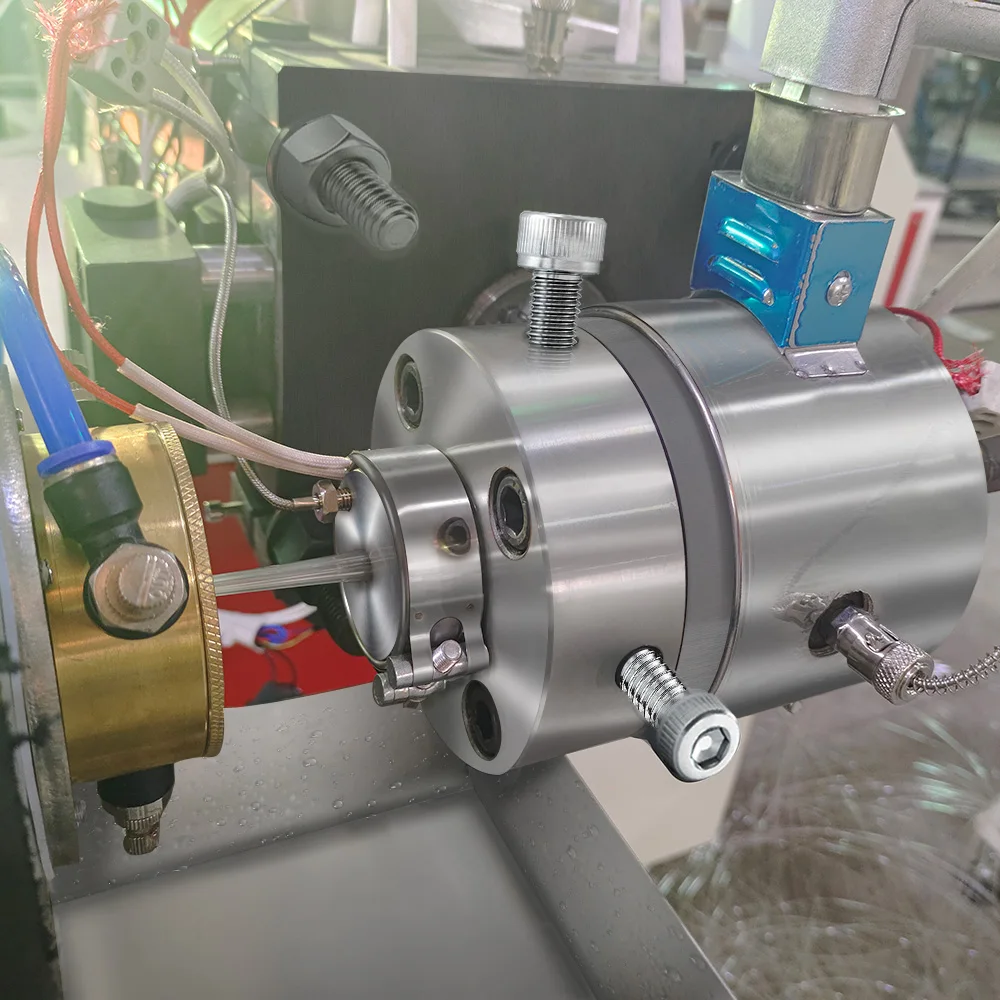

5.2 First Extruder Mould
This mould extrudes the PC inner tube.
The mould is made of high strength S316H material and can achieve precision extrusion under high temperature and pressure.
Mould Material: S316
Heating Part: stainless steel heating ring

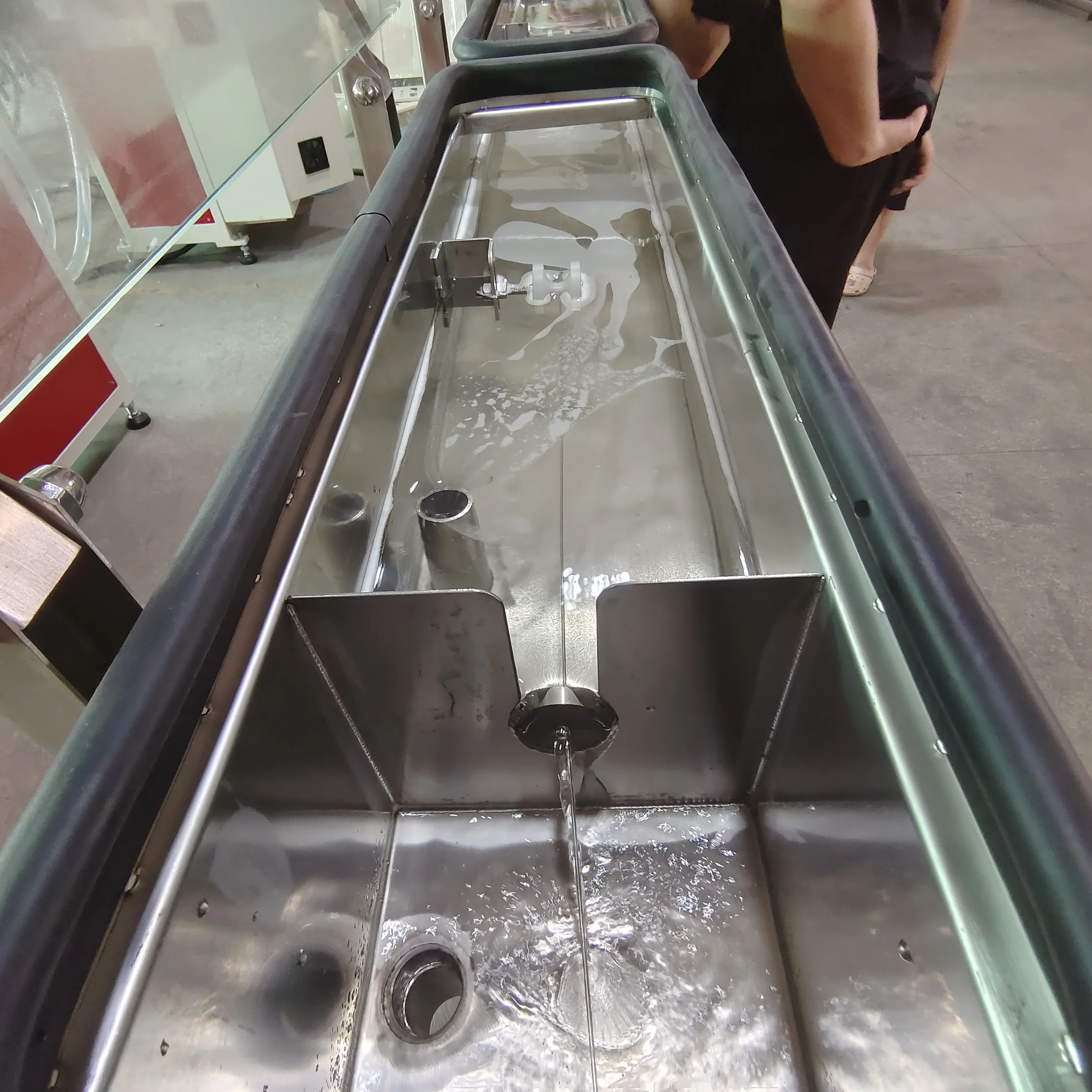

5.3 Vacuum Cooling Water Tank
The cooling water tank is formed by bending SUS304 stainless steel, and the closed structure of fully tempered glass ensures hygienic and dust-free production conditions;
Vacuum-assisted forming technology ensures the accuracy and roundness of the pipe;
The water tank is equipped with precision guide rails, which can freely adjust the direction in three dimensions: up and down, left and right, front and back.
Material: Stainless Steel SUS304
Water Tank Length: 2 meters
Vacuum Tank Length: 500 mm
Vacuum System: water ring stainless steel vacuum pump + high precision pressure indicator + pressure regulating valve

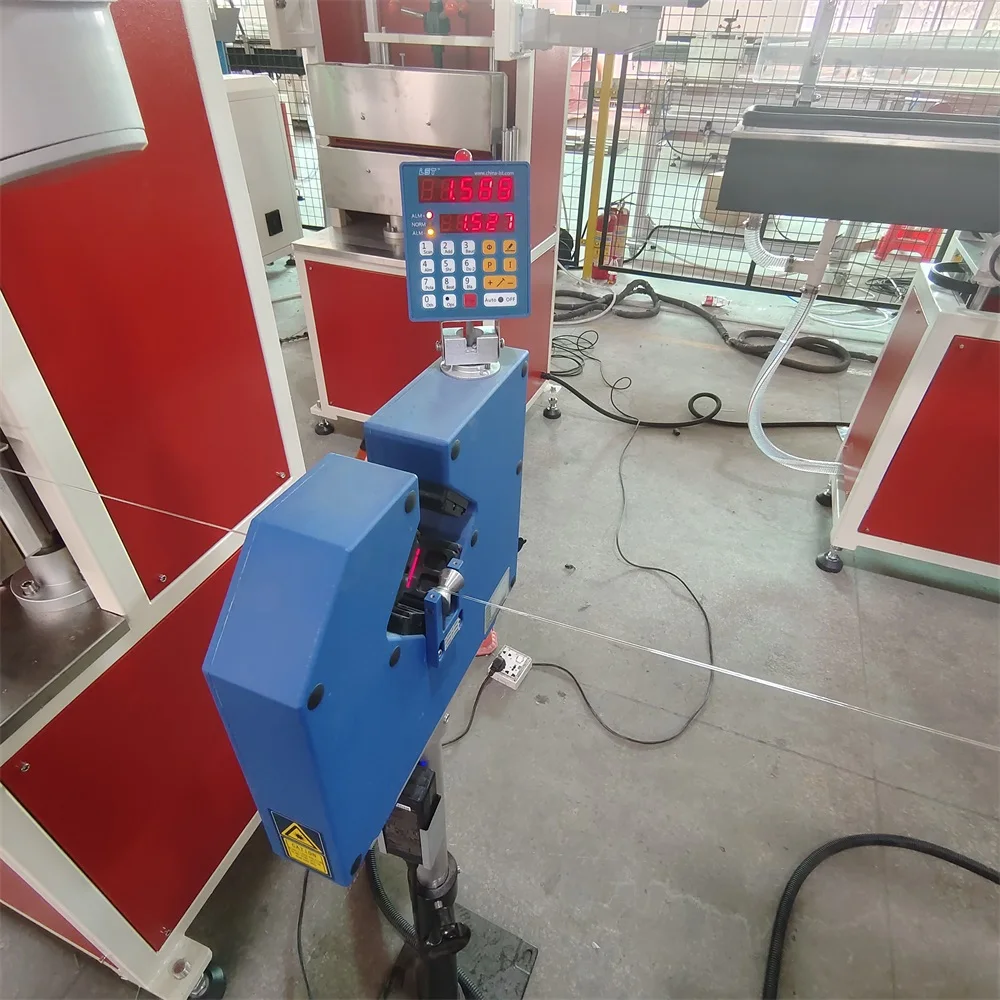

5.4 Laser Diameter Measuring Instrument
It is used to measure the tube diameter, and automatically alarm if it exceeds the tolerance range.
5.5 Belt Tractor
The tractor adopts high-efficiency wear-resistant multi-wedge belt with small vibration. The belt does not slip and has no noise during the traction process.
Equipped with synchronous belt with high-precision transmission system, it can adjust the linear guide belt lifting, opening and closing.
Traction Speed: 0~60 m/min
Belt Effective Length: 500 mmControl Power: 2 * 0.5 KW (servo motor + planetary reducer)
5.6 PVC-SHSJ35-28 Single Screw Extruder
Screw diameter: 35mm
Screw L/D: 28:1Screw Material: 38CrMoALA
Screw Surface Treatment: nitriding and polishing
5.7 PVC Coated Mould
This mould extrudes the PVC outer tube.
Heating Part: stainless steel heating ring

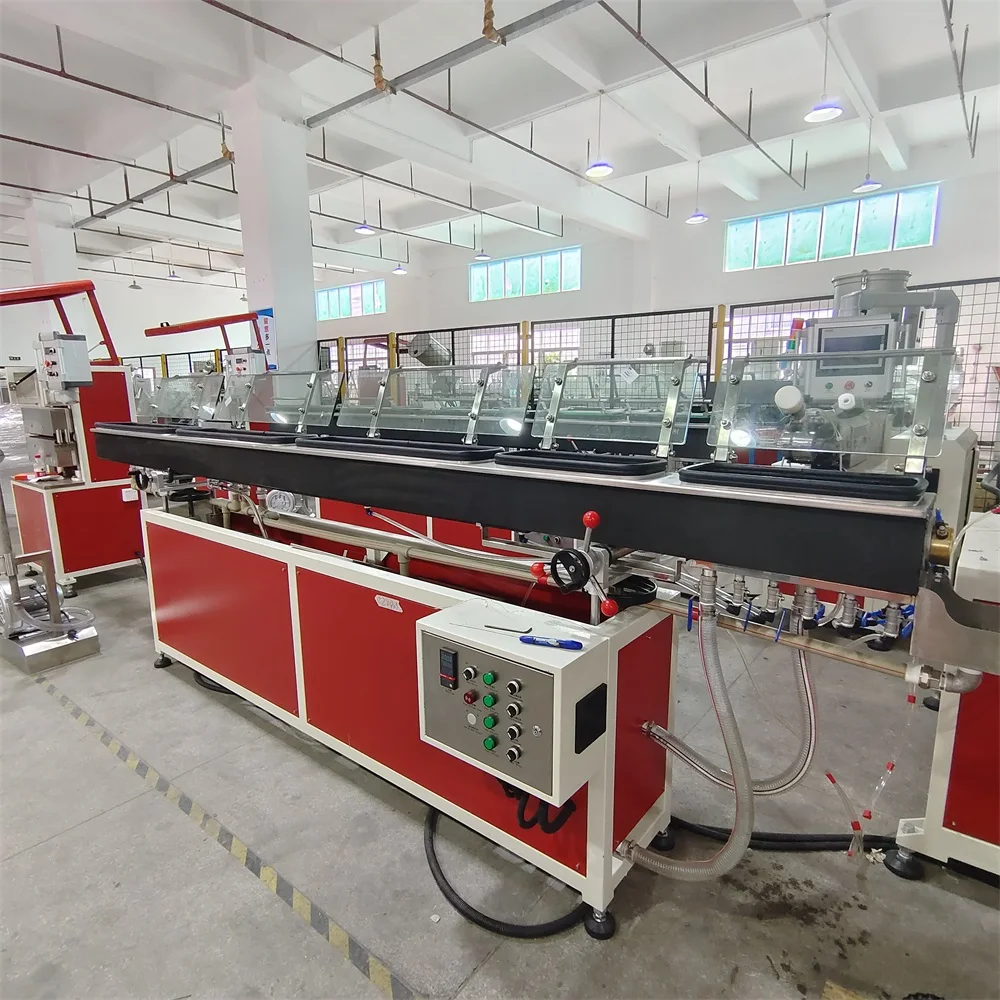

5.8 Automatic Circulation Heating And Cooling Water Tank
Water Tank Material: stainless steel SUS304
Water Tank Length: 4000 mm
Vacuum Section length: 500 mm
Vacuum Pump Power: 1.5KW
Three-dimensional adjustable Water Tank: front and rear, left and right, up and down
Water Tank Length: 4000 mm
Vacuum Section length: 500 mm
Vacuum Pump Power: 1.5KW
Three-dimensional adjustable Water Tank: front and rear, left and right, up and down
5.9 Belt Tractor
The tractor adopts high-efficiency wear-resistant multi-wedge belt with small vibration. The belt does not slip and has no noise during the traction process.
Equipped with synchronous belt with high-precision transmission system, it can adjust the linear guide belt lifting, opening and closing.
Traction Speed: 0~60 m/min
Belt Effective Length: 500 mm
Control Power: 2 * 0.5 KW (servo motor + planetary reducer)
Equipped with synchronous belt with high-precision transmission system, it can adjust the linear guide belt lifting, opening and closing.
Traction Speed: 0~60 m/min
Belt Effective Length: 500 mm
Control Power: 2 * 0.5 KW (servo motor + planetary reducer)
Our Company
Dongguan Songhu Plastic Machinery Co., Ltd (Stock Code: 834005) was established in 2010. The company's head-quarter is located in Dongguan city, Guangdong province of China, and covering an area of more than 10,000 square meters. SONGHU company own 100 employees with some of them have been working in the field for over 20 years experiences.
With more than ten years of production experience, we specialize in air water syringe tip extruder machine. We developed a strong researching and developing team, skilled workers, and rich successful cases, and have enough ability to customize the products according to the special requirements of our customers.
We earned a high reputation in the market by offering high-quality products and professional services. As the leading manufacturer in China, our products were certificated with CE, ISO, ROHS, and also many advanced technical certificated with the patent.
