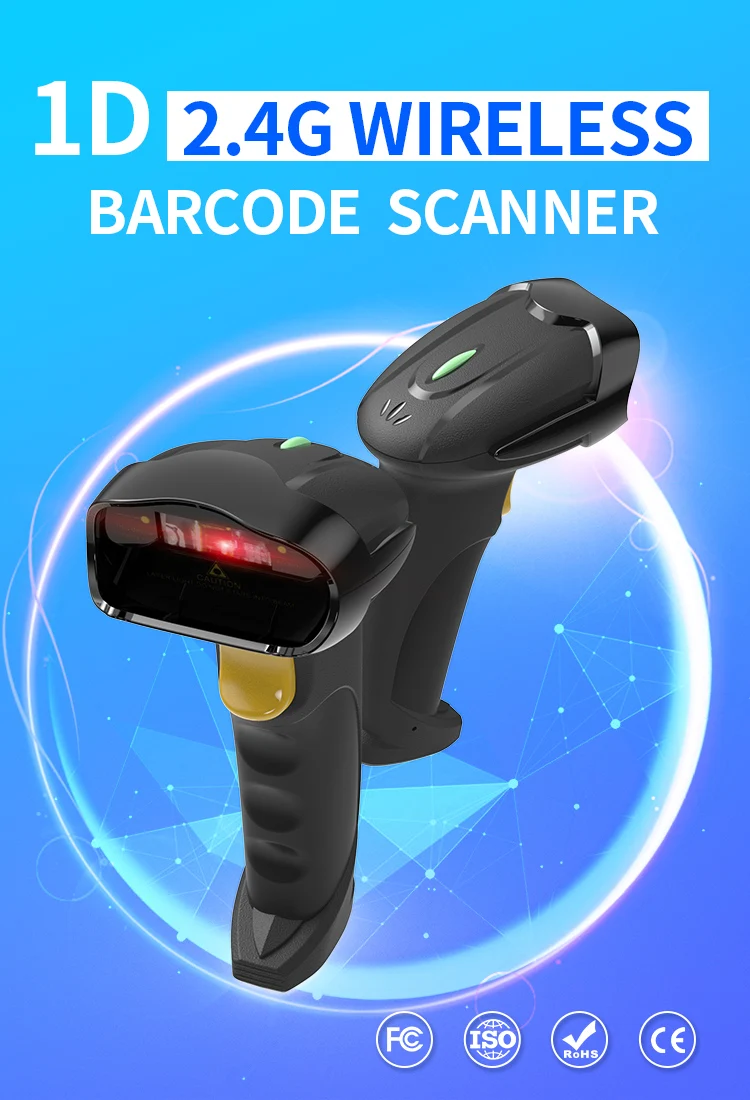

GTCODESTAR Wireless Barcode Scanner X 620H 1D Laser Bar code Price Reader 2.4G 1D Barcode Scanner for Supermarket
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (1600852096014):
Product Overview
Description
| X-620F Technical Parameter | |||||||
| Model | X-620H | ||||||
| Item | Wireless Lser Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | Charge 5V ±5% ;3.7V 800mAH Polymer battery | ||||||
| Operating Current | 50mA(working);30mA(standby);100mA(maximum) | ||||||
| Weight | 135g±5g(Without cable) | ||||||

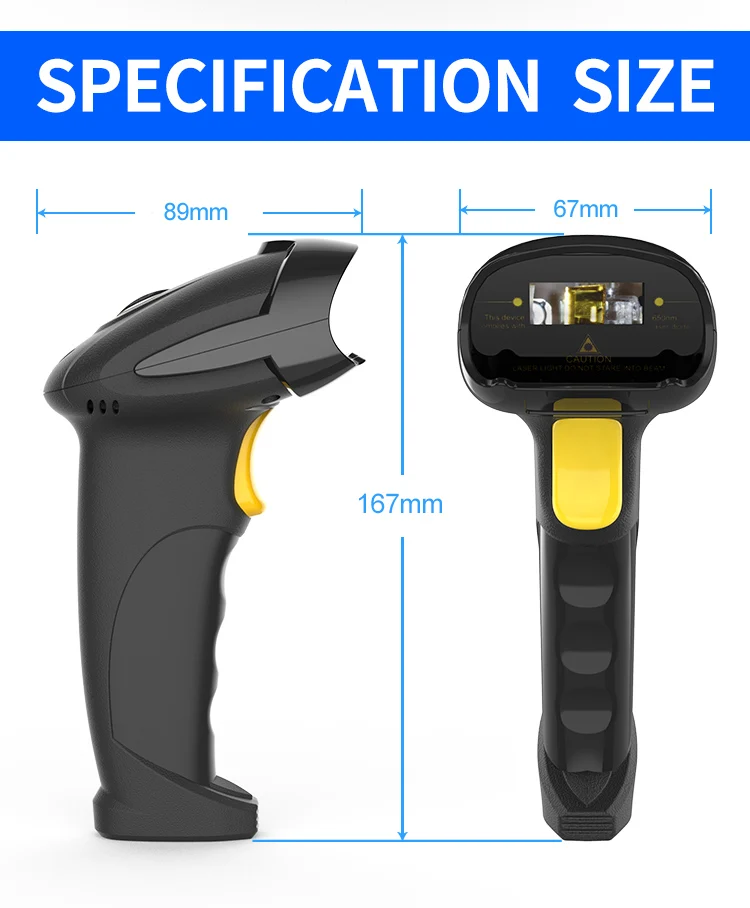

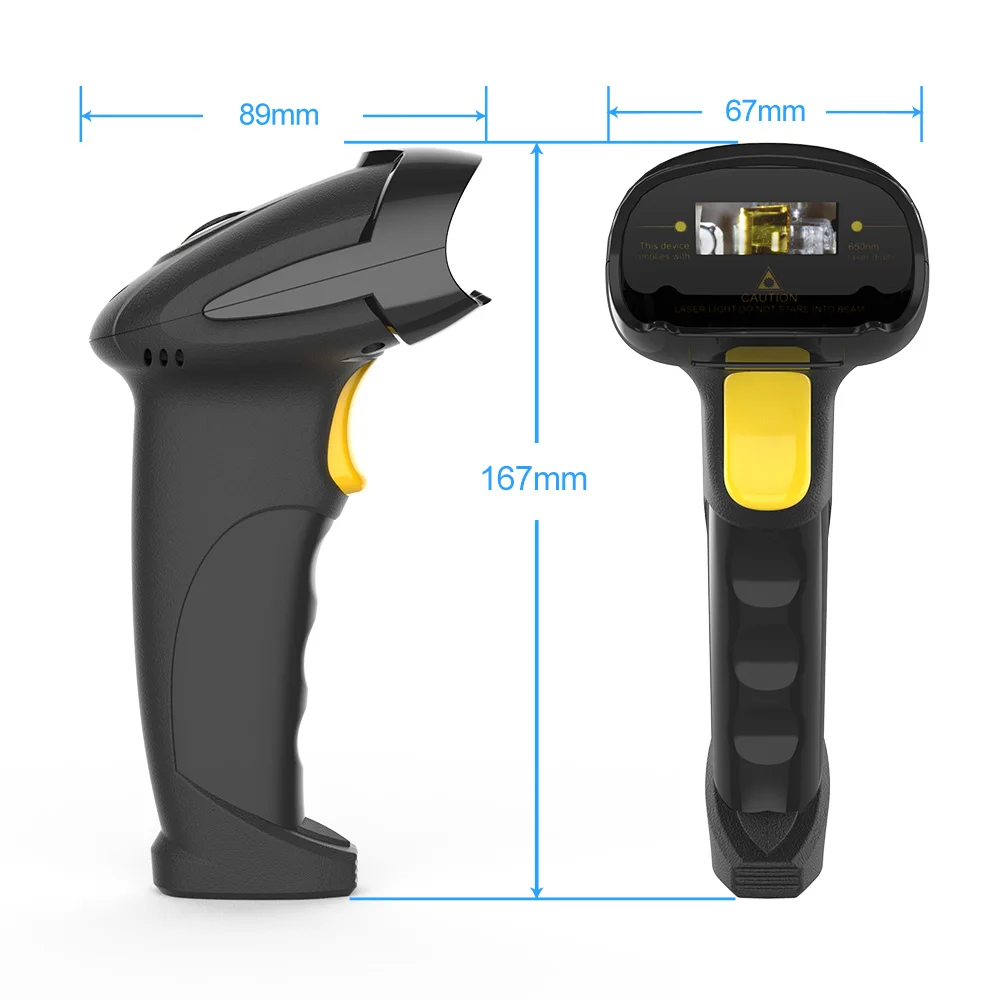

| Size | L*W*H: 168.0 * 66.5 * 89.0(unit:mm) | ||||||
| Color | Black;grey White | ||||||
| Button Lifespan | >100000times | ||||||
| Performance Parameter | |||||||

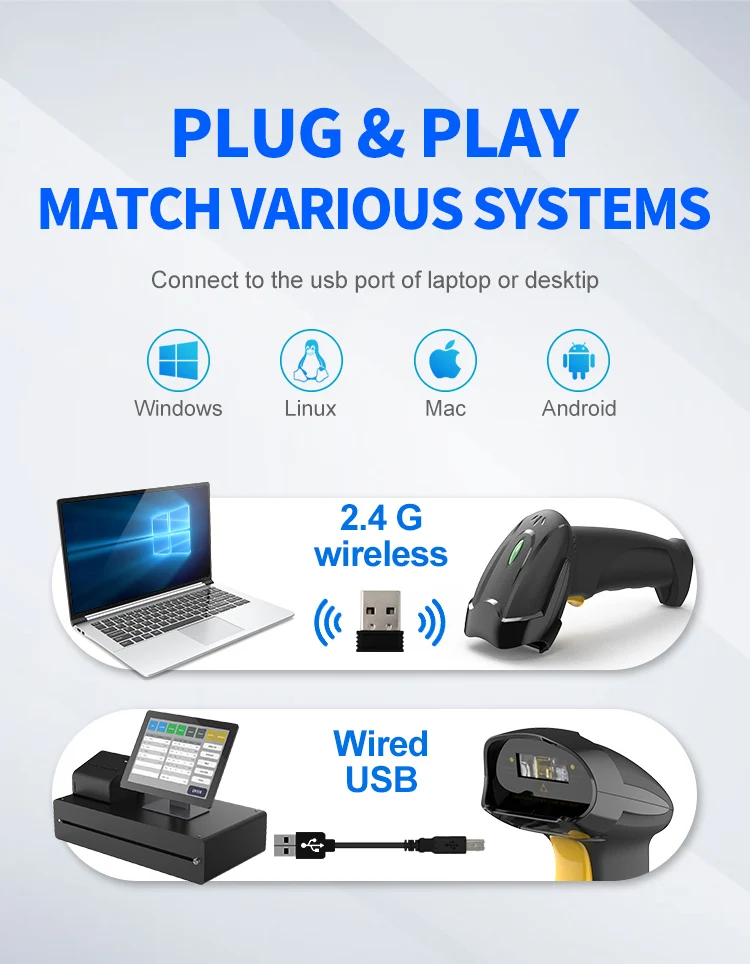

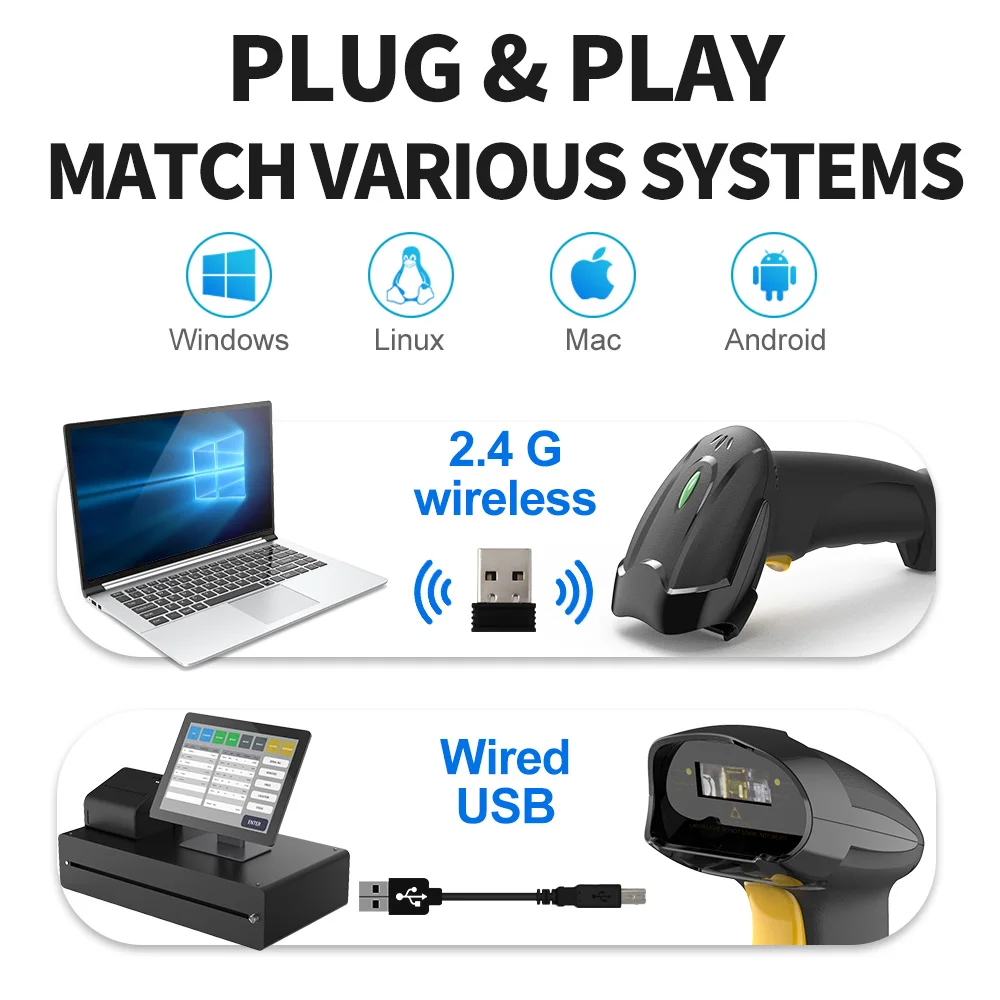

| Interface | USB cable;Wireless 2.4G transmission | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English ; German ; French ; Spain ; Italian ; Japanese [support virtual keyboard] | ||||||
| Light Source | Visable laser 650nm | ||||||
| Processor | 32-bit MCU | ||||||

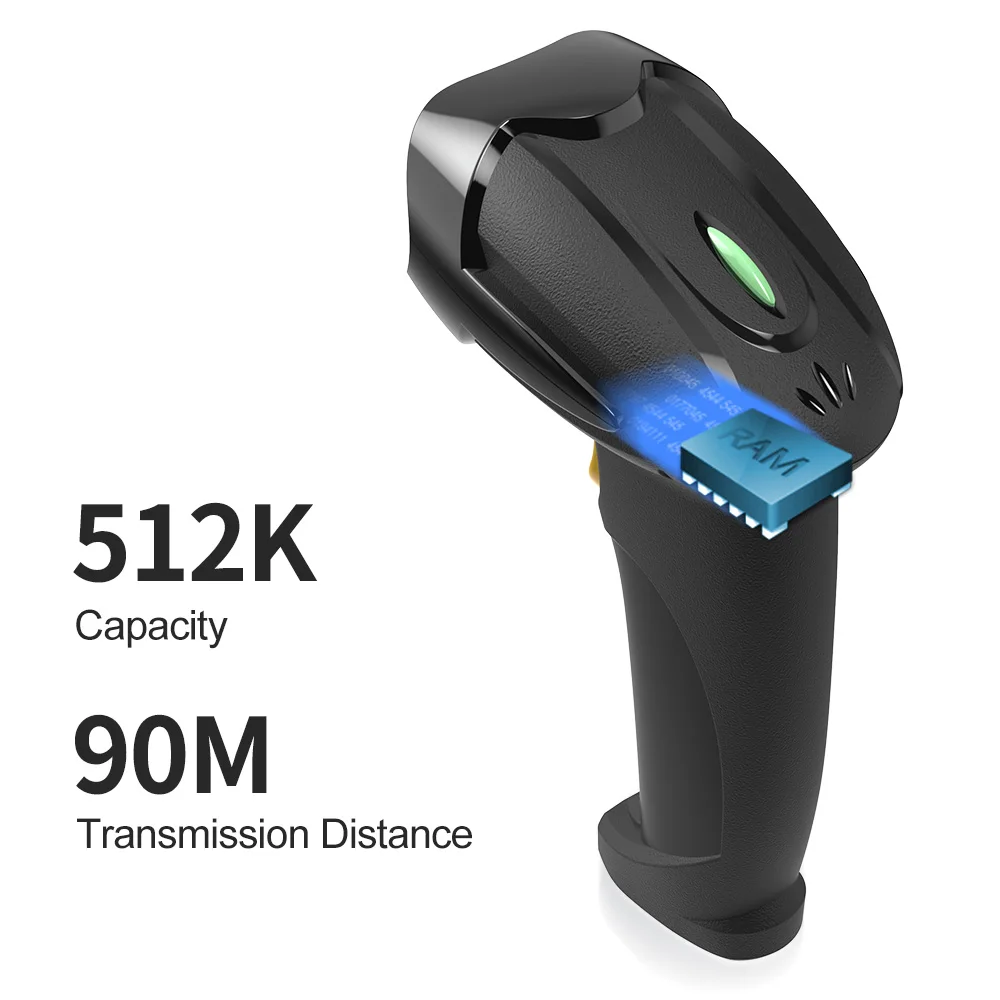

| Storage | 512KB | ||||||
| Scanning Speed | 300times/sec | ||||||
| Resolution | 4mil | ||||||
| Transmission Distance | 90m visual range | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Reading Mode | laser | ||||||
| Trigger Mode | Manual ;Continuous scanning | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Print Contrast | 35% | ||||||
| Charging time | 3 hours | ||||||

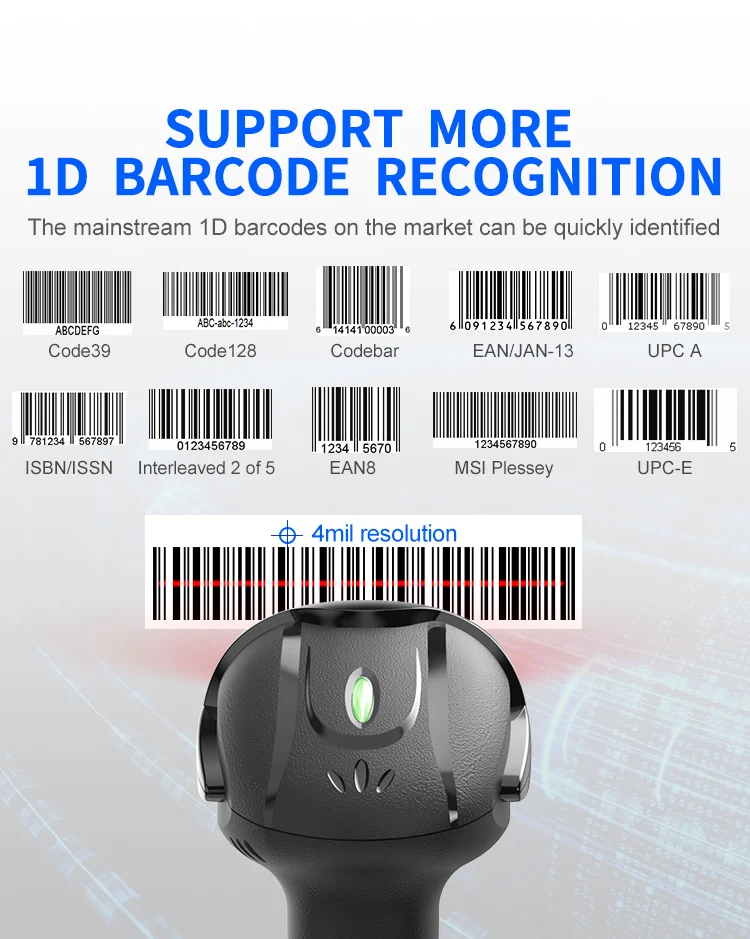

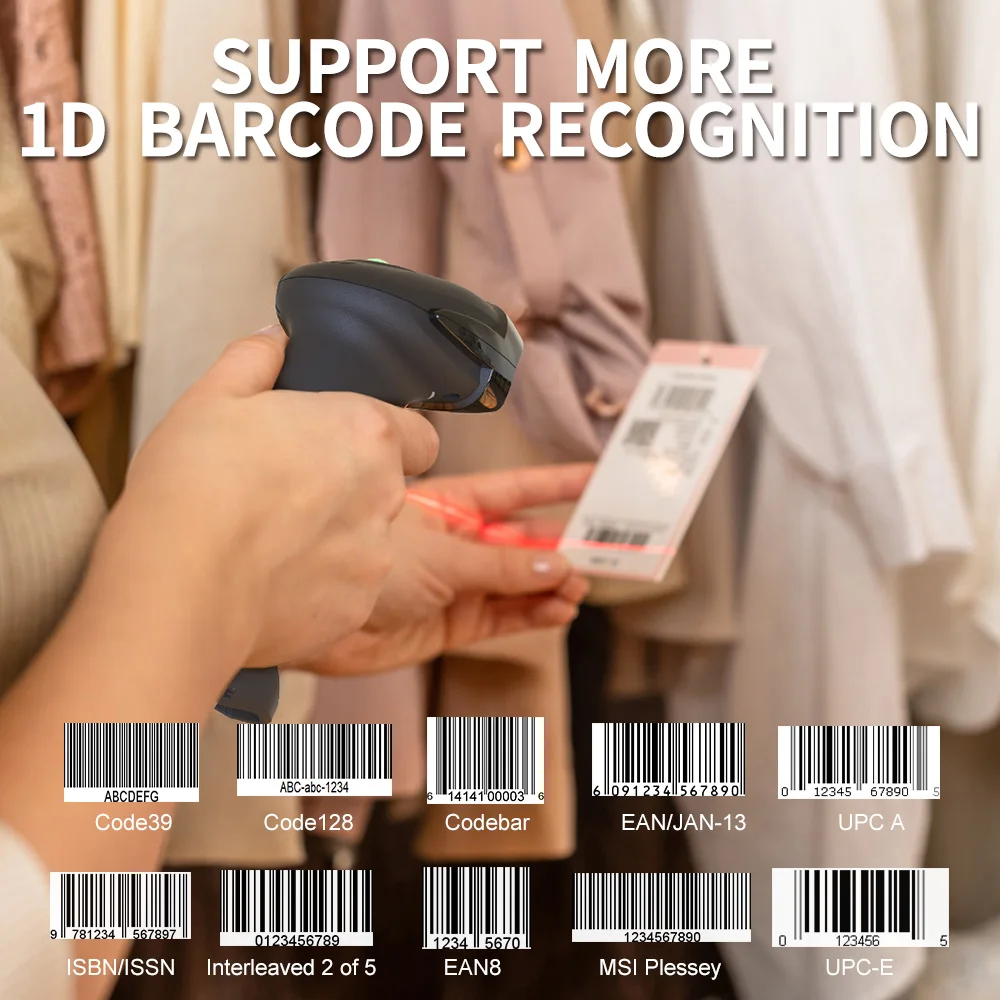

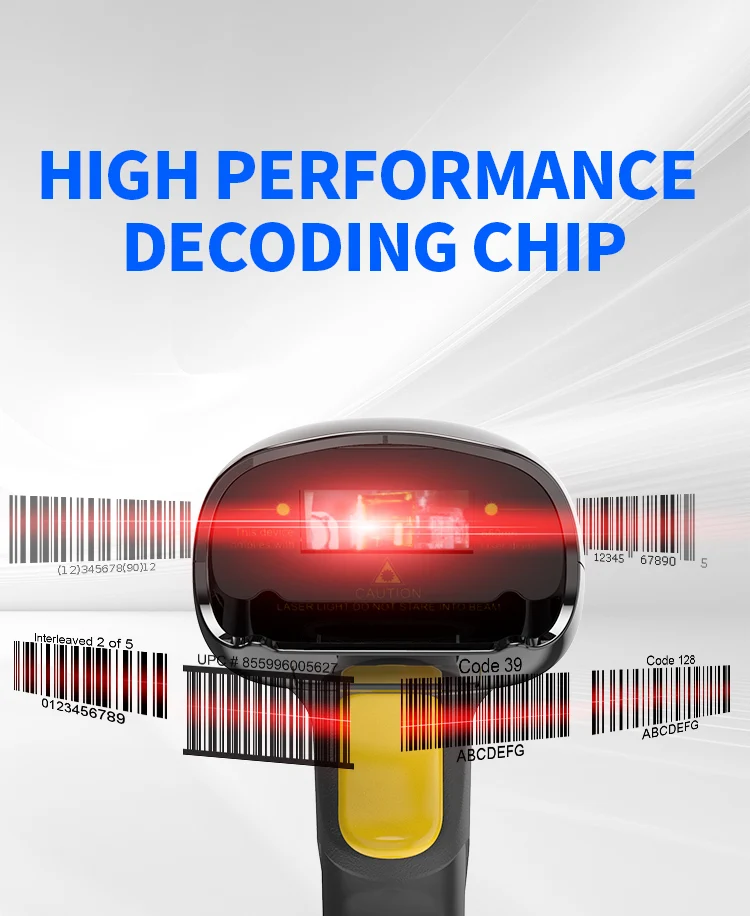

| Decoding Capability | On by default Code25-Interleaved Code25-Standard Code25-Matri Code39-Regular Code39-FullASCII Code128 Code93-Regular Code93-FullASCII Codabar EAN/GSL/UCC-128Auto EAN/JAN-13 EAN/JAN-8 UPC-A UPCE0 Code11 Off by default *UK Plessey *MSI *Code32 *Febraban(Brazilian Bank Code) *GS1 Omnidirectional *GS1 Limited *China postal *IATA | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Scanning Angel | Roll35°;Pitch65°;Yew65° | ||||||
| Scanning Depth | Code39 4.17mil(15 bytes):1cm - 9cm Code39 7.50mil(15 bytes):3cm - 18cm Code128 4.17mil(15 bytes):1cm - 9cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
HOT SELLING
Company Information
Send Inquiry:
FAQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
