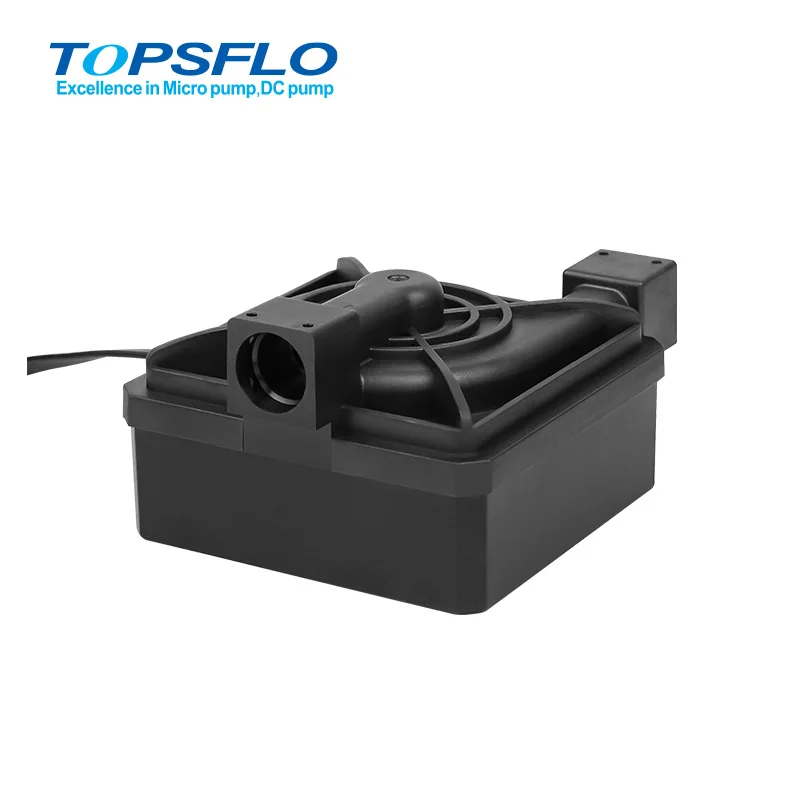

Product Overview

Description

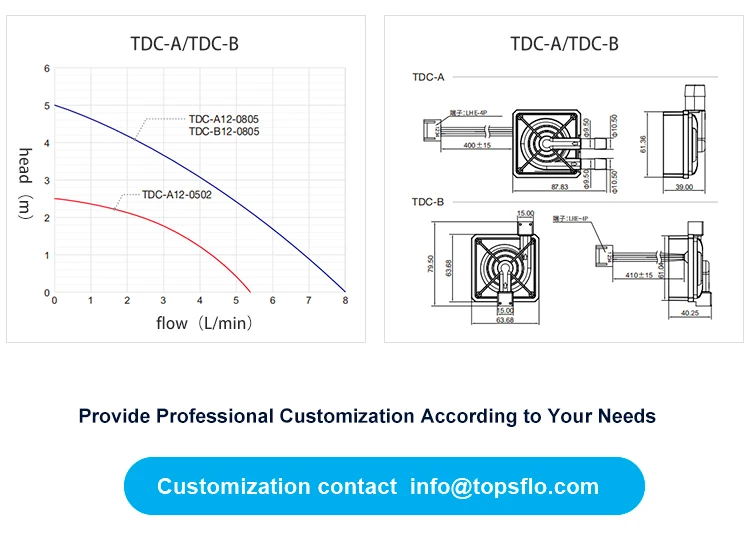

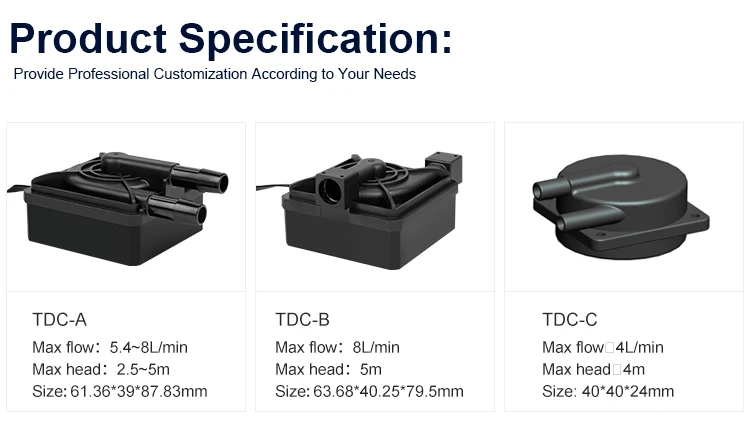

Model	Product Code	Rated Voltage(VDC)	Max Water  Flow(L/min)	Max Water Head(M)	Rated Current(A)	Rated Power (W)
TDC	TDC-A12-0502	12	5.4	2.5	0.46	5.52
	TDC-A12-0805	12	8	5	1.42	17.04
	TDC-B12-0805	12	8	5	1.42	17.04
Standard configuration: 1. /PWM or /5V speed control 2. FG (RPM) signal wire 3. LHE-        4PConnector



Applications:

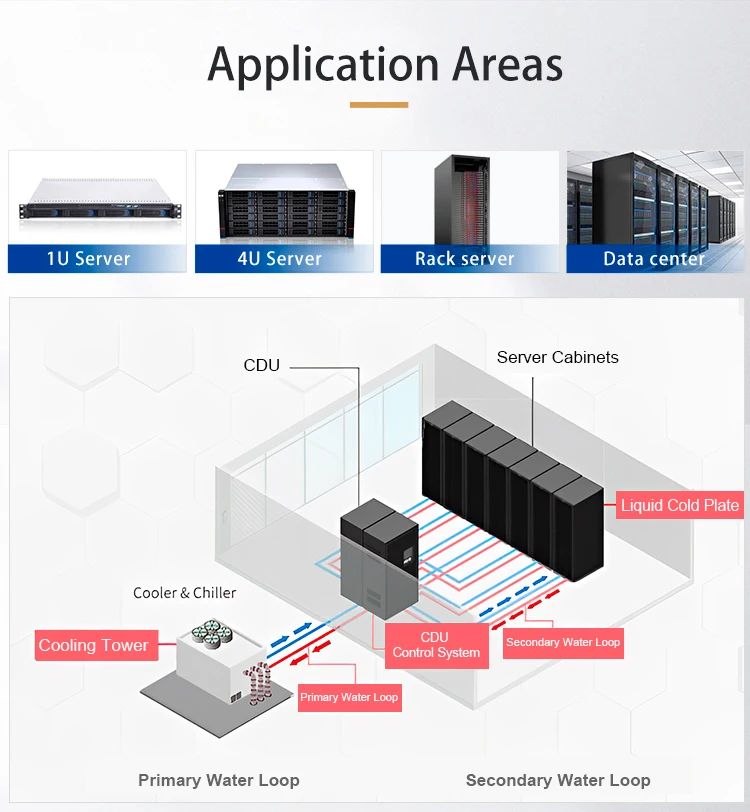

1.1U Servers, 2U Servers, 4U Servers, CDU Servers, Rack-mounted Servers, Cold Plate Liquid Cooling Servers, High-Density Servers, High-Frequency Servers, Graphics Card Servers, PC Computers





With efficient brushless DC motors and rotor design, the flow and water head of the pumps fully meet the demands of liquid-cooled servers.

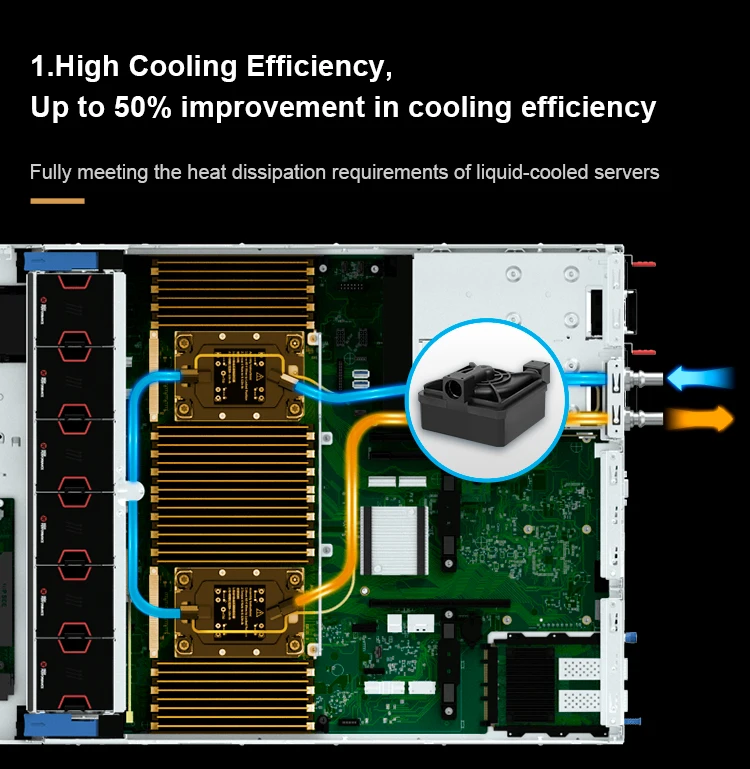

By directly contacting the liquid medium with high heat and density sources, the micro water pump absorbs and carries away heat more efficiently, providing higher heat dissipation efficiency for the system.

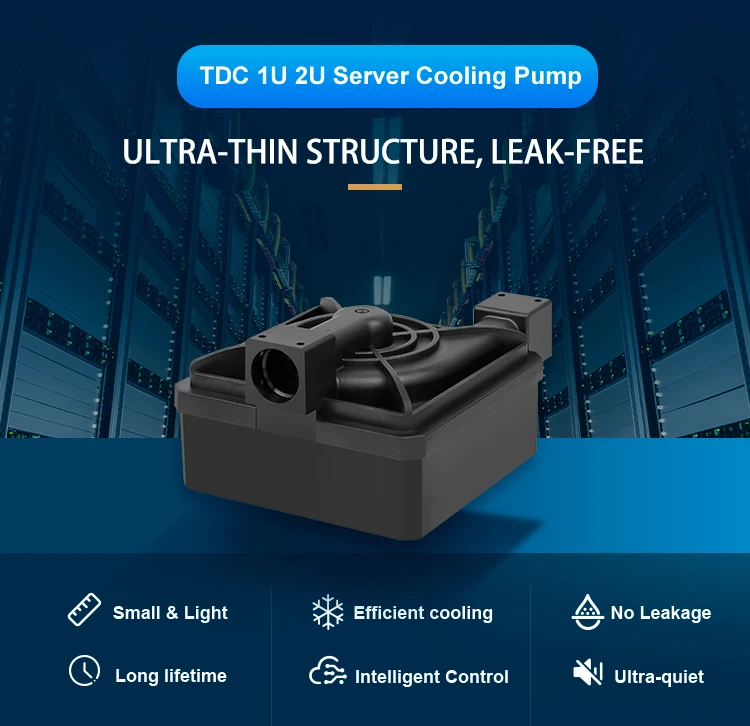

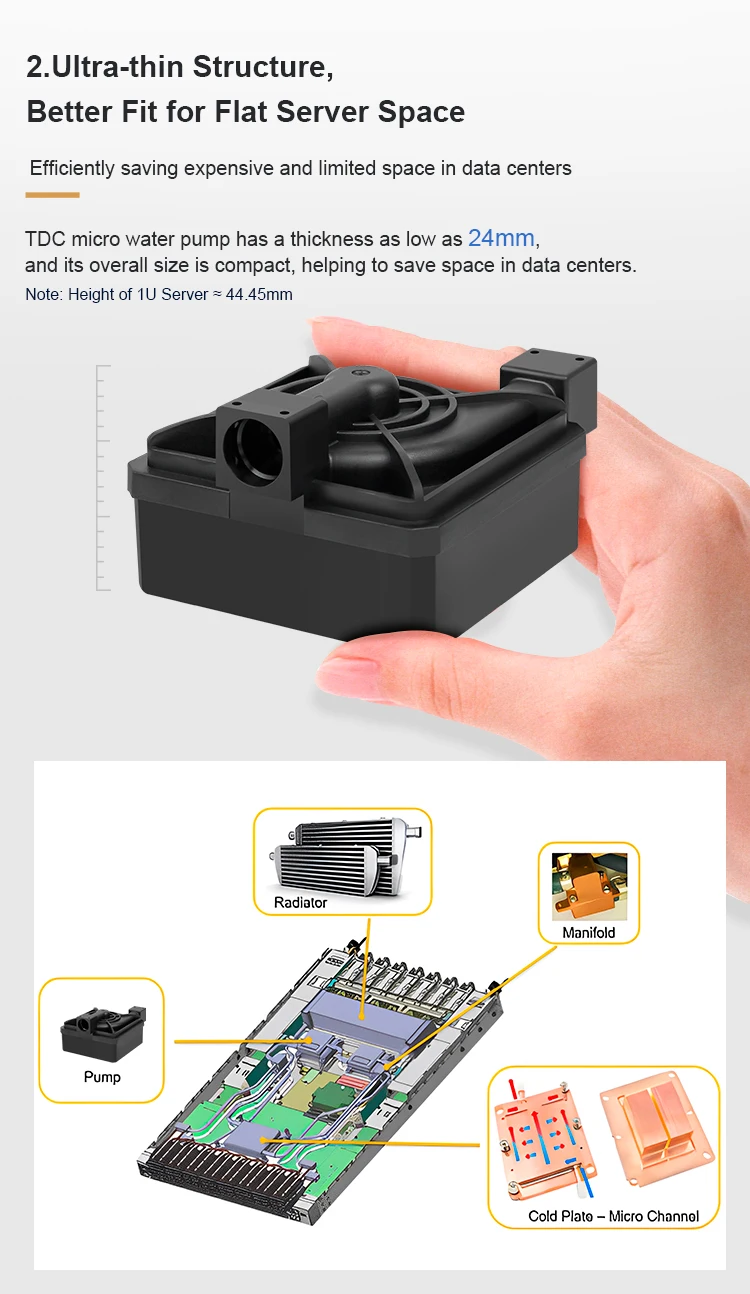

Compared to bulky traditional cooling equipment, the compact design of the micro water pump makes it easier to deploy liquid cooling systems in limited space.

It effectively improves space utilization and meets the growing computing demands.

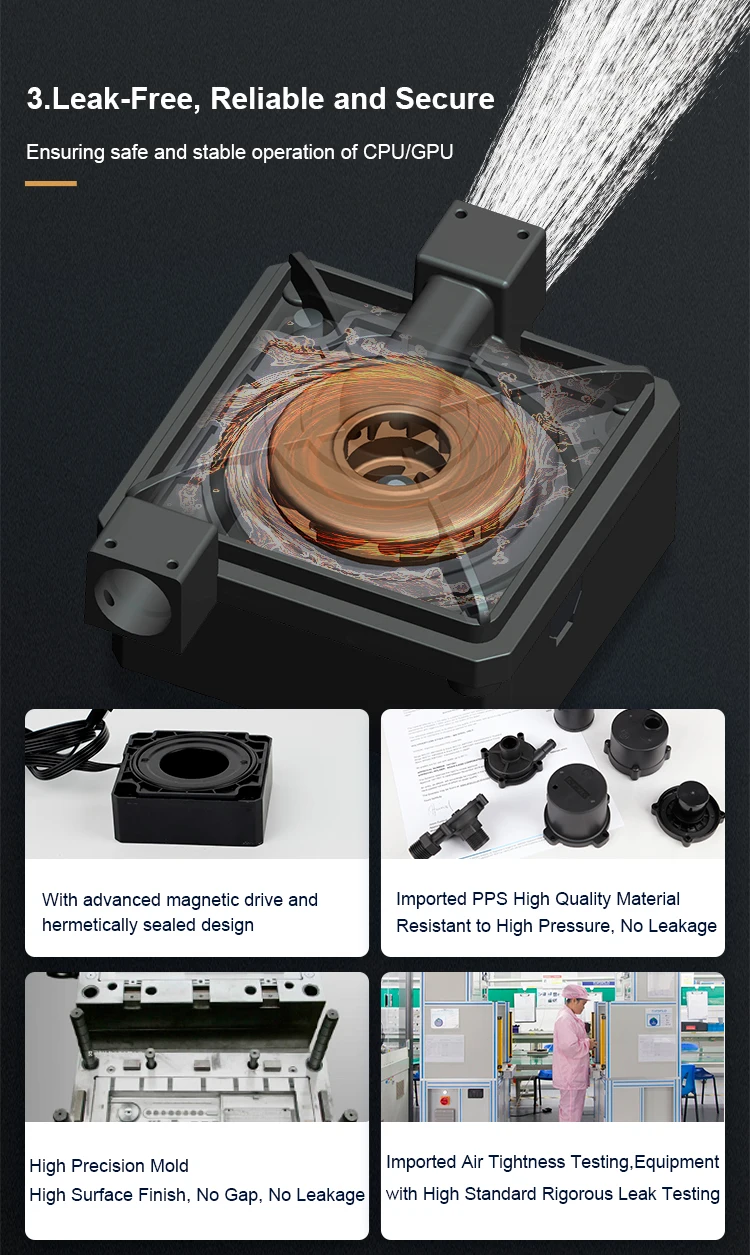

With advanced magnetic drive and hermetically sealed design, imported high-quality PPS materials, and high-precision molds, the water pumps undergo 100% rigorous leak testing using French-imported high-standard airtightness testing equipment, effectively reducing the risk of leakage to ensure the safety and reliability of server systems.

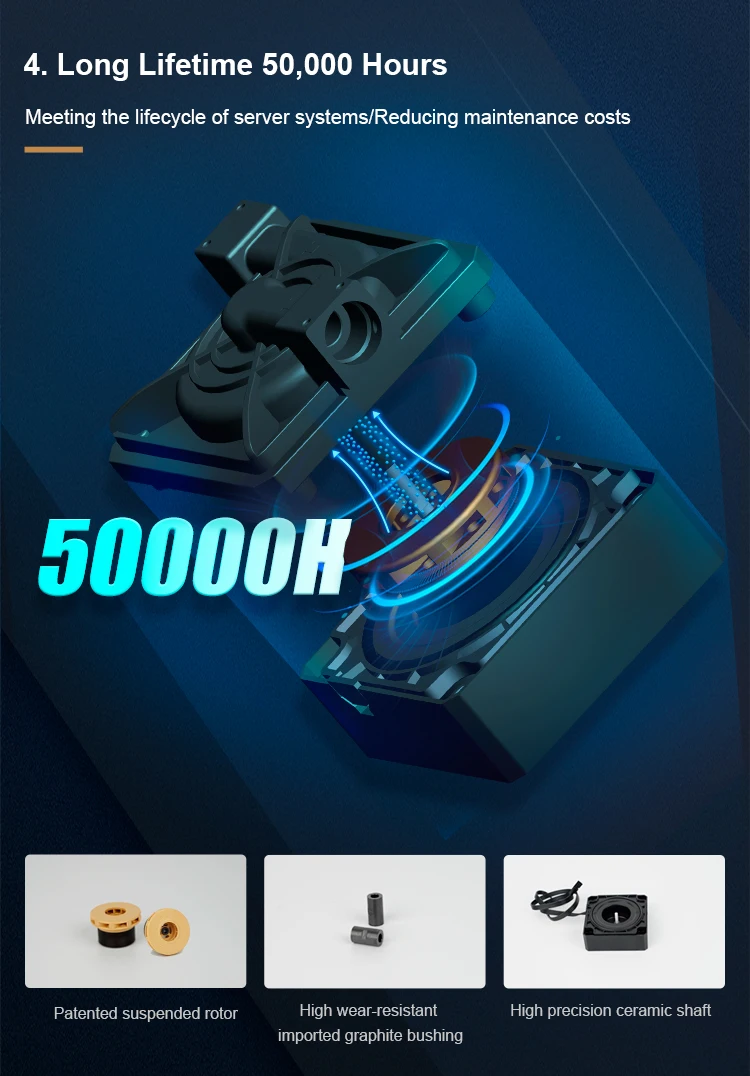

Adopting unique rotor suspension technology, high-wear-resistant imported graphite sleeve and high-precision ceramic shaft to resist long-term operation and inevitable wear, ensuring stable performance and operational status of the water pump, and reducing server system failures and downtime.

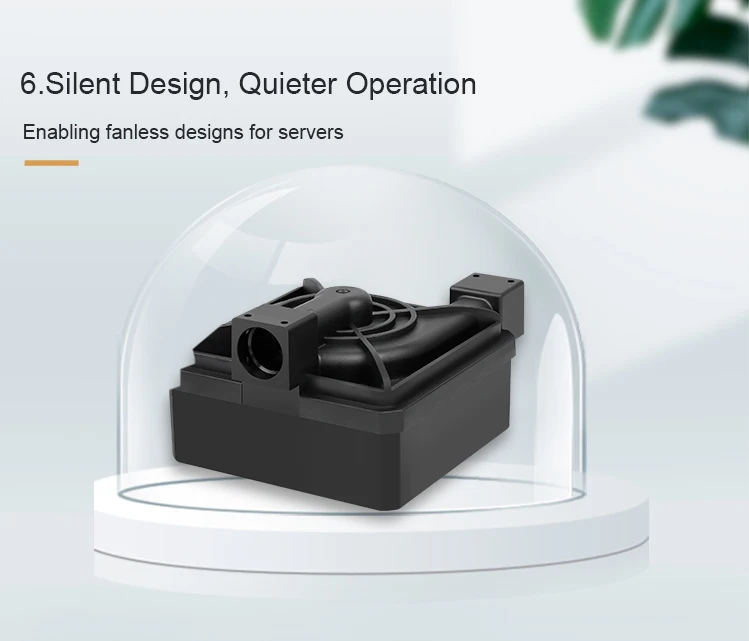

Patented silent rotors with noise consistency ranging from 3-5dB(A), with average noise levels generally lower than competitors.

Compared to traditional air cooling systems, the use of micro water pumps in liquid cooling systems significantly reduces noise levels, providing a quieter working environment.



as of Use:
Electronics ooling Laser Cooling Medical Water Circulation Chiller Systems Liquid Transfer General Purpose Pumpi
