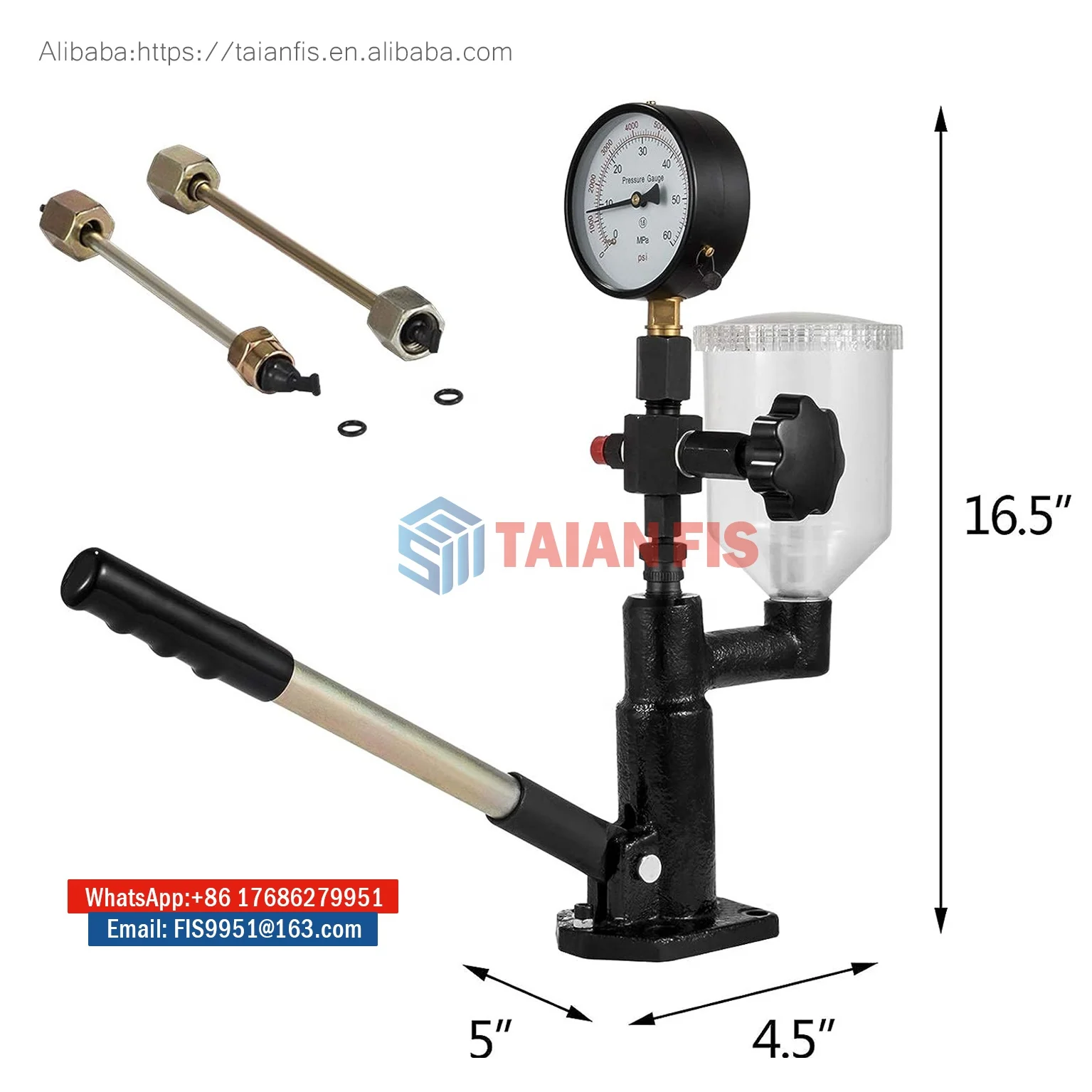

Diesel Fuel Injection Pump Injector nozzle calibrator S60H/S90H TESTER
- Category: Other Universal Parts >>>
- Supplier: Taian Fis Machinery Equipment Co. Ltd.
Share on (1600852443587):
Product Overview
Description
Product Description

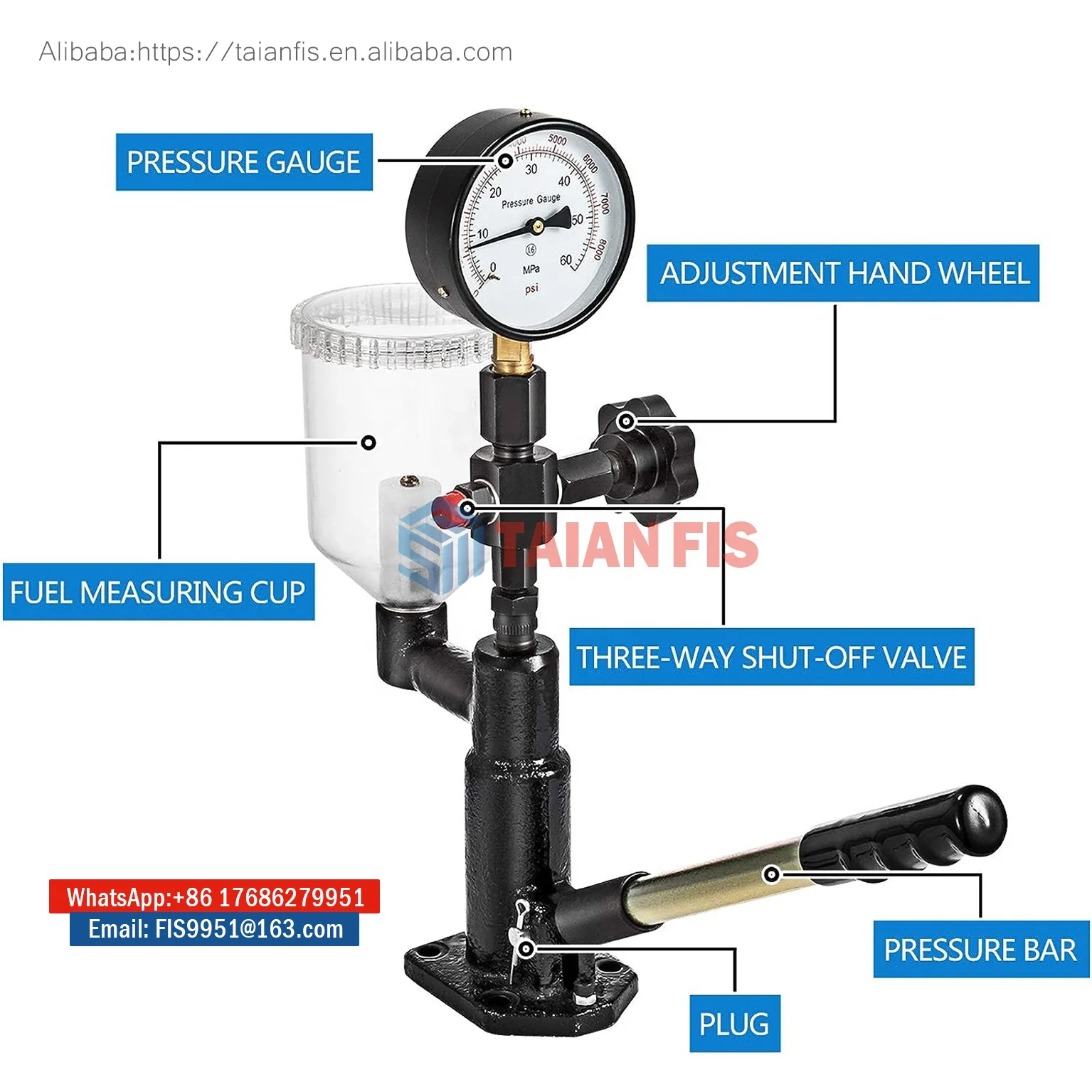

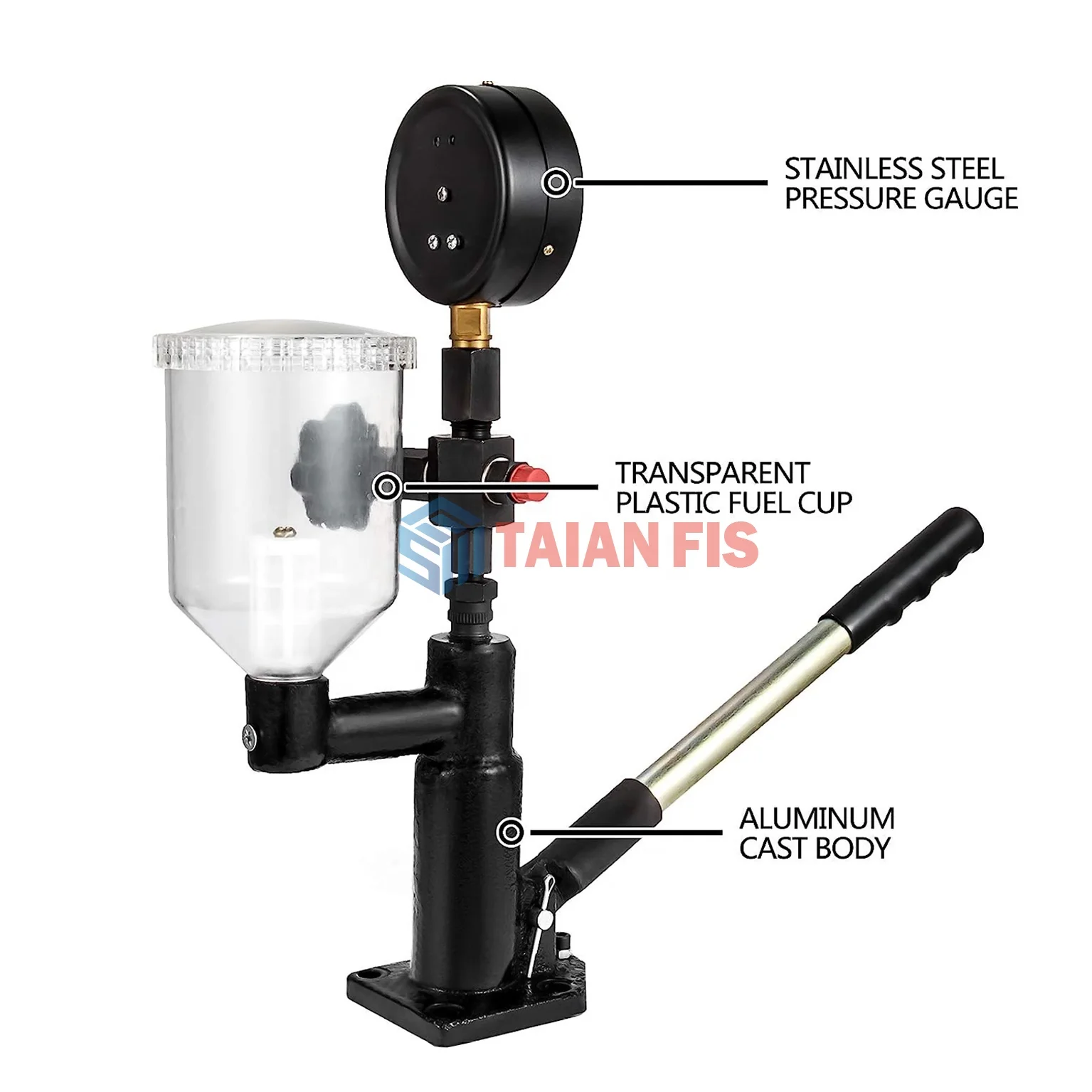

● Premium Cast Iron: The diesel injector tester forged by high-quality cast iron, its durability and rigidity is dramatically increased. It also consists of a plastic fuel cup to contain the fuel, and with a stainless pressure gauge to detect air pressure precisely.
● Superior Tests Ability: The tool set is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization. With such a multifunctional test capability, the diesel injector tester is the ideal tool for the examination of auto diesel injectors.
● Standard Accessories: The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two extra oil pipes are included in the package for your testing use.
● Wide Utility: Diesel fuel injector tester is widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.

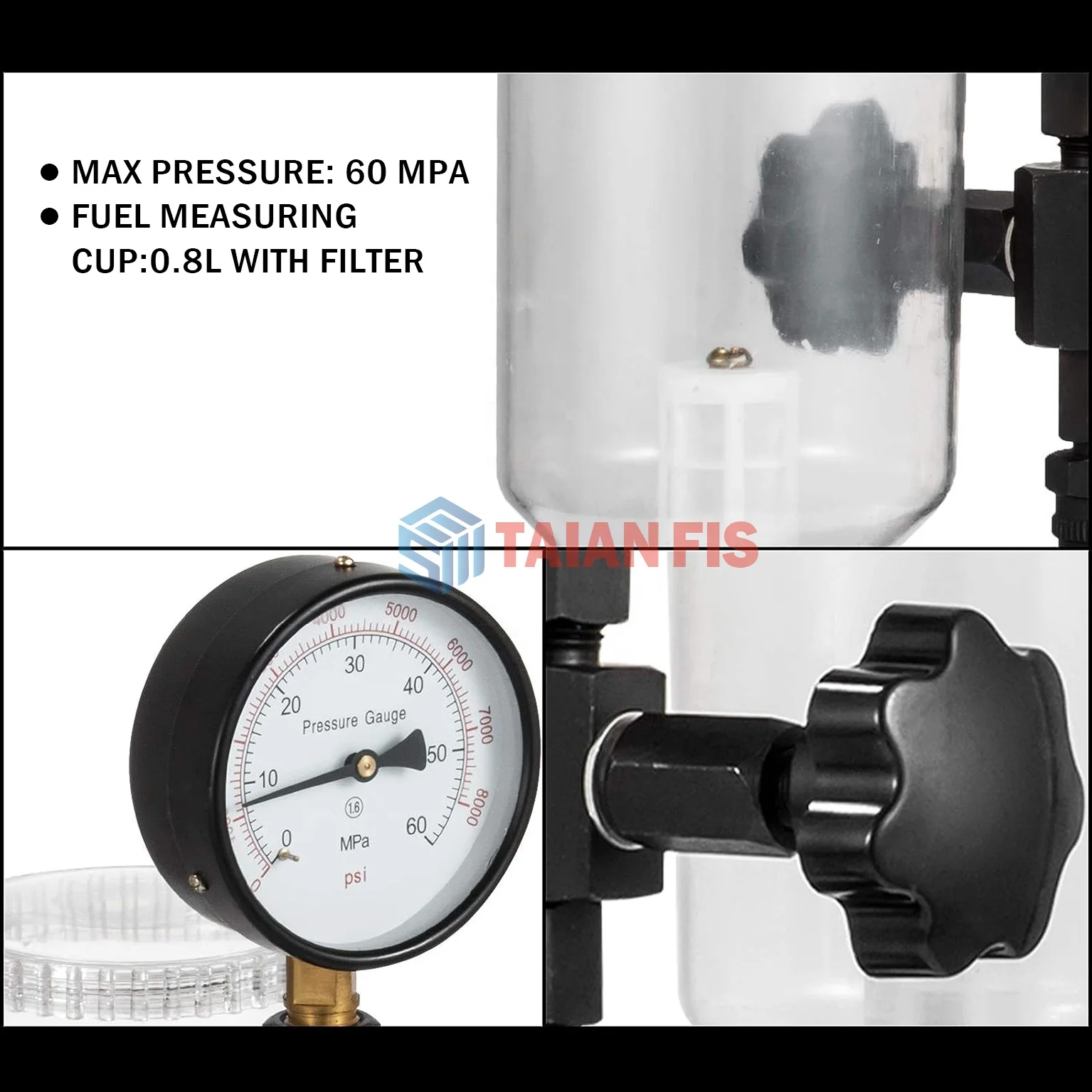

● Large Measuring Range: With precision dual scale gauge, the measuring value range from 0-600 bar/ 0-8000 psi, Max test pressure up to 60M Pa. (100 mm Dial, 3/8" BSP thread.) The transparent fuel measuring cup can hold 0.8L oil, and with the filter to help conduct kinds of injector nozzles tests.
● Superior Tests Ability: The tool set is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization. With such a multifunctional test capability, the diesel injector tester is the ideal tool for the examination of auto diesel injectors.
● Standard Accessories: The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two extra oil pipes are included in the package for your testing use.
● Wide Utility: Diesel fuel injector tester is widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.
Company Profile
Taian FIS Machinery Equipment Co., Ltd. is located at the foot of the "five mountains" Mount Tai. With the world's advanced level of various automobile detection and test equipment, several of the earliest engaged in frequency control fuel injection pump test bench senior engineers, engineers, technicians and computer field hardware and software development experts.
Our product series
Our product series
1. Diesel injection pump test bench
2. Common rail injector and pump test bench
3. Full function test bench
4. Common rail / HEUI / EUI / EUP / Mechanical pump tools
5. Head rotor: (Isuzu, Toyota, Mitsubishi, Iveco, Fiat, etc.)
6. Piston: (Type: A, AD, P, PS7100, P8500, MW, PW, PT, etc.)
7. Nozzle:(Type: DNSD, DNOPDN, S, SN, P, PN.etc.)
8. Repair kit (VE pump, Lucas, etc.)
9. Delivery valve: (type A, P, etc.)
10. Common rail control valve: (Bosch, Denso, Delphi)
11. Lucas head rotor. (DPA, DPS, DP200)
12. Diesel fuel injectors (Bosch, Denso, Delphi)
13. Turbocharger
14. Turbocharger cartridge dynamic balance machine
Plese feel free to contact me if you have any needed.
Products Application Field
Packing & Delivery
FAQ
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union , PayPay, Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days, tester, diagnostic tool and injectors, we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price, and we have our own engineer, if you have any requirements you can contact us directly~
