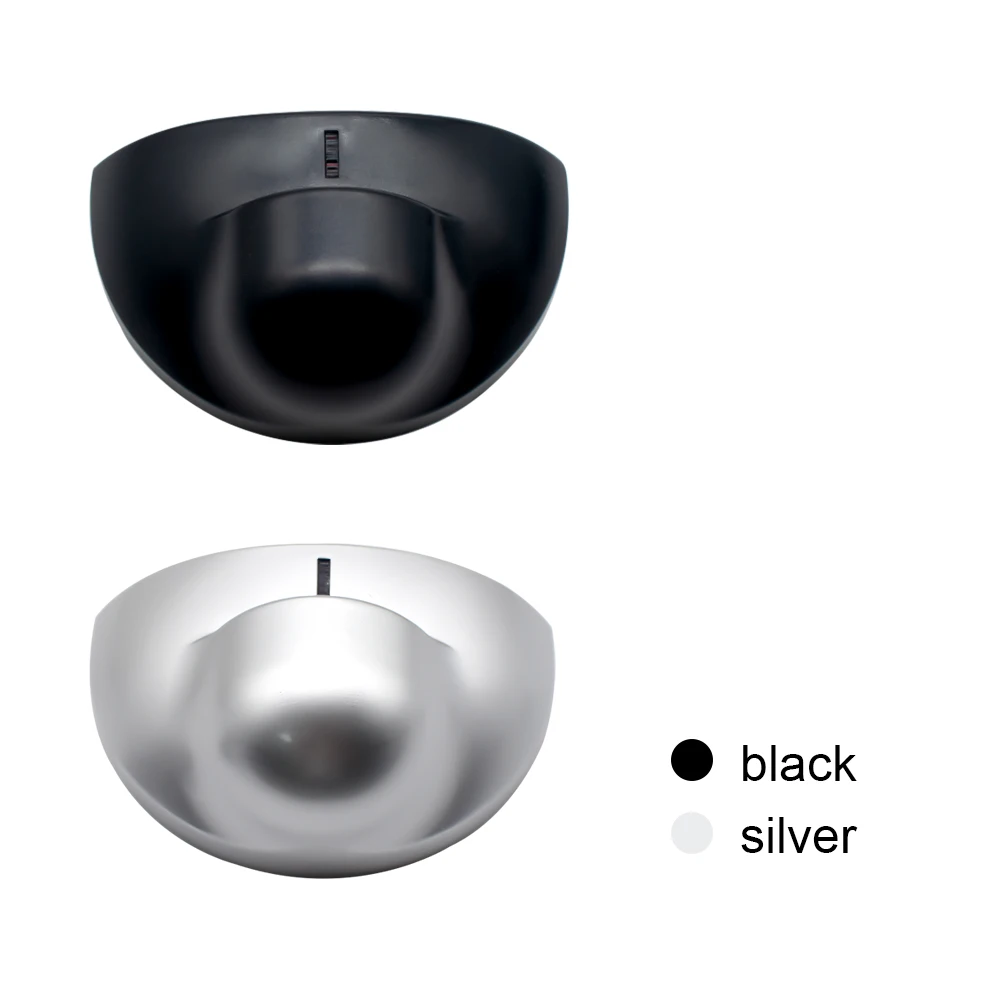

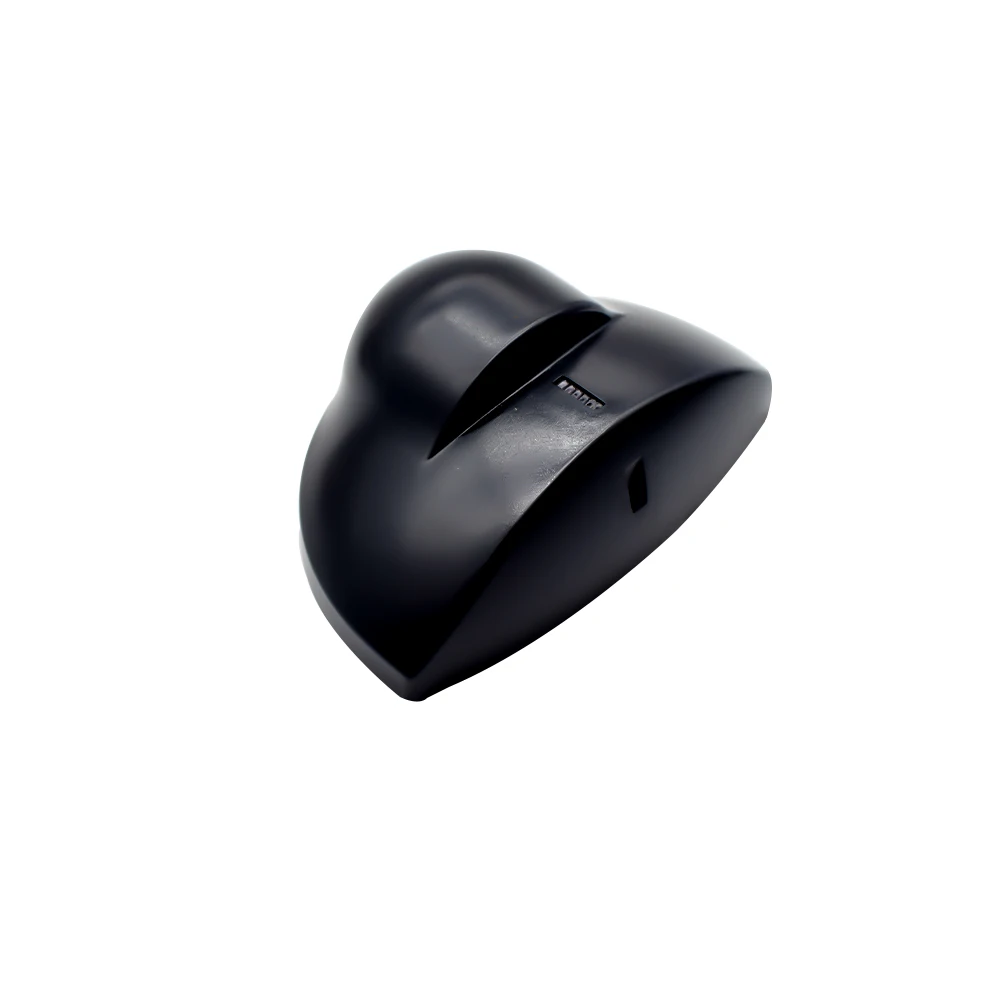

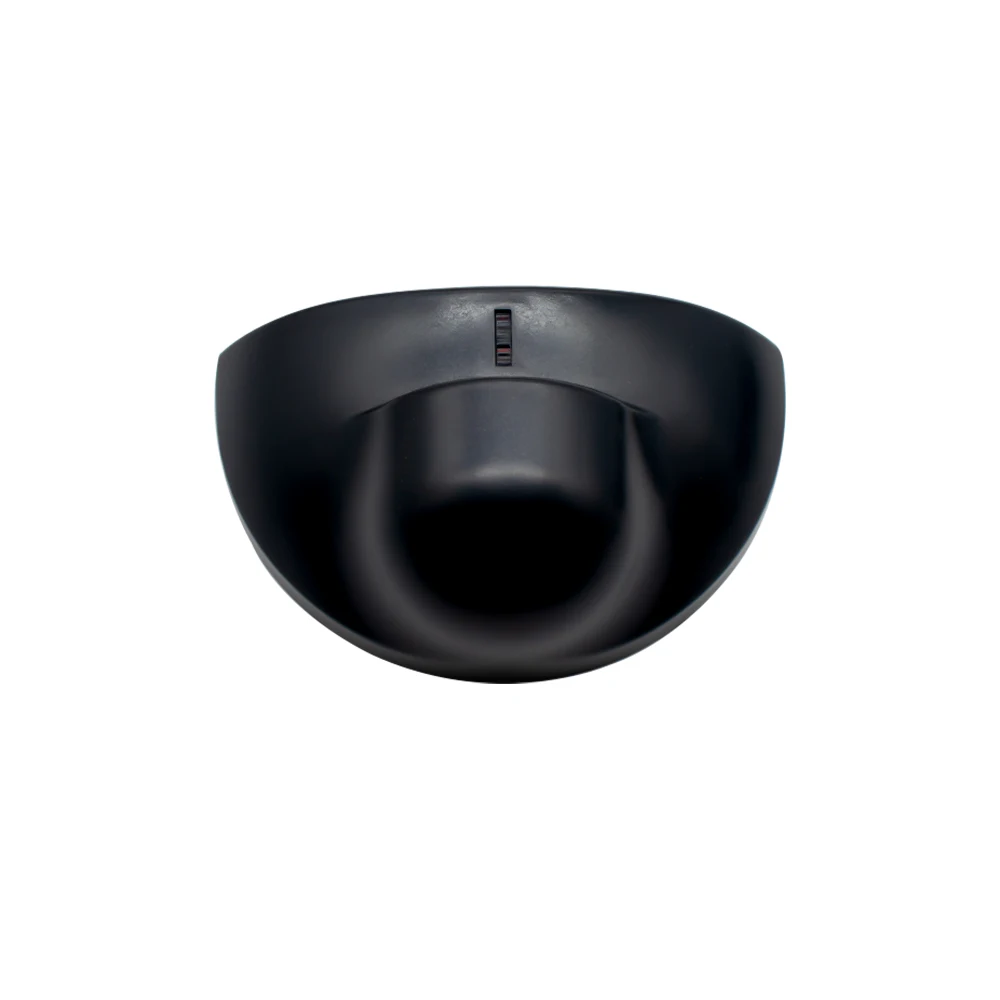

SMG F0101 Fireproof ABS Automatic door sensor open/close sensor Sliding door sliding door sensor detector AC/DC12 27V 2.4.125GHz
- Category: >>>
- Supplier: Shenzhen Scimagic Development Technology Co. Ltd.
Share on (1600852473797):
Product Overview
Description
Product Description
12-24V Automatic Door 24.125Ghz Microwave Motion Sensor Autodoor Sensors
Features:
100% brand new and high quality .
It uses advanced motion tracking and 24.125GHz microwave sensor technology.
Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.

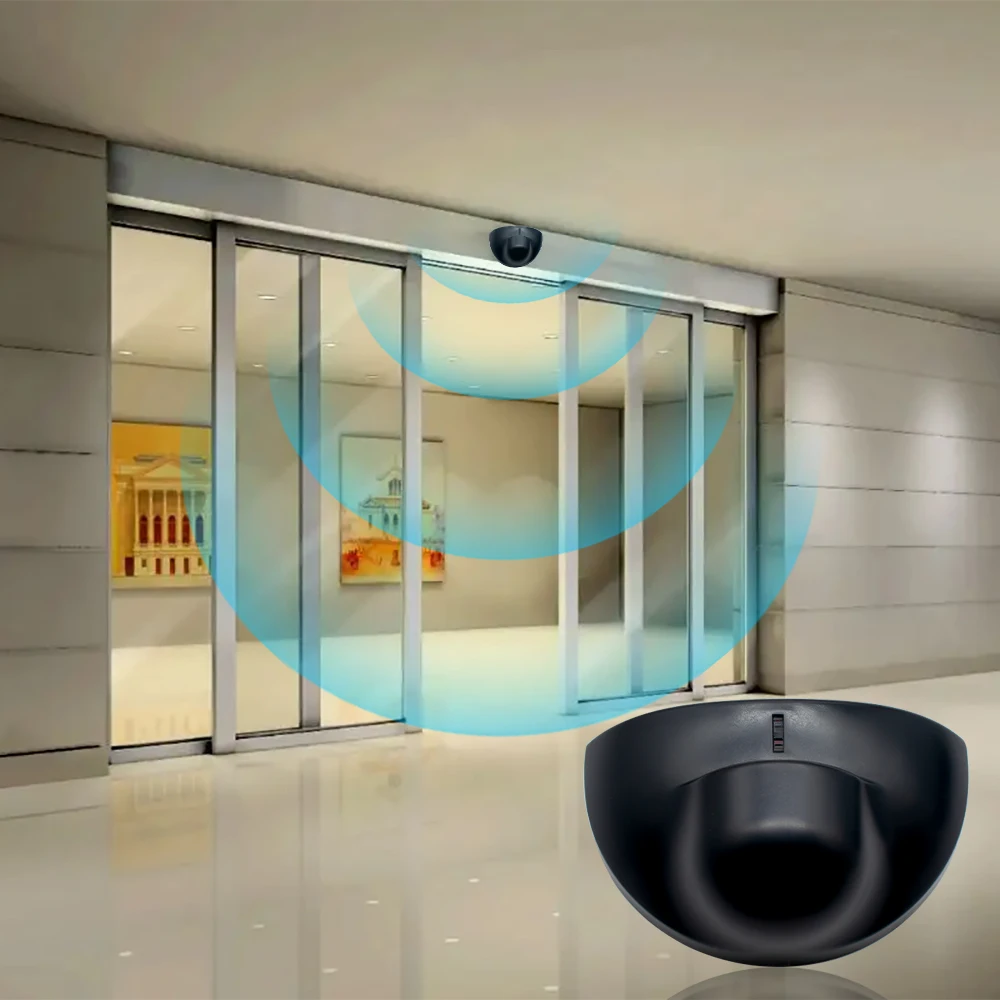

It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
It uses advanced motion tracking and 24.125GHz microwave sensor technology.
Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.
It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
Specifications:
Condition: Brand New
Material: ABS plastic
Color: black, silver gray
Technology: Microwaves and Microwave Processors
Frequency: 24.125Ghz
Transmit power: ≤20dBm EIRP
Transmission frequency density: <5mW/cm2
Installation height: 3 meters, 5 meters, 6 meters, 7 meters, 8 meters, customized version universal
Installation angle: 0~90 degrees (vertical), -30~+30 degrees (horizontal)
Detection method: motion
Minimum detection speed: 5cm/s
Power: <2W (VA)
Detection range: 4 (width) * 2 (depth) m (installation height: 2m)
Maximum voltage: 42V AC/DC
Maximum current: 1A
Maximum switching power: 30W (DC) / 60VA (AC)
Retention time: 0.5S
Guideline: 2.5 m / 8.2 ft
Working temperature: -20℃～+55℃
Protection class: IP54
Anti-interference performance: R&TTE1999 / 5 / EC, EMC 2004/108 / EC
Power supply voltage: 12-24V AC/DC
Shell size: 120mm (width) X80mm (height) X50mm (depth)
Weight: 0.215kg
Material: ABS plastic
Color: black, silver gray
Technology: Microwaves and Microwave Processors
Frequency: 24.125Ghz
Transmit power: ≤20dBm EIRP
Transmission frequency density: <5mW/cm2
Installation height: 3 meters, 5 meters, 6 meters, 7 meters, 8 meters, customized version universal
Installation angle: 0~90 degrees (vertical), -30~+30 degrees (horizontal)
Detection method: motion
Minimum detection speed: 5cm/s
Power: <2W (VA)
Detection range: 4 (width) * 2 (depth) m (installation height: 2m)
Maximum voltage: 42V AC/DC
Maximum current: 1A
Maximum switching power: 30W (DC) / 60VA (AC)
Retention time: 0.5S
Guideline: 2.5 m / 8.2 ft
Working temperature: -20℃～+55℃
Protection class: IP54
Anti-interference performance: R&TTE1999 / 5 / EC, EMC 2004/108 / EC
Power supply voltage: 12-24V AC/DC
Shell size: 120mm (width) X80mm (height) X50mm (depth)
Weight: 0.215kg

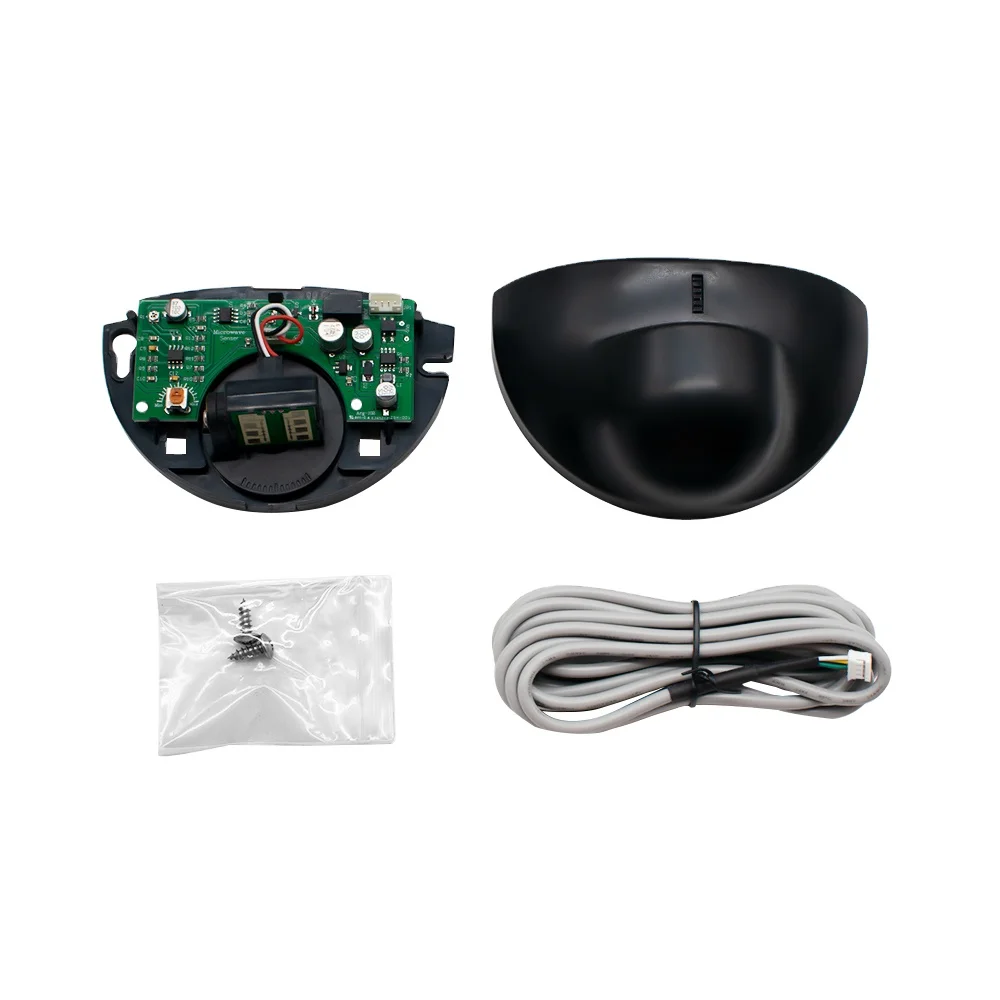

Package List:
1 * Microwave Sensor
1 * Connection Cable
2 * Screws
1 * Instruction Manual
1 * Connection Cable
2 * Screws
1 * Instruction Manual
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please
take the real one as standard.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please
take the real one as standard.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Scimagic-RC |
Model Number | SMG-F0101 |
Camera | No Camera |
Certification | RoHS |
Use | Universal |
Design | SLIDER |
Private Mold | NO |
Model Number | SMG-F0101 |
Security Mode | Fail Safe |
Direction | None |
