DUPLEX VESSElS CARTRIDGE FILTER UNIT IN OFFSHORE INDUSTRY
- Category: >>>
- Supplier: Ningbo Haishu Ecofine Purification Equipment FactoryNingbo Factory
Share on (1600852629136):
Product Overview
Description
Product Description

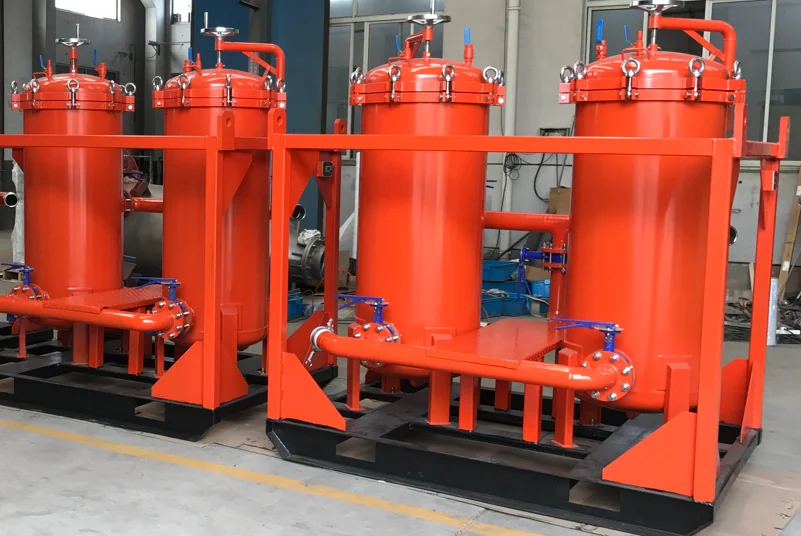

Duplex Vessels Cartridge Filter Unit with DNV 2.7-1 approval
The duplex vessels cartridge filter unit is a type of filtration system used in Oilfield industrial settings to remove impurities from liquids or gases. It consists of two vessels or chambers, each containing a set of filters or cartridges that capture contaminants as the liquid or gas passes through. The dual vessel design allows for continuous operation, as one vessel can be taken offline for maintenance or replacement while the other vessel remains in use. These filter units are commonly used in oil and gas, chemical processing, and food and beverage industries.
Benefits / Features
• Standard serial/parallel configuration

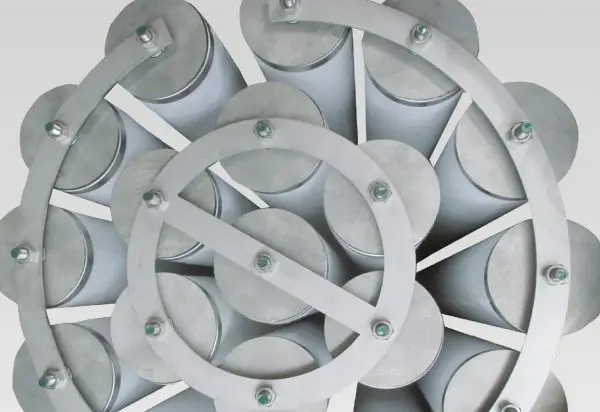

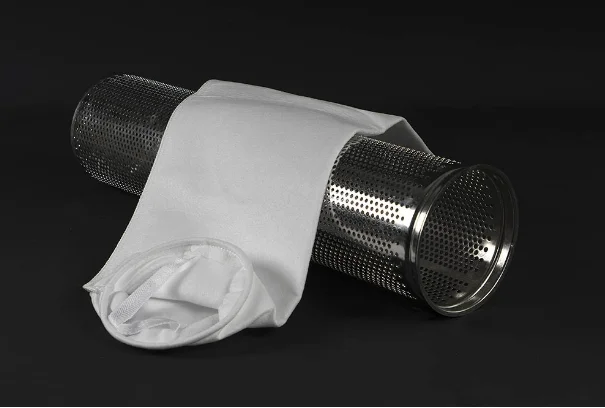

• Standard 50x 40” cartridges and/or 4 bags per vessel
• Compact footprint
• Innovative Quick-lock Closure and Swing Bolt Closure, easy to operate
• Self sealing, service friendly cover gasket
• Easy to operate 4 inch main manifold valves
• Certified hoisting slings, lifting lugs and forklift pockets
• Design pressure of Cartridge Vessel at 10 bar (150 Psi)

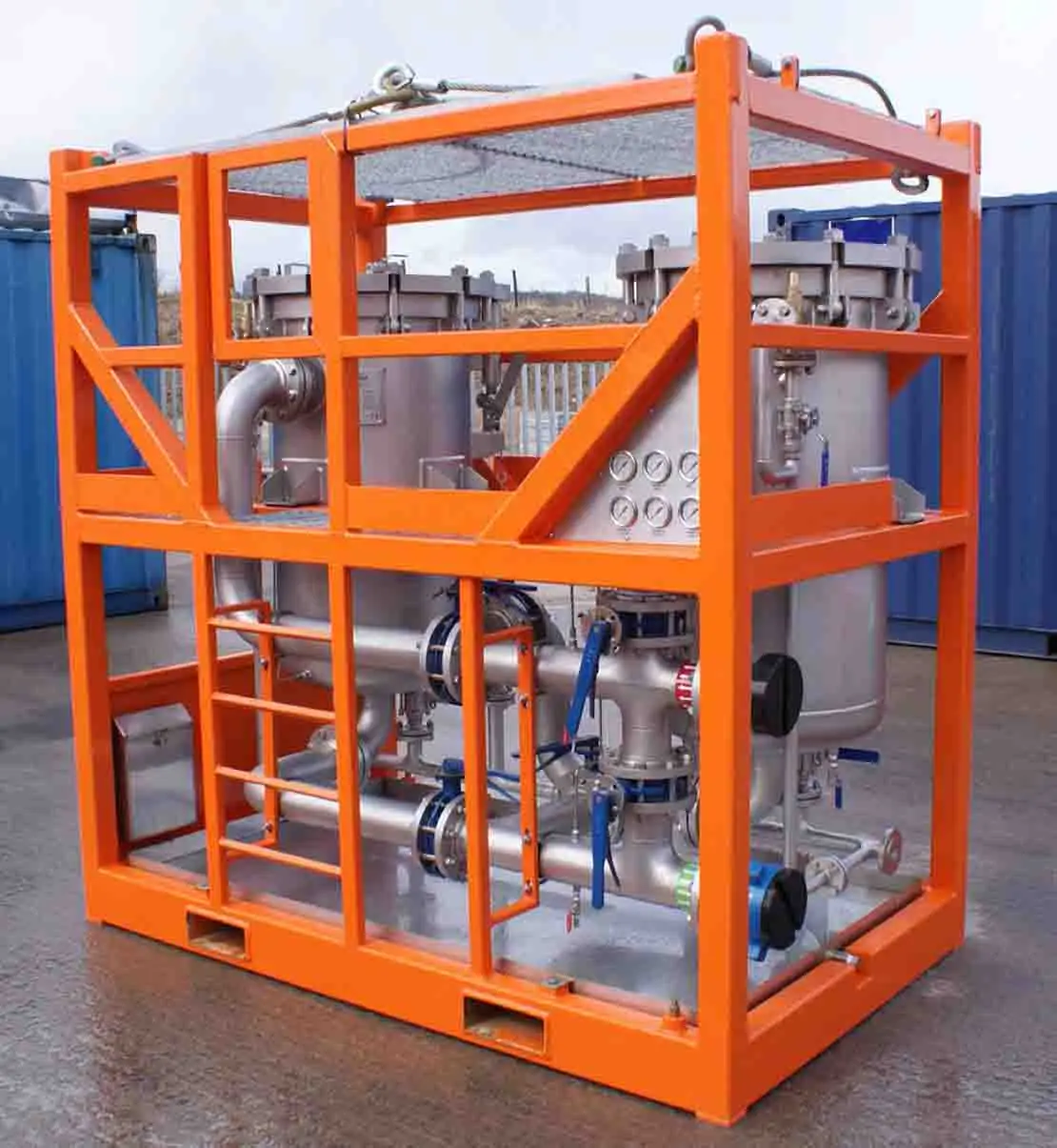

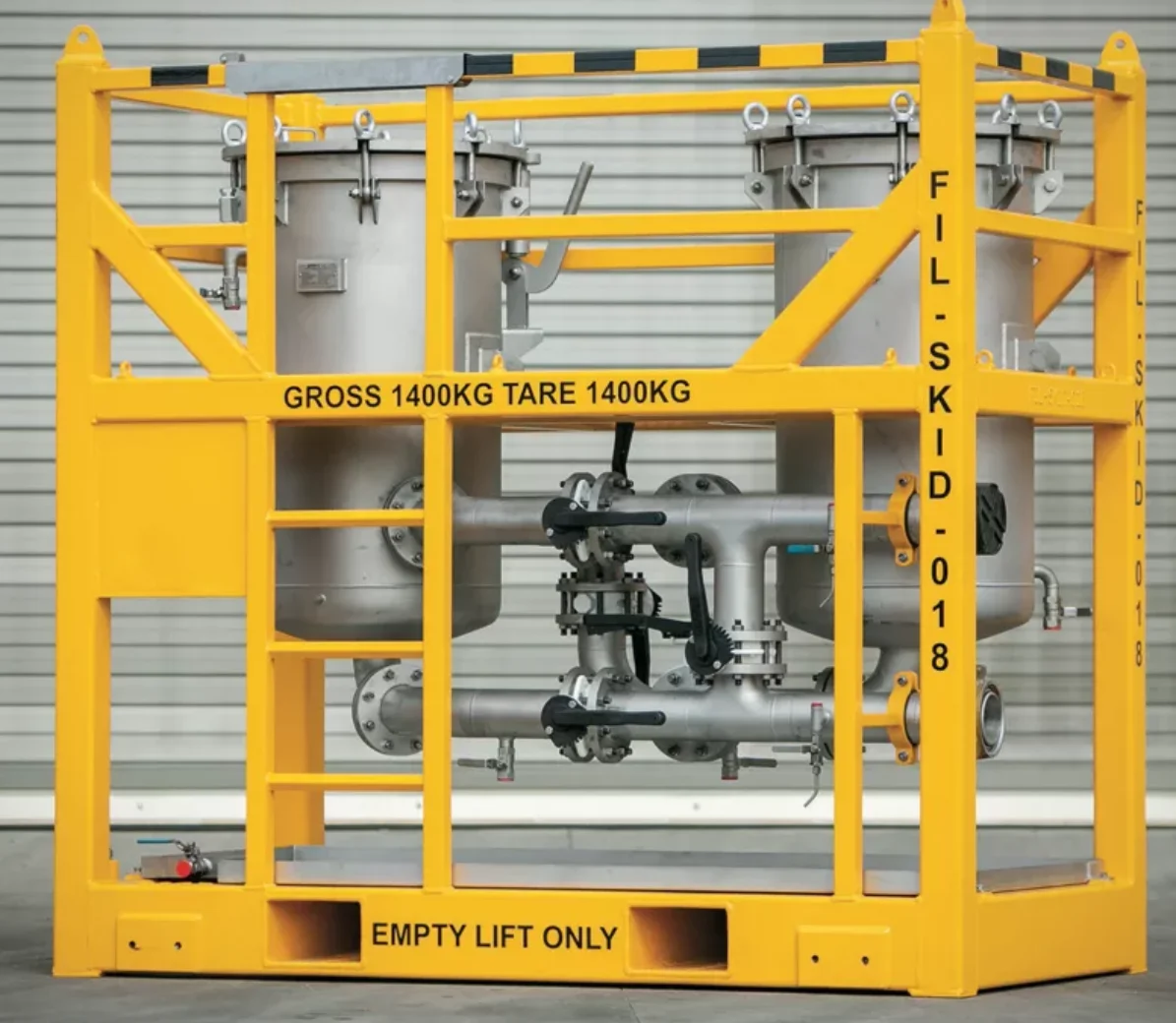

• Offshore frame design according DNV 2.7.1
Benefits / Features
• Standard serial/parallel configuration
• Standard 50x 40” cartridges and/or 4 bags per vessel
• Compact footprint
• Innovative Quick-lock Closure and Swing Bolt Closure, easy to operate
• Self sealing, service friendly cover gasket
• Easy to operate 4 inch main manifold valves
• Certified hoisting slings, lifting lugs and forklift pockets
• Design pressure of Cartridge Vessel at 10 bar (150 Psi)
• Offshore frame design according DNV 2.7.1
Applications
* Completion fluids
* Water injection
* Produced water
* Seawater intake
* Oily water clean up
* Diesel
* Pre-filtration RO
* Completion fluids
* Water injection
* Produced water
* Seawater intake
* Oily water clean up
* Diesel
* Pre-filtration RO
Specification
Design Pressure | 10 Bar (150psi) |
Max. Recommended Flow | 120 m3/h |
Filter Cartridge Element | 50 cartridges or 4 bags per vessel |
Design Temperature | -20oC to 90oC |
Cartridge Length | 40" S2C |
Vessel Diameter | 2.5 Inches |
Dimension (L x W x H) | 2300 x 1300 x 2200mm |
Inlet/Outlet | 316L 4" Union Fig 100 |
Material of Cartridge Vessel | SS 316L |
Cartridge Vessel Construction | Swing Bolt closure or Quick-lock Closure |
Moving & handling | DNV 2.7 -1 approved |
Weight | 1600Kgs |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
