ELP 1080P High Speed 30fps 60fps 120fps 2MP Web Cam M12 Lens OV2710 Mini USB Camera Module For ATM, Robotics, Attendance Machine
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600852946852):
Product Overview
Description
ELP 1080P High Speed 30fps 60fps 120fps 2MP Web Cam M12 Lens OV2710 Mini USB Camera Module For ATM, Robotics, Attendance Machine
Model : ELP-USBFHD01M-L21 is 2 megapixel 1920(H)X1080(V) High Speed USB cameras with 2.1mm lens for Linux, Android, Windows etc. OS system.
Products Description
Features: *1920X1080P Full HD USB Camera
*Equipped with 2.1mm lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
*Equipped with 2.1mm lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

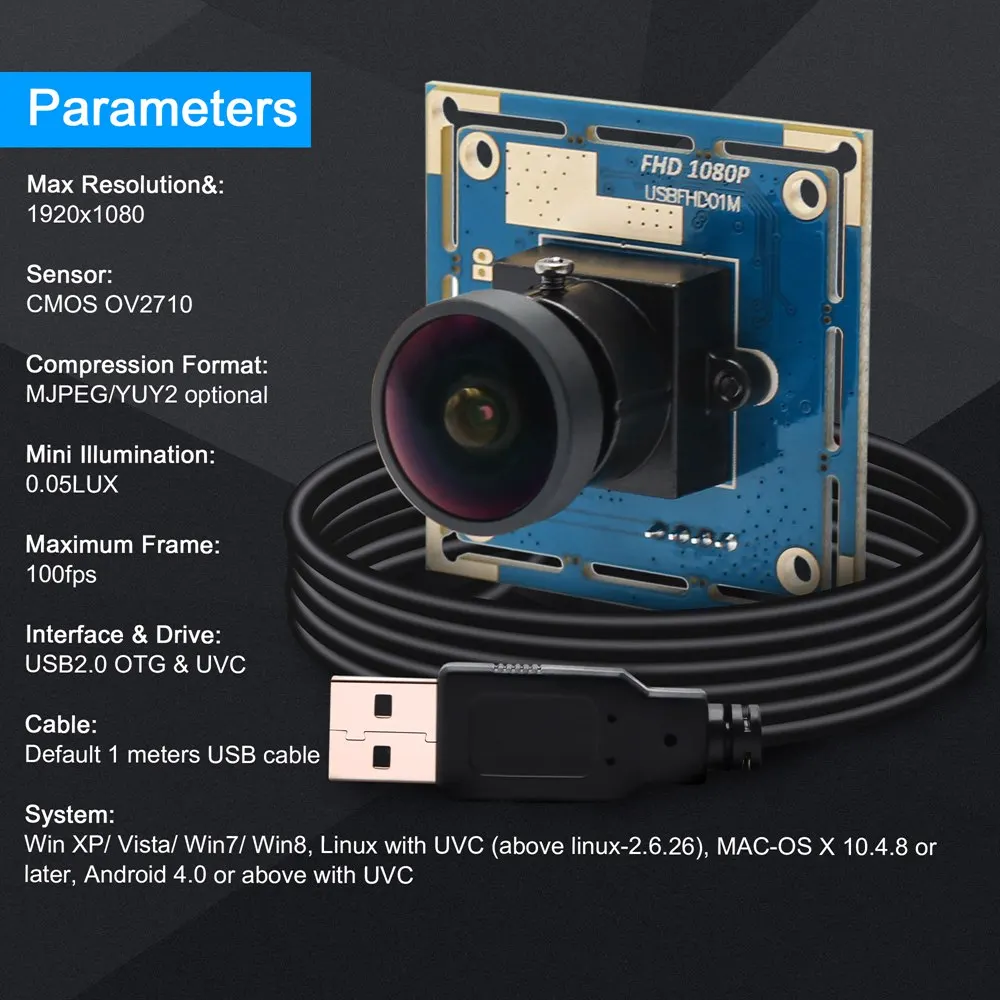

Specification
Model : ELP-USBFHD01M-L21(2.1mm lens, HFOV 125 Degree) | ||||||
Resolution & frame rate | 320X240 MJPEG @120fps 352X288 MJPEG @120fps 640X480 VGA MJPEG@120fps 800X600 MJPEG@60fps 1024X768 MJPEG@30fps 1280X720 MJPEG@60fps 1280X1024 MJPEG@30fps 1920X1080 MJPEG@30fps | |||||
Sensor | CMOS OV2710 | Picture format | MJPEG or YUY2(YUYV) | |||
Sensor Size | 1/2.7 inch | Mini illumination | 0.05lux | |||
Pixel Size | 3μm x 3μm | Lens Parameter | Standard 3.6mm lens, optional 2.1/2.8/6/8mm, FOV(D) 170/180Degree | |||
Image Area | 5856μm x 5856μm | Cable | Standard 1M/ Optional 2m,3m,5m | |||
Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional/ about 30g | |||
Interface | USB2.0 High speed | Shutter Type | Rolling shutter/ Frame exposure | |||
Free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, ,Exposure White balance, Backlight Contrast | |||
USB Protocol | USB2.0 HS/FS | Special Function | Lens correction/ Defective pixel correction/ Black sun cancellation | |||
OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort | |||
Power Supply | DC 5V | Working temperatur | 0~60 degree | |||
Working Current | 120mA~220mA | Storage temperatur | -20~75 degree | |||
Night vision | Support,need to equipped IR 850nm or 940nm lens andIR LED Board | LED board power connector | Support 2P-2.0mm socket | |||
Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | |||||
Details Images

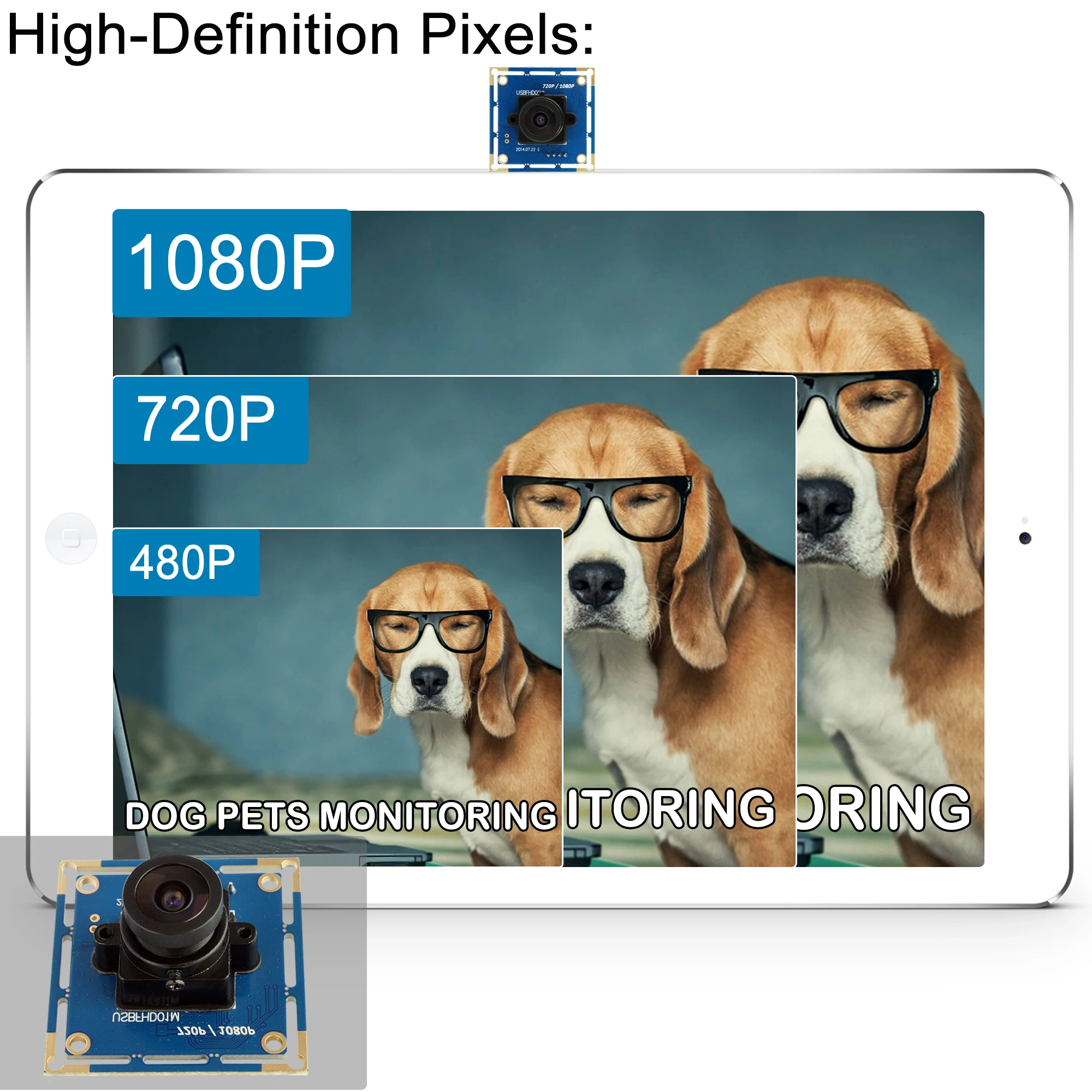

ELP 2MP Plug&Play 1920X1080 2.1mm Lens OV2710 Sensor Mini USB Camera
Sensor:OV2710 1/3 CMOS Sensor

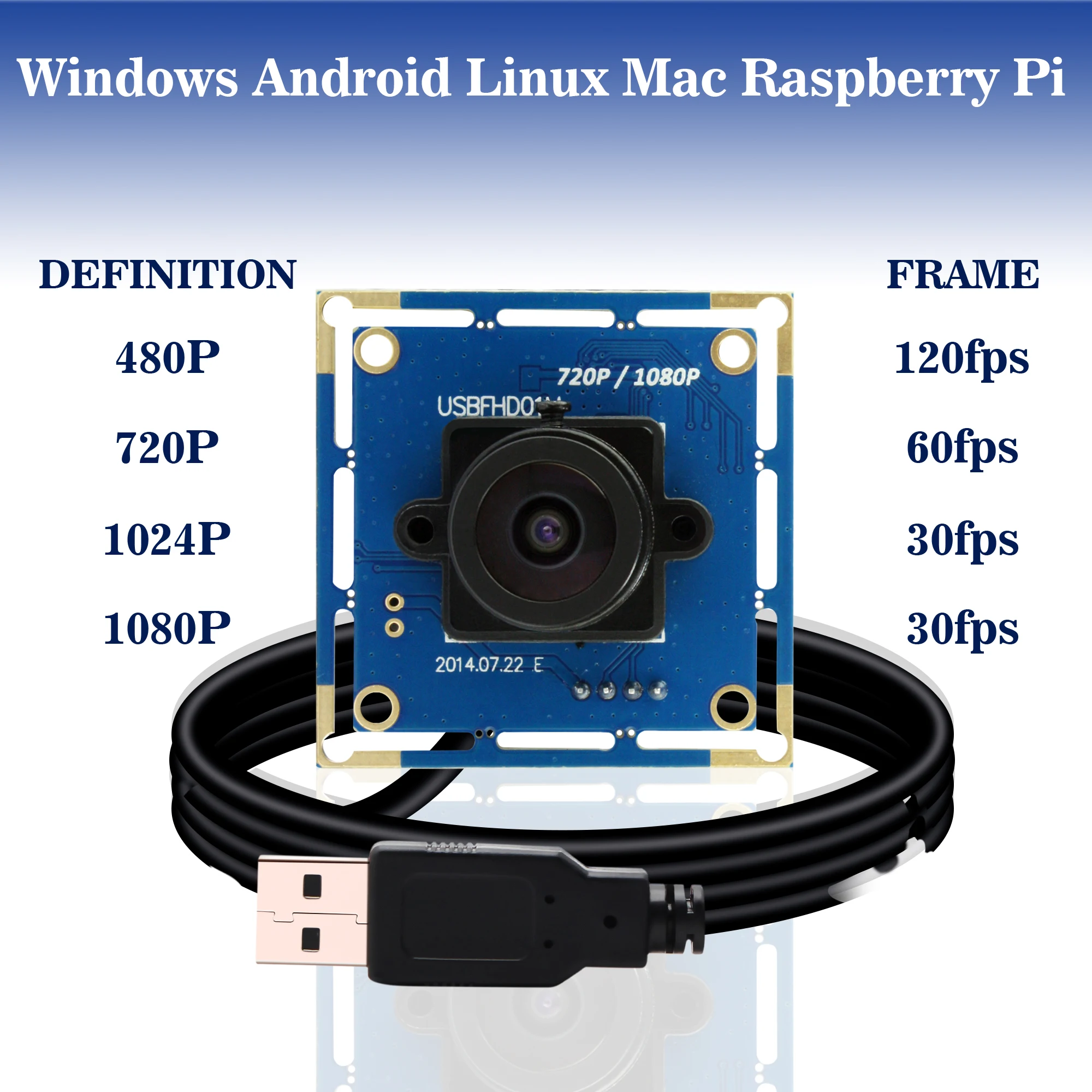

Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
Automatic white balance and automatic color correction.
Webcam captures your clips in true 1080p, and 30 frames per second, max.frame deliver VGA 100 frames per second,high pixel technology for sharp image and accurate color reproduction.
Resolution:MJPE 1920 x 1080
ELP Plug and Play USB Webcam
USB with camera is easy to use, there is no need to download or install complicated driving software, which means you don't have to set up any specific drivers or software.
Just only plug and play camera into computer USB port and running the software can make video display and recording work.

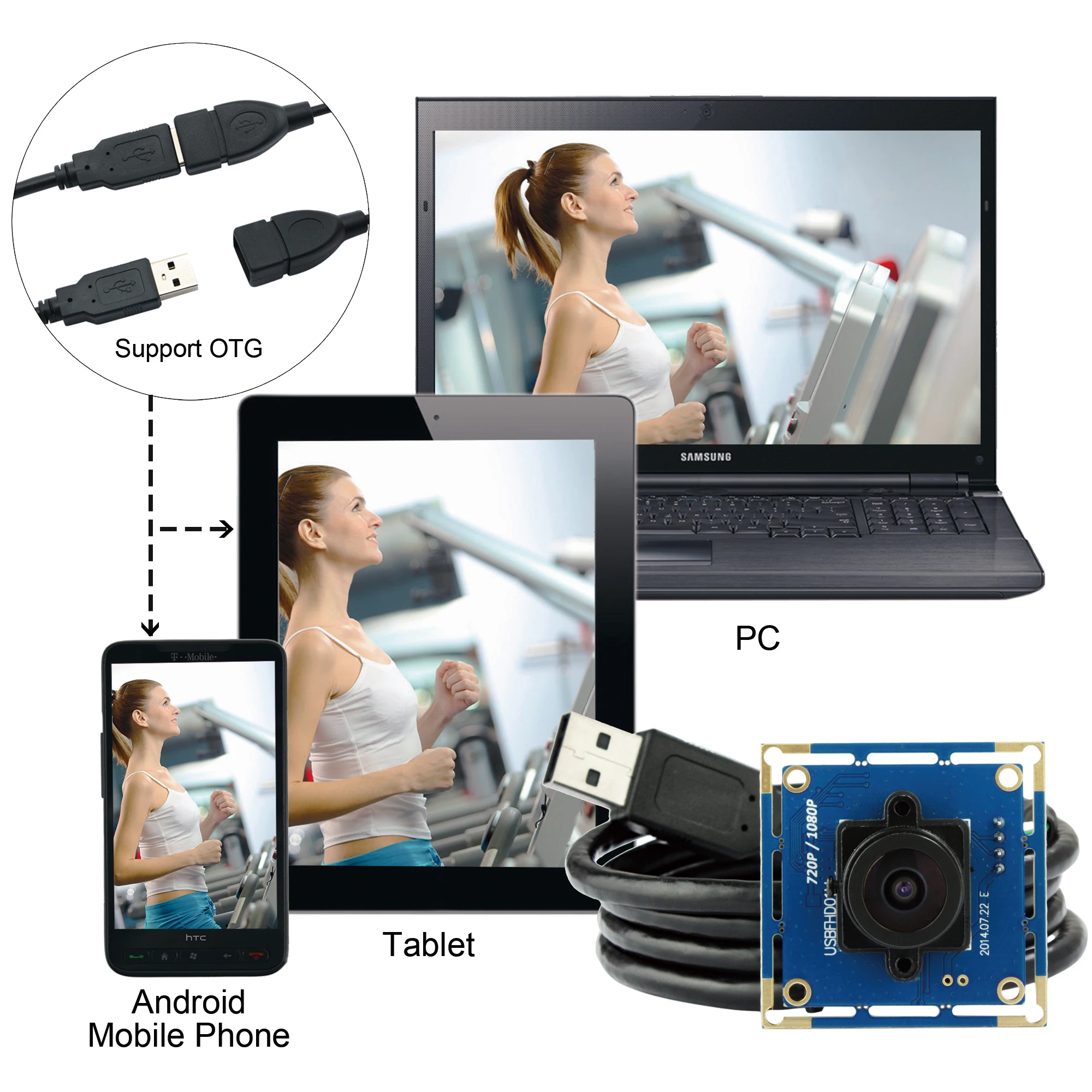

ELP 2MP Webcam Support OTG
* Can be connected to Android phone or Tablets.
* Default 1 meters usb cable.
ELP 1920x10800 USB Camera

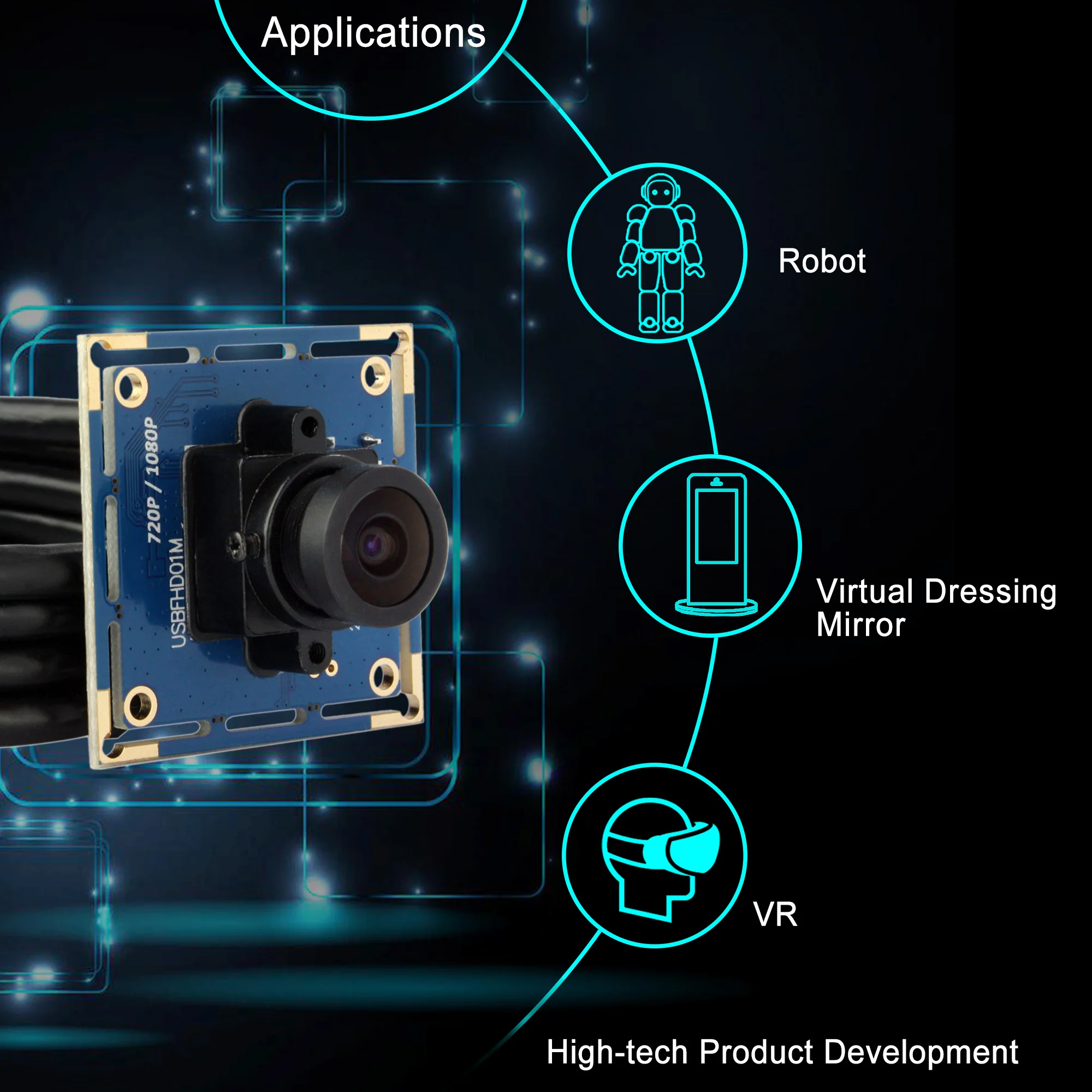

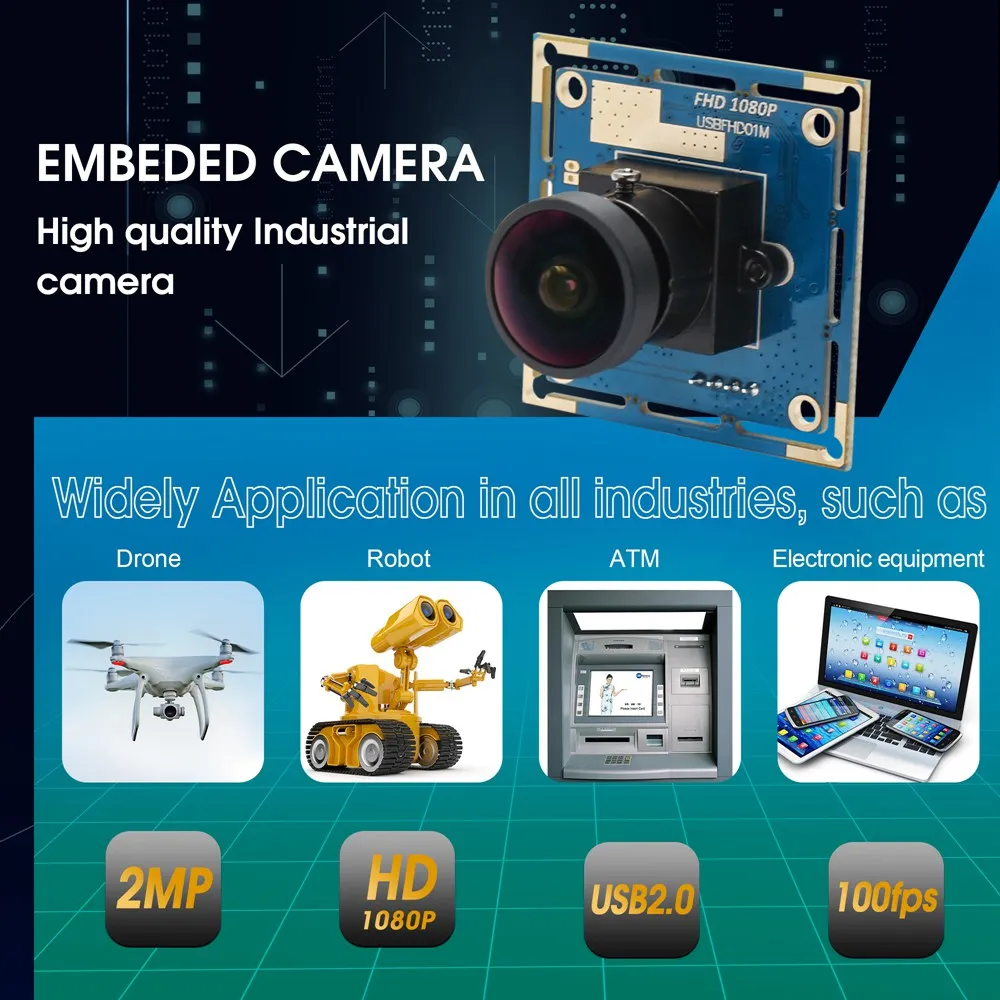

Multiple application
ATM machine, robot system, teaching system

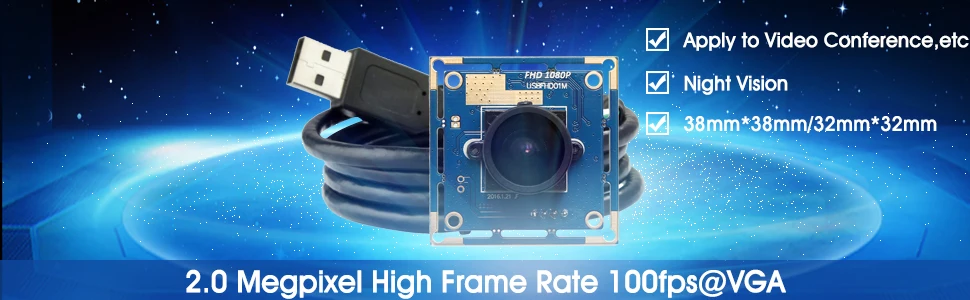

ELP 2 Megapixel High Speed 1920x1080@30fps Webcam
* Max Resolution:1920x1080 30fps MJPEG
* Sensor:1/3Inch OV2710
* Plug-&-Play (UVC compliant).
* USB2.0 camera module with 1 meter USB2.0 cable.
* Sensor:1/3Inch OV2710
* Plug-&-Play (UVC compliant).
* USB2.0 camera module with 1 meter USB2.0 cable.

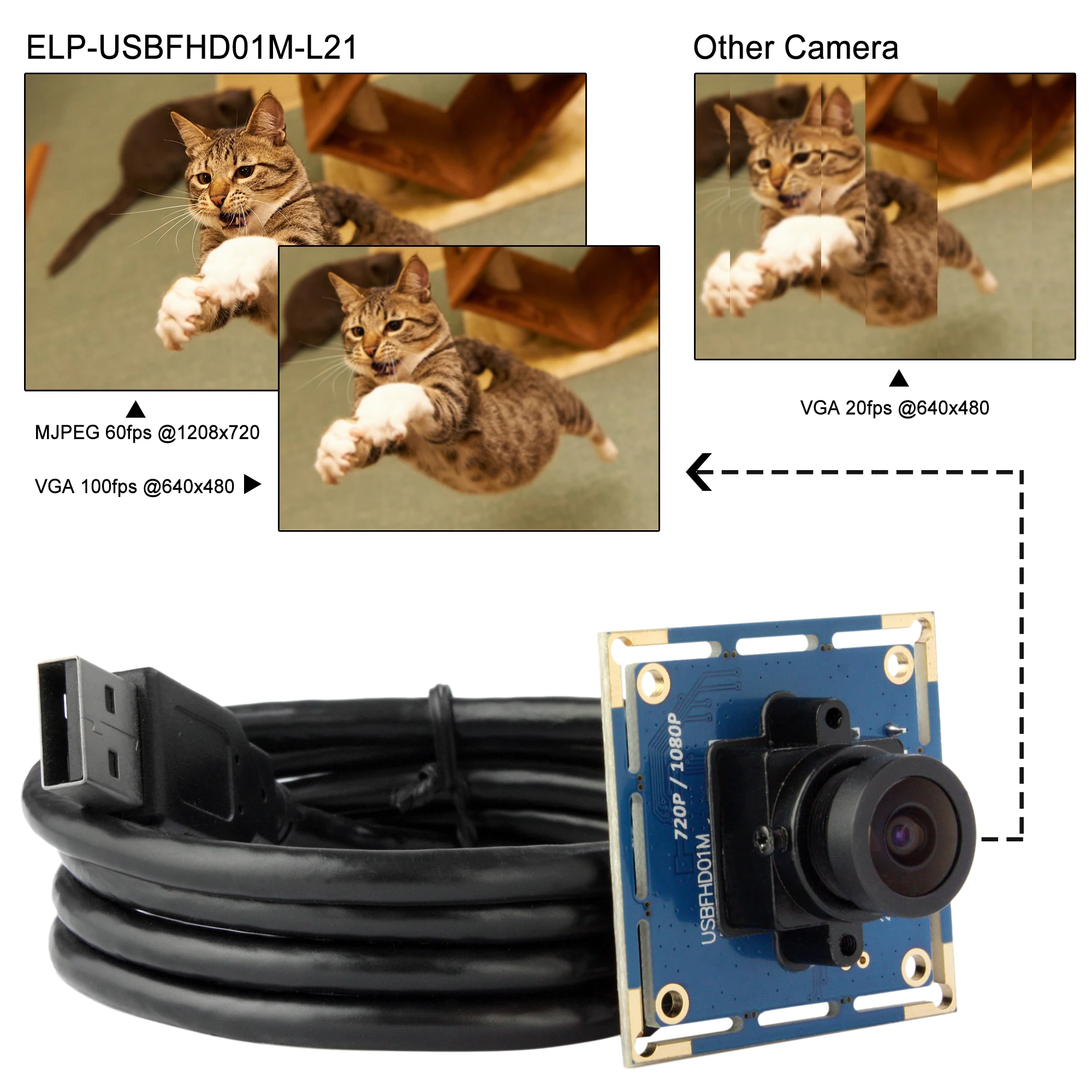

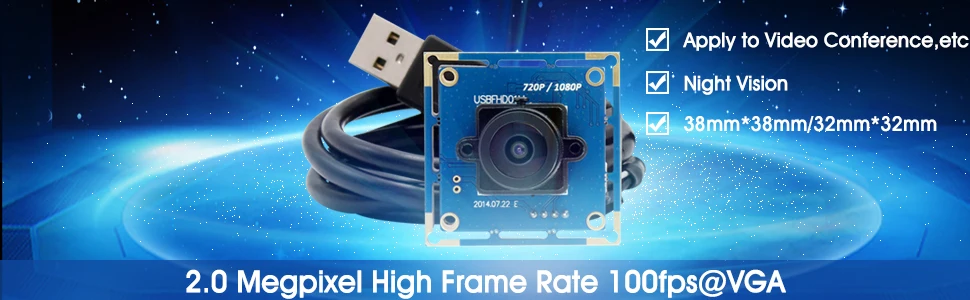

Fast frame up to 30fps@1080p 60fps@720P 100fps@VGA which is good to use for fast moving video system,such as sports tool, the wild animals, medical etc.
2MP HD 1080P USB Camera High Frame with Widely Application in Industrial
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,
LED display, automatic vending machine,safety box, notebook, video door phone, MID,
Tablet external, evaluator,Medical Equipment, ttendance machine, Voting system etc.
LED display, automatic vending machine,safety box, notebook, video door phone, MID,
Tablet external, evaluator,Medical Equipment, ttendance machine, Voting system etc.

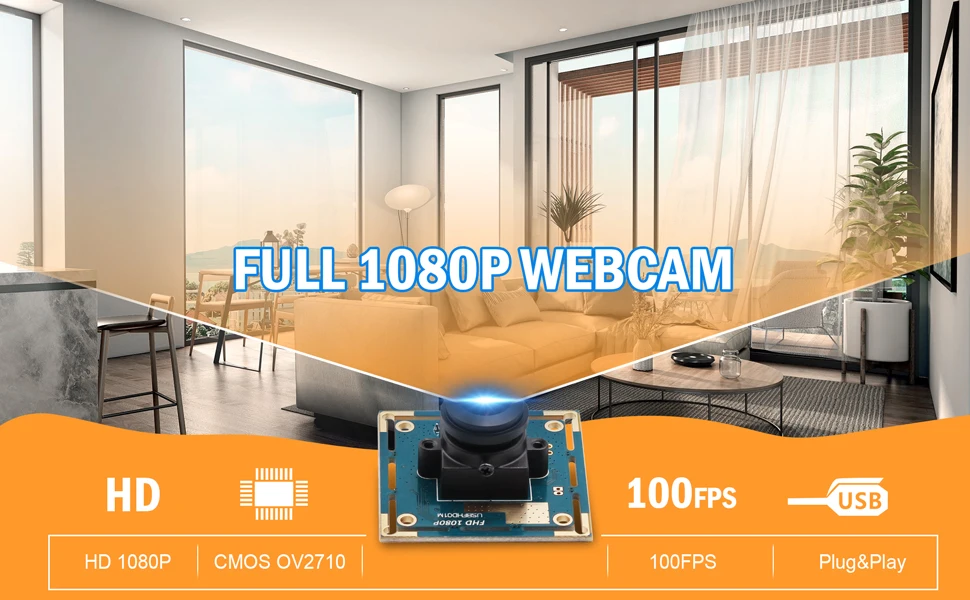

USB Webcam equipped with CMOS OV2710 image sensor, High frame rate 1920x1080 USB Webcam. which can provide a morecrystal-clear image and video for professional quality video conference, web-casting and recording.
Perfect for high levels video system for personal or industrial.

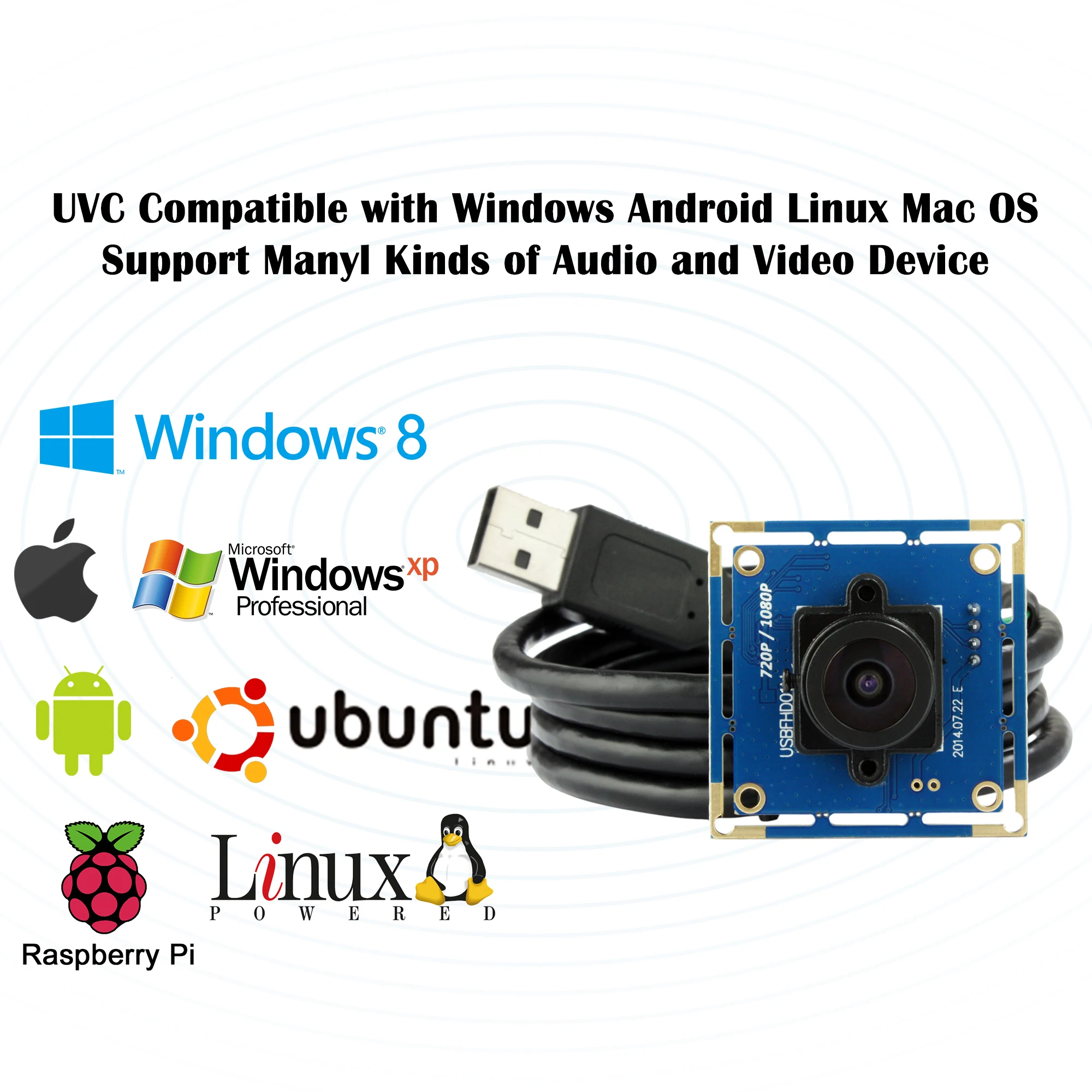

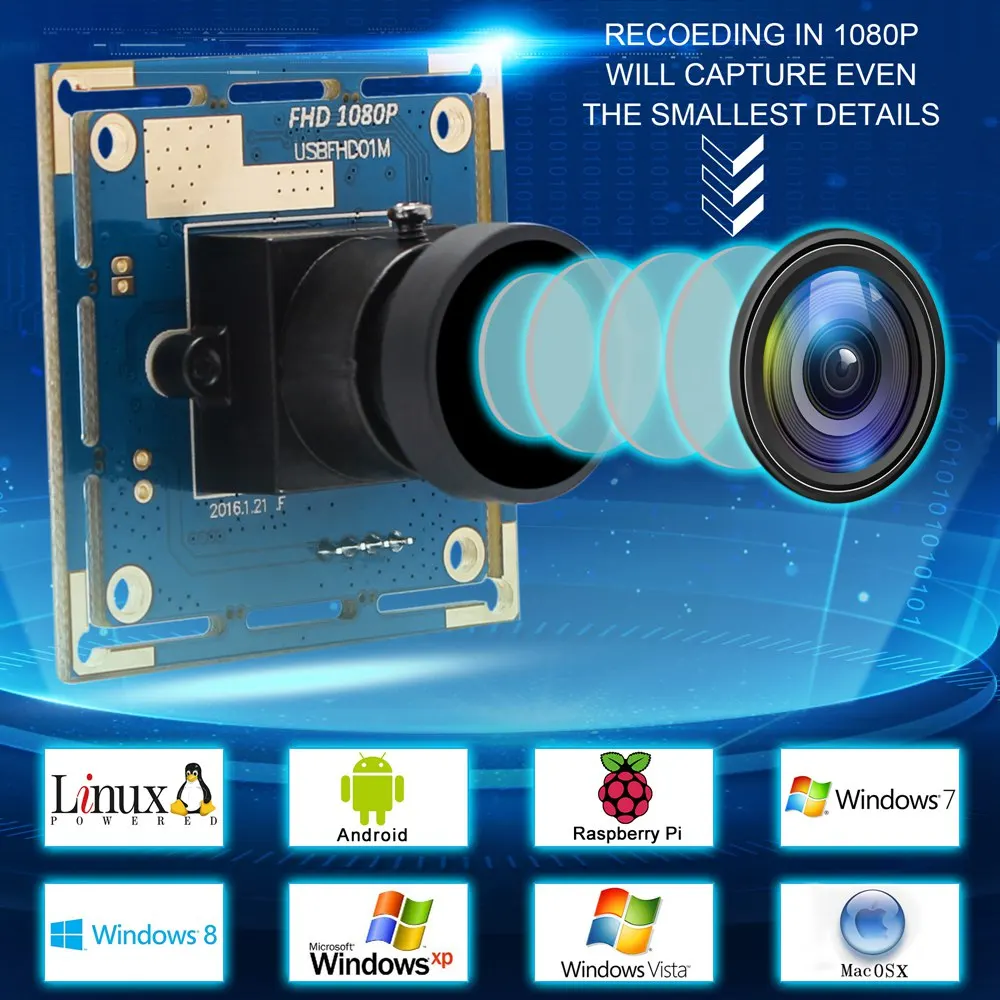

ELP 1080P USB Camera High Frame for Android, Windowns, Linux, Mac
This mini camera have versatile compatibility, support multipe software include OBS, Zoom, Skepe, Amcap and systems like Linux, Windows, Mac, Android, Raspberry Pi
USB Camera widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
Packing & Delivery
Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.
Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 18 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
Certification: CE, FCC, RoHS, UL
333
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
