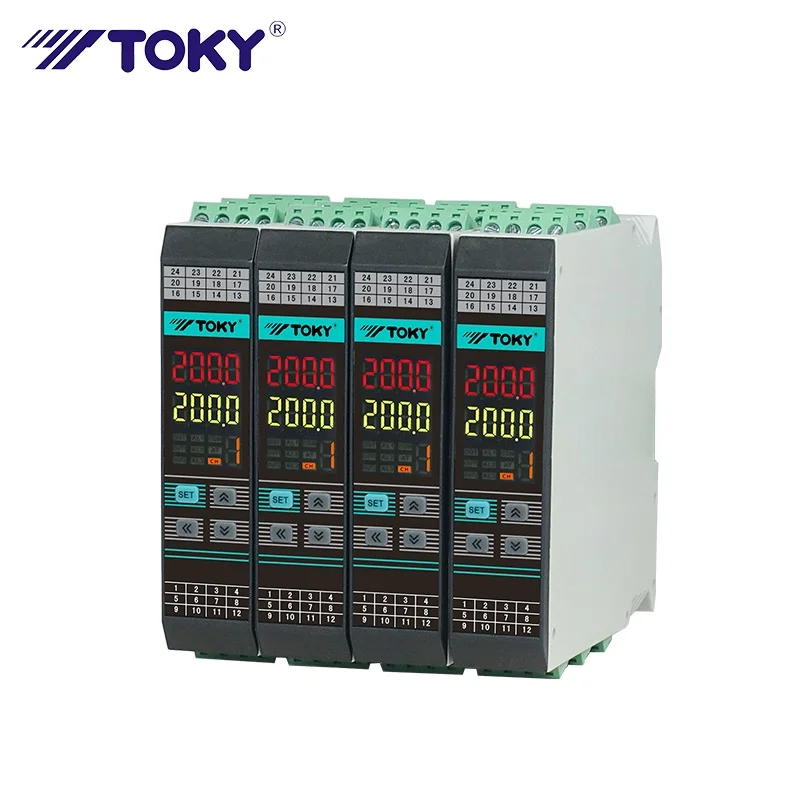

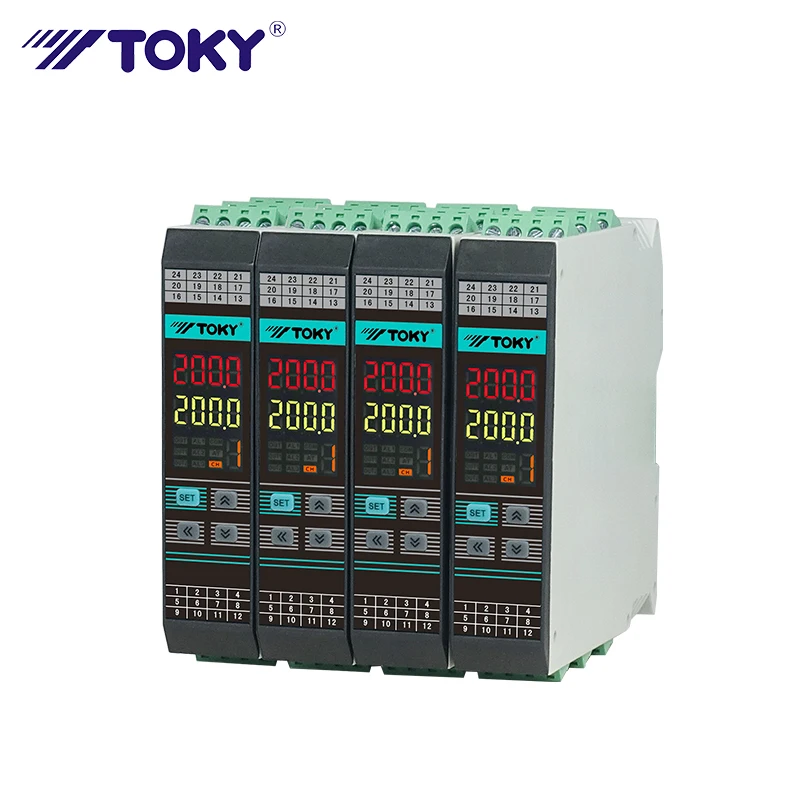

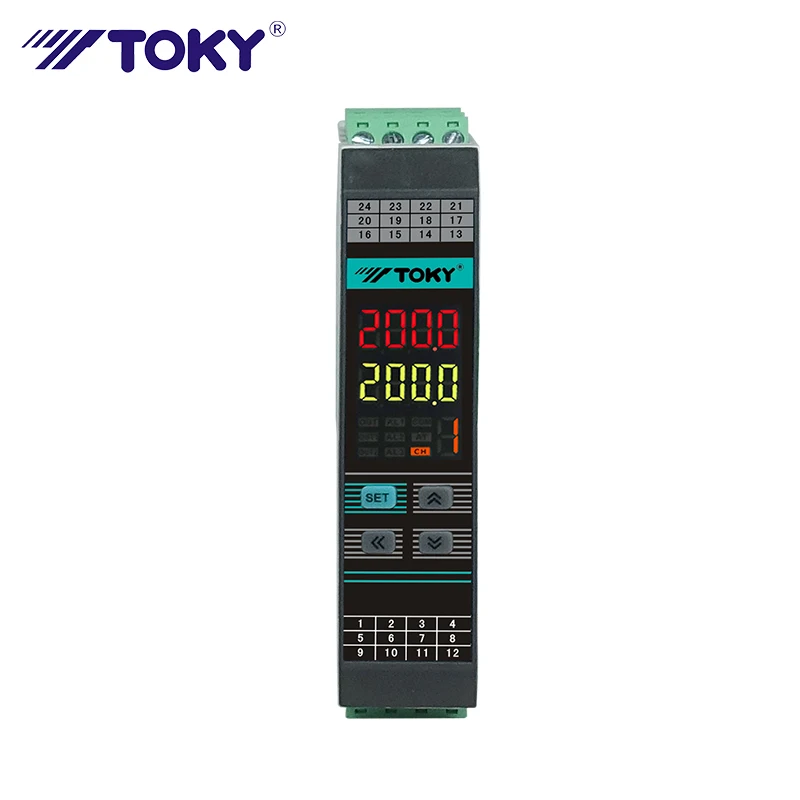

Hot Selling Industrial Control Thermostat Module Type 4 Channels Temperature Controller With Measured Display
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600853098506):
Product Overview
Description
Products Description
Sample rate | 1 times per second per channel |
Power supply | DC 24V |
Power consumption | < 6VA |
Environment | Indoor use,Temperature：0～50℃ no condensation, Humidity：＜85%RH，altitude<2000m |
Storage environment | -10～60℃, no condensation |
SSR output | DC 24V pulse level, load<20mA |
Current output | DC 24 DC 100mA per channel |
Communication port | RS485 port, Modbus-RTU procotol |
Insulation impedance | Input, output, power cabinet＞20MΩ |
ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.CriGTEria B |
Surge immunity | IEC/EN61000-4-5 ±2KV perf.CriGTEria B |
Voltage drop & short interruption immunity | IEC/EN61000-4-29 0%～70% perf.CriGTEria B |
Dielectric strength | DC500V 1min |
Total weight | About 400g |
Shell material | PA66-FR (Flame Class UL94V-0) |
Panel material | PVC film and PEM silicone key |
Power-off data protection | 10 years , times of writing: 1 million times |
Safety Standard | IEC61010-1 Overvoltage category Ⅱ，pollution level 2， level Ⅱ（Enhanced insulation) |
