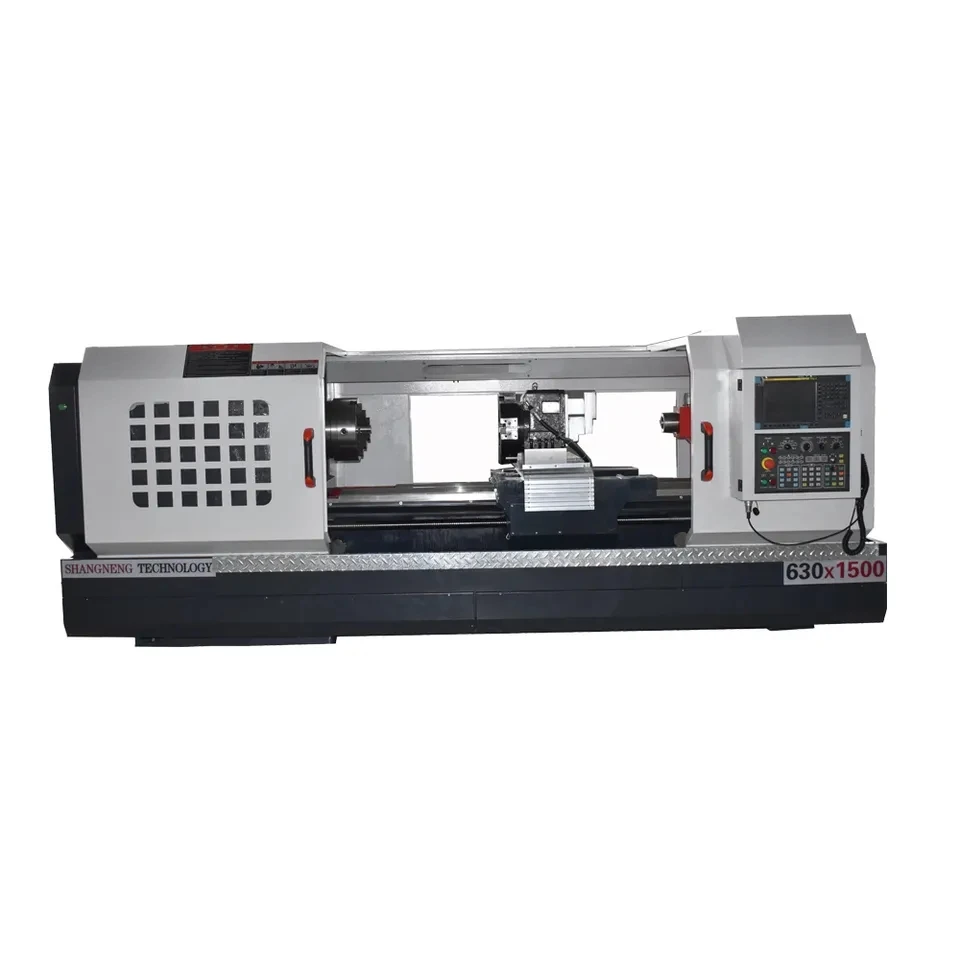

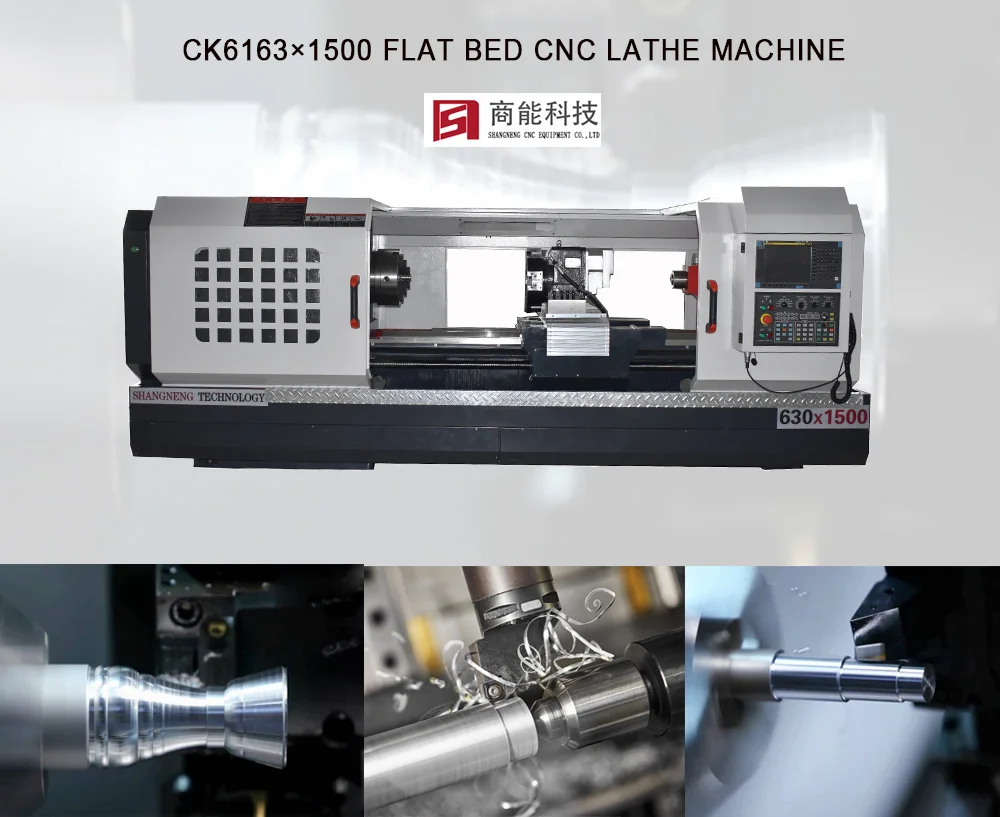

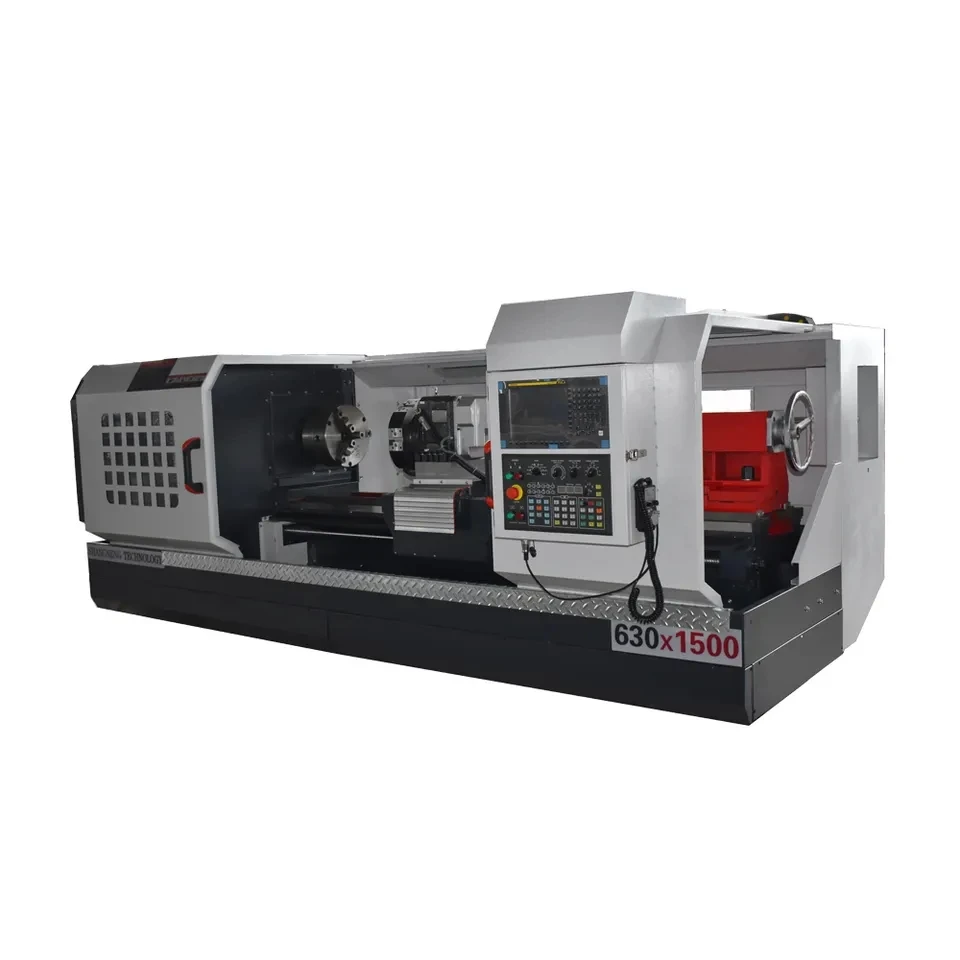

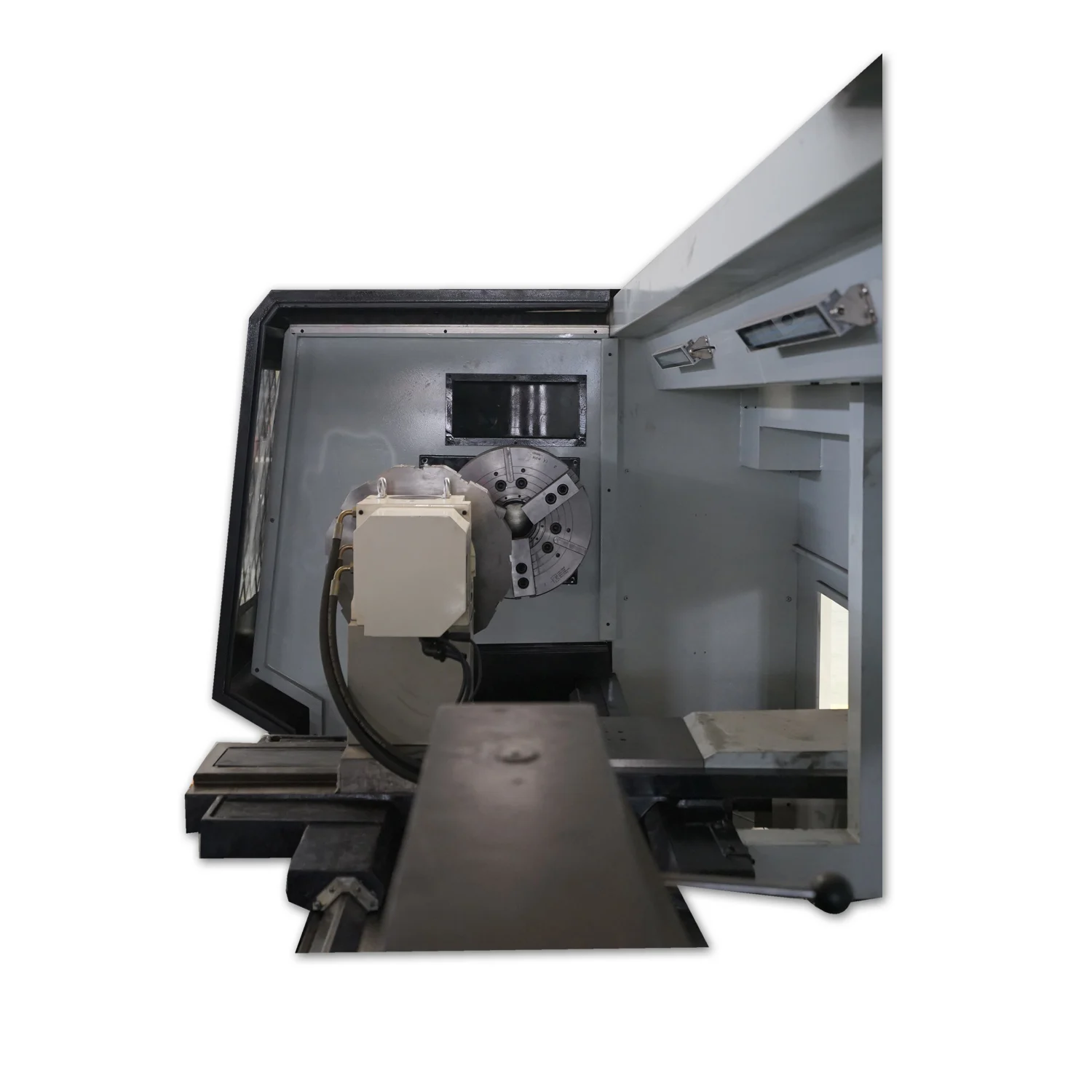

Taiwan Technology cnc lathe machine tools CK6163 Homemade emco horizontal CNC lathe manufacturer from China
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600853259358):
Product Overview
Description
Product Description
Standard configuration:
1. 11KW spindle motor;
2. Max spindle speed 950 rmp, three steps frequency conversion;
3. Diameter of spindle through hole 105mm;
4. 4 station electric tool rest

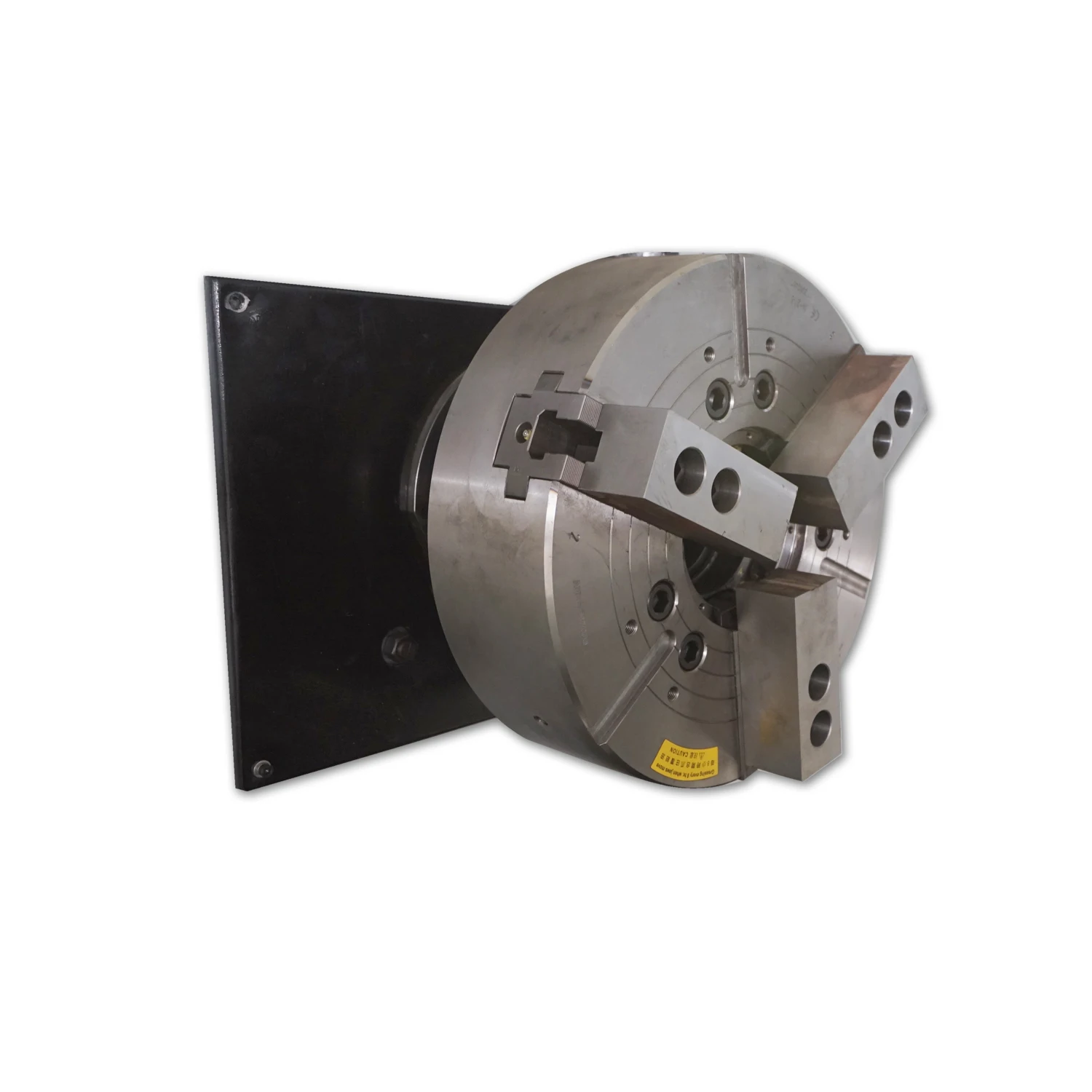

5. Manual chuck diameter 320mm

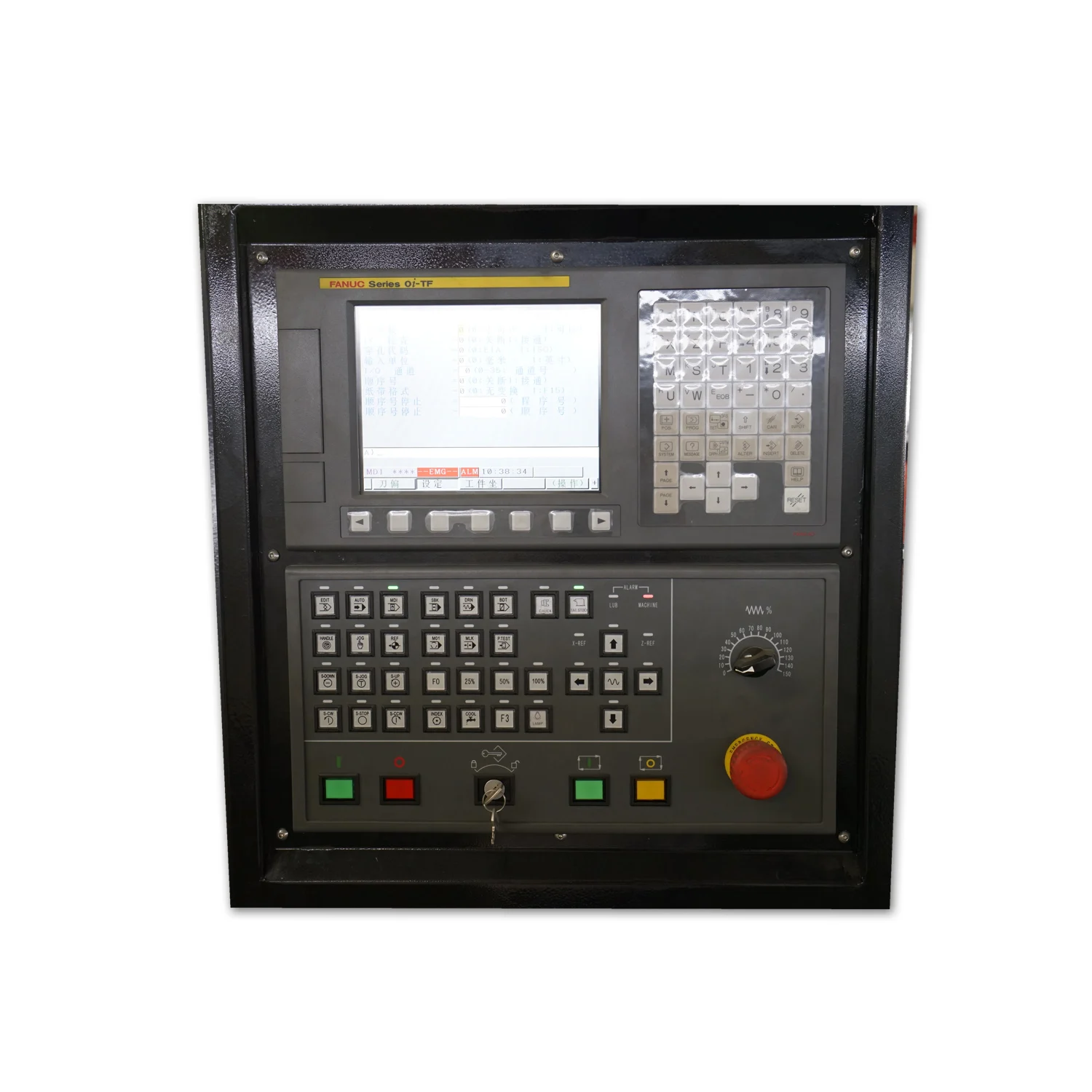

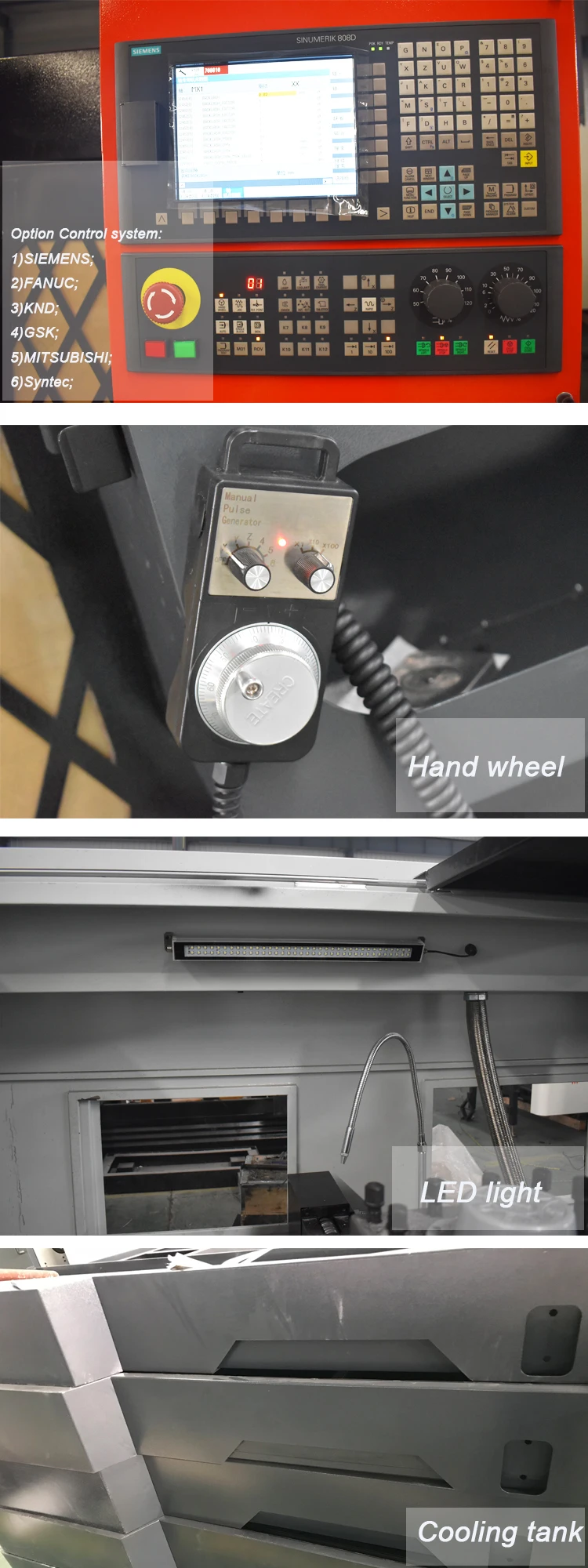

6. GSK controller system
Optional configuration:
1. Hollow 12 inch hydraulic chuck;
2. Solid 15 inch hydraulic chuck;
3. 6 /8 station electric turret;
4. Servo spindle motor;
5. Max processing length 2000mm
6. Max processing length 3000mm

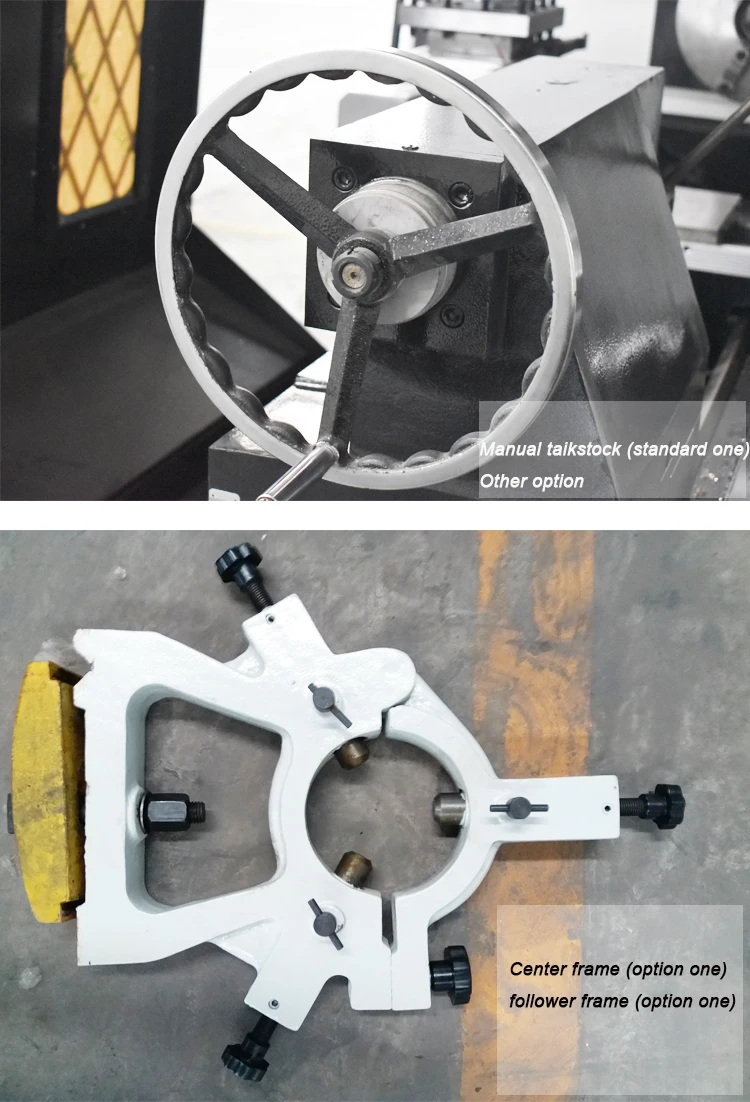

7. Maunal/ Hydraulic steady rest
8. Automatic bar feeding
Specification
Item | CK6163 |
Max.Swing over bed | 630mm |
Max.Swing over slide | 350mm |
Max.processing Length | 1500/2000/3000mm |
X/Z axis Rapid speed | 4/7m/min |
X/Z axis positioning precision | 0.025/0.03mm |
X/Z axis repositioning precision | 0.01/0.015 |
Processing precision | IT6-IT7 |
Ellipticity | 0.01mm |
Surface Rouhness | Ra1.6 |
Spindle Speed Range | Three steps frequency 40-125,110-350, 290-950 |
Spindle head type | C11 |
Dia.of Spindle Thru-hole | 105mm |
Spindle Hole Tapper | 1:20 |
Chuck | 320mm (12”) |
Spindle Motor power | 11KW |
Tool Holder Type | Vertical 4 stations |
Turning tool size | 30*30mm |
Tailstock Sleeve travel | 250mm |
Tailstock Sleeve Dia. | 100mm |
Tailstock Sleeve Taper | Morse5 |
N.W | 3600kgs |

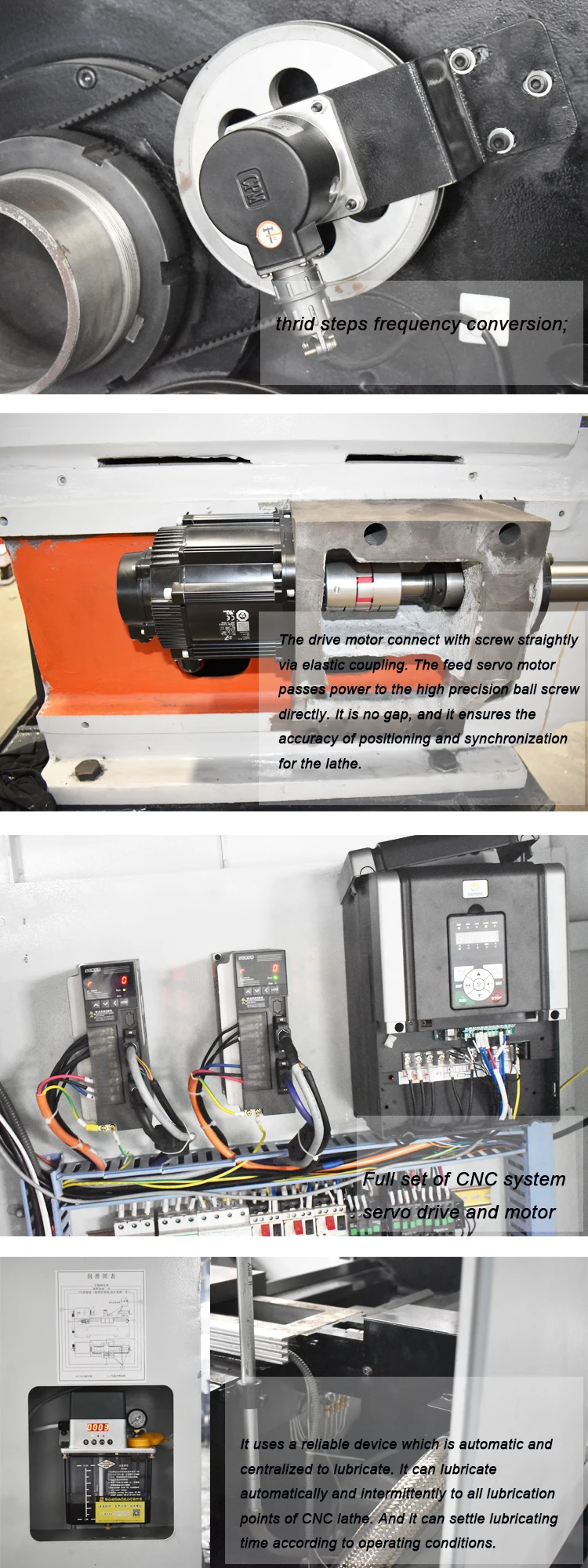

Main feature
Packing & Delivery
Strong wooden box
Packing size: L*W*H 3700*1500*1600mm
Company Profile
Jinan Sunligh CNC Equipment Co.,Ltd located in the beautiful capital Jinan City, Integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Now our products have a large market share and have a high popularity in domestic. Sales and service net work have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
Exhibition
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
